friday july 11
Friday July 11
  • 8:30 AM 9:0 AM Catch up
  • Lecture 3
  • Slide 5 Electron projected in electric field problem
  • Chapter 23 Problem 29 Cylindrical shell problem surrounding wire
  • Show Faraday Ice Pail no chrage inside shell
  • Lecture 4
  • Slide 34 Equipotential surfaces,
  • Sharp points
  • Total energy of charge distribution of charge
  • 9:00 AM Lord Kelvin Water drop Generator explanation Lecture 5 Capacitance
  • Reminder Put Microphone On

Example: An electron is projected perpendicularly to a downward electric field of E= 2000 N/C with a horizontal velocity v=106 m/s.How much is the electron deflected after traveling 1 cm.






Kelvin Water Drop GeneratorElectrons follow red path as the rings and the cans becomeincreasingly polarized through induction

The figure belows shows a thin plastic rod of length L and uniform positive charge Q lying on an x axis. Find the electric field at point P1 on the axis, at distance d from one end of the rod. Find the x and y components.



lecture 5 capacitance ch 25
Lecture 5 Capacitance Ch. 25
  • Cartoon - Capacitance definition and examples.
  • Opening Demo - Discharge a capacitor
  • Topics
    • Capacitance - What is it?
    • Parallel Plate Capacitor
    • Dielectrics and induced dipoles
    • Coaxial cable, Concentric spheres, Isolated sphere
    • Two side by side spheres
    • Energy density
    • Graphical integration
    • Combination of capacitance
  • Demos
    • Isolated sphere capacitor
    • Circular parallel plate capacitor
    • Cylindrical capacitor
    • Dielectric Slab sliding into demo
  • Elmo Problems
  • Polling
what is capacitance
What is Capacitance?

Capacitance is a characteristic of a single isolated conducting object

or a pair of conducting objects or even three objects. To keep it simple, suppose I have sphere and I put some charge on it say an amount

q. Then it will have some voltage V. If now I double the q,

the voltage will double. The point is that the ratio q/V is constant

and it is called the capacitance. C= q/V. This will be true for any combination of objects. Even if there is no charge on the object it still has a capacitance as you will see.

To help you understand capacitance, consider the isolated sphere again in more detail. If I put a chare q on the isolated sphere, the potential at any point r where r>R, the radius of the sphere, is given by the potential for a point charge.

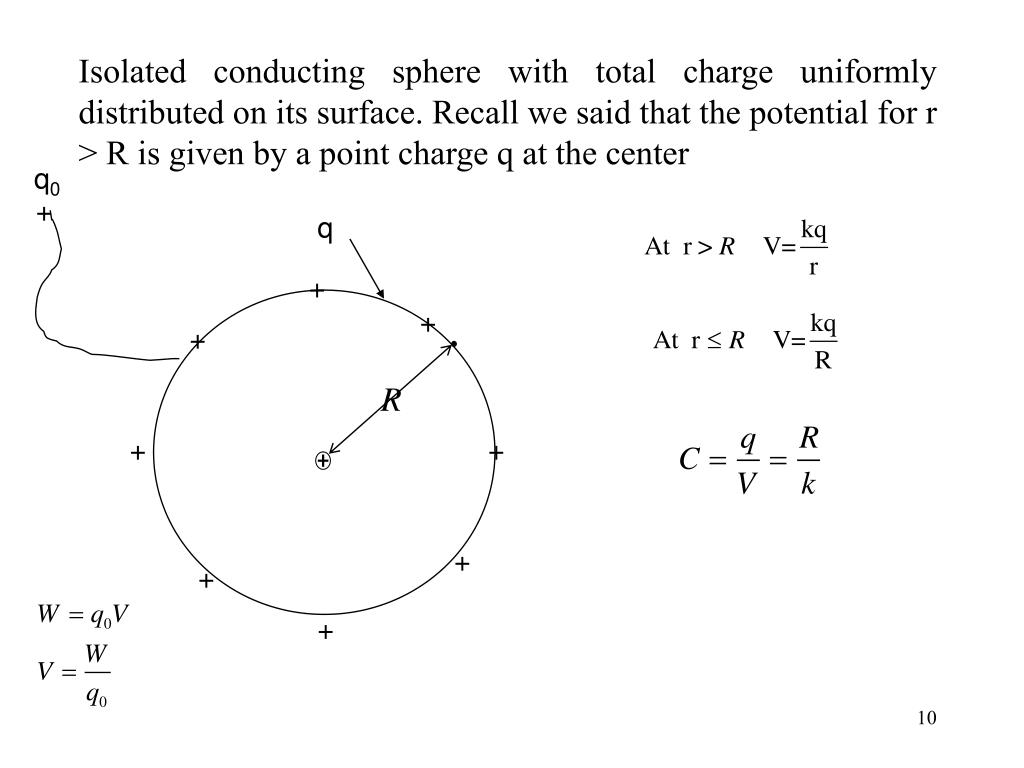

Isolated conducting sphere with total charge uniformly distributed on its surface. Recall we said that the potential for r > R is given by a point charge q at the center












isolated conducting sphere continued



Isolated conducting sphere Continued

Units of Capacitance is 1F =1 Farad = 1 C/Volt

k = 8.99 X 109 Nm2/C2 and R is in meters we have

Earth: C = (6x108 cm)pF = 600 F

Conducting Marble: 1 pF

You: 30 pF




How does the capacitance of the charged conducting sphere change when another neutral sphere is nearby.












Notice the redistribution of charge on both spheres. In effect

the potential V of the original sphere is lowered for the same

amount of charge. This means its effective capacitance has increased in the presence of the neutral sphere. Try to demonstrate it.

what is the capacitance of two charged conducting spheres one of charge q and one of charge q



What is the capacitance of two charged conducting spheres?One of charge +q and one of charge - q.




C = q/V = 40a (1/(1-m))

The effective capacitance increases

for the paired conductor case and that

is why we make capacitors the way

we do.

d =20 cm

a =10 cm

m = a/d = 0.5


C= 0.2 x 10-10 F

C= 0.02 nF =20 pF

If d gets very large, then C= 10 pF

for the isolated sphere.

  • The most widely used capacitor consists of two parallel conducting plates of area A separated by a narrow air gap d. If charge +Q is placed on one plate, and -Q on the other, the potential difference between them is V, and then the capacitance is defined as .
  • Applications
    • Radio tuner circuit uses variable capacitor
    • Blocks DC voltages in ac circuits
    • Act as switches in computer circuits
    • Triggers the flash bulb in a camera
    • Converts AC to DC in a filter circuit
electric field of parallel plate capacitor

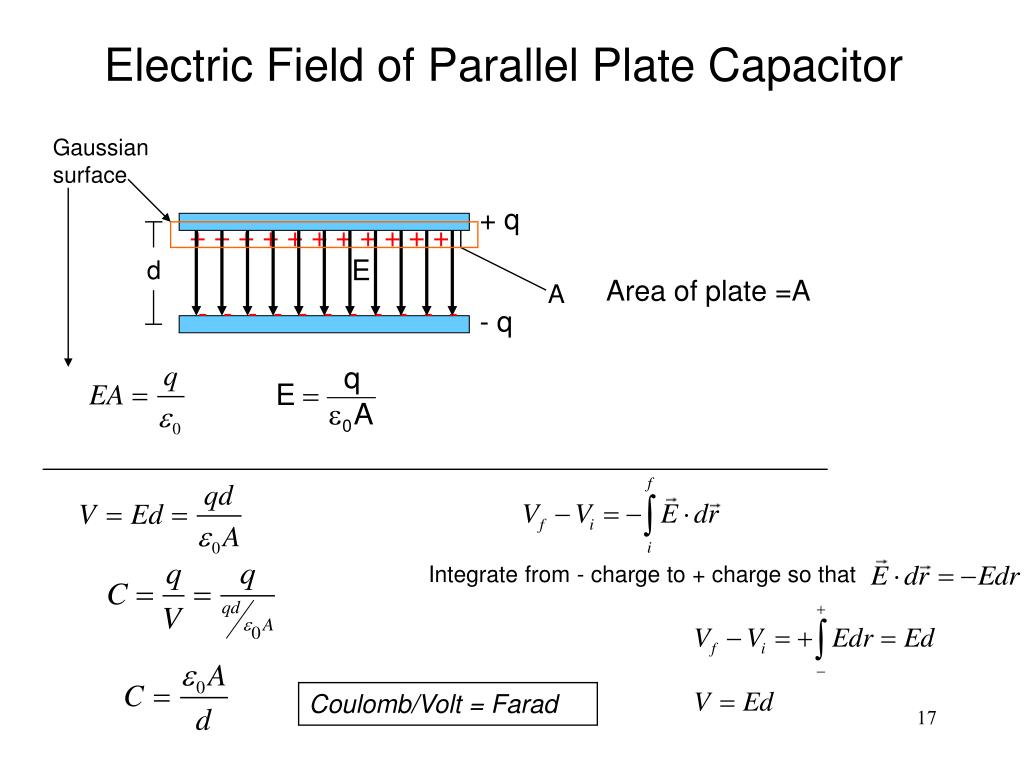

Electric Field of Parallel Plate Capacitor

Gaussian surface

+ q

+ + + + + + + + + + +




Area of plate =A

- - - - - - - - - - -

- q

Integrate from - charge to + charge so that

Coulomb/Volt = Farad

show demo model calculate its capacitance and show how to charge it up with a battery
Show Demo Model, calculate its capacitance, and show how to charge it up with a battery.

Circular parallel plate capacitor

r = 10 cm = 0.1m

A = r2 = (.1m)2

A = .03 m 2

d = 1 mm = .001 m




p = pico = 10-12

demo continued
Demo Continued
  • Connect Battery to aluminum plate to charge it up with plates close together.
  • Connect voltmeter to plates.
  • Disconnect battery and move plates apart and watch voltage increase
  • Recall
  • 1. As d increases, C decreases and V increases because q is constant.
  • 2. If you leave battery connected, V is constant and q decreases.

Demonstrate that a piece of wire has capacitance by touching electroscope.

  • A dielectric is any material that is not a conductor, but polarizes well. Even though they don’t conduct they are electrically active
    • Examples. Stressed plastic or piezo-electric crystal will produce a spark.
    • When you put a dielectric in a uniform electric field (like in between the plates of a capacitor), a dipole moment is induced on the molecules throughout the volume. This produces a volume polarization that is just the sum of the effects of all the dipole moments. If we put it in between the plates of a capacitor, the surface charge densities due to the dipoles act to reduce the electric field in the capacitor.
permanent dipoles

Induced dipoles

Permanent dipoles




E0 = the applied field

E’ = the field due to

induced dipoles

E = E0 - E’

  • The amount that the field is reduced defines the dielectric constant  from the formula , where E is the new field and E0 is the old field without the dielectric.
  • Since the electric field is reduce, the voltage difference is reduced,
  • and the capacitance is increased.
    • where  is typically between 2 – 6 with water equal to 80. See pg 669 for table of dielectric constants
    • Repeat demo with dielectric slab sliding in between plates. Watch how capacitance and voltage change. Also show aluminum slab.
gauss s law for dielectrics
Gauss’s Law for Dielectrics

Induced charge

Induced charge factored into kappa

find the capacitance of a ordinary piece of coaxial cable tv cable
Find the capacitance of a ordinary piece of coaxial cable (TV cable)

Integrate from b to a or - to +



 air

Va is higher than Vb

capacitance of a coaxial cable cont
capacitance of a coaxial cable cont.

a = 0.5 mm

b = 2.0 mm

  2

Now if a=0.5mm and b=2.0mm, then

And if k = 2, then

For  = 2

0 (for air)

capacitance of two concentric spherical shells
Capacitance of two concentric spherical shells


Integration path







for an isolated sphere

Let b get very large. Then

electric potential energy of capacitor



Electric Potential Energy of Capacitor
  • As we begin charging a capacitor, there is initially no potential difference between the plates. As we remove charge from one plate and put it on the other, there is almost no energy cost. As it charges up, this changes.

At some point during the charging, we have a charge q on the positive plate.

The potential difference between the plates is

As we transfer an amount dq of positive charge from the negative plate to the positive one, its potential energy increases by an amount dU.

The total potential energy increase is

graphical interpretation of integration



V = q/c


= Area under the triangle




Area under the triangle is the value of the integral

Graphical interpretation of integration

Area of the triangle is also =

where is the energy stored in a capacitor
Where is the energy stored in a capacitor?

Find energy density for parallel plate capacitor. When we charge a capacitor we are creating an electric field. We can think of the work done as the energy needed to create that electric field. For the parallel plate capacitor the field is constant throughout, so we can evaluate it in terms of electric field E easily.

volume occupied by E

We are now including dielectric effects: 

Electrostatic energy density general result for all geometries.

To get total energy you need to integrate over volume.

how much energy is stored in the earth s atmospheric electric field order of magnitude estimate
How much energy is stored in the Earth’s atmospheric electric field?(Order of magnitude estimate)


20 km




R = 6x106 m

The total solar influx is 200 Watts/m2

Only an infinitesimal fraction gets converted to electricity.

parallel combination of capacitors
Parallel Combination of Capacitors

Typical electric circuits have several capacitors in them. How do they combine for simple arrangements? Let us consider two in parallel.






We wish to find one equivalent capacitor to replace C1 and C2. Let’s call it C.

The important thing to note is that the voltage across each is the same and equivalent to V. Also note what is the total charge stored by the capacitors? Q.

series combination of capacitors
Series Combination of Capacitors










What is the equivalent capacitor Ceq?

Voltage across each capacitor does not have to be the same.

The charges on each plate have to be equal and opposite in sign by charge conservation.

The total voltage across each pair is:



sample problem
Sample problem

C1 = 10 F

C2 = 5.0 F

C3 = 4.0 F

a) Find the equivalent capacitance of the three capacitors

C1 and C2 are in series.

C12 and C3 are in parallel.

sample problem continued
Sample problem (continued)

C1 = 10 F

C2 = 5.0 F

C3 = 4.0 F

b) If V = 100 volts, what is the charge Q3 on C3?

C = Q/V

c) What is the total energy stored in the circuit?

chapter 25 problem 28

5 uF

100 V

10 uF

15 uF

In Fig. 25-28, a potential difference V = 100 V is applied across a

capacitor arrangement with capacitances C1 = 10.0 µF, C2 = 5.00 µF,

and C3 = 15.0 µF. Find the following values.

Chapter 25 Problem 28
  • the charge on capacitor 3

(b) the potential difference across capacitor 3

(c) the stored energy for capacitor 3


5 uF

100 V

10 uF

15 uF

(d)the charge on capacitor 1

(e) the potential difference across capacitor 1

(f) the stored energy for capacitor 1

(g) the charge on capacitor 2

(h) the potential difference across capacitor 2

(i) the stored energy for capacitor 2

chapter 25 problem 34
Chapter 25 Problem 34

An air-filled parallel-plate capacitor has a capacitance of 1.4 pF. The separation of the plates is doubled and wax is inserted between them. The new capacitance is 2.3 pF. Find the dielectric constant of the wax.

chapter 25 problem 40
Chapter 25 Problem 40

You are asked to construct a capacitor having a capacitance near 1 nF and a breakdown potential in excess of 10,000 V. You think of using the sides of a tall Pyrex drinking glass as a dielectric, lining the inside and outside curved surfaces with aluminum foil to act as the plates. The glass is 17 cm tall with an inner radius of 3.1 cm and an outer radius of 3.5 cm. The dielectric strength is 14 kV/mm.

(a) What is the capacitance?

(b) What is the breakdown potential of this capacitor?
