  1. *PHDD: Multiplicative Power Hybrid Decision Diagrams[1] ECE 667 Student Presentation Gayatri Prabhu [1]. *PHDD: An Efficient Graph Representation for Floating Point Circuit Verification – Y. Chen, R. Bryant, ICCAD 1997

  2. Agenda • Motivation • Floating point representation • *PHDD construction • Floating point function through *PHDDs • Benefits • Conclusion

  3. Motivation • BMDs [1], *BMDs [1] ,K*BMDs [2] and HDDs [3] inefficient to map Boolean vectors to floating point values. • Output in the form of a word. • Need some way of incorporating the radix point • Need rational number (n/d) representation • Computationally expensive • Extend *BMDs to *PHDDs • Function with domain Boolean space and range floating point [1] Bryant,R.E and Chen Y-A. “Verification of arithmetic circuits with binary moment diagrams”, DAC 1995 [2] Drechsler R. , Becker,B. and Ruppertz,S. “K*BMDs: a new data structure for verification”, DATE 1995 [3] Clarke, E.M, Fujita M, Zhao X. “Hybrid decision diagrams overcoming the limitations of MTBDDs and BMDs “, ICCAD 1995

  4. Floating point representation • Floating point : Radix point at an arbitrary position • IEEE 754 notation to store in memory • Derived from scientific notation • Eg : 123.45 = 1.2345 x 102 Number = (-1)sign x (Base)exponent x Mantissa • Sign: 0 means positive and 1 means negative • Base = 2 Sign Exponent Mantissa n m http://steve.hollasch.net/cgindex/coding/ieeefloat.html

  5. Floating point representation • Mantissa - m bits • Radix point after first non-zero digit; • Base 2 => Non zero-digit =1 • Mantissa always in form 1.X ; Stored mantissa = X • Exponent – n bits • Stored exponent = Actual exponent + Bias • Bias to remove negative numbers in the stored format • For n-bit exponent bias = 2n-1 -1 • So for n =3 , m = 3; Bias = 2(3-1) - 1 ; 0.75 = 0.11 • Sign=0; Stored exponent = -1+3 =2 ; Stored mantissa = 0b100 5 = 5.00 x 100 5 = 5000.0 x 10-3

  6. Floating point representation • Number = (-1)Sx * 2(EX-Bias) * 1.X • Normal form • Overflow : Exponent requires more bits • Not considered in *PHDDs • Underflow : Number too small to represent with precision. Eg:0.000000000000075 • Need to approximate to zero • Denormal form : (-1)Sx * 2(1-Bias) * 0.X

  7. Failure of *BMDs to represent floating point 2X-2 2X 2X-2 2X x1 1/4 x1 x1 x1 x0 x0 3 3 x0 x0 x0 1/4 1/2 1 2 x0 1 2 4 8 1 1 “ *PHDD: An Efficient Graph Representation for Floating Point Circuit Verification “ Y. Chen, R. Bryant, ICCAD 1997

  8. *PHDD : Construction and manipulation

  9. *PHDD- Introduction • Multiplicative Power Hybrid Decision Diagrams • Multiplicative • Edge weights multiplied with variables • Power • Edge weights restricted to powers of a constant • Hybrid since different decompositions allowed • Shannon - • Positive Davio - • Negative Davio

  10. x2 x1 2 x0 1 1 0 Edge weight rules • Edge weights = w which represents cw ; • c = constant ; positive • w can be positive or negative • Only c=2 considered since the effort is directed towards floating point arithmetic. • All edges have weight; • No weights near edge=> w=0 Represented function = {20 x0+21 x1+22 x2} “ *PHDD: An Efficient Graph Representation for Floating Point Circuit Verification “ Y. Chen, R. Bryant, ICCAD 1997

  11. *PHDD reduction rules (1) • Normalize edge weights • Atmost one branch has non-zero weight • Edge weights ≥ 0 except for the top one • Leaf nodes can have only odd integers or 0. “ *PHDD: An Efficient Graph Representation for Floating Point Circuit Verification “ Y. Chen, R. Bryant, ICCAD 1997

  12. x3 1 x2 x2 x1 x1 2 2 x0 x0 1 1 1 -1 0 0 x3 1 x2 x1 2 x0 1 1 0 *PHDD reduction rules (2) • Introduce negation edges • Increases sharing • Helpful whenever a sign bit is involved “ *PHDD: An Efficient Graph Representation for Floating Point Circuit Verification “ Y. Chen, R. Bryant, ICCAD 1997

  13. Making *PHDD canonical • Follow ordering • Associate decomposition type with variable • Remove redundancy • Merge isomorphic sub-graphs • Normalize edge weights • Negation edges whenever necessary • Zero edge of every node is a regular edge • Negation of leaf 0 is still leaf 0 • Leaves must be non-negative

  14. *BMD vs *PHDD *BMD *PHDD Decomposition – Shannon, Positive Davio & Negative Davio Edge weight – Powers of 2 (exponents) Weight manipulation – just addition and subtraction • Decomposition - Positive Davio • Edge weight – any number • Weight manipulation - requires GCD computations

  15. 2X x1 x0 x0 1 2 4 8 Representing a function in *PHDD x1, x0 bits of a number => X= x0+2x1and f = 2X Representation with Shannon decomposition “ *PHDD: An Efficient Graph Representation for Floating Point Circuit Verification “ Y. Chen, R. Bryant, ICCAD 1997

  16. 2X 2X 2X x1 x1 x1 2 2 x0 x0 2X x0 x0 x0 x1 1 2 3 1 1 1 x0 x0 1 1 1 1 2 4 8 Conversion from HDD to *PHDD Extract powers of 2 Reduce Normalize “ *PHDD: An Efficient Graph Representation for Floating Point Circuit Verification “ Y. Chen, R. Bryant, ICCAD 1997

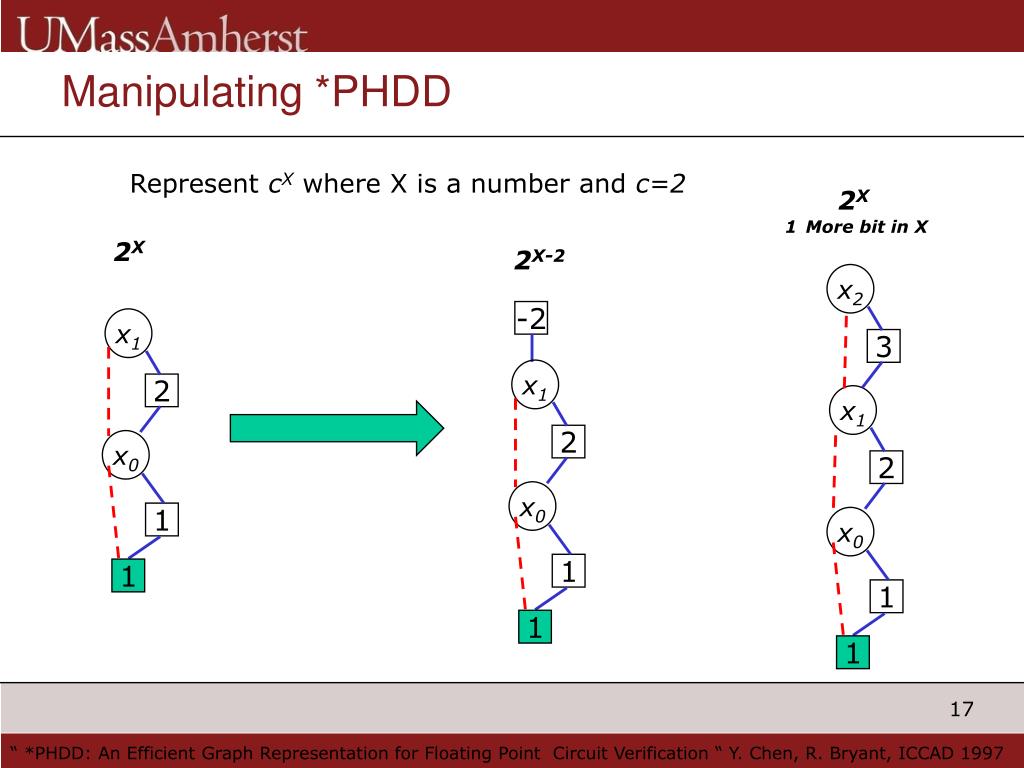

  17. 2X 1More bit in X 2X-2 -2 2X x1 x1 x1 2 2 2 x0 x0 x0 1 1 1 1 1 1 Manipulating *PHDD Represent cX where X is a number and c=2 x2 3 “ *PHDD: An Efficient Graph Representation for Floating Point Circuit Verification “ Y. Chen, R. Bryant, ICCAD 1997

  18. *PHDDs and ARITHMETIC

  19. Floating point operations • Break down into sign, exponent and mantissa part • PHDDs for each part • Shannon for sign • Shannon for exponent • Positive Davio for mantissa • Combine all the individual parts with an order • Bias at the top followed by sign, exponent and mantissa

  20. -4 Sx -4 ex1 2 ex0 -1 -3 -3 1 ex1 x2 x2 x2 2 x1 x1 x1 2 2 2 ex0 x0 Sx 1 x0 x0 1 1 1 3 1 1 0 0 1 1 1 Floating Point Encoding • Function:(-1)Sx * 2(EX-Bias) * 1.X • Exponent: 2bits, Mantissa: 3bits, Bias:1 “ *PHDD: An Efficient Graph Representation for Floating Point Circuit Verification “ Y. Chen, R. Bryant, ICCAD 1997

  21. PHDD and floating point encoding • Normal ->(-1)Sx * 2(EX-Bias) * 1.X • Denormal ->(-1)Sx * 2(1-Bias) * 0.X • EX – 3 bits ; X – 4 bits ; B =3 “ *PHDD: An Efficient Graph Representation for Floating Point Circuit Verification “ Y. Chen, R. Bryant, ICCAD 1997

  22. Applying *PHDDs to arithmetic operations • Represent numbers in a binary encoded form • Use composition (~ APPLY in BDDs) to combine the numbers in operations Eg: Floating point multiplication

  23. Floating point multiplication “ *PHDD: An Efficient Graph Representation for Floating Point Circuit Verification “ Y. Chen, R. Bryant, ICCAD 1997

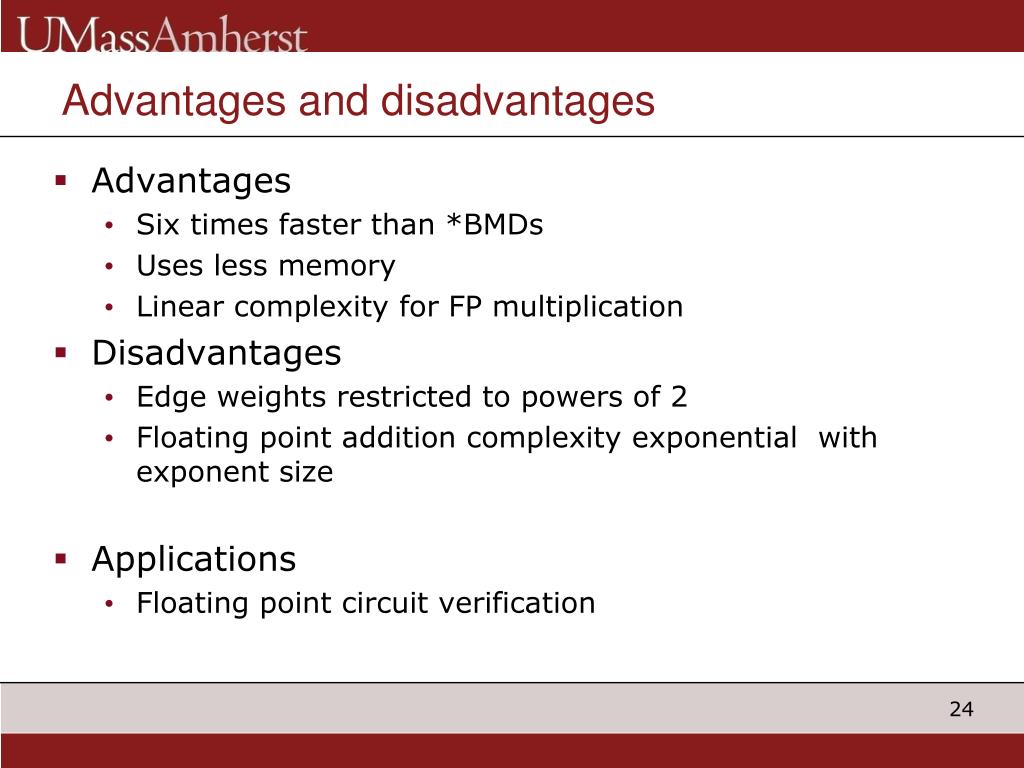

  24. Advantages and disadvantages • Advantages • Six times faster than *BMDs • Uses less memory • Linear complexity for FP multiplication • Disadvantages • Edge weights restricted to powers of 2 • Floating point addition complexity exponential with exponent size • Applications • Floating point circuit verification

  25. Conclusion • *PHDDs mainly for floating point verification • Can represent the following functions which map Boolean domain to: • Boolean using Shannon decomposition • Integer using Positive Davio decomposition • Floating point using Shannon decomposition for sign and exponent; Positive Davio for Mantissa

  26. Questions ?
