sparse linear solver for power system analysis using fpga

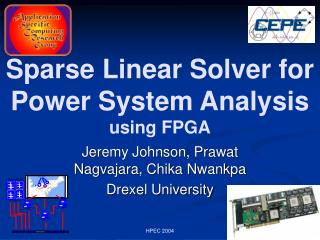

Sparse Linear Solver for Power System Analysisusing FPGA

Jeremy Johnson, Prawat Nagvajara, Chika Nwankpa

Drexel University

HPEC 2004

goal approach
Goal & Approach
  • To design an embedded FPGA-based multiprocessor system to perform high speed Power Flow Analysis.
  • To provide a single desktop environment to solve the entire package of Power Flow Problem (Multiprocessors on the Desktop).
  • Solve Power Flow equations using Newton-Raphson, with hardware support for sparse LU.
  • Tailor HW design to systems arising in Power Flow analysis.

HPEC 2004

algorithm and hw sw partition

HOST

Ybus

Data Input

Extract Data

Jacobian Matrix

Backward Substitution

Forward Substitution

LU Factorization

NO

Update Jacobian matrix

Mismatch < Accuracy

YES

Post Processing

HOST

Algorithm and HW/SW Partition

HPEC 2004

results
Results
  • Software solutions (sparse LU needed for Power Flow) using high-end PCs/workstations do not achieve efficient floating point performance and leave substantial room for improvement.
  • High-grained parallelism will not significantly improve performance due to granularity of the computation.
  • FPGA, with a much slower clock, can outperform PCs/workstations by devoting space to hardwired control, additional FP units, and utilizing fine-grained parallelism.
  • Benchmarking studies show that significant performance gain is possible.
  • A 10x speedup is possible using existing FPGA technology

HPEC 2004

benchmark
Benchmark
  • Obtain data from power systems of interest

HPEC 2004

system profile7
System Profile
  • More than 80% of rows/cols have size < 30

HPEC 2004

software performance
Software Performance
  • Software platform
    • UMFPACK
    • Pentium 4 (2.6GHz)
    • 8KB L1 Data Cache
    • Mandrake 9.2
    • gcc v3.3.1

HPEC 2004

hardware model requirements
Hardware Model & Requirements
  • Store row & column indices for non-zero entries
  • Use column indices to search for pivot. Overlap pivot search and division by pivot element with row reads.
  • Use multiple FPUs to do simultaneous updates (enough parallelism for 8 – 32, avg. col. size)
  • Use cache to store updated rows from iteration to iteration (70% overlap, memory  400KB - largest). Can be used for prefetching.
  • Total memory required  22MB (largest system)

HPEC 2004

architecture
Architecture

SRAM Cache

SDRAM Memory

CACHE Controller

SDRAM Controller

Processing Logic

FPGA

HPEC 2004

pivot hardware
Pivot Hardware

Pivot logic

Physical index

Read

colmap

Translate

to virtual

Index

reject

Memory

read

FP

compare

Pivot index

Pivot value

Virtual index

Column value

Pivot column

Pivot

HPEC 2004

parallel fpus
Parallel FPUs

HPEC 2004

update hardware
Update Hardware

Column Word

FMUL

Update Row

FADD

Select

Write Logic

Memory

read row

Merge Logic

colmap

Update

Submatrix Row

HPEC 2004

performance model
Performance Model
  • C program which simulates the computation (data transfer and arithmetic operations) and estimates the architecture’s performance (clock cycles and seconds).

Model Assumptions

  • Sufficient internal buffers
  • Cache write hits 100%
  • Simple static memory allocation
  • No penalty on cache write-back to SDRAM

HPEC 2004

performance
Performance

HPEC 2004
