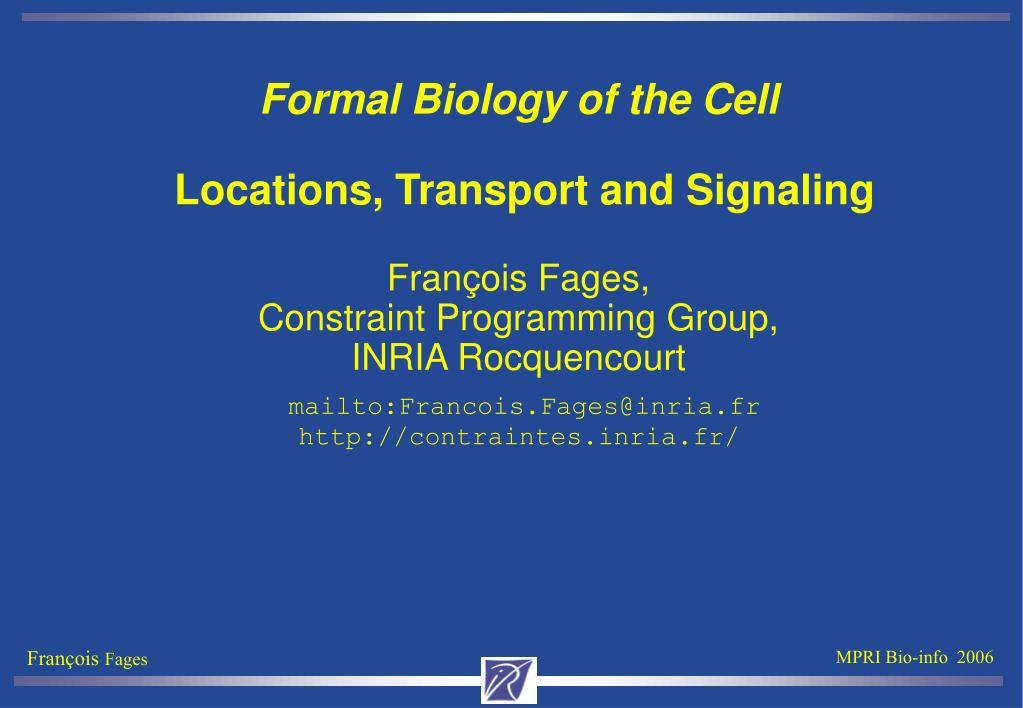

  1. Formal Biology of the Cell Locations, Transport and SignalingFrançois Fages, Constraint Programming Group, INRIA Rocquencourtmailto:Francois.Fages@inria.frhttp://contraintes.inria.fr/

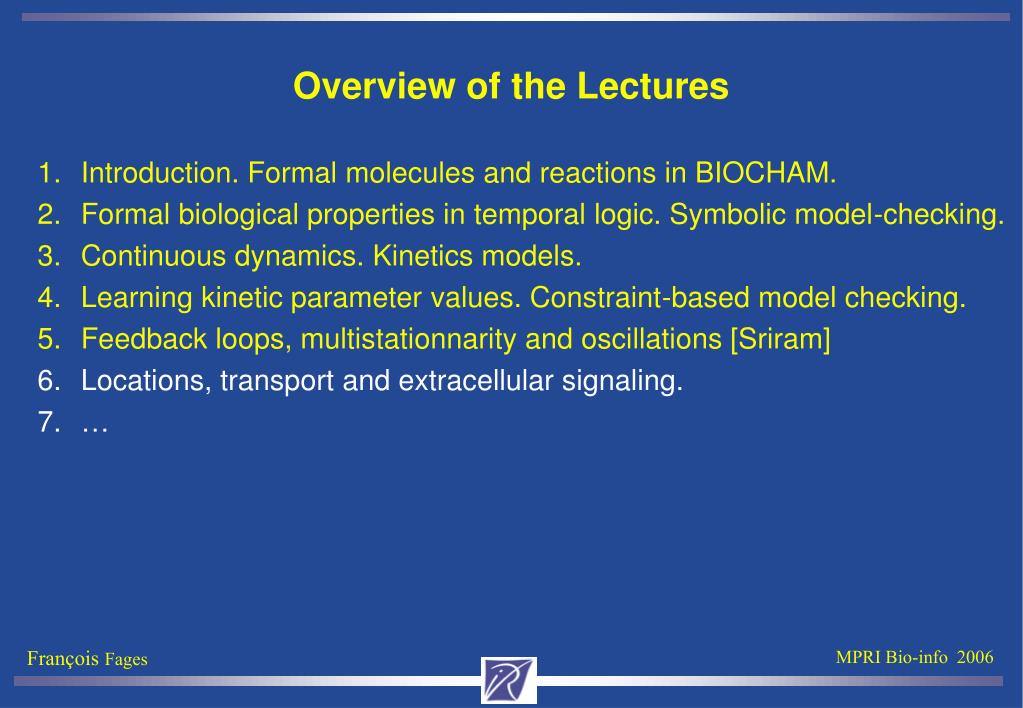

  2. Overview of the Lectures • Introduction. Formal molecules and reactions in BIOCHAM. • Formal biological properties in temporal logic. Symbolic model-checking. • Continuous dynamics. Kinetics models. • Learning kinetic parameter values. Constraint-based model checking. • Feedback loops, multistationnarity and oscillations [Sriram] • Locations, transport and extracellular signaling. • …

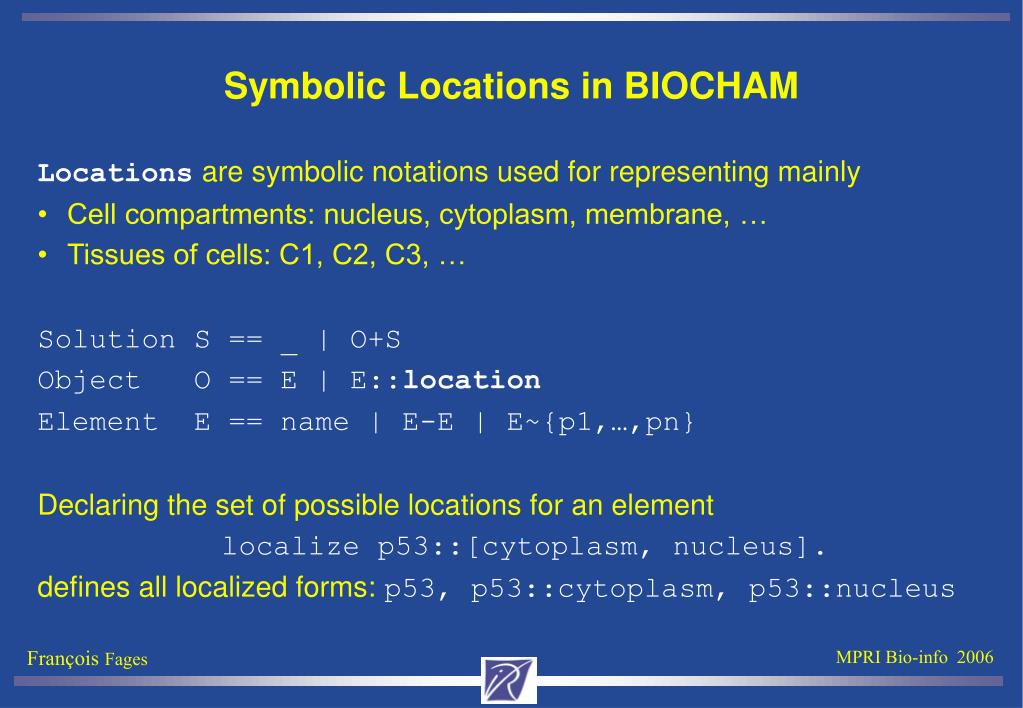

  3. Symbolic Locations in BIOCHAM • Locations are symbolic notations used for representing mainly • Cell compartments: nucleus, cytoplasm, membrane, … • Tissues of cells: C1, C2, C3, … • Solution S == _ | O+S • Object O == E | E::location • Element E == name | E-E | E~{p1,…,pn} • Declaring the set of possible locations for an element • localize p53::[cytoplasm, nucleus]. • defines all localized forms: p53, p53::cytoplasm, p53::nucleus

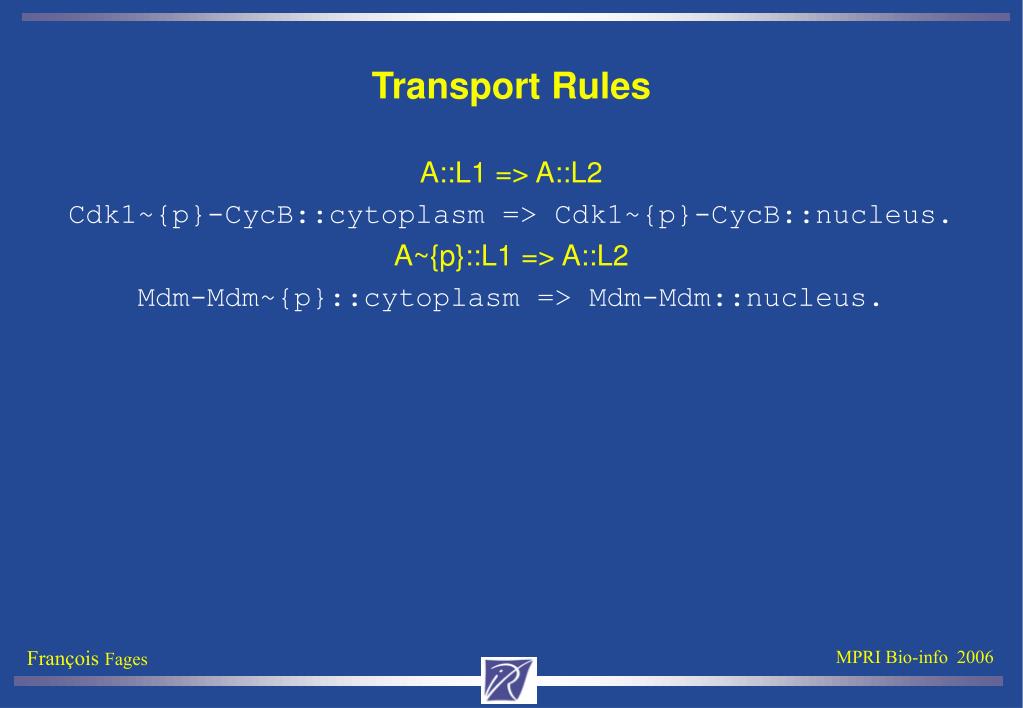

  4. Transport Rules • A::L1 => A::L2 • Cdk1~{p}-CycB::cytoplasm => Cdk1~{p}-CycB::nucleus. • A~{p}::L1 => A::L2 • Mdm-Mdm~{p}::cytoplasm => Mdm-Mdm::nucleus.

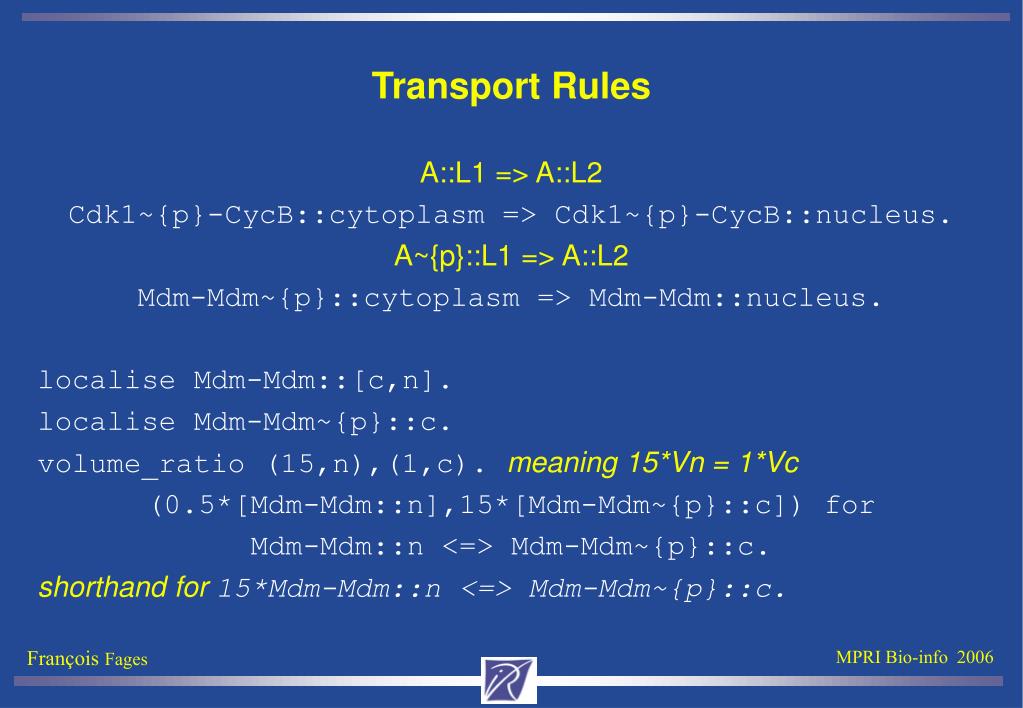

  5. Transport Rules • A::L1 => A::L2 • Cdk1~{p}-CycB::cytoplasm => Cdk1~{p}-CycB::nucleus. • A~{p}::L1 => A::L2 • Mdm-Mdm~{p}::cytoplasm => Mdm-Mdm::nucleus. • localise Mdm-Mdm::[c,n]. • localise Mdm-Mdm~{p}::c. • volume_ratio (15,n),(1,c). meaning 15*Vn = 1*Vc • (0.5*[Mdm-Mdm::n],15*[Mdm-Mdm~{p}::c]) for • Mdm-Mdm::n <=> Mdm-Mdm~{p}::c. • shorthand for 15*Mdm-Mdm::n <=> Mdm-Mdm~{p}::c.

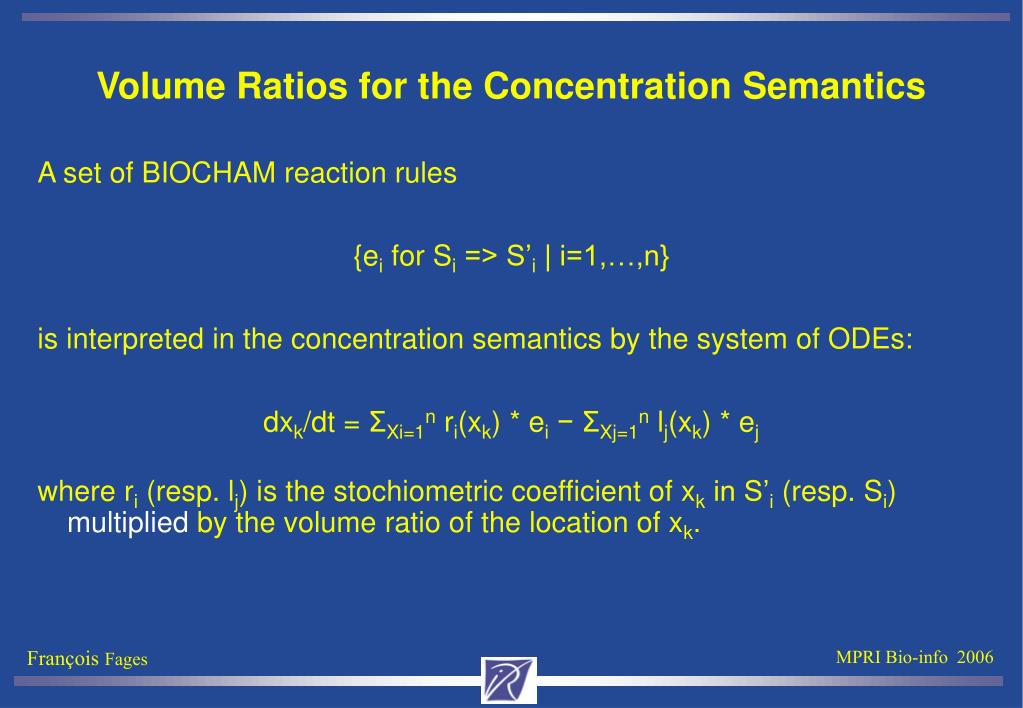

  6. Volume Ratios for the Concentration Semantics • A set of BIOCHAM reaction rules • {ei for Si => S’i | i=1,…,n} • is interpreted in the concentration semantics by the system of ODEs: • dxk/dt = ΣXi=1n ri(xk) * ei − ΣXj=1n lj(xk) * ej • where ri (resp. lj) is the stochiometric coefficient of xk in S’i (resp. Si) multiplied by the volume ratio of the location of xk.

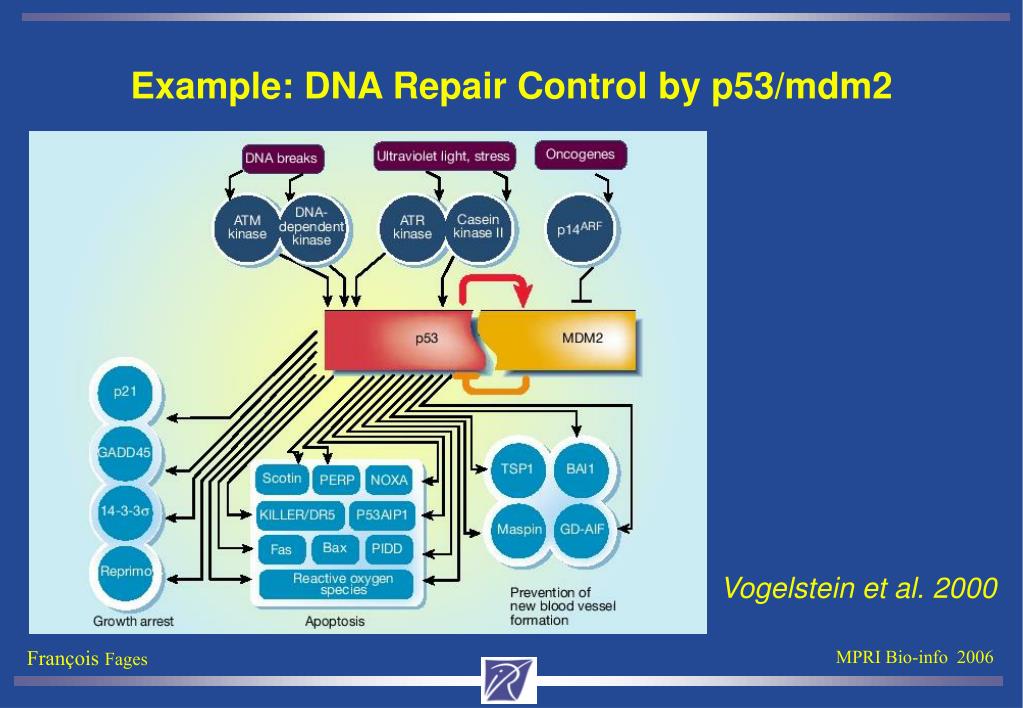

  7. Example: DNA Repair Control by p53/mdm2 • Vogelstein et al. 2000

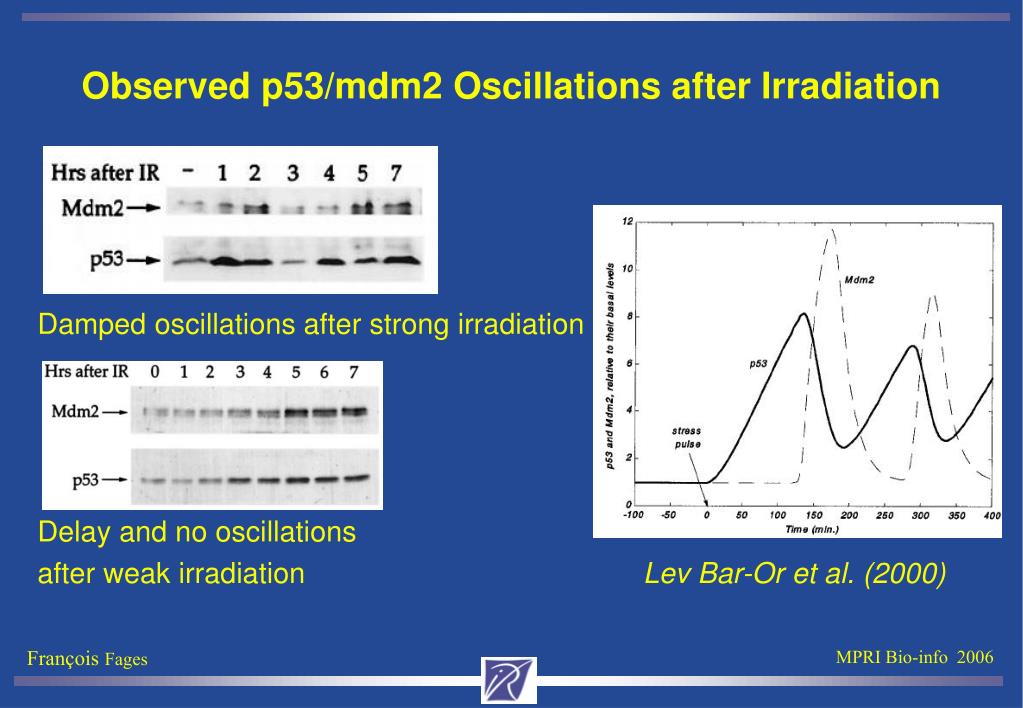

  8. Observed p53/mdm2 Oscillations after Irradiation • Damped oscillations after strong irradiation • Delay and no oscillations • after weak irradiationLev Bar-Or et al. (2000)

  9. Single Cell Behaviors • « Analogic » • « Digital » • From Lahav et al. (2004) Geva-Zatorsky et al. (2006)

  10. Interaction and Influence Schemas • Ciliberto et al. 2005 • Kaufman et al. 2006

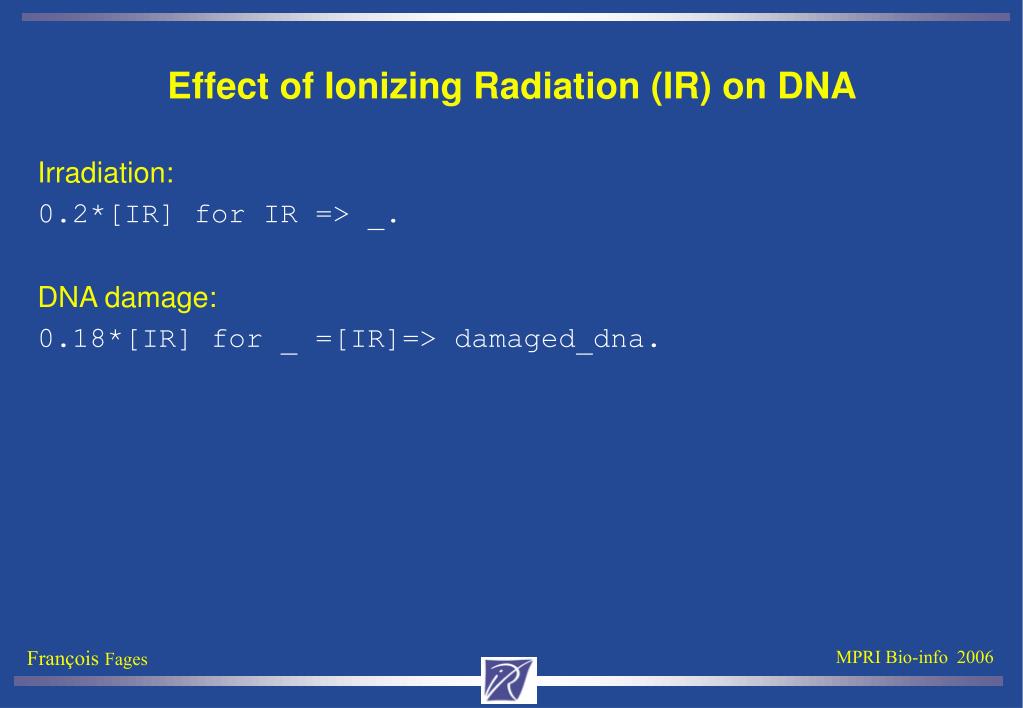

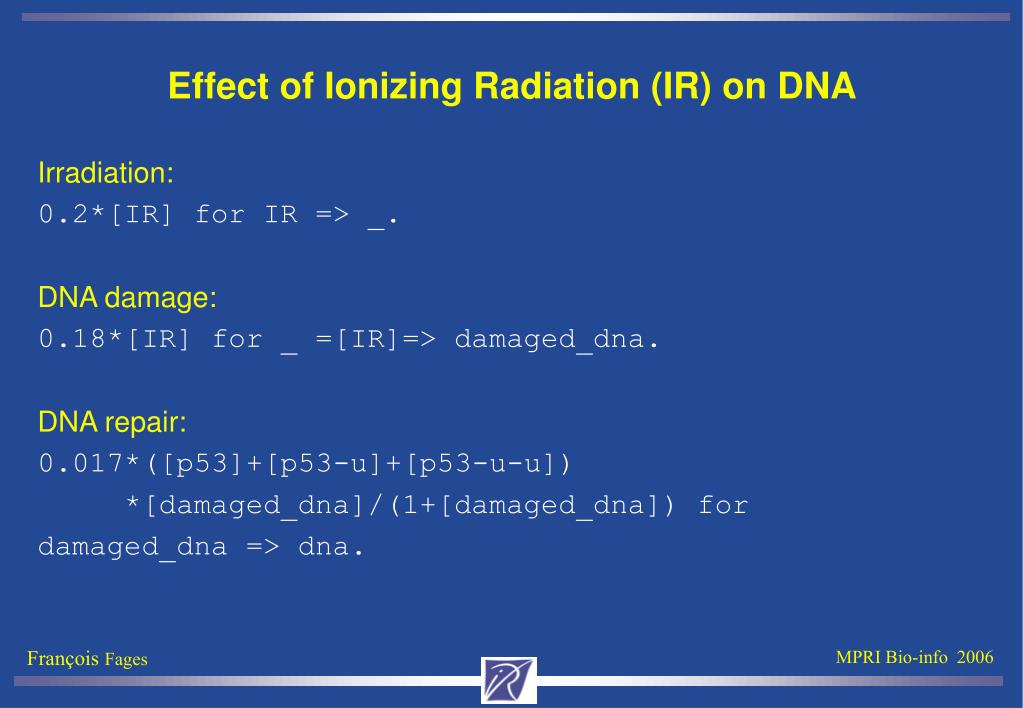

  11. Effect of Ionizing Radiation (IR) on DNA • Irradiation: • 0.2*[IR] for IR => _. • DNA damage: • 0.18*[IR] for _ =[IR]=> damaged_dna.

  12. Effect of Ionizing Radiation (IR) on DNA • Irradiation: • 0.2*[IR] for IR => _. • DNA damage: • 0.18*[IR] for _ =[IR]=> damaged_dna. • DNA repair: • 0.017*([p53]+[p53-u]+[p53-u-u]) • *[damaged_dna]/(1+[damaged_dna]) for • damaged_dna => dna.

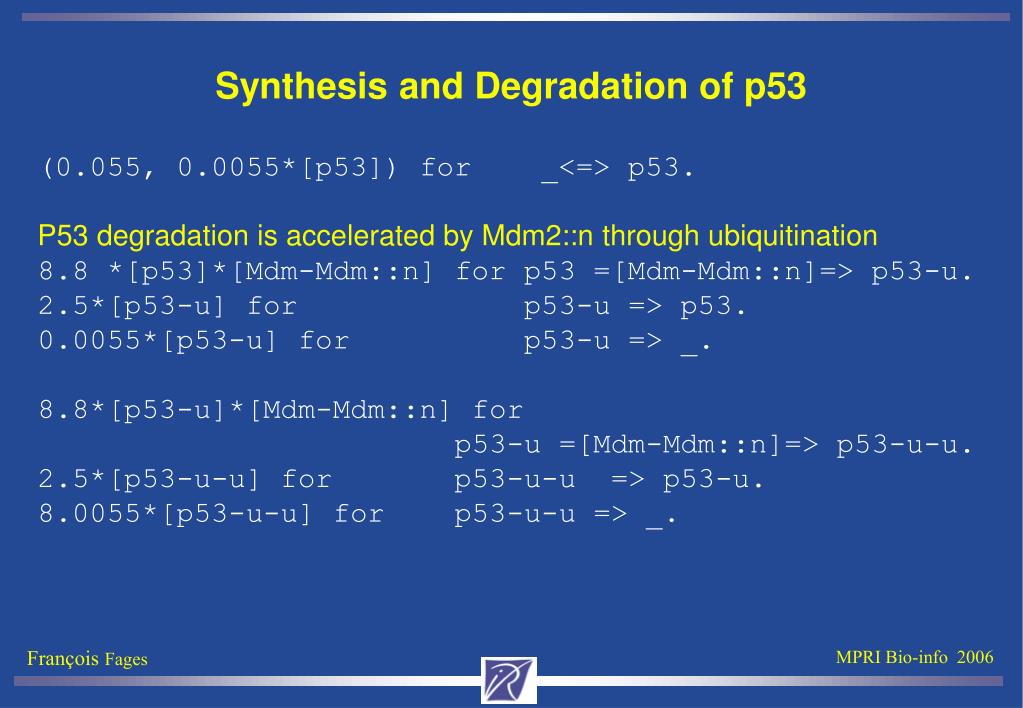

  13. Synthesis and Degradation of p53 • (0.055, 0.0055*[p53]) for _<=> p53.

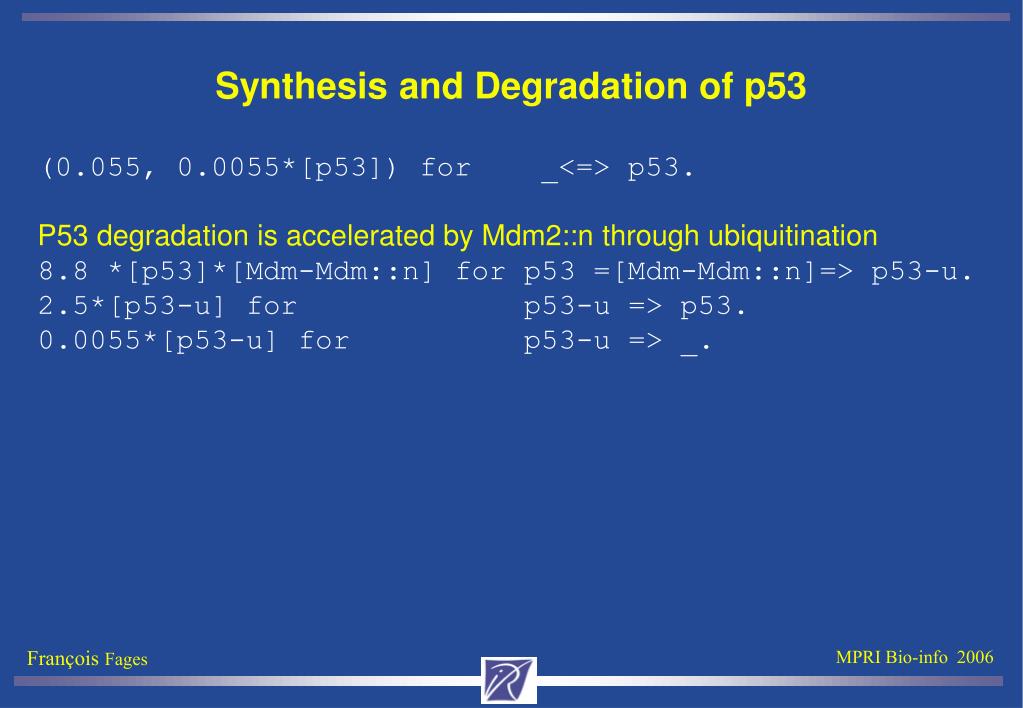

  14. Synthesis and Degradation of p53 • (0.055, 0.0055*[p53]) for _<=> p53. • P53 degradation is accelerated by Mdm2::n through ubiquitination • 8.8 *[p53]*[Mdm-Mdm::n] for p53 =[Mdm-Mdm::n]=> p53-u. • 2.5*[p53-u] for p53-u => p53. • 0.0055*[p53-u] for p53-u => _.

  15. Synthesis and Degradation of p53 • (0.055, 0.0055*[p53]) for _<=> p53. • P53 degradation is accelerated by Mdm2::n through ubiquitination • 8.8 *[p53]*[Mdm-Mdm::n] for p53 =[Mdm-Mdm::n]=> p53-u. • 2.5*[p53-u] for p53-u => p53. • 0.0055*[p53-u] for p53-u => _. • 8.8*[p53-u]*[Mdm-Mdm::n] for • p53-u =[Mdm-Mdm::n]=> p53-u-u. • 2.5*[p53-u-u] for p53-u-u => p53-u. • 8.0055*[p53-u-u] for p53-u-u => _.

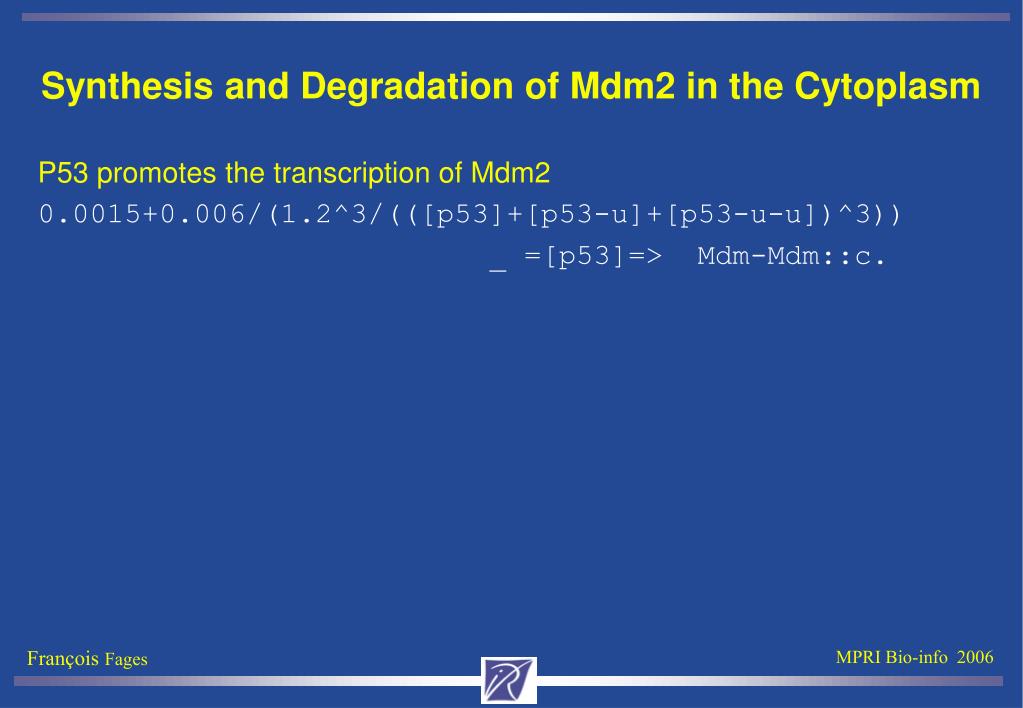

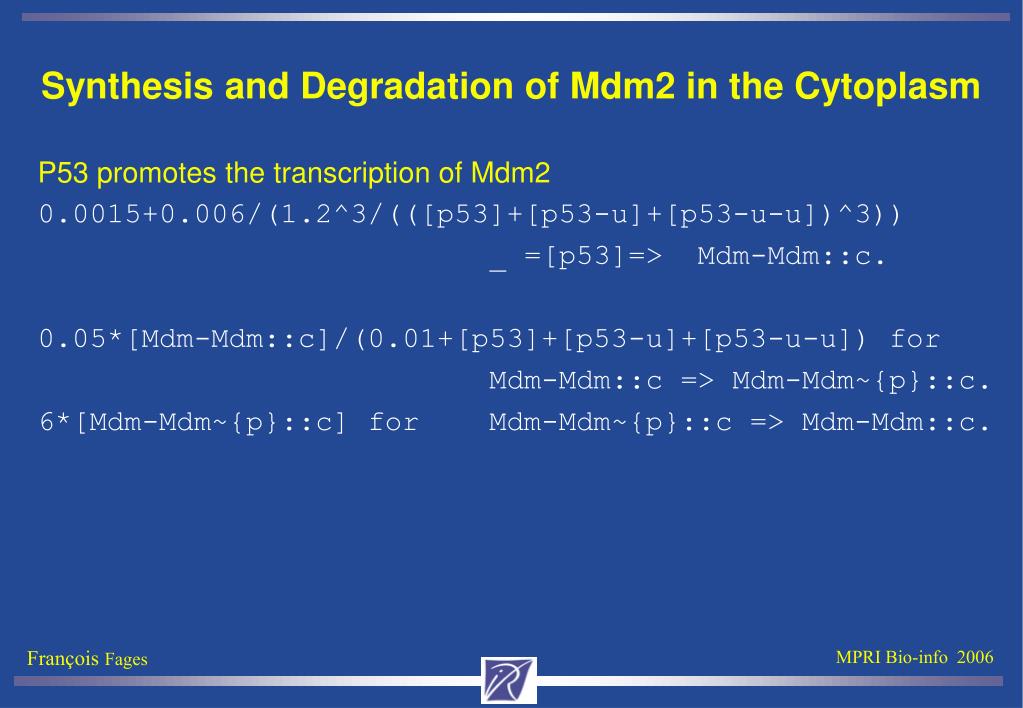

  16. Synthesis and Degradation of Mdm2 in the Cytoplasm • P53 promotes the transcription of Mdm2 • 0.0015+0.006/(1.2^3/(([p53]+[p53-u]+[p53-u-u])^3)) • _ =[p53]=> Mdm-Mdm::c.

  17. Synthesis and Degradation of Mdm2 in the Cytoplasm • P53 promotes the transcription of Mdm2 • 0.0015+0.006/(1.2^3/(([p53]+[p53-u]+[p53-u-u])^3)) • _ =[p53]=> Mdm-Mdm::c. • 0.05*[Mdm-Mdm::c]/(0.01+[p53]+[p53-u]+[p53-u-u]) for • Mdm-Mdm::c => Mdm-Mdm~{p}::c. • 6*[Mdm-Mdm~{p}::c] for Mdm-Mdm~{p}::c => Mdm-Mdm::c.

  18. Synthesis and Degradation of Mdm2 in the Cytoplasm • P53 promotes the transcription of Mdm2 • 0.0015+0.006/(1.2^3/(([p53]+[p53-u]+[p53-u-u])^3)) • _ =[p53]=> Mdm-Mdm::c. • 0.05*[Mdm-Mdm::c]/(0.01+[p53]+[p53-u]+[p53-u-u]) for • Mdm-Mdm::c => Mdm-Mdm~{p}::c. • 6*[Mdm-Mdm~{p}::c] for Mdm-Mdm~{p}::c => Mdm-Mdm::c. • 0.01*[Mdm-Mdm~{p}::c] for Mdm-Mdm~{p}::c => _. • 0.01*[Mdm-Mdm::c] for Mdm-Mdm::c => _.

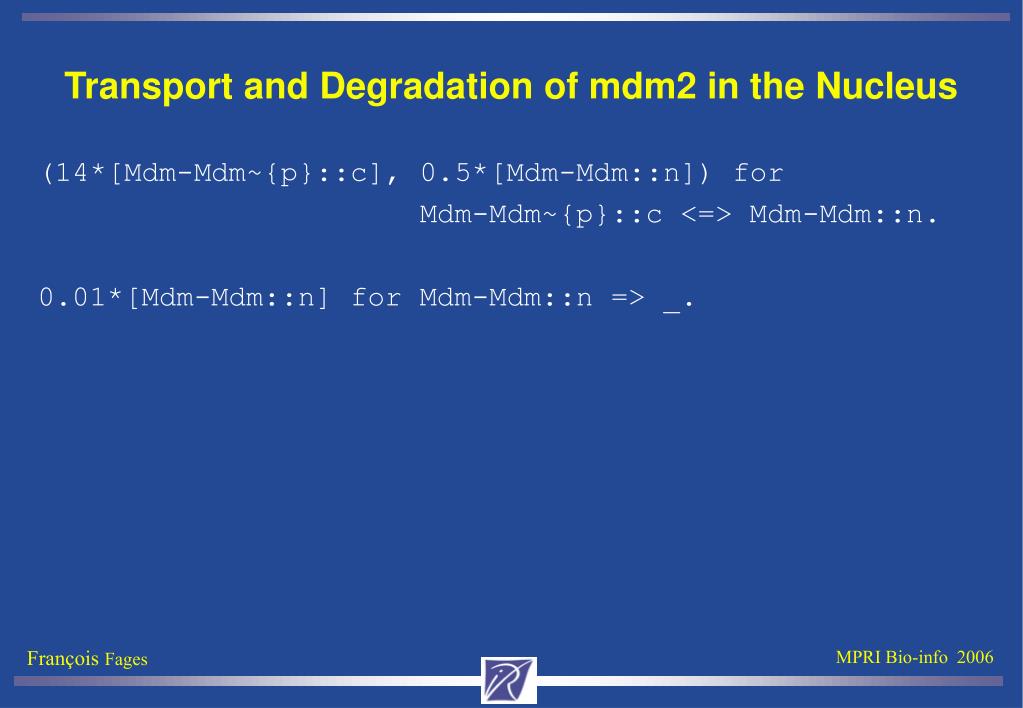

  19. Transport and Degradation of mdm2 in the Nucleus • (14*[Mdm-Mdm~{p}::c], 0.5*[Mdm-Mdm::n]) for • Mdm-Mdm~{p}::c <=> Mdm-Mdm::n. • 0.01*[Mdm-Mdm::n] for Mdm-Mdm::n => _.

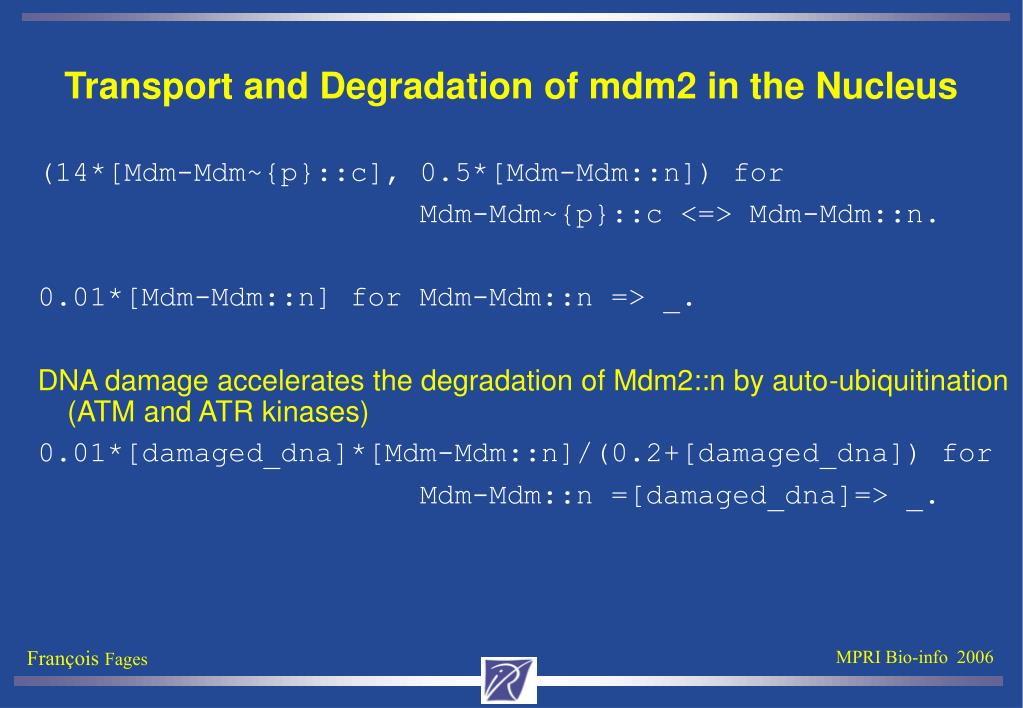

  20. Transport and Degradation of mdm2 in the Nucleus • (14*[Mdm-Mdm~{p}::c], 0.5*[Mdm-Mdm::n]) for • Mdm-Mdm~{p}::c <=> Mdm-Mdm::n. • 0.01*[Mdm-Mdm::n] for Mdm-Mdm::n => _. • DNA damage accelerates the degradation of Mdm2::n by auto-ubiquitination (ATM and ATR kinases) • 0.01*[damaged_dna]*[Mdm-Mdm::n]/(0.2+[damaged_dna]) for • Mdm-Mdm::n =[damaged_dna]=> _.

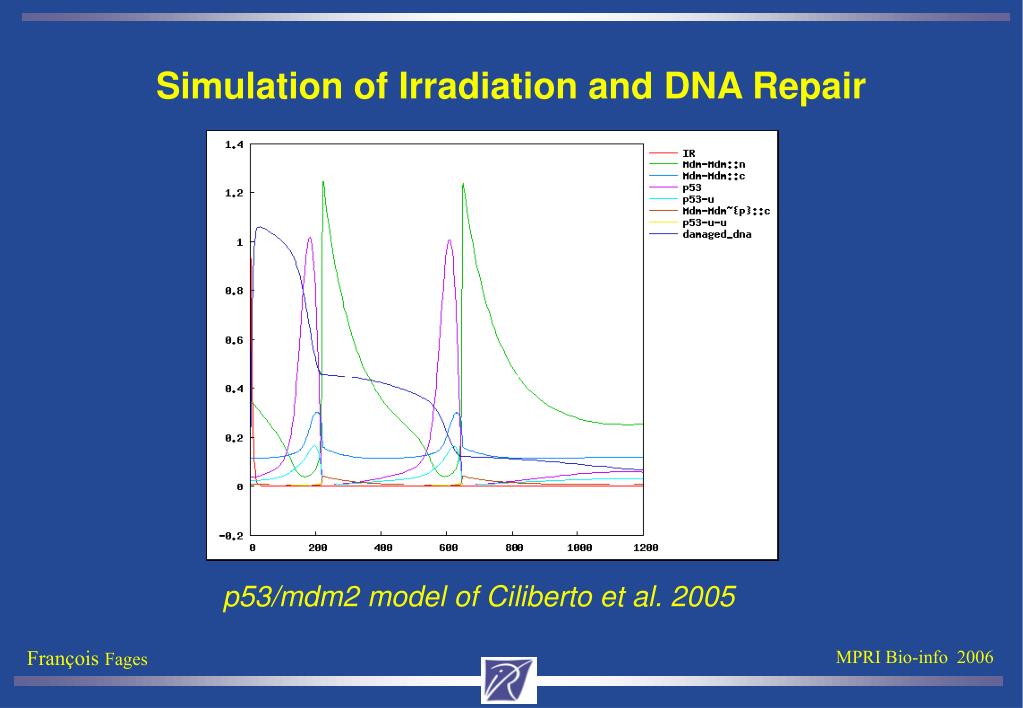

  21. Simulation of Irradiation and DNA Repair • p53/mdm2 model of Ciliberto et al. 2005

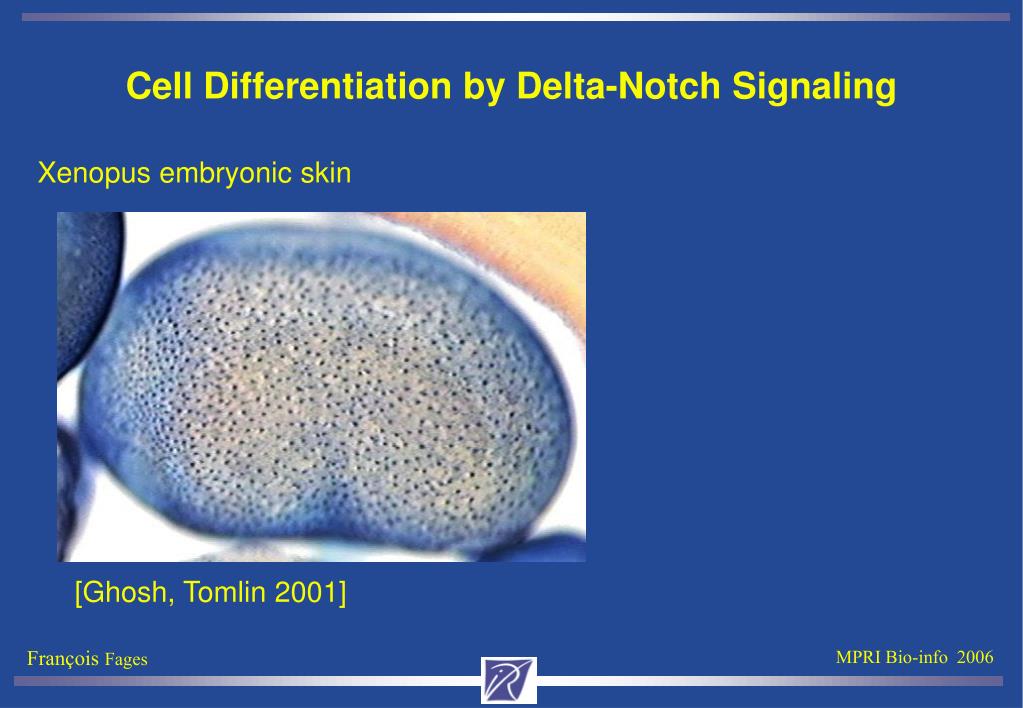

  22. Cell Differentiation by Delta-Notch Signaling • Xenopus embryonic skin [Ghosh, Tomlin 2001]

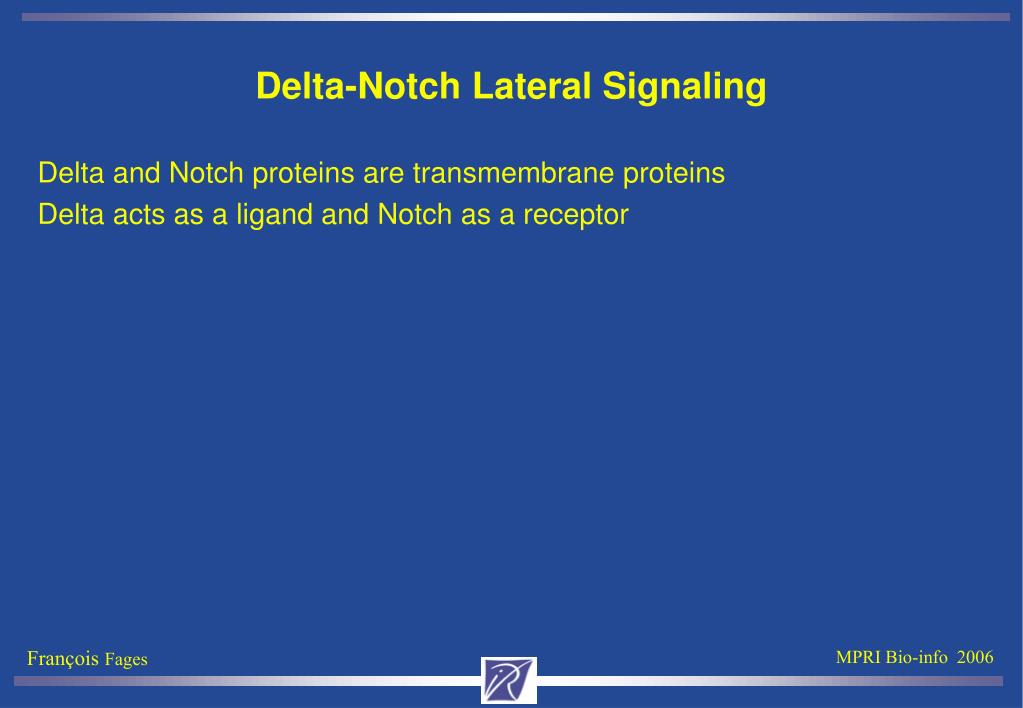

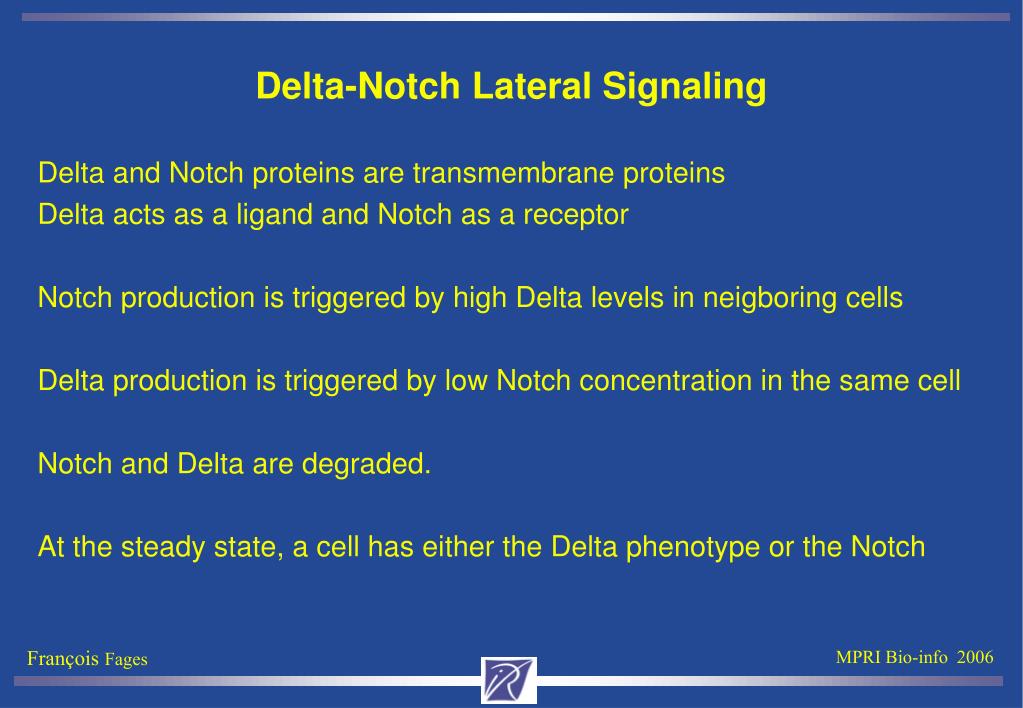

  23. Delta-Notch Lateral Signaling • Delta and Notch proteins are transmembrane proteins • Delta acts as a ligand and Notch as a receptor

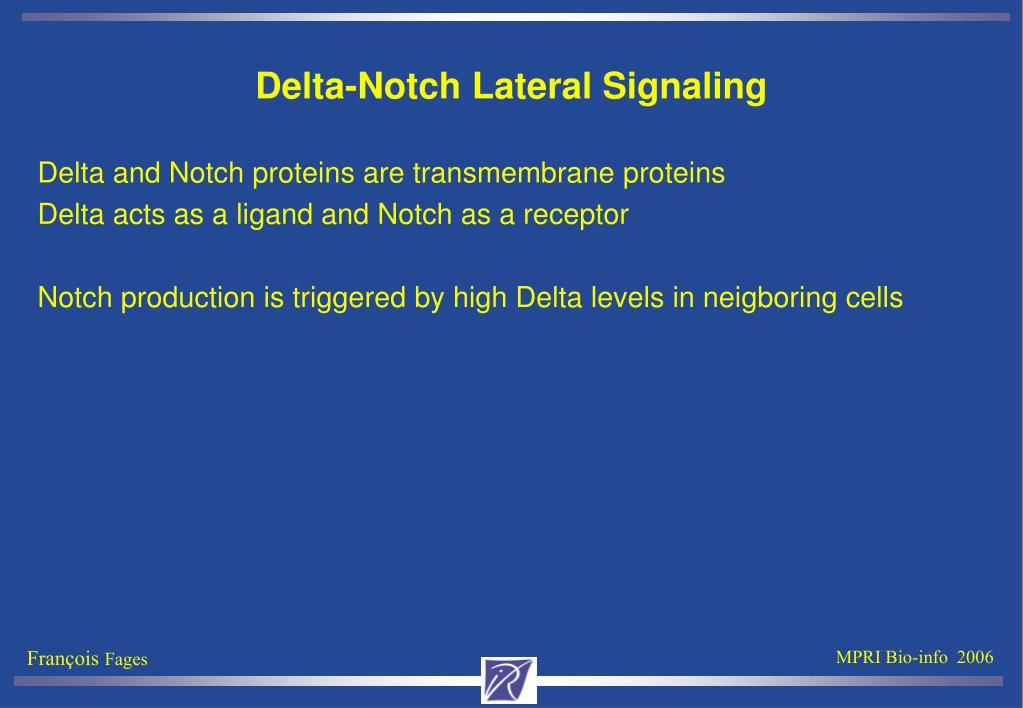

  24. Delta-Notch Lateral Signaling • Delta and Notch proteins are transmembrane proteins • Delta acts as a ligand and Notch as a receptor • Notch production is triggered by high Delta levels in neigboring cells

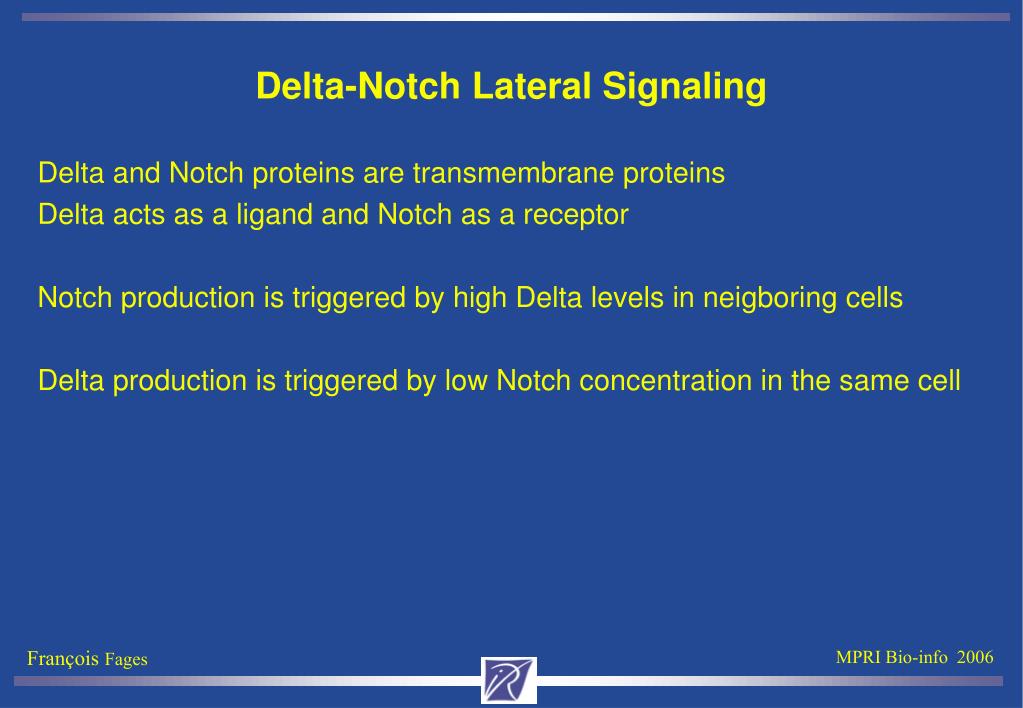

  25. Delta-Notch Lateral Signaling • Delta and Notch proteins are transmembrane proteins • Delta acts as a ligand and Notch as a receptor • Notch production is triggered by high Delta levels in neigboring cells • Delta production is triggered by low Notch concentration in the same cell

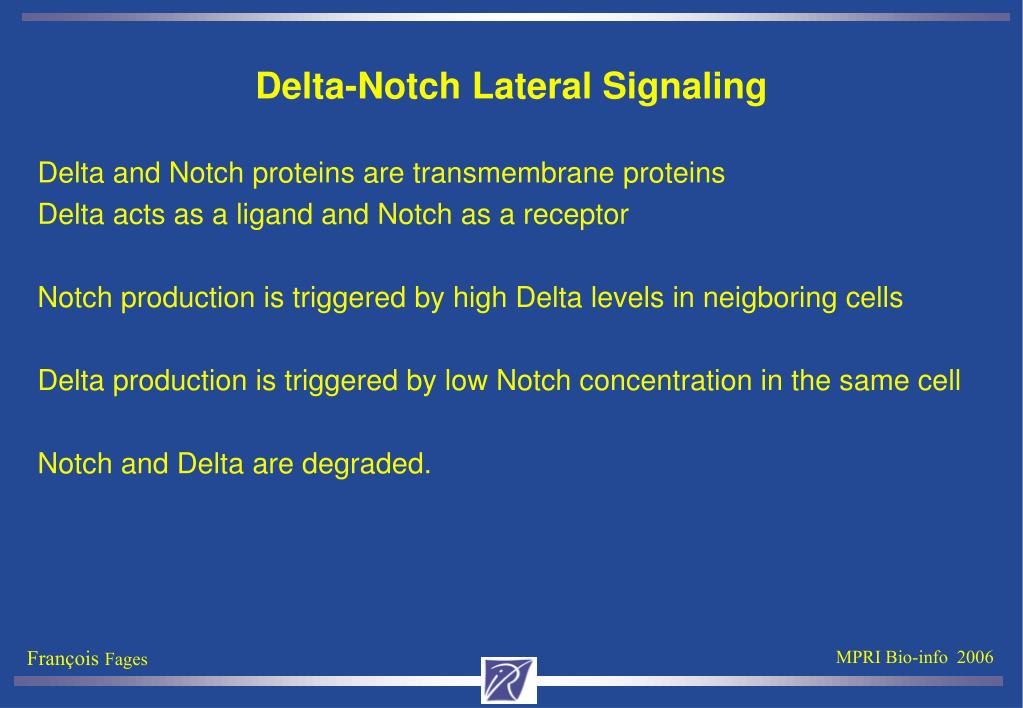

  26. Delta-Notch Lateral Signaling • Delta and Notch proteins are transmembrane proteins • Delta acts as a ligand and Notch as a receptor • Notch production is triggered by high Delta levels in neigboring cells • Delta production is triggered by low Notch concentration in the same cell • Notch and Delta are degraded.

  27. Delta-Notch Lateral Signaling • Delta and Notch proteins are transmembrane proteins • Delta acts as a ligand and Notch as a receptor • Notch production is triggered by high Delta levels in neigboring cells • Delta production is triggered by low Notch concentration in the same cell • Notch and Delta are degraded. • At the steady state, a cell has either the Delta phenotype or the Notch

  28. Four Possible States • Delta expressed and Notch inhibited Vd=0.2 Vn=0.5 • D>Vd N<Vn • Delta and Notch expressed • D>Vd N>Vn • Delta inhibited and Notch expressed • D<Vd N>Vn • Delta and Notch inhibited • D<Vd N<Vn

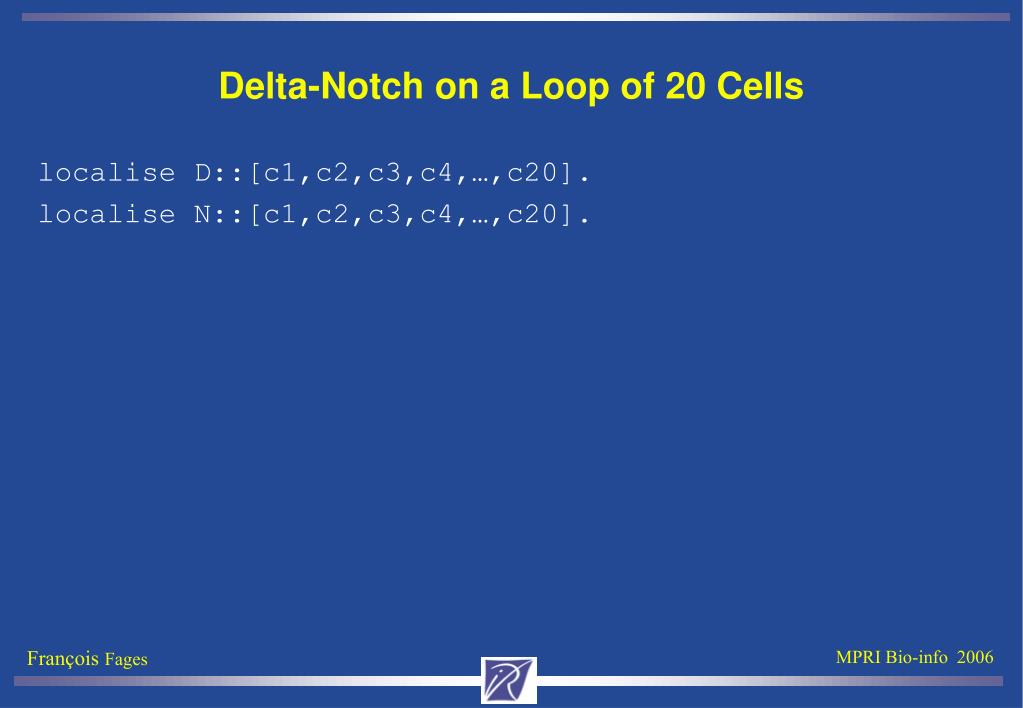

  29. Delta-Notch on a Loop of 20 Cells • localise D::[c1,c2,c3,c4,…,c20]. • localise N::[c1,c2,c3,c4,…,c20].

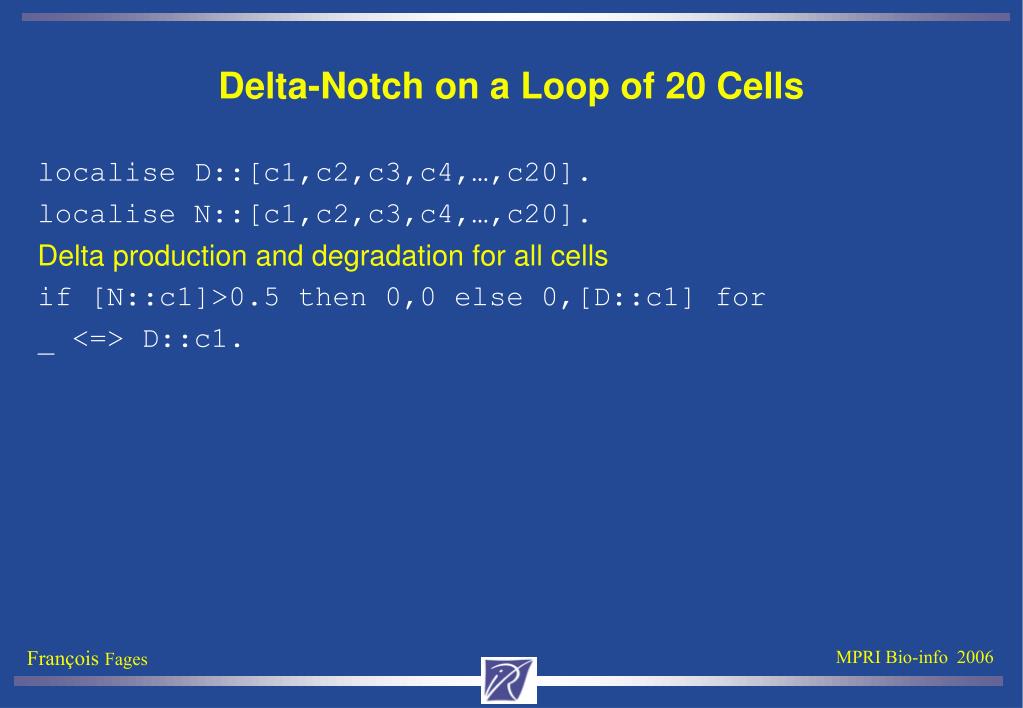

  30. Delta-Notch on a Loop of 20 Cells • localise D::[c1,c2,c3,c4,…,c20]. • localise N::[c1,c2,c3,c4,…,c20]. • Delta production and degradation for all cells • if [N::c1]>0.5 then 0,0 else 0,[D::c1] for • _ <=> D::c1.

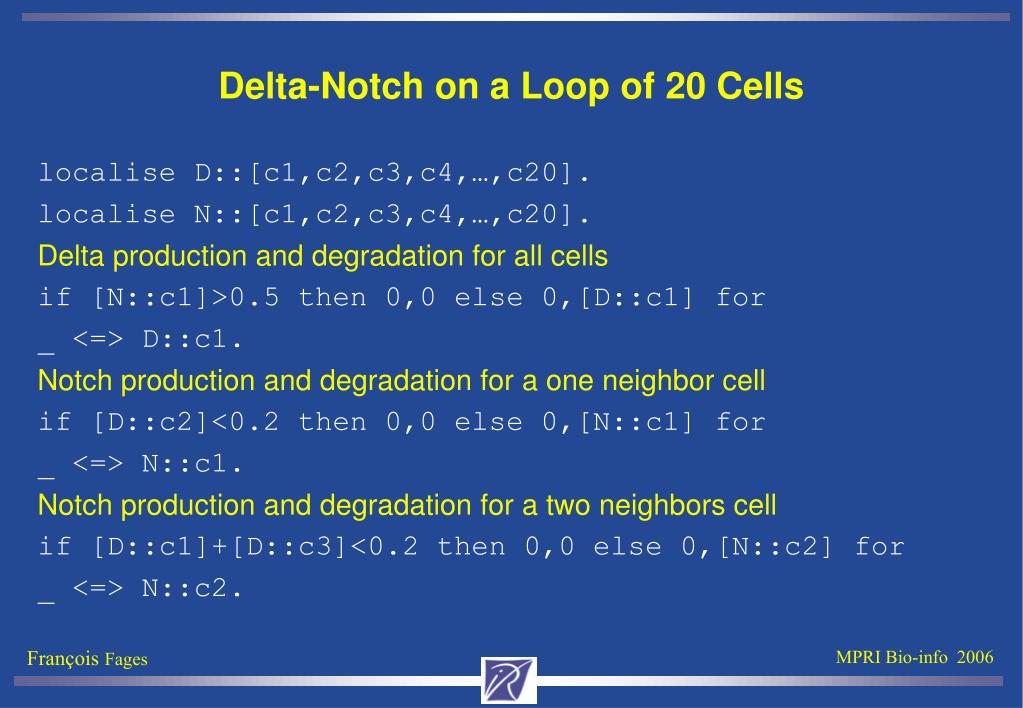

  31. Delta-Notch on a Loop of 20 Cells • localise D::[c1,c2,c3,c4,…,c20]. • localise N::[c1,c2,c3,c4,…,c20]. • Delta production and degradation for all cells • if [N::c1]>0.5 then 0,0 else 0,[D::c1] for • _ <=> D::c1. • Notch production and degradation for a one neighbor cell • if [D::c2]<0.2 then 0,0 else 0,[N::c1] for • _ <=> N::c1.

  32. Delta-Notch on a Loop of 20 Cells • localise D::[c1,c2,c3,c4,…,c20]. • localise N::[c1,c2,c3,c4,…,c20]. • Delta production and degradation for all cells • if [N::c1]>0.5 then 0,0 else 0,[D::c1] for • _ <=> D::c1. • Notch production and degradation for a one neighbor cell • if [D::c2]<0.2 then 0,0 else 0,[N::c1] for • _ <=> N::c1. • Notch production and degradation for a two neighbors cell • if [D::c1]+[D::c3]<0.2 then 0,0 else 0,[N::c2] for • _ <=> N::c2.

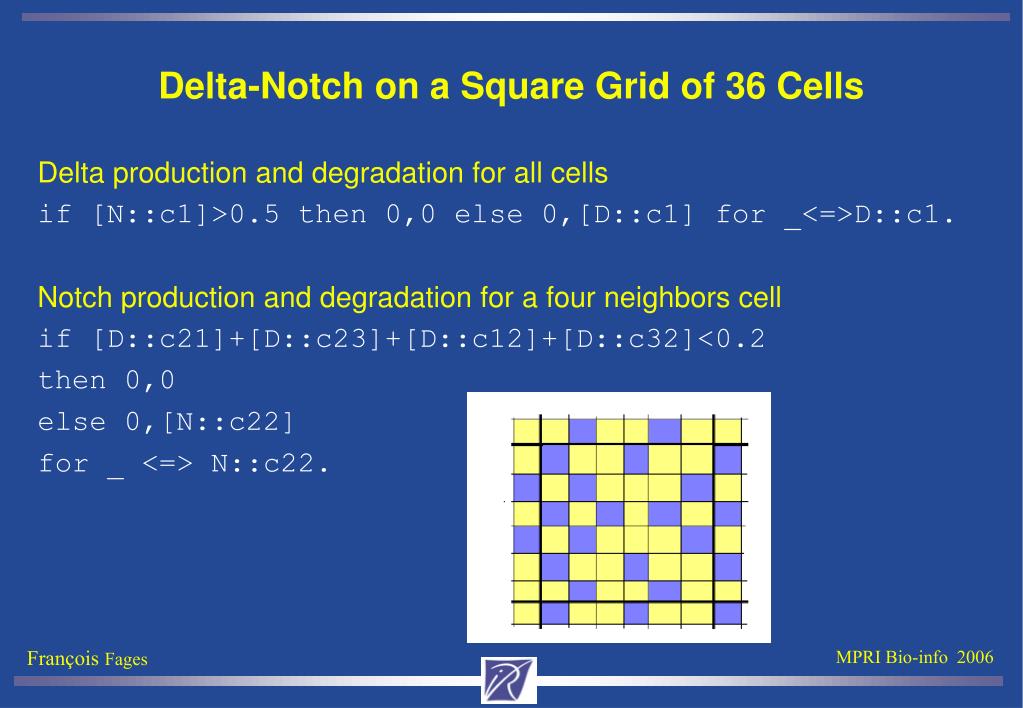

  33. Delta-Notch on a Square Grid of 36 Cells • Delta production and degradation for all cells • if [N::c1]>0.5 then 0,0 else 0,[D::c1] for _<=>D::c1. • Notch production and degradation for a four neighbors cell • if [D::c21]+[D::c23]+[D::c12]+[D::c32]<0.2 • then 0,0 • else 0,[N::c22] • for _ <=> N::c22.

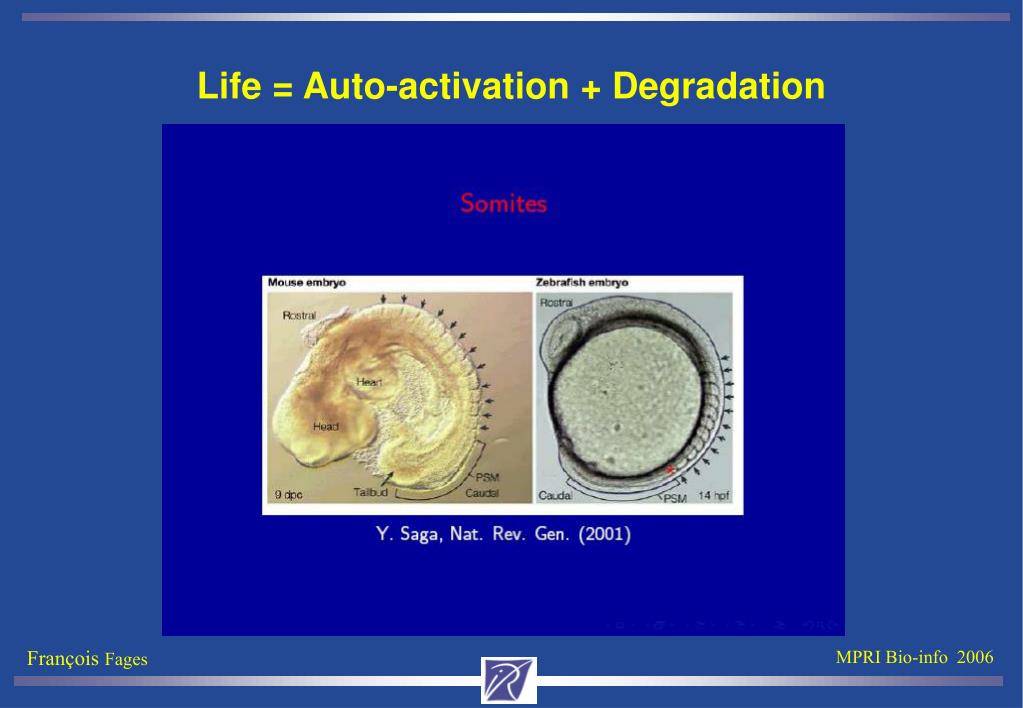

  34. Life = Auto-activation + Degradation
