bentley iso 15926 update

Bentley ISO 15926 Update

Glen Worrall, Bentley Systems Inc.

presentation overview

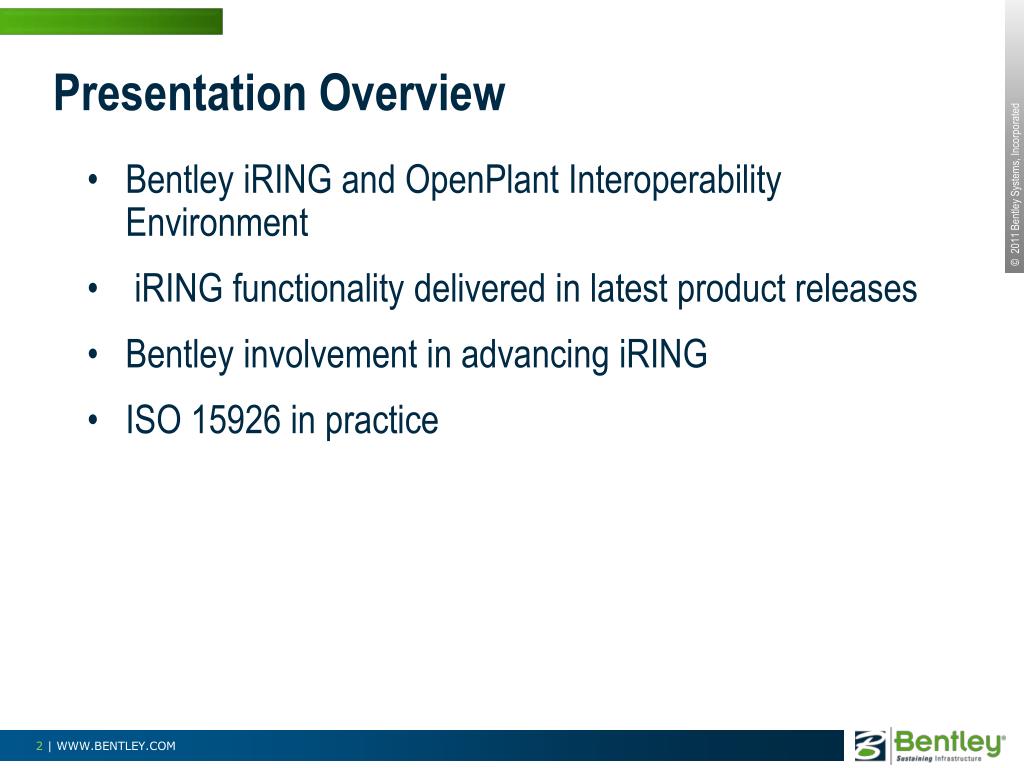

Presentation Overview
  • Bentley iRING and OpenPlant Interoperability Environment
  • iRING functionality delivered in latest product releases
  • Bentley involvement in advancing iRING
  • ISO 15926 in practice
bentley iring interoperability architecture
Bentley iRING Interoperability Architecture

P&ID

AXSYS.

Process

i-model Plugin for iRING

List

Data

iRING

OWL File

OpenPlant

PowerPID

iRINGTools/ Other iRING Implementations

Bentley Data Manager/I&W

Vendor

Data

Part 8

OpenPlant Schema

RDS

Extension

Other

Bentley

Apps

Other

Apps

Bentley

Class

Editor

ISO 15926 RDL

Third Party

Apps

Shared Components

Bentley Apps

iRING

i-model

iso 15926 mapping in openplant schema
ISO 15926 mapping in OpenPlant Schema

URI – Uniform Resource Identifier

Dictionary

iring functionality in bentley products
iRING Functionality in Bentley Products
  • AXSYS.Process V8i Select Series 4 (Released)
  • OpenPlant PowerPID V8i Select Series 4
  • Bentley Data Manager V8i Select Series 3 (Released)
  • Bentley Instrumentation and Wiring V8i Select Series 3(Released)
  • Scope of Data Exchange through iRING
    • List Data (1 D – Geometry not included)
      • Equipment List
      • Line List
      • Instrument List
  • i-model from AXSYS and OpenPlant PowerPID includes complete model including graphics
possibility of iring workflow scenarios
Possibility of iRING Workflow Scenarios

Vendor Data

Data Manager/

I&W

AXSYS.Process

OpenPlant

PowerPID

List Data

P&ID

iRING

OWL File

Project

Database

ISO 15926

RDL

OpenPlant

Schema

Third

Party

Apps

bentley involvement in advancing iring
Bentley involvement in advancing iRING
  • iRING Interface Project (IIP)
  • ISO 15926 Primer
    • ISO 15926 Part 9 co-authored by Rahul Patil
  • FIATECH STAR Award for Keith Willshaw
  • PCA - Geometry Special Interest Group (SIG)
    • ISO 15926 on Bentley Communities and Facebook
    • FIATECH Project - Collaborating with Neutral 3D Model
bentley communities iso 15926
Bentley Communities (ISO 15926)
  • Used to discuss workflows
  • Used to capture good practices for tools
  • How to upgrade iRingTools versions
  • Google communities 15926
direction of data flow
Direction of Data Flow

Third Party

Bentley

Application

ISO 15926

iRING

OpenPlant

PowerPID

Instrumentation

Third Party

Application

AXSYS.Process

Third Party

Data Manager

Application

interoperability
Interoperability

Pressure Transmitters

Emerson

Bentley

ISO 15926

iRING

Rosemount

Toolkit

OpenPlant

PowerPID

Vendor Information Added

Instrumentation

AXSYS.Process

Data Manager

thank you
Thank you

Glen Worrall – Bentley Systems
