  1. Stellar Death

  2. Core He H burning shell The Sun in Five Billion Years

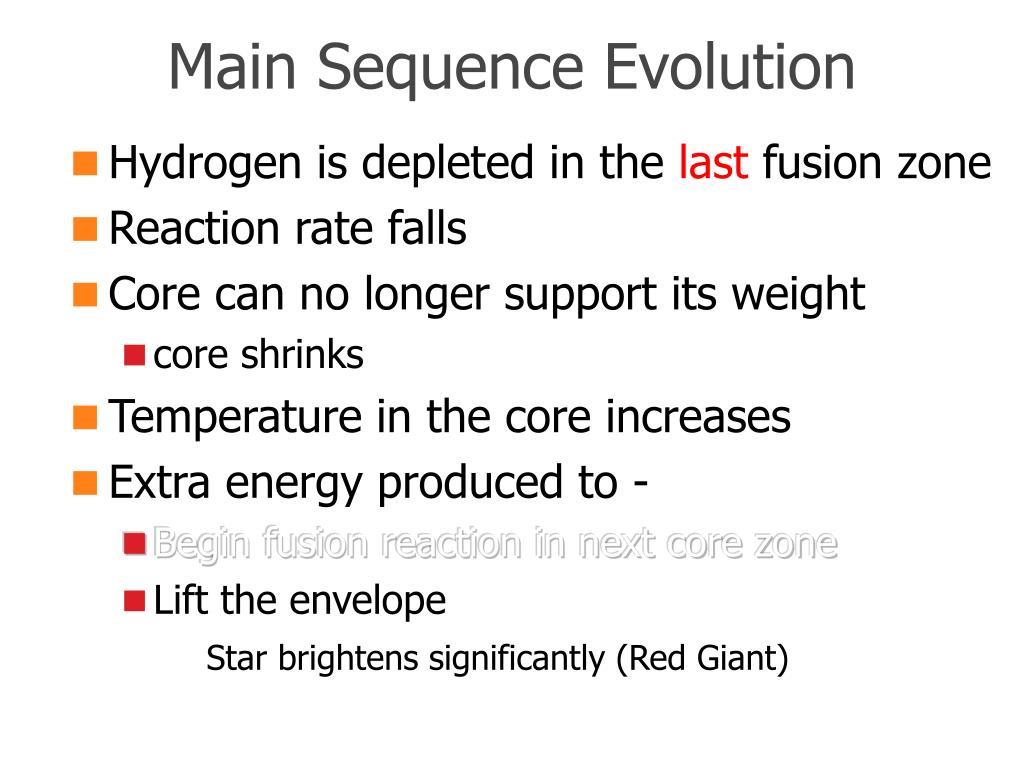

  3. Main Sequence Evolution • Hydrogen is depleted in the last fusion zone • Reaction rate falls • Core can no longer support its weight • core shrinks • Temperature in the core increases • Extra energy produced to - • Begin fusion reaction in next core zone • Lift the envelope • Star brightens significantly (Red Giant)

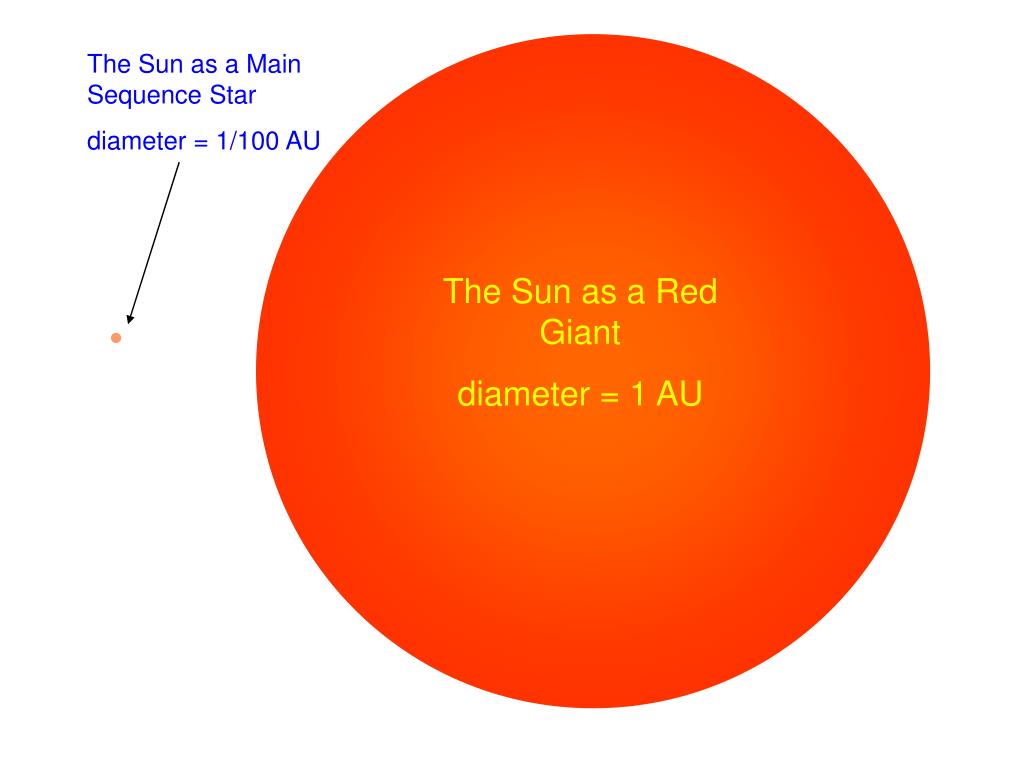

  4. The Sun as a Main Sequence Star diameter = 1/100 AU The Sun as a Red Giant diameter = 1 AU

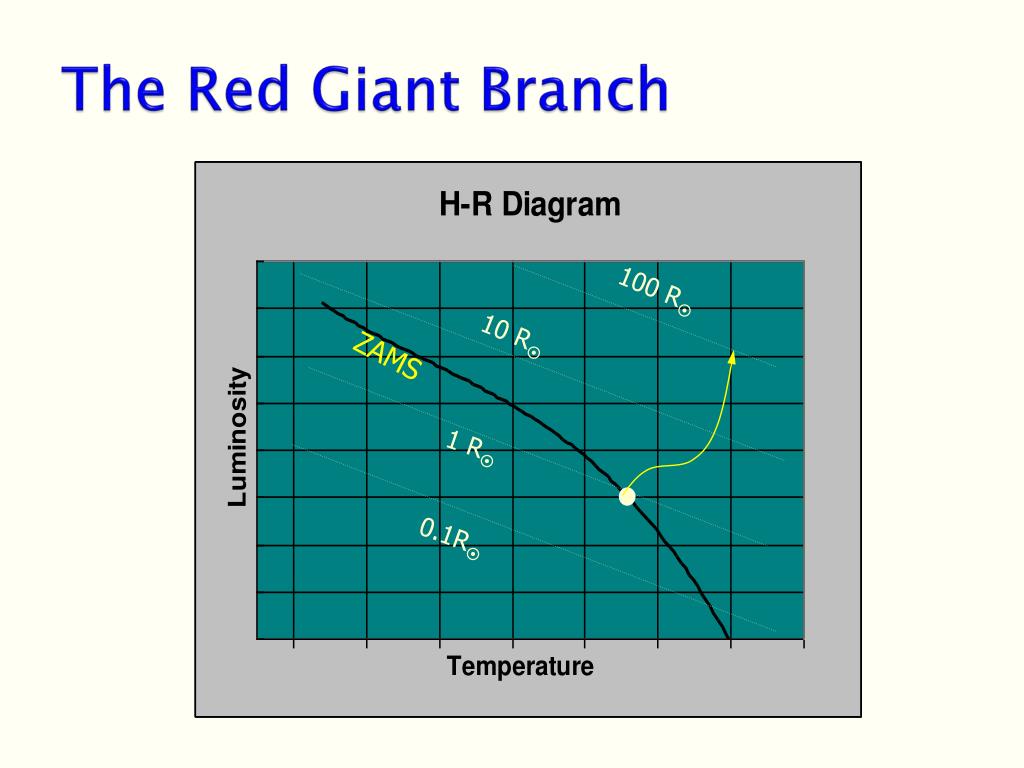

  5. 100 R 10 R 1 R 0.1R The Red Giant Branch ZAMS

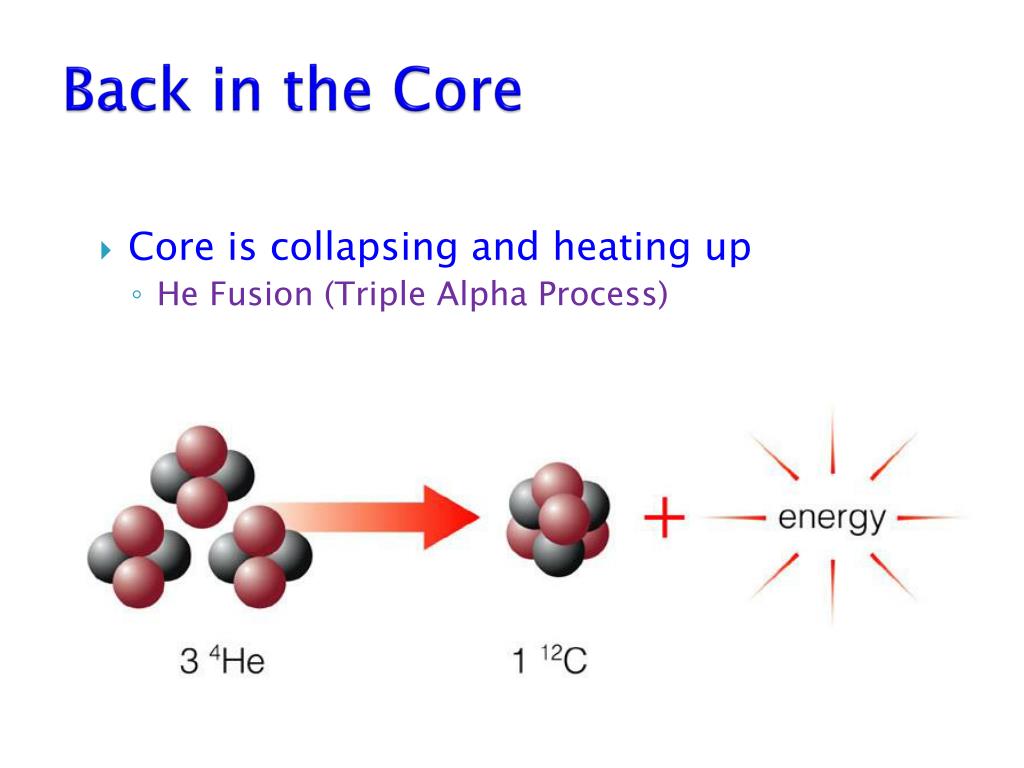

  6. Back in the Core • Core is collapsing and heating up • He Fusion (Triple Alpha Process)

  7. He Fusion • Threshold Temperature • 108 K = 100,000,000 K • Massive stars do this easily • Core is still ideal gas • Low mass stars (like the Sun) struggle • Core becomes degenerate

  8. Ideal Vs. Degenerate Gas • The ideal gas safety valve • Heat an ideal gas and it expands and cools • Cool an ideal gas and it contracts and heats up • Pressure  Temperature • Degenerate electron gas • Electrons are forced to be very close together and fill every energy state • Pressure and Temperature not related

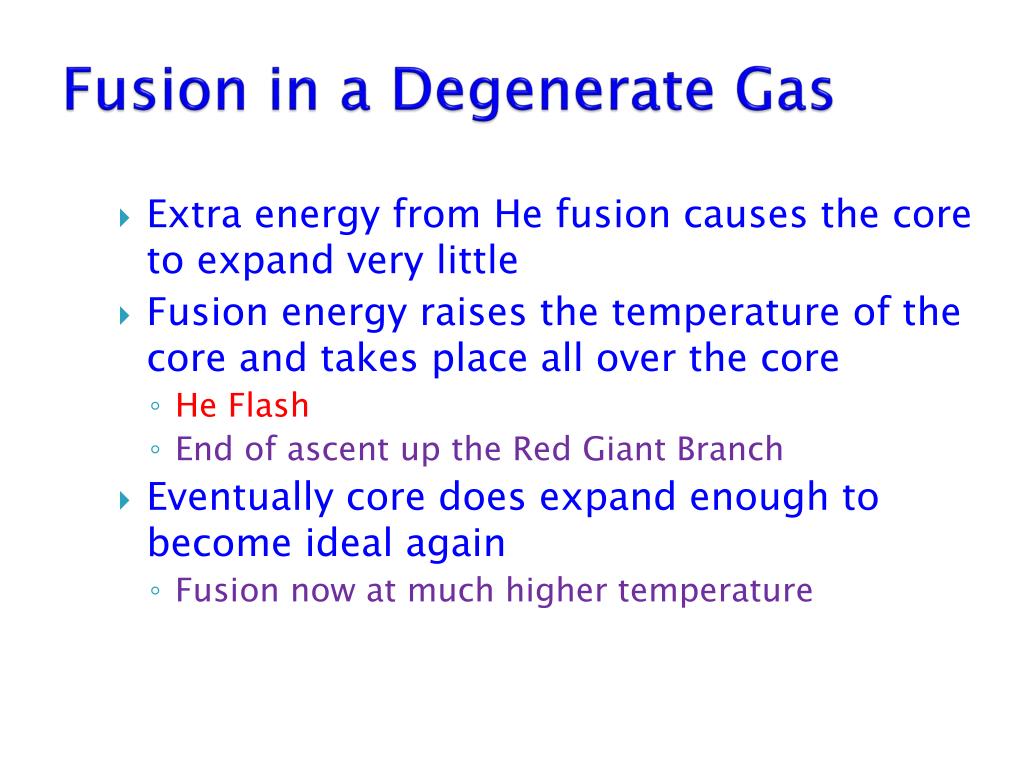

  9. Fusion in a Degenerate Gas • Extra energy from He fusion causes the core to expand very little • Fusion energy raises the temperature of the core and takes place all over the core • He Flash • End of ascent up the Red Giant Branch • Eventually core does expand enough to become ideal again • Fusion now at much higher temperature

  10. Helium Fusion • Star is quasi-stable • Envelope contracts (luminosity should ) • Temperature increases (lum. should ) • These two effects nearly offset • Horizontal Branch • RR Lyrae Variables • Periods of 0.05 to 1.2 days • Amplitudes of 1 to 2 magnitude

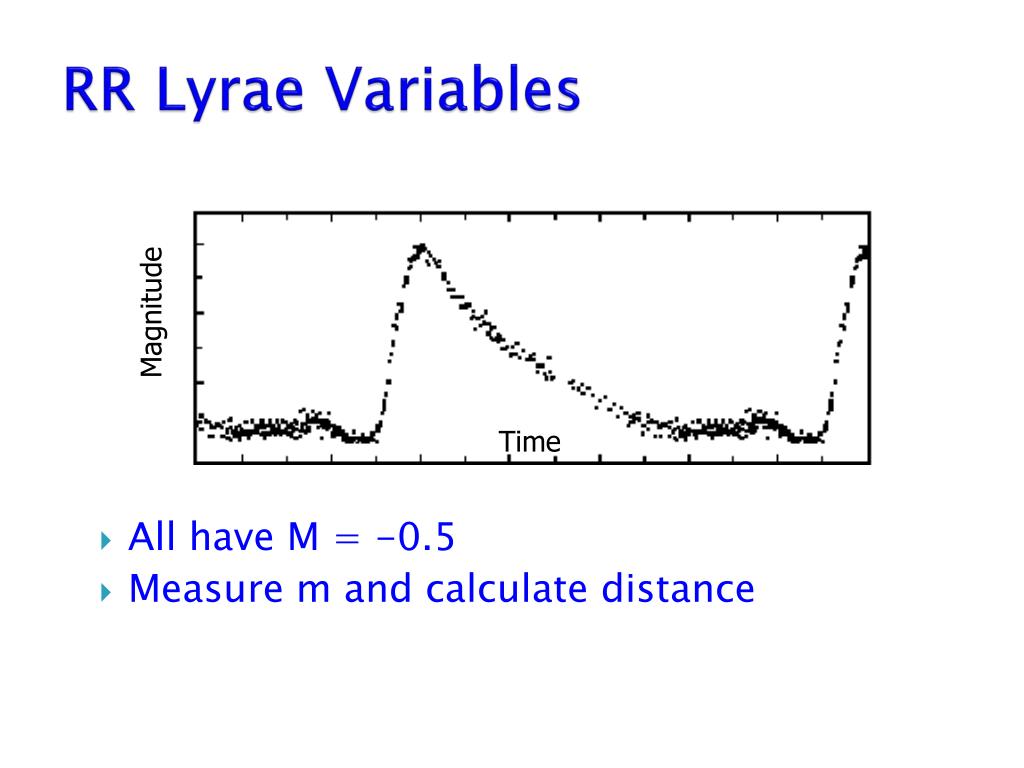

  11. Magnitude Time RR Lyrae Variables • All have M = -0.5 • Measure m and calculate distance

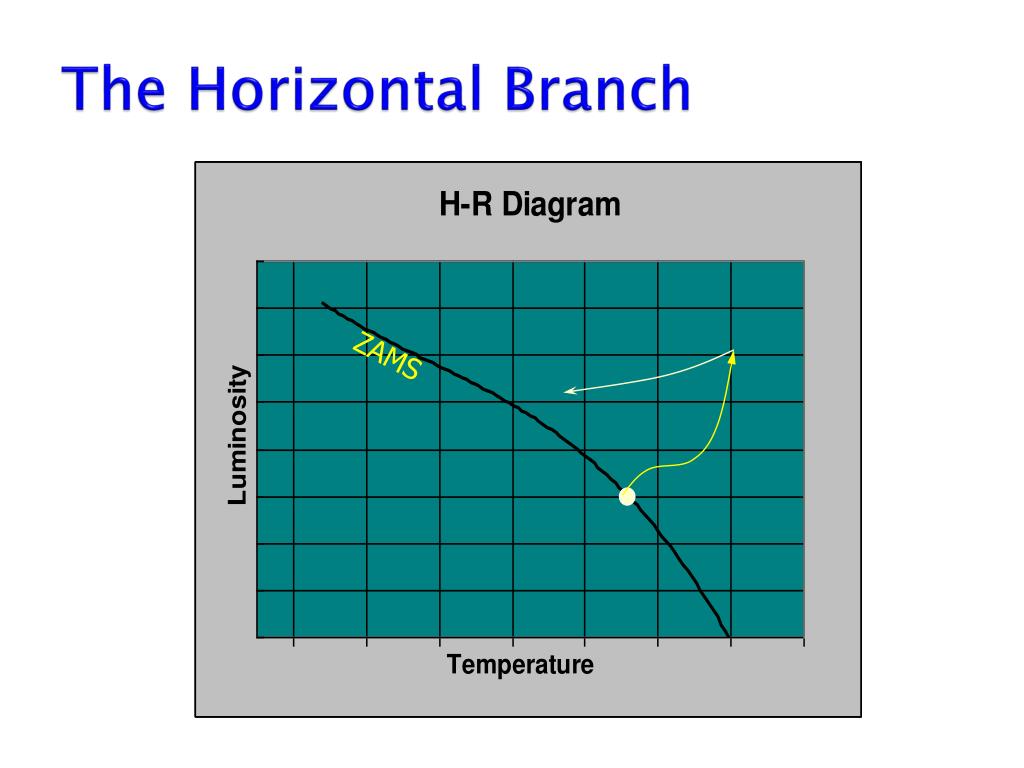

  12. The Horizontal Branch ZAMS

  13. Cepheid Variables • Periods between 1 and 70 days • Amplitudes of 0.1 to 2 mag

  14. Period-Luminosity Relation

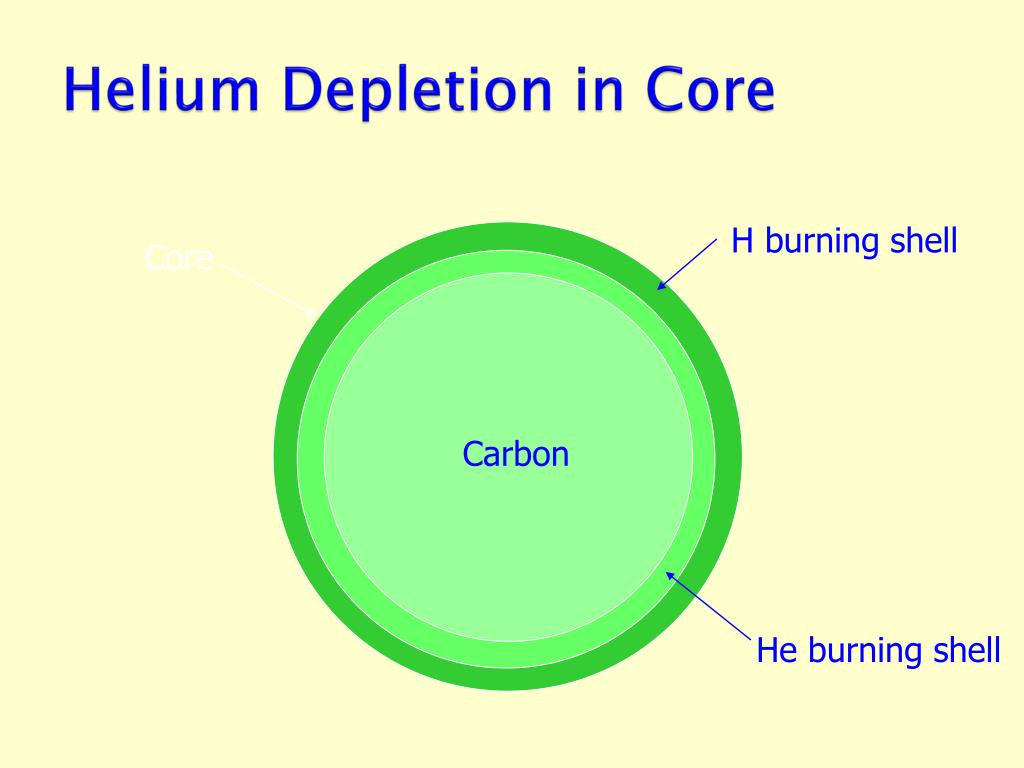

  15. Helium Depletion in Core H burning shell Core Carbon He burning shell

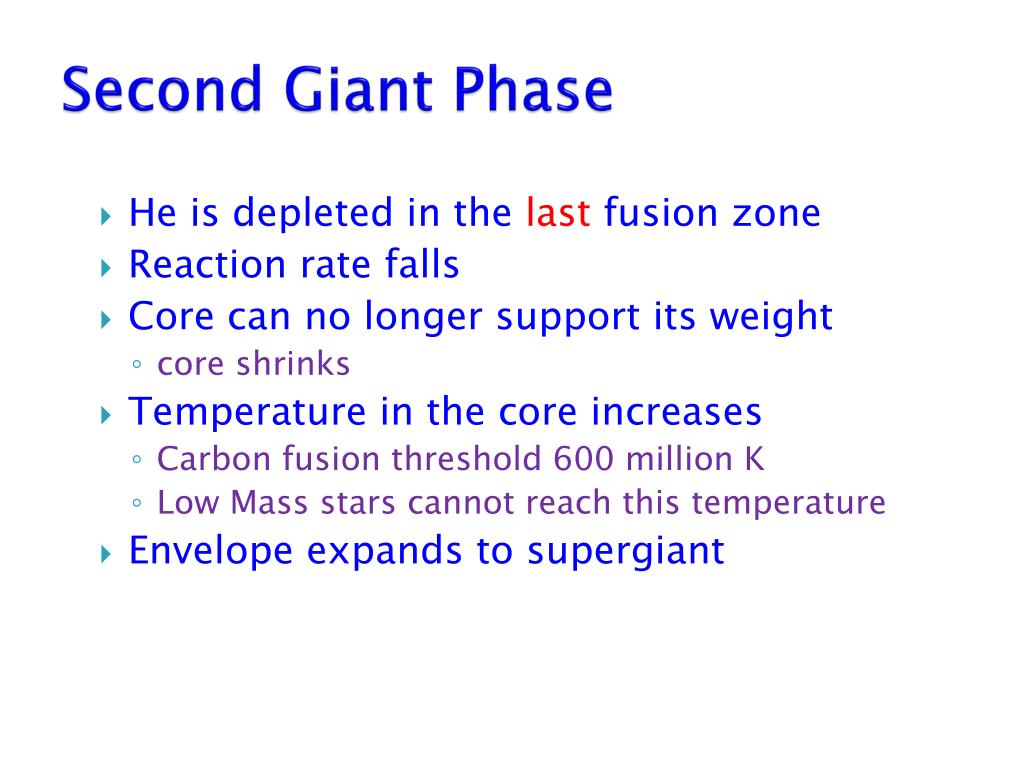

  16. Second Giant Phase • He is depleted in the last fusion zone • Reaction rate falls • Core can no longer support its weight • core shrinks • Temperature in the core increases • Carbon fusion threshold 600 million K • Low Mass stars cannot reach this temperature • Envelope expands to supergiant

  17. ZAMS Asymptotic Giant Branch

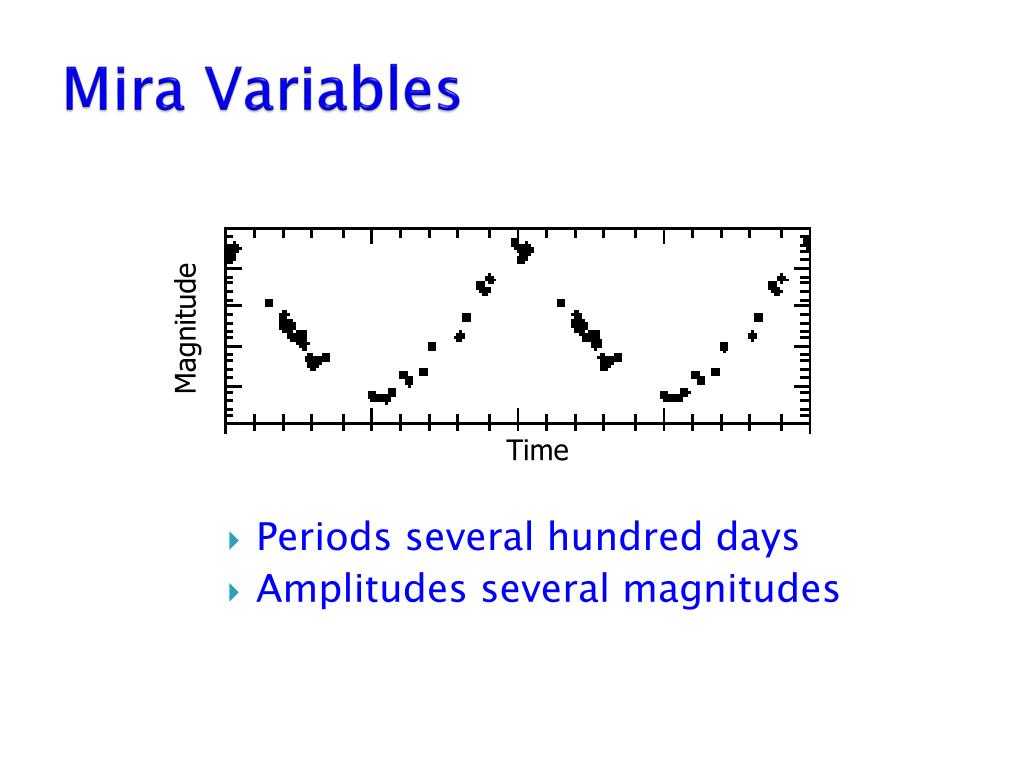

  18. Magnitude Time Mira Variables • Periods several hundred days • Amplitudes several magnitudes

  19. Planetary Nebula • Core is once again degenerate • He fusion in the shell becomes explosive • Send shocks of energy into the expanded envelope • Recombination energy also drives envelope out

  20. The Ring Nebula Wings of a Butterfly Nebula The Helix Nebula Planetary Nebulas

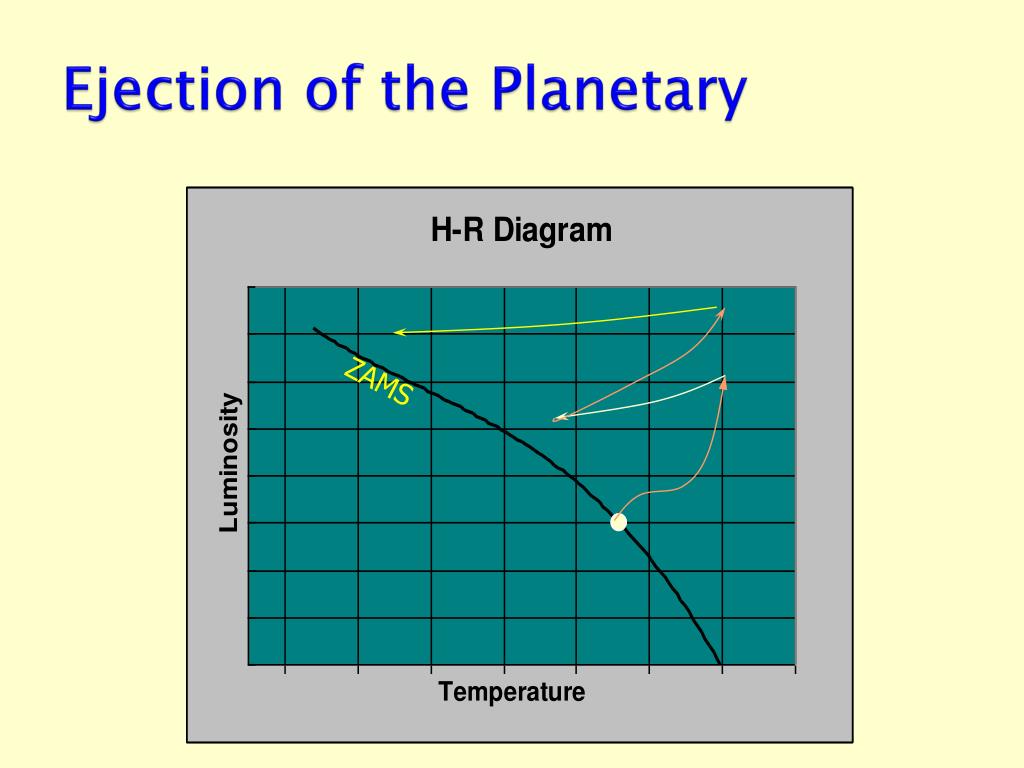

  21. ZAMS Ejection of the Planetary

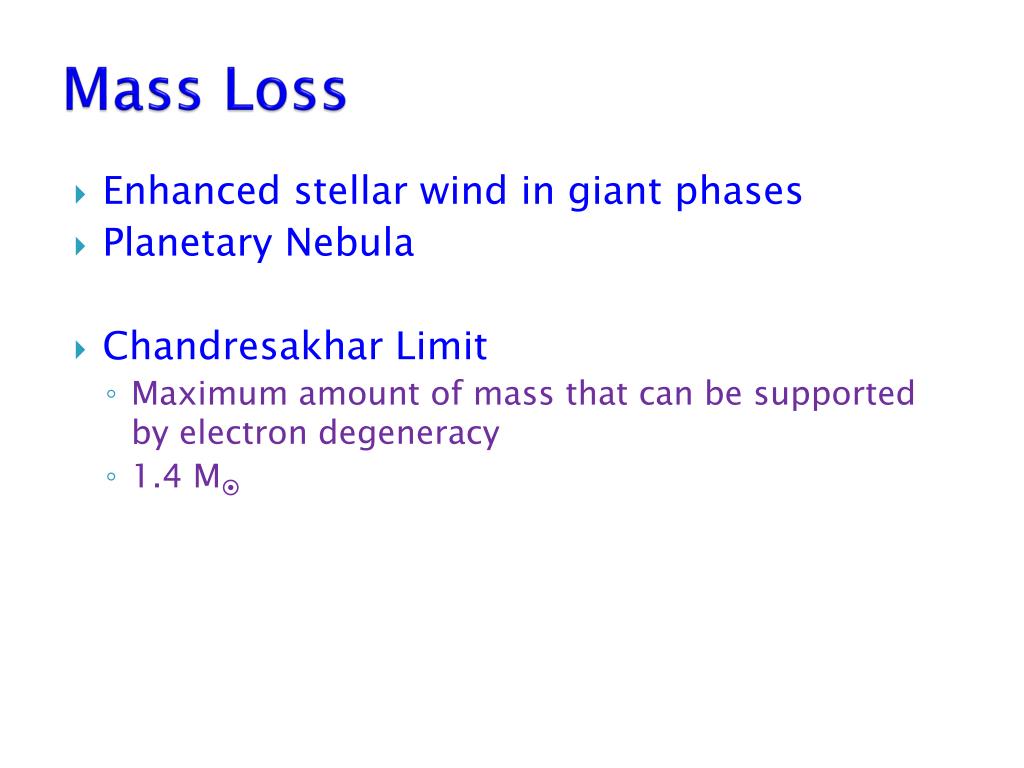

  22. Mass Loss • Enhanced stellar wind in giant phases • Planetary Nebula • Chandresakhar Limit • Maximum amount of mass that can be supported by electron degeneracy • 1.4 M

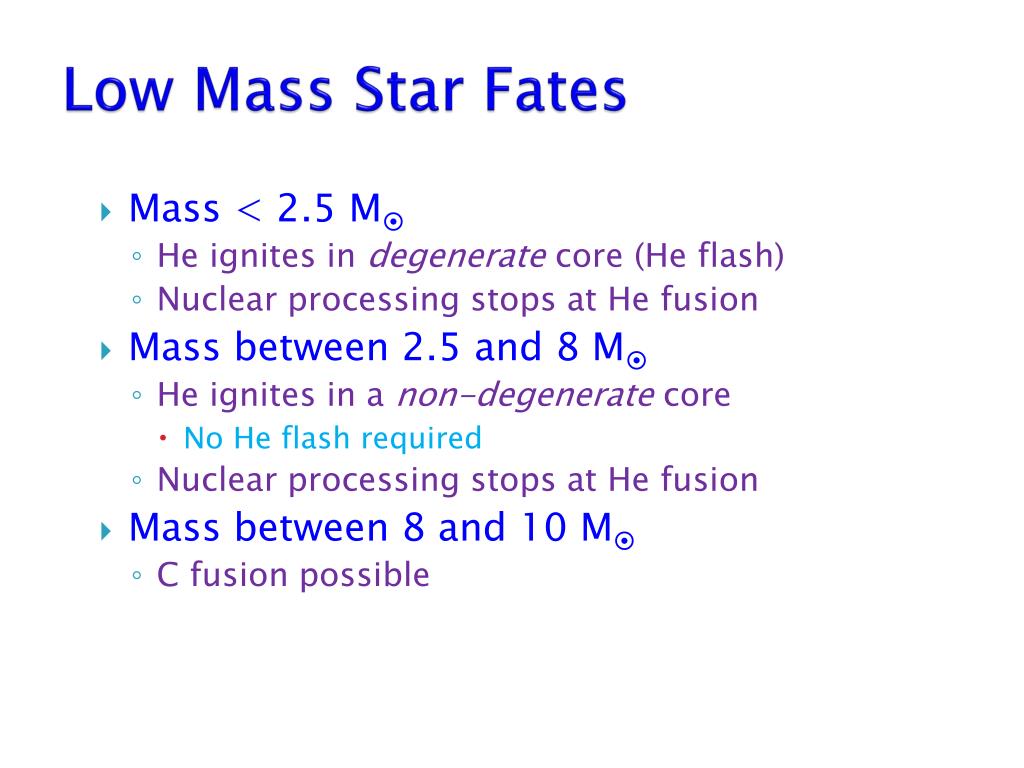

  23. Low Mass Star Fates • Mass < 2.5 M • He ignites in degenerate core (He flash) • Nuclear processing stops at He fusion • Mass between 2.5 and 8 M • He ignites in a non-degenerate core • No He flash required • Nuclear processing stops at He fusion • Mass between 8 and 10 M • C fusion possible

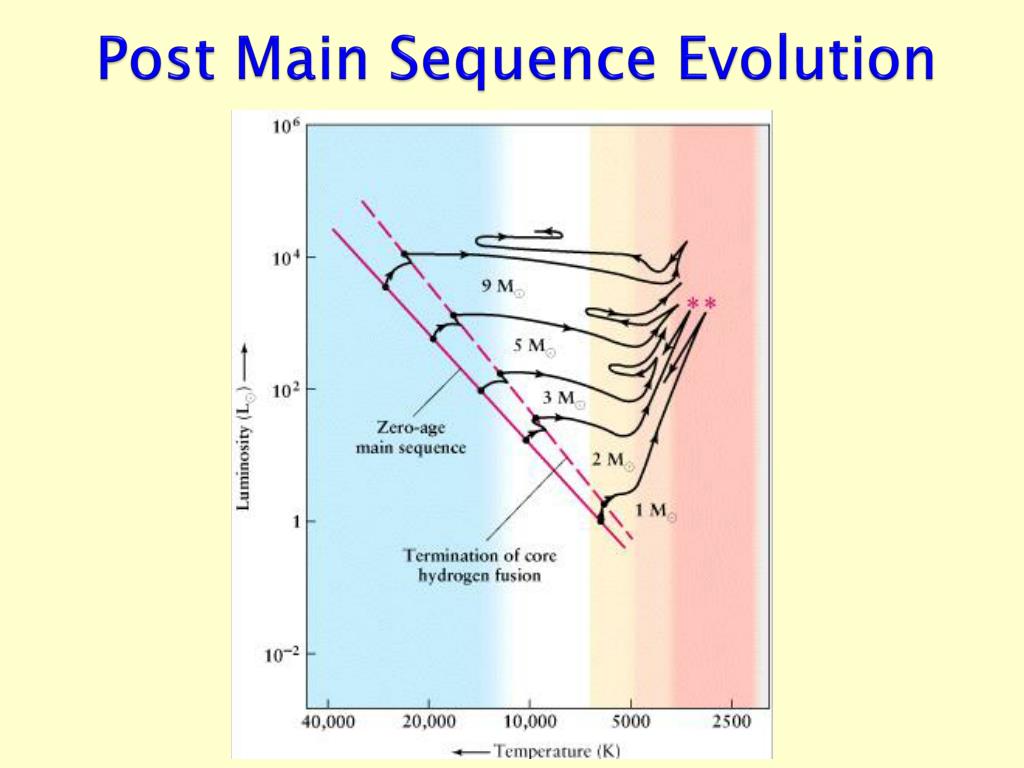

  24. Post Main Sequence Evolution

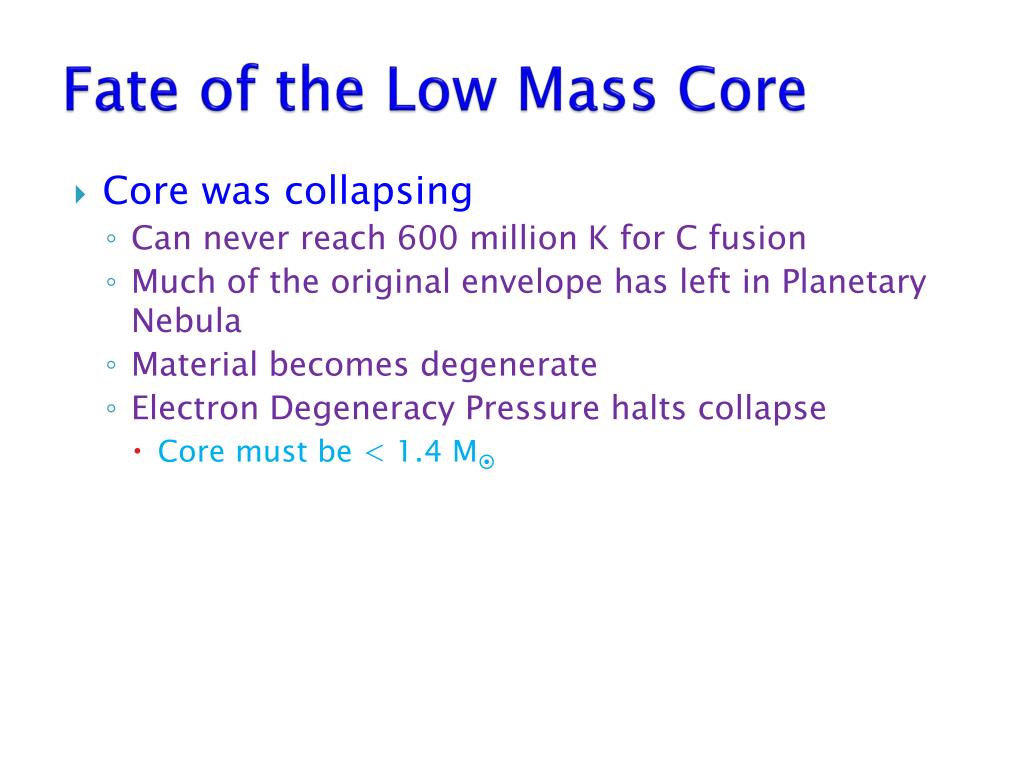

  25. Fate of the Low Mass Core • Core was collapsing • Can never reach 600 million K for C fusion • Much of the original envelope has left in Planetary Nebula • Material becomes degenerate • Electron Degeneracy Pressure halts collapse • Core must be < 1.4 M

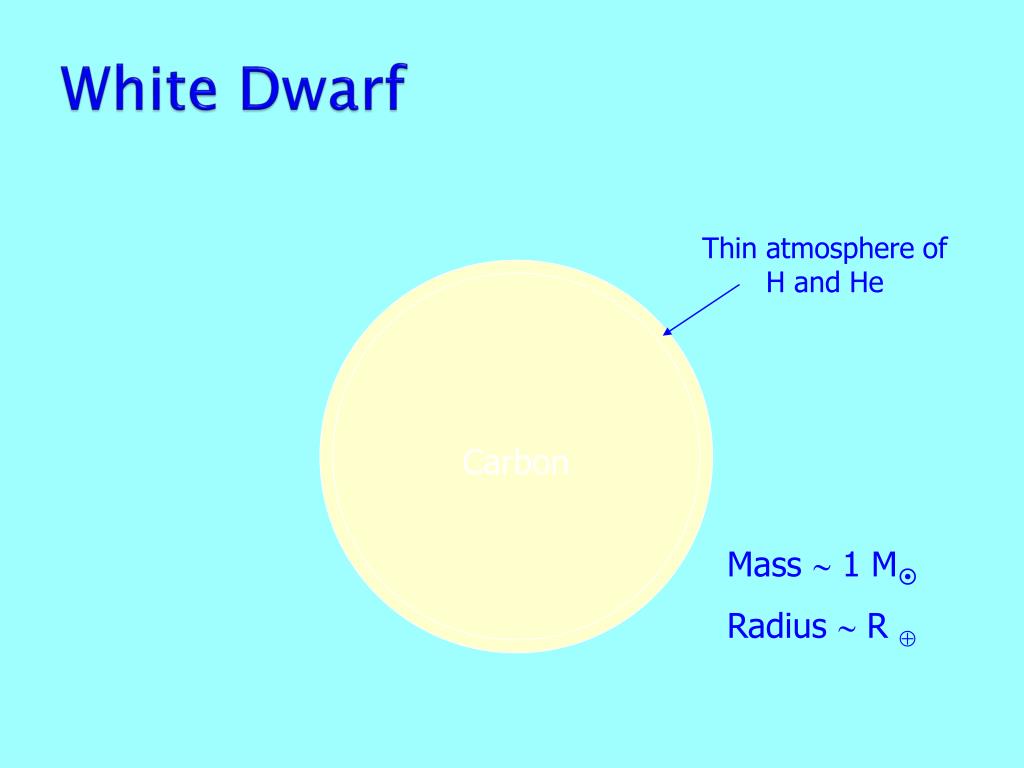

  26. Thin atmosphere of H and He Carbon White Dwarf Mass  1 M Radius  R 

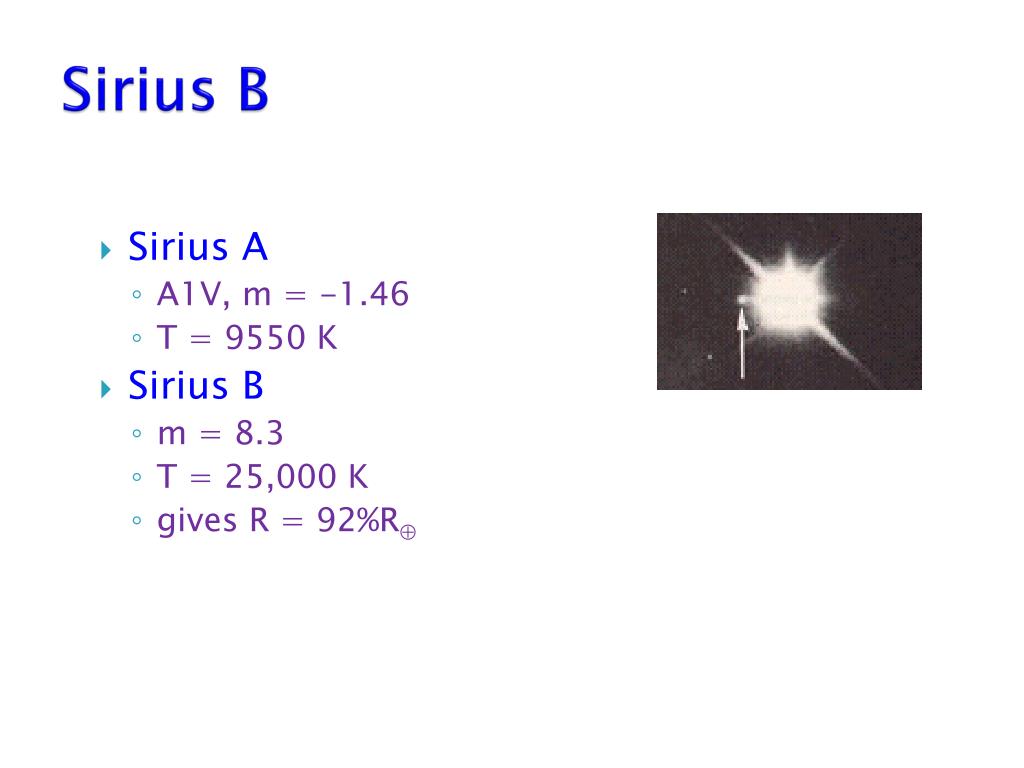

  27. Sirius B • Sirius A • A1V, m = -1.46 • T = 9550 K • Sirius B • m = 8.3 • T = 25,000 K • gives R = 92%R

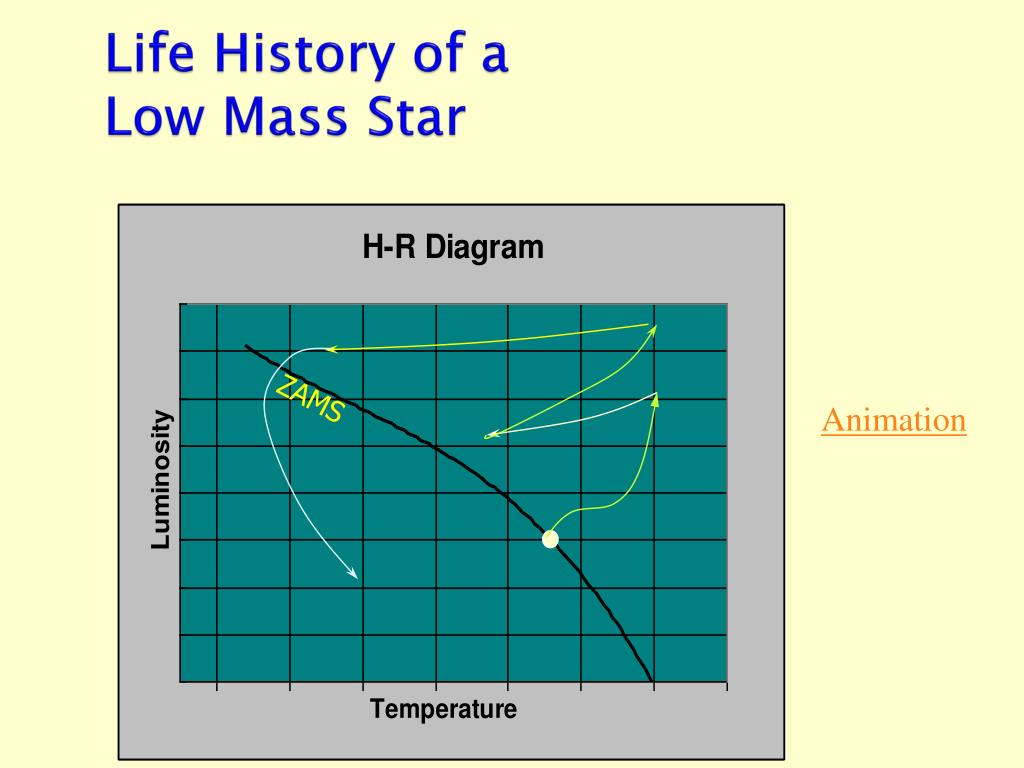

  28. ZAMS Life History of a Low Mass Star Animation
