实验九

实验九. D/A 转换实验. 实验要求. 1 、利用 DAC0832 ，编制程序产生锯齿波、三角波、正弦波。三种波轮流显示，用示波器观看。. 实验目的. 1 、了解 D/A 转换的基本原理。 2 、了解 D/A 转换芯片 0832 的性能及编程方法。 3 、了解单片机系统中扩展 D/A 转换的基本方法。. 实验电路及连线. 用示波器探头接触 Ua 或 Ub ，观察显示波形。. 开始. 置计数器初值. 查表读波形数据. 启动 D/A. 改变计数器及表指针. 否. 转换完毕. 是. 程序框图. 程序清单. CS0832 equ 08000h

onslow
Download Presentation

实验九

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. 实验九 D/A转换实验

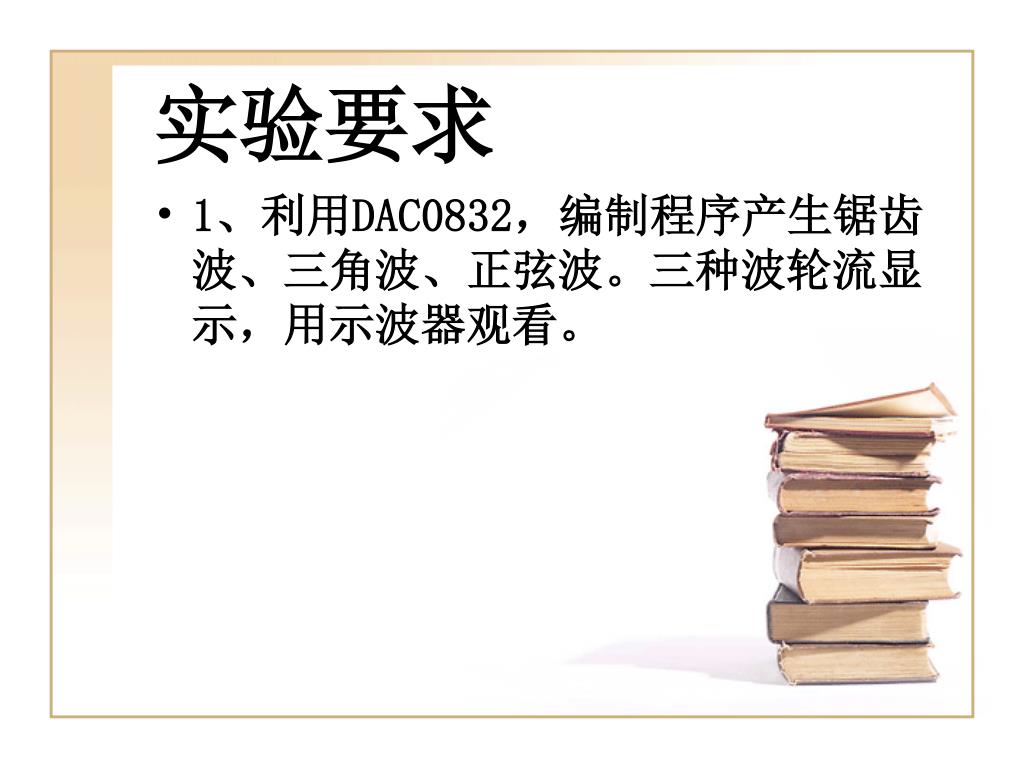

  2. 实验要求 • 1、利用DAC0832，编制程序产生锯齿波、三角波、正弦波。三种波轮流显示，用示波器观看。

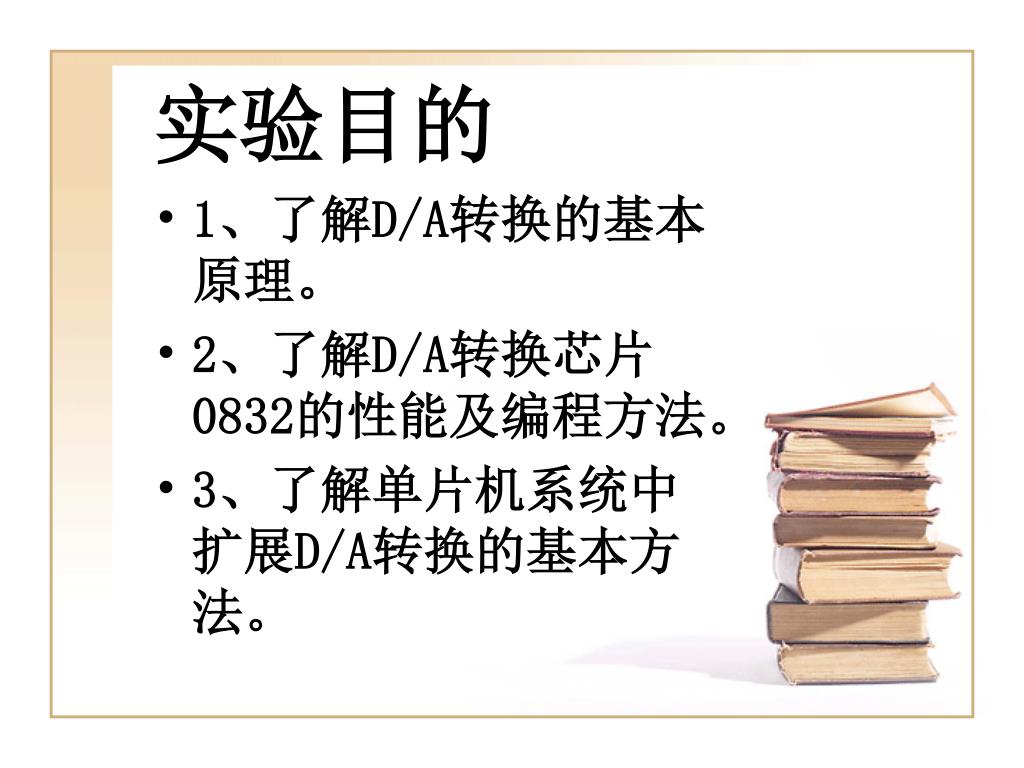

  3. 实验目的 • 1、了解D/A转换的基本原理。 • 2、了解D/A转换芯片0832的性能及编程方法。 • 3、了解单片机系统中扩展D/A转换的基本方法。

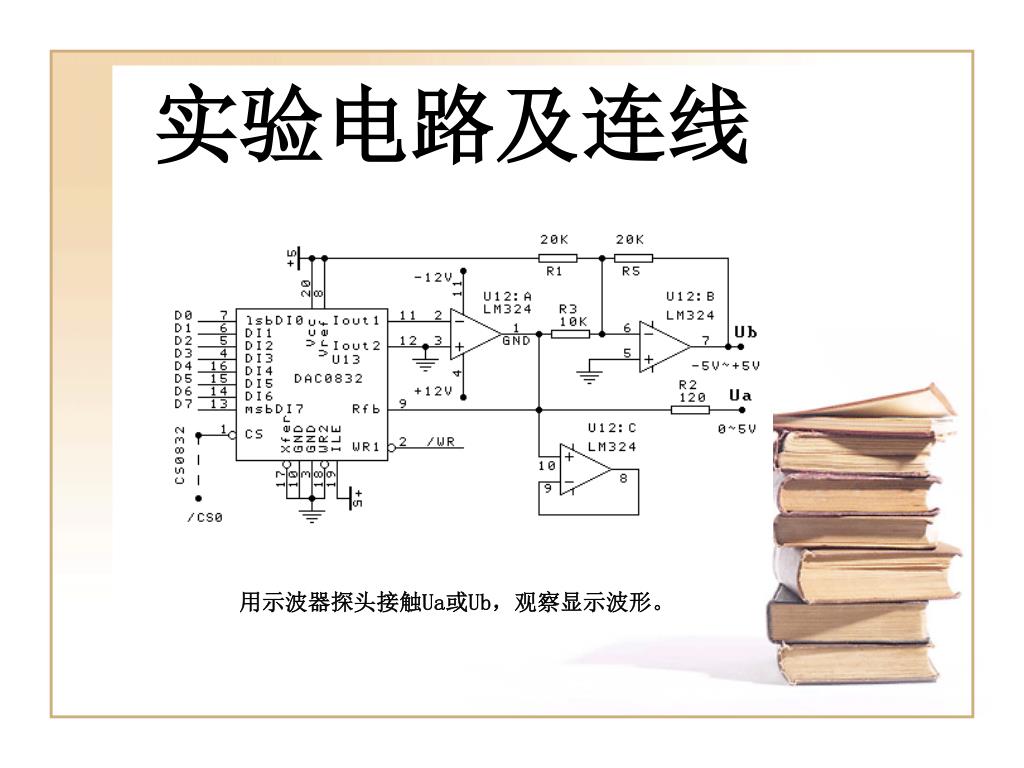

  4. 实验电路及连线 用示波器探头接触Ua或Ub，观察显示波形。

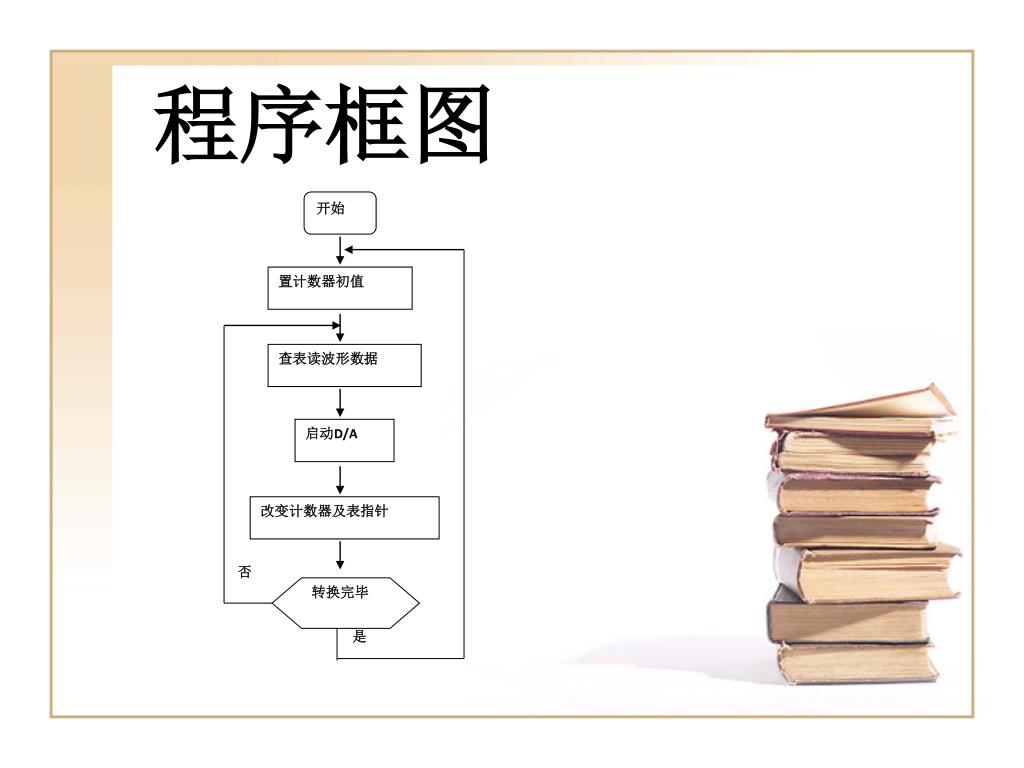

  5. 开始 置计数器初值 查表读波形数据 启动D/A 改变计数器及表指针 否 转换完毕 是 程序框图

  6. 程序清单 CS0832 equ 08000h mov dptr, #CS0832 mov a, #0 movx @dptr, a mov a, #80h movx @dptr, a mov a, #0ffh movx @dptr, a ljmp $ end
