Presentation structure

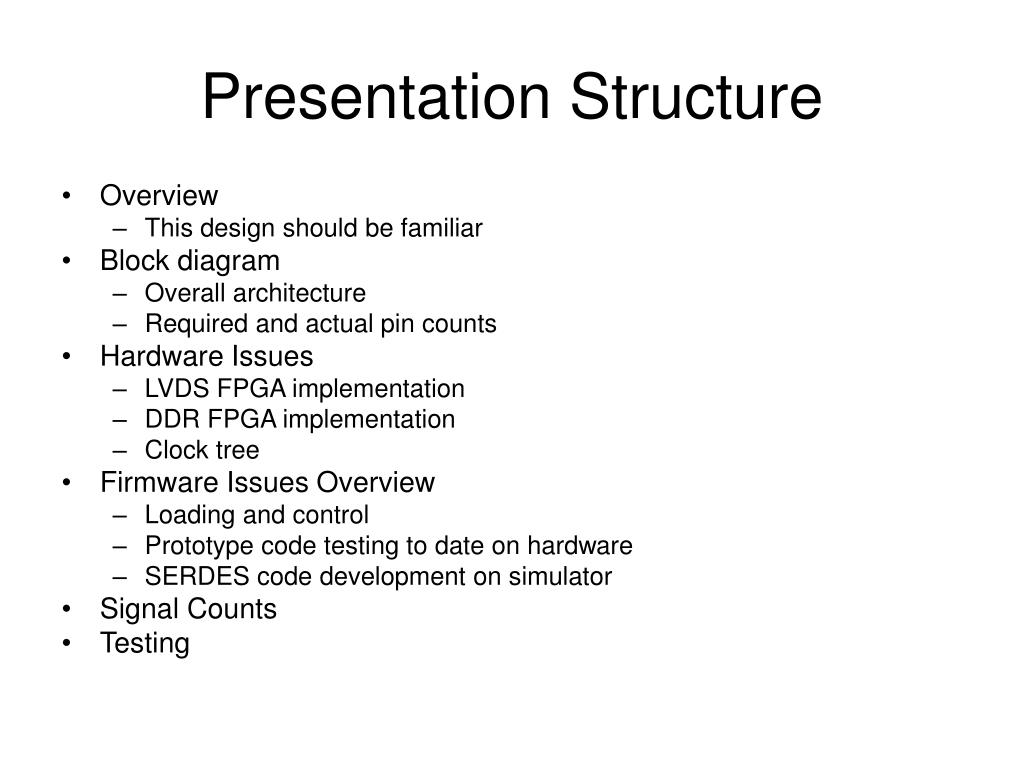

Presentation Structure

  • Overview

    • This design should be familiar

  • Block diagram

    • Overall architecture

    • Required and actual pin counts

  • Hardware Issues

    • LVDS FPGA implementation

    • DDR FPGA implementation

    • Clock tree

  • Firmware Issues Overview

    • Loading and control

    • Prototype code testing to date on hardware

    • SERDES code development on simulator

  • Signal Counts

  • Testing


Overview
Overview

  • Receives jet and electron data from RCT

    • 3 RCT crates per leaf card (jet)

    • 9 RCT crates per leaf card (electron)

    • RCT data presented on 1.6GHz optical links

  • Based on existing design

    • Double PMC

    • Dual Virtex2 4000/6000

    • Discrete SERDES (2.4GHz TI TLK series)

  • Enhancements

    • Dual Virtex2Pro 70

      • 16 integrated SERDES links per device

      • 3.2GHz maximum

    • 32 Optical inputs

      • 12 channel Agilent links

      • 2.5 GHz maximum

  • Retained features

    • Power supply

      • Phase controlled switchers

        • 30A at 1.5V, 15A at 2.5V

    • Basic layout

    • Decoupling scheme

      • .0201 cap pattern for FPGAs


Schedule
Schedule

  • Schematic at Los Alamos

    • Initial review completed

      • Some minor modifications expected

        • SERDES/optical section

        • Signal integrity simulations in progress

    • Initial parts placement

  • Contract award imminent

    • Projected on March 15th

    • Transition funds in place

      • Covering current efforts

  • Delivery date of first two prototypes July 1st

    • Final review at end of May

      • Exact dates being worked out

    • Monthly progress reports will be generated

      • Submitted directly to CMS from engineering team


Gct leaf card

12 channel optical links

1.6Gbps links

12 links

4 links

4 links

12 links

120 pin LVDS link (60 pairs)

120 pin LVDS link (60 pairs)

4 links

unused

XC2VP70FF1513C

XC2VP701513C

Pre-clustered jets: 96 pins

(48 pairs)

200 pins

Pre-clustered jets: 96 pins

(48 pairs)

Et summary: 24 pins

Readout: 10 pins

Misc: 20 pins

Finished jets: 54 pins

Unfinished jets: 7 pins

Finished jets: 54 pins

Unfinished jets: 7 pins

Energy summary: 24 pins

Clock and control: 14 pins

Readout: 20 pins

Finished jets: 54 pins

Unfinished jets: 7 pins

P13

P11

P23

P21

P14

P12

P24

P22

Fully populated PMC I/O – 368 usable pins


Hardware issues lvds
Hardware issues, LVDS

  • Design makes extensive use of LVDS signaling

    • V2Pro supports true 100 Ohm termination

      • Much more efficient than V2 DCI

        • ~240mA for 60 pairs

    • Samtec QTS/H differential connectors

      • High density and speed

      • Commercial cable assemblies


Hardware issues ddr
Hardware Issues, DDR

  • DDR used for all single ended I/O

    • FPGA intercommunication at 40MHz

      • Use DCI (50 Ohm) or 6mA current limit

        • Less than 2A assuming 200 interconnects

    • Communication with Wheel card at 40MHz

      • Use DCI (50 Ohm) or 8-12mA current limit

        • 4.5A assuming 368, 12mA interconnects

          • Will be less

      • Board supports adhesive heat sinks

        • 5V fan headers if required


Clock tree
Clock Tree

FPGA 1

Top/bottom die

SERDES

LVDS

1:4

fanout

LVDS Oscillator

FPGA 2

Top/bottom die

SERDES

LVDS

4x4

Crosspoint

LVDS

1:4

fanout

External COAX SMB

FPGA 1

General Clocks

PMC (40MHz)

PMC (80MHz)

LVDS

1:4

fanout

FPGA control

FPGA 1

General Clocks

Skew = 2.5 nS max

External COAX SMB

Single ended clocks (2 per FPGA) tie directly to PMC


Fpga loading and control
FPGA loading and control

  • JTAG

    • Single JTAG chain

      • 4 devices, 2 FPGAs and 2 FLASH PROMs

    • Jumper configurable

      • Local header or PMC via wheel card

  • Default configuration via Xilinx FLASH PROM

    • Single platform FLASH XCF32P per device

  • Control via wheel card (PMC)

    • USB test fixture for stand alone operation

    • No interface protocol defined by hardware

      • Firmware defined

      • Serial or parallel interface to commercial USB device

  • No dedicated global reset

    • Define logic reset lines in firmware

    • Utilize JTAG for device reprogramming


Prototype firmware
Prototype firmware

  • Tested on current (Los Alamos) board

  • Jet finder implementation tested

    • 3 jet finders with inter FPGA communication

    • Test data loaded into block RAMs

  • USB interface to PC utilized

    • Labview application for stimulus and response

  • Results

    • Jet finder operates as planned

    • Inter chip communications robust

    • Initial device size estimate improper

      • 100% utilization in XC2V4000

    • Speed grade estimate very close

      • Margin in the single nanosecond range with -6 parts


Serdes testing
SERDES testing

  • Xilinx Simulation model used

    • Transceiver properly instantiated

    • Initialization and loopback verified

    • Standard templates created

      • Allow easier design and maintenance

    • De-skew approach successfully simulated

      • Block RAM based

      • Doubled as “snapshot” monitor buffer


Signal counts
Signal Counts

  • Communication with jet finder neighbors @ 40MHz DDR differential

    • Pre-clustered jets

      • 16 bits per jet

        • 10 bit Et, 1 bit ovf, 1 bit tau_veto, 4 bits eta

      • Up to 6 pre-clustered jets per jet finder

      • Total: 48 pairs

  • Jet finder outputs to wheel @ 40 MHz DDR SE

    • Finished jets

      • 18 bits per jet

        • 10 bit Et, 1 bit ovf, 1 bit tau_veto, 4bits eta, 1 bit phi

        • 1 spare

      • Up to 6 finished jets per jet finder

      • Total: 54 pins

    • Unfinished jets @ 40MHz DDR SE

      • 14 bits sent directly to wheel/concentrator

        • 10 bit Et, 1 bit ovf, 1 bit tau_veto, 1 bit phi

        • 1 spare

      • Total: 7 pins


Signal counts1
Signal counts

  • Internal communication @ 40MHz DDR SE

    • Jet summary

      • 12 bit Et, 1 bit ovf, 1 spare

    • Missing Et

      • 16 bit Ex, 16 bit Ey, 1 bit ovf, 1 spare

    • Total: 24 pins

  • Summary outputs to wheel @ 40MHz DDR SE

    • Jet summary

      • 12 bit Et, 1 bit ovf, 1 spare

    • Missing Et

      • 16 bit Ex, 16 bit Ey, 1 bit ovf, 1 spare

    • Total: 24 pins


Signal counts2
Signal counts

  • Clock

    • 2 differential pairs

    • 2 single ended, LVCMOS 2.5V

  • Slow control, TBD speed and type

    • Serial read/write, 2 signals

    • 1 reset

  • Readout @ 40MHz DDR SE

    • 8 bits data, 2 control

    • Data rate: 13.2 Mbyte/second

      • 3 RCT crates * 22 regions * 2 bytes/region @ 100KHz


Testing
Testing

  • Stand alone operation possible

    • Requires special test firmware and software

      • Extension to current labview based test routines possible

    • Loaded via local JTAG header

    • USB interface to PC

    • Loopback of differential interface

      • Uses the same cable as in operation

    • FPGA loopback intrinsic

      • SERDES loopback supported

  • Source card required for optical testing

    • Software/firmware requirements not fully defined
