  1. Department of Mechanical Engineering A Seminar Presentation On SIX STROKE DIESEL ENGINE

  2. CONTENTS • Introduction • Types of Six stroke engines • Bajulaz Six stroke Diesel engine • Dual fuel Six stroke engine • Comparison • Specifications • Features • Performance and economy • Conclusion

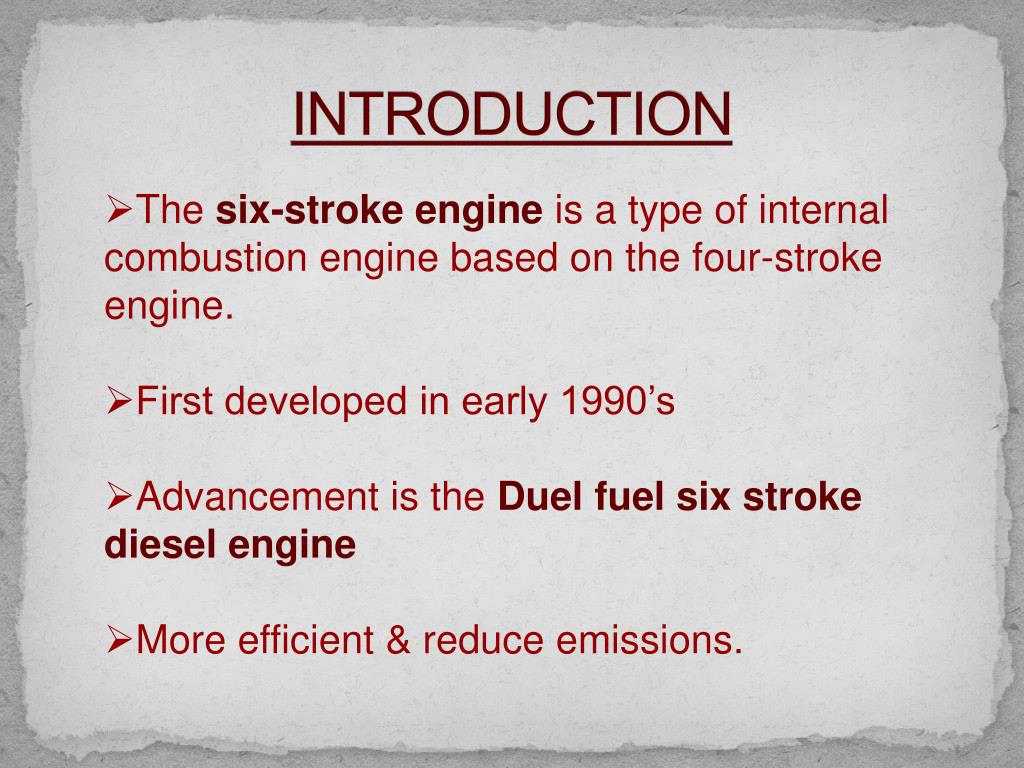

  3. INTRODUCTION • The six-stroke engine is a type of internal combustion engine based on the four-stroke engine. • First developed in early 1990’s • Advancement is the Duel fuel six stroke diesel engine • More efficient & reduce emissions.

  4. Approaches for six stroke engine design • First approach There is two additional strokes by the main piston as fifth and sixth stroke • Second approach It uses a second opposed piston which moves at half the cyclical rate of the main piston

  5. TYPES:

  6. BAJULAZ SIX STROKE ENGINE Intake valve Heating chamber valve Combustion chamber valve Exhaust valve Cylinder Combustion chamber Air heating chamber Wall of combustion chamber Fuel injector Heater plug • Intake of pure air in the • cylinder STROKE 1

  7. STROKE 2 STROKE 3 • Compression of pure air in • heating chamber • Release of combustion • gases in the cylinder

  8. STROKE 4 STROKE 5 • Recompression of pure air • in the combustion chamber • Release of pure air • into cylinder

  9. STROKE 6 • Exhaust of combustion gases

  10. DUAL FUEL SIX STROKE ENGINE • This engine runs by two fuels i.e. diesel (primary fuel) and methanol (secondary fuel)

  11. PV DIAGRAMS

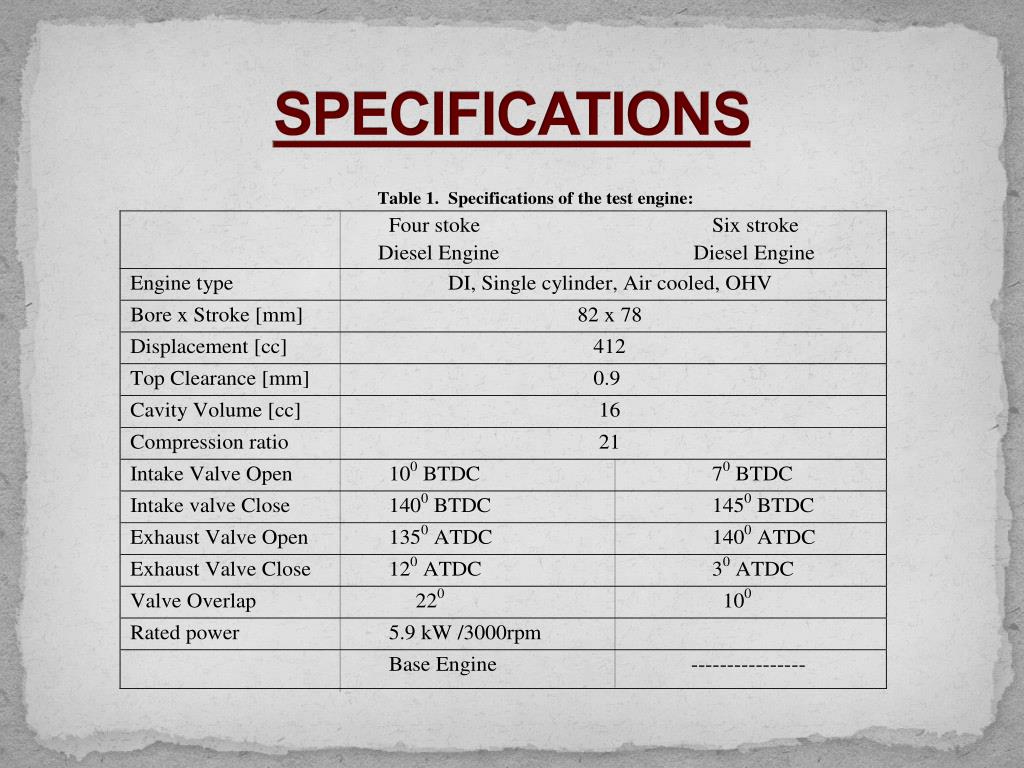

  12. SPECIFICATIONS

  13. COMPARISONS Comparison between four stroke & six stroke diesel engines

  14. Comparison between six stroke diesel & dual fuel six strokeengines

  15. Lower maintenance costs due to less wearing parts (cylinder head) • Longer service intervals possible due to lower operating temperatures recorded • Increase in thermal efficiency by more than 20% • Reduced fuel consumption

  16. IMPROVEMENTS IN EXHAUST

  17. ADVANTAGES • Reduction in fuel consumption by at least 40% • Two expansions(work/Power stroke) in six strokes • Dramatic reduction in pollution ( up to 65%) • Higher overall efficiency • Lower engine temperature & noise level • Due to more air intake, the cooling system is improved • Better scavenging and more extraction of work per cycle • Less inertia due to lightness of moving parts

  18. DISADVANTAGES • Brake power & indicated power per cycle per cylinder is comparatively lesser • Engine size increases due to many number of cylinders & additional components • Higher manufacturing cost of six stroke engine

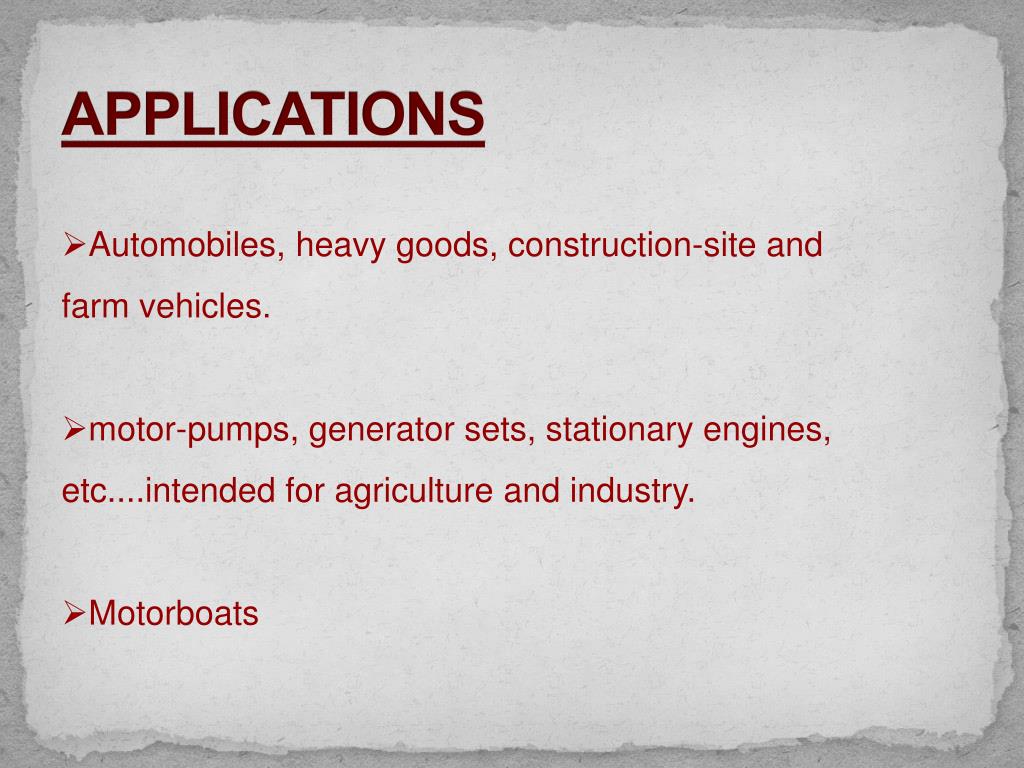

  19. APPLICATIONS • Automobiles, heavy goods, construction-site and farm vehicles.  • motor-pumps, generator sets, stationary engines, etc....intended for agriculture and industry. • Motorboats

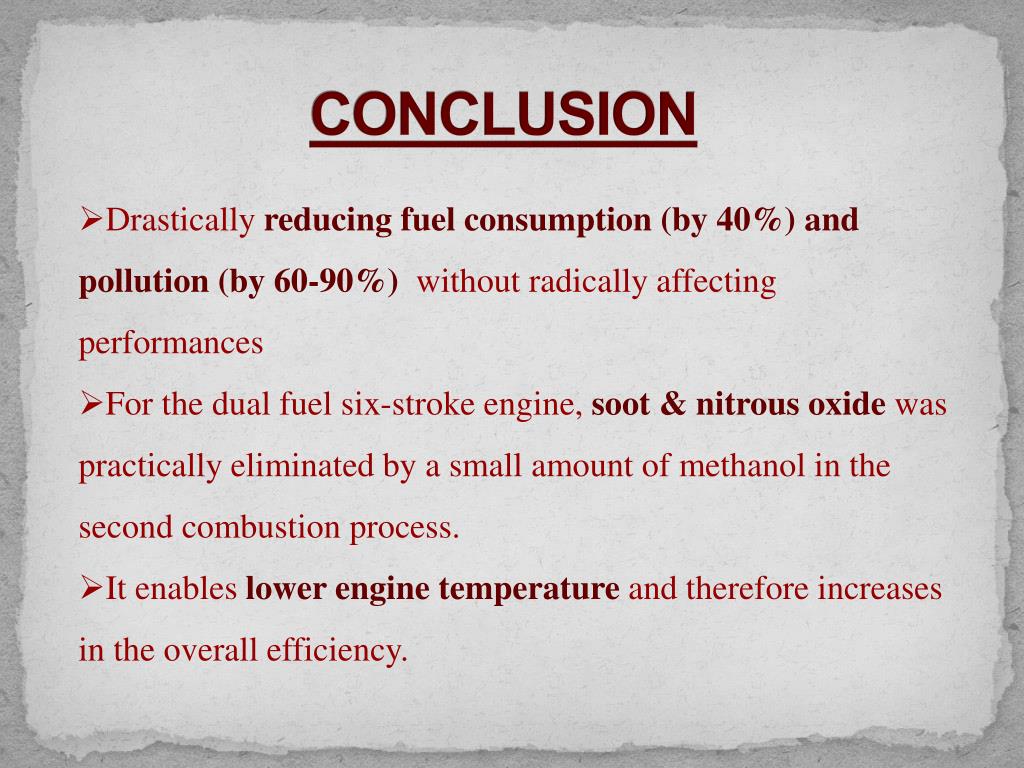

  20. CONCLUSION • Drastically reducing fuel consumption (by 40%) and pollution (by 60-90%) without radically affecting performances • For the dual fuel six-stroke engine, soot & nitrous oxide was practically eliminated by a small amount of methanol in the second combustion process. • It enables lower engine temperature and therefore increases in the overall efficiency.

  21. THANK YOU
