Case Study 1: AMOEBA

Loading in 2 Seconds...

play fullscreen
1 / 41

Case Study 1: AMOEBA - PowerPoint PPT Presentation


  • 263 Views
  • Uploaded on

Case Study 1: AMOEBA. History of Amoeba.

loader
I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
capcha
Download Presentation

PowerPoint Slideshow about 'Case Study 1: AMOEBA' - onawa


Download Now An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -
Presentation Transcript
history of amoeba
History of Amoeba
  • Amoeba originated at the Vrije Universiteit, Amsterdam, The Netherlands in 1981 as a research project in distributed and parallel computing. It was designed primarily by Andrew S. Tanenbaum and three of his Ph.D. students. By 1983, an initial prototype, Amoeba 1.0, was operational.
  • Starting in 1984, a second group was set up. This work used Amoeba 3.0, which was based on RPC. Using Amoeba 3.0, it was possible for clients in Tromso to access servers in Amsterdam transparently, and vice versa.
research goals

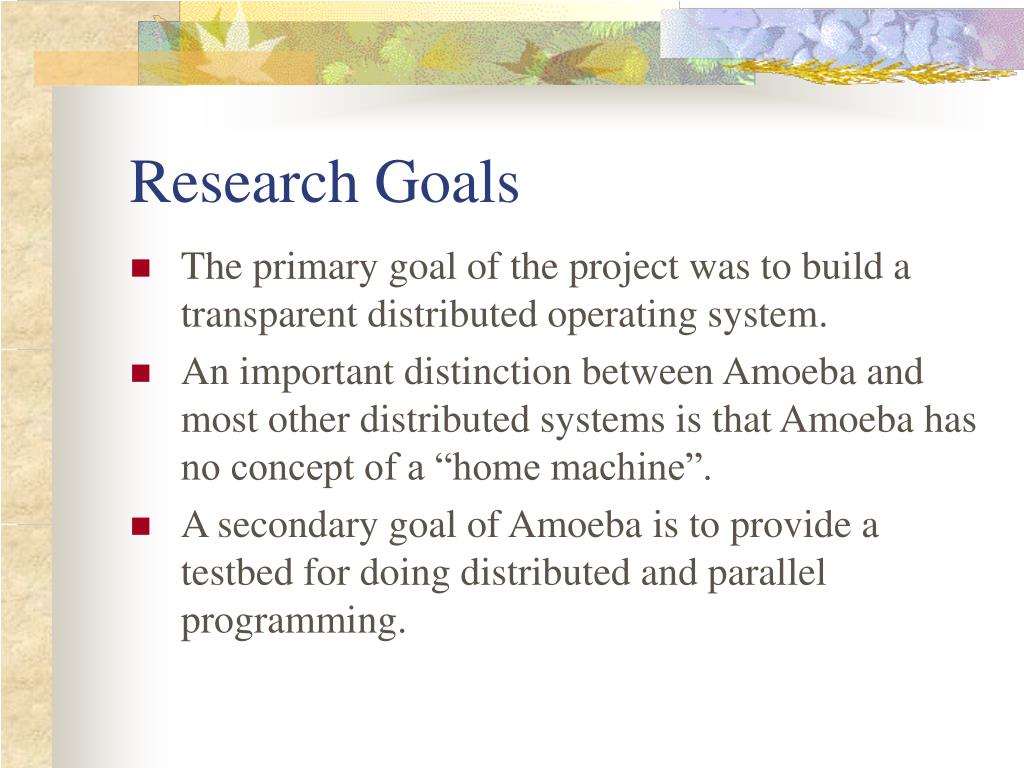

Research Goals
  • The primary goal of the project was to build a transparent distributed operating system.
  • An important distinction between Amoeba and most other distributed systems is that Amoeba has no concept of a “home machine”.
  • A secondary goal of Amoeba is to provide a testbed for doing distributed and parallel programming.
the amoeba system architecture
The Amoeba System Architecture

Processor pool

File

server

Print server

X-terminals

the amoeba microkernel
The Amoeba Microkernel

Server

Client

Thread

Microkernel

Process management

Memory management

Communication

I/O

the amoeba servers

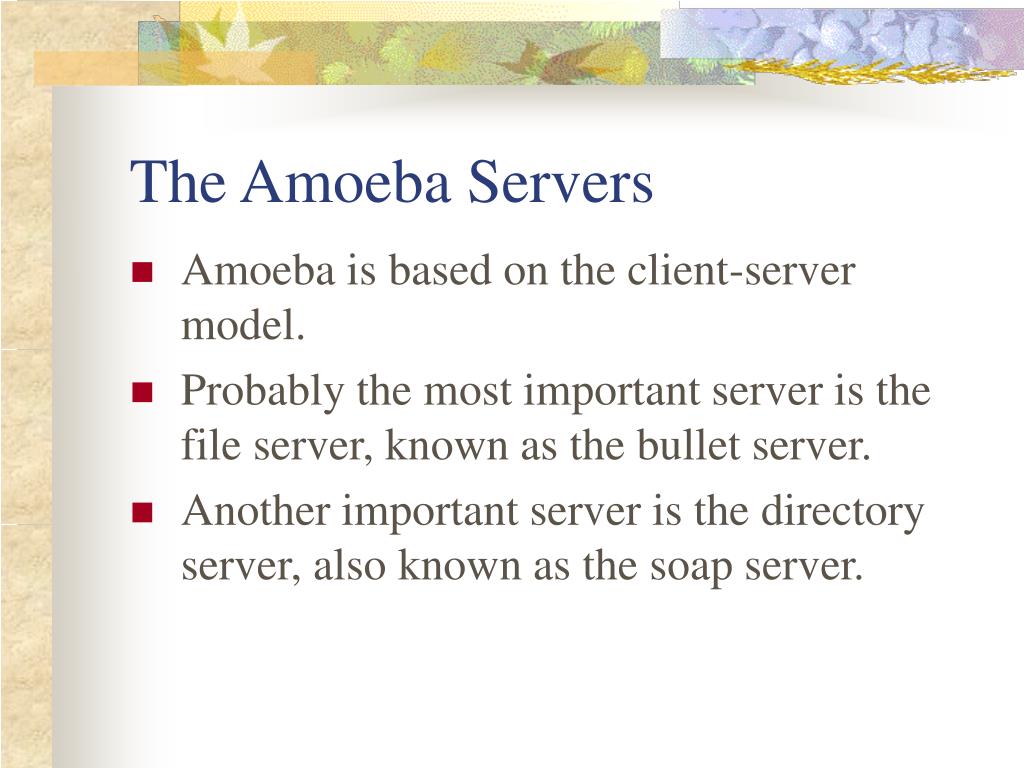

The Amoeba Servers
  • Amoeba is based on the client-server model.
  • Probably the most important server is the file server, known as the bullet server.

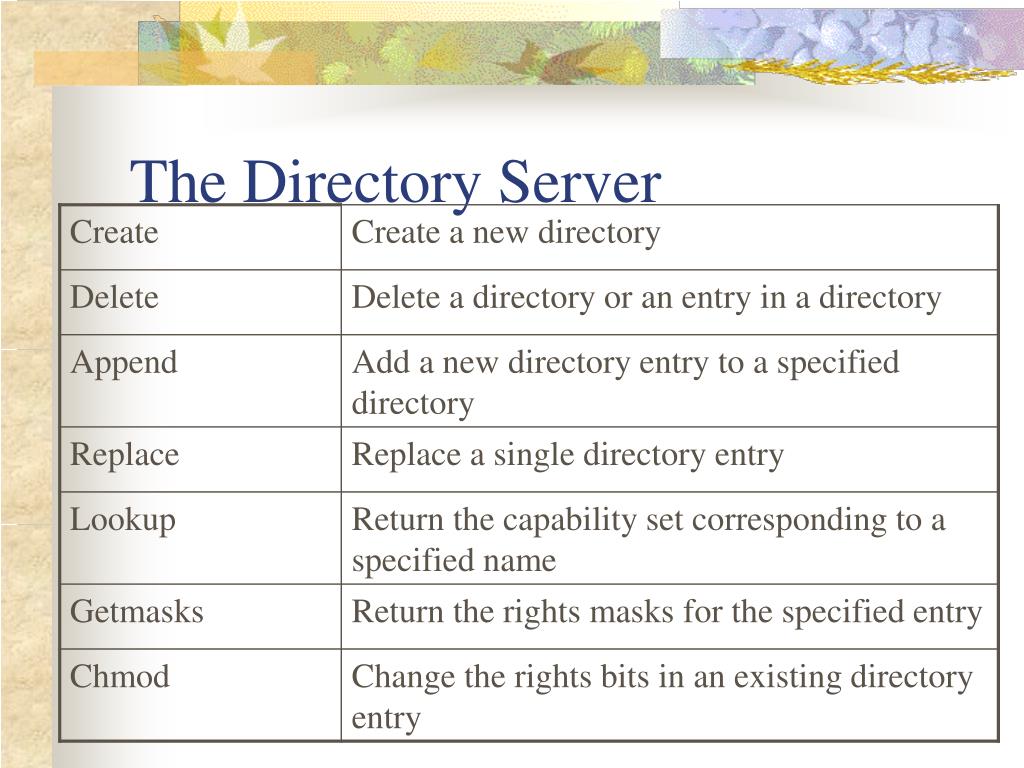

  • Another important server is the directory server, also known as the soap server.
objects and capabilities
Objects and Capabilities
  • The basic unifying concept underlying all the Amoeba servers and the services they provide is the object.
  • Each object is managed by a server process.
  • Objects are named and protected by capabilities.

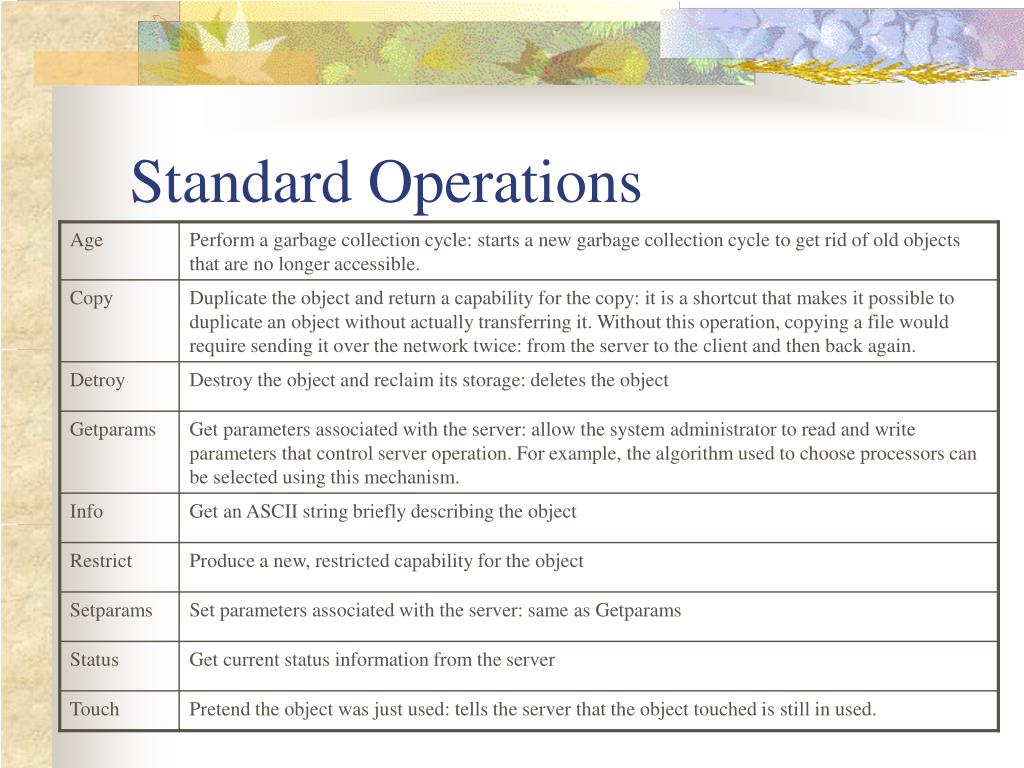

a capability in amoeba
A capability in Amoeba

48

24

8

48

Bits

Server port

Object

Rights

Check

capability
Capability
  • When the server creates an object, it generates a capability.
  • If a client wants to create a restricted capability, go through the following.
  • On subsequent operations, the client must present the capability to identify the object.

port

object

1111 1111

C (random number)

restricted capability
Restricted capability

New rights mask

Capability

0000 0001

port

object

1111 1111

C

Exclusive OR

One-way function

Restricted capability

port

object

f(C XOR 00000001)

00000001

process management in amoeba
Process Management in Amoeba
  • A process is an object in Amoeba. When a process is created, the parent process is given a capability for the child process. The child can be suspended, restarted, signaled, or destroyed.
slide13

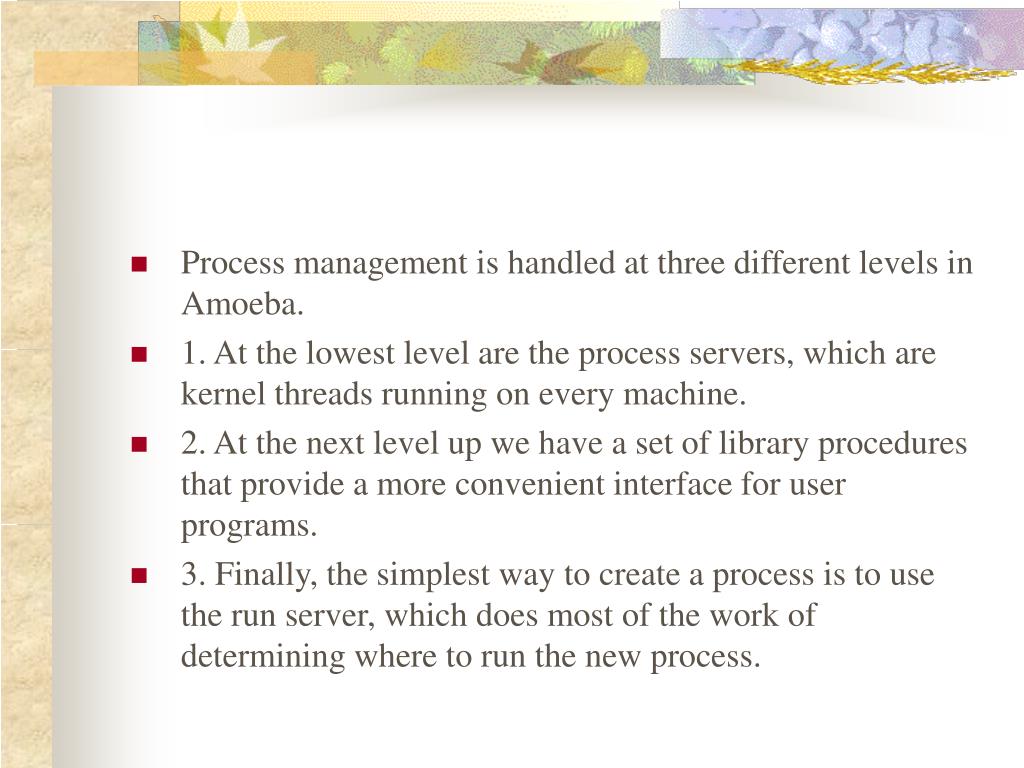

Process management is handled at three different levels in Amoeba.
  • 1. At the lowest level are the process servers, which are kernel threads running on every machine.
  • 2. At the next level up we have a set of library procedures that provide a more convenient interface for user programs.
  • 3. Finally, the simplest way to create a process is to use the run server, which does most of the work of determining where to run the new process.
process descriptor

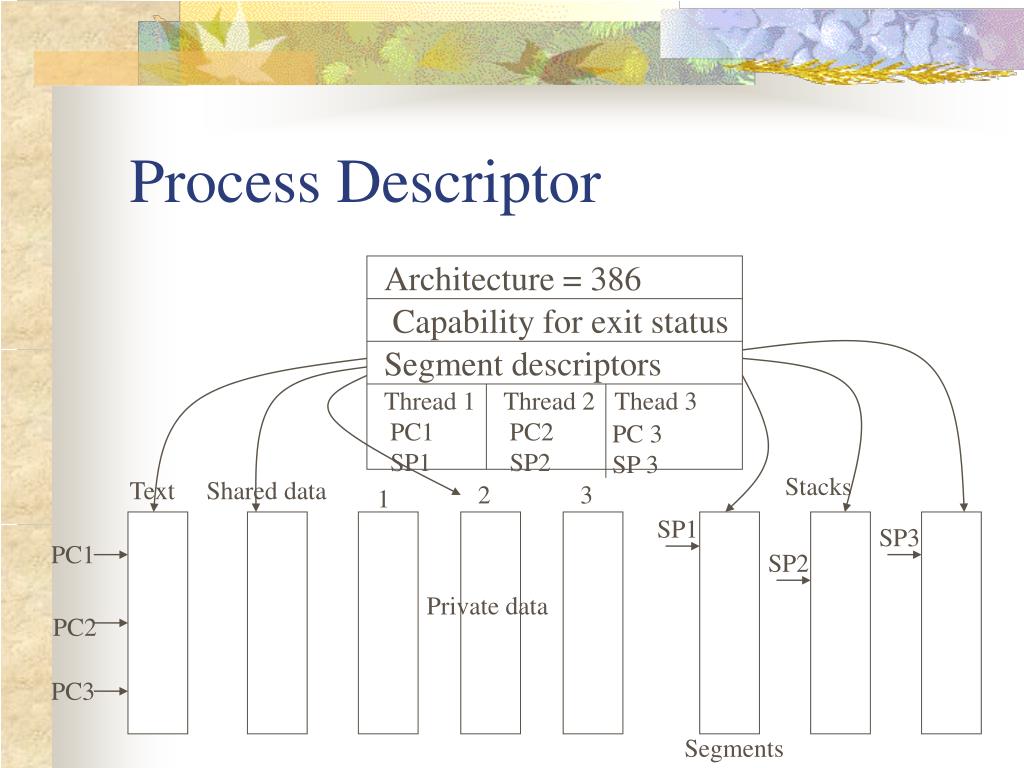

Process Descriptor

Architecture = 386

Capability for exit status

Segment descriptors

Thead 3

PC 3

SP 3

Thread 1

PC1

SP1

Thread 2

PC2

SP2

Stacks

Text

Shared data

2

3

1

SP1

SP3

PC1

SP2

Private data

PC2

PC3

Segments

library procedures

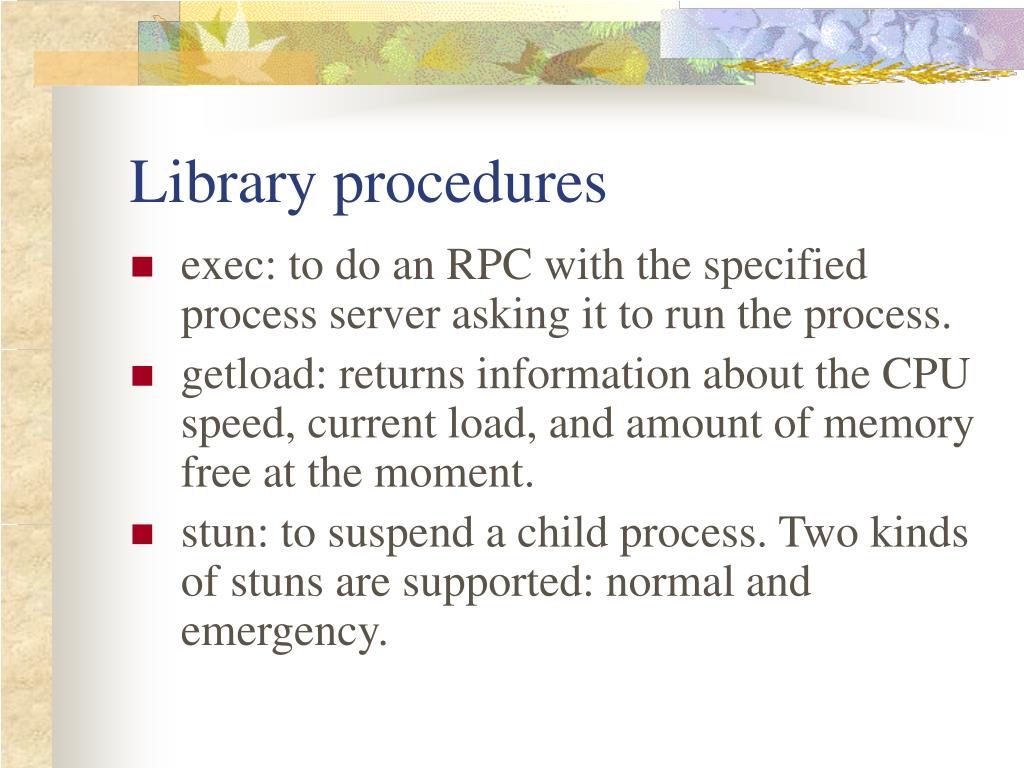

Library procedures
  • exec: to do an RPC with the specified process server asking it to run the process.
  • getload: returns information about the CPU speed, current load, and amount of memory free at the moment.
  • stun: to suspend a child process. Two kinds of stuns are supported: normal and emergency.
threads
Threads
  • When a process starts up, it has one thread.
  • During execution, the process can create additional threads, and existing threads can terminate.
  • Three methods are provided for threads to synchronize: signals, mutexes, and semaphores.
  • All threads are managed by the kernel.
memory management in amoeba

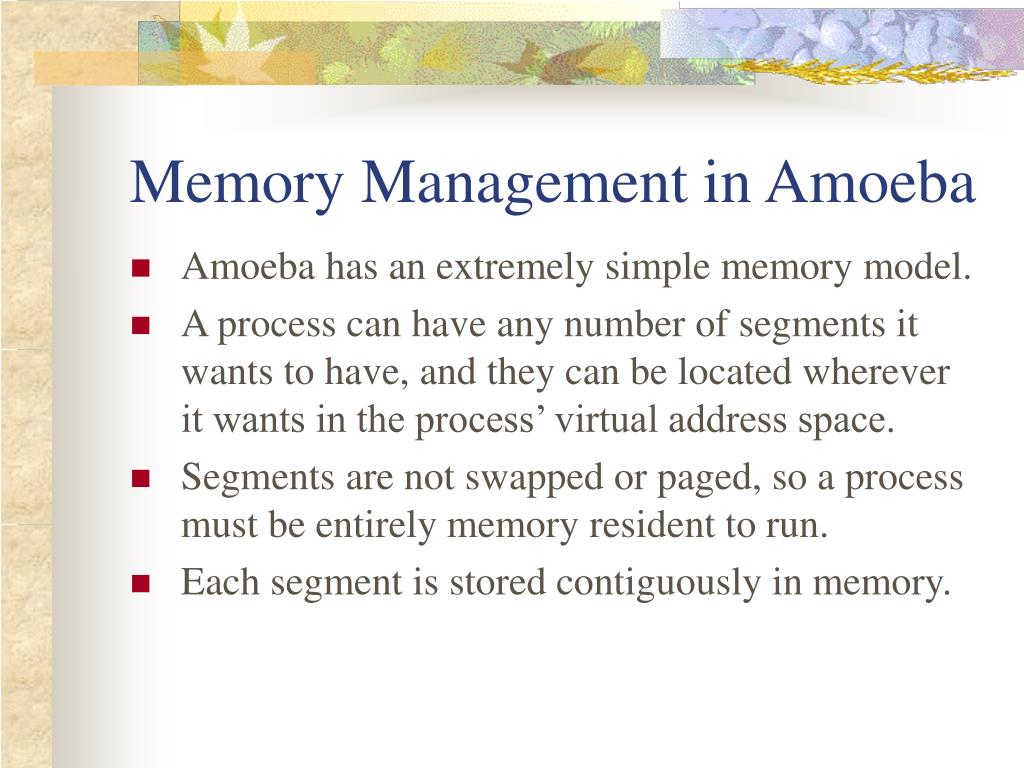

Memory Management in Amoeba
  • Amoeba has an extremely simple memory model.
  • A process can have any number of segments it wants to have, and they can be located wherever it wants in the process’ virtual address space.
  • Segments are not swapped or paged, so a process must be entirely memory resident to run.
  • Each segment is stored contiguously in memory.
mapped segments
Mapped segments

Process virtual

address space

Memory segments

S

D

T

S

D

T

communication in amoeba

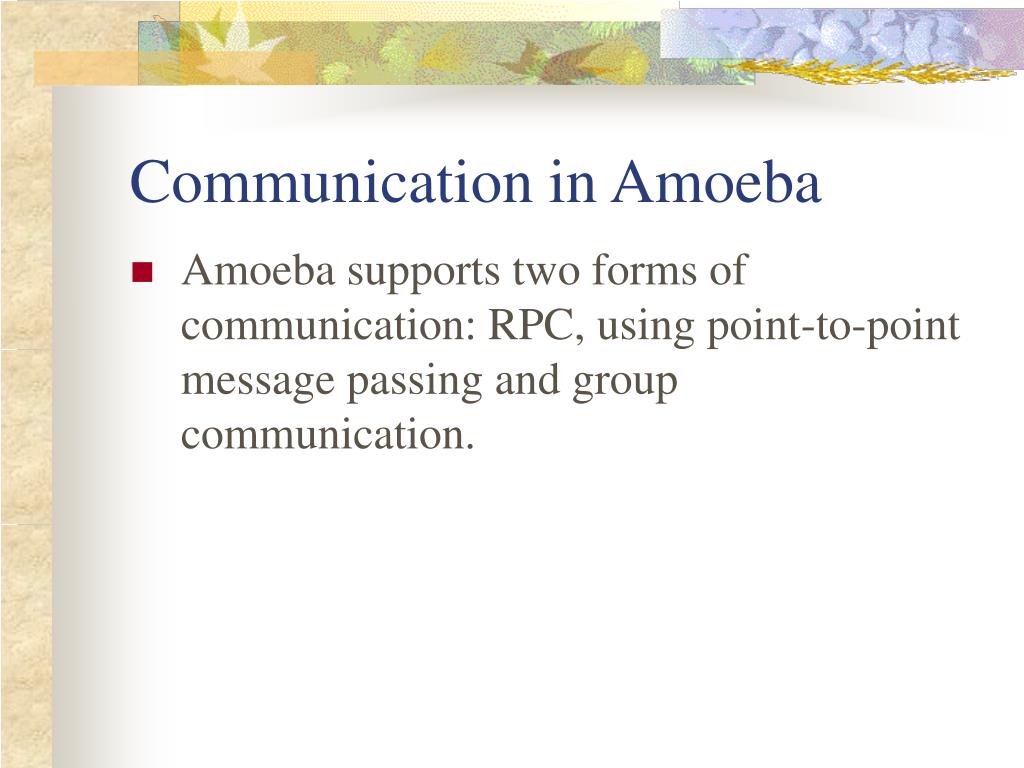

Communication in Amoeba
  • Amoeba supports two forms of communication: RPC, using point-to-point message passing and group communication.
remote procedure call
Remote Procedure Call
  • RPC Primitives:
  • get_request – indicates a server’s willingness to listen on a port.
  • put_reply – done by a server when it has a reply to send.
  • trans – send a message from client to server and wait for the reply.

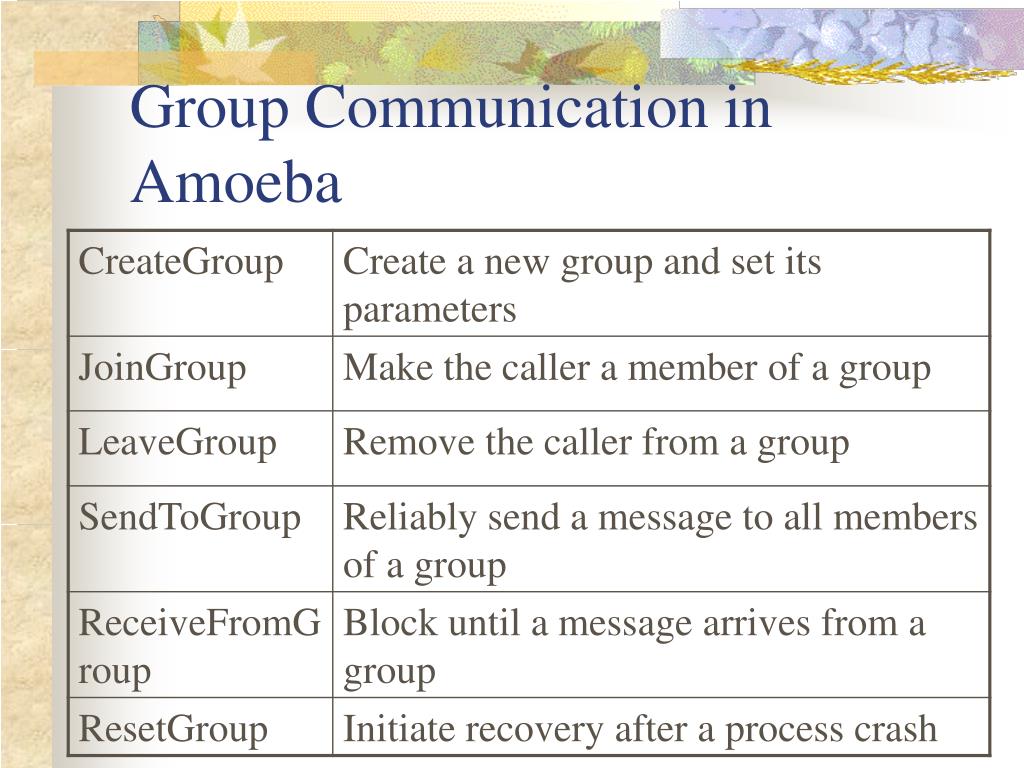

the amoeba reliable broadcast protocol

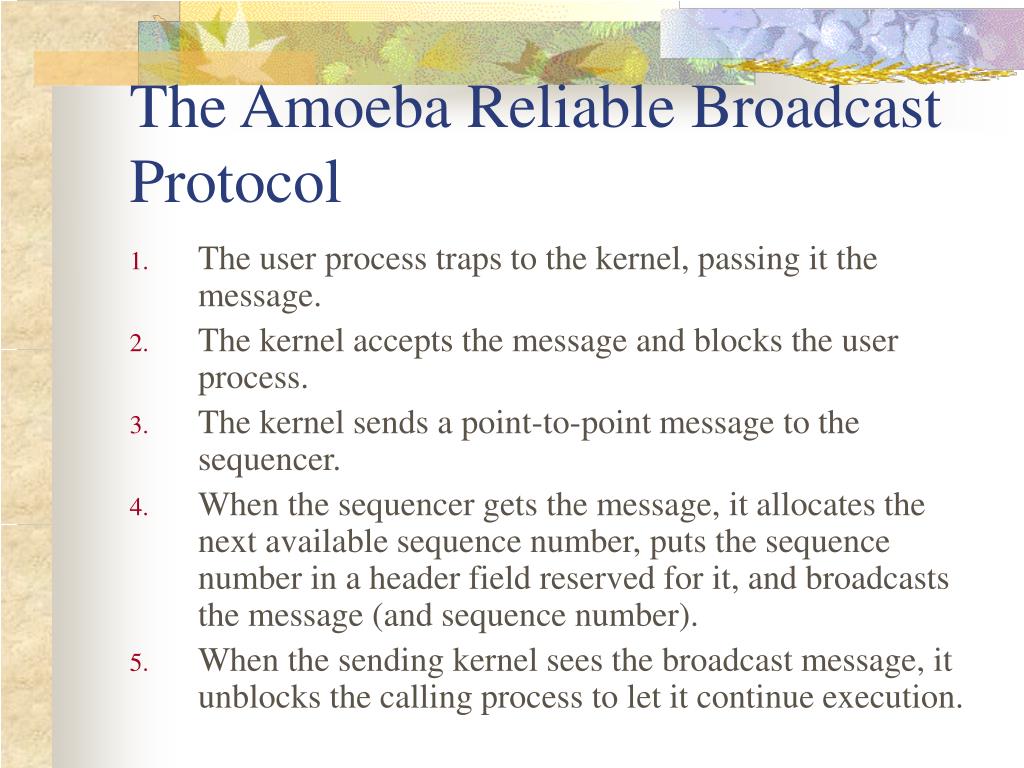

The Amoeba Reliable Broadcast Protocol
  • The user process traps to the kernel, passing it the message.
  • The kernel accepts the message and blocks the user process.
  • The kernel sends a point-to-point message to the sequencer.
  • When the sequencer gets the message, it allocates the next available sequence number, puts the sequence number in a header field reserved for it, and broadcasts the message (and sequence number).
  • When the sending kernel sees the broadcast message, it unblocks the calling process to let it continue execution.
system structure

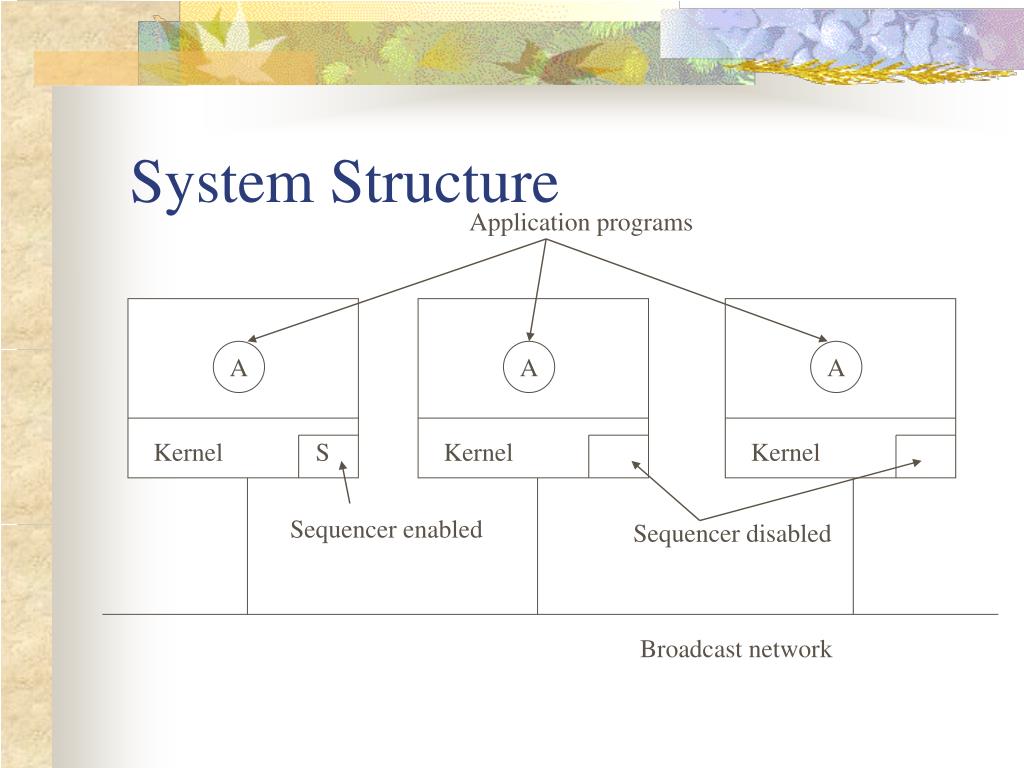

System Structure

Application programs

A

A

A

Kernel

S

Kernel

Kernel

Sequencer enabled

Sequencer disabled

Broadcast network

an example

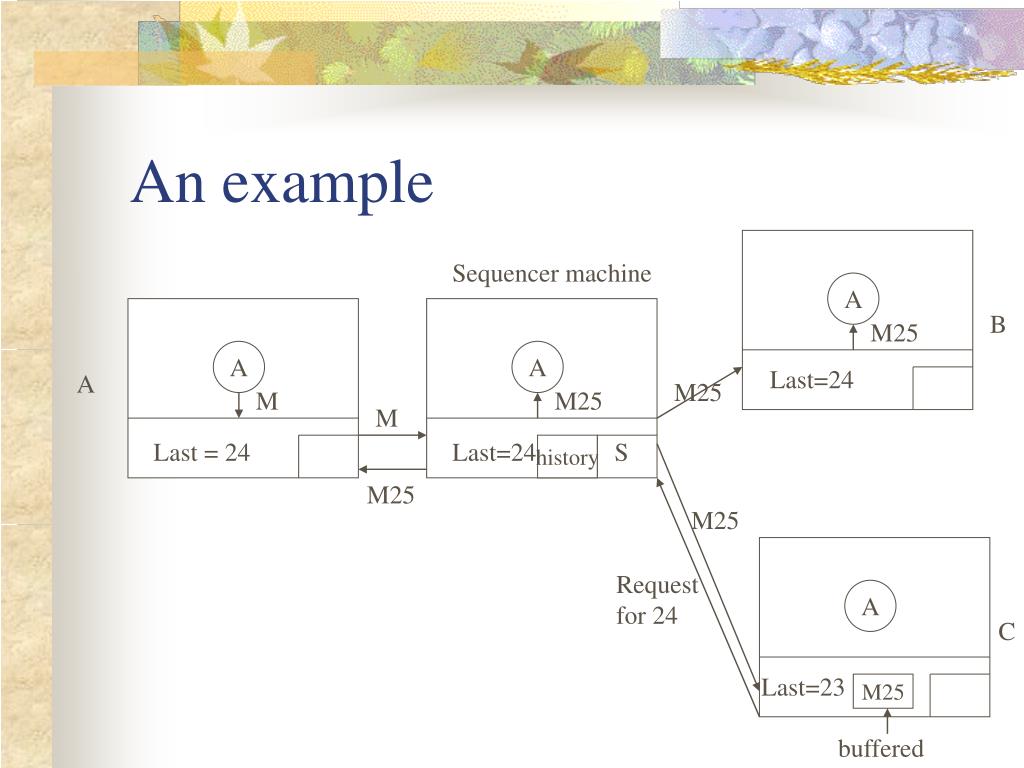

An example

Sequencer machine

A

B

M25

A

A

Last=24

A

M25

M

M25

M

Last = 24

Last=24

S

history

M25

M25

Request

for 24

A

C

Last=23

M25

buffered

sender s action for sending

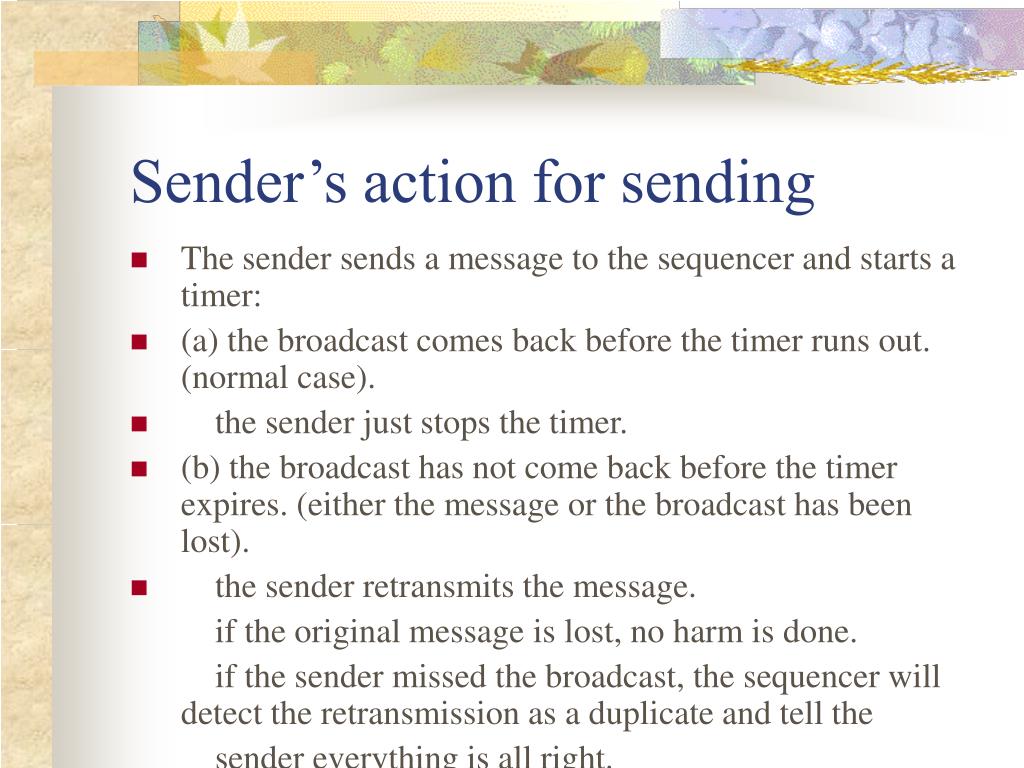

Sender’s action for sending
  • The sender sends a message to the sequencer and starts a timer:
  • (a) the broadcast comes back before the timer runs out. (normal case).
  • the sender just stops the timer.
  • (b) the broadcast has not come back before the timer expires. (either the message or the broadcast has been lost).
  • the sender retransmits the message.

if the original message is lost, no harm is done.

if the sender missed the broadcast, the sequencer will detect the retransmission as a duplicate and tell the

sender everything is all right.

slide26
(c ) The broadcast comes back before the timer expires, but it is the wrong broadcast. This occurs when two processes attempt to broadcast simultaneously.
  • If message A gets to the sequencer first, and is broadcast. A sees the broadcast and unblocks its application program. However, B sees A’s broadcast and realizes it has failed to go first. B will accept A’s broadcast and wait.
sequencer s action
Sequencer’s action
  • If a Request for Broadcast arrives:
  • (a) check to see if the message is a retransmission. If so, inform the sender that the broadcast has been done.
  • (b) if the message is new, assign the next sequence number to it, and increment the sequencer counter by 1.
  • The message and its identifier are stored in a history buffer, and the message is then broadcast.
sender s action for receiving
Sender’s action for receiving
  • When the sender receives a broadcast:
  • (a) if the sequence number is 1 higher than the most recent one (normal case). No broadcast has been missed.
  • (b) if the sequence number is more than 1 higher (a broadcast has been missed), the sender will send a message to the sequencer asking for the lost broadcast.
management of the history buffer

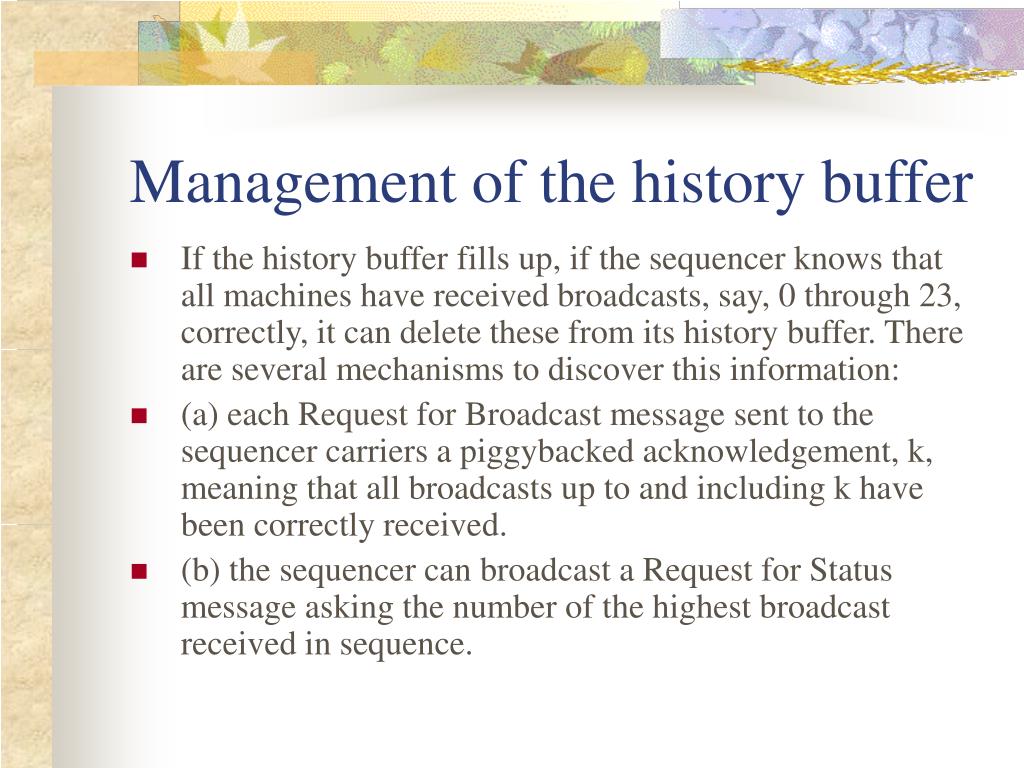

Management of the history buffer
  • If the history buffer fills up, if the sequencer knows that all machines have received broadcasts, say, 0 through 23, correctly, it can delete these from its history buffer. There are several mechanisms to discover this information:
  • (a) each Request for Broadcast message sent to the sequencer carriers a piggybacked acknowledgement, k, meaning that all broadcasts up to and including k have been correctly received.
  • (b) the sequencer can broadcast a Request for Status message asking the number of the highest broadcast received in sequence.
two methods for doing reliable broadcasting

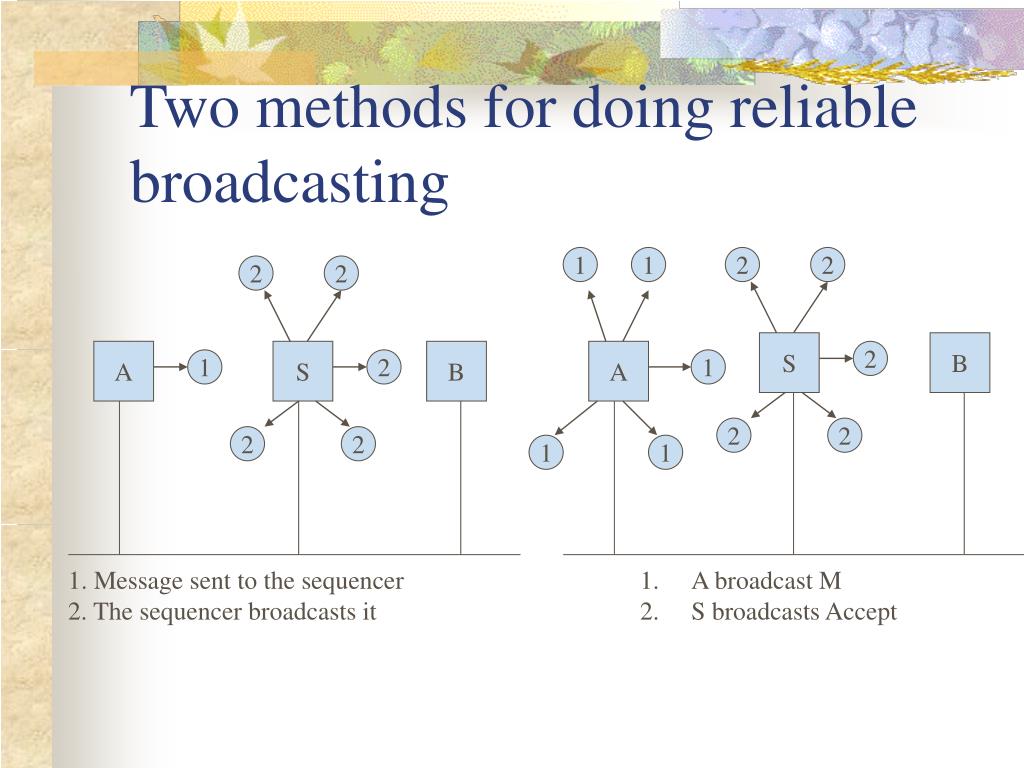

Two methods for doing reliable broadcasting

1

1

2

2

2

2

S

B

A

S

B

A

2

1

2

1

2

2

2

2

1

1

1. Message sent to the sequencer

2. The sequencer broadcasts it

  • A broadcast M
  • S broadcasts Accept
slide31
In method 1, each message appears in full on the network twice. Each user machine is interrupted only once.
  • In method 2, the full message appears only once on the network. Each machine is interrupted twice.
summary of the protocol

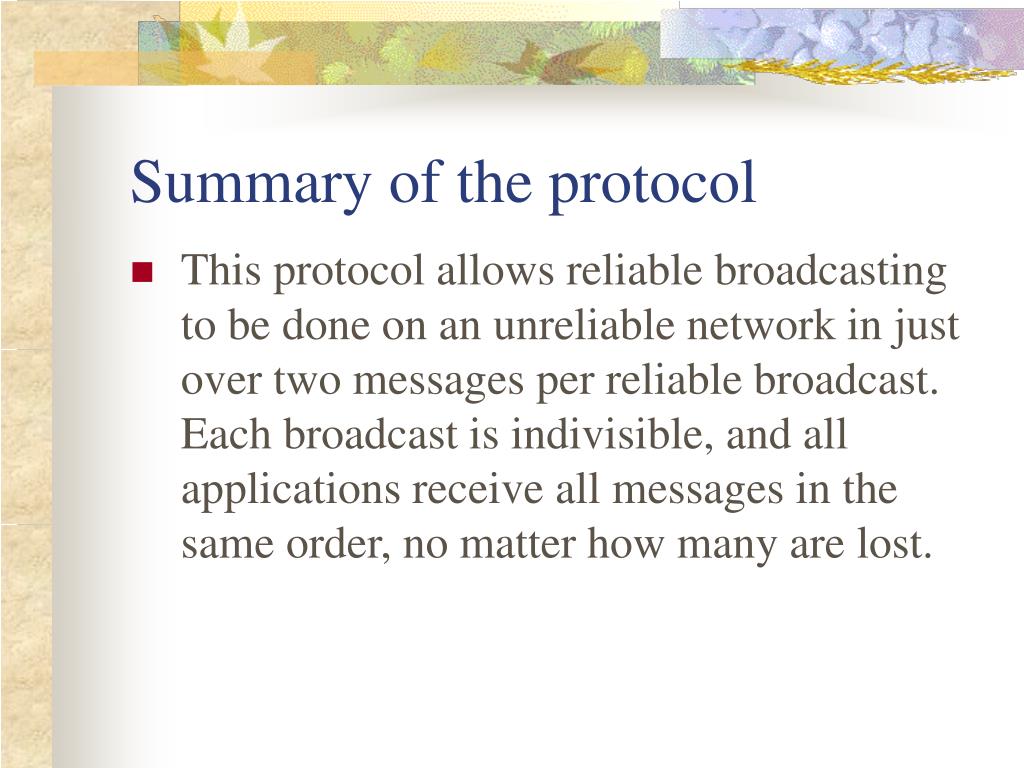

Summary of the protocol
  • This protocol allows reliable broadcasting to be done on an unreliable network in just over two messages per reliable broadcast. Each broadcast is indivisible, and all applications receive all messages in the same order, no matter how many are lost.
fault tolerance

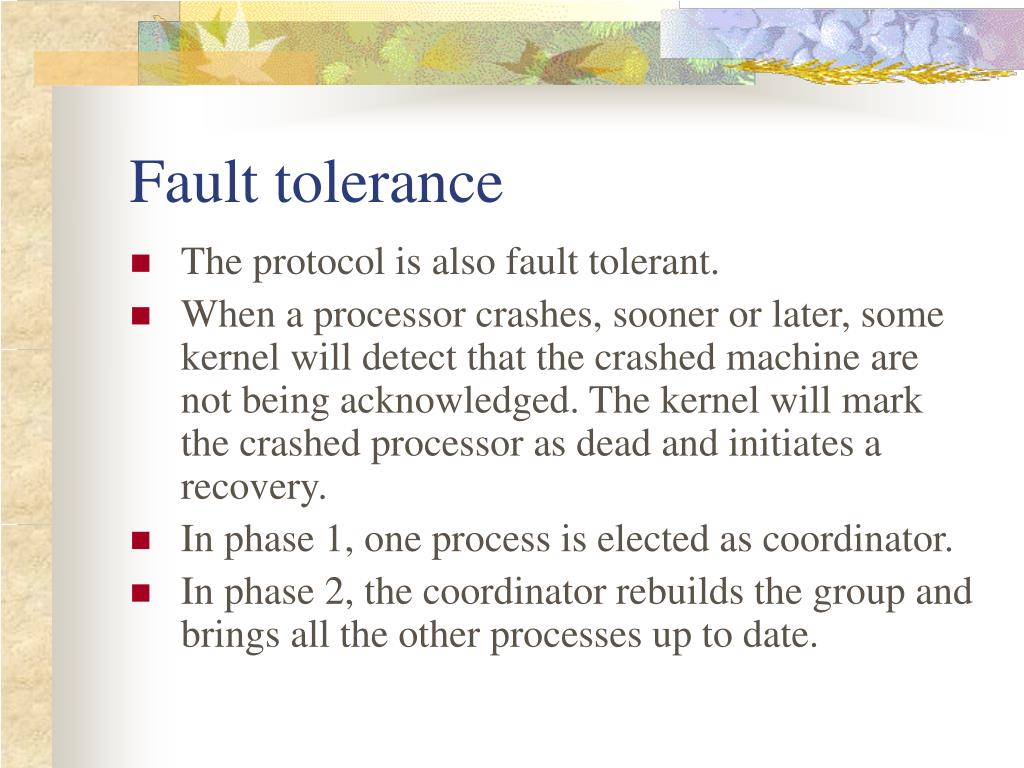

Fault tolerance
  • The protocol is also fault tolerant.
  • When a processor crashes, sooner or later, some kernel will detect that the crashed machine are not being acknowledged. The kernel will mark the crashed processor as dead and initiates a recovery.
  • In phase 1, one process is elected as coordinator.
  • In phase 2, the coordinator rebuilds the group and brings all the other processes up to date.
the protocol is also fault tolerant

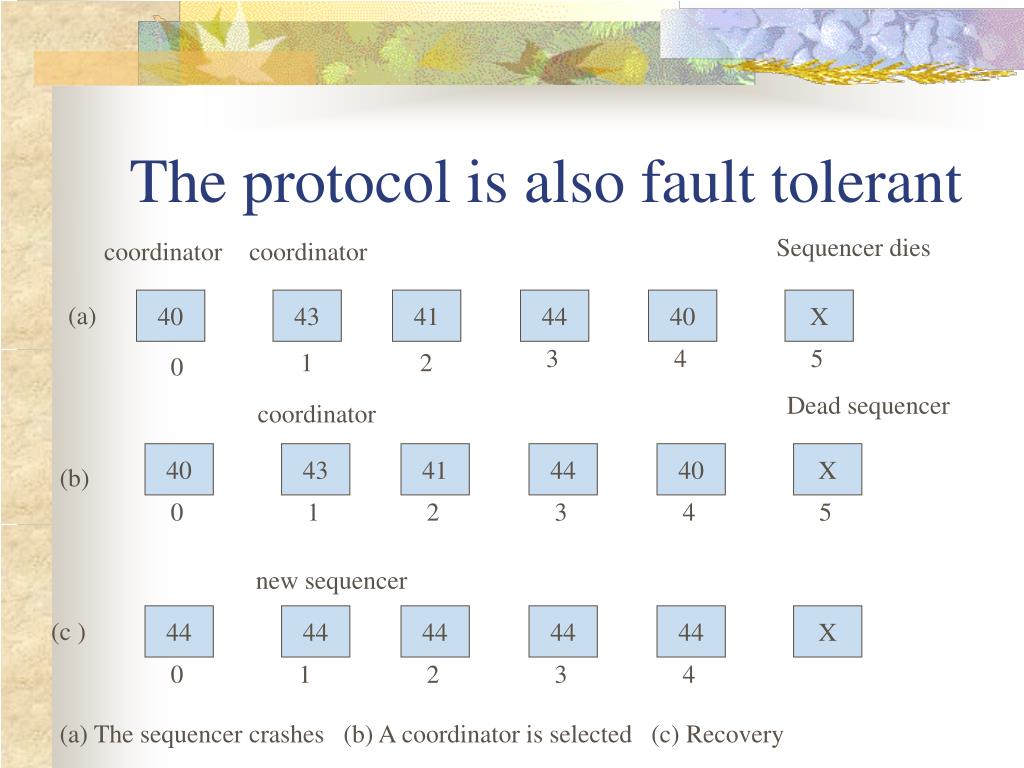

The protocol is also fault tolerant

Sequencer dies

coordinator

coordinator

40

43

41

44

40

X

(a)

3

4

5

1

2

0

Dead sequencer

coordinator

40

43

41

44

40

X

(b)

0

1

2

3

4

5

new sequencer

44

44

44

44

44

X

(c )

0

1

2

3

4

(a) The sequencer crashes (b) A coordinator is selected (c) Recovery

slide35
How does the coordinator get any message it has missed if the sequencer has crashed?
  • The solution lies in the value of k. If k is 0 (non-fault tolerant), only the sequencer maintains a history buffer.
  • If k >0, k+1 machines maintain an up-to-date history buffer. If k machines crash, there is still one left to supply the coordinator with any messages it needs.
slide36
How to implement?
  • In method 2, when the sequencer sees a message, M, that was just broadcast, it does not immediately broadcast an Accept message. Instead, it waits until the k lowest-numbered kernels have acknowledged that they have seen and stored it. Now k+1 machines have stored M in their history buffers.
the fast local internet protocol

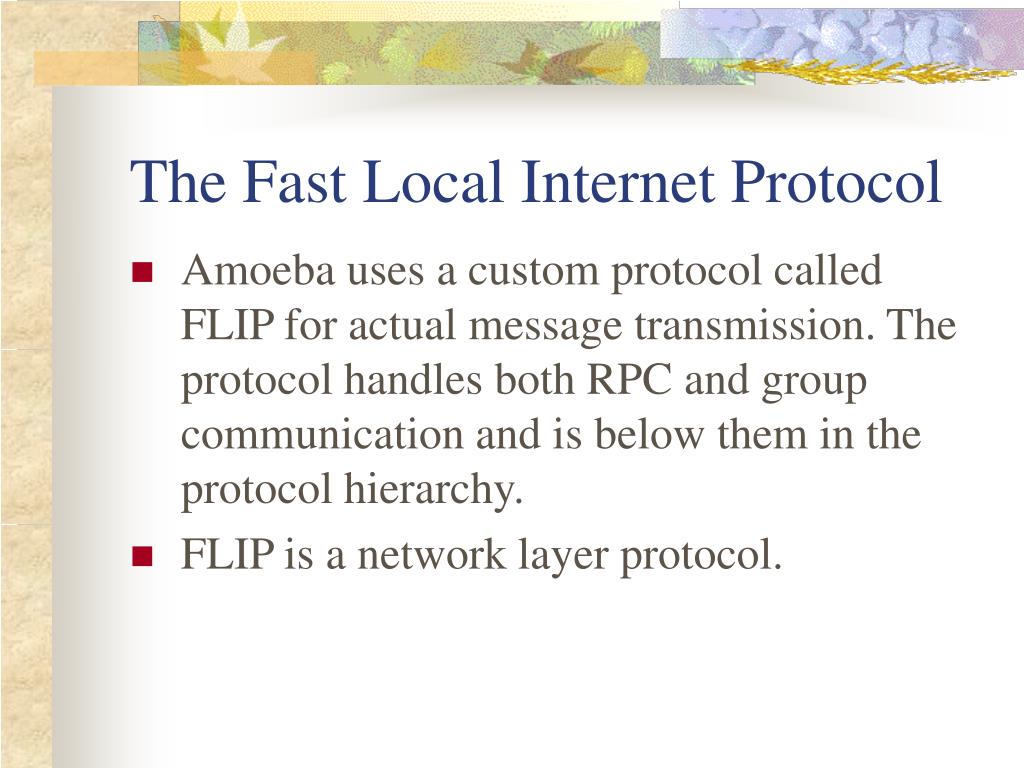

The Fast Local Internet Protocol
  • Amoeba uses a custom protocol called FLIP for actual message transmission. The protocol handles both RPC and group communication and is below them in the protocol hierarchy.
  • FLIP is a network layer protocol.
slide38

A

RPC

Group

FLIP layer

slide41

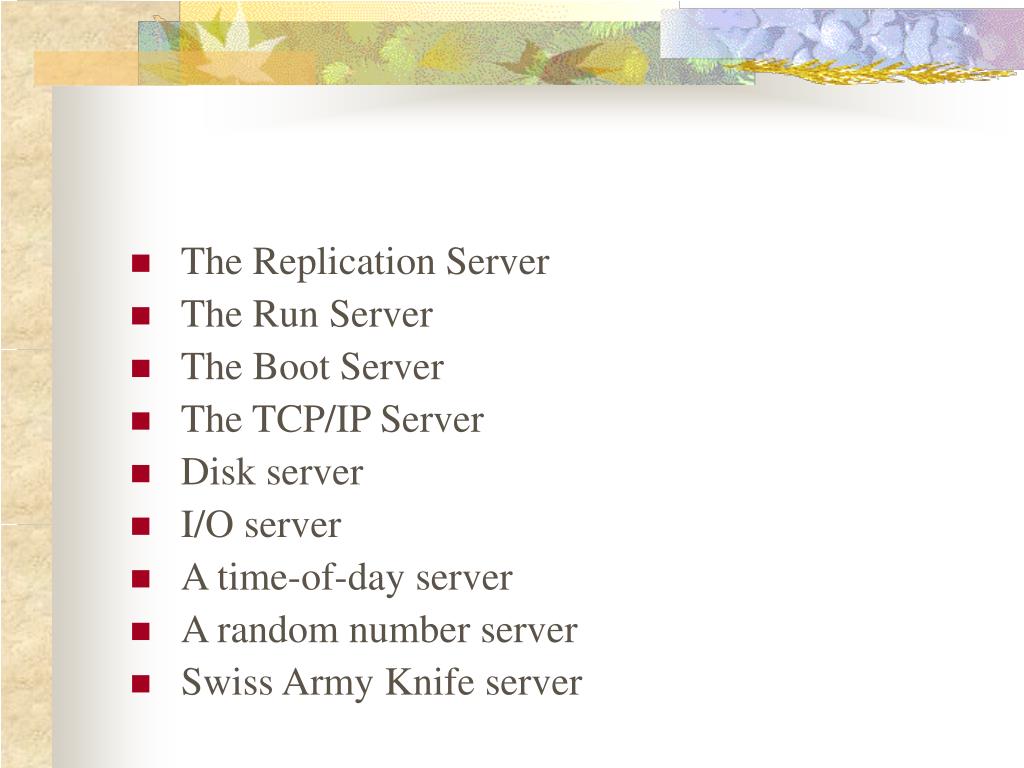

The Replication Server
  • The Run Server
  • The Boot Server
  • The TCP/IP Server
  • Disk server
  • I/O server
  • A time-of-day server
  • A random number server
  • Swiss Army Knife server
