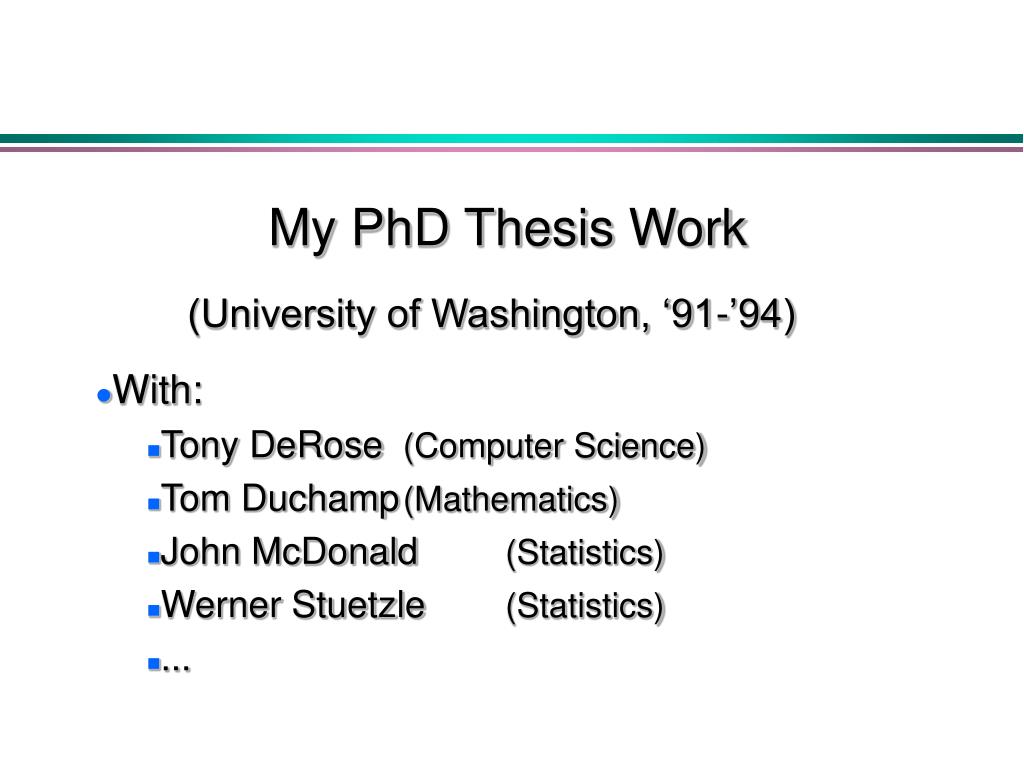

  1. My PhD Thesis Work (University of Washington, ‘91-’94) With: Tony DeRose (Computer Science) Tom Duchamp (Mathematics) John McDonald (Statistics) Werner Stuetzle (Statistics) ...

  2. 3D Scanning computer-aided design (CAD) digital model physical object reverse engineering/ 3D scanning shape color material surface reconstruction

  3. Why 3D scanning? • Digital models for many objects don’t exist. • reverse engineering (Boeing 737X) • archiving • virtual environments • Traditional design (using clay) • car industry • computer animation • 3D faxing!

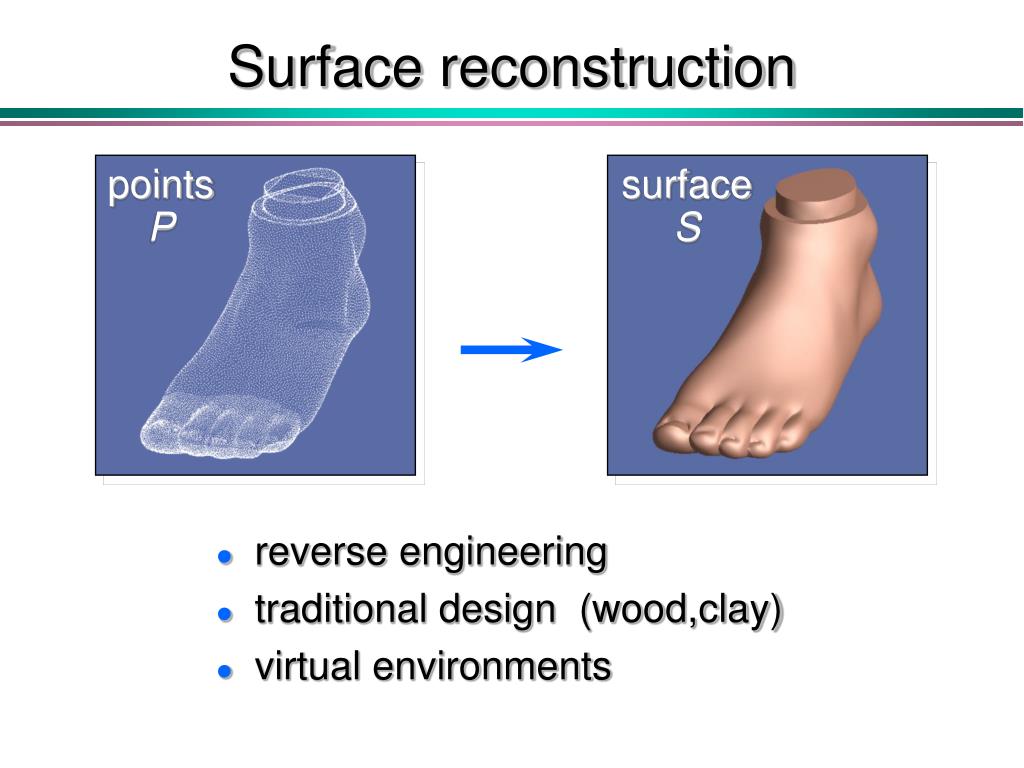

  4. Surface reconstruction • reverse engineering • traditional design (wood,clay) • virtual environments pointsP surface S

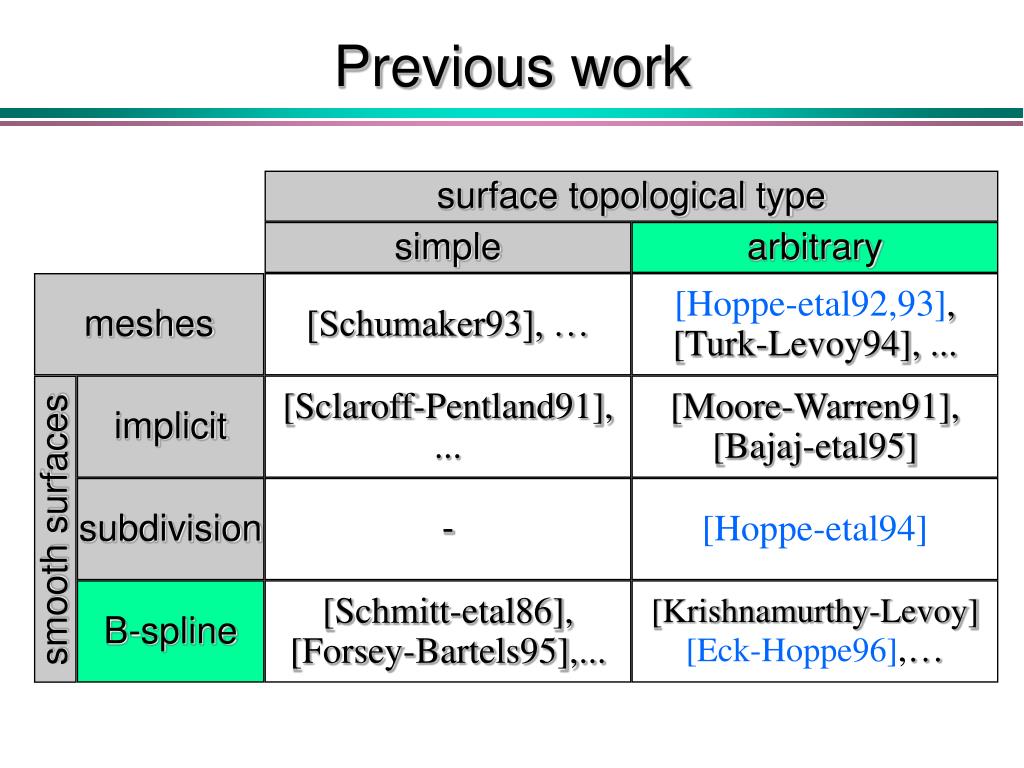

  5. Previous work surface topological type simple arbitrary meshes [Schumaker93], … [Hoppe-etal92,93], [Turk-Levoy94], ... implicit [Sclaroff-Pentland91], ... [Moore-Warren91], [Bajaj-etal95] subdivision - [Hoppe-etal94] smooth surfaces B-spline [Schmitt-etal86], [Forsey-Bartels95],... [Krishnamurthy-Levoy][Eck-Hoppe96],…

  6. Surface reconstruction problem • Given: points P sampled from unknown surface U • Goal: reconstruct a surface S approximating U • accurate (w.r.t. P, and U!) • concise

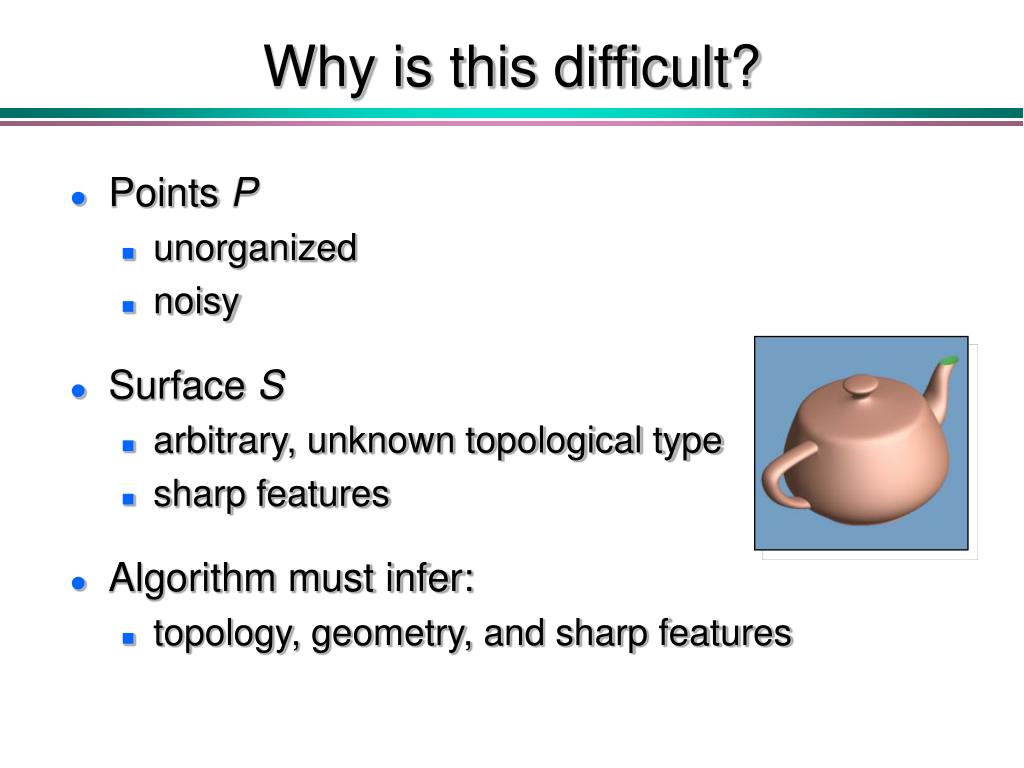

  7. Why is this difficult? • Points P • unorganized • noisy • Surface S • arbitrary, unknown topological type • sharp features • Algorithm must infer: • topology, geometry, and sharp features

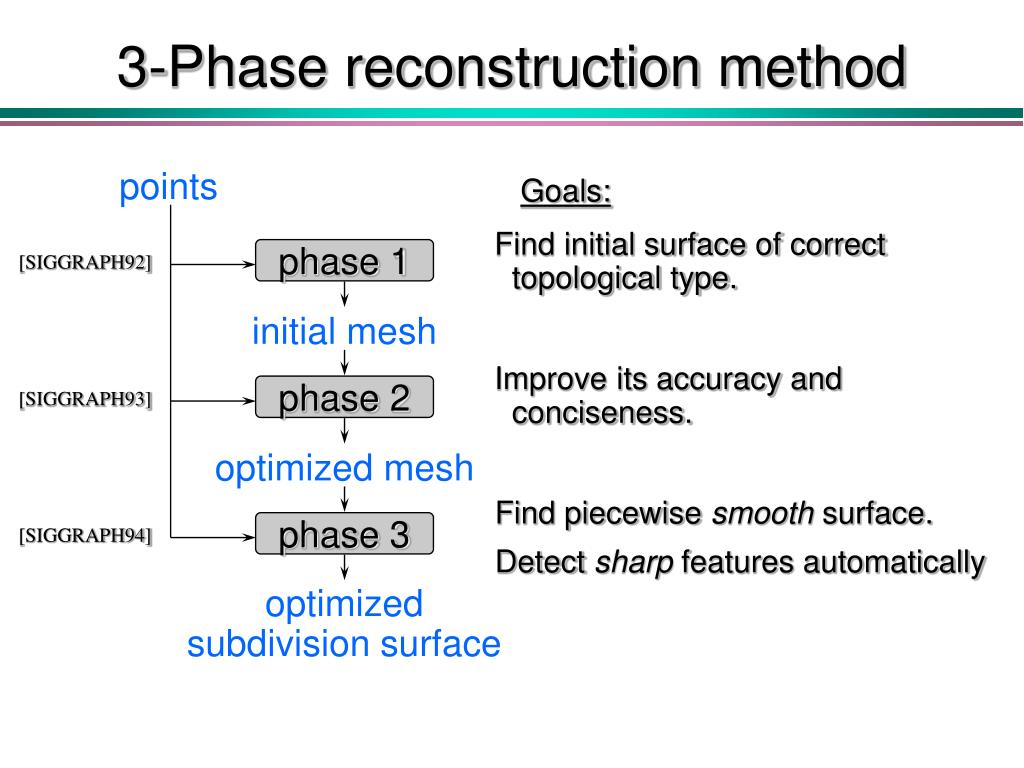

  8. 3-Phase reconstruction method points Goals: Find initial surface of correct topological type. phase 1 [SIGGRAPH92] initial mesh Improve its accuracy and conciseness. phase 2 [SIGGRAPH93] optimized mesh Find piecewise smooth surface. phase 3 [SIGGRAPH94] Detect sharp features automatically optimizedsubdivision surface

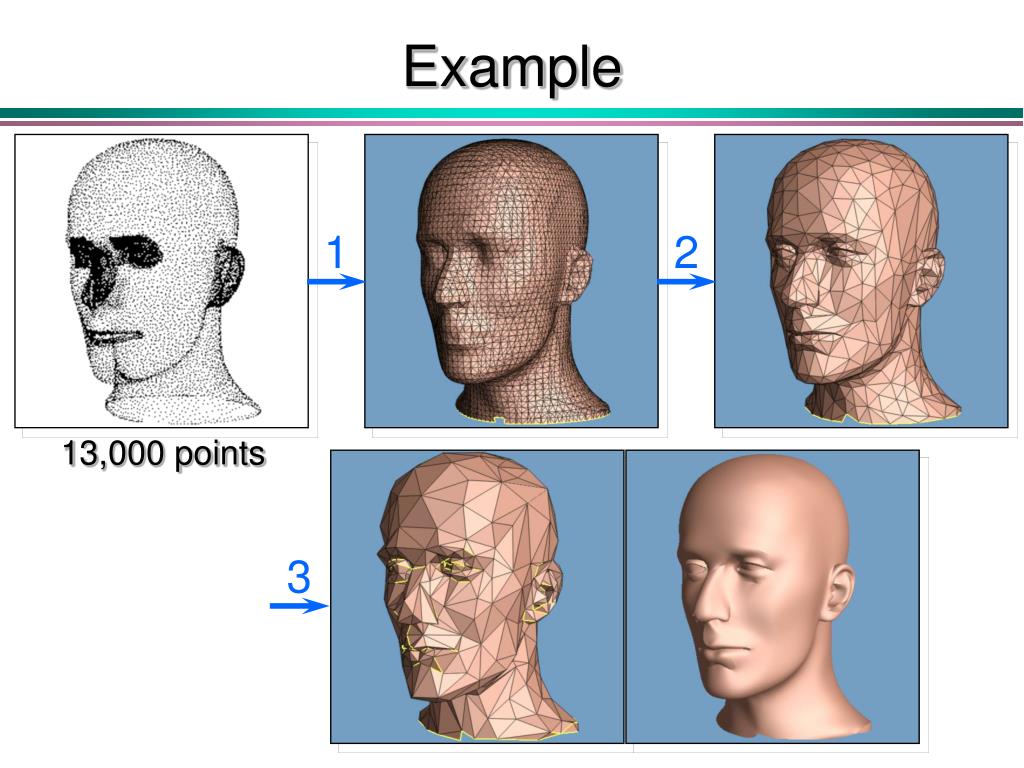

  9. Example 1 2 13,000 points 3

  10. Phase 1: Initial surface estimation • If U were known, it would satisfyU = Z(d) = { p | d(p)=0 } ,where d(p) is the signed distance of p to U + + + d(p)? + + + + + + + U + + + – – – – + + – – – – d(p)? – – + + – + + + + + + + +

  11. S P Estimate d from P Extract Z(d)

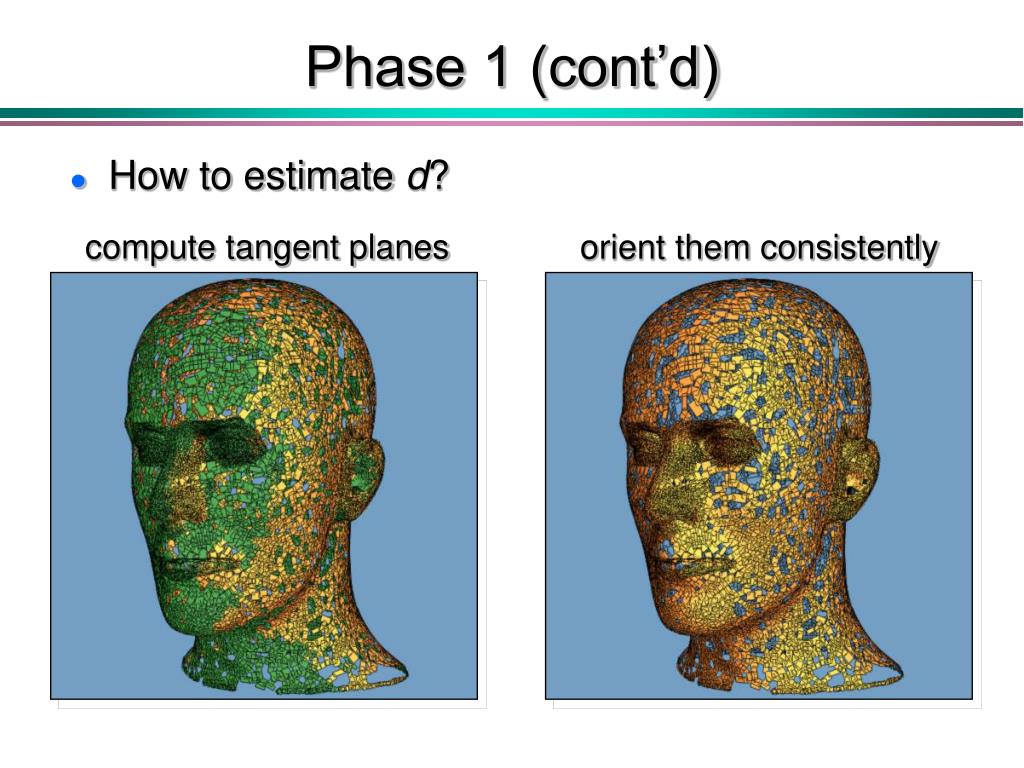

  12. Phase 1 (cont’d) • How to estimate d? compute tangent planes orient them consistently

  13. Phase 1 (cont’d) • How to extract Z(d)? run “marching cubes”

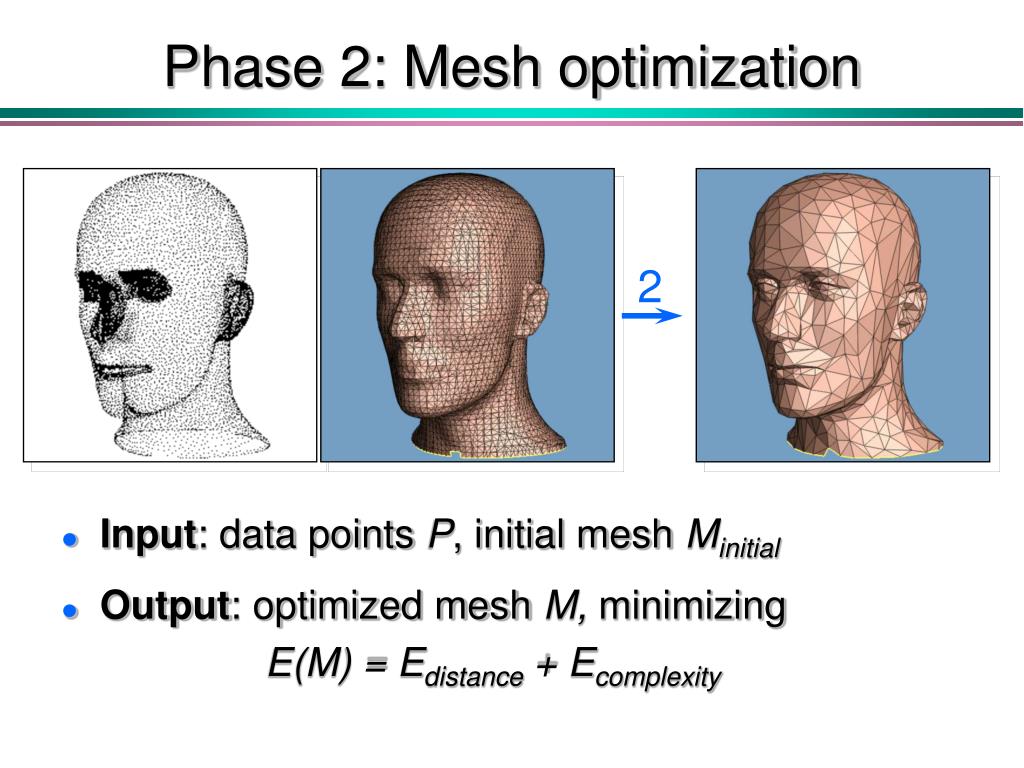

  14. Phase 2: Mesh optimization • Input: data points P, initial mesh Minitial • Output: optimized mesh M, minimizingE(M) = Edistance + Ecomplexity 2

  15. Phase 2 (cont’d) • Optimization over: • the number of vertices • their connectivity • their positions Þconsider any mesh of the same topological type as Minitial

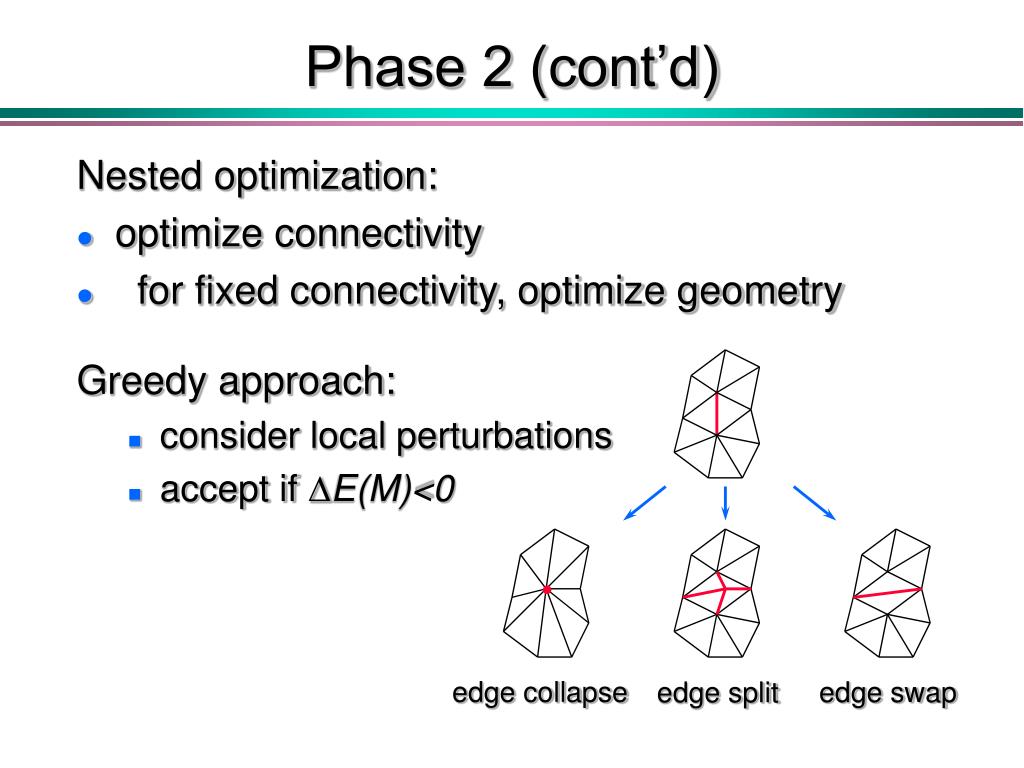

  16. Phase 2 (cont’d) Nested optimization: • optimize connectivity • for fixed connectivity, optimize geometry • Greedy approach: • consider local perturbations • accept if DE(M)<0 edge collapse edge swap edge split

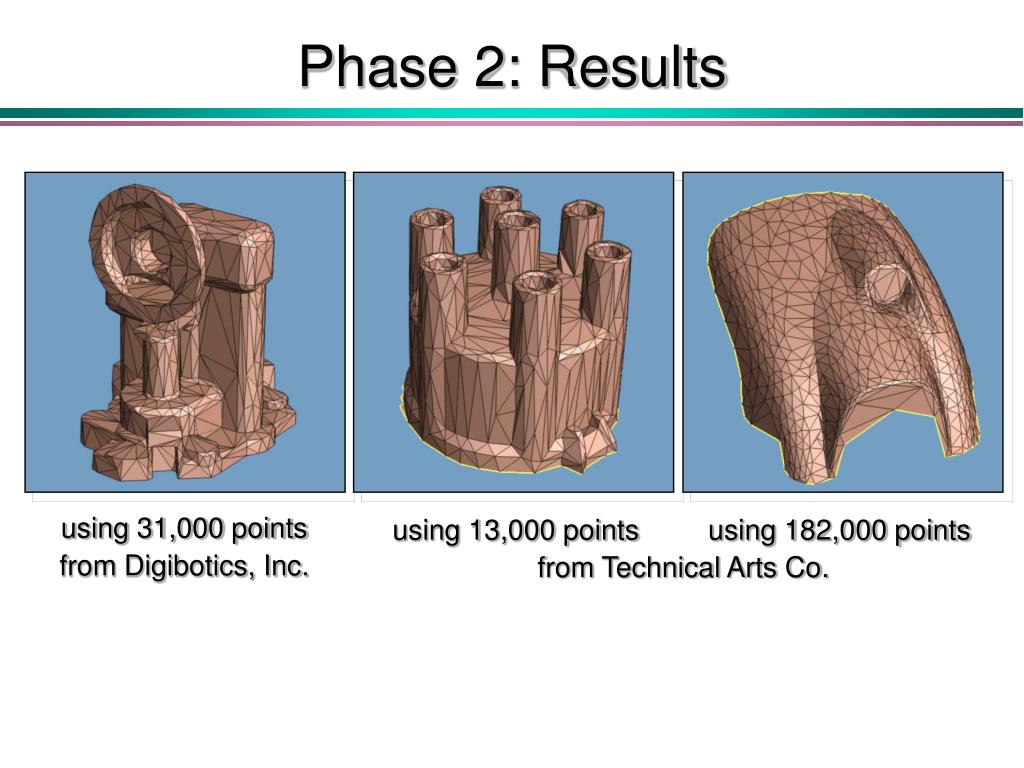

  17. Phase 2: Results using 31,000 points from Digibotics, Inc. using 13,000 points using 182,000 points from Technical Arts Co.

  18. Phase 3: Piecewise smooth surface piecewise planarÞ piecewise smooth surface 3

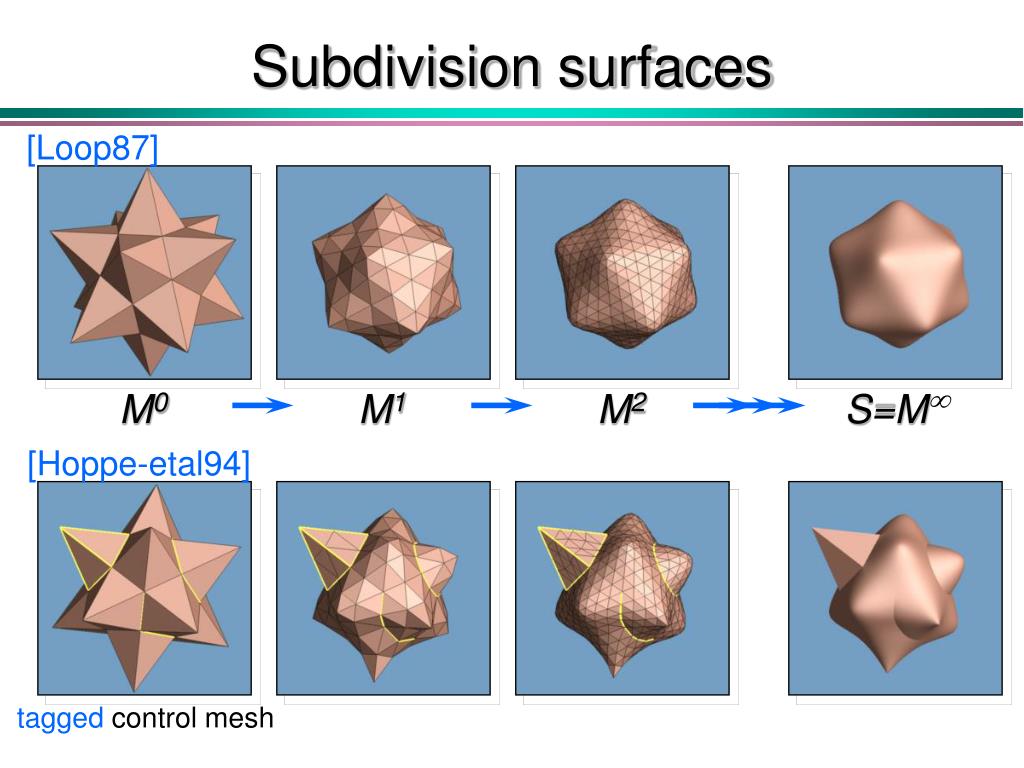

  19. Subdivision surfaces [Loop87] M0 M1 M2 S=M¥ [Hoppe-etal94] tagged control mesh

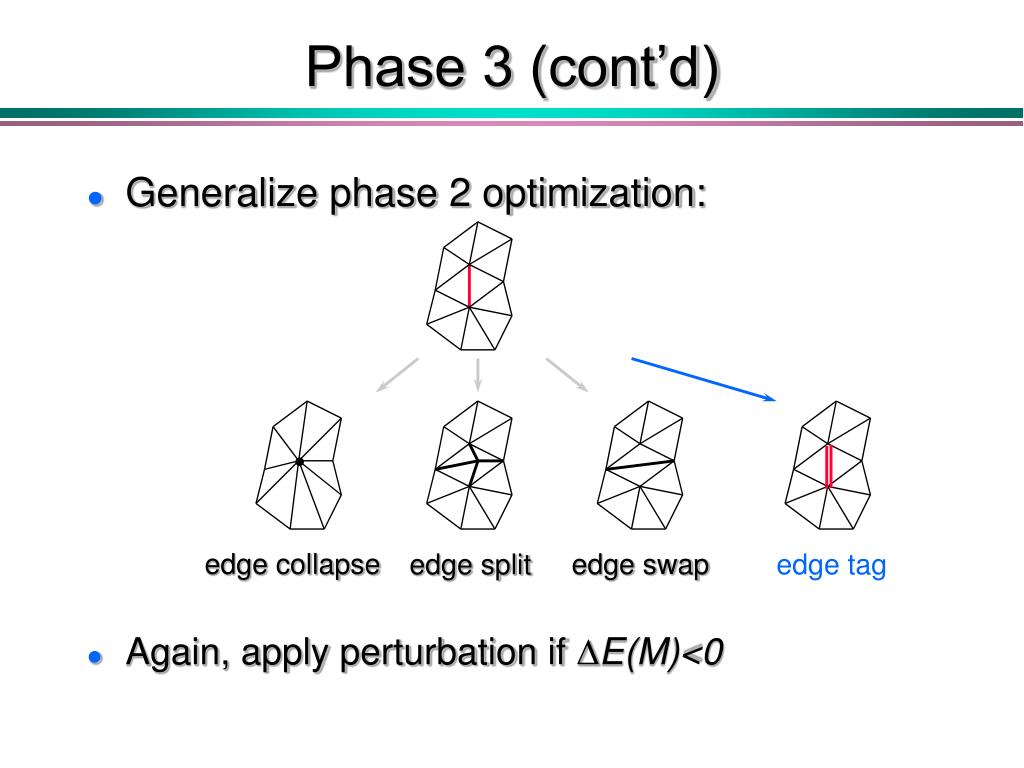

  20. Phase 3 (cont’d) • Generalize phase 2 optimization: edge collapse edge swap edge split edge tag • Again, apply perturbation if DE(M)<0

  21. Phase 3: Results

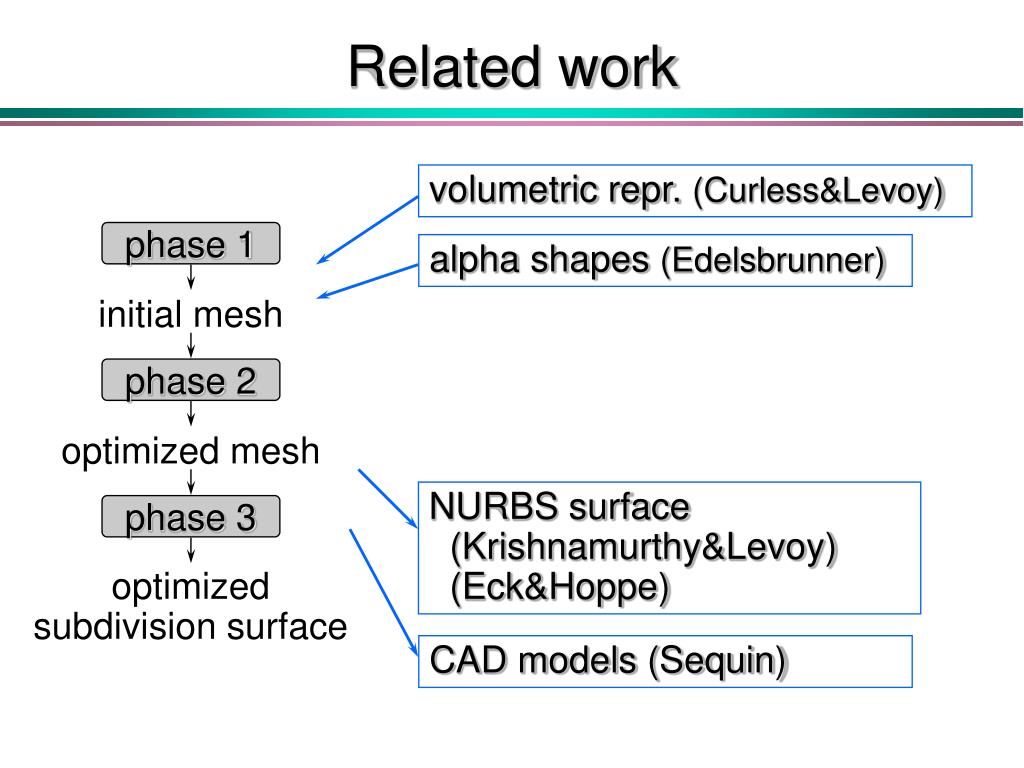

  22. Related work volumetric repr. (Curless&Levoy) phase 1 alpha shapes (Edelsbrunner) initial mesh phase 2 optimized mesh NURBS surface (Krishnamurthy&Levoy) (Eck&Hoppe) phase 3 optimizedsubdivision surface CAD models (Sequin)
