Presentation Transcript
slide1

Air Combo

Charles Cole

Mark Cerritelli

Matthew Fister

Mine Yalcinalp

project concept motivation

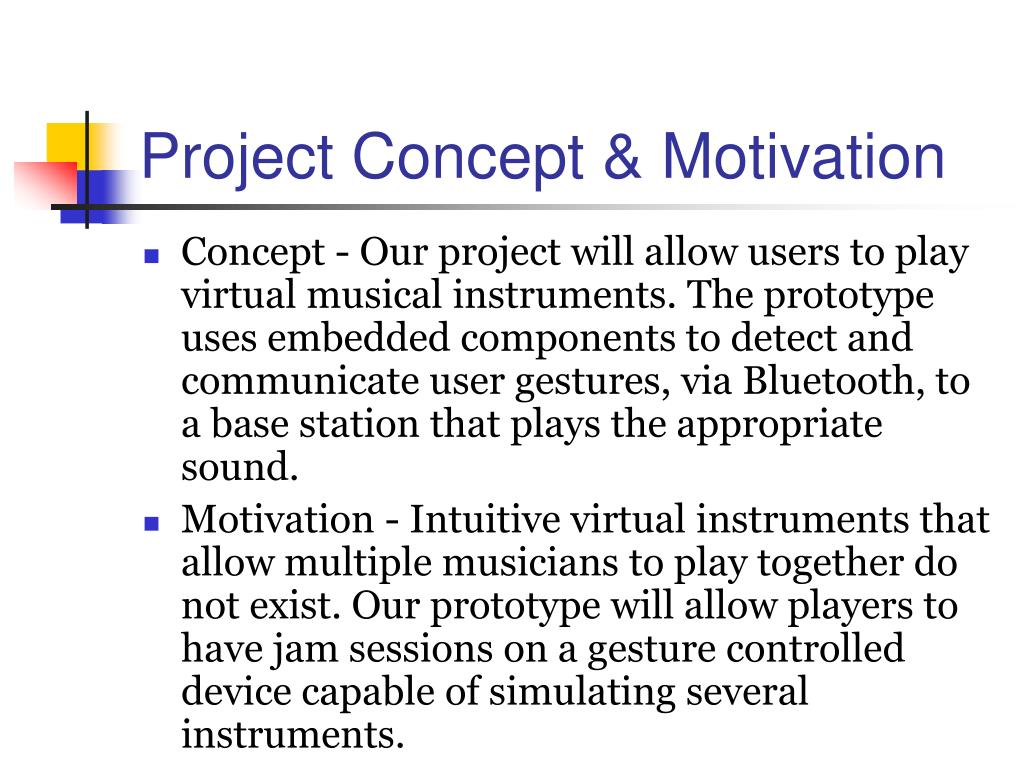

Project Concept & Motivation
  • Concept - Our project will allow users to play virtual musical instruments. The prototype uses embedded components to detect and communicate user gestures, via Bluetooth, to a base station that plays the appropriate sound.
  • Motivation - Intuitive virtual instruments that allow multiple musicians to play together do not exist. Our prototype will allow players to have jam sessions on a gesture controlled device capable of simulating several instruments.
competitive analysis

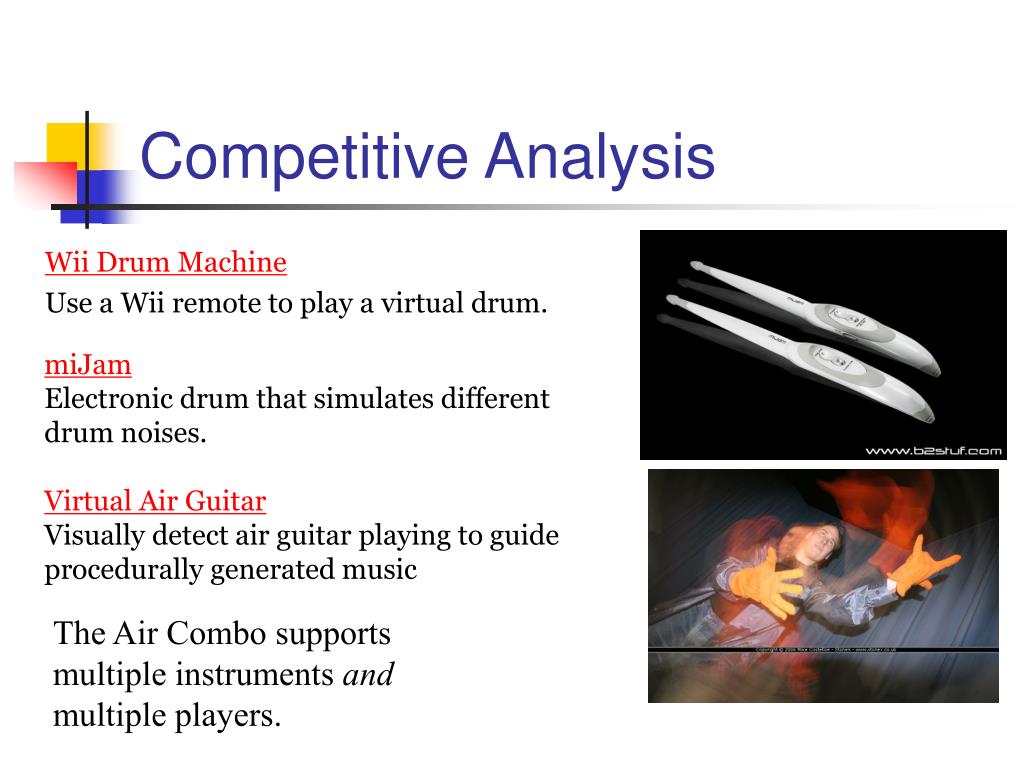

Competitive Analysis

Wii Drum Machine

Use a Wii remote to play a virtual drum.

miJam

Electronic drum that simulates different drum noises.

Virtual Air Guitar

Visually detect air guitar playing to guide procedurally generated music

The Air Combo supports multiple instruments and multiple players.

requirements

Thou Shall

Requirements
  • Portable Requirement
    • Portable with wireless range of 32 feet
  • Timing Requirement
    • Latency between gesture and sound of 10 ms
  • Functional Requirement
    • Accepts various gestures as input
    • Sends gesture message to base station
    • Base station recognizes instrument
    • Virtual instrument sound is produced
    • Supports multiple instruments
    • Supports multiple players
technical specifications

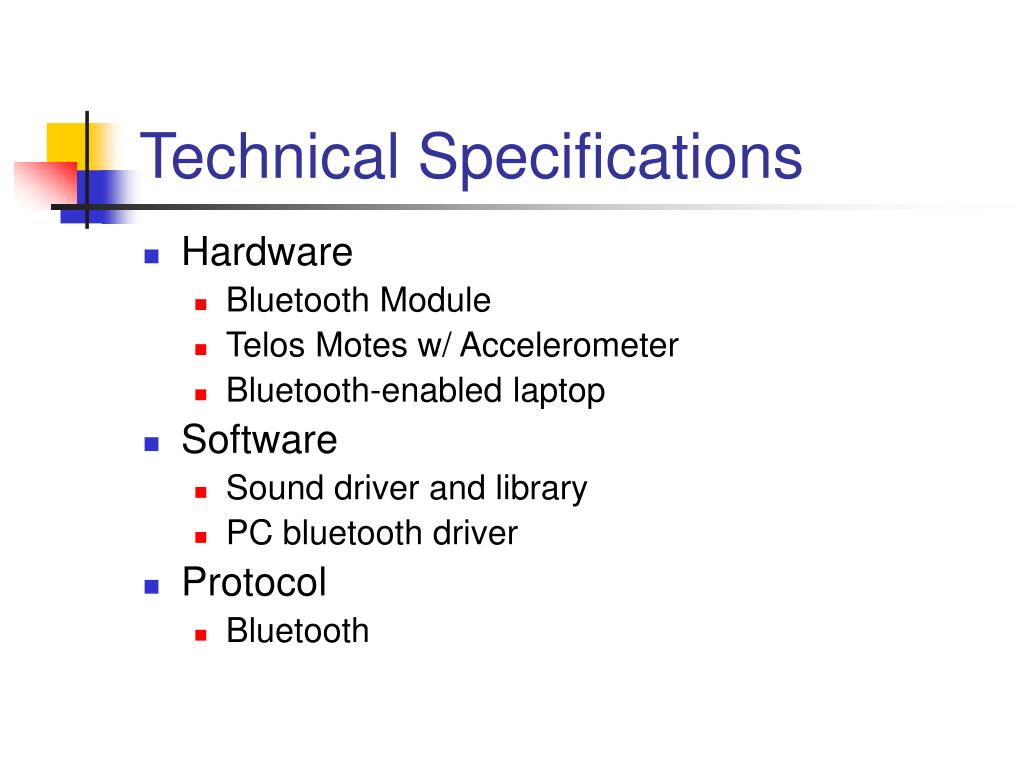

Technical Specifications
  • Hardware
    • Bluetooth Module
    • Telos Motes w/ Accelerometer
    • Bluetooth-enabled laptop
  • Software
    • Sound driver and library
    • PC bluetooth driver
  • Protocol
    • Bluetooth
