Presentation Transcript

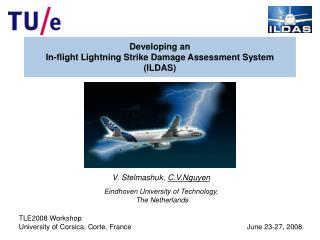

Developing an in flight lightning strike damage assessment system ildas l.jpg

Developing an In-flight Lightning Strike Damage Assessment System(ILDAS)

V. Stelmashuk, C.V.Nguyen

Eindhoven University of Technology,

The Netherlands

TLE2008 Workshop

University of Corsica, Corte, France June 23-27, 2008


Background l.jpg
Background

Commercial passenger aircraft are on average struck by lightning once a year. The effects of lightning on aircraft and helicopters are minimal for low amplitude strikes, but higher-amplitude strikes may result in expensive delays and important repair and maintenance.

To be able to design appropriate lightning protection, fixed-wing aircraft and helicopter manufacturers have a strong need for a good definition of the threat that lightning poses to aircraft.


The project l.jpg
The Project

The In-flight Lightning Strike Damage Assessment System (ILDAS) is a research project within the scope of Aeronautics Research of the 6th Framework Programme of the European Commission, which has started in October 2006 and will end in March 2009.

Aim is to develop and validate an efficient prototype of a system capable of in-flight measurement of the current waveform and reconstruction of the path of lightning current.


Objectives l.jpg
Objectives

Two high level objectives of ILDAS:

1. Characterisation of the lightning strike for a better design and

certification of aircraft.

2. A near-real-time indication of the lightning strike for

maintenance team.

Inverse Method


Ildas preliminary system architecture l.jpg
ILDAS preliminary system architecture

H-field sensors were chosen for current density measurements and an E-field sensor will be used for triggering of the measuring process.


Requirements for sensor configuration l.jpg
Requirements for sensor configuration

  • For the numerical tool developers:

  • - Surface sensors (instead of internal sensors on cables)

  • - Sensors on planar surfaces or having high radius of curvature as fuselage

  • - Sensors on the main lightning paths

  • - Large number of sensors, spread over the aircraft

  • - Sensor redundancy if one sensor is missing or not working

  • - etc.

  • For manufacturers …

  • Companies and maintenance teams …

  • Sensor developers …

  • Requirements come from different partners and are sometimes in contradiction


Lightning current waveform l.jpg

first return stroke

Current

multiple burst

15 pulses

200 kA

subsequent stroke

intermediate current

10 pulses

3 ms

850 A

330 A

continuingcurrent

1 A

Time

20 ms

250 µs

200 ms

LightningCurrentWaveform

Typical waveform associated with a lightning strike acquired through earlier measurement campaigns:

The complicated waveform (broad frequency band and large dynamic range) requires the use of different sensors to be combined into one device.

continuing current:

solid state sensors

bursts and strokes:

inductive sensors based on Faraday’s law



Solid state sensors l.jpg
Solid State Sensors

The continuing current value is important, because of its large action

integral and possible damage at the attachment point.

  • Difficulties:

  • high amplitude of stroke current will lead to saturation of solid state sensors

  • the associated fields around the fuselage and the wings are small, below the

  • Earth magnetic field (even for 500 A)


Inductive sensors l.jpg

NA number of turns time area winding

H magnetic field

time constant of integrator

For pick-up coil with sensitive area NA = 10-2 m2, integrator with time constant = 400 s for 0 dB gain and H = 104 A/m, the integrator output for a magnetic field H equal to 2.5 V.

Inductive Sensors

Different coils have to be constructed for multiple bursts,

return stroke and subsequent stroke waveforms separately


Window sensor l.jpg
Window Sensor

The sensor’s geometry is designed to captures the magnetic field penetrating trough the window.

The sensor output is proportional to the magnetic field H that would have existed at the outside of the fuselage without the window.


Slide13 l.jpg

A mathematical expression for the magnetic field penetrating a circular opening in an infinite conductive plane [H. Kaden, Wirbelströme und Schirmung in der Nachrichtentechnik, Berlin: Springer, 1959, 2nd ed.]:

with H0 the strength of the magnetic field parallel to the plane, r0 the radius of the hole, r the distance to the centre of the hole, υ the angle between axis perpendicular to the plane and r.


Slide14 l.jpg

Testing window sensor a circular opening in an infinite conductive plane [

Simplified model of fuselage

M = 8*10-10 H

calc.: 7.6 *10-10 H


Window field mapping measurements l.jpg
Window Field Mapping (measurements) a circular opening in an infinite conductive plane [

GMR sensor

NVE AA002-02E


Slide16 l.jpg

Window sensor tested by Culham with simulated lightning. The current was injected on the nose refuelling probe and extracted on the underside of the rear fuselage.

The slight additional droop is caused by the lack of the active integrator

Position of instrumented window

The window sensor output reproduces the injected current with good suppression of noise


Passive integrator l.jpg
Passive integrator current was injected on the nose refuelling probe and extracted on the underside of the rear fuselage.

The passive integrator is the first step in the signal

processing and has a number of functions:

1. terminate the signal cable into its characteristic

impedance

2. filter the signal and limit the dynamics to an

acceptable level for the subsequent electronics

3. act as determining element in the composite

integrator frequency characteristic

4. filter the signal against any unwanted

interference outside the frequency band of interest


Triggering l.jpg
Triggering current was injected on the nose refuelling probe and extracted on the underside of the rear fuselage.

E-field sensors will be used for triggering only

Trigger criteria:

If the E-field peak amplitude exceeds 100 kV/m more then 1 ms and if during the next 100 ms a short E-field peak with amplitude more then 11 kV/m is detected, then a direct lightning strike is taking place.


Lightning spot location on the fuselage l.jpg
Lightning spot location on the fuselage current was injected on the nose refuelling probe and extracted on the underside of the rear fuselage.

Location of the lightning spots on a BAC 1-11 aircraft


Possible sensor locations l.jpg
Possible sensor locations current was injected on the nose refuelling probe and extracted on the underside of the rear fuselage.

Current paths for main lightning scenarios including wings


Reconstruction of lightning current l.jpg
Reconstruction of lightning current current was injected on the nose refuelling probe and extracted on the underside of the rear fuselage.

A numerical method will be developed for the reconstruction of lightning current

by calculations from a set of surface field measurements recorded during a

lightning strike. Several types of information but also levels of accuracy will be

provided by the numerical analysis of measurements.

  • Some “rough” analysis will be done during the flight to identify the initial entry and exit points of the lightning channel, but also to make an estimation of the maximum current intensity.

  • Analysis will be performed at ground, on a distant server, with the objective to reconstruct the lightning current waveforms according to different numerical methods (inverse method, transfer functions,…).

    - minimum number sensors on appropriated positions

    - specific characteristics (frequency band, data sampling, amplitude

    measurement or time-derivative measurements,…)


Conclusion l.jpg
Conclusion current was injected on the nose refuelling probe and extracted on the underside of the rear fuselage.

  • For most of the measurements copper coil plus integrator is the best option,

    especially for the initiation phase and the large-amplitude strikes.

  • The continuing current is of interest, because of its large action integral and

    possible damage to the attachment point.


Further exploitation l.jpg
Further Exploitation current was injected on the nose refuelling probe and extracted on the underside of the rear fuselage.

Two major phases are foreseen:

  • Further development of the ILDAS on-board subsystems dedicated to a specific aircraft on which ILDAS will be actually flown; possibly a prototype aircraft.

    Sensors for other dedicated locations should be developed, along with specific required interfaces to the ILDAS.

    2. Start with an extensive business case study in order to be sure that actual application to an operational fleet will be overall cost effective.

    Further industrialization for serial production and final certification are part of this final phase.
