i cass door access system

I-CASS – Door Access System

THE LEADING INNOVATOR OF SECURITY SYSTEM

table of content
Table Of Content
  • Introduction to I-CASS.
  • Comparison with K-series.
  • System Component.
  • System configuration.
  • System Technology.
  • I-Cass Features.
  • Technical Specification.
  • Precaution & Maintenance.
system introduction 1
System Introduction(1)
  • Max.32 doors access control system.
  • Categorized into 2/4/8/12/16/24/32 doors version.
  • Combination of existing door access system, time attendance system, and alarm monitoring system.

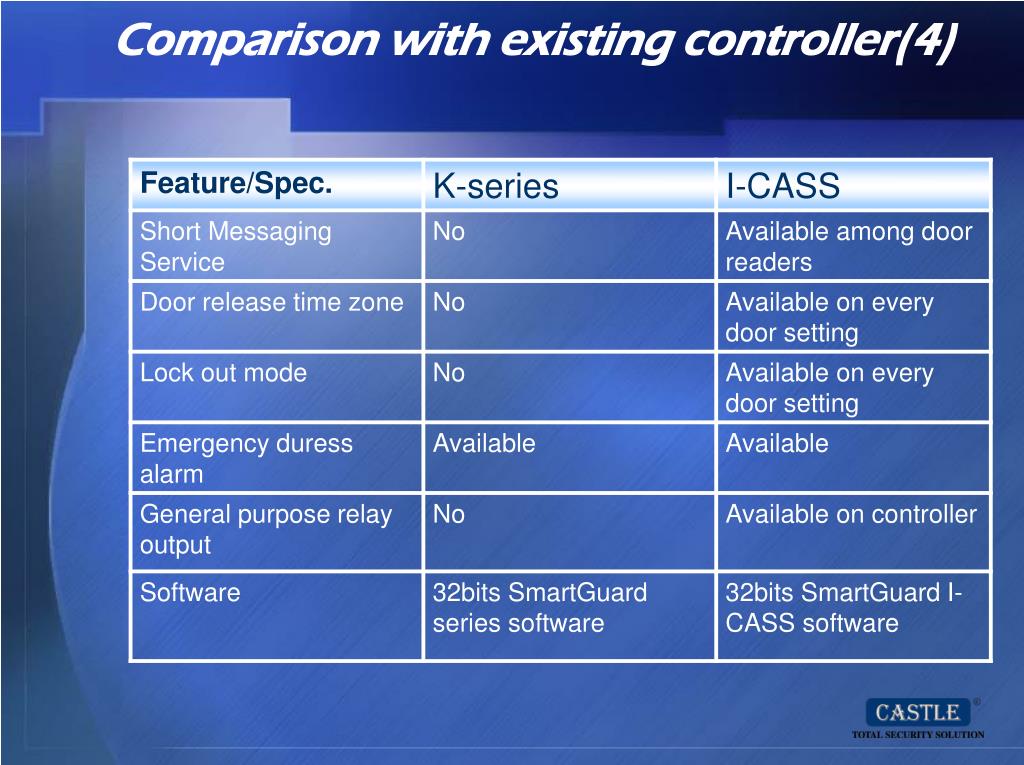

T-series : Multi-door interlocking features

K-series : Auxiliary Output relay based on defined transaction.

FEP : Supervised alarm input points.

system introduction 2
System Introduction(2)
  • Bring in wireless messaging technology.
  • Short message service among very doors.
  • Huge user and transaction storage capacity.
  • High speed processing and respond time.
  • Interactive blue light graphic LCD display
  • Emergency over ride key( Electronic Key).
  • Long reading range for proximity technology.
  • Ready for mifare and wiegand 26/32bits.
  • Integrated with S-series, K-series, T-series, Commando,

Centurion and FEP alarm monitoring system design concept.

system introduction 3
System Introduction(3)
  • People choose I-CASS for its flexibility usage in security access control and other relevant application such as:
    • Multi-door anti-pass back that handling max.32 doors operation.
    • Multi-door interlocking features that only allow one door to grant access at a time.
    • Guard Tour application that enabling patrol guard perform checking duty.
    • Ethernet and GSM ready for internal and external communication.
    • Alarm break in protection.
    • Fire alarm emergency exist.
system introduction 4
System Introduction(4)
  • Dual card entry mode and access counter mode for restricted access area.
  • CCTV and building automation integration.
  • 125Khz and 13.56MHz proximity technology interfacing.
  • I-CASS is designed to meet customer application including
    • Door access control
    • Guard tour patrol
    • Time Attendance
    • Alarm monitoring
    • Car Parking control
    • Building automation
    • Fire alarm panel integration
    • CCTV integration
    • SmartCard based solution
how security handled in i cass

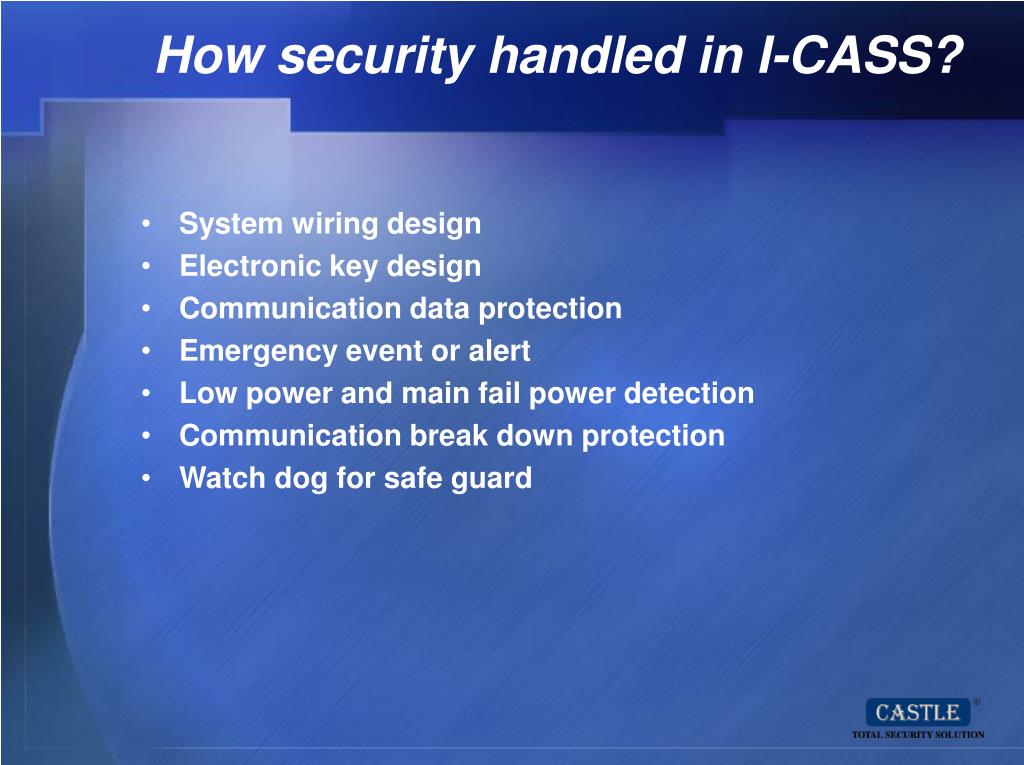

How security handled in I-CASS?
  • System wiring design
  • Electronic key design
  • Communication data protection
  • Emergency event or alert
  • Low power and main fail power detection
  • Communication break down protection
  • Watch dog for safe guard
benefit of using i cass

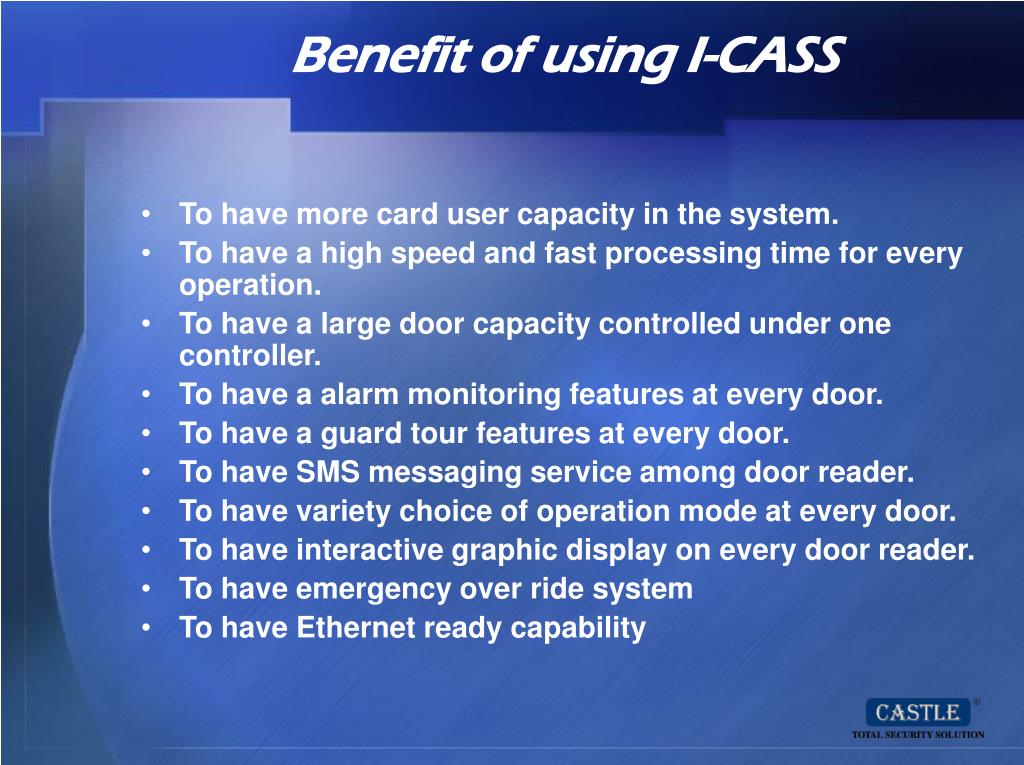

Benefit of using I-CASS
  • To have more card user capacity in the system.
  • To have a high speed and fast processing time for every operation.
  • To have a large door capacity controlled under one controller.
  • To have a alarm monitoring features at every door.
  • To have a guard tour features at every door.
  • To have SMS messaging service among door reader.
  • To have variety choice of operation mode at every door.
  • To have interactive graphic display on every door reader.
  • To have emergency over ride system
  • To have Ethernet ready capability
level of changes

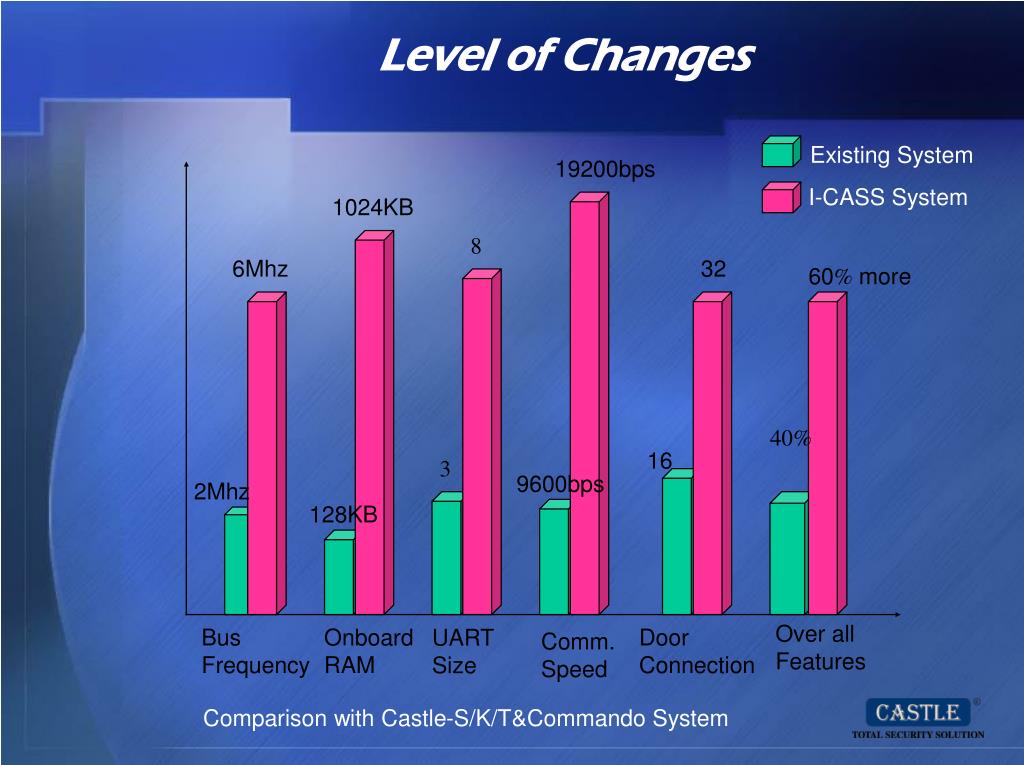

Level of Changes

Existing System

I-CASS System

19200bps

1024KB

8

6Mhz

32

60% more

40%

16

3

9600bps

2Mhz

128KB

Over all

Features

Bus

Frequency

Onboard

RAM

Door

Connection

UART

Size

Comm.

Speed

Comparison with Castle-S/K/T&Commando System

system component 1
System Component(1)
  • I-CASS controller
  • SmartBox (Door Interface Unit)
  • Door Reader
  • Electronic Key
  • Power Supply
  • PC interface (PCI)
  • SmartGuard I-CASS v5.6
  • Used as real time processing unit for all door event and alarm.
  • As card user databases storage.
  • As log transactions storage.
  • Used for all the user setting.
  • Responsible for all the communication bus polling.
system component 2
System Component(2)

SmartBox-Door Interface Unit

  • Used to control the electronic door lock device, door contact and lock release button.
  • Used as reader interface communication gateway to controller.
  • Perform basic door controlling function during system controller breakdown.
system component 3
System Component(3)

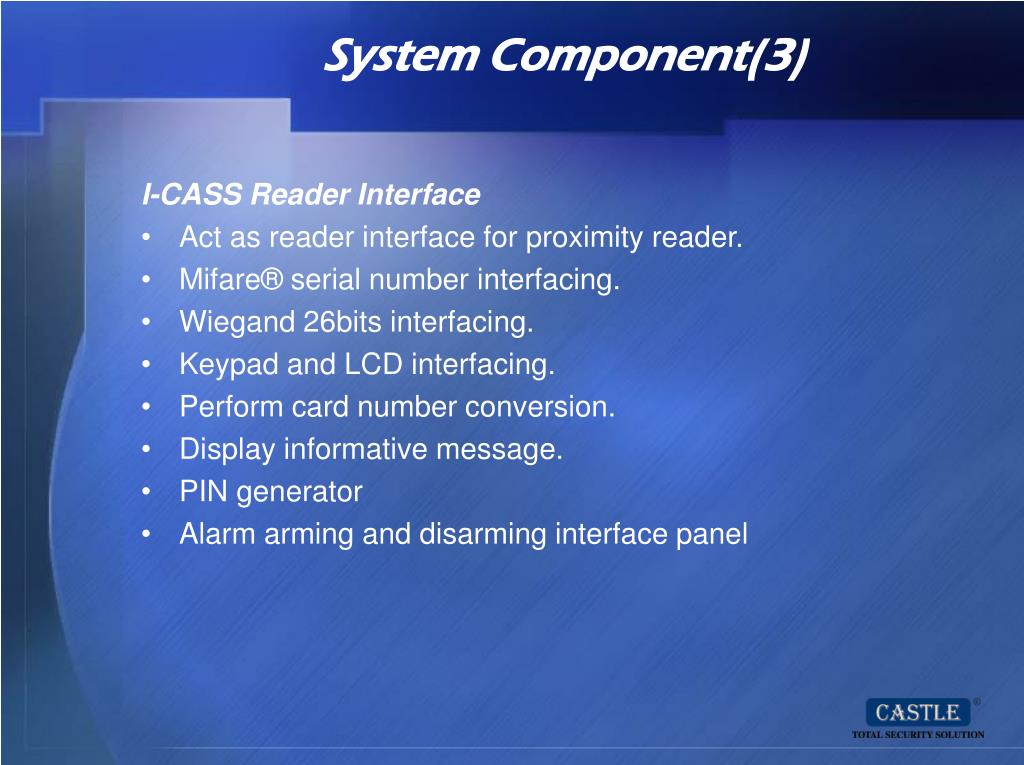

I-CASS Reader Interface

  • Act as reader interface for proximity reader.
  • Mifare® serial number interfacing.
  • Wiegand 26bits interfacing.
  • Keypad and LCD interfacing.
  • Perform card number conversion.
  • Display informative message.
  • PIN generator
  • Alarm arming and disarming interface panel
system component 4
System Component(4)

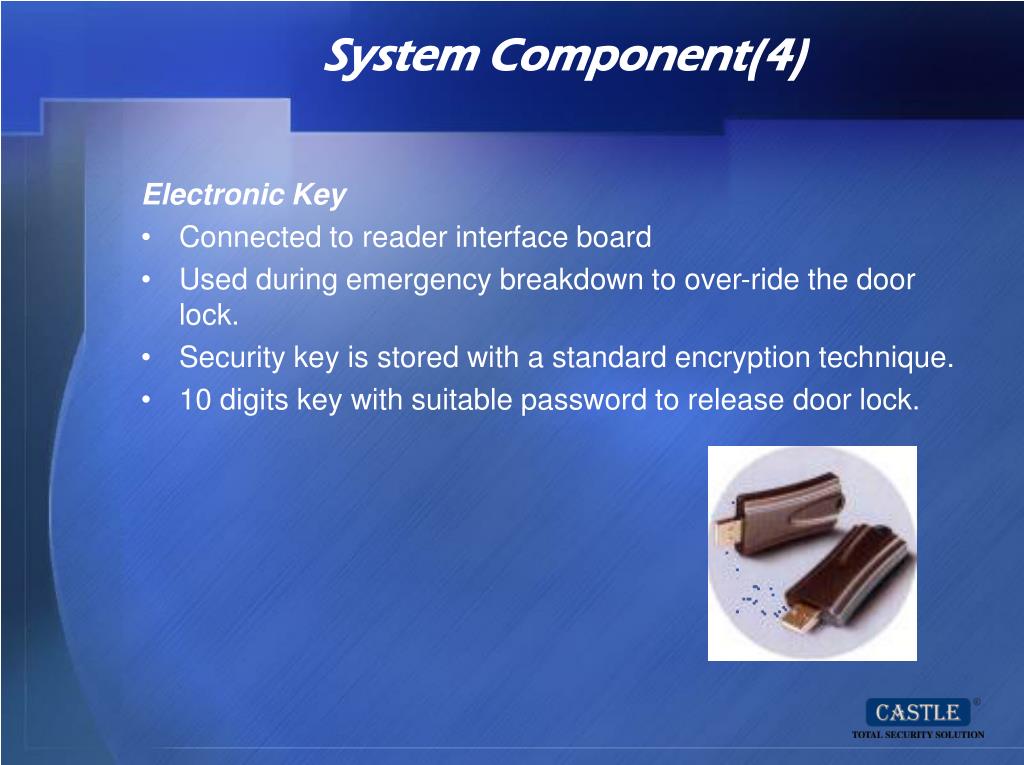

Electronic Key

  • Connected to reader interface board
  • Used during emergency breakdown to over-ride the door lock.
  • Security key is stored with a standard encryption technique.
  • 10 digits key with suitable password to release door lock.
system component 5
System Component(5)

PC Interface Unit (PCI)

  • Used as a gateway for controller uplink and PC communication port.
  • Used as a signal converter for RS232 to RS485 communication.
  • Act as a software security key for software version determination.
system component 6
System Component(6)

SmartGuard –ICASS v5.6

  • 32bits PC software.
  • Act as a interface software for data or user setting downloading machine.
  • Act as log transaction uploading software for data reporting purpose.
  • Time attendance report generation.
system configuration 1
System Configuration(1)

BUS 4

I-CASS Controller

RS 485

RS 232

BUS 3

PC I

BUS 2

PC Interface

I-Cass Software

BUS 1

2 Wires

Maximum 8 doors (expandable)

Door Interface (2)

Door Interface (1)

Door Interface (4)

Door Interface (5)

Door Interface (3)

Push Button

In Reader

Lock System

Magnetic Sensor

RS 485

Out Reader

RS 232

E-Key

E-Key

i cass features
I-Cass Features

Proximity Technology

ABS Casing

LCD Screen

SMS

Press Alarm

Guard Tour

Alarm Systems

Time Attendance

E - Key

Polycarbonate Keypad

Networking

features highlighted 1
Features Highlighted (1)

Preset greetings or

short messages

SMS

Employees

SMS

Doors forced open

or burglary

Owner

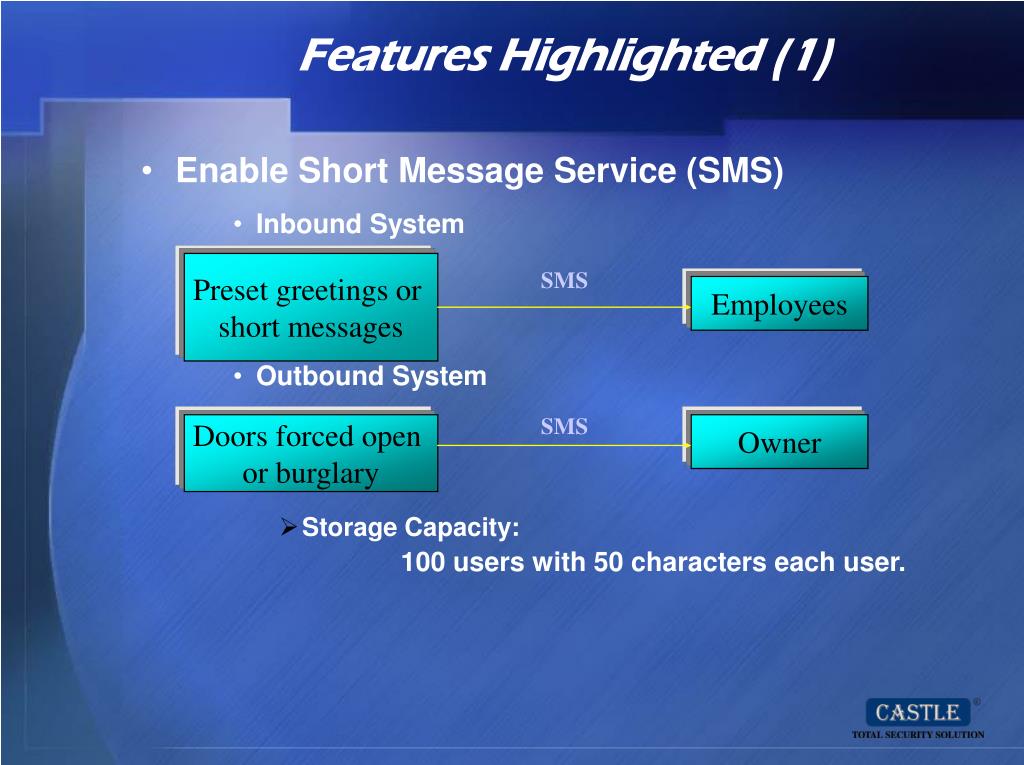

  • Enable Short Message Service (SMS)
      • Inbound System
      • Outbound System
        • Storage Capacity:

100 users with 50 characters each user.

features highlighted 2
Features Highlighted (2)

1. Configuration

Door 1

Door 2

Door 3

Time set : 10 mins

Time set : 20 mins

Main

Back

Off

2. He/She did not proceed to Door 2

Door 2 “Beep”

Door 3

Door 1

Time set : 10 mins

Time set : 20 mins

Main

Back

Off

3. He/She did not proceed to Door 3

Door 3 “Beep”

Door 1

Door 2

Time set : 10 mins

Time set : 20 mins

Main

Back

Off

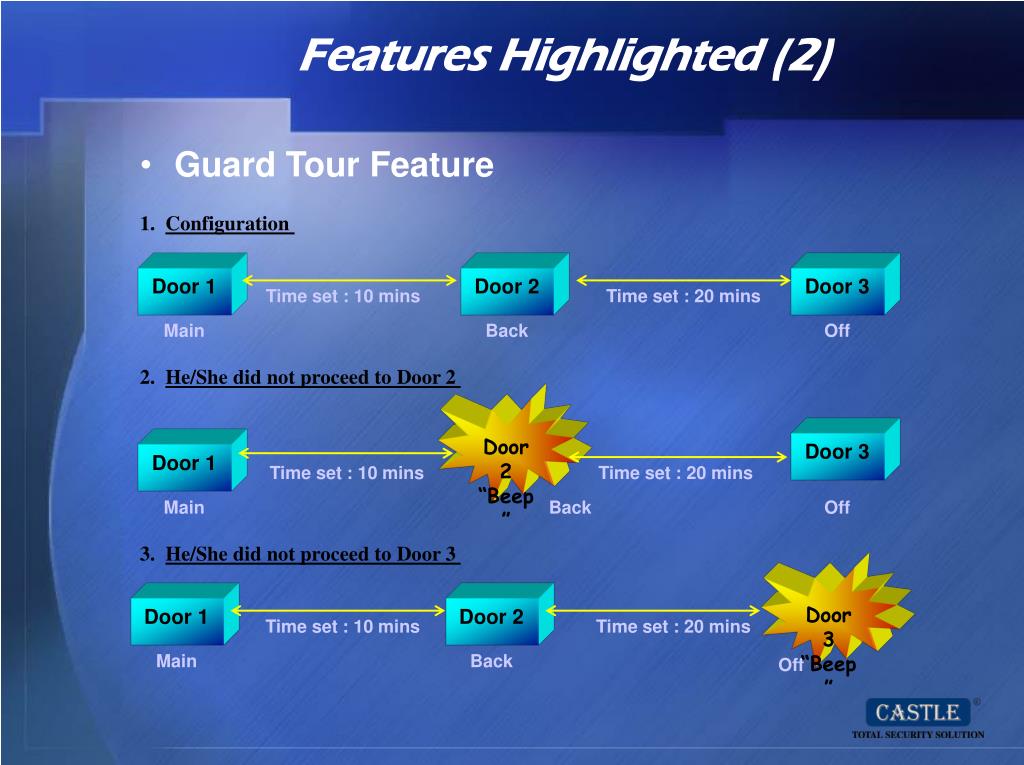

  • Guard Tour Feature
features highlighted 3
Features Highlighted (3)

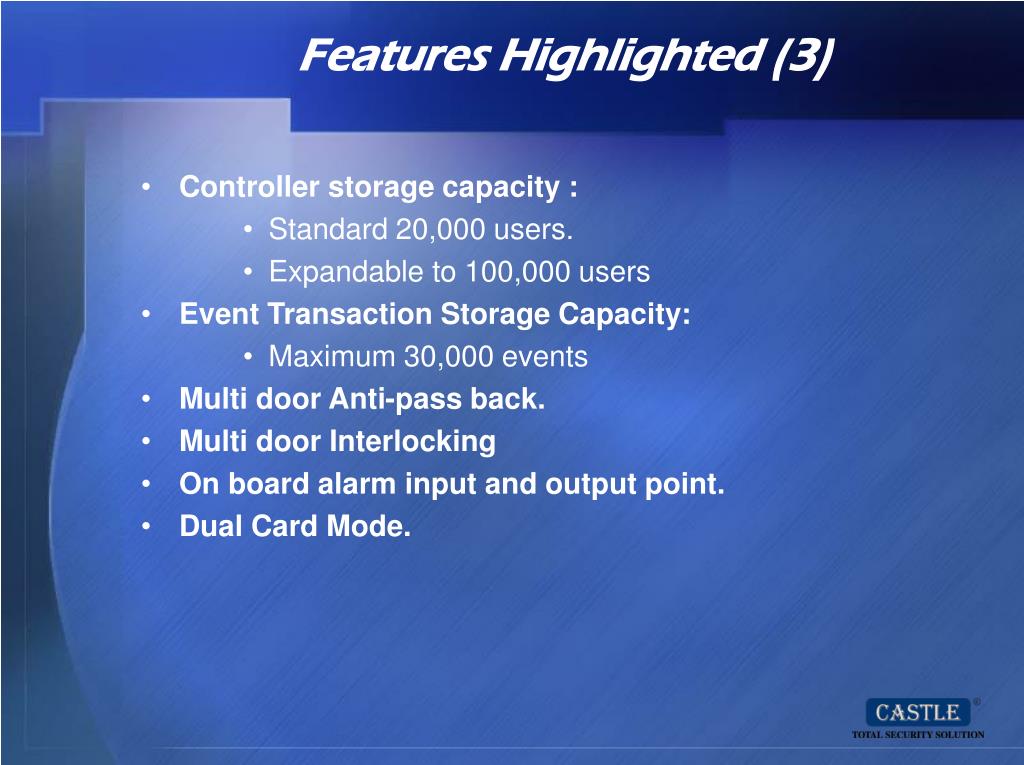

  • Controller storage capacity :
      • Standard 20,000 users.
      • Expandable to 100,000 users
  • Event Transaction Storage Capacity:
      • Maximum 30,000 events
  • Multi door Anti-pass back.
  • Multi door Interlocking
  • On board alarm input and output point.
  • Dual Card Mode.
features highlighted 4
Features Highlighted (4)
  • Access Counter.
  • Time Zone Control Door Release Button
  • 2 Holiday Groups @ 50 settings per group.
  • Software Configurable to general purpose relay output.
  • Enable to Interface with CIA88 additional alarm input or output point.
  • Maximum 32 doors linkage per controller.
  • Keypad arming on every door.
  • Controller backup.
  • Electronic Key (E-Key) for emergency door release.
  • Support K series feature.
  • On board Ethernet.
  • Graphic LCD.
the end
~ The End ~

~ Thank you ~

Visit our website:www.castle.com.myfor more information.
