Presentation Transcript

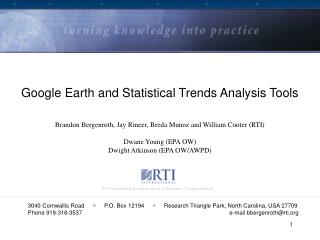

Slide1 l.jpg

Google Earth and Statistical Trends Analysis ToolsBrandon Bergenroth, Jay Rineer, Breda Munoz and William Cooter (RTI)Dwane Young (EPA OW)Dwight Atkinson (EPA OW/AWPD)

RTI International is a trade name of Research Triangle Institute

3040 Cornwallis Road ■ P.O. Box 12194 ■ Research Triangle Park, North Carolina, USA 27709

Phone 919-316-3537

e-mail [email protected]



New storet tools services simplify pulling data for trend analysis l.jpg
New STORET Tools (Services) Simplify Pulling Data for Trend Analysis

  • Trends analysis helps identify degradation trends for waters that warrant protection to avoid 303(d) listing

  • Trend analysis also help document incremental improvements showing progress in restoring impaired waters


Seasonal kendall tests a common tool to help confirm apparent trend patterns l.jpg
Seasonal Kendall tests a common tool to help confirm apparent trend patterns

  • Seasonal Kendall tests favored by the USGS, EPA ORD, and many university researchers

  • Valuable where parameter show variability related to seasonal changes in temperature or changes in flows

  • Can accommodate some degree of “censored observations (below detection limits or missing values)


Slide5 l.jpg
Trend analysis functions/modules similar to ESTREND (USGS) and Kendall (S-PLUS) already implemented in the open source R.



R based trend analysis using storet river stream station data l.jpg
R-based Trend Analysis using STORET river/stream station data

  • Scatter plots for data series of conventional and toxic parameters

  • Seasonal Kendall test can be used to assess seasonal trends


Non parametric statistic tests l.jpg
Non Parametric Statistic Tests data

Non parametric statistic tests refer to the collection of statistic tests that do not require any assumption on the distribution of the data. They are also known in the statistic literature as distribution free tests and distribution independent tests.

Furthermore, non parametric tests have few underlying assumptions and tend to concentrate in the relative values (e.g. ranks) of the observations instead of the magnitude of the observations.

Most non parametric tests were designed to assess the presence or absence of a given statistic characteristic (e.g. trend) and therefore do not provide the magnitude of the statistic characteristic of interest. For this reason, some researchers classify them as exploratory data procedures.

They are often used in hypothesis testing (e.g. existence of trends) and therefore considered as confirmatory data analysis tools.


Mannkendall l.jpg
MannKendall data

Let:

be a sequence of measurements over time, to test the null hypothesis,

: come from a population where the random variables are independent and identically distributed,

: follow a monotonic (e.g. increasing or decreasing) trend over time.

The Mann-Kendall test statistic is calculated as where

S is asymptotically normally distributed.

The mean and variance of S are given by

where p is the number of tied groups in the data set and is the number of data points in the jth tied group.


Mannkendall10 l.jpg
MannKendall data

A positive value of S indicates that there is an upward (increasing) trend (e.g. observations increase with time).

A negative value of S means that there is a downward (decreasing) trend.

If S is significantly different from zero, then based on the data can be rejected at a pre-selected significance level and the existence of a monotonic trend can be accepted.

Note that S is a count of the number of times for j k, more than .

The maximum value of S (called it D) occurs when .

Kendall’s tau is defined as where


Mannkendall11 l.jpg
MannKendall data

The distribution of Kendall’s tau can be easily obtained from the distribution of S.

A positive value of tau indicates that there is an upward (increasing) trend (e.g. observations increase with time).

A negative value of tau means that there is a downward (decreasing) trend.

If tau is significantly different from zero (e.g. value less than 0.05 at the 5% significance level or less than 0.01 at the 1% significance level), then based on the data, can be rejected at a pre-selected significance level (e.g. alpha = 5%) and the existence of a monotonic trend can be accepted.

Note that the test only allows the software user to conclude about the existence not about the magnitude of the trend.


Getting results l.jpg
Getting Results data

Using STORET Data Warehouse

STORET Station DescriptionsStations by Geographic Locationhttp://iaspub.epa.gov/stormoda/DW_stationcriteria

Stations by Organization and Station IDhttp://iaspub.epa.gov/stormoda/DW_stationcriteria_STN


Visualizing results l.jpg
Visualizing Results data

Transform text results to KML

Keyhole Markup Language (KML) is an XML based language for describing three-dimensional geospatial data and its display in application programs.

KML is supported in GoogleEarth, GoogleMaps and Microsoft VirtualEarth

http://code.google.com/apis/kml/documentation




Report results l.jpg
Report Results data

http://iaspub.epa.gov/storpubl/storet_wme_pkg.Display_Station?p_station_id=SP-64&p_org_id=MWRD


Report results17 l.jpg
Report Results data

http://iaspub.epa.gov/stormoda/DW_resultcriteria_station

http://iaspub.epa.gov/webservices/StoretResultService/index.html?operation=getResults









Indexing storet stations to the nhd can help increase sophistication of trend analyses l.jpg
Indexing STORET stations to the NHD can help increase sophistication of trend analyses

  • Group sites relative to upstream NPDES discharges

  • Group using Horton-Strahler stream orders

  • Group in terms of landcover patterns using NHDPlus LU/LC raster data


Indexing and combining station results l.jpg
Indexing and combining station results sophistication of trend analyses


Next steps l.jpg
Next Steps sophistication of trend analyses

  • Additional work on “pre-processing” STORET station data to focus attention on stations with enough “data density” to support trend analyses

  • Develop a “data mart” of R trend analysis results – including saved images of scatter plots over time from R

  • Consider ways trend analyses can support either pro-active study of anti-degradation effects [Goal: detect degradation trend early on and consider management steps to avoid winding up with additional 303(d) lists]

  • Also – use trend analyses as a tool to document incremental progress in meeting targets established under WQ Standards or the TMDL program
