Presentation Transcript


  • Motivation

  • Types of Costs

  • Two Typical Scenarios for Analysis

  • “Simple” Methods

  • The Time Value of Money

  • The Present Value Method

  • The Project Timetable

  • Accounting for Taxes and Depreciation

  • Accounting for Inflation


  • The objective is to introduce methods of economic analysis for energy engineering decision making in a corporate, institutional or governmental setting.

  • Legal, environmental, public relations, energy efficiency, safety and ethical considerations are important, but the most important consideration for engineering design decisions is economics-- “dollars and cents”.

More motivation
More Motivation

  • If factors can be valued in $, they should be included in the economic analysis.

  • The analysis methods here do not require tables. The use of computer spreadsheets (like EXCEL) will be emphasized.

  • A spreadsheet is a computerized accountant’s ledger- ideal for economic analysis.

  • Spreadsheets give greater flexibility

    than table-based methods.

Types of costs
Types of Costs

There are usually two types of costs associated with an engineering project, one-time costs, which include first costs and salvage costs, and annual costs

(or benefits) that occur every

year or several

years of the


First costs
First Costs

First Costs or Initial Costs are the costs necessary to implement a project, including:

  • Costs of new equipment

  • Costs of shipping and installation

  • Costs of renovations needed to install equipment

  • Cost of engineering

  • Cost of permits,

    licenses, etc.

Items that reduce first cost
Items that Reduce First Cost

Some costs of starting projects may be offset by immediate savings:

  • Deduct gains from sale of replaced equipment

  • Deduct investment tax credits. These are government tax incentives to purchase certain equipment, and reduce first costs by reducing taxes.

Salvage value
Salvage Value

We are attempting to estimate the total cost of doing a project. Cost is reduced if we can sell the equipment at end of project.

Salvage value is the money that can be obtained at the end of the project by selling equipment. Salvage value is a benefit rather than a cost.

Annual costs or benefits
Annual Costs or Benefits

Annual Costs and Benefits are costs and benefits of the project that accrue over two or more years of the project, including:

  • Direct operating costs such as labor, supervision, janitorial, supplies, maintenance, material, electricity, fuel, etc.

  • Indirect operating costs sometimes included, such as a portion of building rent, a portion of secretarial expenses, etc.

Annual costs or benefits cont d
Annual Costs or Benefits (Cont’d)

  • Sometimes include tax costs or benefits. If the project increases profits, it also increases taxes, which are an additional cost. There is a tax benefit if project reduces profits.

  • Depreciationof equipment for tax purposes is also a tax benefit.

  • Finally, need to include savings or profits from the project.

Two analysis scenarios
Two Analysis Scenarios

New Project- selecting from two or more alternative solutions. The objective in this scenario is to find the lowest cost solution that accomplishes some objective.

Example- Your client, a school district is building a new school. You are designing the heating and cooling system. Should you select: (1) a gas boiler plus an air conditioner, (2) an electric air-to-air heat pump, or (3) a ground-source heat pump?

Second analysis scenario
Second Analysis Scenario

Replacement Project- a method for accomplishing the goal is already in place, but a new alternative solution can accomplish the goal more cheaply. Do the future savings from the new method justify spending money now to cover the first costs?

Example- Should 2 existing machines with an operator each be replaced with a single new machine with the same output and a single operator?

Simple methods
“Simple” Methods

  • Simple Payback Period (SPP)- The time required for savings to offset first costs.

  • Simple Return on Investment (ROI)- The simple percent return the project pays over its life.

  • These methods are “simple” because they do not consider the time value of money.

  • Simple methods are OK for investments that are very good and pay off over short time periods.

Simple payback period
Simple Payback Period

For a replacement project:

For comparing two projects A and B, where the first cost of A is greater than B, but the annual costs of A are lower than B:

Simple return on investment
Simple Return on Investment

The simple rate of return on investment is:

Lifetime is the life of the project.

Simple methods example
Simple Methods Example

The Acme Threaded Products Corp. now uses 2 machinists to operate its 4 screw machines. Each screw machine costs $12,000/yr for electricity, maintenance and wasted materials. Each machinist costs $35,000/yr. Find SPP for replacing 4 old machines with 2 new machines @ $60,000 each that produce same output, cost $14,000/yr each to operate, and can be run by only one machinist? The old machines can be sold for $4000 each.


  • First cost is 2 * $60,000 - 4 * $4000, or:

    First cost = $104,000.

  • Savings/yr is $35,000 (labor), + 4 * $12,000 - 2 * $14,000 (operation), or:

    Savings/yr = $55,000/yr

  • SPP = First cost/(Savings/yr)

    = $104,000/($55,000/yr)

    or SPP = 1.89 yr

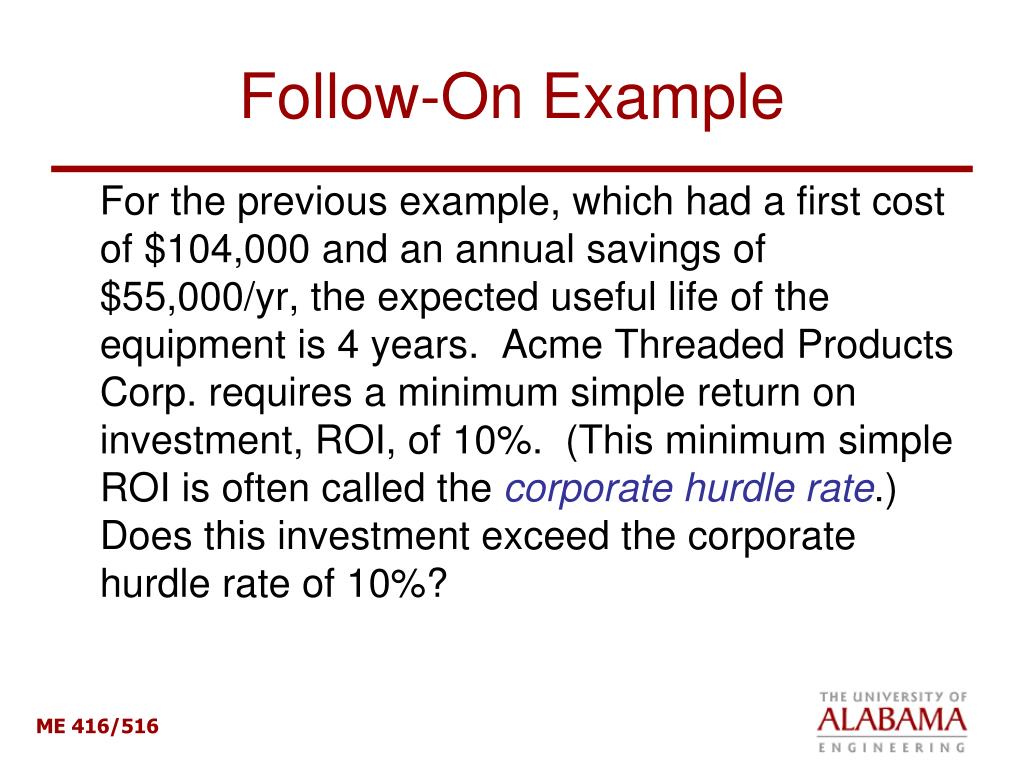

Follow on example
Follow-On Example

For the previous example, which had a first cost of $104,000 and an annual savings of $55,000/yr, the expected useful life of the equipment is 4 years. Acme Threaded Products Corp. requires a minimum simple return on investment, ROI, of 10%. (This minimum simple ROI is often called the corporate hurdle rate.) Does this investment exceed the corporate hurdle rate of 10%?



[Savings/yr - (First Cost/Lifetime)]/First Cost

=[$55,000/yr - ($104,000/4 yr)]/$104,000/yr

ROI = 0.279 = 27.9% (per year)

Time value of money
Time Value of Money

  • “Would you prefer $100 now or a year from now?” Most would prefer “cash up front” because $1 today is worth more than $1 some time in the future. You could invest $1 today and have more than $1 in a year.

  • A project with a life of several years has cash flows at various times. To consider dollar amounts at different times, we need to put all amounts on an equal basis taking the time value of money into account.

Present and future value
Present and Future Value

  • Present Value is the value now of an amount of money Freceived n years in the future.

  • Future Value is value n years in the future of an amount of money Preceived now.

  • If we can earn interest rate i on investments, the relationship between P and F is:

    F = P(1 + i)n or P = F/(1 + i)n


  • Problem- If a savings bond with a yield of 6% matures with a value of $1000 in 8 years, what does it cost now?

  • Solution- This is equivalent to asking what is the present value P of F = $1000 received n = 8 years in the future at an interest rate of i = 6%, soP =:

    F/(1 + i)n = $1000/(1 +0.06)8 = $627.41

  • A savings bond with these terms would cost this amount today.


  • Problem- If you invest $500 today at 9% interest, how much time is required for the investment to be worth $1200?

  • Solution- Here P = $500, F = $1200, i = 9% and n is the unknown, so:

    F = P(1 + i)n or F/P = (1 + i)n

    ln F/P = n ln(1 + I)

    or: n = [ln F/P]/[ln(1 + i)]

    n = [ln 1200/500]/[ln(1 + 0.09)] = 10.2 yr

The present value method
The Present Value Method

  • Method determines the value in today’s dollars of a set of cash inflows and outflows at various times from now into the future.

  • Set up a table (spreadsheet!) of all costs and savings associated with the project, making costs negative and income/savings positive.

  • Sum up all cash flows from each year to get the net cash flow (NCF) for that year.

Present value method cont d
Present Value Method (Cont’d)

Convert each NCF from all years n to present value by multiplying NCF * 1/(1 + i)n. This process is called discounting the NCF to account for present value. Most large companies have a “discount rate” or “rate of return” i that they use for all projects.

Add up discounted cash flows for all years. This is the present value of the investment.

Present value method cont d1
Present Value Method (Cont’d)

  • Replacement projects: If present value is greater than zero, then the accumulated, discounted savings exceed costs, and the investment should be made.

  • Using a spreadsheet, i can be adjusted so that P is exactly zero. The value of i for which P = 0 is the discounted rate of return. This means that the return on the proposed new investment is the same as putting the money in the bank at an interest rate of i.

Present value method cont d2
Present Value Method (Cont’d)

  • New projects: The present value will normally be negative for each alternative. The most economically attractive alternative is the one having the smallest (negative) value of P.

  • The smallest P corresponds to the alternative that will cost the least- cheapest.

The project timetable
The Project Timetable

  • One potentially confusing aspect of the present value method is in which year to place various expenses.

  • The lifetime of the project must first be determined. The economic analysis covers all years of the project life.

  • For analysis, the project starts on the very last day (Dec. 31) of Year 0. All first costs plus investment tax credits are considered to occur in Year 0 for most projects.

Project timetable cont d
Project Timetable (Cont’d)

  • All operating costs and savings plus any tax and depreciation effects that occur at any time in Year 1 are assumed to take place on the final day of Year 1 , that is, one year after project start. Similarly, all costs or savings occurring in any year are considered to occur at the end of that year.

  • The salvage value is a positive cash flow taken at the end of the final project year.

Present value example
Present Value Example

Given: CrimsonCorp lights its factory with fluorescent lights with a power bill of $12,000/yr and a lamp replacement cost of $5200/year. CrimsonCorp is considering high pressure sodium lights that could be operated for a power cost of $5000/yr and a replacement cost of $2600/yr. The cost of removing the old fixtures and installing new fixtures is $35,000. The life of the new lamp fixtures is estimated to be at least 8 years.

Present value example1
Present Value Example

  • Find- (a) For a 10% minimum rate of return, should lights be replaced? (b) What is the actual rate of return on this investment?

  • Solution- The First Cost is $35,000. The annual savings are the cost of operating old lights less the cost of operating new lights. So, the annual savings are ($12,000 + $5200) - ($5000 + $2600) = $9600/yr. A spreadsheet solution is used for this replacement problem.

Solution part b
Solution, Part b

  • The actual rate of return is the value of i that causes the present value to exactly equal zero.

  • This is easily determined once the Excel spreadsheet is set up by using Goal Seek...


  • Taxes, local, state

    and federal, are a

    fact of life

  • Taxes are applied to

    profits, therefore:

    • an expense that decreases profit also decreases taxes owed by the company.

    • a cash inflow that increases profit also increases taxes owed.

Taxes cont d
Taxes (Cont’d)

  • To account for taxes on the cash flow in a particular year, add to the NCF the quantity: -1 * NCF * tax rate. The negative sign shows that a “+” cash flow has a “-” tax effect.

  • The federal corporate tax rate varies over time (with politics and circumstances). Consult your accountant for details!!

  • The primary tax effect described here affects the net cash flow any time there is any cash flow in a year-- positive or negative.

Taxes cont d1
Taxes (Cont’d)

  • In addition to the primary tax effect, in some years there can be a tax effect from investment tax credits or depreciation.

  • To encourage investment in some goods (like energy efficiency), the government some-times legislates an investment tax credit.

  • An investment tax credit is a specified percentage of the purchase price that can be subtracted directly from tax bill in the year of the purchase (Year 0 for our purposes).

Tax credit vs deduction
Tax Credit vs. Deduction

  • A tax credit is an amount subtracted directly from the taxes owed. The taxpayer’s taxes are reduced by the entire amount of a credit.

  • A tax deduction is an amount subtracted from income. The company benefits only by the tax rate times the deduction for a tax deduction.


  • A company cannot deduct the cost of capital purchases from its income as a “cost of doing business.” The IRS regards capital purchases as investments rather than expenses.

  • The company can “write off,” or depreciate capital purchases over a number of years.

  • Depending on type of equipment, a company can claim a depreciation deduction of a specified amount for a specified number of years, following a “depreciation schedule.”

Depreciation cont d
Depreciation (Cont’d)

  • The tax effect of a depreciation deduction can be calculated as:

    (-1) * First Cost * Deprec. Rate * Tax Rate

  • Note that First Cost is a negative quantity, so the depreciation effect is a positive cash flow.

  • The most commonly used gov’t approved depreciation schedule is the Accelerated Cost Recovery System (ACRS):

Depreciation cont d1
Depreciation (Cont’d)

  • Depending on what the government decides is the lifetime of a type of capital equipment, a 3, 5, 7 or 10-year depreciation schedule is followed.

  • Note: the fact that an item has been depreciated 100% for tax purposes has no relation to its actual value or salvage value.

Tax and depreciation example
Tax and Depreciation Example

  • Given- Previously, CrimsonCorp was considering an investment with a first cost of $35,000 and annual savings of $9600/yr. Assume that CrimsonCorp is entitled to a 5% investment tax credit on the first cost, that pays a 34% tax on profits, and that the federal gov’t classifies the lighting equipment in the “5-year” property class.

Tax and depreciation example1
Tax and Depreciation Example

  • Find- (a) the present value of the investment assuming a 10% discount rate, and (b) the actual rate of return for the investment.

  • Solution- Again, a computer spreadsheet solution is recommended. The 5% investment credit is the only Year 0 tax effect, there is a primary tax effect for Years 1 - 10, and the 5-year class depreciation schedule is followed in Years 1 - 6...

Measures of inflation
Measures of Inflation

  • Prices tend to increase over time

    due to inflation in money’s value.

  • Although some goods inflate faster

    than others (like health care and education), the average rate of inflation is reflected by the Consumer Price Index (CPI).

  • The ratio of the CPI for one year to that of another is inversely proportional to the ratio of the buying power of a dollar for the same two years.

Inflation cpi example
Inflation/CPI Example

  • Given- The average CPI (based on 1982-84 = 100) for 1970 was 38.8 and the CPI for 1991 was 136.2. How much could a dollar buy in 1991 compared to 1970.

  • Sol’n- The ratio of buying power is inversely proportional to the ratio of CPI:

    CPI-1970/CPI-1991 = 38.8/136.2 = 0.285

  • Therefore, the 1991 dollar is worth only 28.5% of the 1970 dollar for the average consumer purchase.


  • There is a simple relationship between the purchasing power of a dollar now compared to the value of a dollar n years in the future assuming that the inflation rate is I:

    $now = $future/(1 + I)n

  • Note that i is used for interest rate, I for inflation rate.


  • Given- If it costs you $15,000/year to live now, how much will it cost in 10 years if the inflation rate is 4.5%?

  • Sol’n- $Future = $Now * (1 + I)n

    so $15,000 * (1 + 0.045)10 = $23,300


  • Given- For medical care, the 1970 CPI was 34.0 and the 1991 CPI was 177.

  • Find- the average inflation rate for medical care over the 21 year period.

  • Sol’n- $34 in 1970 = $177 in 1992, so

    $177 = $34 * (1 + I)21

    ln(177/34) = 21 ln(1 + I)

    exp[(1/21) ln(177/34)] = 1 + I

    I = exp[(1/21) ln(177/34)] - 1= 0.0817= 8.17%


  • Note that a dollar in the future is worth less than a dollar now for two different reasons:

    (1) You could invest your dollar today and have more than a dollar at the future time, so it takes more than a dollar in the future to have the present value of a dollar today (time value of money).

    (2) Your dollar in the future won’t be able to buy as much as it could today because of inflation.

Accounting for inflation
Accounting for Inflation

(1) Inflate all costs and savings using the available information, so that net cash flow before taxes is accurate for the year in question. Lacking better information, use the average inflation rate.

(2) Calculate NCFAT the usual way.

(3) Calculate the present value discount factor the same as before, using discount rate i.

PV Discount = 1/(1 + i)n

Accounting for inflation cont d
Accounting for Inflation (Cont’d)

(4) Calculate an inflation discount factor using inflation rate I:

Inflation Discount = 1/(1 + I)n

(5) Calculate an overall discount factor:

Overall Disc. = Inflation Disc. * PV Disc.

(6) The Present Value for a year is the NCFAT times the overall discount factor.

Inflation example
Inflation Example

Given: Acme Axles needs a heat treating oven for its account with Deutschmobile AG. An electric oven and natural-gas fired oven are considered. For both options assume a tax rate of 34%, 7-year depreciation, a 10-year life, no tax credits, salvage value of 10% of first cost, discount rate of 10%, inflation rate of 4%, electricity inflation rate of 5%, and natural gas inflation rate of 7%, All costs of the two ovens are identical except for the following:

Inflation example cont d
Inflation Example (Cont’d)

Electric Oven- First cost is $125,000, electricity cost is $35,000/yr, maintenance cost is $6000/yr.

Gas Oven- First cost is $185,000, fuel cost is $10,000/yr, maintenance cost is $9000/yr.

Find: which option should Acme select?

Sol’n: Use spreadsheet solution method, as follows:
