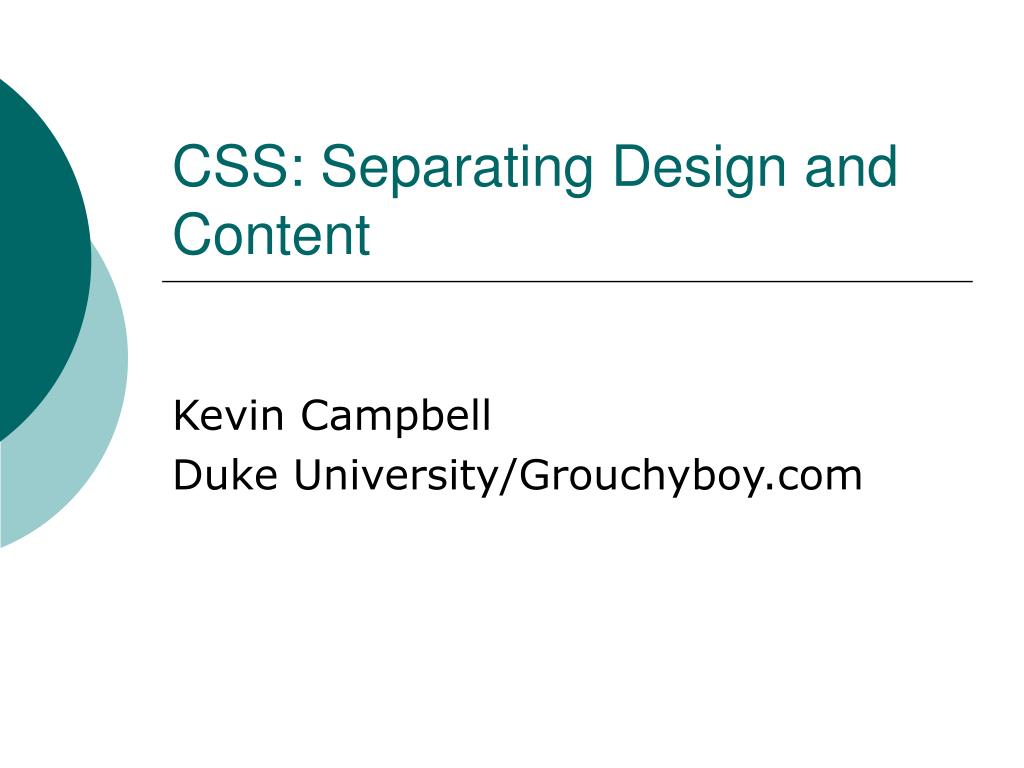

  1. CSS: Separating Design and Content Kevin Campbell Duke University/Grouchyboy.com

  2. Assumptions • You know HTML • You do not know CSS • You care about aesthetics and function • You have 50 minutes to kill

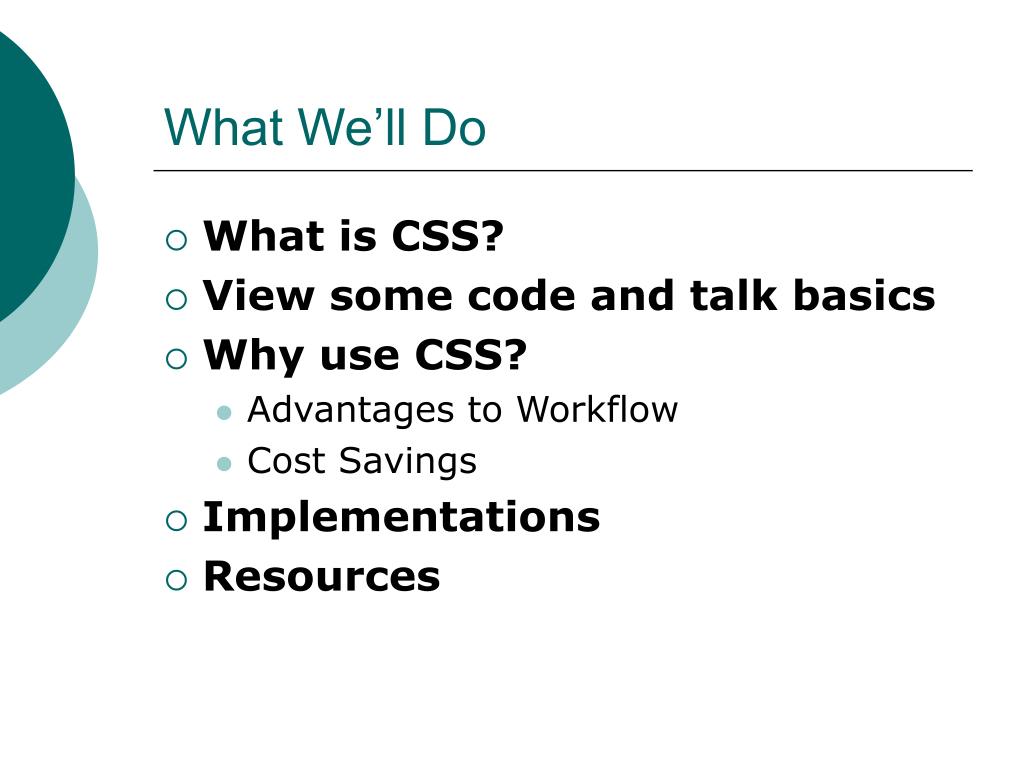

  3. What We’ll Do • What is CSS? • View some code and talk basics • Why use CSS? • Advantages to Workflow • Cost Savings • Implementations • Resources

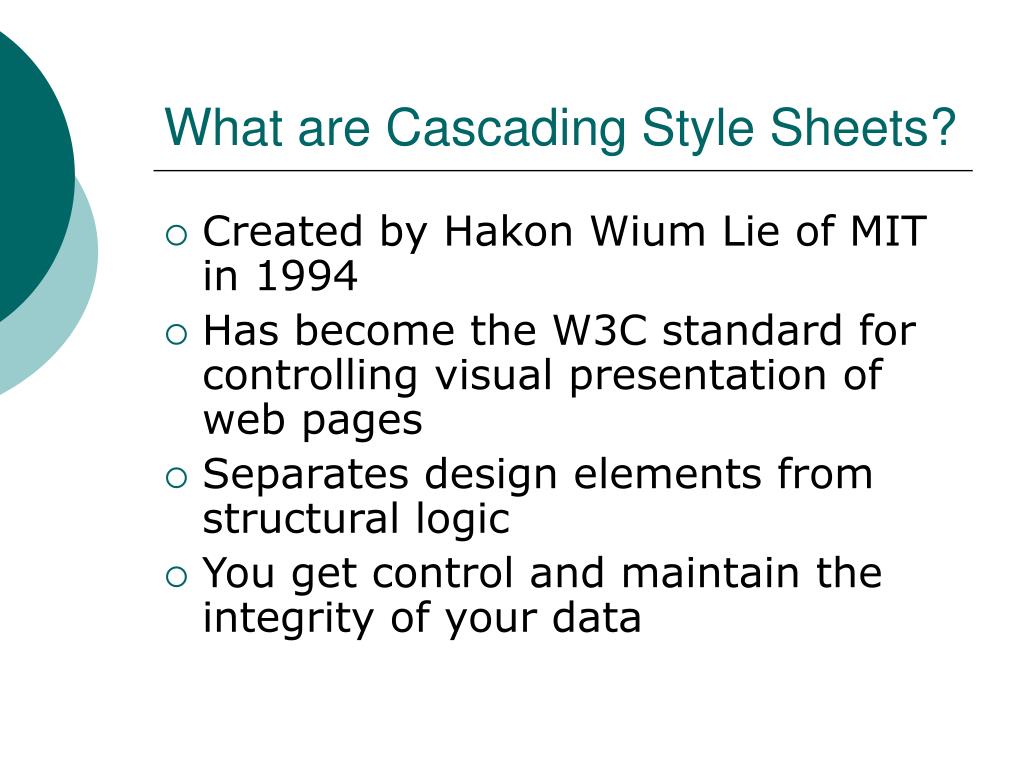

  4. What are Cascading Style Sheets? • Created by Hakon Wium Lie of MIT in 1994 • Has become the W3C standard for controlling visual presentation of web pages • Separates design elements from structural logic • You get control and maintain the integrity of your data

  5. Let’s See Some Code • Sample Style sheet • Rule Structure

  6. Selectors • Element Selectors – (refer to HTML tags) H1 {color: purple;} H1, H2, P {color: purple;} • Contextual – (refer to HTML, but in context) LI B {color: purple;}

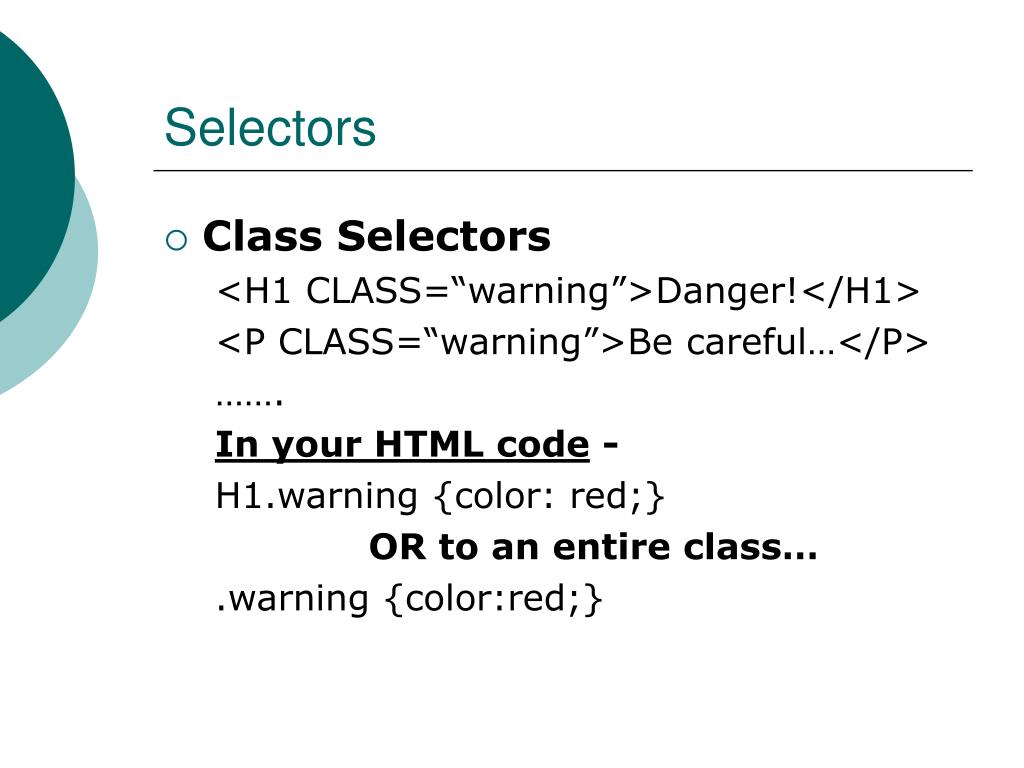

  7. Selectors • Class Selectors <H1 CLASS=“warning”>Danger!</H1> <P CLASS=“warning”>Be careful…</P> ……. In your HTML code - H1.warning {color: red;} OR to an entire class… .warning {color:red;}

  8. Applying CSS to HTML • Style rules can be applied in 3 ways: Inline Styles: <H1 STYLE=“color: blue; font-size: 20pt;”>A large purple Heading</H1> For individual elements using the STYLE attribute Embedded style sheets: <HTML><HEAD><TITLE>Stylin’!</TITLE> <STYLE TYPE=“text/css”> H1 {color: purple;} P {font-size: 10pt; color: gray;} </STYLE> </HEAD> … </HTML> External style sheets: <HEAD> <LINK REL=stylesheet” TYPE=“text/css” HREF=“styles/mystyles.css”> </HEAD> This is true “separation” of style and content. Keeping all your styles in an external document is simpler

  9. Why CSS? • Advantages to Workflow • Cost Savings • You WILL Be Cooler

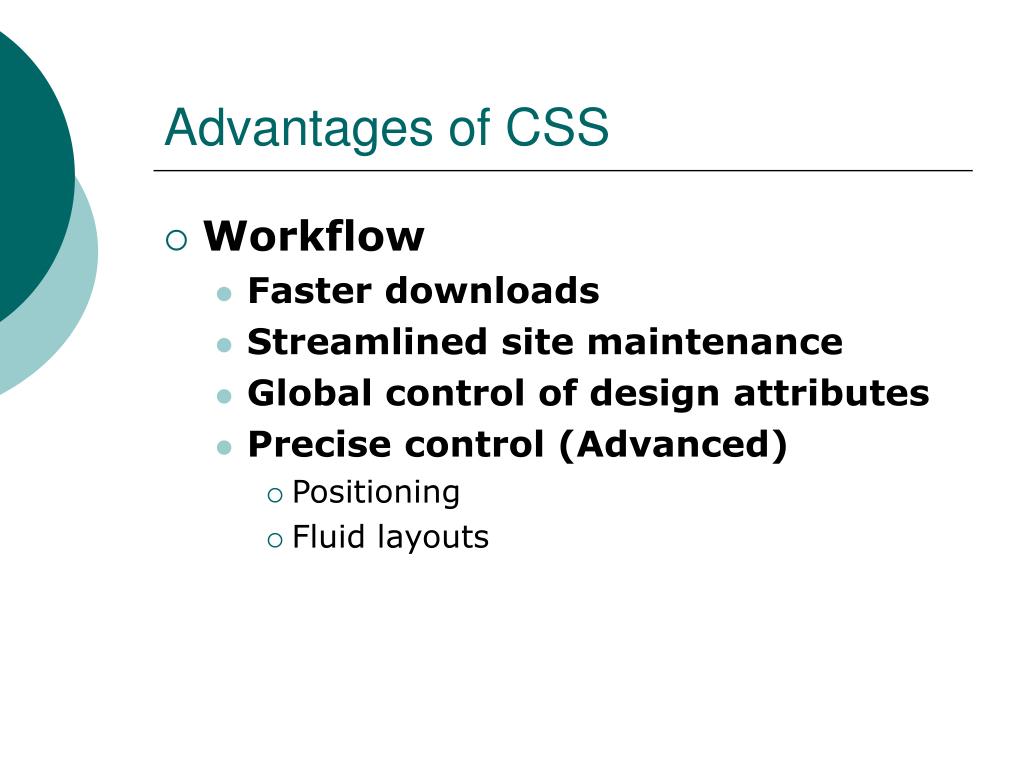

  10. Advantages of CSS • Workflow • Faster downloads • Streamlined site maintenance • Global control of design attributes • Precise control (Advanced) • Positioning • Fluid layouts

  11. Advantages of CSS - Cost Savings • Cost Savings • Reduced Bandwidth Costs • One style sheet called and cached • Higher Search Engine Rankings • Cleaner code is easier for search engines to index • Greater density of indexable content

  12. Advantages of CSS - Cost Savings • Faster download = better usability • Web usability redesign can increase the sales/conversion rate by 100% (source: Jakob Nielson) • CSS requires less code • Tables require spacer images • Entire table has to render before content • CSS can control the order that elements download (content before images)

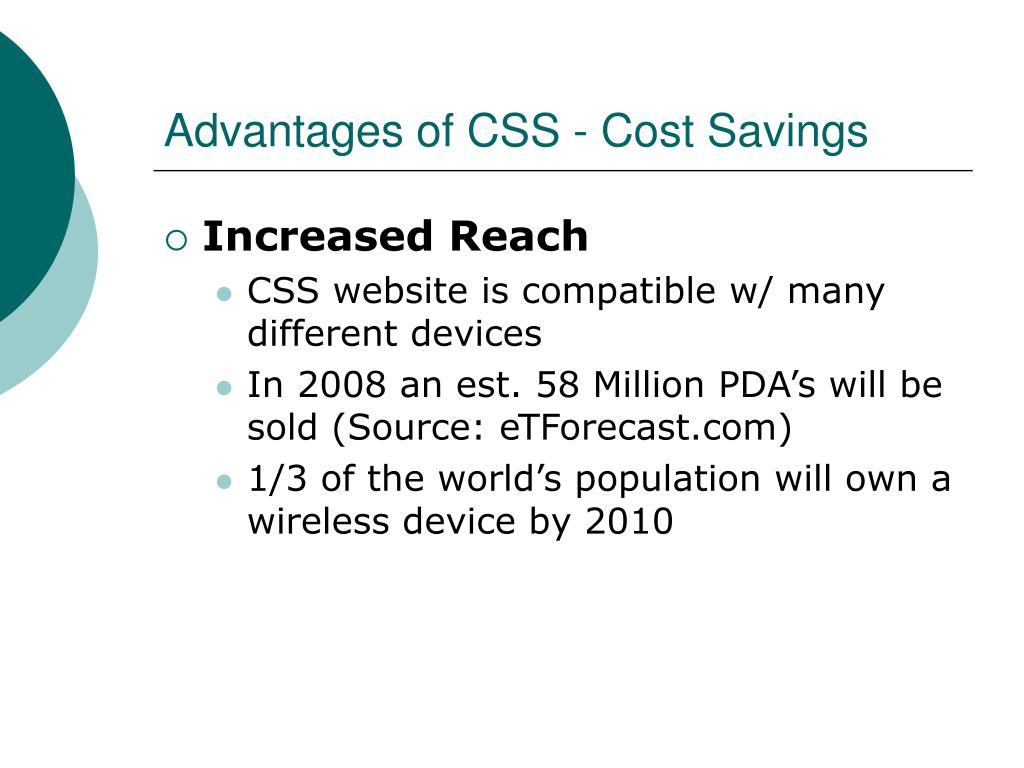

  13. Advantages of CSS - Cost Savings • Increased Reach • CSS website is compatible w/ many different devices • In 2008 an est. 58 Million PDA’s will be sold (Source: eTForecast.com) • 1/3 of the world’s population will own a wireless device by 2010

  14. Implementations • Apply to HTML pages • Apply to dynamic data • Format or style XML • Use for layout (this is cool) • See http://www.csszengarden.com

  15. CSS isn’t perfect (yet) • CSS support in browsers is still uneven • Make sure your CSS properties are supported

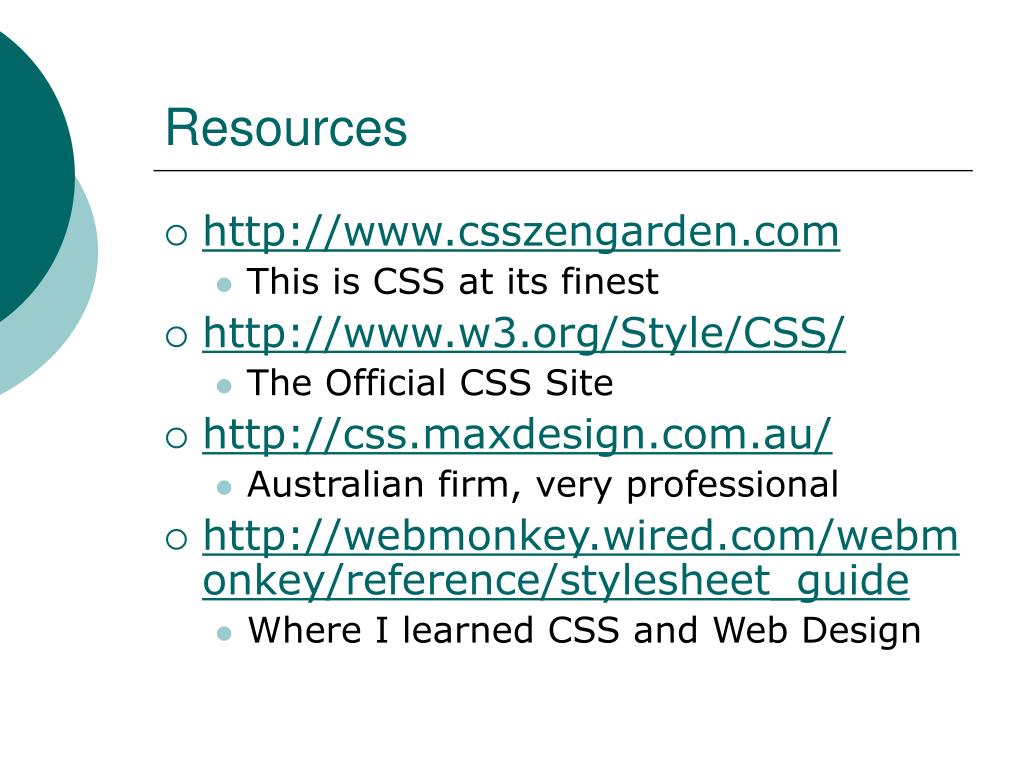

  16. Resources • http://www.csszengarden.com • This is CSS at its finest • http://www.w3.org/Style/CSS/ • The Official CSS Site • http://css.maxdesign.com.au/ • Australian firm, very professional • http://webmonkey.wired.com/webmonkey/reference/stylesheet_guide • Where I learned CSS and Web Design

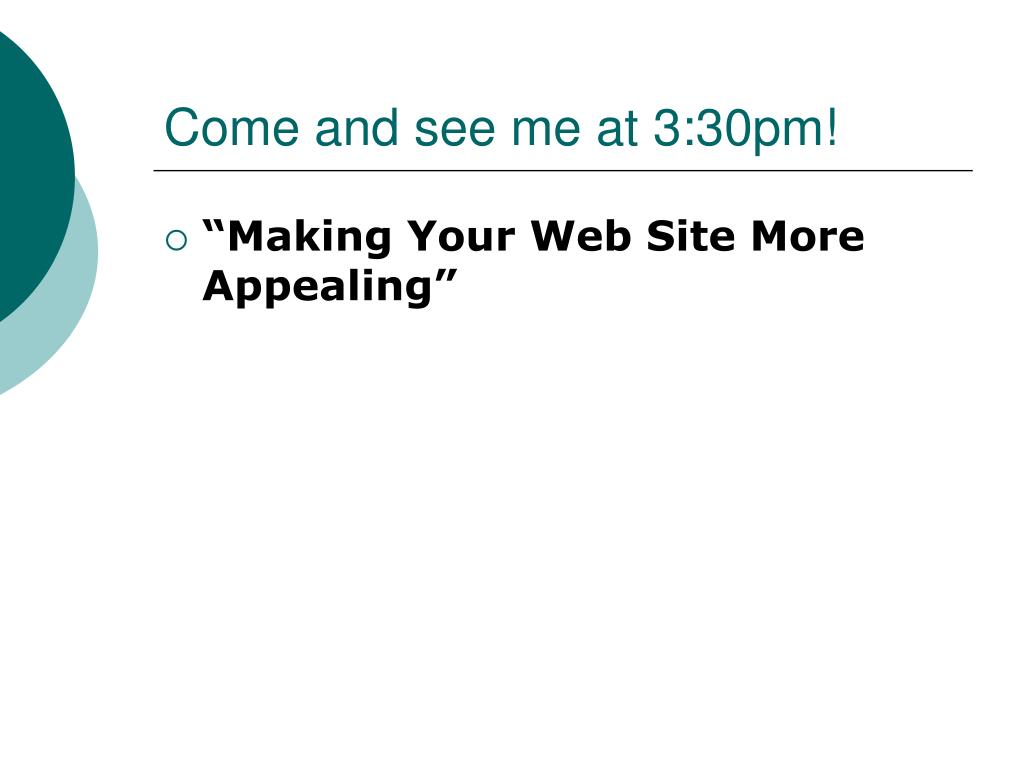

  17. Come and see me at 3:30pm! • “Making Your Web Site More Appealing”
