  1. Hardware-Software Codesign Elvira Kitsis Hermawan Ho Alex Papadimoulis

  2. HW/SW Codesign Introduction • Unified design of hardware and software systems • All design based off of logical model • no HW/SW partition • Maintained throughout design process • Concurrent Design • hw/sw optimized for peak performance

  3. HW/SW Codesign Origins • Field of Embedded systems • Demand for consumer information appliances (cell phone, pda) • Specialized industrial products • designers developed new tools and techniques to satisfy demand • These became HW/SW codesign

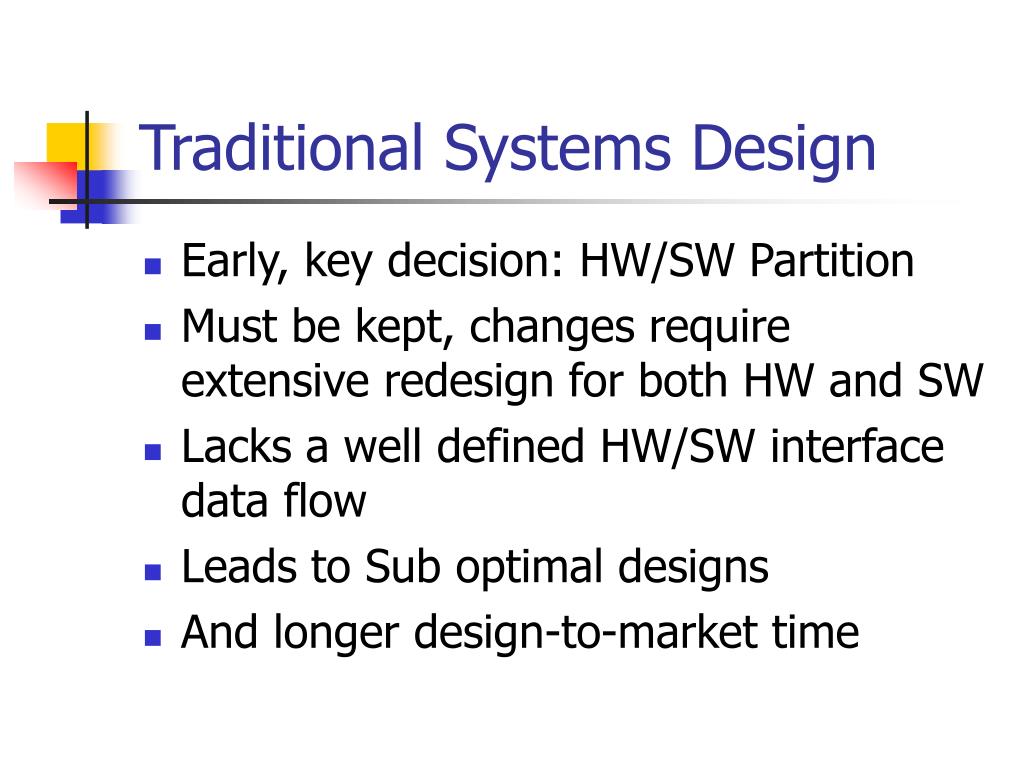

  4. Traditional Systems Design • Early, key decision: HW/SW Partition • Must be kept, changes require extensive redesign for both HW and SW • Lacks a well defined HW/SW interface data flow • Leads to Sub optimal designs • And longer design-to-market time

  5. HW/SW Codesign - A Solution • HW/SW Codesign alleviates traditional design issues • Maps system specification to a mixed HW/SW implementation • Conventional SW on a RISC processor • ASICs (Application Specific Integrated Circuit)

  6. Practical Implementation of Hardware Software Codesign • Elvira Kitsis

  7. Practical implementation of hardware/software co-design • The purpose of hardware/software co-design • Four common approaches to the task of hardware/software co-design • unbiased • hardware-biased • software-biased • hardware acceleration

  8. Co-design development routine • Objectives of development routine • The first stage is to determine the performance critical section of a C program using a profiler tool and routine system, as described in Fig.1.

  9. Next step • The next step in the development routine is to implement a critical section in hardware as shown in Fig.2.

  10. Limitationson the type C code: • All C types must be mapped to 16/32 bit signed integers in HardwareC • Type qualifiers, enumerated types, unions and structures NOT permited • Global variables are NOT allowed • Parameters for functions may consists of simple types, pointer types and data arrays only. • No support for "gotos"

  11. Test Results Execution time Example 1 Software-only 80 ms Software-hardware 47 ms Example 2 Software-only 114 ms Software-hardware 80 ms

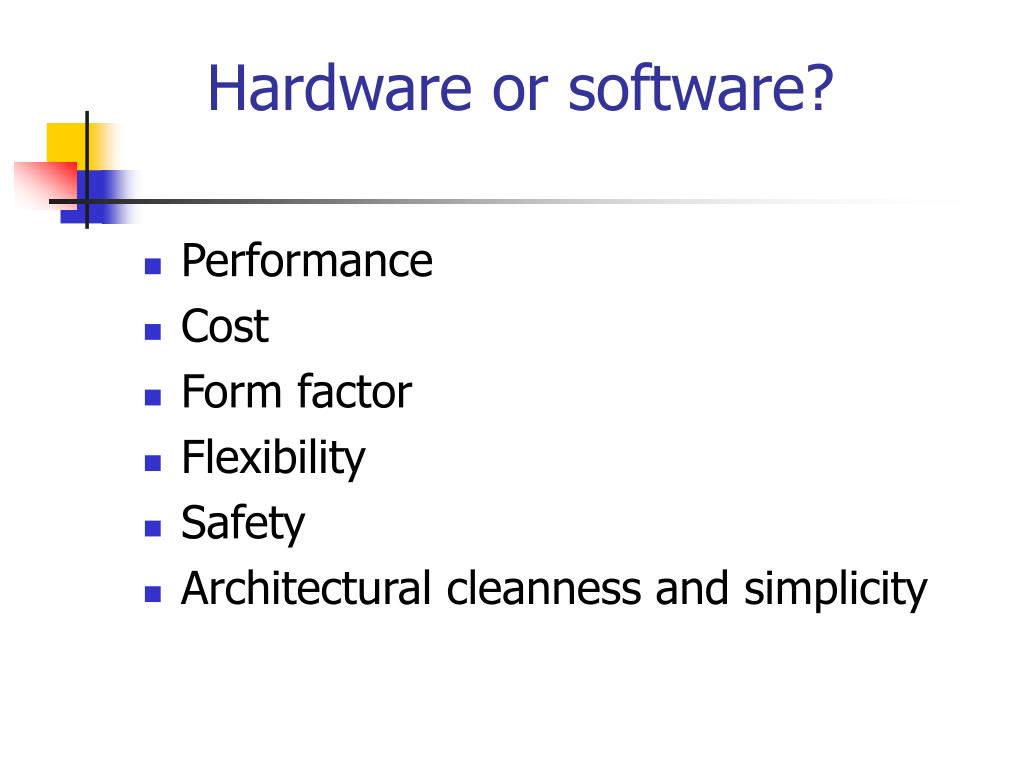

  12. Hardware or software? • Performance • Cost • Form factor • Flexibility • Safety • Architectural cleanness and simplicity

  13. System Level Memory Optimization for Hardware-Software Co-Design Hermawan Ho

  14. Intro • In multi media applications, a considerable amount of memory is required. • To reduce this dominant cost. • A quad-tree based image coding application.

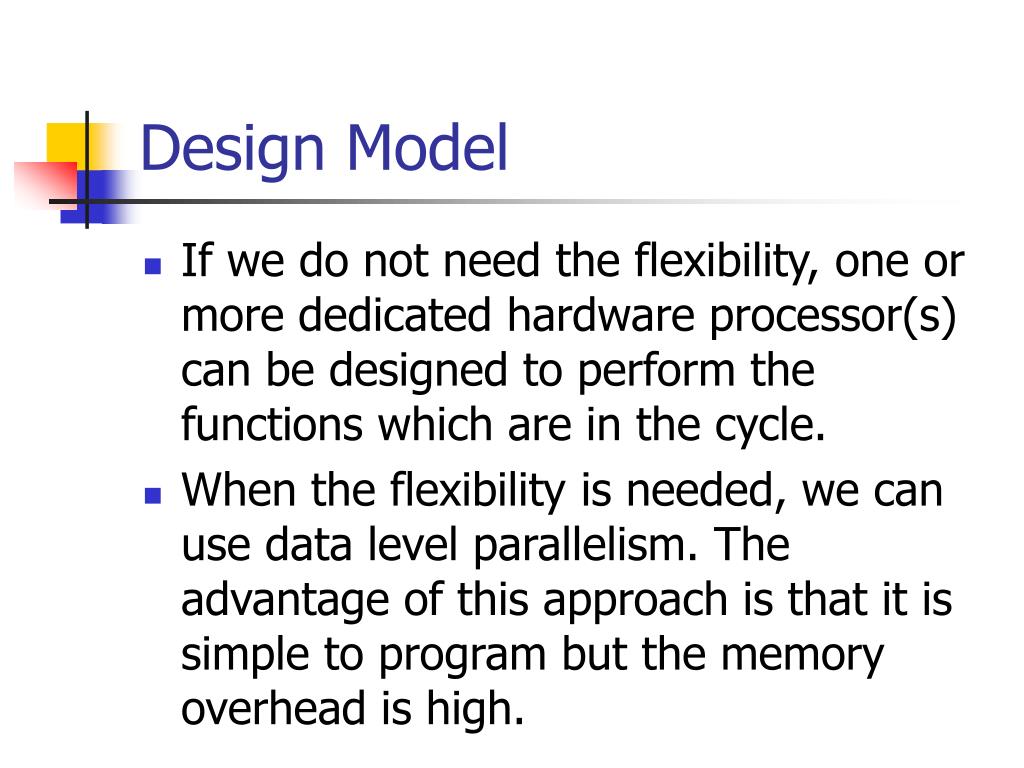

  15. Design Model • If we do not need the flexibility, one or more dedicated hardware processor(s) can be designed to perform the functions which are in the cycle. • When the flexibility is needed, we can use data level parallelism. The advantage of this approach is that it is simple to program but the memory overhead is high.

  16. Design Model • Alternatively, we can use task level parallelism. • The advantages are that the code size per processor is relatively low. • The disadvantage is that the design time will be much higher due to the complex processor partitioning and memory management.

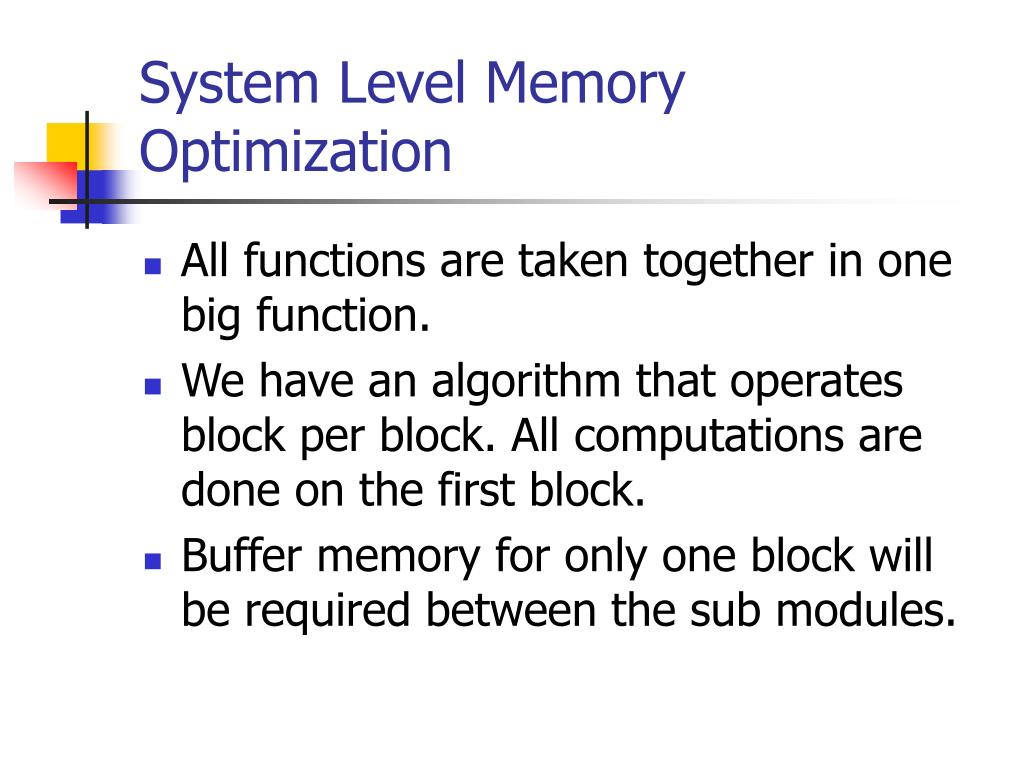

  17. System Level Memory Optimization • All functions are taken together in one big function. • We have an algorithm that operates block per block. All computations are done on the first block. • Buffer memory for only one block will be required between the sub modules.

  18. QSDPCM • QSDPCM (Quadtree Structured Difference Pulse Code Modulation) is a compression technique for video. • The algorithm optimize both the displacement vector and the quadtree mean decomposition jointly. • The displacement which requires the minimum number of bits for the quadtree decomposition is selected

  19. Summary • If the HW/SW partitioning is performed first, remaining buffers afterwards cannot be optimized away anymore. • QSDPCM application, can do much better before the HW/SW partitioning.

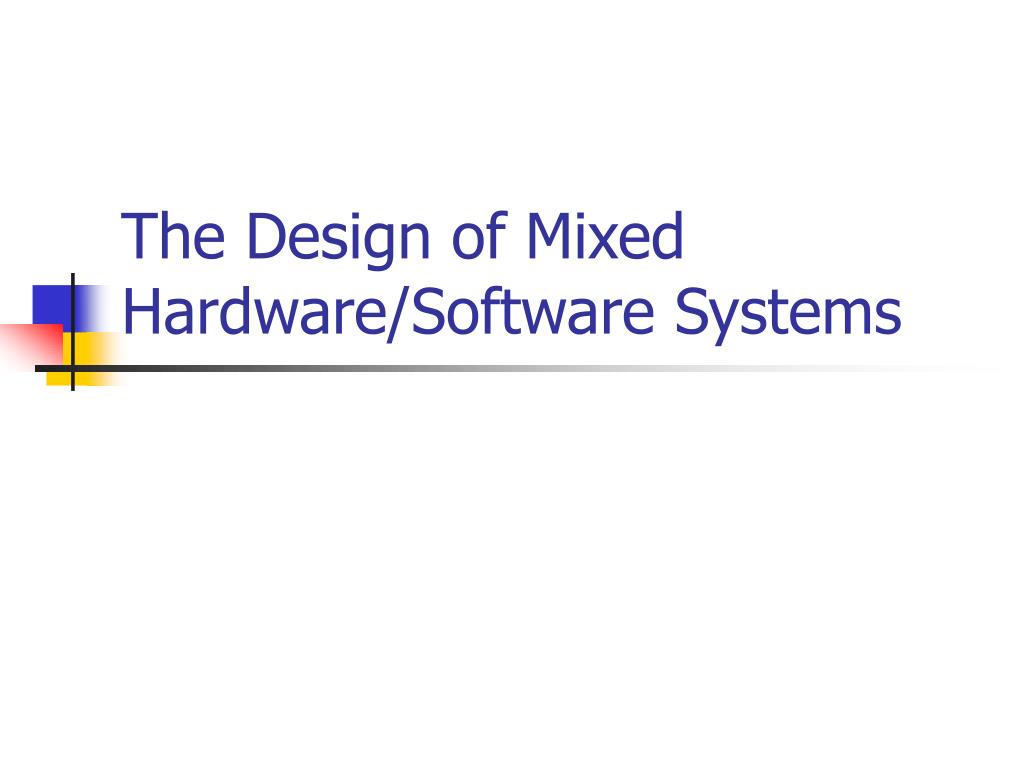

  20. The Design of Mixed Hardware/Software Systems

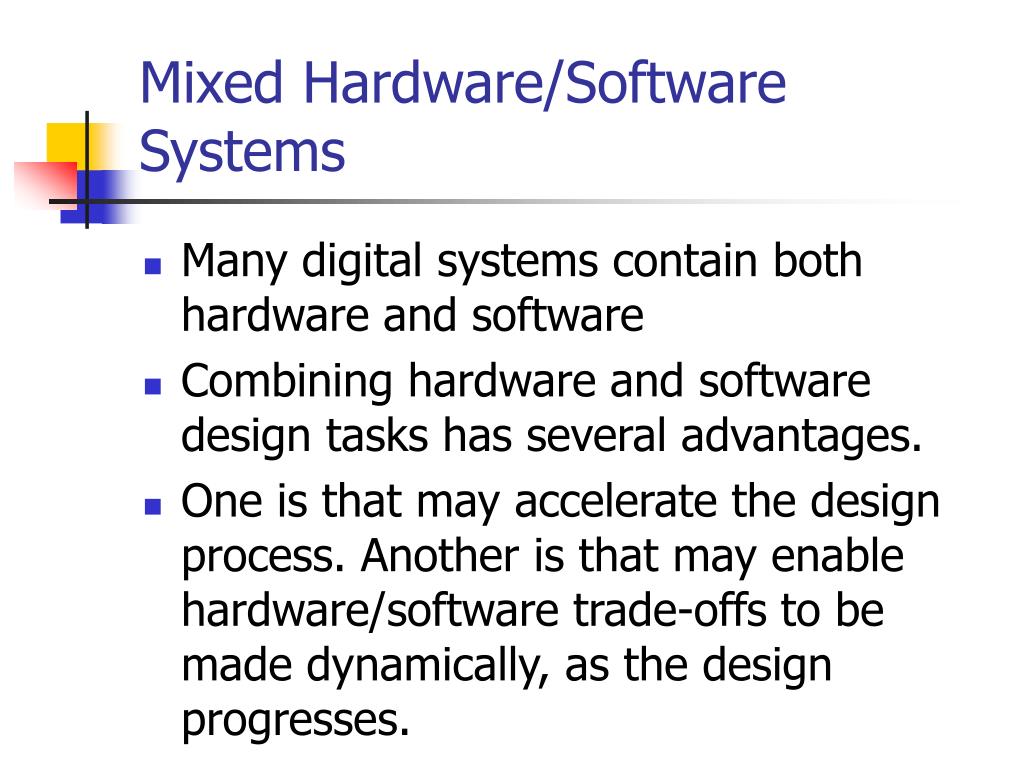

  21. Mixed Hardware/Software Systems • Many digital systems contain both hardware and software • Combining hardware and software design tasks has several advantages. • One is that may accelerate the design process. Another is that may enable hardware/software trade-offs to be made dynamically, as the design progresses.

  22. Mixed Hardware/Software Systems • Unless the they are design together, we do not think of it as a mixed hardware/software system. • The distinguishing factor is whether the boundary between hardware and software is logical boundary or a physical boundary.

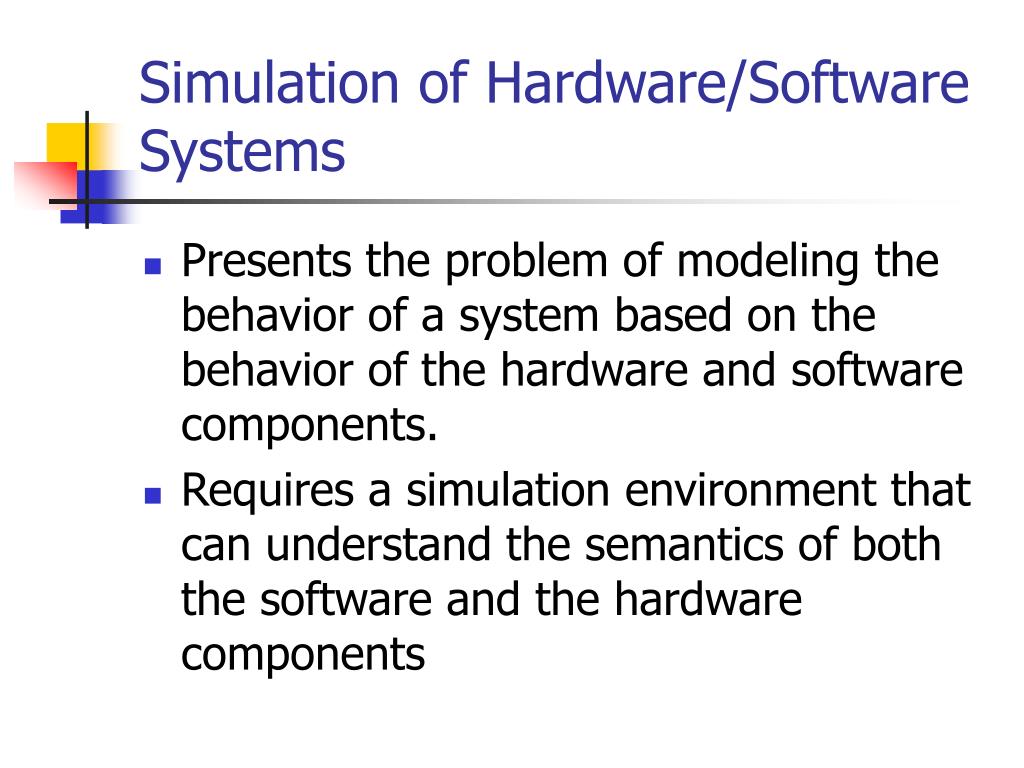

  23. Simulation of Hardware/Software Systems • Presents the problem of modeling the behavior of a system based on the behavior of the hardware and software components. • Requires a simulation environment that can understand the semantics of both the software and the hardware components

  24. Automated Hardware/Software Co-Synthesis • Allow the designer to explore more of the design space by dynamically reconfiguring the hardware and software. • Another challenge for hardware/software co-synthesis is that hardware and software are often described using different languages and formalisms.

  25. Automated Hardware/Software Co-Synthesis • May include hardware/software partitioning. Some of the considerations are: • Performance requirements • Implementation cost • Modifiability • Nature of computation • Concurrency • Communication

  26. Several Examples of Hardware/Software Co-Design • Embedded microprocessor systems • Heterogeneous multiprocessing systems • Application-specific instruction set processors • Special-purpose functional units • Application-specific co-processor

  27. Using HW/SW Codesign Alex Papadimoulis

  28. OOP & HW/SW Codesign • Develop entire system in an object oriented programming language • Treat hardware as an object • Allows for a unified design environment • HW functions can be simulated in SW Object and implemented concurently

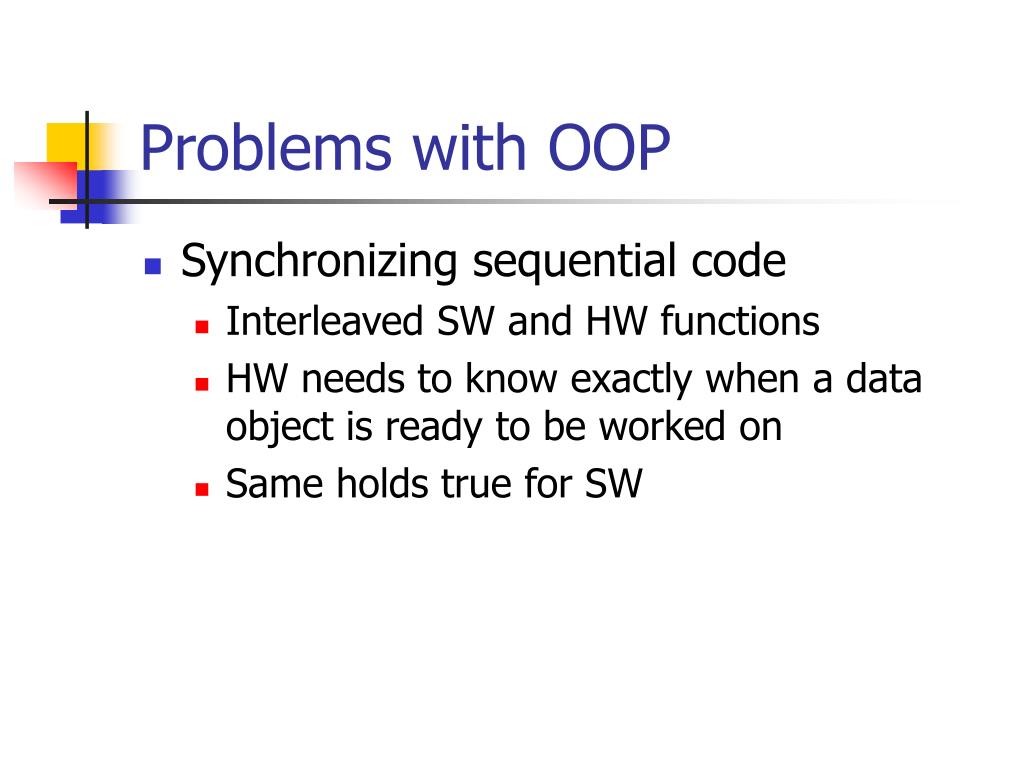

  29. Problems with OOP • Synchronizing sequential code • Interleaved SW and HW functions • HW needs to know exactly when a data object is ready to be worked on • Same holds true for SW

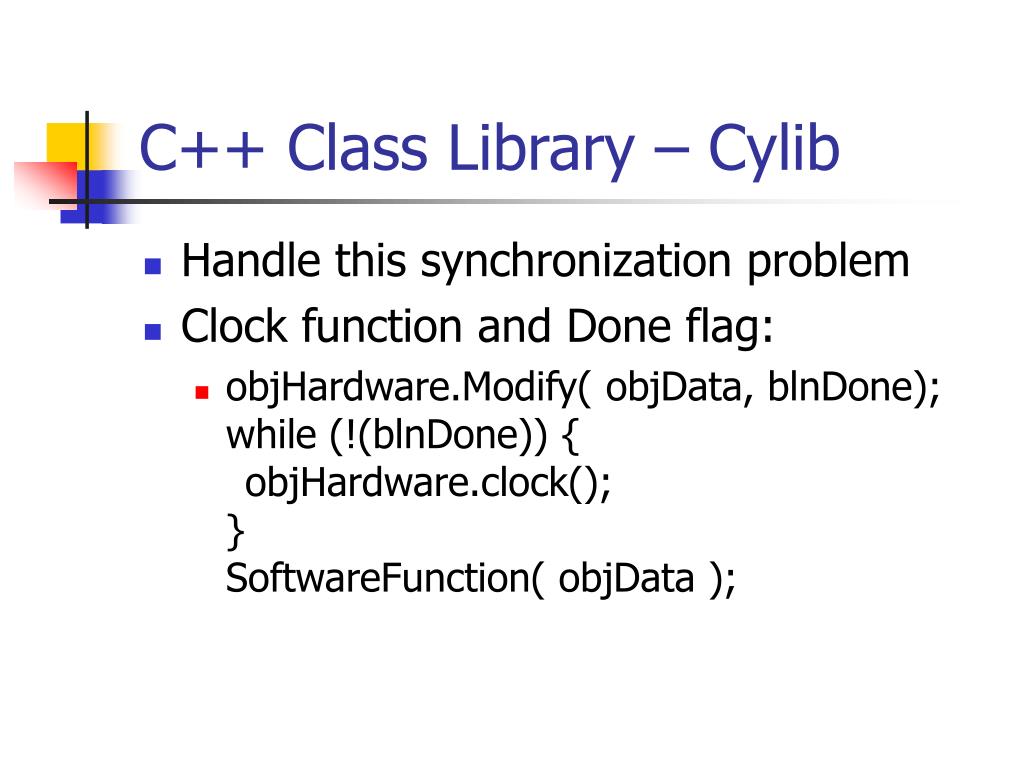

  30. C++ Class Library – Cylib • Handle this synchronization problem • Clock function and Done flag: • objHardware.Modify( objData, blnDone);while (!(blnDone)) { objHardware.clock();}SoftwareFunction( objData );

  31. C++ Class Library – Cylib 2 • Approach is similar to interrupts • Complexity is greatly reduced • Interface allows HW/SW objects to work hierarchical and in parallel • Modification of HW design requires changing only the class library

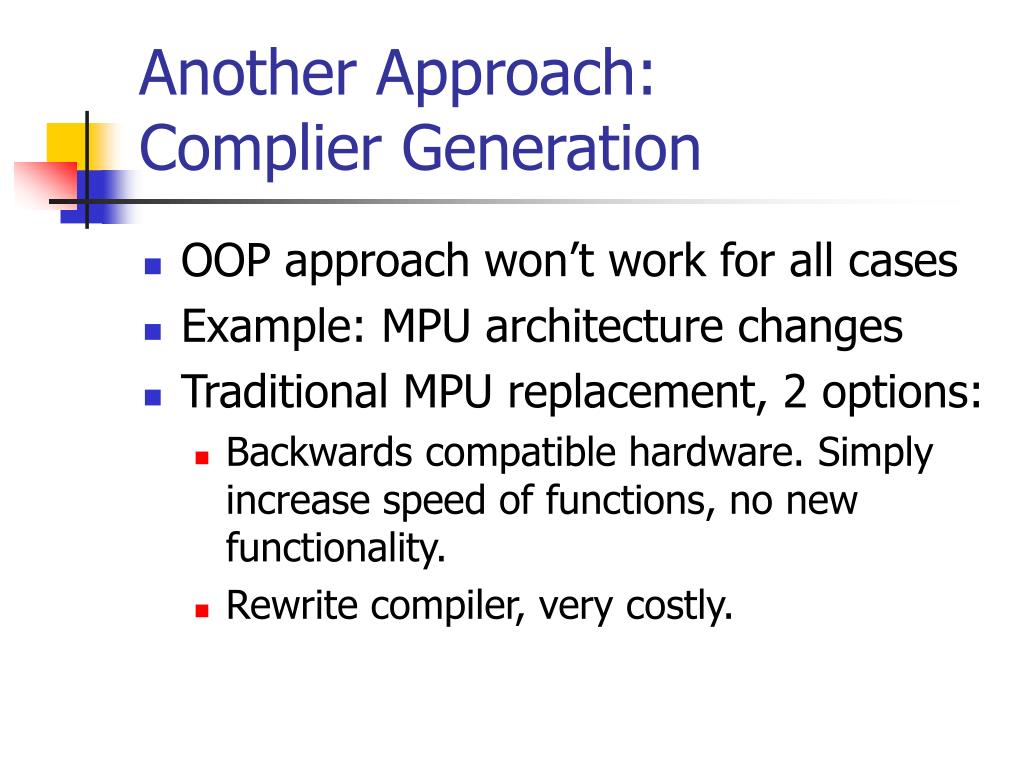

  32. Another Approach:Complier Generation • OOP approach won’t work for all cases • Example: MPU architecture changes • Traditional MPU replacement, 2 options: • Backwards compatible hardware. Simply increase speed of functions, no new functionality. • Rewrite compiler, very costly.

  33. Complier Generation • Theory: third option, generate compiler • Radical architecture changes, compilers wouldn’t need time to catch up • Ideal for user defined processors • Extract HW architecture information then generate optimized executable code from high-level language

  34. Complier Generation • Retargetable compilers exist • Require significant human skill • Simply are superset of all CPU instructions • Compiler Generator would • Overcome retargetable compiler limitations • Maintain quality (speed, size, compilation time) of conventional compiler

  35. How it works 1 • Optimize front-end code • Architecture independent step • Performed by conventional compilers • Passes a optimized grammar tree structure to the next step

  36. How it works 2 • Get parameterized architecture info • Number of general registers, memory word size, instruction behavior, etc • Modify tree branches • Using existing language (“twig”) • Translate into pattern functions • Allocate registers • Generate Executable Code

  37. Compiler Gen. Conclusion • Requires a lot of work • Pipelined compilation techniques • Automated architecture information extraction (perhaps HDL, etc) • Experiments provide that concept could be used in HW/SW Codesign in the future
