Presentation Transcript
objective c oop

Objective-COOP

Spring 2003

slide2
OOP
  • Conceptually the same as C++, Java, and all other object oriented languages
  • The syntax, however… …is, well, different
  • Apple’s documentation on Objective-C classes: http://developer.apple.com/library/ios/#documentation/cocoa/conceptual/ProgrammingWithObjectiveC/DefiningClasses/DefiningClasses.html
slide3
OOP
  • Examples in these slides are available as a compressed Xcode project (intro_classes.xcodeproj) at:

http://www.ithaca.edu/barr/Student/CS345/Examples/intro_classes.zip

methods messages

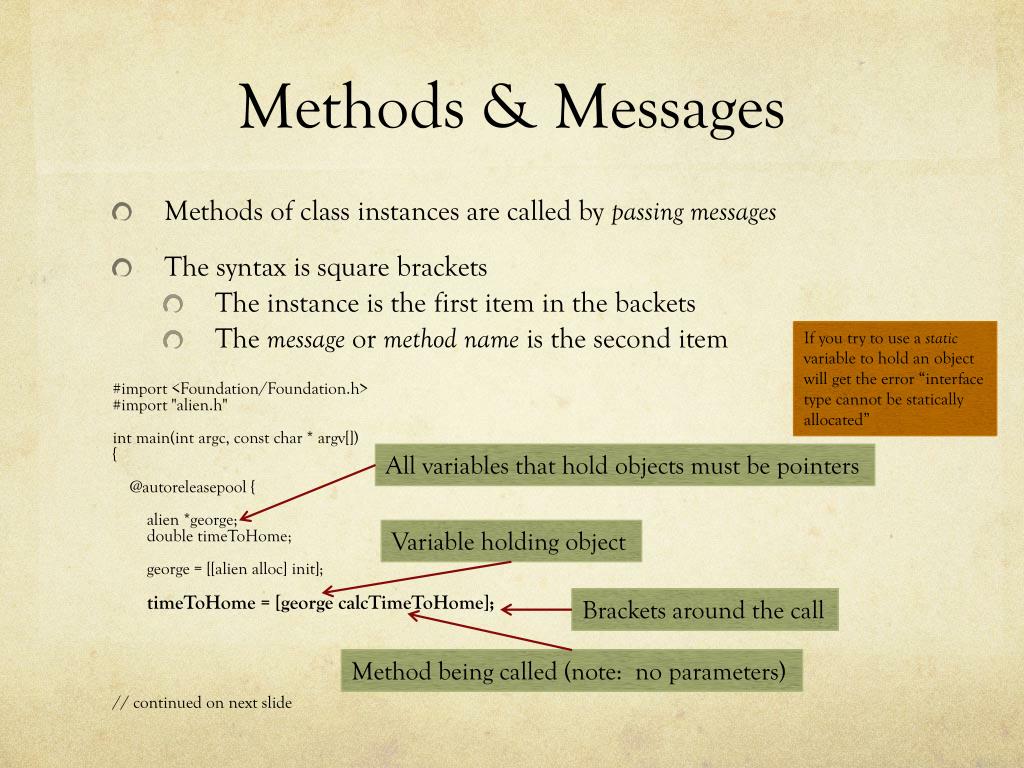

Methods & Messages
  • Methods of class instances are called by passing messages
  • The syntax is square brackets
    • The instance is the first item in the backets
    • The message or method name is the second item

#import <Foundation/Foundation.h>

#import "alien.h"

int main(intargc, const char * argv[])

{

@autoreleasepool {

alien *george;

double timeToHome;

george = [[alien alloc] init];

timeToHome = [georgecalcTimeToHome];

// continued on next slide

If you try to use a static variable to hold an object will get the error “interface type cannot be statically allocated”

All variables that hold objects must be pointers

Variable holding object

Brackets around the call

Method being called (note: no parameters)

methods messages1
Methods & Messages
  • The syntax is square brackets
    • The instance is the first item in the backets
    • The message or method name is the second item
    • The argument is the third item

#import <Foundation/Foundation.h>

#import "alien.h"

int main(intargc, const char * argv[])

{

@autoreleasepool {

alien *george;

double timeToHome;

double timeToPlace;

george = [[alien alloc] init];

timeToPlace=[georgetimeToPlace: 22000];

// continued on next slide

If you try to use a static variable to hold an object will get the error “interface type cannot be statically allocated”

Variable holding object

Argument

Method being called (note: 1 parameter)

methods messages2

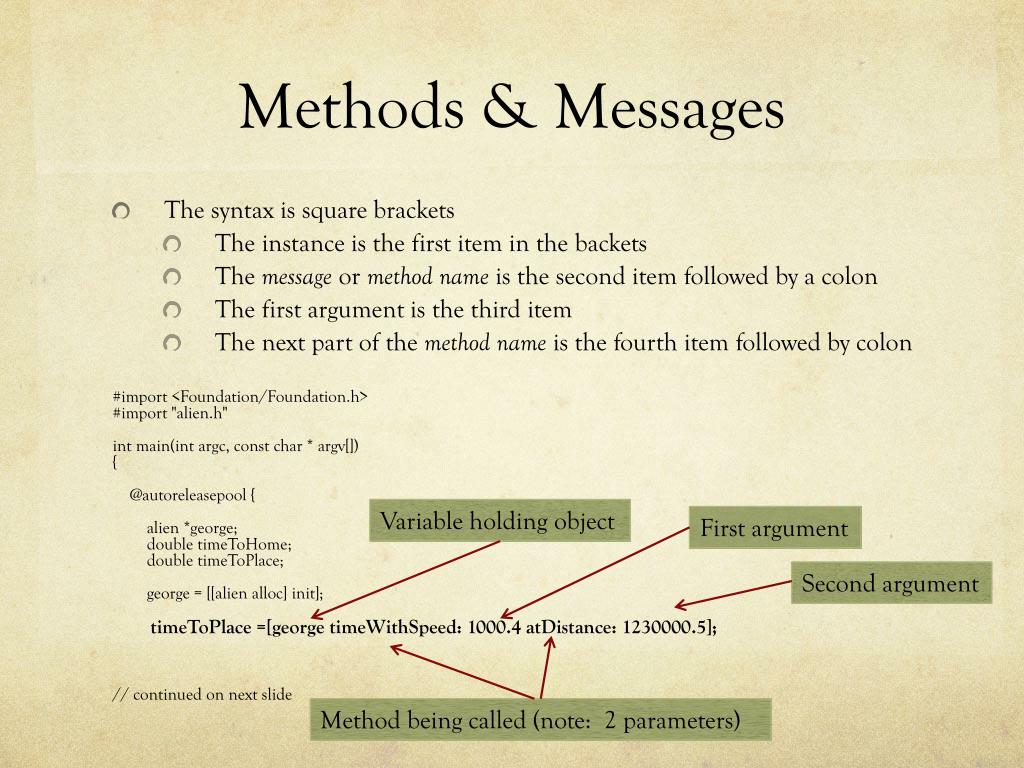

Methods & Messages
  • The syntax is square brackets
    • The instance is the first item in the backets
    • The message or method name is the second itemfollowed by a colon
    • The first argument is the third item
    • The next part of the method name is the fourth item followed by colon

#import <Foundation/Foundation.h>

#import "alien.h"

int main(intargc, const char * argv[])

{

@autoreleasepool {

alien *george;

double timeToHome;

double timeToPlace;

george = [[alien alloc] init];

timeToPlace =[georgetimeWithSpeed: 1000.4 atDistance: 1230000.5];

// continued on next slide

Variable holding object

First argument

Second argument

Method being called (note: 2 parameters)

properties
Properties
  • Changing properties
    • Setters and getters are created automatically by the @synthesize directive
    • Two ways of using setters and getters: brackets and dot-notation

#import <Foundation/Foundation.h>

#import "alien.h"

int main(intargc, const char * argv[])

{

@autoreleasepool {

alien *george;

double timeToHome = 0.0;

george = [[alien alloc] init];

george.planet = @"Mars";

george.numEyes = 8;

george.distanceToHome = 10000; // light years

george.speedSpaceShip = 10.4; // hours/light year

}

return 0;

}

It’s good to initialize variables when you declare them. This isn’t necessary for object pointers, because the compiler will automatically set the variable to nil if you don’t specify any other initial value:

Normal bracket notation

Dot notation

creating classes

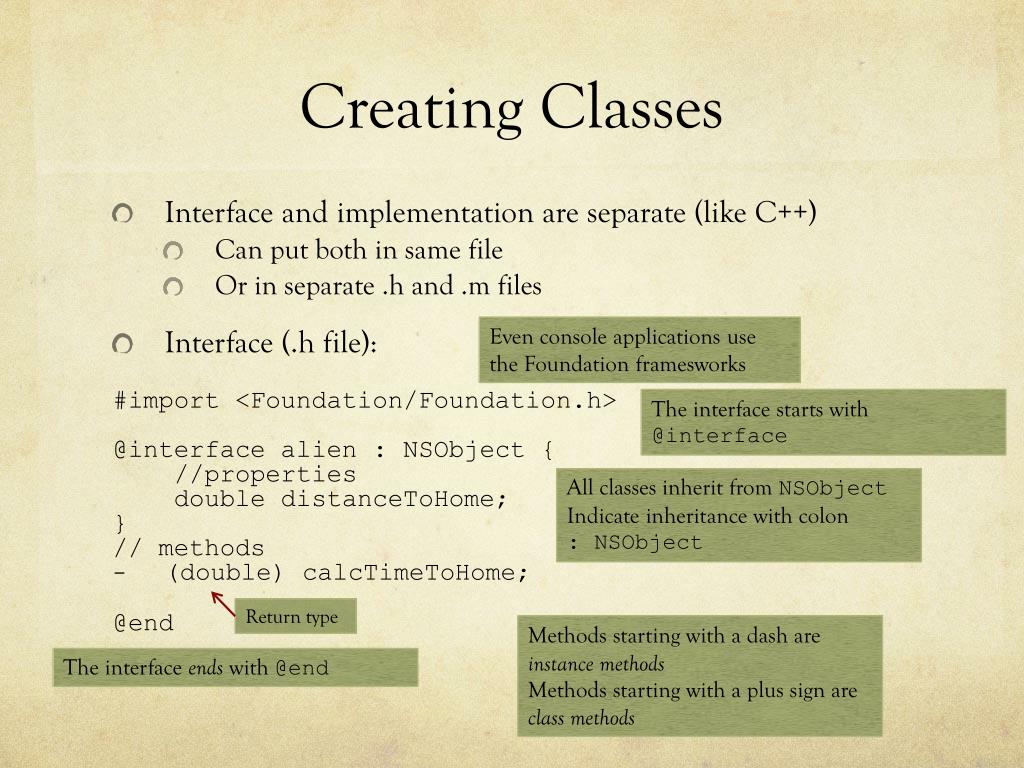

Creating Classes
  • Interface and implementation are separate (like C++)
    • Can put both in same file
    • Or in separate .h and .m files
  • Interface (.h file):

#import <Foundation/Foundation.h>

@interface alien : NSObject {

//properties

double distanceToHome;

}

// methods

  • (double) calcTimeToHome;

@end

Even console applications use the Foundation framesworks

The interface starts with @interface

All classes inherit from NSObject Indicate inheritance with colon

: NSObject

Return type

Methods starting with a dash are instance methods

Methods starting with a plus sign are class methods

The interface ends with @end

implementation file
Implementation file
  • Implementation file (.m file):

#import "alien.h"

@implementation alien

@synthesize numEyes, planet, distanceToHome, speedSpaceShip;

- (double) calcTimeToHome

{

double theTime;

theTime = distanceToHome / speedSpaceShip;

return theTime;

}

@end

Must import the .h file

The implementation starts with @implementation nameOfClass

Use the @synthesize directive to create setters and getters automatically (see later slide)

Signature is the same as in the interface file.

Return value

The implementation ends with @end

method with a parameter

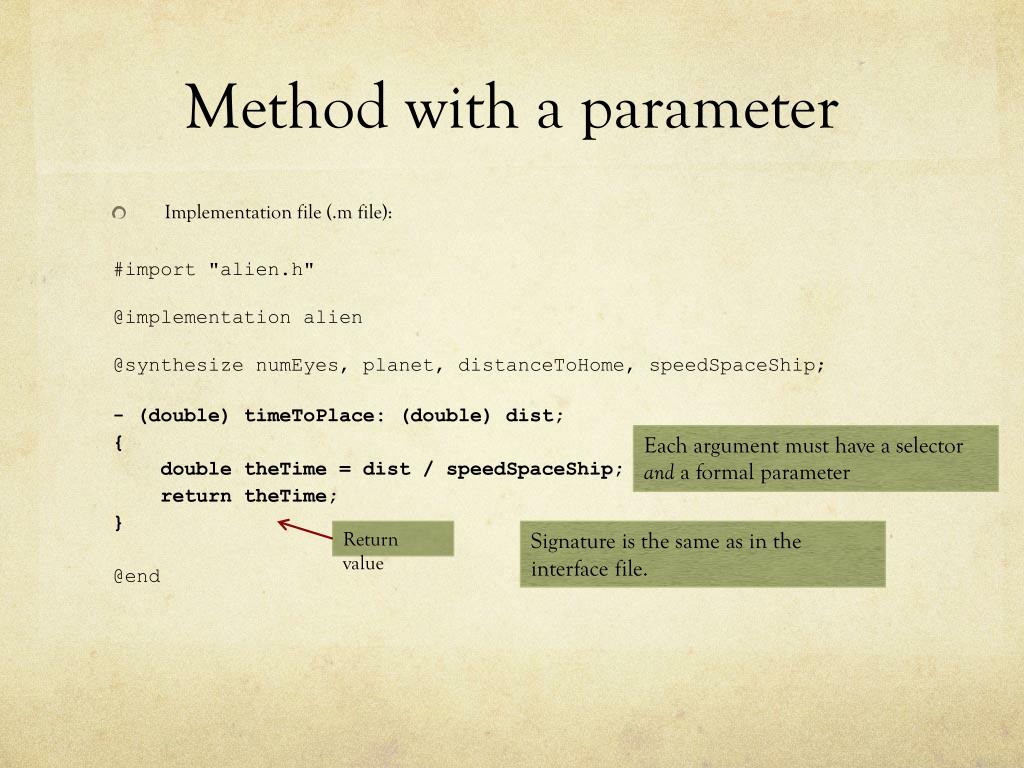

Method with a parameter
  • Implementation file (.m file):

#import "alien.h"

@implementation alien

@synthesize numEyes, planet, distanceToHome, speedSpaceShip;

- (double) timeToPlace: (double) dist;

{

double theTime = dist / speedSpaceShip;

return theTime;

}

@end

Each argument must have a selector and a formal parameter

Return value

Signature is the same as in the interface file.

method with two parameters

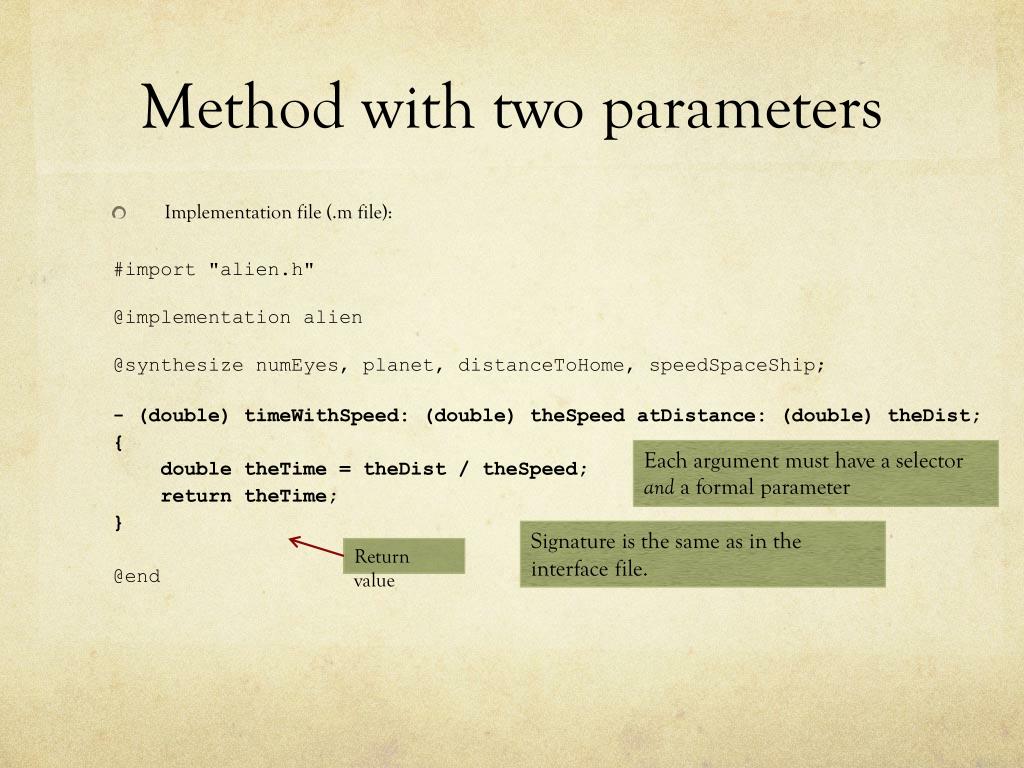

Method with two parameters
  • Implementation file (.m file):

#import "alien.h"

@implementation alien

@synthesize numEyes, planet, distanceToHome, speedSpaceShip;

- (double) timeWithSpeed: (double) theSpeedatDistance: (double) theDist;

{

double theTime = theDist / theSpeed;

return theTime;

}

@end

Each argument must have a selector and a formal parameter

Signature is the same as in the interface file.

Return value

i nit method
init method
  • Implementation file (.m file):

#import "alien.h"

@implementation alien

@synthesize numEyes, planet, distanceToHome, speedSpaceShip;

- (id) init

{

if (self = [super init])

{

numEyes= 4;

planet = @"Neptune";

distanceToHome= 1000000;

speedSpaceShip= 1000;

return (self);

}

return nil;

}

@end

First call the init of the superclass. It may return a new instance of you and it may fail (in that case it returns nil and the if statement fails)

Signature is the same as in the interface file.

Must return self or nil for george = [[alien alloc] init] to work.

In objective-C self is a built-in variable that allows code to refer to itself.

i nit method with parameters

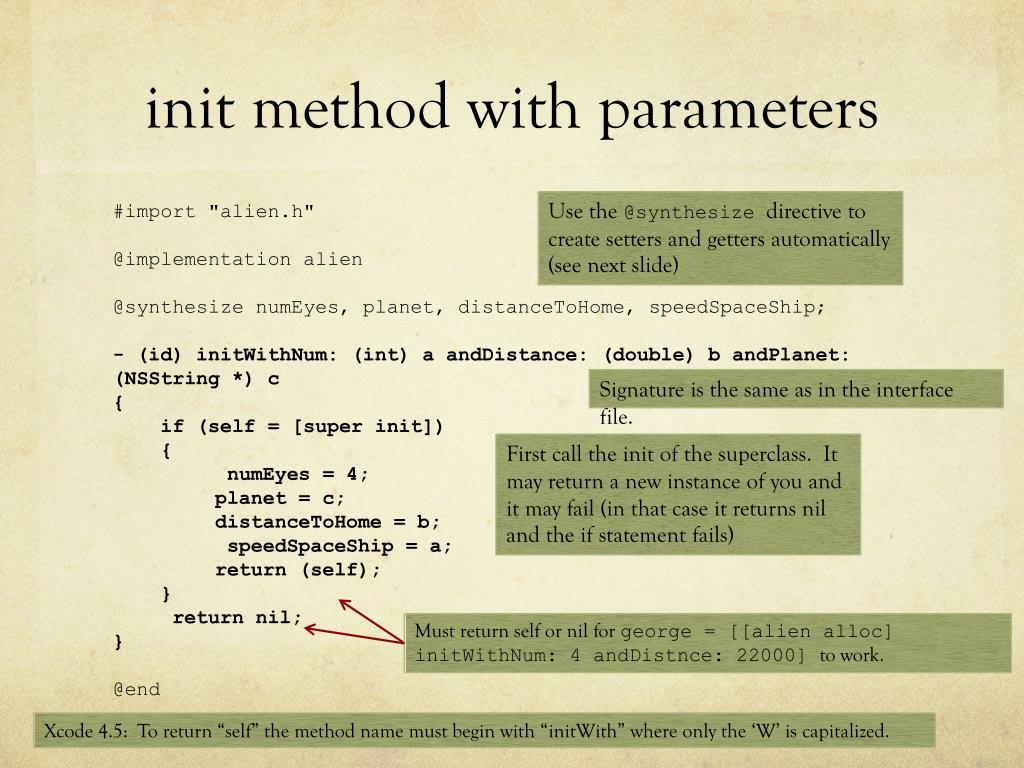

init method with parameters

Use the @synthesize directive to create setters and getters automatically (see next slide)

#import "alien.h"

@implementation alien

@synthesize numEyes, planet, distanceToHome, speedSpaceShip;

- (id) initWithNum: (int) a andDistance: (double) b andPlanet: (NSString *) c

{

if (self = [super init])

{

numEyes = 4;

planet = c;

distanceToHome= b;

speedSpaceShip = a;

return (self);

}

return nil;

}

@end

Signature is the same as in the interface file.

First call the init of the superclass. It may return a new instance of you and it may fail (in that case it returns nil and the if statement fails)

Must return self or nil for george = [[alien alloc] initWithNum: 4 andDistnce: 22000] to work.

Xcode 4.5: To return “self” the method name must begin with “initWith” where only the ‘W’ is capitalized.

@synthesize
@synthesize
  • In Xcode 4.5, the @synthesize statement in the .m file is now optional, and properties are synthesized automatically.
    • Automatically generated IBOutlet properties therefore no longer add @synthesize because it's no longer required.
  • When properties are synthesized automatically (without an explicit @synthesize statement) the corresponding instance variable is prepended with an underscore.
    • This is so the instance variable and property names don't overlap.
  • Accessing instance variables and properties has not changed. All that has changed is the default name of the instance variable. E.g.:
    • _foo = @"Bar"; // Setting an instance variable directly.
    • self.foo = @"Bar"; // Setting an instance variable via a property accessor method.
  • The underscore is merely a matter of style, so that it's more clear that you're accessing the instance variable rather than the property.
  • You can add a @synthesize statement yourself, and that will force the name of the corresponding instance variable to be whatever you want it to be.
  • Likewise, if you add your own property accessor methods then that will prevent the instance variable from being generated automatically.
@synthesize1
@synthesize
  • Example of the use of properties:

[georgesetPlanet:@"Mars"];

george.numEyes= 8;

george.distanceToHome= 10000; // light years

george.speedSpaceShip= 10.4;

theSpeed= [georgespeedSpaceShip];

theDistance= george.distanceToHome;

NSLog(@"George's speed is %.2f and his distance to home is %.2f\n", theSpeed, theDistance);

@synthesize automatically gives a setter:

[object setVariableName: value]

Where “set” is lowercase, variable name is same as property except first letter is always capitalized

Or:

can use the dot notation. Do not change variable name.

@synthesize automatically gives a getter:

[object variableName]

Where “variable name is same as

Or:

can use the dot notation. Do not change variable name.

d escription method
description method
  • The description method. Override the method from the superclass. Do not have to declare in the interface.

#import "alien.h"

@implementation alien

@synthesize numEyes, planet, distanceToHome, speedSpaceShip;

- (NSString *) description

{

NSString*aboutMe;

aboutMe = [NSStringstringWithFormat:@"I am an alien that lives on %@ with %d eyes!", planet, numEyes ];

return aboutMe;} // description

}

@end

This method is not in the .h file. It is called when you print an instance of this class.

The method is used to allow a class to print out a string describing itself.

stringWithFormatis a class method. So we don’t use a variable as the first object, but the name of the class. Note that this particular method (stringWithFormat) works like printfinstead of like normal methods!

d escription method1
description method
  • The description method. Override the method from the superclass. Do not have to declare in the interface.

#import "alien.h"

@implementation alien

@synthesize numEyes, planet, distanceToHome, speedSpaceShip;

sally = [alien new];

NSLog(@"Here's the description: %@", sally);

@end

you can use new if there are no arguments to the constructor; this does both alloc and init

arrays of objects

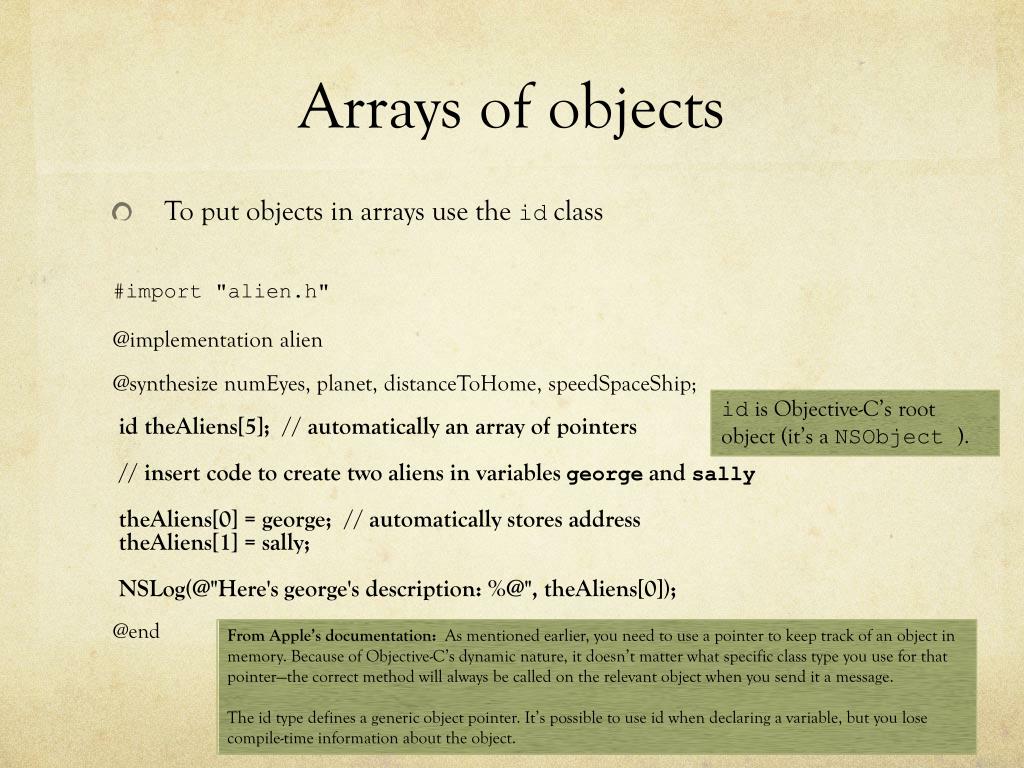

Arrays of objects
  • To put objects in arrays use the idclass

#import "alien.h"

@implementation alien

@synthesize numEyes, planet, distanceToHome, speedSpaceShip;

id theAliens[5]; // automatically an array of pointers

// insert code to create two aliens in variables georgeand sally

theAliens[0] = george; // automatically stores address

theAliens[1] = sally;

NSLog(@"Here's george's description: %@", theAliens[0]);

@end

id is Objective-C’s root object (it’s a NSObject).

From Apple’s documentation: As mentioned earlier, you need to use a pointer to keep track of an object in memory. Because of Objective-C’s dynamic nature, it doesn’t matter what specific class type you use for that pointer—the correct method will always be called on the relevant object when you send it a message.

The id type defines a generic object pointer. It’s possible to use id when declaring a variable, but you lose compile-time information about the object.

determining variable type
Determining Variable type
  • To determine the type of a variable holding a class, use class methods from the NSObject class

if ([georgeisKindOfClass:[alien class]])

NSLog(@"george is an alien");

else

NSLog(@"george is NOT an alien (despite what you think)");

NSLog(@"george is of type %@", [alien class]);

The variable that holds an instance of a class.

The class name

The class method returns a NSString

pass by reference

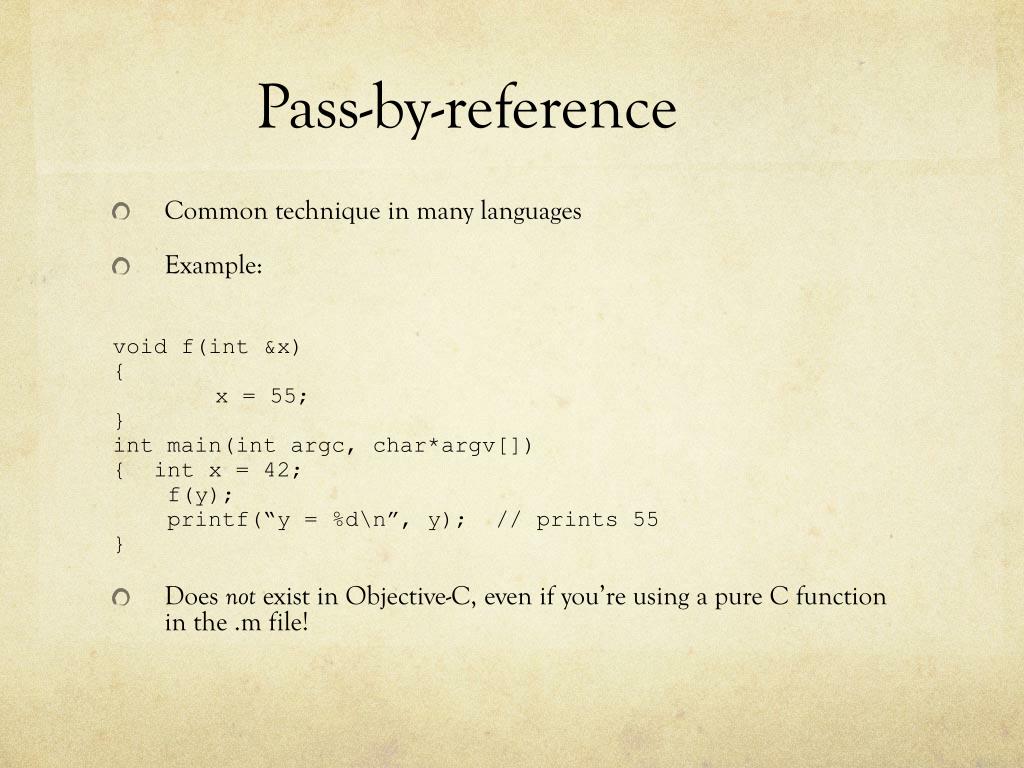

Pass-by-reference
  • Common technique in many languages
  • Example:

void f(int &x)

{

x = 55;

}

int main(intargc, char*argv[])

{ int x = 42;

f(y);

printf(“y = %d\n”, y); // prints 55

}

  • Does not exist in Objective-C, even if you’re using a pure C function in the .m file!
virtual methods not
Virtual methods (not)
  • The term "virtual function" has no direct counterpart in Objective-C.
    • In Objective-C you don't call functions on objects, you send messages to them.
    • The object itself then decides how to respond to the message, typically by looking up the message in its class object, finding the associated method and invoking it.
    • This all happens at run time, not compile time.
  • The mapping between messages ("selectors" is the technical term) and methods is built entirely from the @implementation.
    • The method declarations in the @interface are only there to give the compiler the information it needs to warn you that you may have forgotten a method implementation.
    • And it is only a warning because you can't tell until run time whether whether the object really does respond to the message or not.
    • For example, somebody else could add a category to an existing class that provides implementations for missing methods, or a class could override forwardingTargetForSelector: to forward messages it doesn't respond to elsewhere.
  • This is from JeremyP on stackOverflow: http://stackoverflow.com/questions/4374677/what-is-the-equivalent-of-a-c-pure-virtual-function-in-objective-c

Not clear this is true for the most recent version of Objective-C

c vs objective c

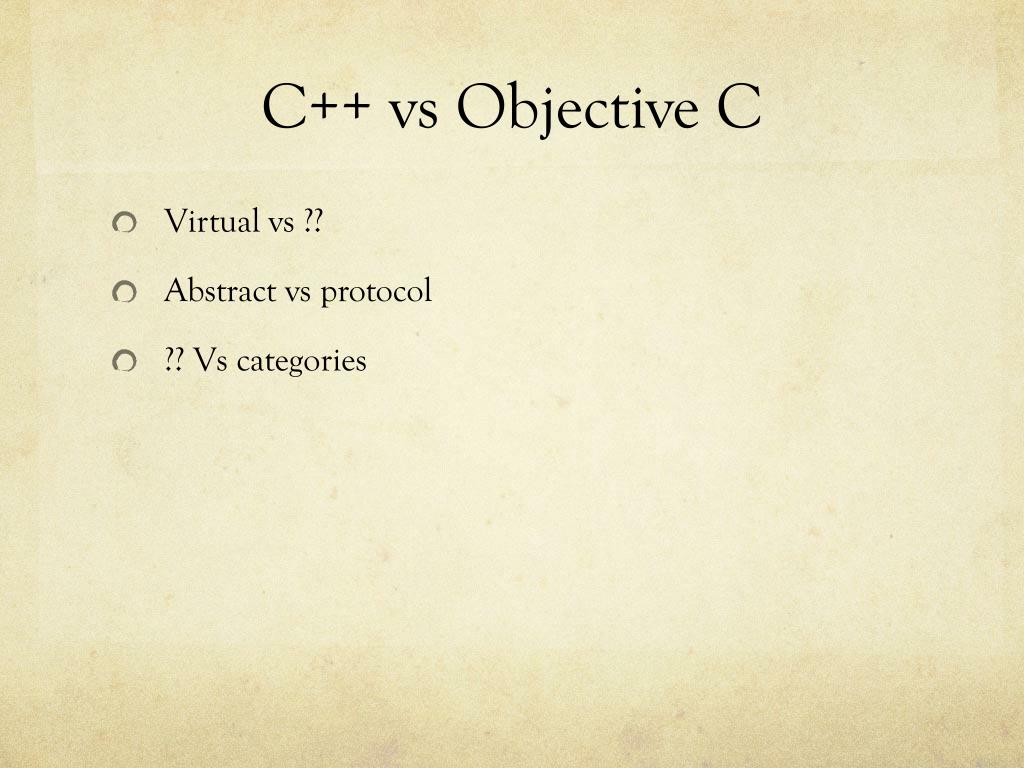

C++ vs Objective C
  • Virtual vs ??
  • Abstract vs protocol
  • ?? Vs categories
