  1. ENGI 1313 Mechanics I Lecture 37: Analysis of Equilibrium Problems with Dry Friction

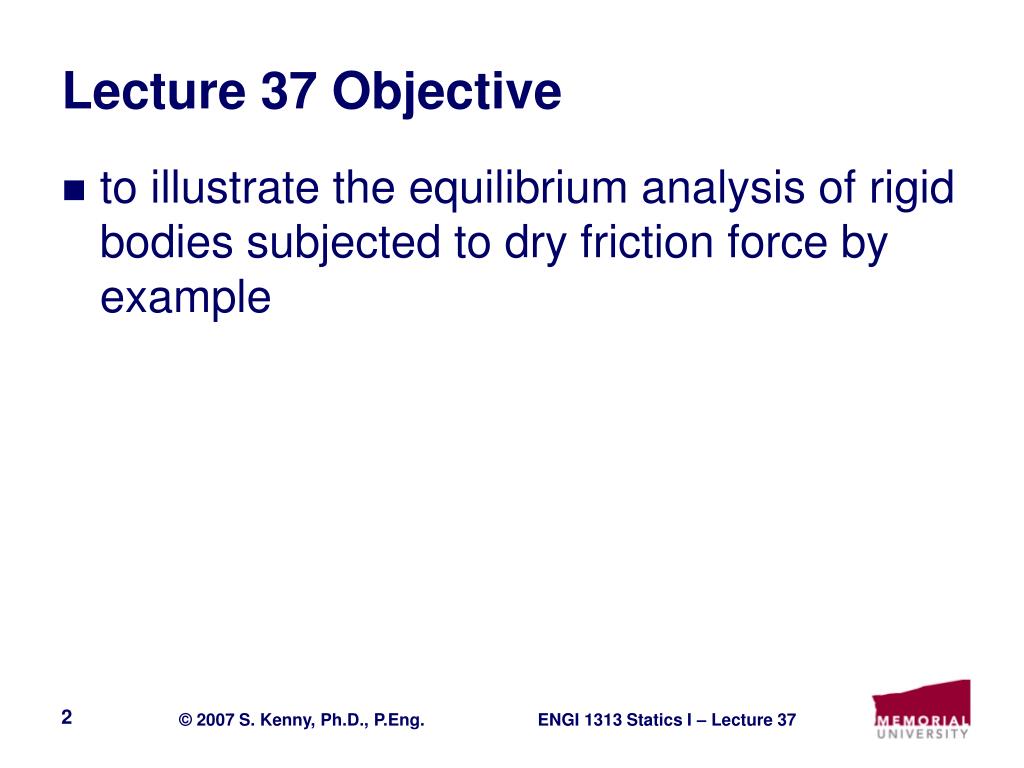

  2. Lecture 37 Objective • to illustrate the equilibrium analysis of rigid bodies subjected to dry friction force by example

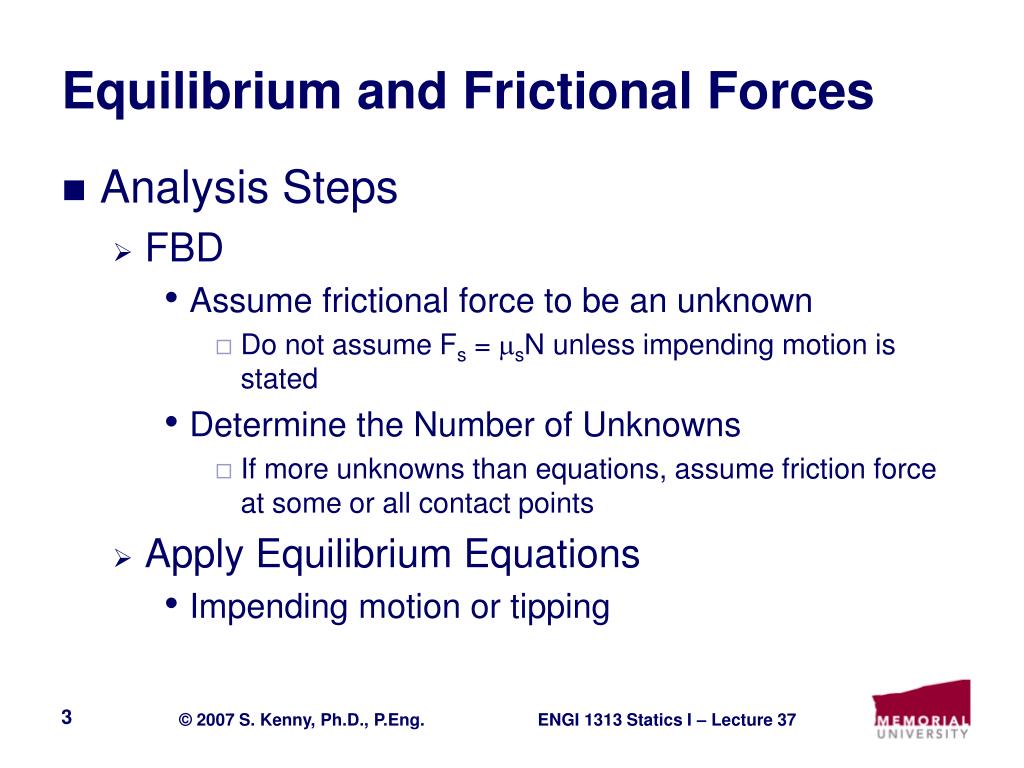

  3. Equilibrium and Frictional Forces • Analysis Steps • FBD • Assume frictional force to be an unknown • Do not assume Fs = sN unless impending motion is stated • Determine the Number of Unknowns • If more unknowns than equations, assume friction force at some or all contact points • Apply Equilibrium Equations • Impending motion or tipping

  4. W W Class of Friction Problems • 1. Equilibrium • Geometry and dimensions are known • Draw FBD • # Unknowns = # Equilibrium Equations • Solve for reaction forces • No motion, if

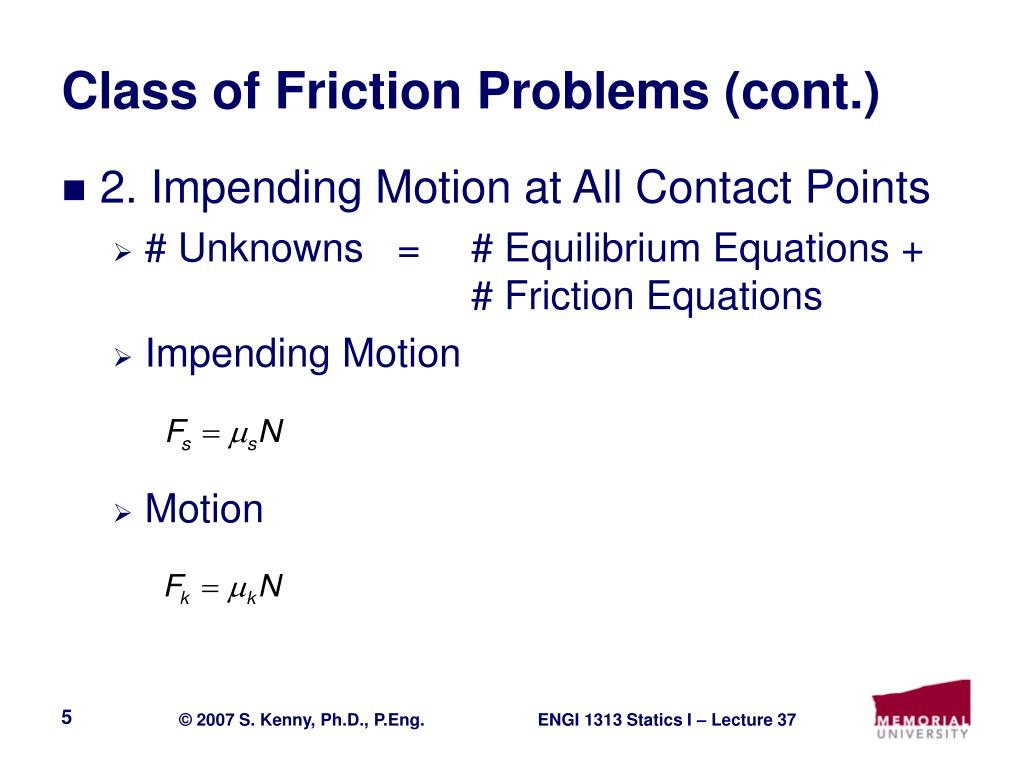

  5. Class of Friction Problems (cont.) • 2. Impending Motion at All Contact Points • # Unknowns = # Equilibrium Equations + # Friction Equations • Impending Motion • Motion

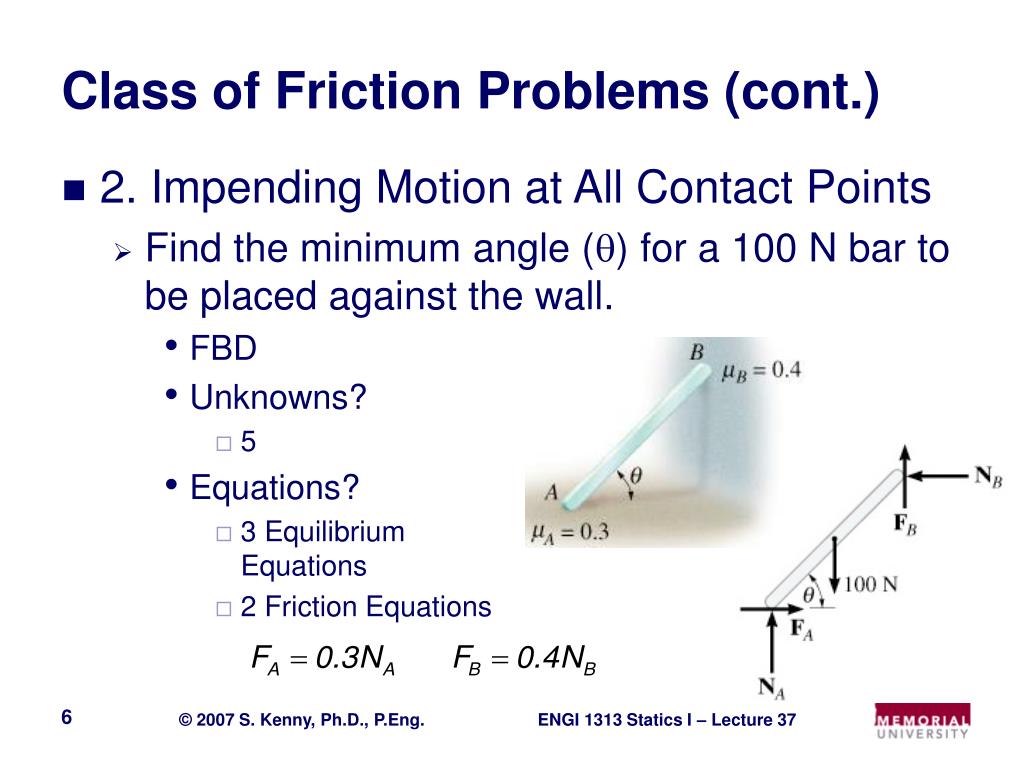

  6. Class of Friction Problems (cont.) • 2. Impending Motion at All Contact Points • Find the minimum angle () for a 100 N bar to be placed against the wall. • FBD • Unknowns? • 5 • Equations? • 3 Equilibrium Equations • 2 Friction Equations

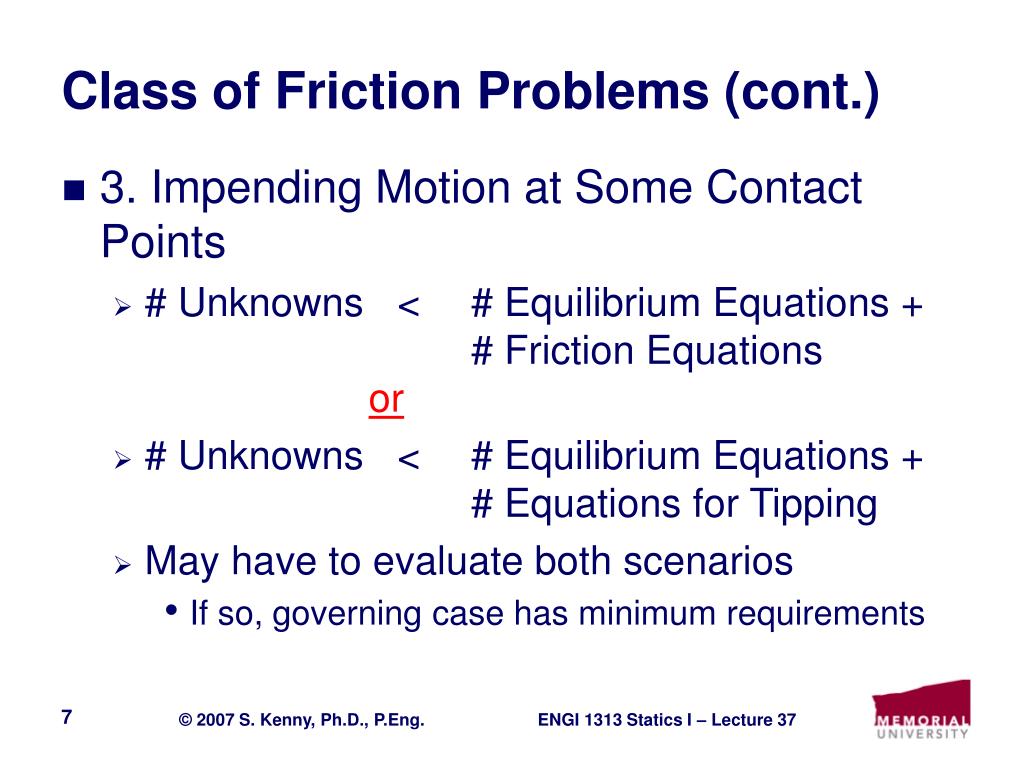

  7. Class of Friction Problems (cont.) • 3. Impending Motion at Some Contact Points • # Unknowns < # Equilibrium Equations + # Friction Equationsor • # Unknowns < # Equilibrium Equations + # Equations for Tipping • May have to evaluate both scenarios • If so, governing case has minimum requirements

  8. Class of Friction Problems (cont.) • 3. Impending Motion at Some Contact Points • Find horizontal force (P) to cause movement. • FBD • # Unknowns? • 7 • Equations • Find minimum P or

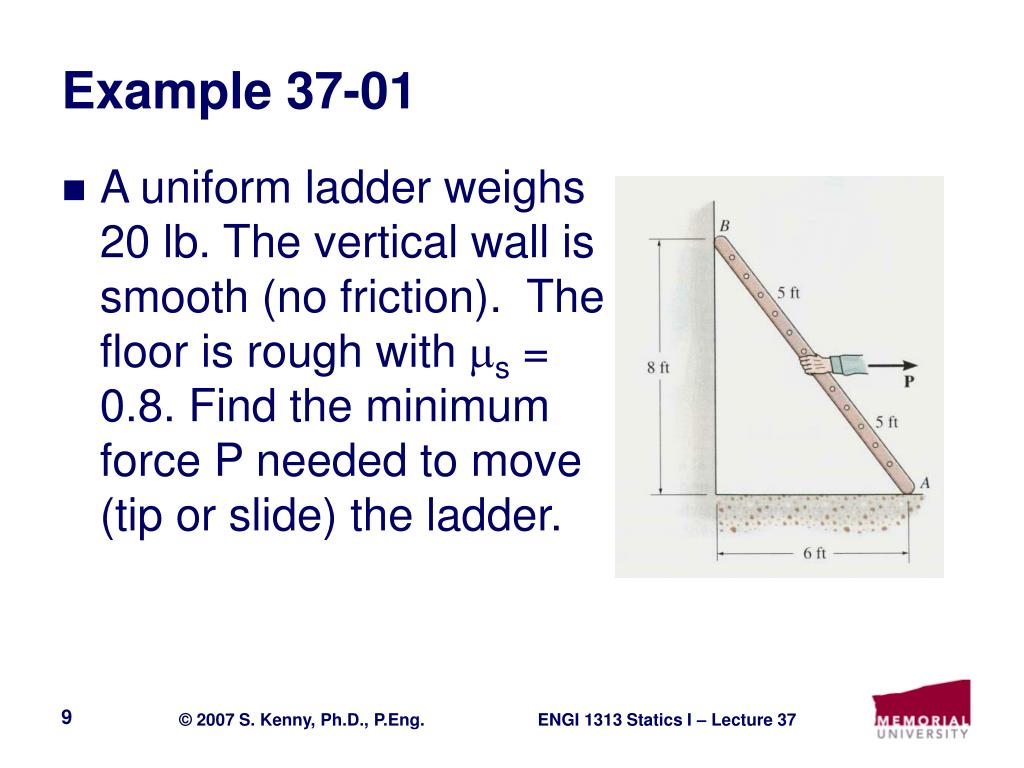

  9. Example 37-01 • A uniform ladder weighs 20 lb. The vertical wall is smooth (no friction). The floor is rough with s = 0.8. Find the minimum force P needed to move (tip or slide) the ladder.

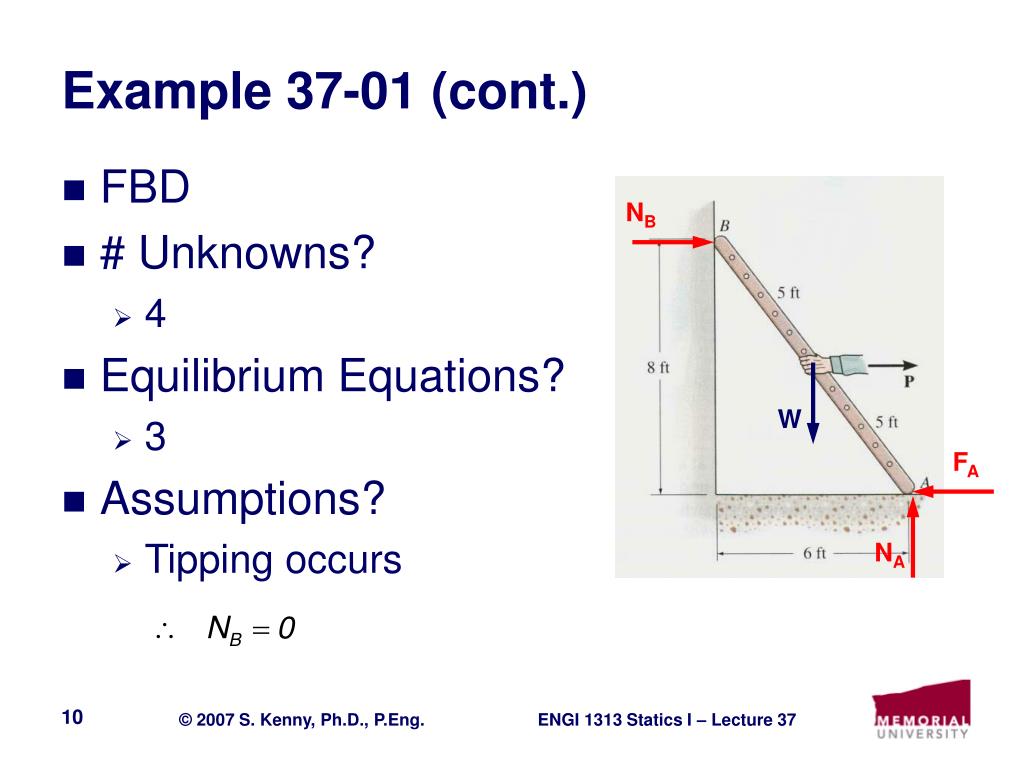

  10. Example 37-01 (cont.) • FBD • # Unknowns? • 4 • Equilibrium Equations? • 3 • Assumptions? • Tipping occurs NB W FA NA

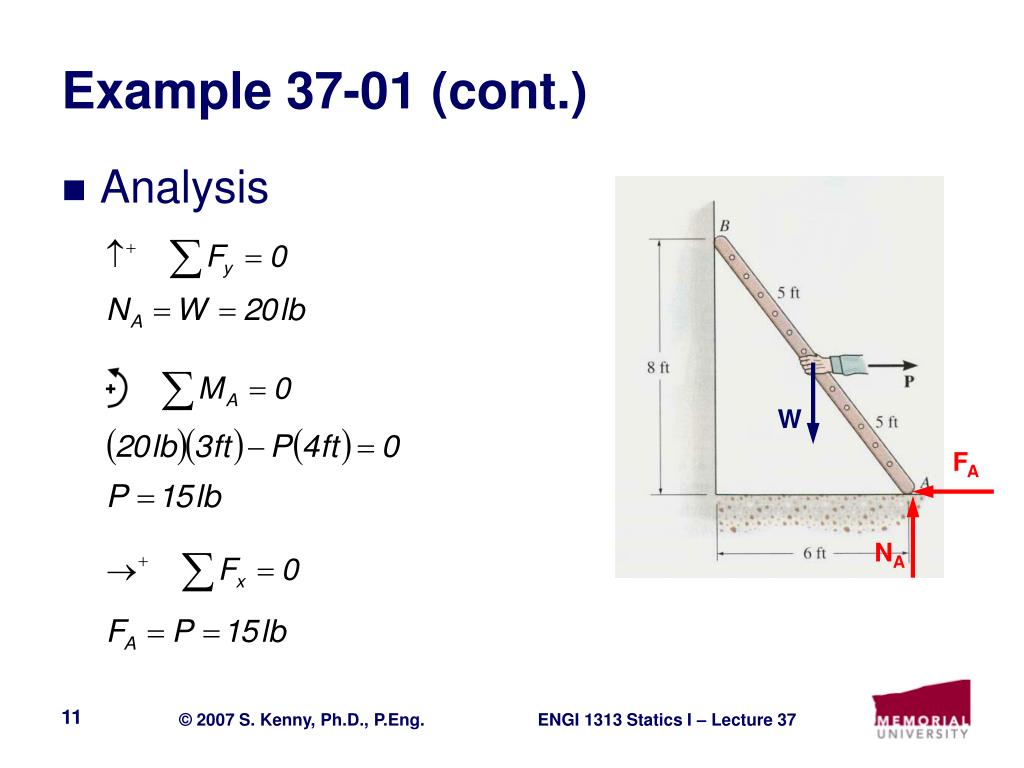

  11. Example 37-01 (cont.) • Analysis W FA NA

  12. Example 37-01 (cont.) • Check Tipping Assumption •  Tipping occurs W FA NA

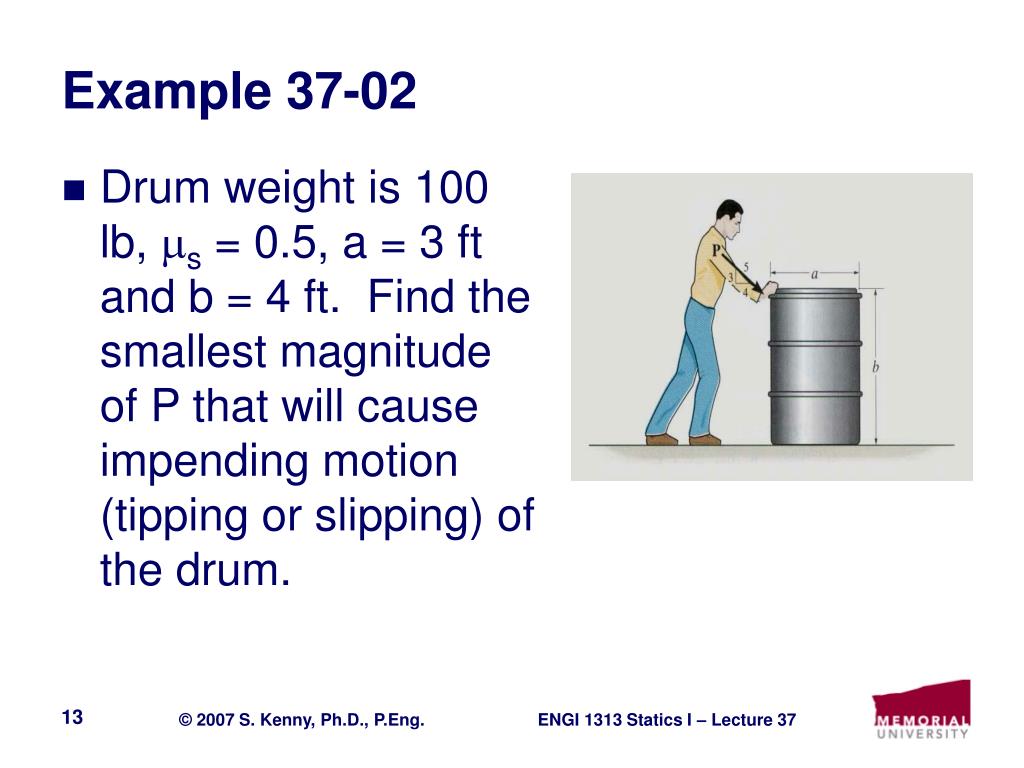

  13. Example 37-02 • Drum weight is 100 lb, s = 0.5, a = 3 ft and b = 4 ft. Find the smallest magnitude of P that will cause impending motion (tipping or slipping) of the drum.

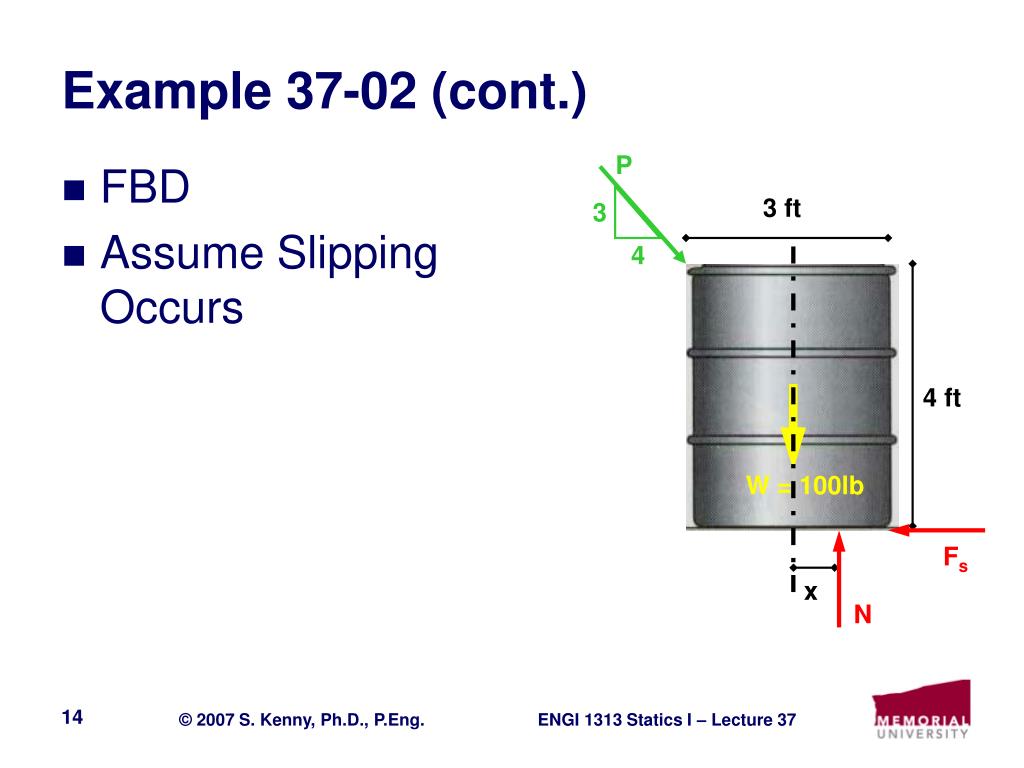

  14. Example 37-02 (cont.) P • FBD • Assume Slipping Occurs 3 ft 3 4 4 ft W = 100lb Fs x N

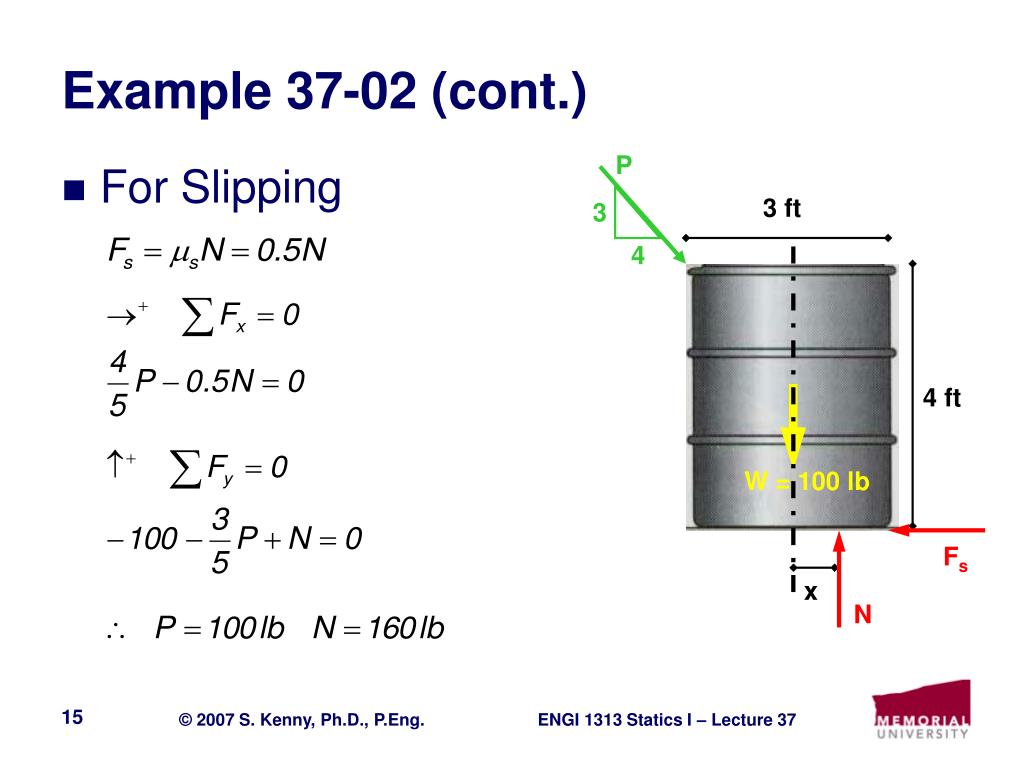

  15. Example 37-02 (cont.) P • For Slipping 3 ft 3 4 4 ft W = 100 lb Fs x N

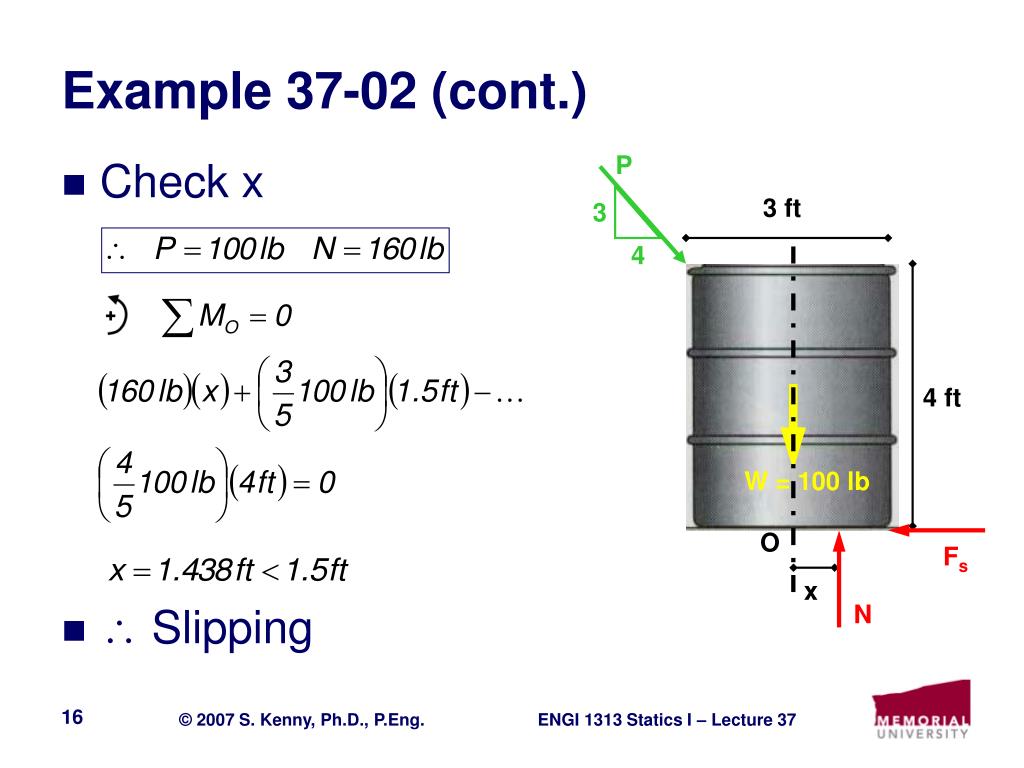

  16. Example 37-02 (cont.) P • Check x •  Slipping 3 ft 3 4 4 ft W = 100 lb O Fs x N

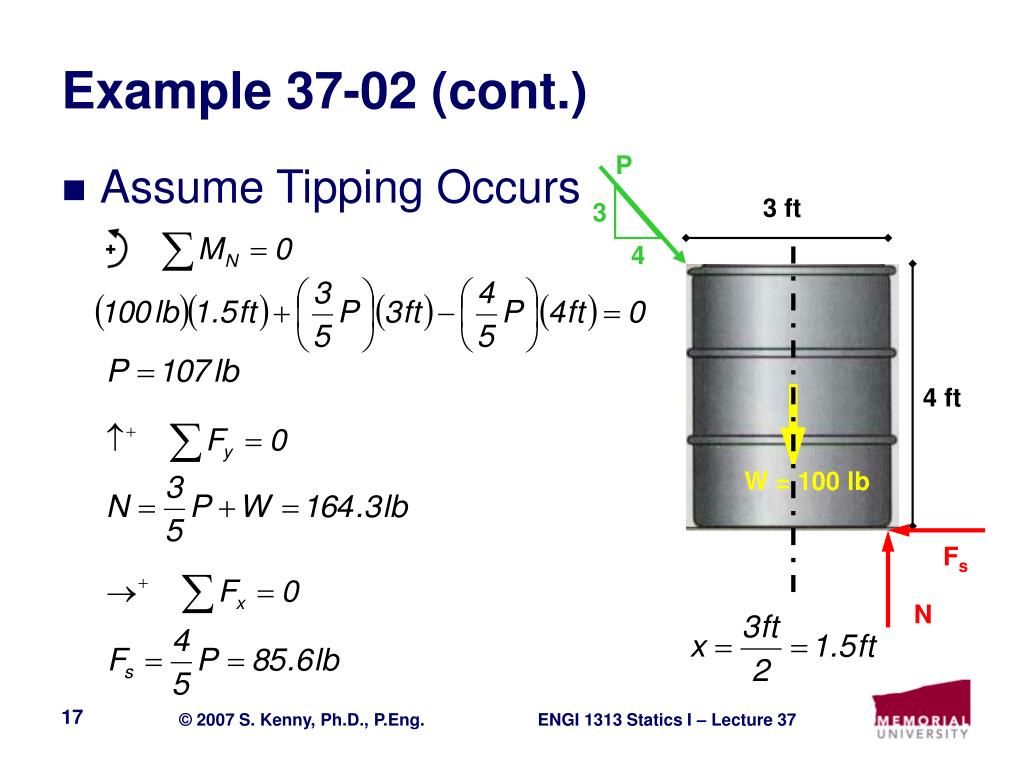

  17. Example 37-02 (cont.) P • Assume Tipping Occurs 3 ft 3 4 4 ft W = 100 lb Fs N

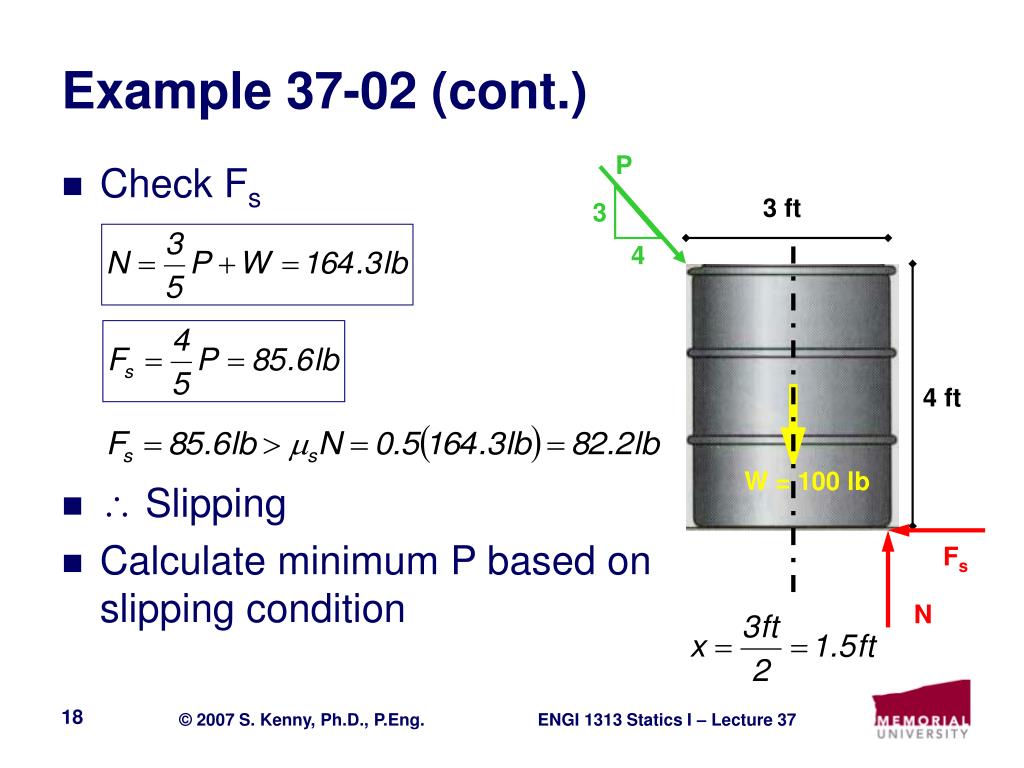

  18. Example 37-02 (cont.) P • Check Fs •  Slipping • Calculate minimum P based on slipping condition 3 ft 3 4 4 ft W = 100 lb Fs N

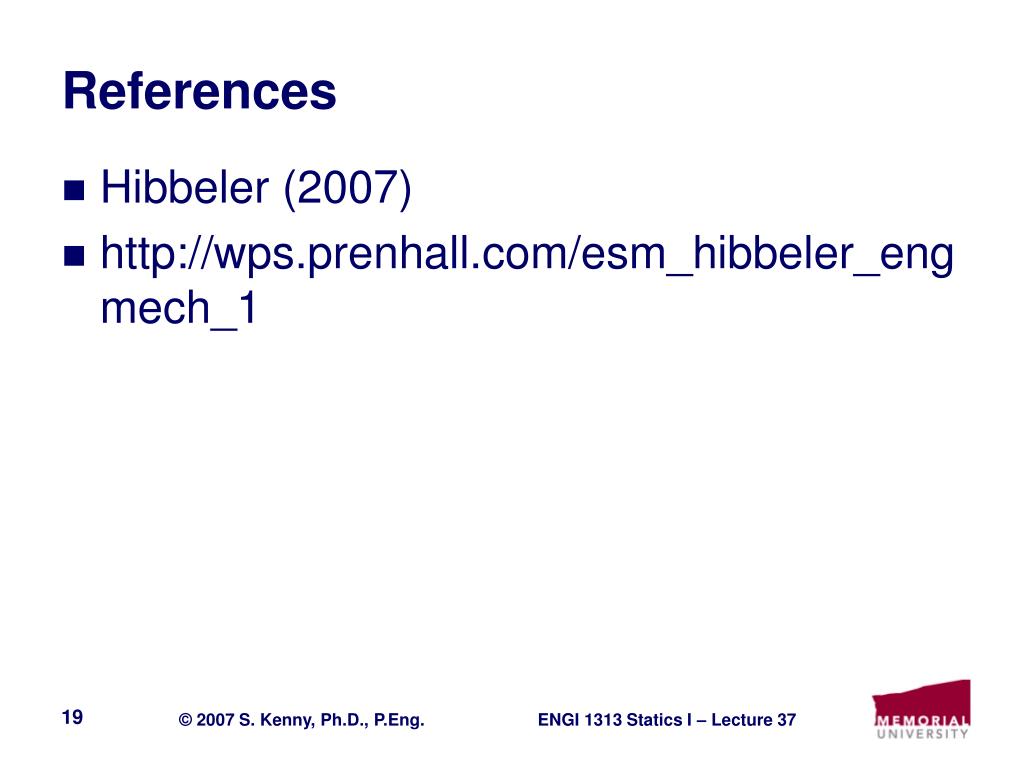

  19. References • Hibbeler (2007) • http://wps.prenhall.com/esm_hibbeler_engmech_1
