  1. RCX ROOM COMBINING SYSTEM Allows users to combine independent audio systems into various configurations: Remain independent Multiple groups Combined as one system Typically used in hotel or corporate meeting rooms and multi-use rooms in schools or churches

  2. Controllers Controls the combing and volume levels of up to 5 audio systems • Mic and line level input from each room • Line level out to local room amplifier • Global background music input • Global paging override • Front panel push/release button combining • Background music and local sources can be used simultaneously or separately RCX-5C • Same features as the RCX-5C • Background music and local sources cannot be used simultaneously RCX-5CM

  3. Remote Controllers • Buttons combine and un-combine audio systems with LED indicators • Customized to actual room layout • Add hotel or company logo • Wall or rack mounted RCX-CD1 • Same as above • Adds key lock for security RCX – CD1L

  4. Room Controllers • Control volume level in each room • Select local and/or background music sources • Volume control available as pushbutton or rotary type • Up to 2 units in one room • Available in wall mounted Decora style and RDL ULTRASTYLE • Multiple colors and accessories available

  5. Room Controllers Example of Decora Style Models

  6. Room Controllers Examples of ULTRASTYLE Models

  7. Room Controllers Examples of ULTRASTYLE Key Activated Models

  8. RCX Connector Plates Examples of Wall Plates

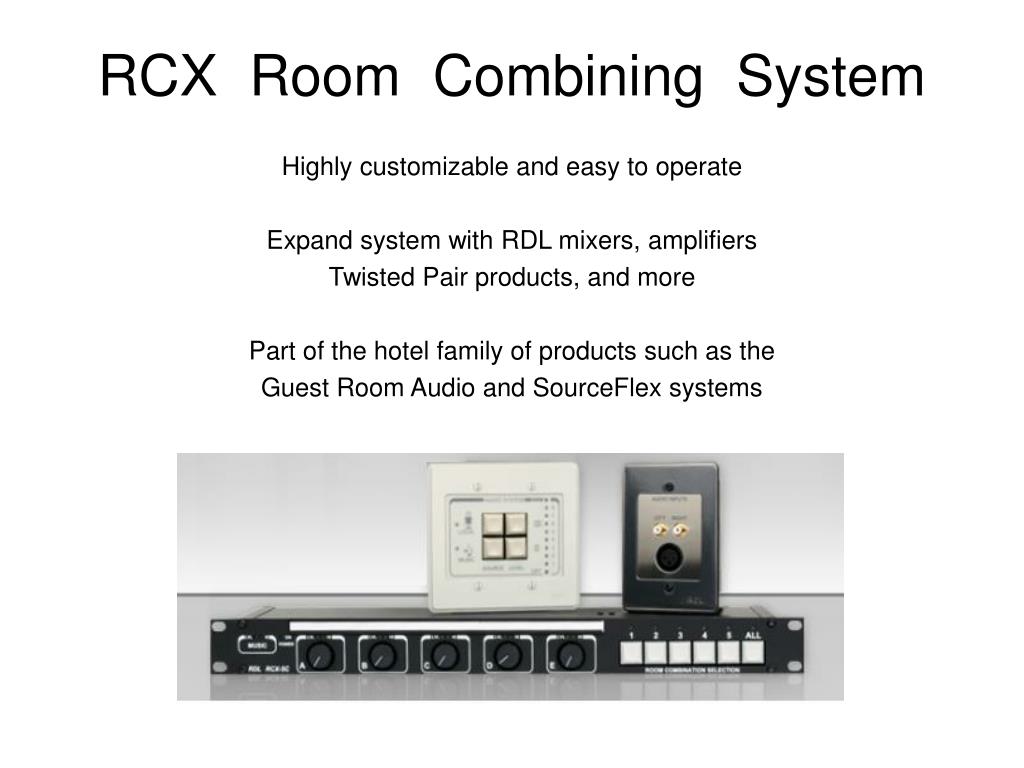

  9. RCX Room Combining System Highly customizable and easy to operate Expand system with RDL mixers, amplifiers Twisted Pair products, and more Part of the hotel family of products such as the Guest Room Audio and SourceFlex systems
