An Update on Hearing Aid Testing

Reading Speech-Maps or SPLograms

Niki Timar, Audiologist

Vancouver Island Health Authority – South Island


Background l.jpg
Background

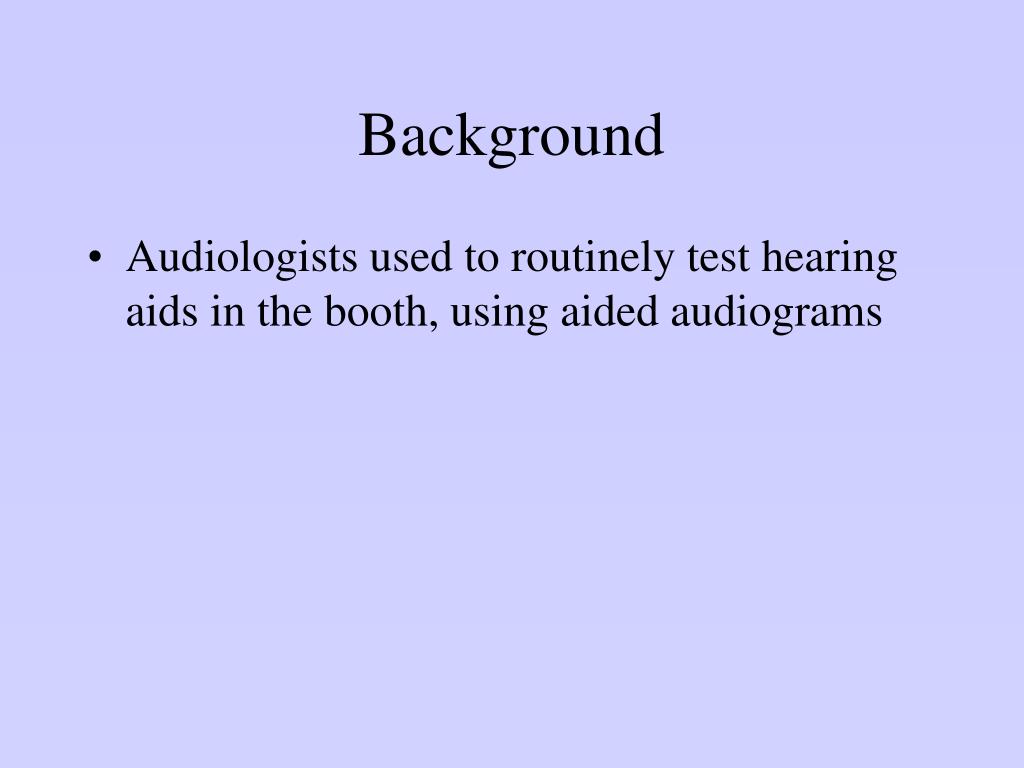

  • Audiologists used to routinely test hearing aids in the booth, using aided audiograms


Background4 l.jpg
Background

  • Research has shown aided audiograms are not a good way to test modern hearing aids

  • BC Public Health is switching over to the newer way of testing, using Real-Ear or simulated Real-Ear measures

  • This is why you might not be receiving aided audiograms recently


What is a speechmap or splogram l.jpg

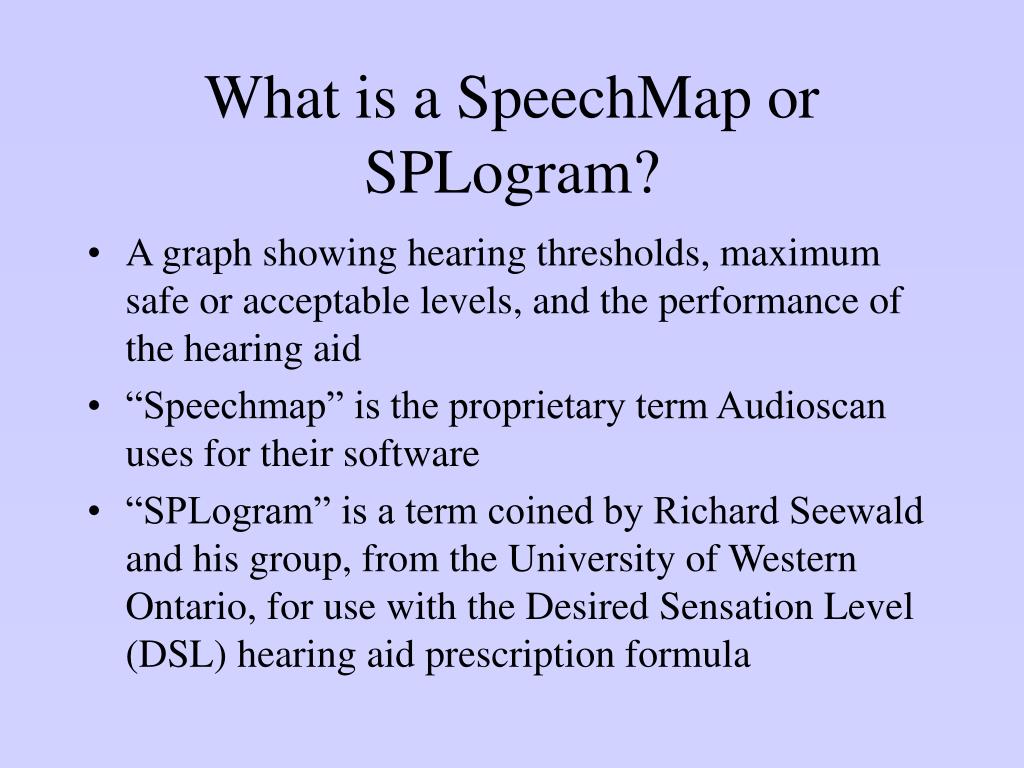

What is a SpeechMap or SPLogram?

  • A graph showing hearing thresholds, maximum safe or acceptable levels, and the performance of the hearing aid

  • “Speechmap” is the proprietary term Audioscan uses for their software

  • “SPLogram” is a term coined by Richard Seewald and his group, from the University of Western Ontario, for use with the Desired Sensation Level (DSL) hearing aid prescription formula


Slide6 l.jpg

Audiogram on Speechmap Screen

In dB Hearing Level (HL)

Normal Hearing

“Speech Banana”

Hearing Thresholds


Slide7 l.jpg

Speechmap or SPL-o-gram

In dB Sound Pressure Level (SPL)

Hearing Thresholds

“Speech Banana”

Normal Hearing


Slide8 l.jpg

Difference Between Speechmap and Audiogram

Loud

In dB

Sound Pressure Level

NOT Hearing Level

Soft


Slide9 l.jpg

Too Loud

Aided “Speech Banana”

Inaudible


Why not aided audiograms l.jpg
Why Not Aided Audiograms?

  • Aided audiograms only show one thing: the response of the hearing aid to very soft sounds

  • Aided audiograms do not tell anything about how loud the hearing aid is, and whether it is potentially damaging to a child’s hearing


Real ear testing l.jpg

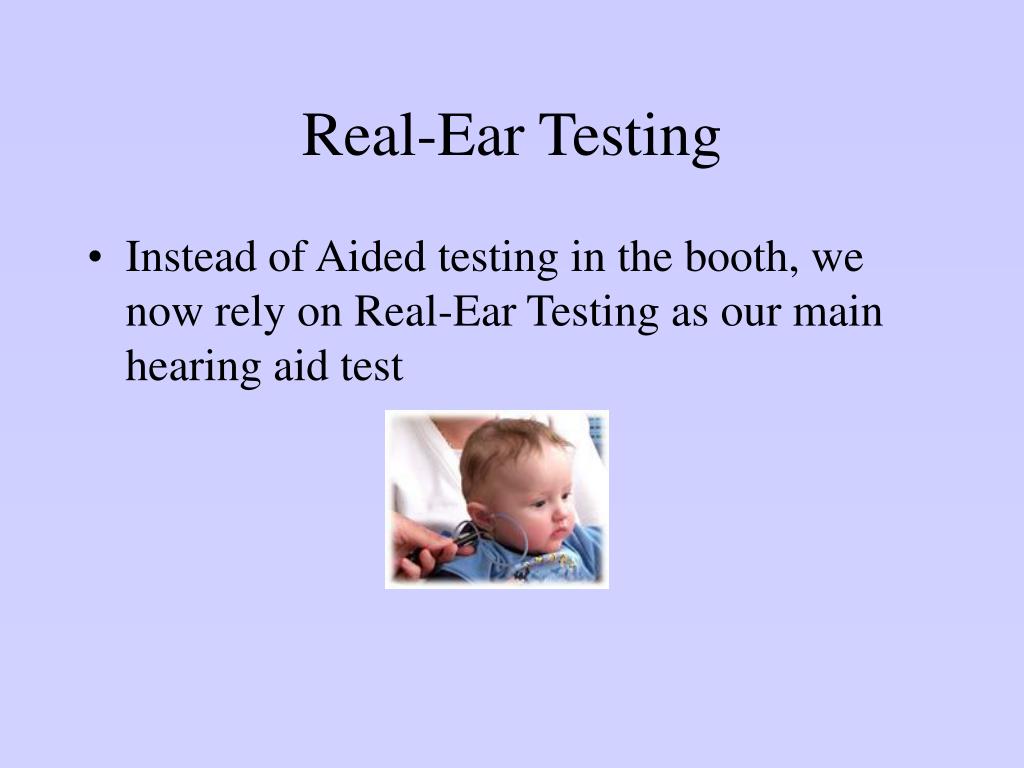

Real-Ear Testing

  • Instead of Aided testing in the booth, we now rely on Real-Ear Testing as our main hearing aid test


What is real ear testing l.jpg

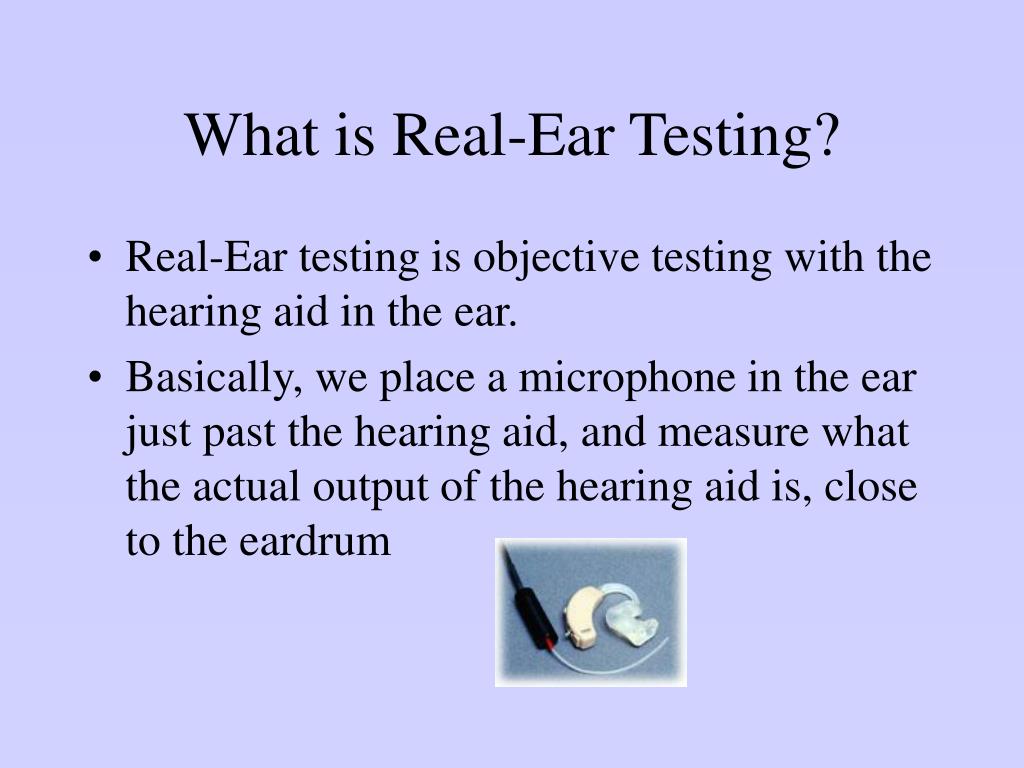

What is Real-Ear Testing?

  • Real-Ear testing is objective testing with the hearing aid in the ear.

  • Basically, we place a microphone in the ear just past the hearing aid, and measure what the actual output of the hearing aid is, close to the eardrum


Why the changes in methodology l.jpg

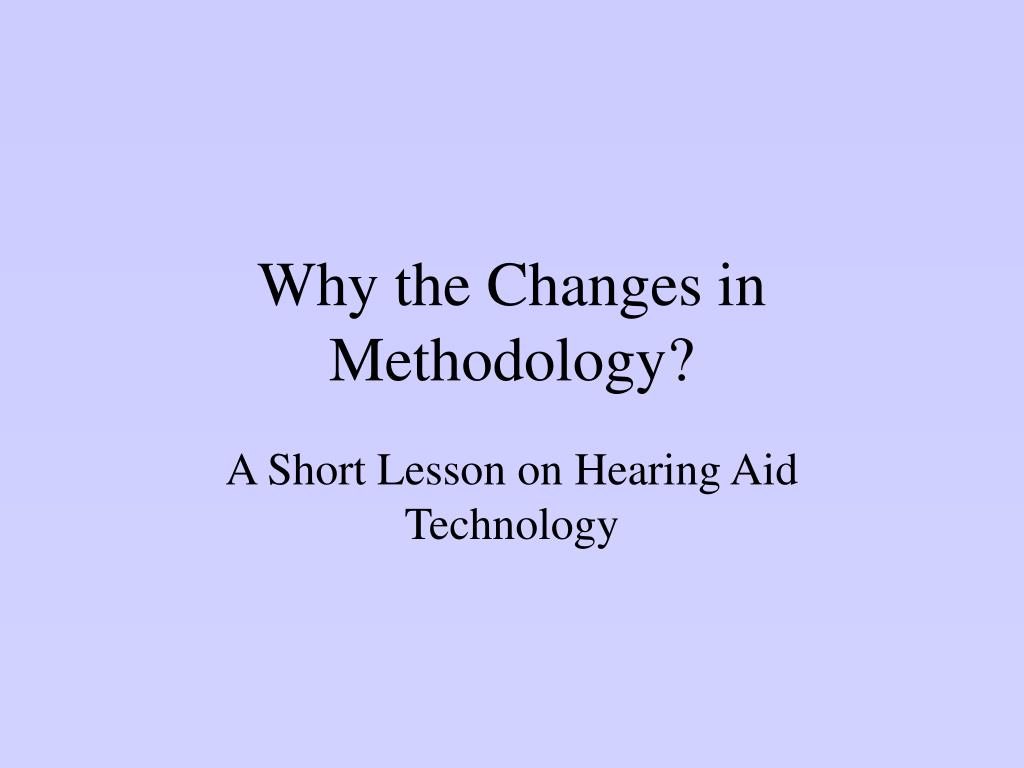

Why the Changes in Methodology?

A Short Lesson on Hearing Aid Technology


Hearing aids l.jpg
Hearing Aids

  • Hearing aids are now digital

  • Hearing Aids are no longer linear, they use COMPRESSION


Dynamic range l.jpg

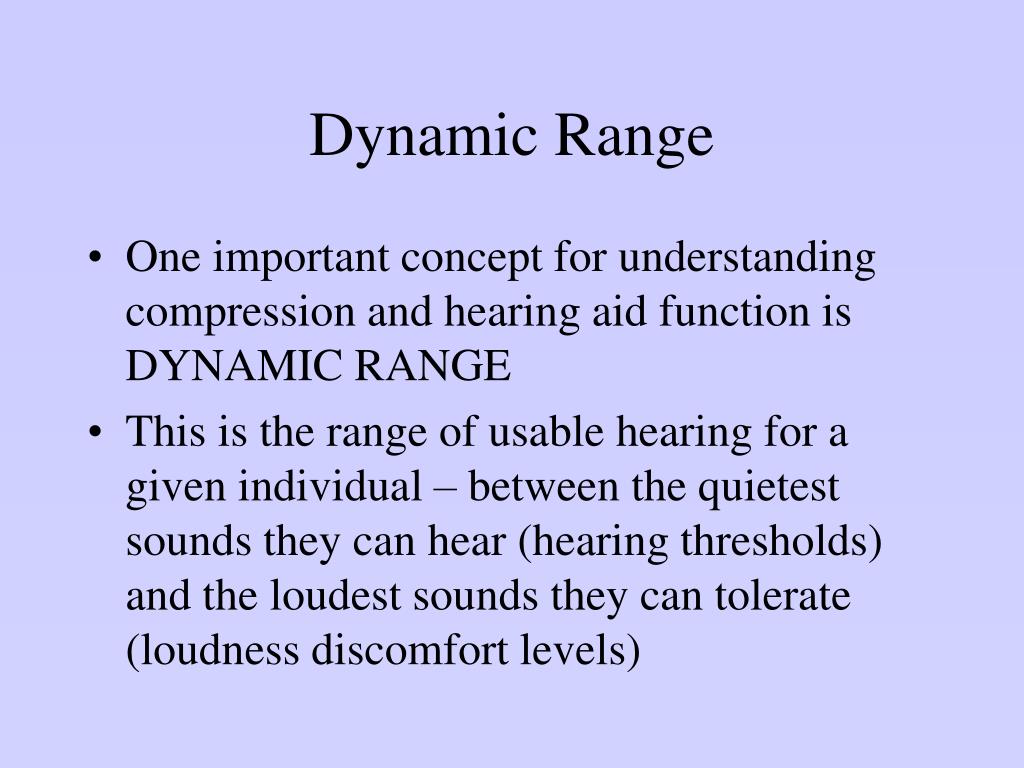

Dynamic Range

  • One important concept for understanding compression and hearing aid function is DYNAMIC RANGE

  • This is the range of usable hearing for a given individual – between the quietest sounds they can hear (hearing thresholds) and the loudest sounds they can tolerate (loudness discomfort levels)


Slide18 l.jpg

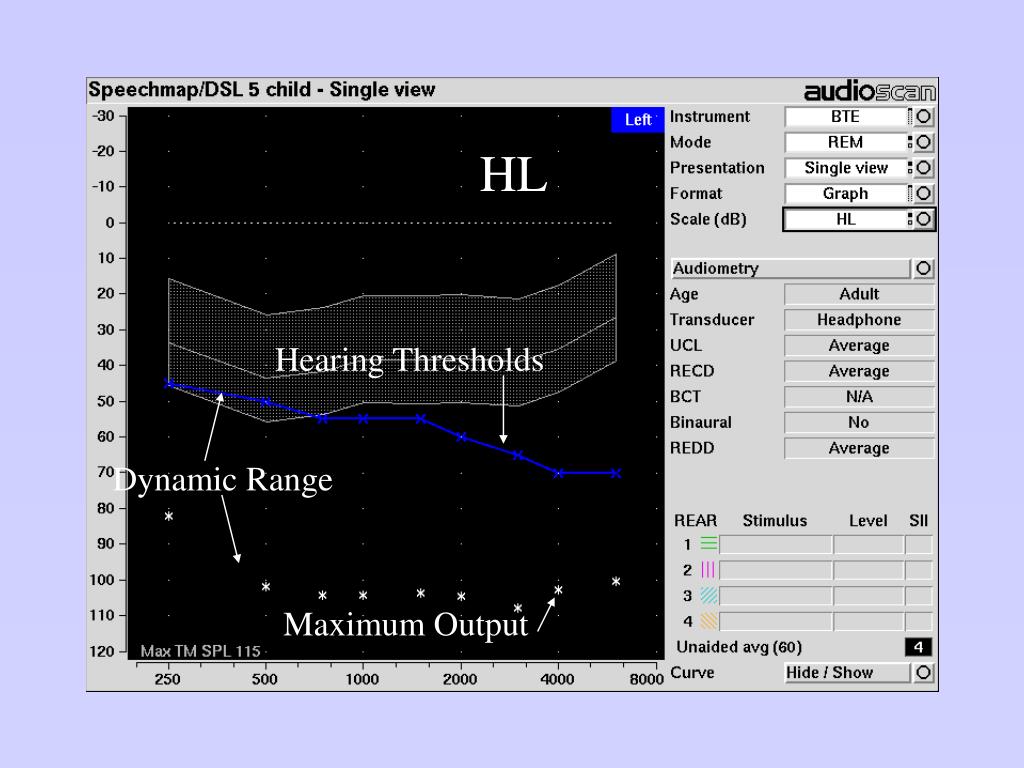

HL

Hearing Thresholds

Dynamic Range

Maximum Output


Slide19 l.jpg

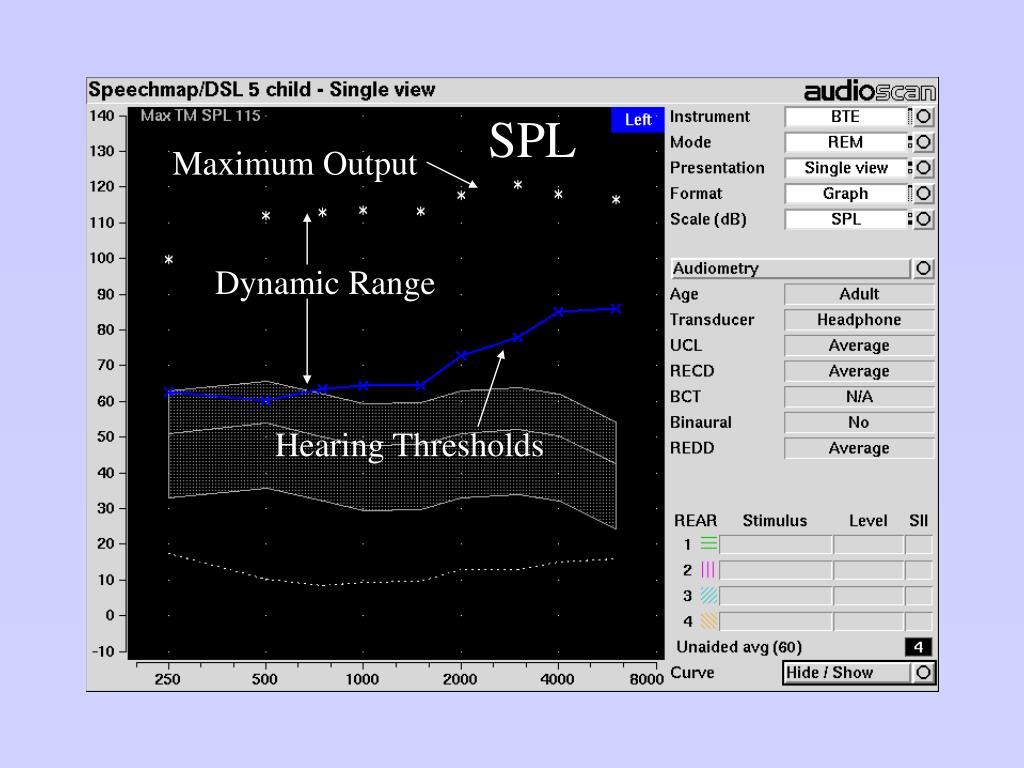

SPL

Maximum Output

Dynamic Range

Hearing Thresholds


Linear hearing aids l.jpg

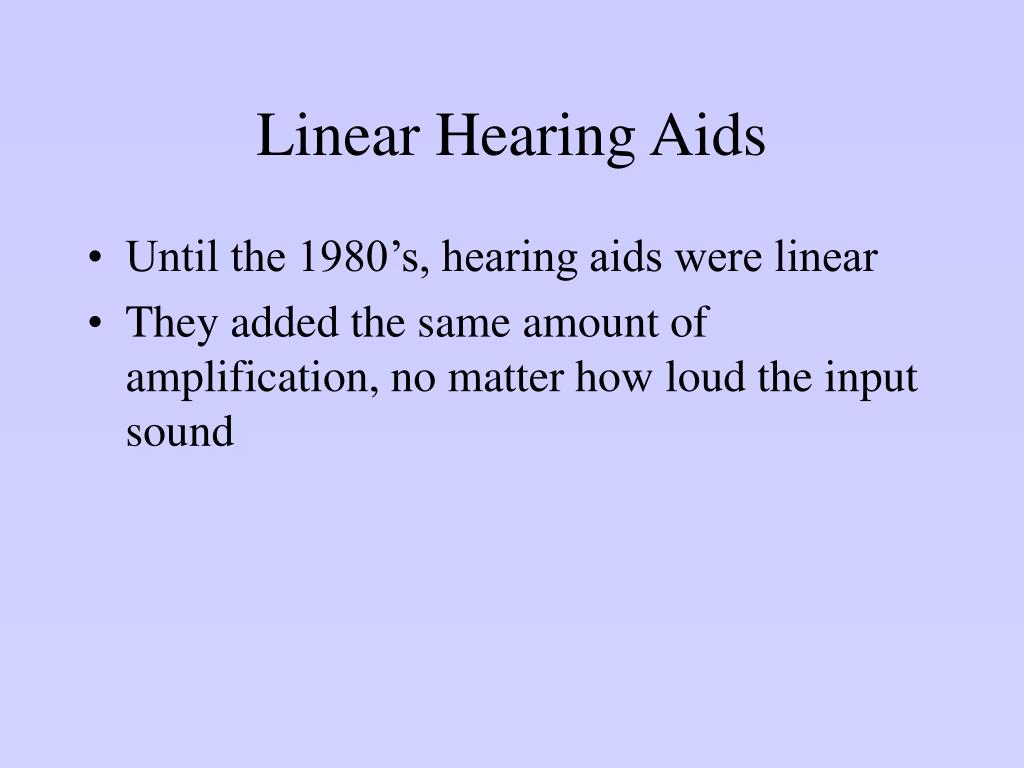

Linear Hearing Aids

  • Until the 1980’s, hearing aids were linear

  • They added the same amount of amplification, no matter how loud the input sound


Linear amplification l.jpg
Linear Amplification

  • 140

  • 120

  • 100

  • 80

  • 60

  • 40

  • 20


Peak clipping l.jpg

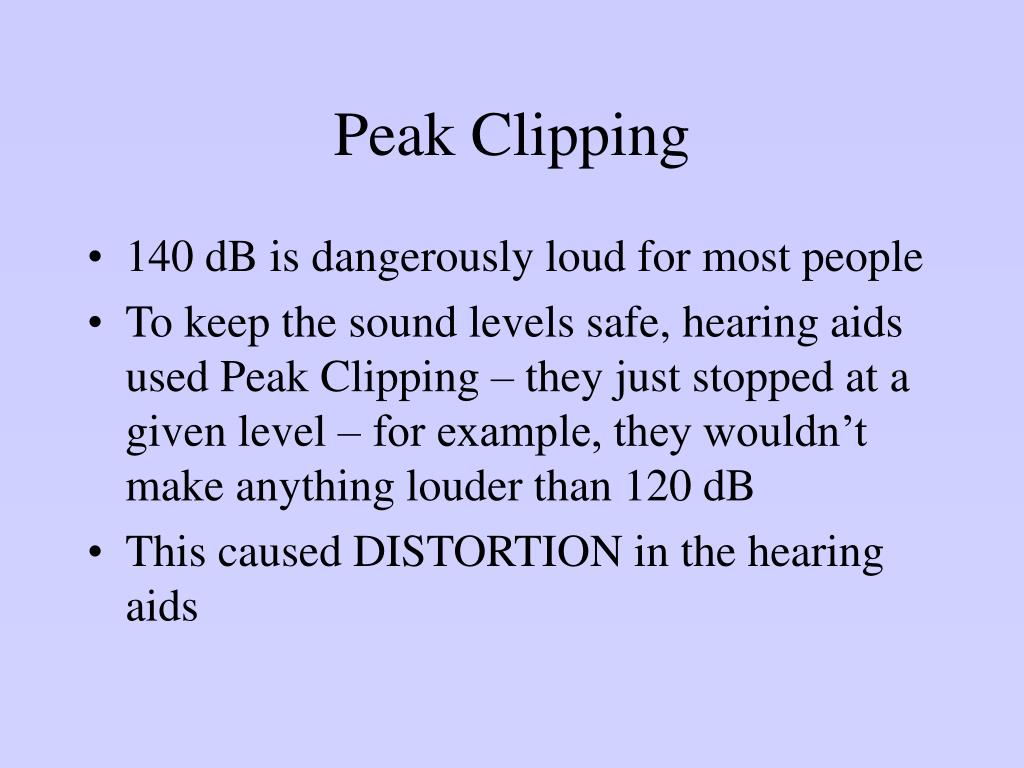

Peak Clipping

  • 140 dB is dangerously loud for most people

  • To keep the sound levels safe, hearing aids used Peak Clipping – they just stopped at a given level – for example, they wouldn’t make anything louder than 120 dB

  • This caused DISTORTION in the hearing aids


Peak clipping23 l.jpg
Peak Clipping

  • 140

  • 120

  • 100

  • 80

  • 60

  • 40

  • 20


Compression l.jpg

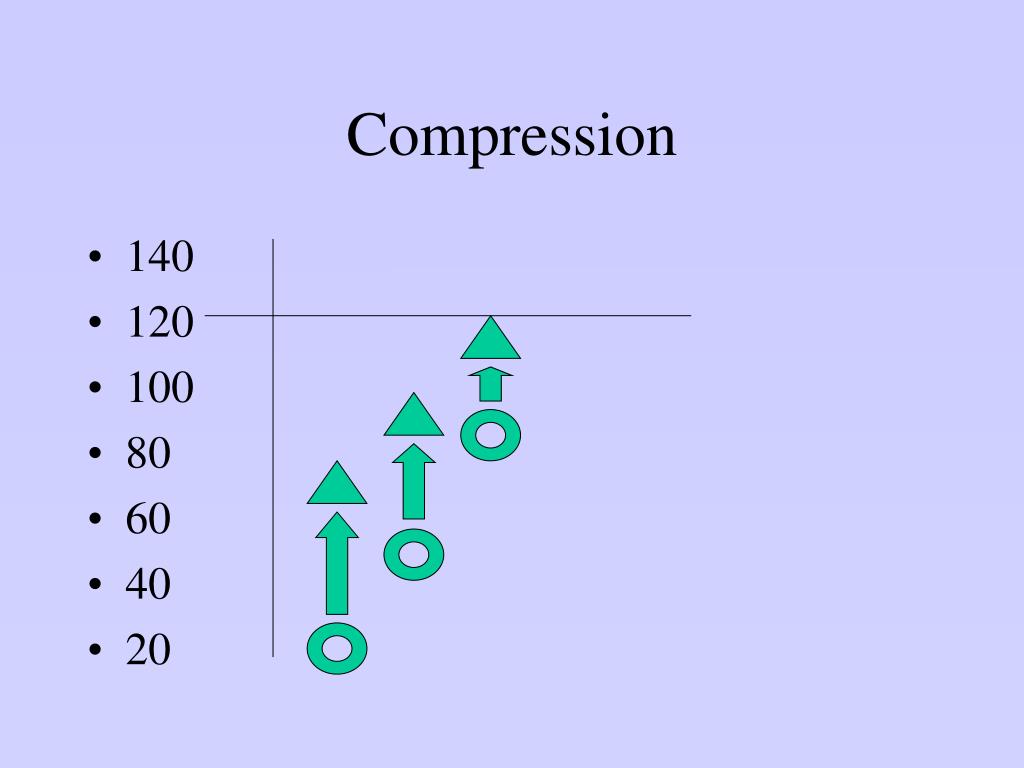

Compression

  • In the 1980s, as a way to keep sounds comfortable but undistorted, manufacturers started using compression limiting

  • Instead of amplifying the same amount no matter what the input, for sounds approaching the limit, less amplification would be used


Compression25 l.jpg
Compression

  • 140

  • 120

  • 100

  • 80

  • 60

  • 40

  • 20


Even newer advances l.jpg

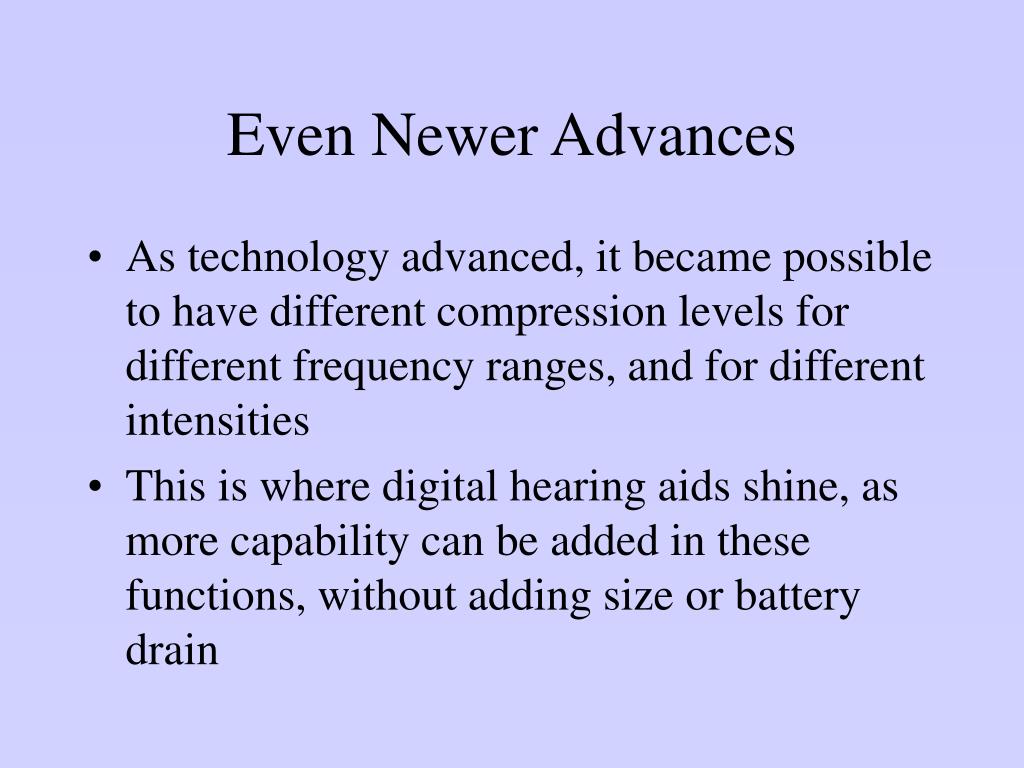

Even Newer Advances

  • As technology advanced, it became possible to have different compression levels for different frequency ranges, and for different intensities

  • This is where digital hearing aids shine, as more capability can be added in these functions, without adding size or battery drain


So what does this have to do with speechmap l.jpg
So What Does This Have to Do With Speechmap?

  • Testing just quiet sounds in the booth does not tell us about what the hearing aid does to speech

  • Digital hearing aids often have noise suppression, which makes quiet, non-speech-like sounds even quieter, to avoid amplifying annoying sounds like fridges humming

  • Aided audiograms are tested using quiet, non-speech-like sounds (tones)


Limitation of aided audiogram l.jpg
Limitation of Aided Audiogram

  • This slide shows the hearing aid’s response to quiet non-speech tones

  • We can infer how much speech the child can hear, but it does not show differing performance for soft, versus loud, speech

  • It does not tell us if the hearing aid is too loud, or if there is distortion

  • There are no targets, so we don’t know if this is a “good” fitting


Slide31 l.jpg



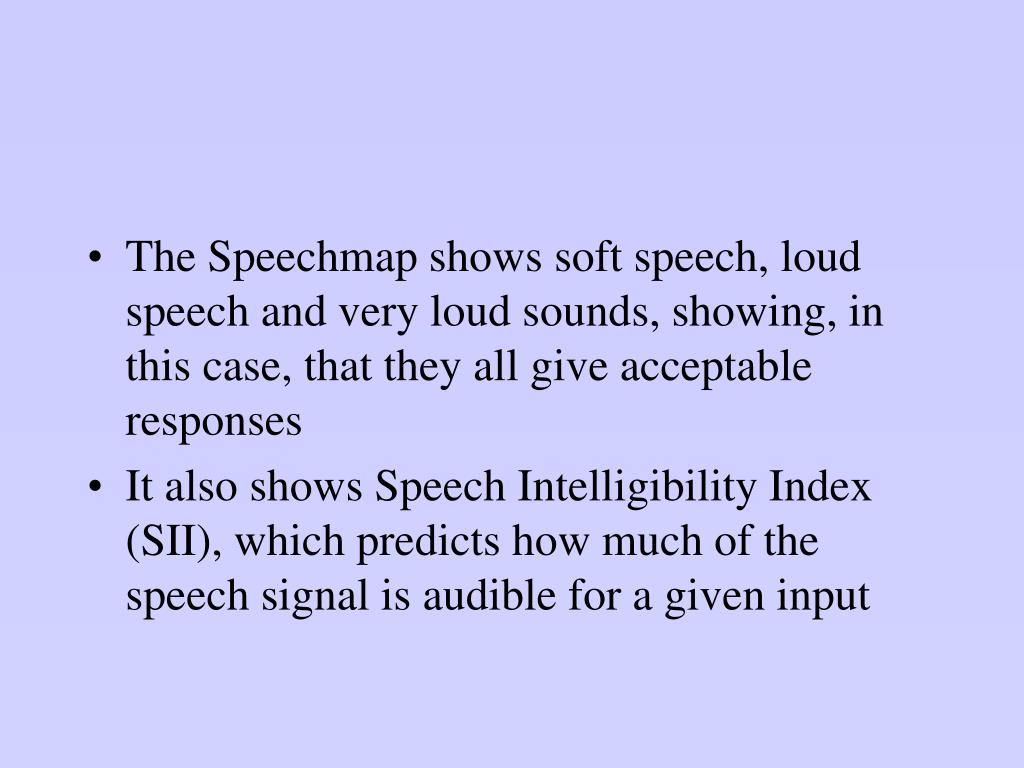

Slide34 l.jpg


Slide36 l.jpg

The End achieved with hearing aids for difficult fittings
