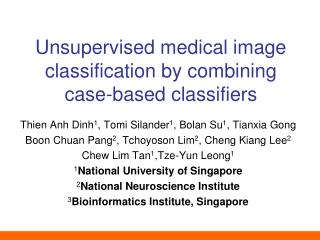

unsupervised medical image classification by combining case based classifiers

Thien Anh Dinh1, TomiSilander1, Bolan Su1, Tianxia Gong

Boon Chuan Pang2, Tchoyoson Lim2, Cheng Kiang Lee2

Chew Lim Tan1,Tze-Yun Leong1

1National University of Singapore

2National Neuroscience Institute

3Bioinformatics Institute, Singapore

Unsupervised medical image classification by combining case-based classifiers

automated medical image annotation
Automated medical image annotation
  • Huge amount of valuable data available in medical image databases
  • Not fully utilized for medical treatment, research and education
  • Medical image annotation:
    • To extract knowledge from images to facilitate text-based retrieval of relevant images
    • To provide a second source of opinions for clinicians on abnormality detection and pathology classification
  • Flowchart of current methods
  • Challenges in current methods
    • Highly sensitive and accurate segmentation
    • Extracting domain knowledge
    • Automatic feature selection
  • Time-consuming manual adjustment process
  •  reduces usages of medical image annotation systems
  • An automated pathology classification system for volumetric brain image slices
  • Main highlights
    • Eliminates the need for segmentation and semantic or annotation-based feature selection
      • Reduces the amount of manual work for constructing an annotation system
    • Extracts automatically and efficiently knowledge from images
    • Improves the utilization of medical image databases
system overview
System overview
  • Case-based classifier
    • Gabor filters
      • Non domain specific features
      • Localized low-level features
  • Ensemble learning
    • Set of classifiers
    • Each classifier with a random subset of features
    • Final classification: an aggregated result
sparse representation based classifier
Sparse representation-based classifier
  • Sparse representation-based classifier (SRC) proposed by Wright et al. for face recognition task
  • Non-parametric sparse representation classifier
  • SRC consists of two stages
    • Reconstructing: a test image as a linear combination of a small number of training images
    • Classifying: evaluating how the images belonging to different classes contribute to the reconstruction of the test image

Image databases x1, x2,…, x1000



New data item

y ≈ a7x7 + a23x23 + a172x172 + a134x134 + a903x903

y ≈ a7x7 + a23x23 + a172x172 + a134x134 + a903x903



r1 = || y – (a7x7 + a172x172 + a132x134)||2

r2 = || y – (a23x23 + a903x903)||2

ensemble of weak classifiers
Ensemble of weak classifiers
  • Combine multiple weak classifiers
  • Take class specific residuals as confidence measures
    • The smaller the residual for the class, the better we construct the test by just using the samples from that class
  • To classify image y, compute average class-specific residuals of all W weak classifiers
  • Automatically annotate CT brain images for traumatic brain injury (TBI)
    • TBI: major cause of death and disability
  • Several types of hemorrhages:
    • Extradural hematoma (EDH)
    • Subdural hematoma (SDH)
    • Intracerebralhemorrage (ICH)
    • Subarachnoid hemorrhage (SAH)
    • Intraventricular hematoma (IVH)

Extradural hematoma

Subdural hematoma

  • CT brain scans of 103 patients
  • Each scan:
    • Volumetric stack of 18-30 images (slices)
    • Image resolution: 512 x 512 pixels
    • Manually assigned a hematoma type extracted from its medical text report
experimental setup
Experimental setup
  • Compared performances of
    • SRC vs. SVM vs. SVM + feature selection
    • With/without ensemble learning
  • Run stratified ten-fold cross-validation 50 times with different random foldings
  • Measured the average precisions and recalls
  • Separated training and testing dataset at the case level
experimental results when varying the ensemble size
Experimental results when varying the ensemble size

Average precision and recall of classifiers when varying the ensemble size (number of features = 1000)

experimental results when varying the number of features per classifier
Experimental results when varying the number of features per classifier

Average precisions and recalls of classifiers when varying number of features (ensemble size = 50)

  • Ensemble classification framework with sparse Gabor-feature based classifier
    • Eliminates the requirement for segmentation and supervised feature selection
    • Reduces the need for manual adjustment
    • Achieves reasonable results compared to segmentation dependent techniques (Gong et al.)
  • Limitation
    • Longer classification time when dealing with large training data
    • Manual weighting needed for imbalanced data
gabor features
Gabor features
  • Localize low level features from an input image
  • Resemble the primitive features extracted by human visual cortex
  • Extract edge like features in different scales and orientations at different locations of the image
  • Create a Gabor filter bank with 5 frequencies and 8 orientations
      • A 128 x 128 grayscaleimage: 655360 features
      • Randomly select 4000 Gabor features to form a feature subspace
