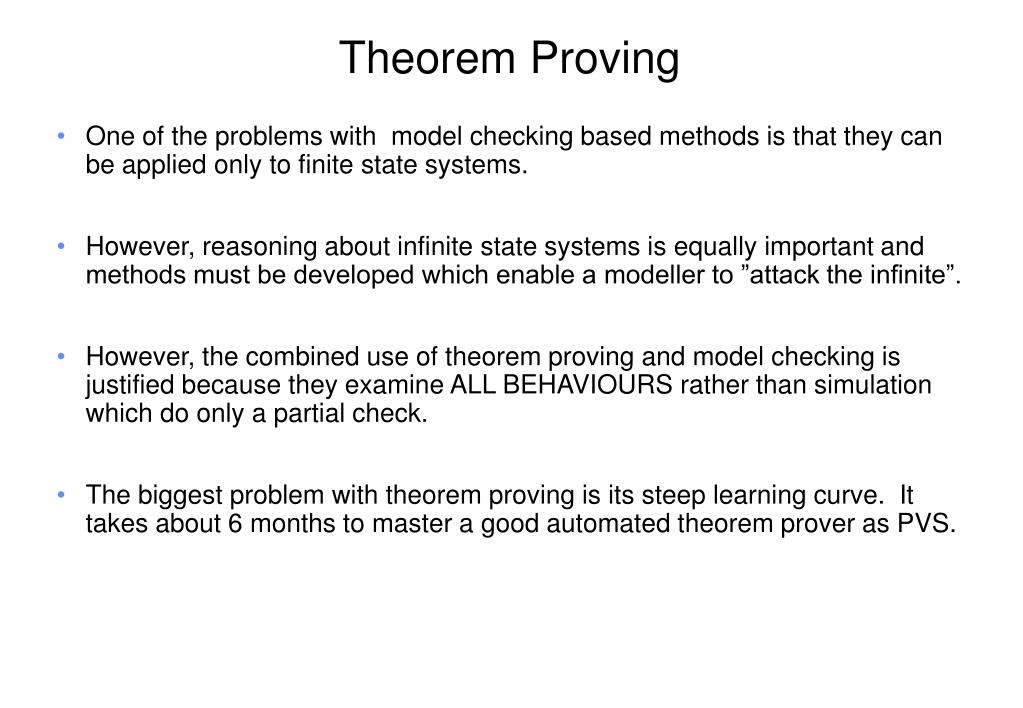

  1. Theorem Proving • One of the problems with model checking based methods is that they can be applied only to finite state systems. • However, reasoning about infinite state systems is equally important and methods must be developed which enable a modeller to ”attack the infinite”. • However, the combined use of theorem proving and model checking is justified because they examine ALL BEHAVIOURS rather than simulation which do only a partial check. • The biggest problem with theorem proving is its steep learning curve. It takes about 6 months to master a good automated theorem prover as PVS.

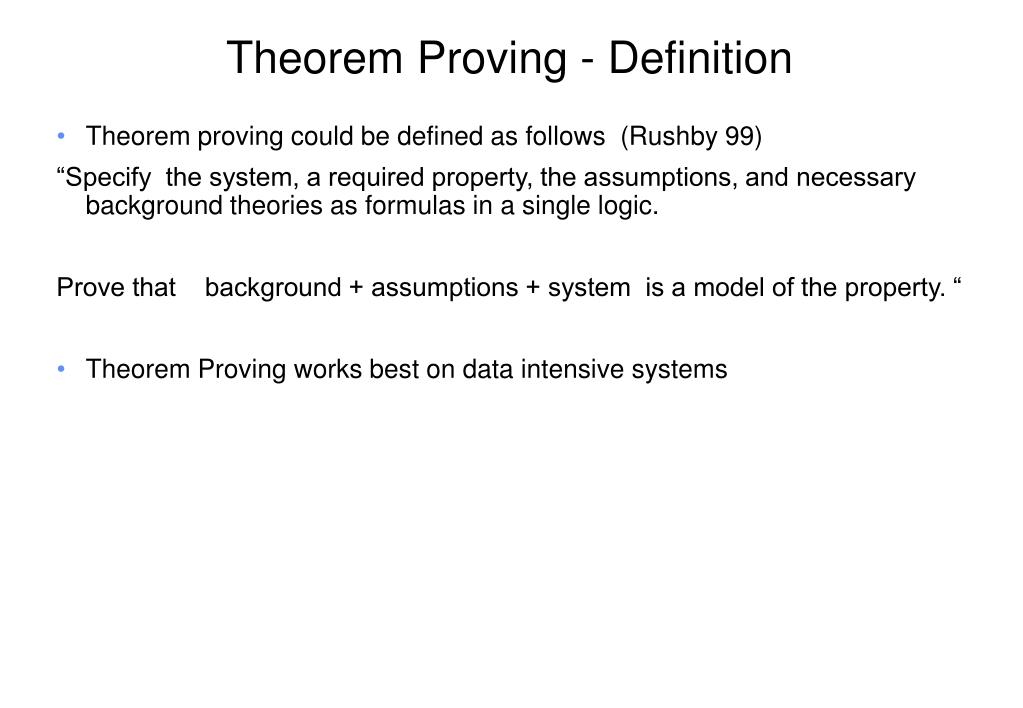

  2. Theorem Proving - Definition • Theorem proving could be defined as follows (Rushby 99) “Specify the system, a required property, the assumptions, and necessary background theories as formulas in a single logic. Prove that background + assumptions + system is a model of the property. “ • Theorem Proving works best on data intensive systems

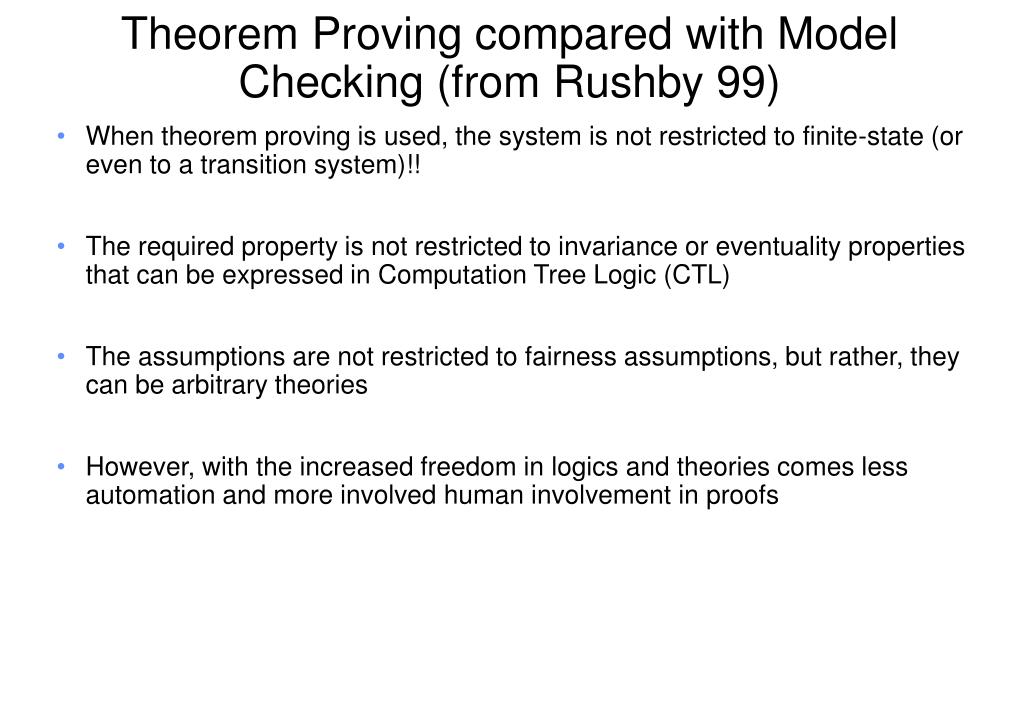

  3. Theorem Proving compared with Model Checking (from Rushby 99) • When theorem proving is used, the system is not restricted to finite-state (or even to a transition system)!! • The required property is not restricted to invariance or eventuality properties that can be expressed in Computation Tree Logic (CTL) • The assumptions are not restricted to fairness assumptions, but rather, they can be arbitrary theories • However, with the increased freedom in logics and theories comes less automation and more involved human involvement in proofs

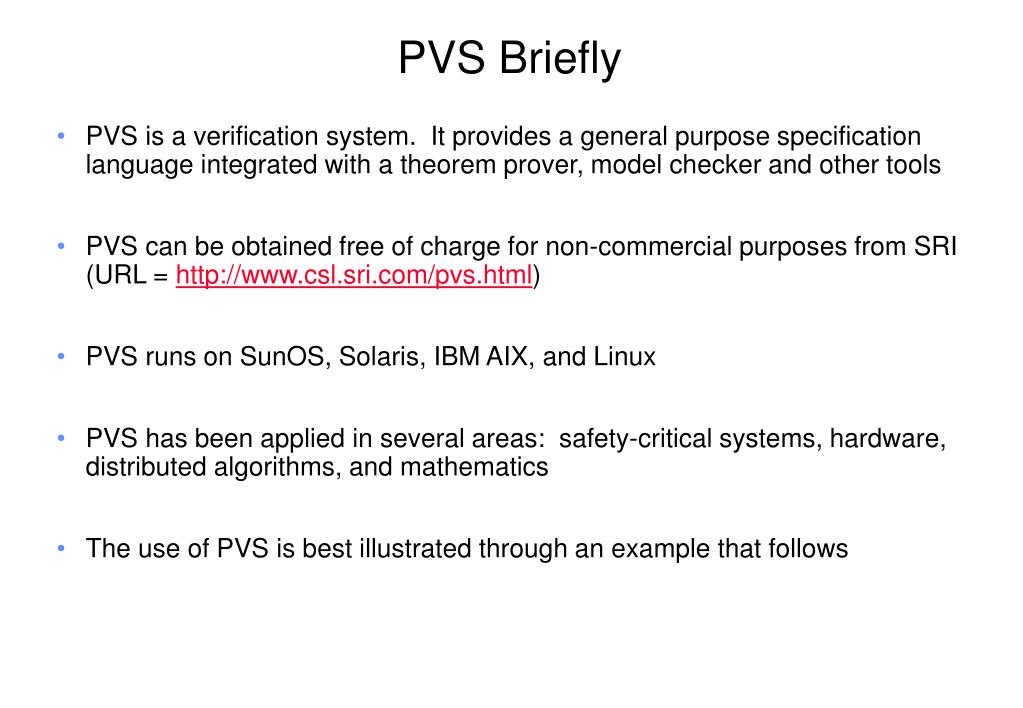

  4. PVS Briefly • PVS is a verification system. It provides a general purpose specification language integrated with a theorem prover, model checker and other tools • PVS can be obtained free of charge for non-commercial purposes from SRI (URL = http://www.csl.sri.com/pvs.html) • PVS runs on SunOS, Solaris, IBM AIX, and Linux • PVS has been applied in several areas: safety-critical systems, hardware, distributed algorithms, and mathematics • The use of PVS is best illustrated through an example that follows

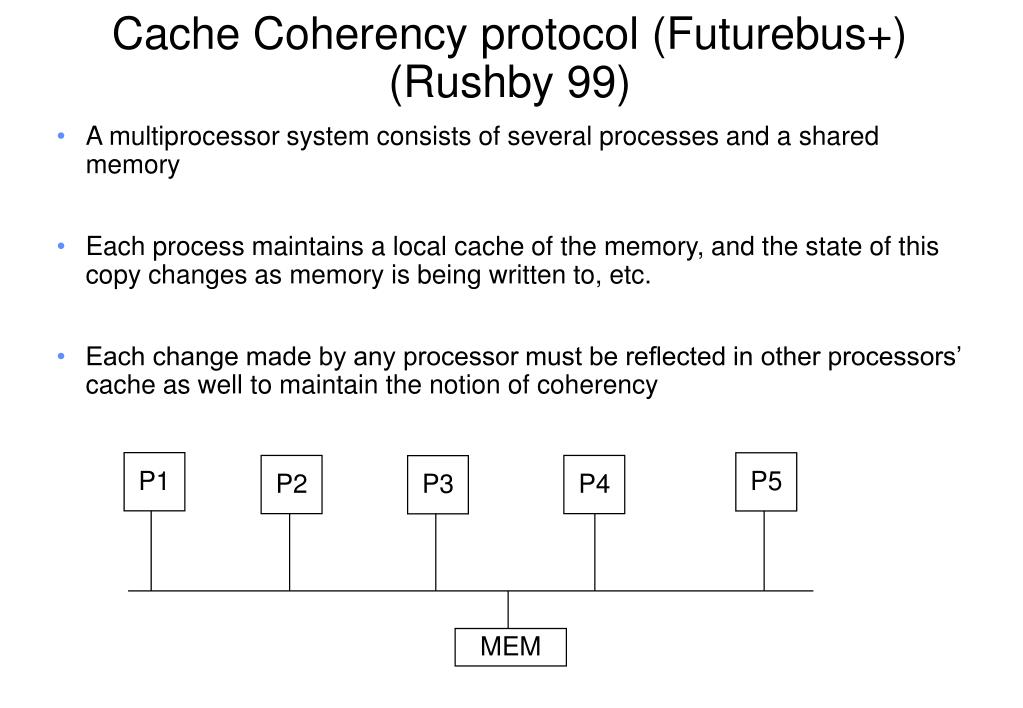

  5. Cache Coherency protocol (Futurebus+) (Rushby 99) • A multiprocessor system consists of several processes and a shared memory • Each process maintains a local cache of the memory, and the state of this copy changes as memory is being written to, etc. • Each change made by any processor must be reflected in other processors’ cache as well to maintain the notion of coherency P1 P5 P2 P4 P3 MEM

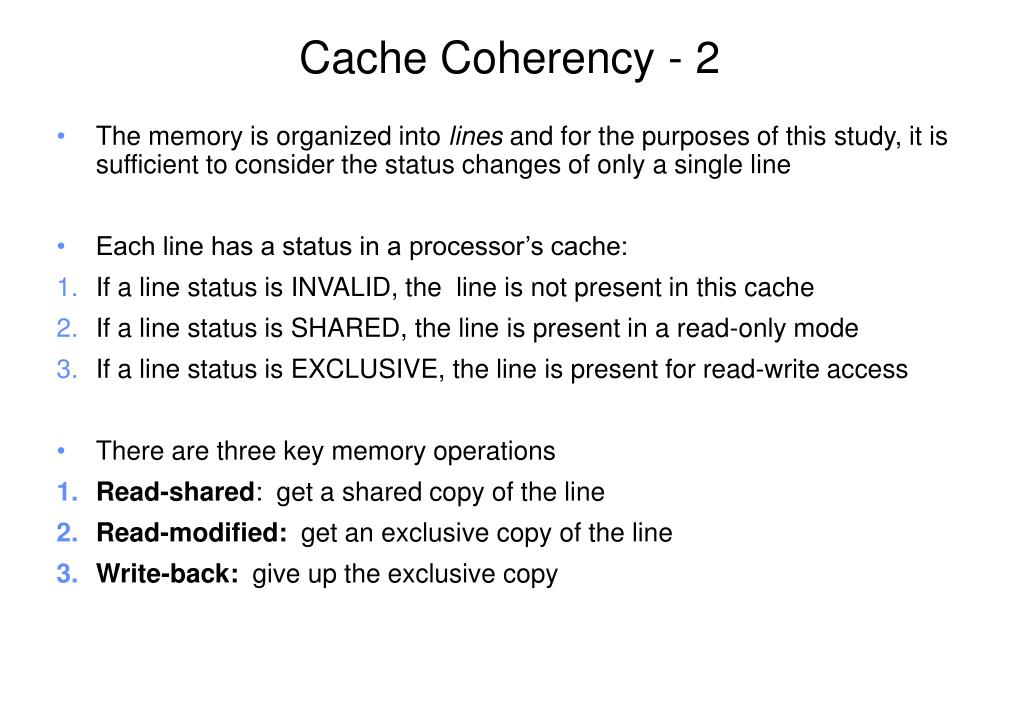

  6. Cache Coherency - 2 • The memory is organized into lines and for the purposes of this study, it is sufficient to consider the status changes of only a single line • Each line has a status in a processor’s cache: • If a line status is INVALID, the line is not present in this cache • If a line status is SHARED, the line is present in a read-only mode • If a line status is EXCLUSIVE, the line is present for read-write access • There are three key memory operations • Read-shared: get a shared copy of the line • Read-modified: get an exclusive copy of the line • Write-back: give up the exclusive copy

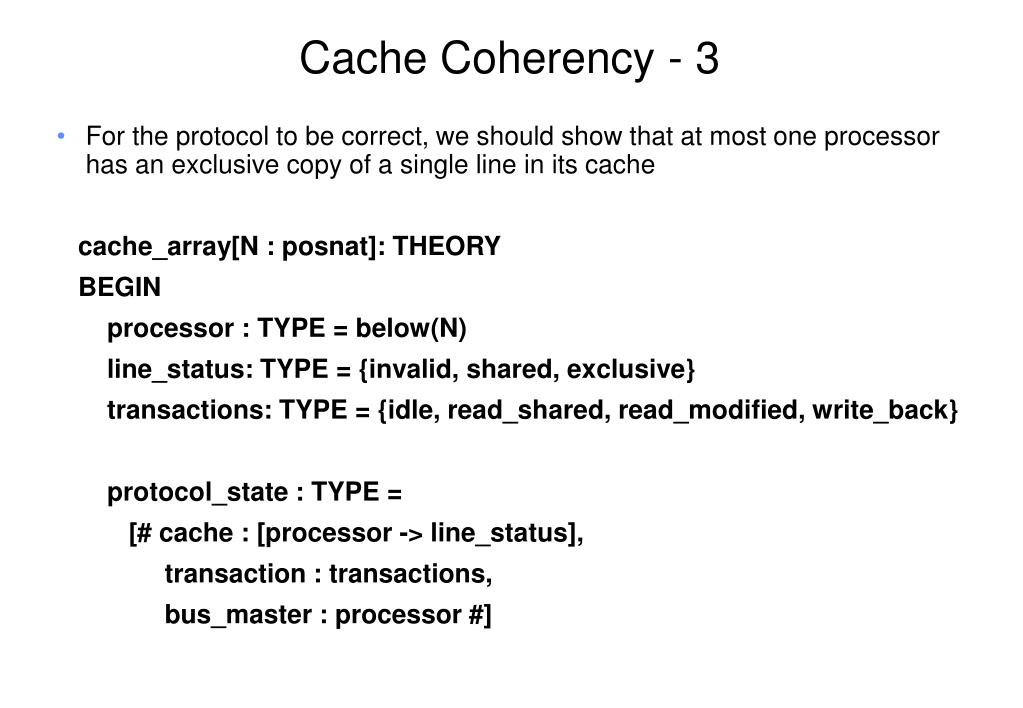

  7. Cache Coherency - 3 • For the protocol to be correct, we should show that at most one processor has an exclusive copy of a single line in its cache cache_array[N : posnat]: THEORY BEGIN processor : TYPE = below(N) line_status: TYPE = {invalid, shared, exclusive} transactions: TYPE = {idle, read_shared, read_modified, write_back} protocol_state : TYPE = [# cache : [processor -> line_status], transaction : transactions, bus_master : processor #]

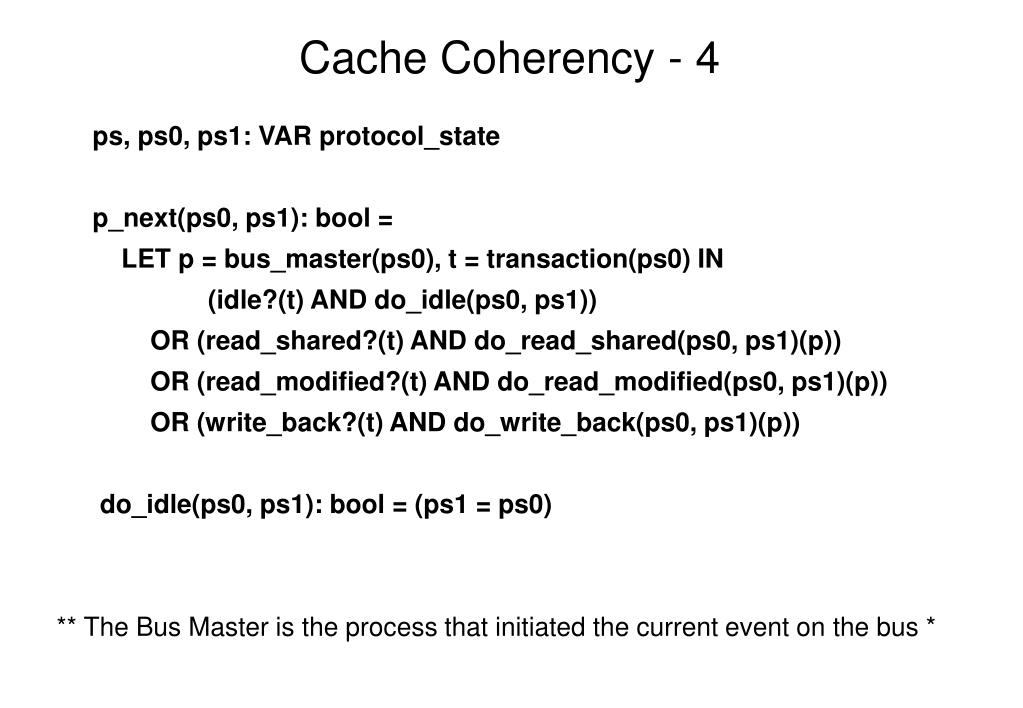

  8. Cache Coherency - 4 ps, ps0, ps1: VAR protocol_state p_next(ps0, ps1): bool = LET p = bus_master(ps0), t = transaction(ps0) IN (idle?(t) AND do_idle(ps0, ps1)) OR (read_shared?(t) AND do_read_shared(ps0, ps1)(p)) OR (read_modified?(t) AND do_read_modified(ps0, ps1)(p)) OR (write_back?(t) AND do_write_back(ps0, ps1)(p)) do_idle(ps0, ps1): bool = (ps1 = ps0) ** The Bus Master is the process that initiated the current event on the bus *

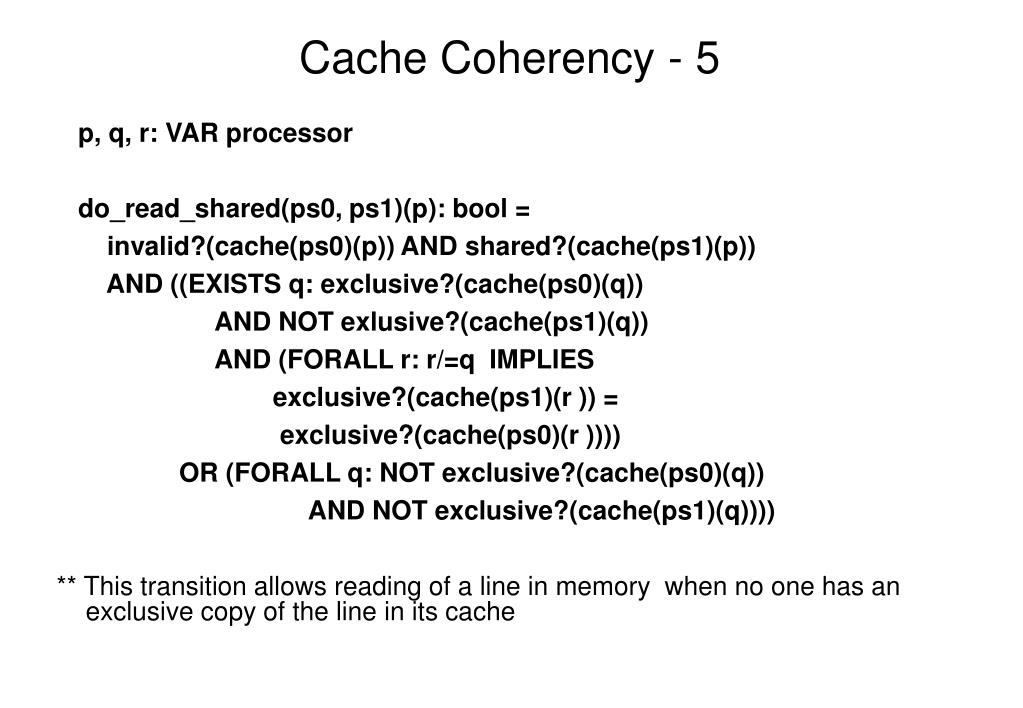

  9. Cache Coherency - 5 p, q, r: VAR processor do_read_shared(ps0, ps1)(p): bool = invalid?(cache(ps0)(p)) AND shared?(cache(ps1)(p)) AND ((EXISTS q: exclusive?(cache(ps0)(q)) AND NOT exlusive?(cache(ps1)(q)) AND (FORALL r: r/=q IMPLIES exclusive?(cache(ps1)(r )) = exclusive?(cache(ps0)(r )))) OR (FORALL q: NOT exclusive?(cache(ps0)(q)) AND NOT exclusive?(cache(ps1)(q)))) ** This transition allows reading of a line in memory when no one has an exclusive copy of the line in its cache

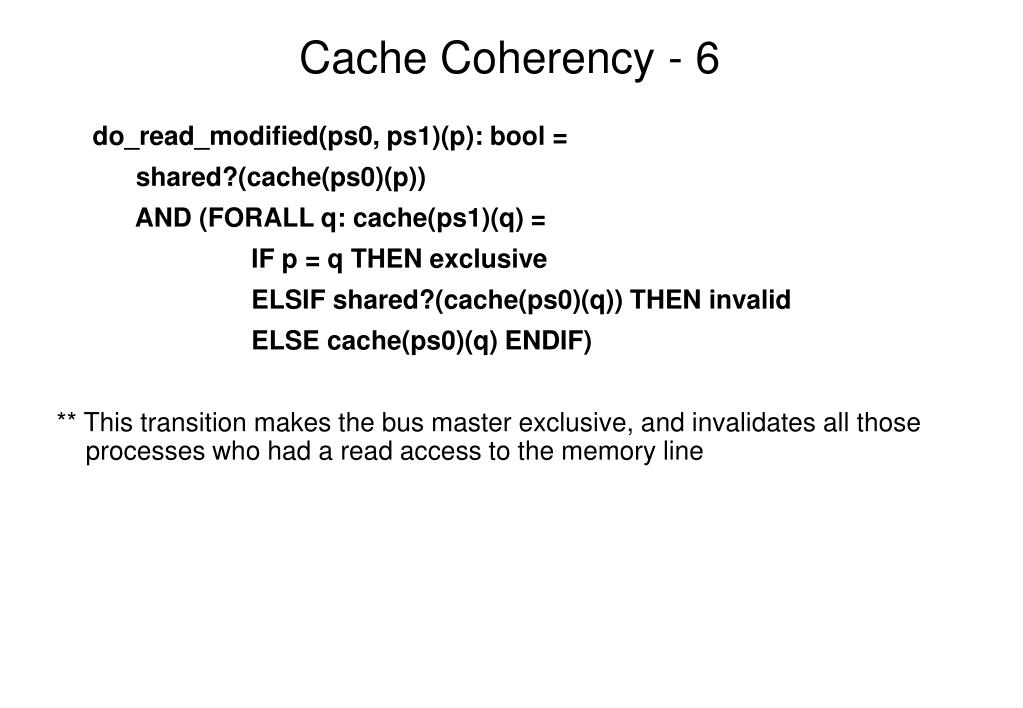

  10. Cache Coherency - 6 do_read_modified(ps0, ps1)(p): bool = shared?(cache(ps0)(p)) AND (FORALL q: cache(ps1)(q) = IF p = q THEN exclusive ELSIF shared?(cache(ps0)(q)) THEN invalid ELSE cache(ps0)(q) ENDIF) ** This transition makes the bus master exclusive, and invalidates all those processes who had a read access to the memory line

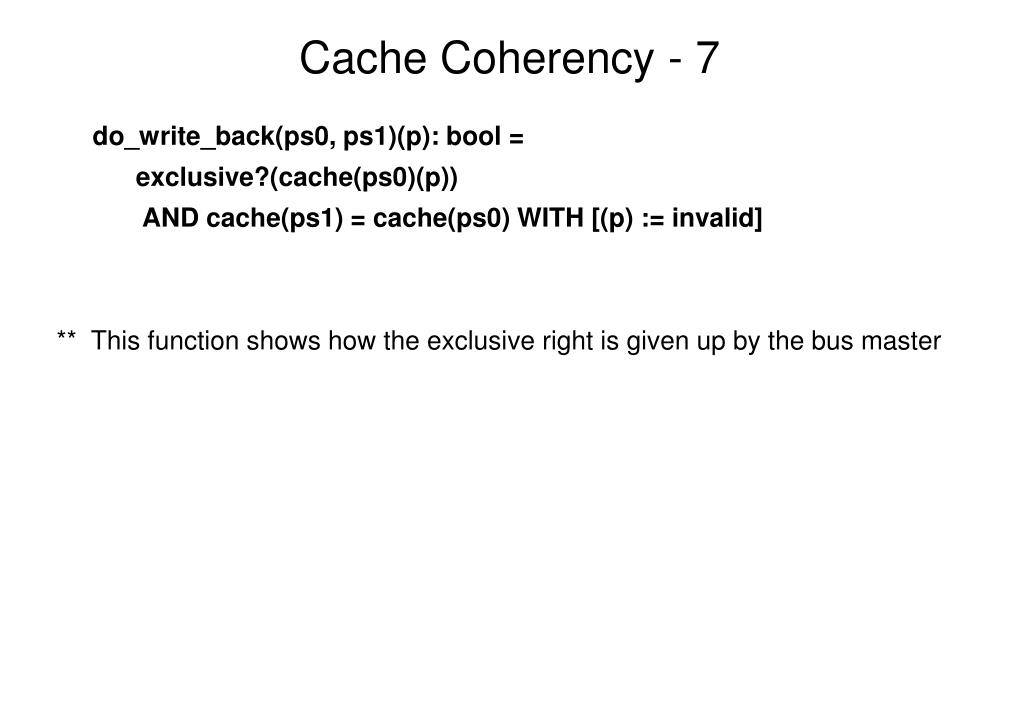

  11. Cache Coherency - 7 do_write_back(ps0, ps1)(p): bool = exclusive?(cache(ps0)(p)) AND cache(ps1) = cache(ps0) WITH [(p) := invalid] ** This function shows how the exclusive right is given up by the bus master

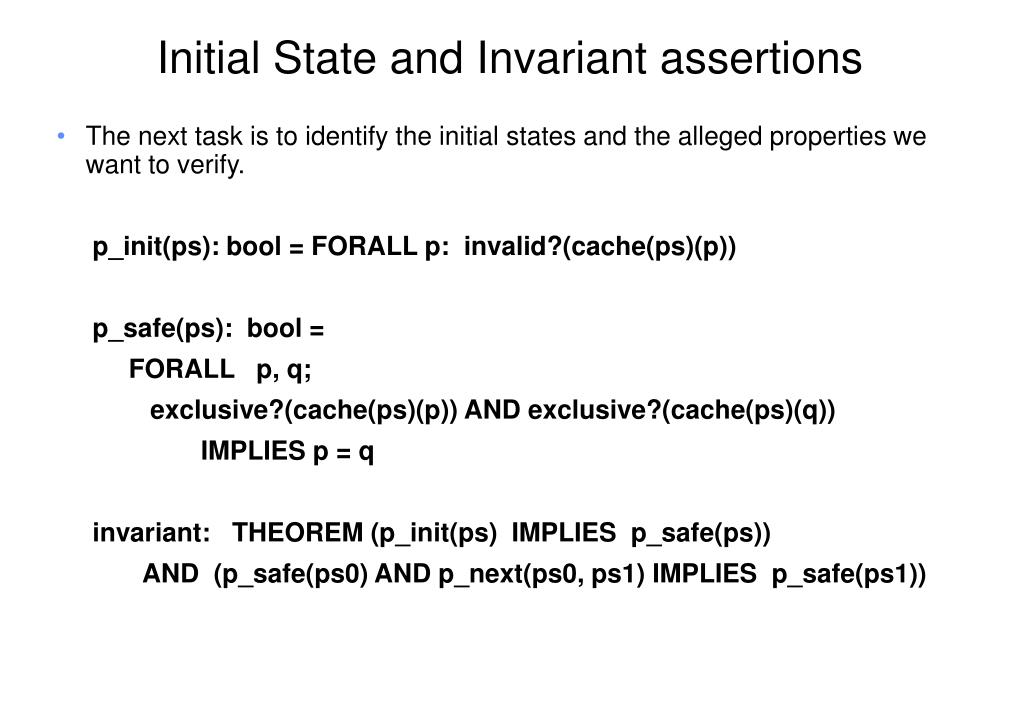

  12. Initial State and Invariant assertions • The next task is to identify the initial states and the alleged properties we want to verify. p_init(ps): bool = FORALL p: invalid?(cache(ps)(p)) p_safe(ps): bool = FORALL p, q; exclusive?(cache(ps)(p)) AND exclusive?(cache(ps)(q)) IMPLIES p = q invariant: THEOREM (p_init(ps) IMPLIES p_safe(ps)) AND (p_safe(ps0) AND p_next(ps0, ps1) IMPLIES p_safe(ps1))

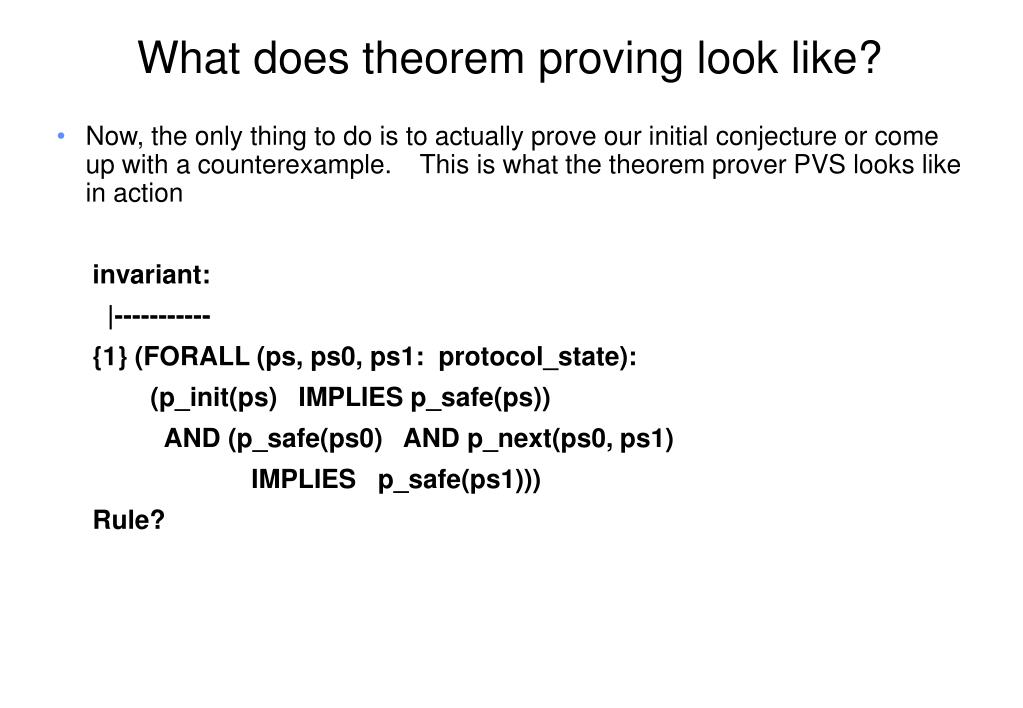

  13. What does theorem proving look like? • Now, the only thing to do is to actually prove our initial conjecture or come up with a counterexample. This is what the theorem prover PVS looks like in action invariant: |----------- {1} (FORALL (ps, ps0, ps1: protocol_state): (p_init(ps) IMPLIES p_safe(ps)) AND (p_safe(ps0) AND p_next(ps0, ps1) IMPLIES p_safe(ps1))) Rule?

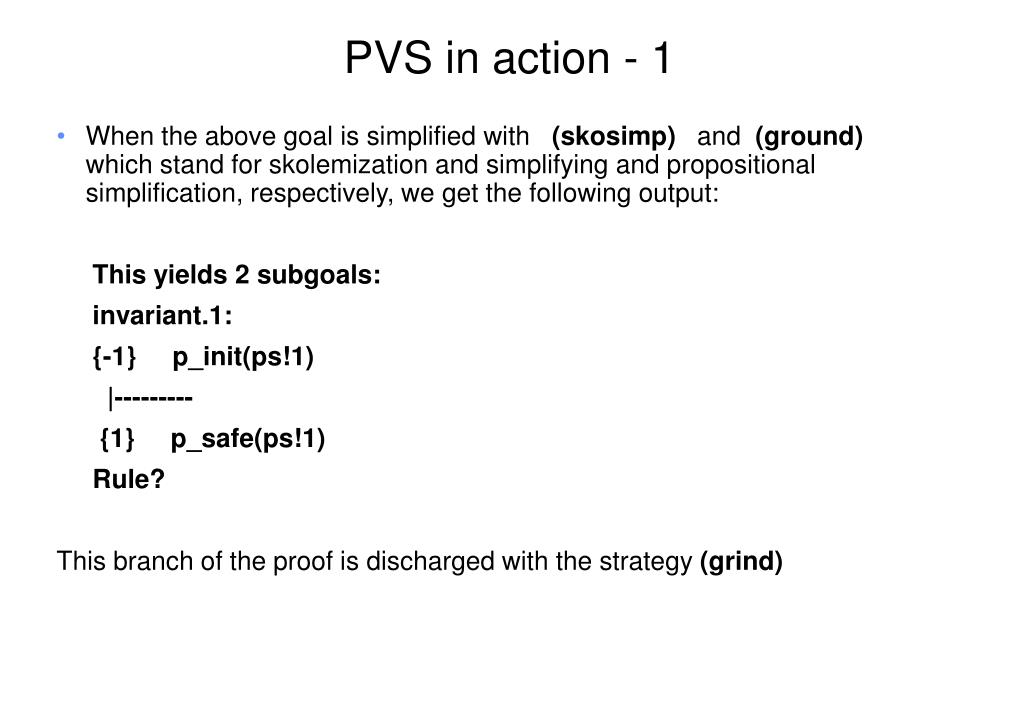

  14. PVS in action - 1 • When the above goal is simplified with (skosimp) and (ground) which stand for skolemization and simplifying and propositional simplification, respectively, we get the following output: This yields 2 subgoals: invariant.1: {-1} p_init(ps!1) |--------- {1} p_safe(ps!1) Rule? This branch of the proof is discharged with the strategy (grind)

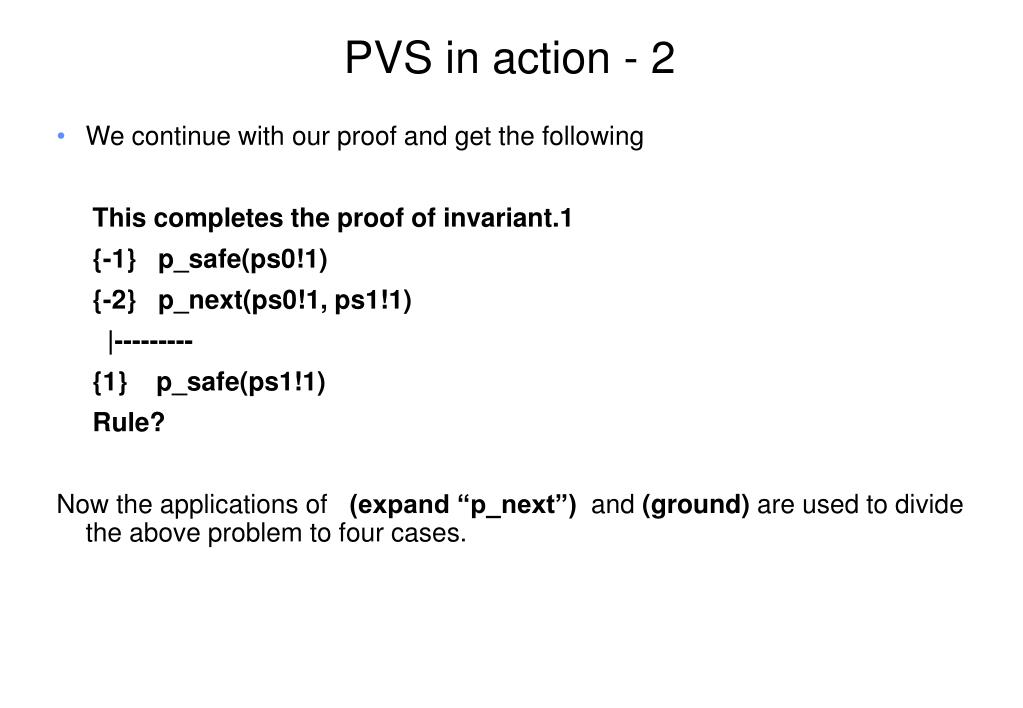

  15. PVS in action - 2 • We continue with our proof and get the following This completes the proof of invariant.1 {-1} p_safe(ps0!1) {-2} p_next(ps0!1, ps1!1) |--------- {1} p_safe(ps1!1) Rule? Now the applications of (expand “p_next”) and (ground) are used to divide the above problem to four cases.

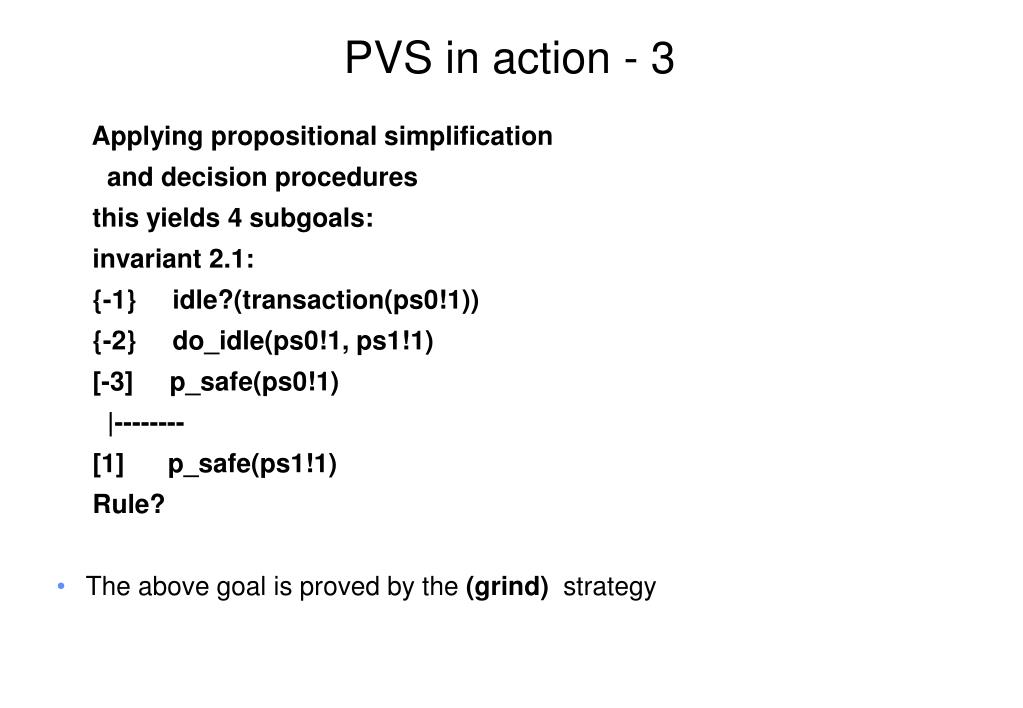

  16. PVS in action - 3 Applying propositional simplification and decision procedures this yields 4 subgoals: invariant 2.1: {-1} idle?(transaction(ps0!1)) {-2} do_idle(ps0!1, ps1!1) [-3] p_safe(ps0!1) |-------- [1] p_safe(ps1!1) Rule? • The above goal is proved by the (grind) strategy

  17. PVS in action - 4 • Similarly, the last invariant can be proved as follows: invariant.2.4: {-1} write_back?(transaction(ps0!1)) {-2} do_write_back(ps0!1, ps1!1)(bus_master(ps0!1)) [-3] p_safe(ps0!1) |---------- [1] p_safe(ps1!1) Rule? • This is proved by using the strategy (grind :if-match all)

  18. PVS in action - 5 invariant.2.2: {-1} read_shared?(transaction(ps0!1)) {-2} do_read_shared(ps0!1, ps1!1)(bus_master(ps0!1)) [-3] p_safe(ps0!1) |------------ [1] p_safe(ps1!1) Rule?

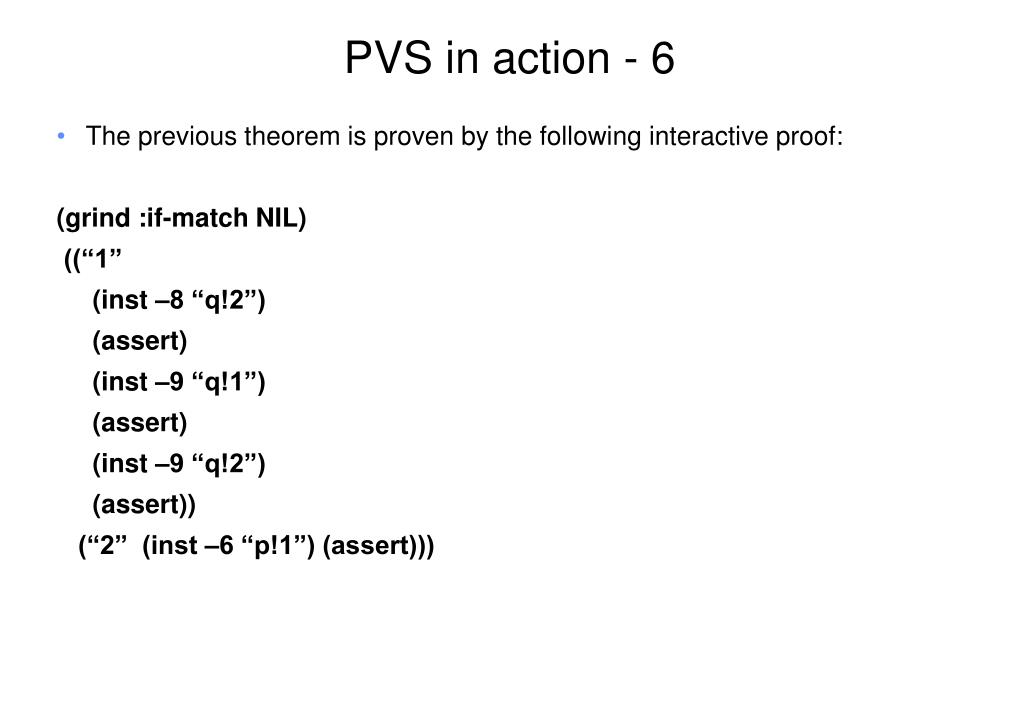

  19. PVS in action - 6 • The previous theorem is proven by the following interactive proof: (grind :if-match NIL) ((“1” (inst –8 “q!2”) (assert) (inst –9 “q!1”) (assert) (inst –9 “q!2”) (assert)) (“2” (inst –6 “p!1”) (assert)))

  20. PVS in action -7 invariant.2.3: {-1} read_modified?(transaction(ps0!1)) {-2} do_read_modified(ps0!1, ps1!1) (bus_master(ps0!1)) [-3] p_safe(ps1!1) |---------- [1] p_safe(ps1!1) Rule? • This proof is once again started with (grind :if-match NIL) but we run into a difficulty that we can’t solve

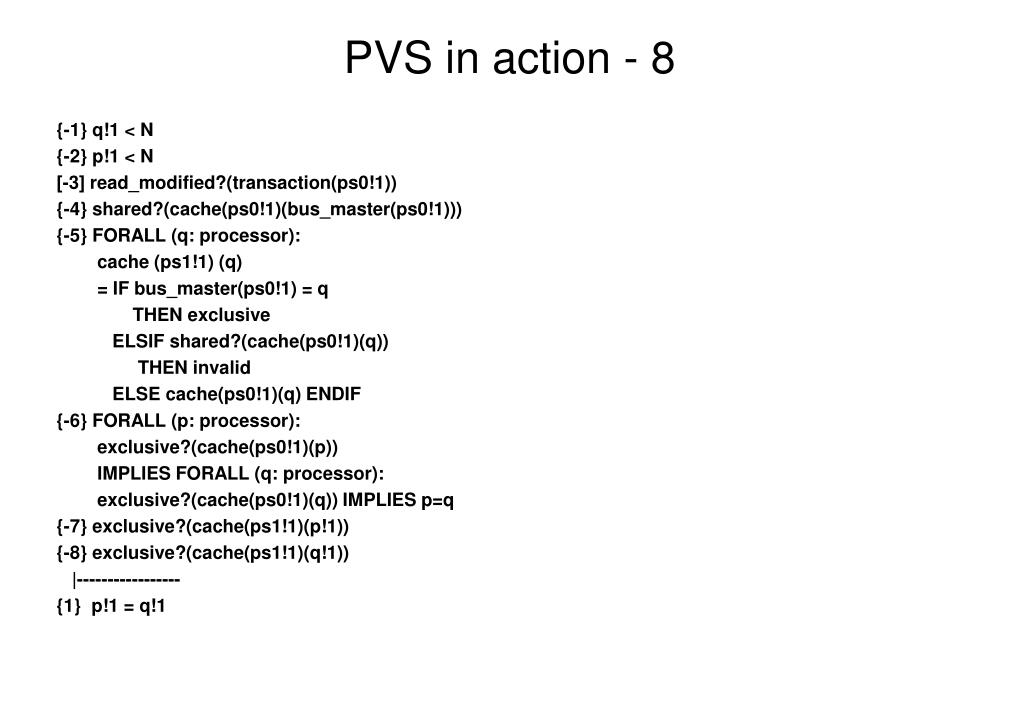

  21. PVS in action - 8 {-1} q!1 < N {-2} p!1 < N [-3] read_modified?(transaction(ps0!1)) {-4} shared?(cache(ps0!1)(bus_master(ps0!1))) {-5} FORALL (q: processor): cache (ps1!1) (q) = IF bus_master(ps0!1) = q THEN exclusive ELSIF shared?(cache(ps0!1)(q)) THEN invalid ELSE cache(ps0!1)(q) ENDIF {-6} FORALL (p: processor): exclusive?(cache(ps0!1)(p)) IMPLIES FORALL (q: processor): exclusive?(cache(ps0!1)(q)) IMPLIES p=q {-7} exclusive?(cache(ps1!1)(p!1)) {-8} exclusive?(cache(ps1!1)(q!1)) |----------------- {1} p!1 = q!1

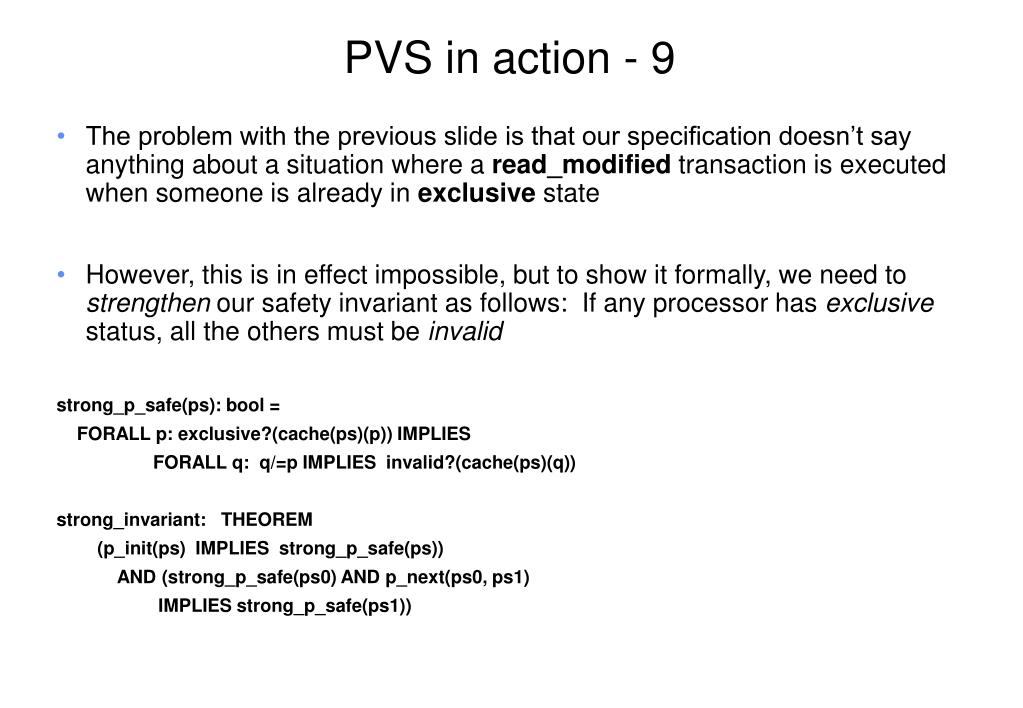

  22. PVS in action - 9 • The problem with the previous slide is that our specification doesn’t say anything about a situation where a read_modified transaction is executed when someone is already in exclusive state • However, this is in effect impossible, but to show it formally, we need to strengthen our safety invariant as follows: If any processor has exclusive status, all the others must be invalid strong_p_safe(ps): bool = FORALL p: exclusive?(cache(ps)(p)) IMPLIES FORALL q: q/=p IMPLIES invalid?(cache(ps)(q)) strong_invariant: THEOREM (p_init(ps) IMPLIES strong_p_safe(ps)) AND (strong_p_safe(ps0) AND p_next(ps0, ps1) IMPLIES strong_p_safe(ps1))

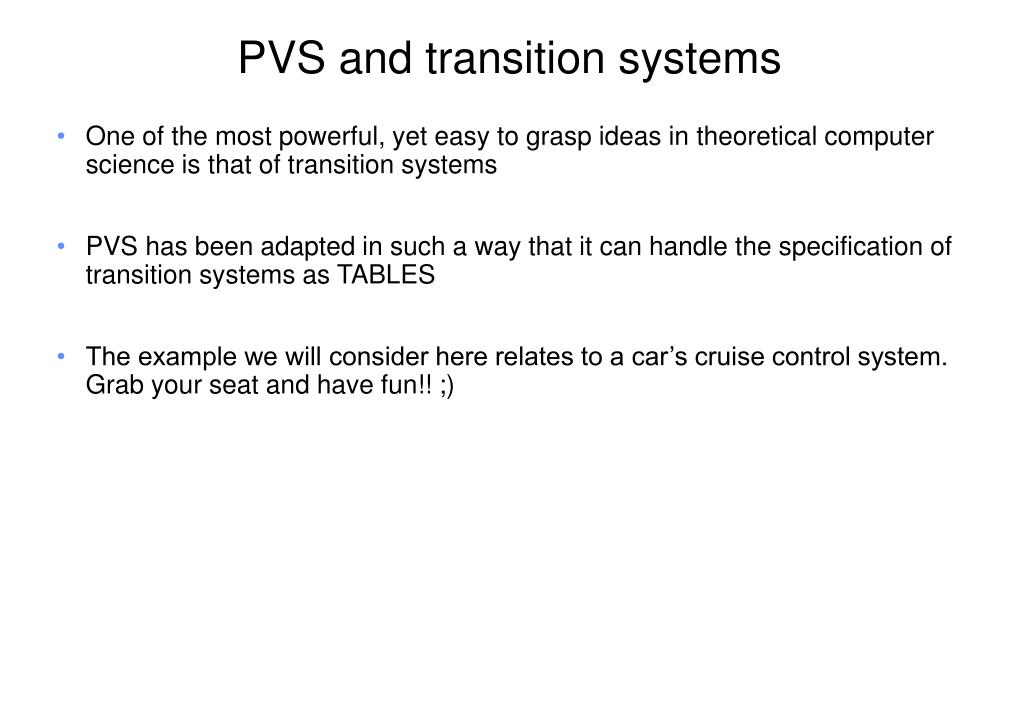

  23. PVS and transition systems • One of the most powerful, yet easy to grasp ideas in theoretical computer science is that of transition systems • PVS has been adapted in such a way that it can handle the specification of transition systems as TABLES • The example we will consider here relates to a car’s cruise control system. Grab your seat and have fun!! ;)

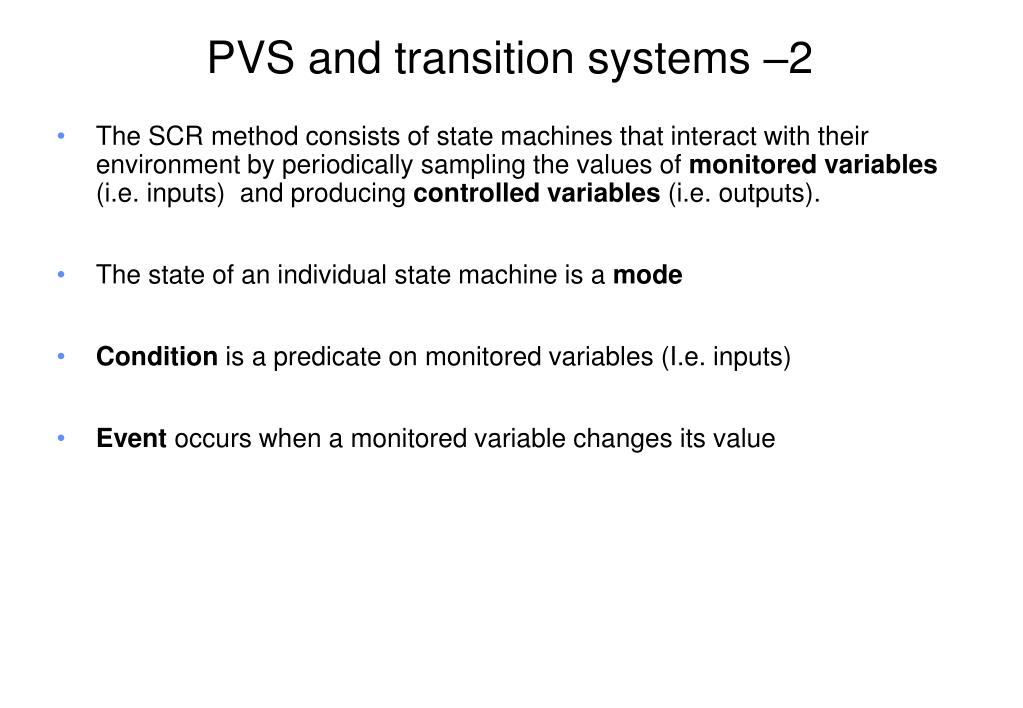

  24. PVS and transition systems –2 • The SCR method consists of state machines that interact with their environment by periodically sampling the values of monitoredvariables (i.e. inputs) and producing controlled variables (i.e. outputs). • The state of an individual state machine is a mode • Condition is a predicate on monitored variables (I.e. inputs) • Event occurs when a monitored variable changes its value

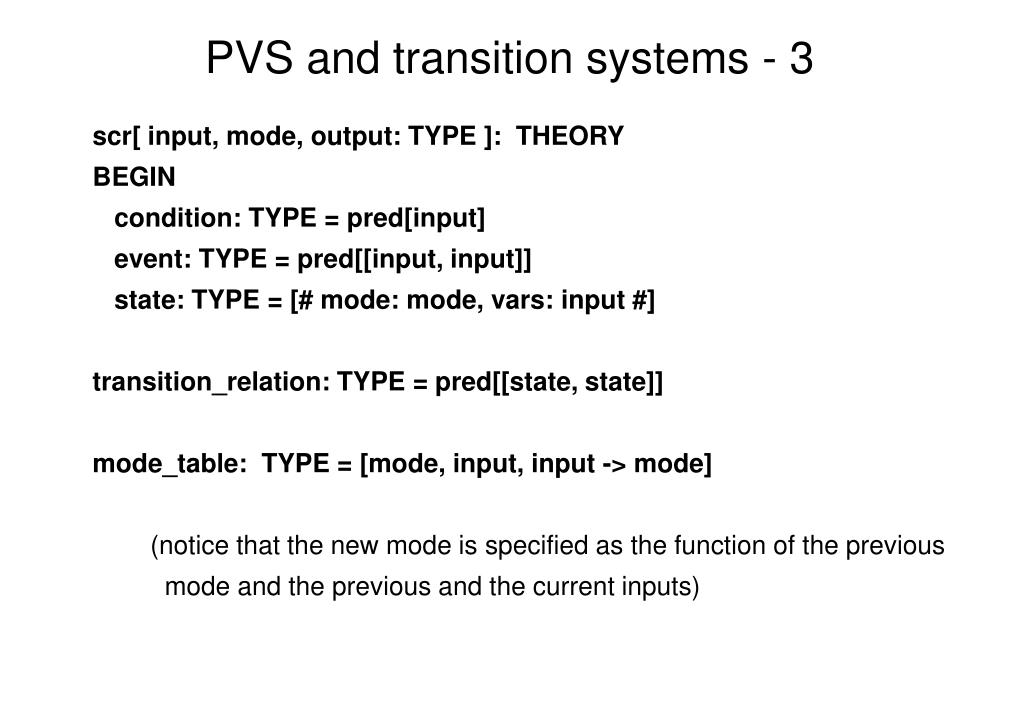

  25. PVS and transition systems - 3 scr[ input, mode, output: TYPE ]: THEORY BEGIN condition: TYPE = pred[input] event: TYPE = pred[[input, input]] state: TYPE = [# mode: mode, vars: input #] transition_relation: TYPE = pred[[state, state]] mode_table: TYPE = [mode, input, input -> mode] (notice that the new mode is specified as the function of the previous mode and the previous and the current inputs)

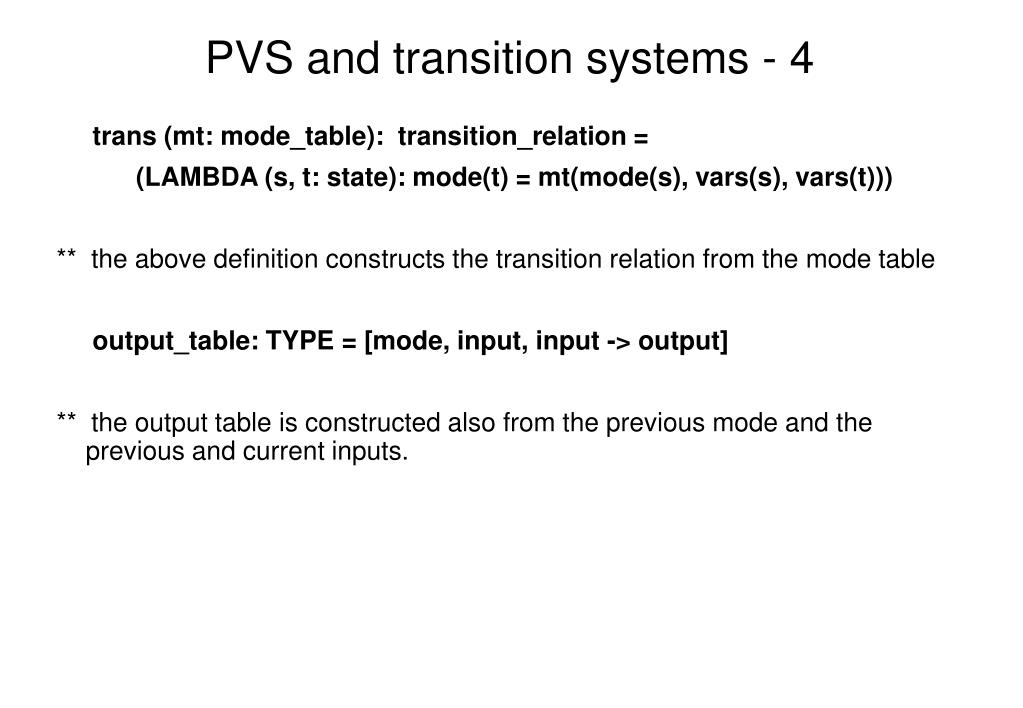

  26. PVS and transition systems - 4 trans (mt: mode_table): transition_relation = (LAMBDA (s, t: state): mode(t) = mt(mode(s), vars(s), vars(t))) ** the above definition constructs the transition relation from the mode table output_table: TYPE = [mode, input, input -> output] ** the output table is constructed also from the previous mode and the previous and current inputs.

  27. PVS and transition systems - 5 The next task is to define what event constructors are event_constructor: TYPE = [condition -> event] EC: TYPE = event_constructor p, q: VAR input P: VAR condition atT(P)(p, q): bool = NOT P(p) & P(q) atF(P)(p, q): bool = P(p) & NOT P(q) T(P)(p, q): bool = P(p) & P(q) F(P)(p, q): bool = NOT P(p) & NOT P(q) dc(P)(p, q): bool = true

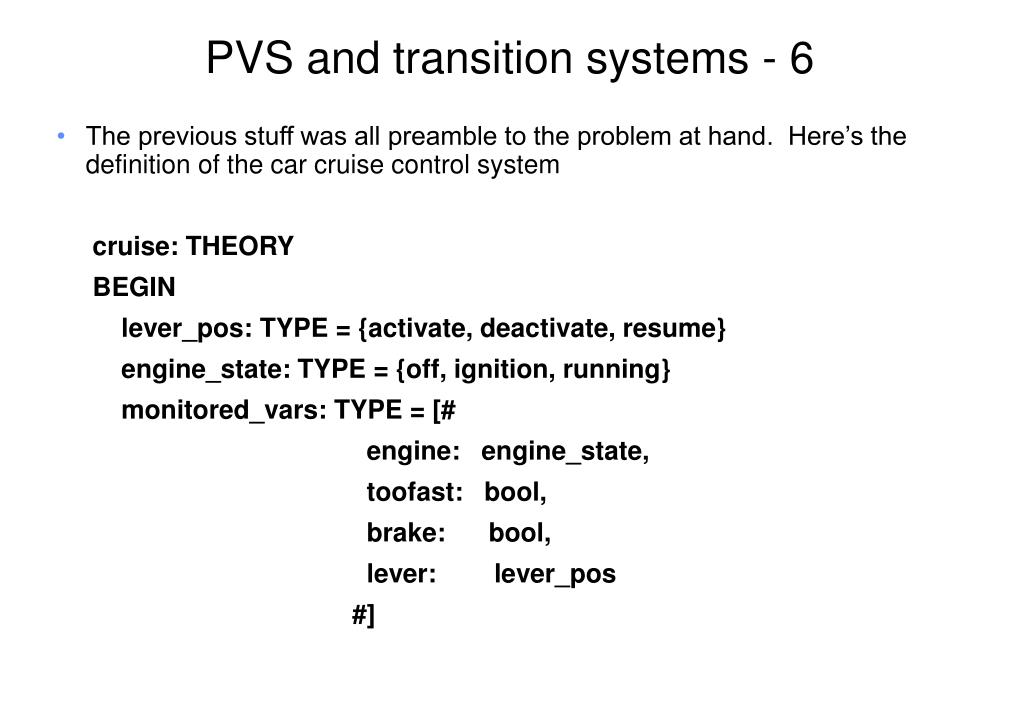

  28. PVS and transition systems - 6 • The previous stuff was all preamble to the problem at hand. Here’s the definition of the car cruise control system cruise: THEORY BEGIN lever_pos: TYPE = {activate, deactivate, resume} engine_state: TYPE = {off, ignition, running} monitored_vars: TYPE = [# engine: engine_state, toofast: bool, brake: bool, lever: lever_pos #]

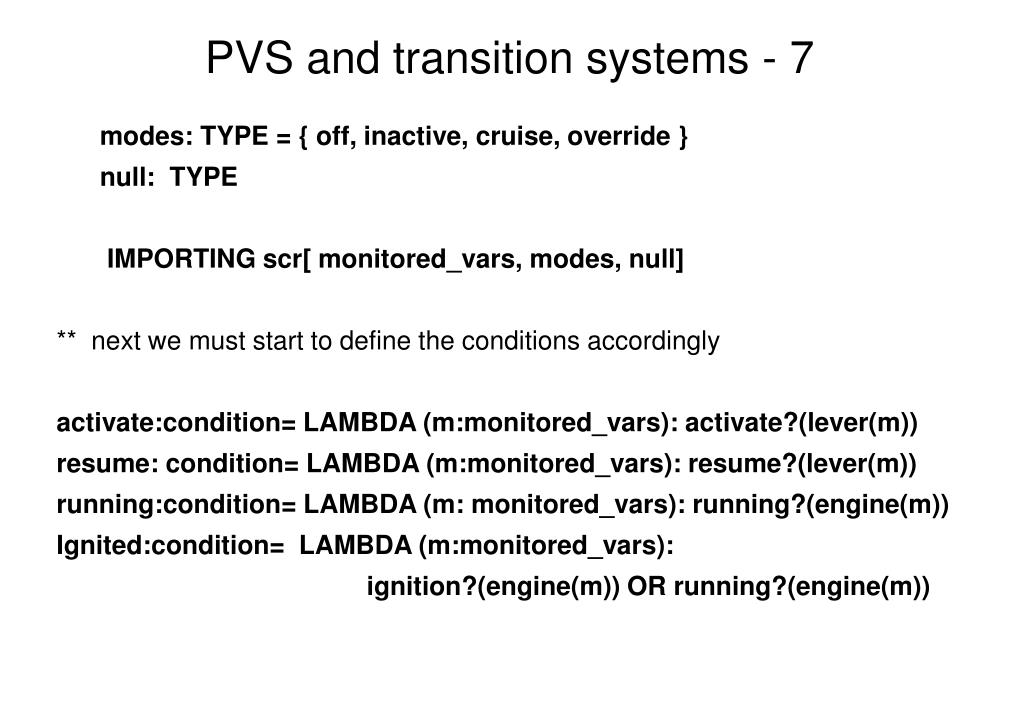

  29. PVS and transition systems - 7 modes: TYPE = { off, inactive, cruise, override } null: TYPE IMPORTING scr[ monitored_vars, modes, null] ** next we must start to define the conditions accordingly activate:condition= LAMBDA (m:monitored_vars): activate?(lever(m)) resume: condition= LAMBDA (m:monitored_vars): resume?(lever(m)) running:condition= LAMBDA (m: monitored_vars): running?(engine(m)) Ignited:condition= LAMBDA (m:monitored_vars): ignition?(engine(m)) OR running?(engine(m))

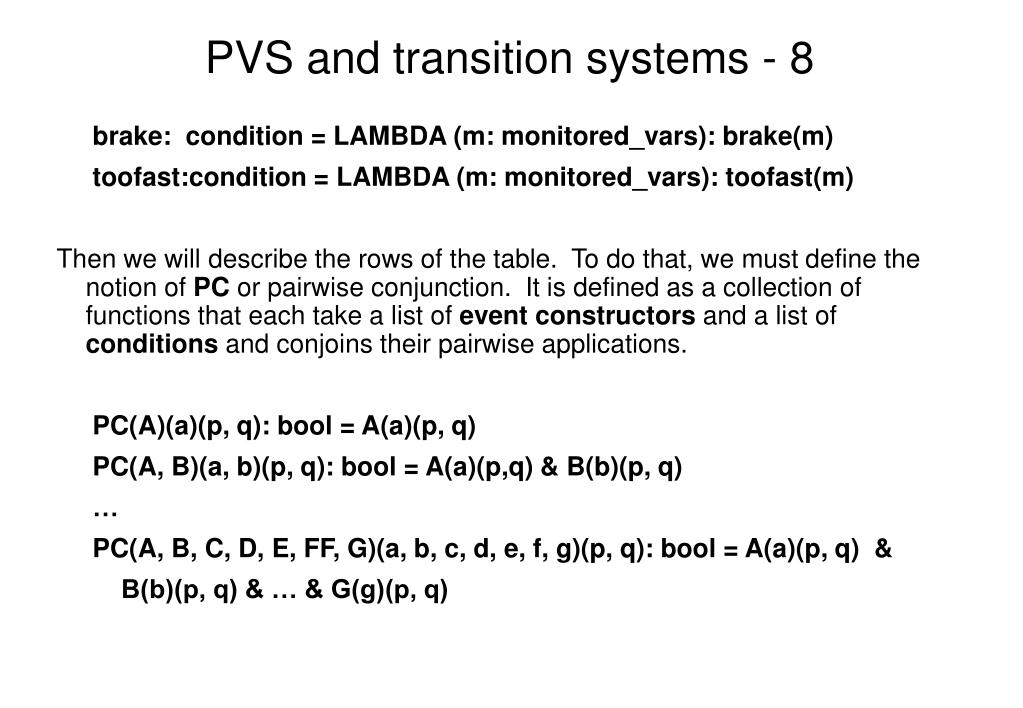

  30. PVS and transition systems - 8 brake: condition = LAMBDA (m: monitored_vars): brake(m) toofast:condition = LAMBDA (m: monitored_vars): toofast(m) Then we will describe the rows of the table. To do that, we must define the notion of PC or pairwise conjunction. It is defined as a collection of functions that each take a list of event constructors and a list of conditions and conjoins their pairwise applications. PC(A)(a)(p, q): bool = A(a)(p, q) PC(A, B)(a, b)(p, q): bool = A(a)(p,q) & B(b)(p, q) … PC(A, B, C, D, E, FF, G)(a, b, c, d, e, f, g)(p, q): bool = A(a)(p, q) & B(b)(p, q) & … & G(g)(p, q)

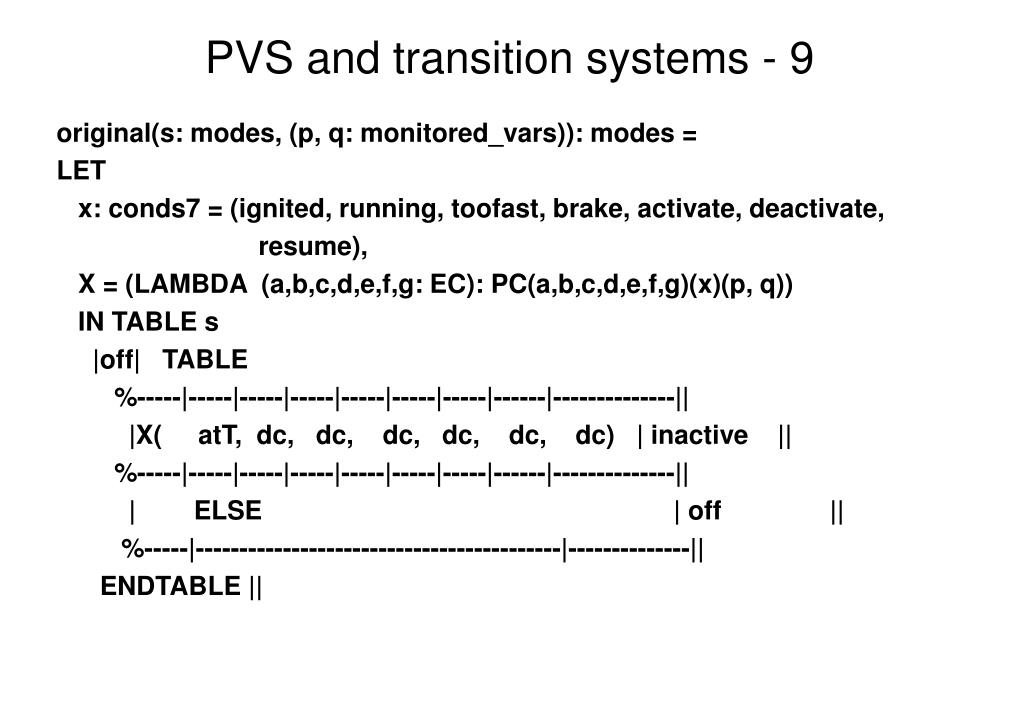

  31. PVS and transition systems - 9 original(s: modes, (p, q: monitored_vars)): modes = LET x: conds7 = (ignited, running, toofast, brake, activate, deactivate, resume), X = (LAMBDA (a,b,c,d,e,f,g: EC): PC(a,b,c,d,e,f,g)(x)(p, q)) IN TABLE s |off| TABLE %-----|-----|-----|-----|-----|-----|-----|------|--------------|| |X( atT, dc, dc, dc, dc, dc, dc) | inactive || %-----|-----|-----|-----|-----|-----|-----|------|--------------|| | ELSE | off || %-----|------------------------------------------|--------------|| ENDTABLE ||

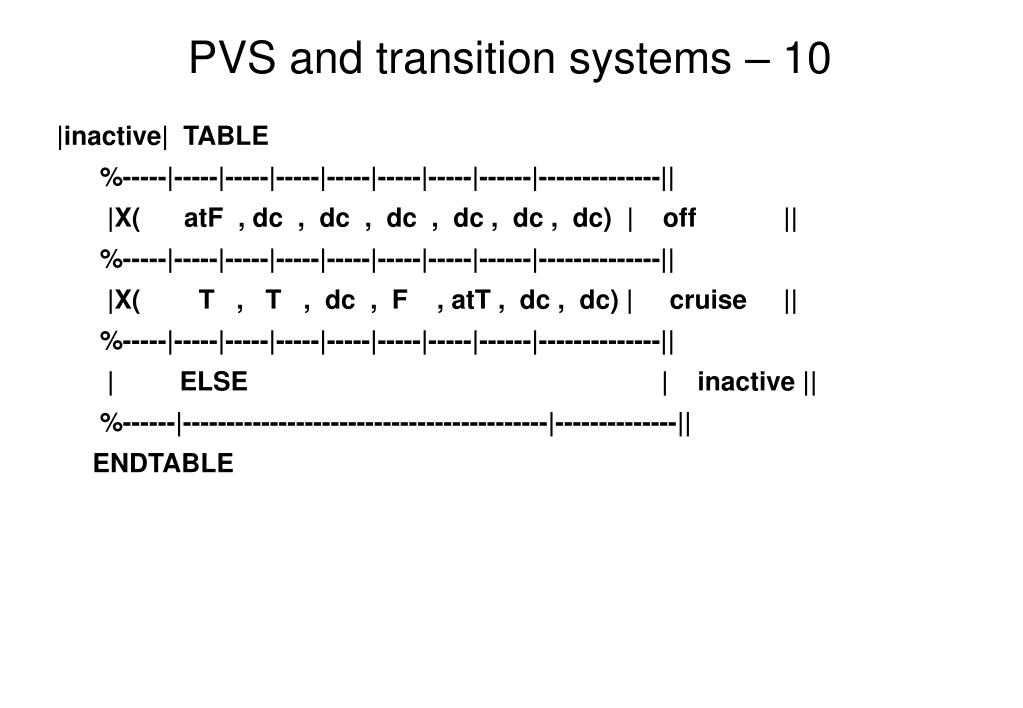

  32. PVS and transition systems – 10 |inactive| TABLE %-----|-----|-----|-----|-----|-----|-----|------|--------------|| |X( atF , dc , dc , dc , dc , dc , dc) | off || %-----|-----|-----|-----|-----|-----|-----|------|--------------|| |X( T , T , dc , F , atT , dc , dc) | cruise || %-----|-----|-----|-----|-----|-----|-----|------|--------------|| | ELSE | inactive || %------|------------------------------------------|--------------|| ENDTABLE

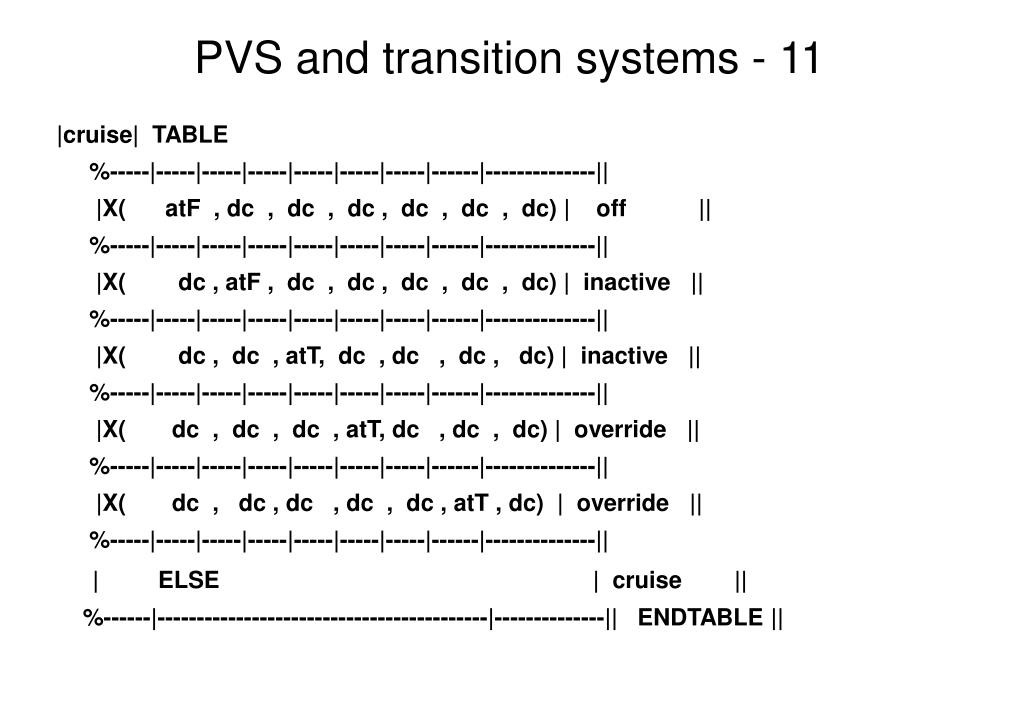

  33. PVS and transition systems - 11 |cruise| TABLE %-----|-----|-----|-----|-----|-----|-----|------|--------------|| |X( atF , dc , dc , dc , dc , dc , dc) | off || %-----|-----|-----|-----|-----|-----|-----|------|--------------|| |X( dc , atF , dc , dc , dc , dc , dc) | inactive || %-----|-----|-----|-----|-----|-----|-----|------|--------------|| |X( dc , dc , atT, dc , dc , dc , dc) | inactive || %-----|-----|-----|-----|-----|-----|-----|------|--------------|| |X( dc , dc , dc , atT, dc , dc , dc) | override || %-----|-----|-----|-----|-----|-----|-----|------|--------------|| |X( dc , dc , dc , dc , dc , atT , dc) | override || %-----|-----|-----|-----|-----|-----|-----|------|--------------|| | ELSE | cruise || %------|------------------------------------------|--------------|| ENDTABLE ||

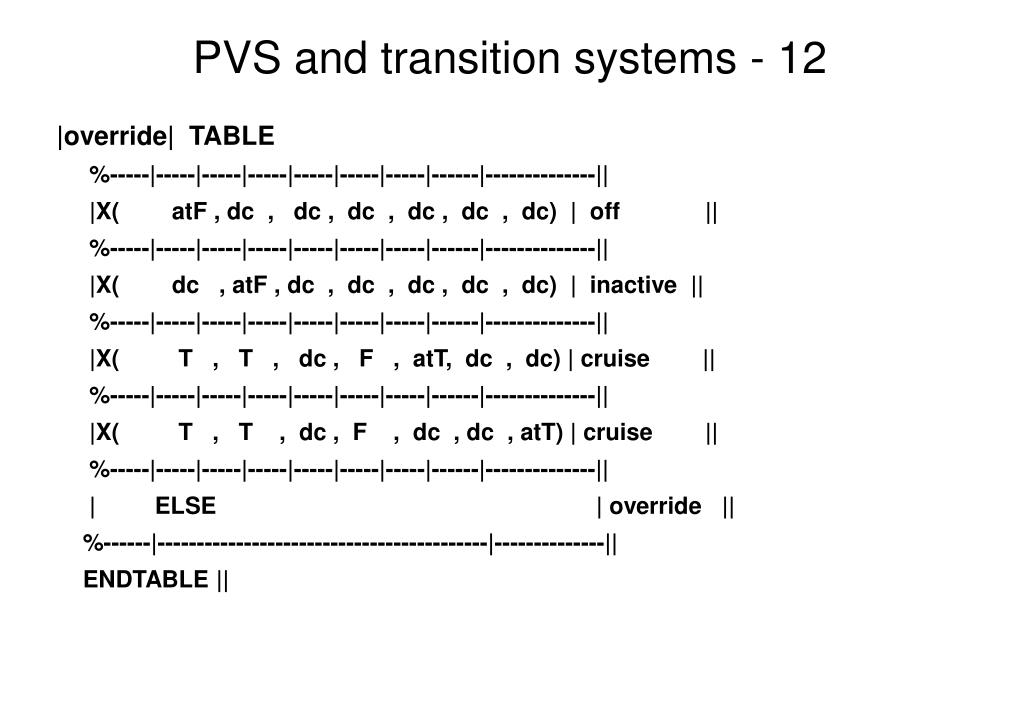

  34. PVS and transition systems - 12 |override| TABLE %-----|-----|-----|-----|-----|-----|-----|------|--------------|| |X( atF , dc , dc , dc , dc , dc , dc) | off || %-----|-----|-----|-----|-----|-----|-----|------|--------------|| |X( dc , atF , dc , dc , dc , dc , dc) | inactive || %-----|-----|-----|-----|-----|-----|-----|------|--------------|| |X( T , T , dc , F , atT, dc , dc) | cruise || %-----|-----|-----|-----|-----|-----|-----|------|--------------|| |X( T , T , dc , F , dc , dc , atT) | cruise || %-----|-----|-----|-----|-----|-----|-----|------|--------------|| | ELSE | override || %------|------------------------------------------|--------------|| ENDTABLE ||

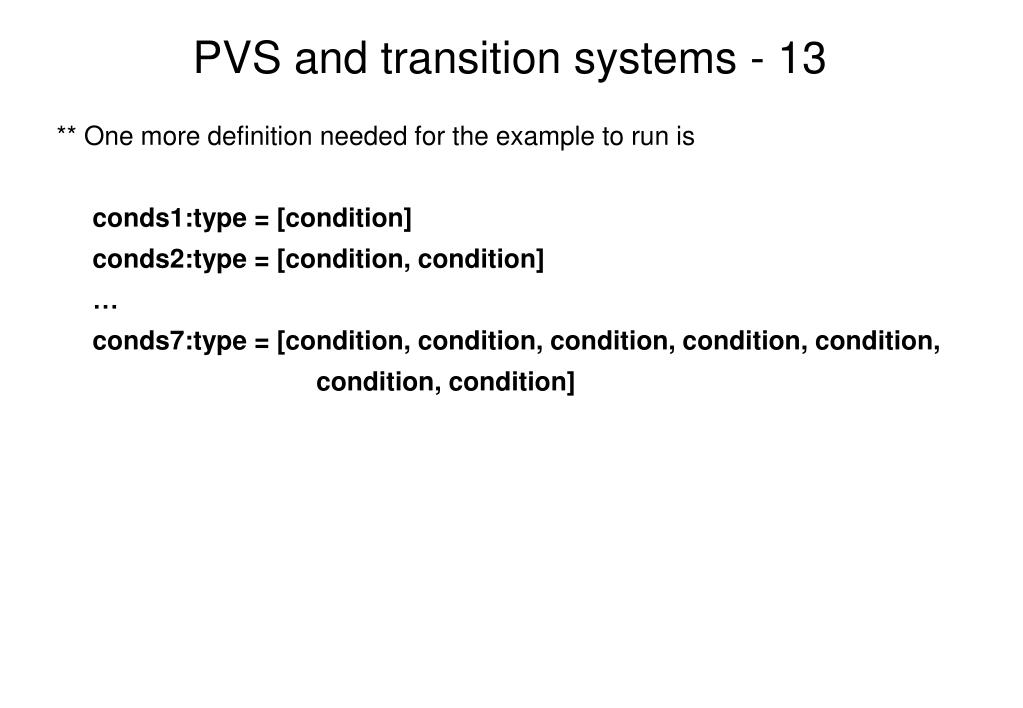

  35. PVS and transition systems - 13 ** One more definition needed for the example to run is conds1:type = [condition] conds2:type = [condition, condition] … conds7:type = [condition, condition, condition, condition, condition, condition, condition]

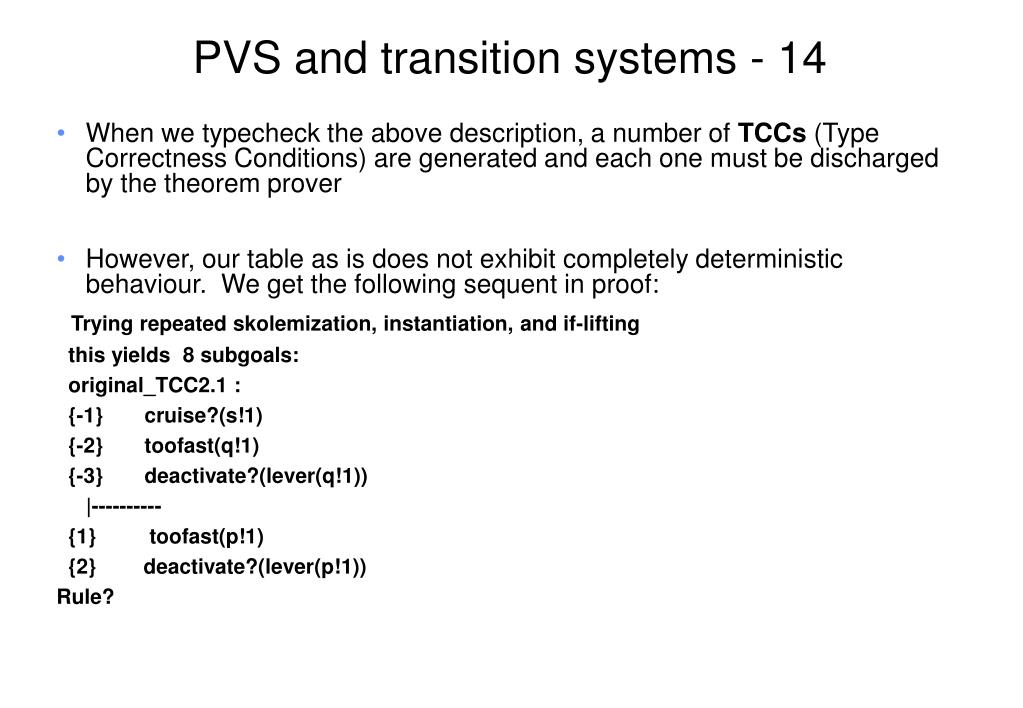

  36. PVS and transition systems - 14 • When we typecheck the above description, a number of TCCs (Type Correctness Conditions) are generated and each one must be discharged by the theorem prover • However, our table as is does not exhibit completely deterministic behaviour. We get the following sequent in proof: Trying repeated skolemization, instantiation, and if-lifting this yields 8 subgoals: original_TCC2.1 : {-1} cruise?(s!1) {-2} toofast(q!1) {-3} deactivate?(lever(q!1)) |---------- {1} toofast(p!1) {2} deactivate?(lever(p!1)) Rule?

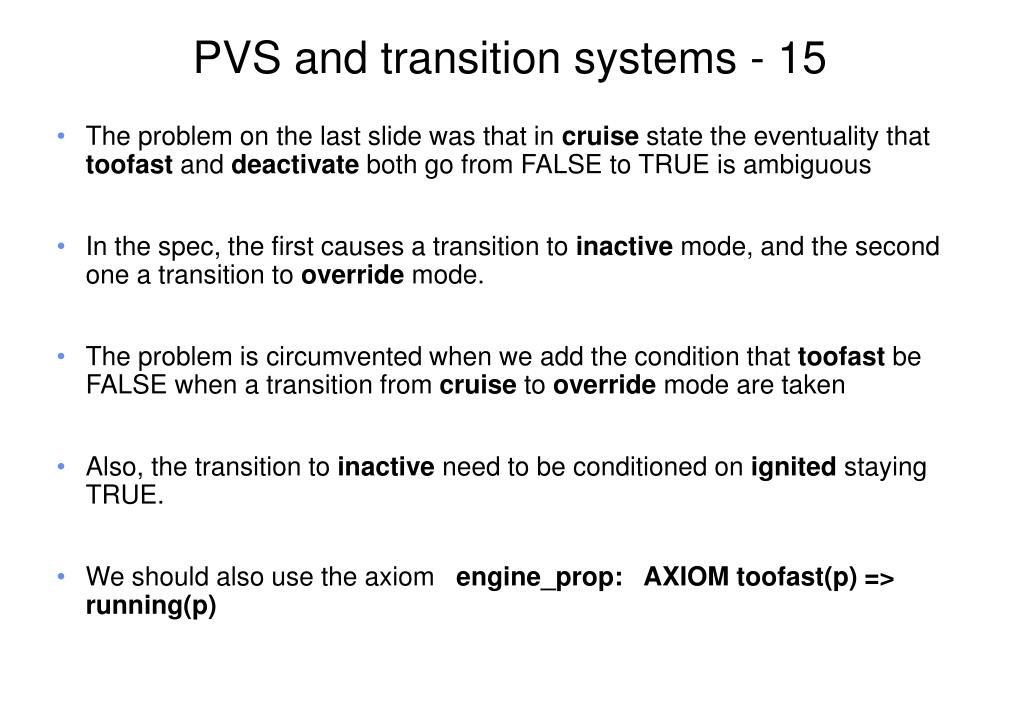

  37. PVS and transition systems - 15 • The problem on the last slide was that in cruise state the eventuality that toofast and deactivate both go from FALSE to TRUE is ambiguous • In the spec, the first causes a transition to inactive mode, and the second one a transition to override mode. • The problem is circumvented when we add the condition that toofast be FALSE when a transition from cruise to override mode are taken • Also, the transition to inactive need to be conditioned on ignited staying TRUE. • We should also use the axiom engine_prop: AXIOM toofast(p) => running(p)

  38. PVS and transition systems - 16 • Once these changes are made, the TCCs may be proven by (then (grind)(lemma “engine_prop”)(grind :if-match all)) • Once the TCCs have been discharged by PVS, we know that our resulting table is deterministic. • 16 slides to say this simple thing !! ? !! I take the blame, alright.

  39. Conclusion • Theorem proving is much more labour intensive than model checking • However, theorem proving provides the verification engineer with a way to attack the infinite by e.g. induction axioms and all theorems from set theory, and natural numbers. • I warmly suggest that you take a look at the web pages of PVS and start to learn it while you study. You never know, after a couple of years, people who can do theorem proving might be the hottest studs in the job market !
