  1. ELECTRONIC LOCK 1

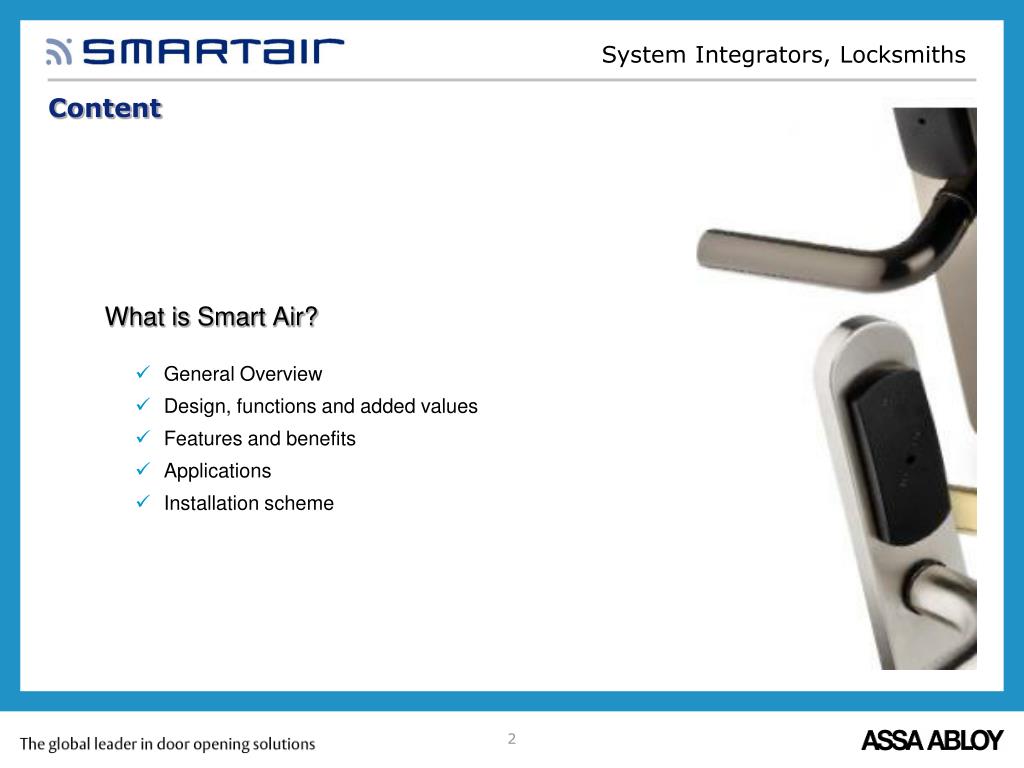

  2. System Integrators, Locksmiths Content WhatisSmartAir? • GeneralOverview • Design, functionsandaddedvalues • Featuresandbenefits • Applications • Installationscheme 2

  3. System Integrators, Locksmiths WhatisSmartAir? • It´s autonomy accesscontrol systém which use RFID • technology 13,56 MHz integratedintothe front escutcheon • Plate andbatterypowered. Itcanoperate in 3 modes: • 1/ StandAlone • 2/ Offline • 3/ Update on Card (UoC) • Benefits: • theelectronicpartsintegratedintothe front andbackshield • batteryoperation –no cables, no leadcovers – easyinstallation • idealfor use with panic function mechanical locks • user friendlyproduct • available in DIN andScandinavianrange, differentdistancesand • theothers

  4. System Integrators, Locksmiths ELECTRONIC LOCK GeneralOverview Identification Technology Mifare 13,56MHz This technology offers: • Biggerinformationcapacityand data protection • Fastertransmission speed • Data encryption • Universalapplications – wedingmachines, paycards, accesscards, etc. • Contactless • Higherrealibility • As identification part can be used card, keytag, handrings, etc. • Possibility to accomodate different technologies like magstripe, etc. kontaktní čip, apod. • Very high mechanical and weather resistance. Supported Technologies: • Mifare (ISO 14443A) • ST Microelectronics (ISO 15693) 4

  5. System Integrators, Locksmiths ELECTRONIC LOCK Design, functionsandaddedvalues Electromechanicaloperation Handle Proximity Card (MIFARE) 5

  6. System Integrators, Locksmiths ELECTRONIC LOCK Design, functionsandaddedvalues Design andfunction • narrow design for easy installation on various types of doors (incl. profile doors) • Wide range of designs,colours and various compatible locks • All access data stored in back part – • data physically secured SecurityandComfort • Installationwithoutcablesandpowersupplies – fullbatteryoperation • Allelectromechanicalandelectronicdevices are placed in backsideshield, onlyreaderheadisplacedfromthe front side – burglaryresistance • Outside handle ismovement free evenifthelockisblocked (Scandinaviantypes has deadboltprojectionactionfeature) • Smart Airiscompatiblewithanycylinders – emergencyopening. 6

  7. System Integrators, Locksmiths ELECTRONIC LOCK Design, functionsandaddedvalues AvailableDesigns: • Versions: • Long plate • Short plate - rossete handle and cylinder cover • Covers: • Standard – for interior installation /clutch made from Ferrum • Extreme – for exterior installation (water resistant) / clutchmade from stainless stell with washer • Surface fininshes: PVD Polish Brass Antique Brass Stainless Steel PVD Satin Brass 7

  8. System Integrators, Locksmiths ELECTRONIC LOCK Design, functionsandaddedvalues: AvailableDesigns: Short Plate withcylinder Long Plate without cylinder Long Plate with cylinder Short Plate withoutcylinder Long Plate withhiddencylinder 8

  9. System Integrators, Locksmiths ELECTRONIC LOCK Design, functionsandaddedvalues: Handle Designs: Sena Xara Zafira Pomo Vector U-shape handle foremergencyexitsacc. to EN179 9

  10. System Integrators, Locksmiths ELECTRONIC LOCK FeaturesandBenefits Function WhatisElectronicPrivacy? When the lock is locked from inside, electronic privacy is active. Opening is possible only with authorization card - green and red LED is lighting together when electronic privacy is active and card present. Electronic privacy is optional Electronic privacy without cylinder Electronic privacy with cylinder and thumbturn 10

  11. System Integrators, Locksmiths ELECTRONIC LOCK • Everythingundercontrol • Individual locking planforeach user • Limited accessaccordingtimezones • Cancellostor stolen credentials • Identifyallandevery user • Get Audit trails Features Readingmodul • Identification technology: 13,56MHzforreadandwriteaccessofcontaclesscards - ISO 15693 orISO 14443 A (more common) • Reading distance: 10mm Control unit • EEPROMmemory (data protection when batteries depleted) • Up to 1.500 users and up to 1.000 events (Audit trail) • Reálný time clock and calendar - 14 time zones with 5 time periods each • Red and green warning LED • Operation modes: Passage (free way), First User, Standard, Double User Battery module: • Type of battery:3 x 1,5V LR03 AAA (alkaline batteries) • Estimated battery life: More than30.000 operations (3 -4 years) 11

  12. System Integrators, Locksmiths ELECTRONIC LOCK Applications • TS10 TS1000 TS1000 UoC • (Stand Alone) (Off Line) (Update on Card) • Licence Licence Licence • ID card reading • – no sector Sector reading– user can choose Sector reading– user can choose • (Software + Data + Key) (Software + Data + Key) • - Portable ProgrammerPortable Programmer • - EncoderEncoder • - - Updater • CredentialsCredentialsCredentials • Same HW for all management systems. • Possibility to upgrade Stand Alone to OffLine and/or Update on Card without removing the lock from the door. 12

  13. System Integrators, Locksmiths ELECTRONIC LOCK Applications: StandAlone - TS10 Kitcontents: • Licence Card –ProgrammingCard-Mifare 1k • 25pcsofMifare user cards • Emergencybatterypack Programmingisprovidedwithpresentingof Licence Cardandafterthe user cards. 13

  14. System Integrators, Locksmiths ELECTRONIC LOCK Applications: StandAlone - TS10 User registration: 1. Presenttheprogrammingcard (redcard) 2. Presentuser´s card/cardsforforregistrationintolockmemory 3. Closetheprogrammingsequency – presentprogrammingcardagain(programmingsequencyisautamticallyclosedafter10sof no activity) 14

  15. System Integrators, Locksmiths ELECTRONIC LOCK Applications: StandAlone - TS10 User erasing: 1. Presenttheprogrammingcard (redcard) 2. Presentuser´s card/cardsforforerasingfromlockmemory 3. Closetheprogrammingsequency – presentprogrammingcardagain(programmingsequencyisautamticallyclosedafter10sof no activity) 15

  16. System Integrators, Locksmiths ELECTRONIC LOCK Applications: StandAlone - TS10 LockMemoryDelete: 1., 2. and3. Present3xprogrammingcard to deletethelockmemory. 16

  17. System Integrators, Locksmiths ELECTRONIC LOCK Applications: StandAlone - TS10 Emergencyopeningwithbatterypack: • 1. Whenoperatingbatteries are depleted - LED isblinkingafter user cardpresenting • 2. Connectthebatterypackthrough jack plug in intotheantennaconnector • 3. Present user card, open thedoorandreplacetheoperationbatteries in thelockshield 17

  18. System Integrators, Locksmiths ELECTRONIC LOCK Easy to install and easy to use • Step 1 Creation of the locking plan in the computer. • Step 2 Download the information to the Portable Programmer. • Step 3 Program the locks with the Portable Programmer. • Step 4 Encode the credentials with the Smartair encoder. Applications: Off line / Update on Card Licence • TS 1000 Software • Program and locking planmaintanance - locking plan (DATA) - each locking plan has unique systém code • Autorizationkey - encryptedauthorizationkeywwithistallation systém code Portable programmer • Dowlnloadanduploadof data intoandfromthe locks Encoder: • cards, keytags, etc. Updater (Update on Card System) • On line wallreader • Automaticinformation update - Audit trail - Modifications in Matrix 18

  19. System Integrators, Locksmiths ELECTRONIC LOCK Off Line System Components TS1000 Software PP Encoder Electronic Locks Credentials (Mifare Classic)

  20. System Integrators, Locksmiths ELECTRONIC LOCK Off Line System Data Software Electronic Lock System Code User ID / Time Zone / Issue Date & Time Time Zones Holidays DST Clock State Table Required Grant Name Audit Trail System Code Users Doors Time Zones Matrix State Tables Grant Names Credential System Code User ID Activation / Expiration Date & Time Issue Date & Time Given Grant Names

  21. System Integrators, Locksmiths ELECTRONIC LOCK Off Line System System Code Users User Name Group Expiration and Activation Dates Doors Door Name Group Time Zones (Optional) 14 Time Zones / 5 Periods of Time Calendar (Holidays) / DST Special Functions Grant Names State Tables Software

  22. System Integrators, Locksmiths ELECTRONIC LOCK Off Line System Matrix Who – Where - When Software

  23. System Integrators, Locksmiths ELECTRONIC LOCK Off Line System TS1000 Software Portable Programmer Electronic Lock System Code Matrix User ID1; Time Zone; Card’s Issued Date & Time User ID2; Time Zone; Card’s Issued Date & Time User ID3; Time Zone; Card’s Issued Date & Time (Up to 1.500) Holiday 1 Holiday 2 (Up to 365) Time Zone 1 Time Zone 2 Time Zone 3 Time Zone 4 (Up to 14) DST 1 DST 2 Electronic Locks Required Grant Clock (Date & Time) State Table Audit Trail (Up to 1.000 events) Operations with the Portable Programmer Initialise First Programming Update Download modifications in the locking plan Audit Trail Get the Audit Trail Stored in the lock Open Emergency Opening

  24. System Integrators, Locksmiths ELECTRONIC LOCK Off Line System TS1000 Software Encoder Credential (Mifare Classic) System Code User ID Activation Date & Time Expiration Date & Time Issued Date & Time Given Grant Names Credentials • Structure of credential • For off line application only 1 Sector is needed. • Sector Protection through Key A & Key B. • Multi-application : Sector selection in the TS1000 Software.

  25. System Integrators, Locksmiths ELECTRONIC LOCK Off Line System Elect. Lock TS1000 Software System Code User ID / TZ / Issue Date Time Zones Holidays DST Clock State Table Required Grant Name Audit Trail PP Encoder Software System Code Users Doors Time Zones Matrix State Tables Grant Names Architecture Credential System Code User ID Act. / Exp. Date Issue Date & Time Given Grant Names

  26. System Integrators, Locksmiths ELECTRONIC LOCK Update on Card On Line (TCP/IP) Elect. Lock TS1000 Software System Code User ID / TZ / Issue Date Time Zones Holidays DST Clock State Table Required Grant Name Audit Trail PP Encoder Updater Software System Code Users Doors Time Zones Matrix State Tables Grant Names Just adding the updater... Credential System Code User ID Act. / Exp. Date Issue Date & Time Given Grant Names

  27. System Integrators, Locksmiths ELECTRONIC LOCK Update on Card On Line (TCP/IP) TS1000 Software Updater Embedded PC (TCP/IP Connection) Reader Data on Credential Activation Date Expiration Date Given Grant Names Revalidation New feature to force the user to go to the Updater. Optional for each user. Revalidation Time defined for each user. ¡No need blacklist! PP Encoder Updater Software System Code Users Step 1 Credential System Code User ID Act. / Exp. Date Issue Date & Time Given Grant Names Revalidation

  28. System Integrators, Locksmiths ELECTRONIC LOCK Update on Card On Line (TCP/IP) Elect. Lock TS1000 Software System Code User ID / TZ / Issue Date Time Zones Holidays DST Clock State Table Required Grant Name Audit Trail Battery Status. PP Encoder Updater Audit Trail Get the User’s Audit Trail on the credential. Capacity depends on Mifare Card. Get the battery status on locks. Step 2 Credential Sector 2 User’s Audit Trail Battery Status Sector 1 System Code User ID Act. / Exp. Date Issue Date & Time Given Grant Names Revalidation

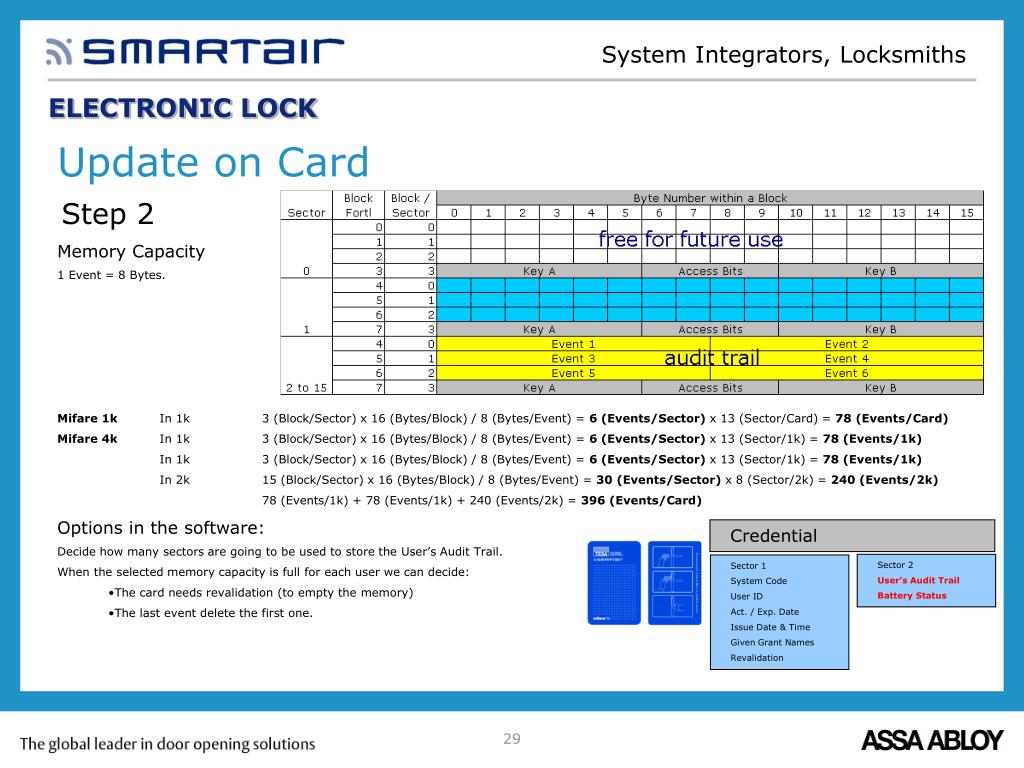

  29. System Integrators, Locksmiths ELECTRONIC LOCK • Memory Capacity • 1 Event = 8 Bytes. • Mifare 1k In 1k 3 (Block/Sector) x 16 (Bytes/Block) / 8 (Bytes/Event) = 6 (Events/Sector) x 13 (Sector/Card) = 78 (Events/Card) • Mifare 4k In 1k 3 (Block/Sector) x 16 (Bytes/Block) / 8 (Bytes/Event) = 6 (Events/Sector) x 13 (Sector/1k) = 78 (Events/1k) • In 1k 3 (Block/Sector) x 16 (Bytes/Block) / 8 (Bytes/Event) = 6 (Events/Sector) x 13 (Sector/1k) = 78 (Events/1k) • In 2k 15 (Block/Sector) x 16 (Bytes/Block) / 8 (Bytes/Event) = 30 (Events/Sector) x 8 (Sector/2k) = 240 (Events/2k) • 78 (Events/1k) + 78 (Events/1k) + 240 (Events/2k) = 396 (Events/Card) • Options in the software: • Decide how many sectors are going to be used to store the User’s Audit Trail. • When the selected memory capacity is full for each user we can decide: • The card needs revalidation (to empty the memory) • The last event delete the first one. Update on Card Step 2 Credential Sector 2 User’s Audit Trail Battery Status Sector 1 System Code User ID Act. / Exp. Date Issue Date & Time Given Grant Names Revalidation

  30. System Integrators, Locksmiths ELECTRONIC LOCK Update on Card On Line (TCP/IP) Elect. Lock TS1000 Software System Code User ID / TZ / Issue Date Time Zones Holidays DST Clock State Table Required Grant Name Audit Trail PP Encoder Updater Update Locks Update the user’s locking plan (Matrix) into the locks. Add new users. Step 3 1 Change Credential Sector 2 User’s Audit Trail Battery Status Sector 1 System Code User ID Act. / Exp. Date Issue Date & Time Given Grant Names Revalidation Modifications in Matrix

  31. System Integrators, Locksmiths Update on Card ELECTRONIC LOCK Step 3 Memory Capacity 1 Change requires 4 Bytes. Mifare 1k In 1k 3 (Block/Sector) x 16 (Bytes/Block) / 4 (Bytes/Change) = 12 (Change/Sector) x 13 (Sector/Card) =156 (Change/Card) Mifare 4k In 1k 3 (Block/Sector) x 16 (Bytes/Block) / 4 (Bytes/Change) = 12 (Change/Sector) x 13 (Sector/1k) = 156 (Change/1k) In 1k 3 (Block/Sector) x 16 (Bytes/Block) / 4 (Bytes/Change) = 12 (Change/Sector) x 13 (Sector/1k) = 156 (Change/1k) In 2k 15 (Block/sector) x 16 (Bytes/Block) / 4 (Bytes/Change) = 60 (Change/Sector) x 8 (Sector/2k) = 480 (Change/2k) 156 (Change/1k) + 156 (Change/1k) + 480 (Change/2k) = 792 (Change/Card) Options in the software Decide how many sectors are going to be used to update the locking plan in the locks. Credential Sector 2 User’s Audit Trail Battery Status Sector 1 System Code User ID Act. / Exp. Date Issue Date & Time Given Grant Names Revalidation Modifications in Matrix

  32. System Integrators, Locksmiths Update on Card ELECTRONIC LOCK Step 4 On Line (TCP/IP) Elect. Lock TS1000 Software System Code User ID / TZ / Issue Date Time Zones Holidays DST Clock State Table Required Grant Name Audit Trail PP Encoder Updater Update Locks (On study...) Update: Time Zones Calendar (Holidays & DST) State Table Required Grant Name Credential Sector 2 User’s Audit Trail Battery Status Sector 1 System Code User ID Act. / Exp. Date Issue Date & Time Given Grant Names Revalidation Modifications in Locks

  33. System Integrators, Locksmiths Update on Card ELECTRONIC LOCK Updater Door Control On Line (TCP/IP) TS1000 Software Blocking Device PP Encoder Embedded PC Phase 1 Embedded PC and reader in the same box. Door Control in another box. Reader Updater Door

  34. System Integrators, Locksmiths Update on Card ELECTRONIC LOCK Updater Updater Embedded PC On Line (TCP/IP) TS1000 Software Door Control Blocking Device PP Encoder Phase 2 Embedded PC and door control in the same box. Separate reader. Reader Door

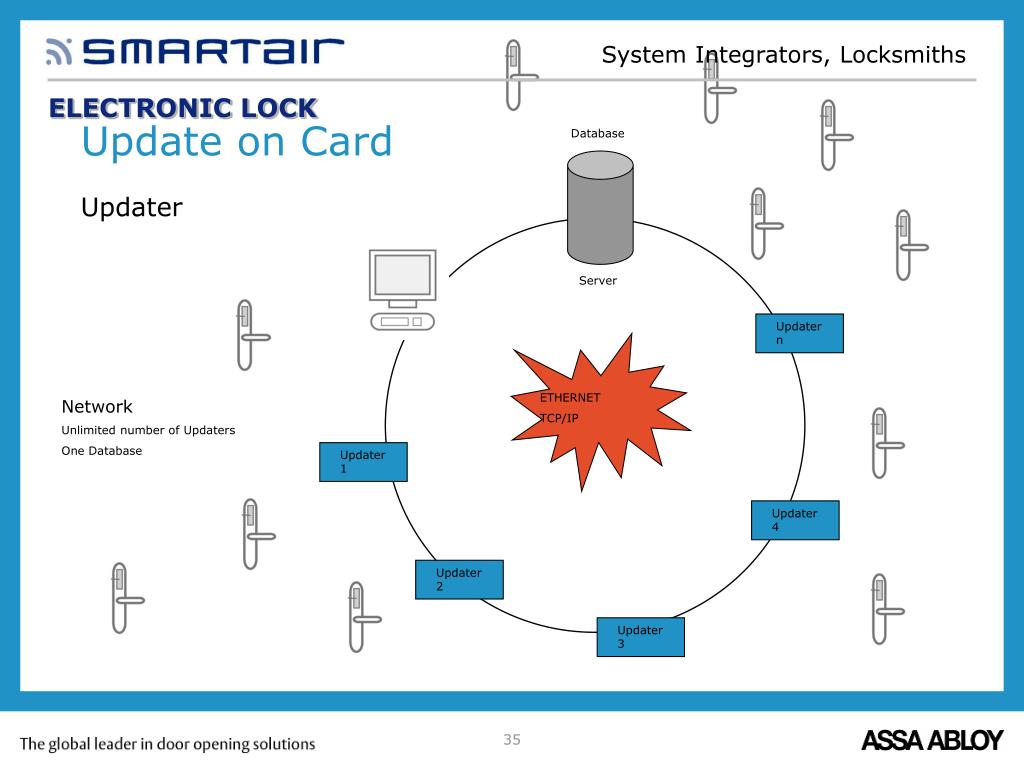

  35. System Integrators, Locksmiths Update on Card ELECTRONIC LOCK Database Updater Server Updater n ETHERNET TCP/IP Network Unlimited number of Updaters One Database Updater 1 Updater 4 Updater 2 Updater 3

  36. System Integrators, Locksmiths ELECTRONIC LOCK InstallationTemplate 36

  37. System Integrators, Locksmiths ELECTRONIC LOCK InstallationTemplate 37

  38. System Integrators, Locksmiths ELECTRONIC LOCK InstallationTemplate 38

  39. System Integrators, Locksmiths ELECTRONIC LOCK InstallationTemplate SmartAirshileds Lockmortise Doorwidth Outside shiled dimensions 40,5 x 281 x 10mm. Inside shield dimensions 40,5 x 281 x 21mm. Material Stainless Steel Compatible with DIN and Scandinavian locksin different distancies. • From 38mm to 110mm door width. • The follower lock will have different lengths acc. to the door width. See the XLS file. • It´mandatory to provide the dimensions X and Y. 39

  40. System Integrators, Locksmiths ELECTRONIC LOCK 40
