the global positioning system and other global navigation satellite systems

The Global Positioning System and Other Global Navigation Satellite Systems

July 19, 2006

Jason Y. Kim, Senior Advisor

National Space-Based Positioning, Navigation, and Timing (PNT) Coordination Office

Washington, D.C., USA

overview
Overview
  • Introduction
  • GPS Performance
  • Next-Generation GPS
  • Cooperation with Galileo
  • Cooperation with GLONASS
  • Other Systems
the global positioning system
The Global Positioning System
  • Baseline 24 satellite constellation in medium earth orbit
  • Global coverage, 24 hours a day, all weather conditions
  • Satellites broadcast precise time and orbit information on L-band radio frequencies
  • Two types of signals:
    • Standard (free of direct user fees)
    • Precise (U.S. and Allied military)
  • Three segments:
    • Space
    • Ground control
    • User equipment

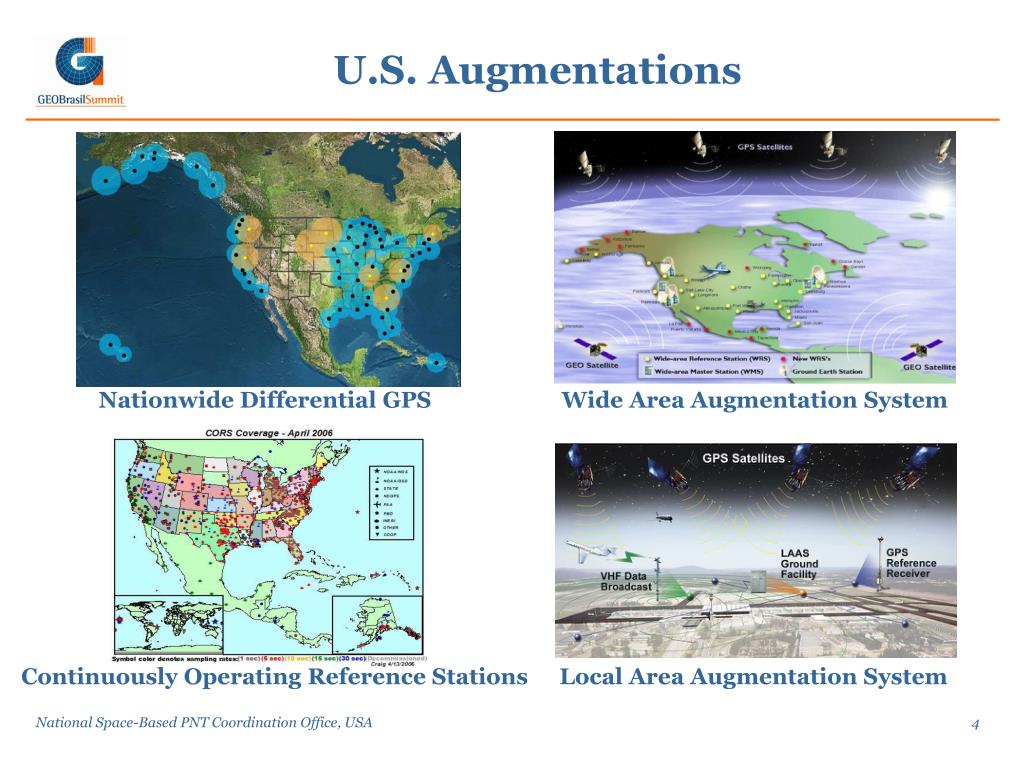

u s augmentations

Nationwide Differential GPS

Wide Area Augmentation System

Continuously Operating Reference Stations

Local Area Augmentation System

U.S. Augmentations

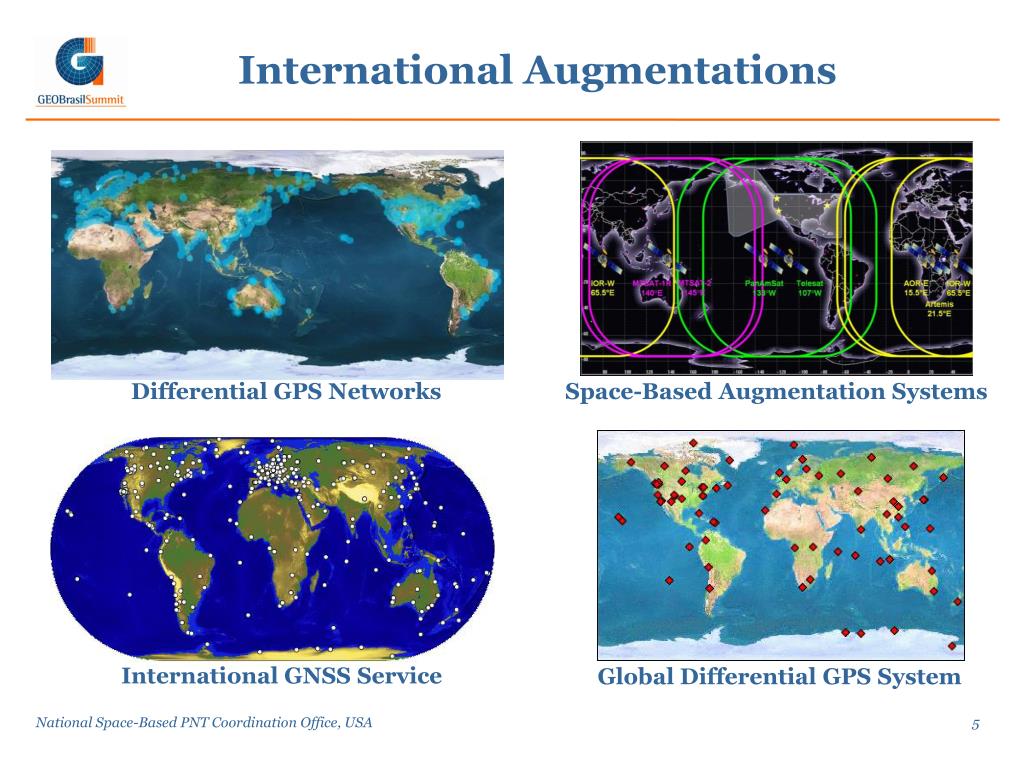

international augmentations

Differential GPS Networks

Space-Based Augmentation Systems

Global Differential GPS System

International GNSS Service

International Augmentations
gps is a global public service
GPS is a Global Public Service
  • Free access to civilian signals
    • One-way broadcast, like FM radio
  • Public domain documentation
    • Anyone can develop user equipment
  • Worldwide utility providing consistent, predictable, dependable performance
    • Critical component of global information infrastructure
  • Owned and operated by the U.S. Government
    • Paid for by U.S. taxpayers
    • Guided at a national level as multi-use asset
    • Acquired and operated by Air Force on behalf of USG

Available Now—Empowering the Future

organizational structure
Organizational Structure

WHITE HOUSE

Defense

Transportation

NATIONALSPACE-BASED PNT EXECUTIVE COMMITTEE

Co-Chairs: Defense, Transportation

State

ADVISORYBOARD

Sponsor: NASA

Commerce

Homeland Security

NASA

COORDINATIONOFFICE

Host: Commerce

Joint Chiefs of Staff

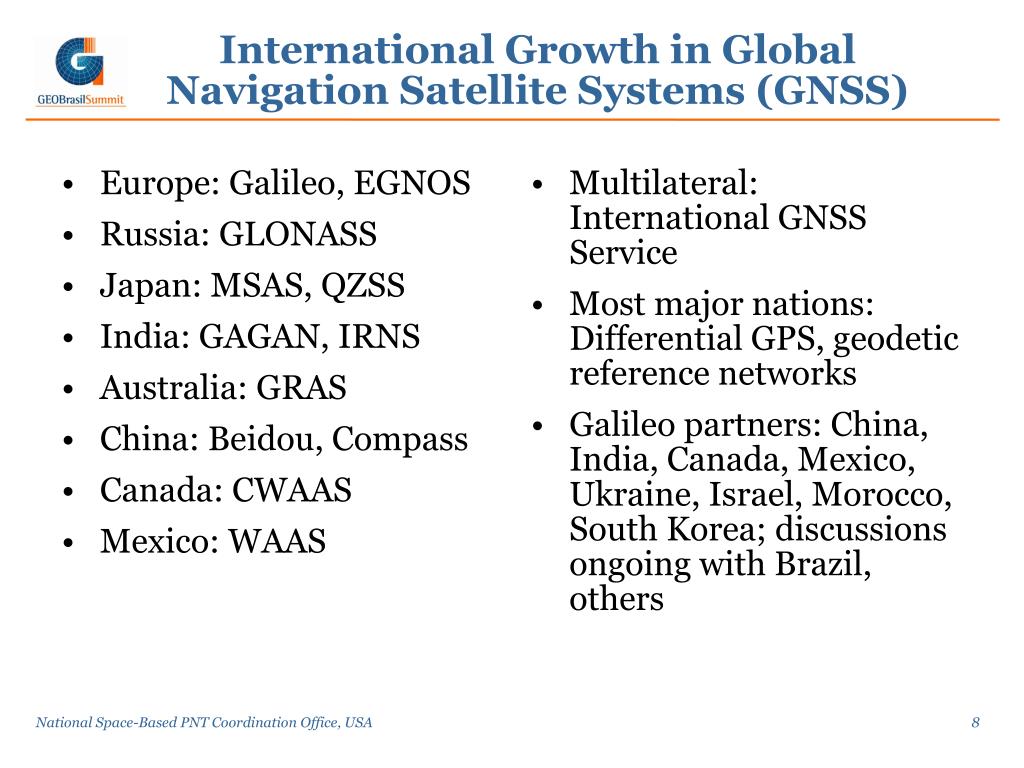

international growth in global navigation satellite systems gnss
Europe: Galileo, EGNOS

Russia: GLONASS

Japan: MSAS, QZSS

India: GAGAN, IRNS

Australia: GRAS

China: Beidou, Compass

Canada: CWAAS

Mexico: WAAS

Multilateral: International GNSS Service

Most major nations: Differential GPS, geodetic reference networks

Galileo partners: China, India, Canada, Mexico, Ukraine, Israel, Morocco, South Korea; discussions ongoing with Brazil, others

International Growth in Global Navigation Satellite Systems (GNSS)

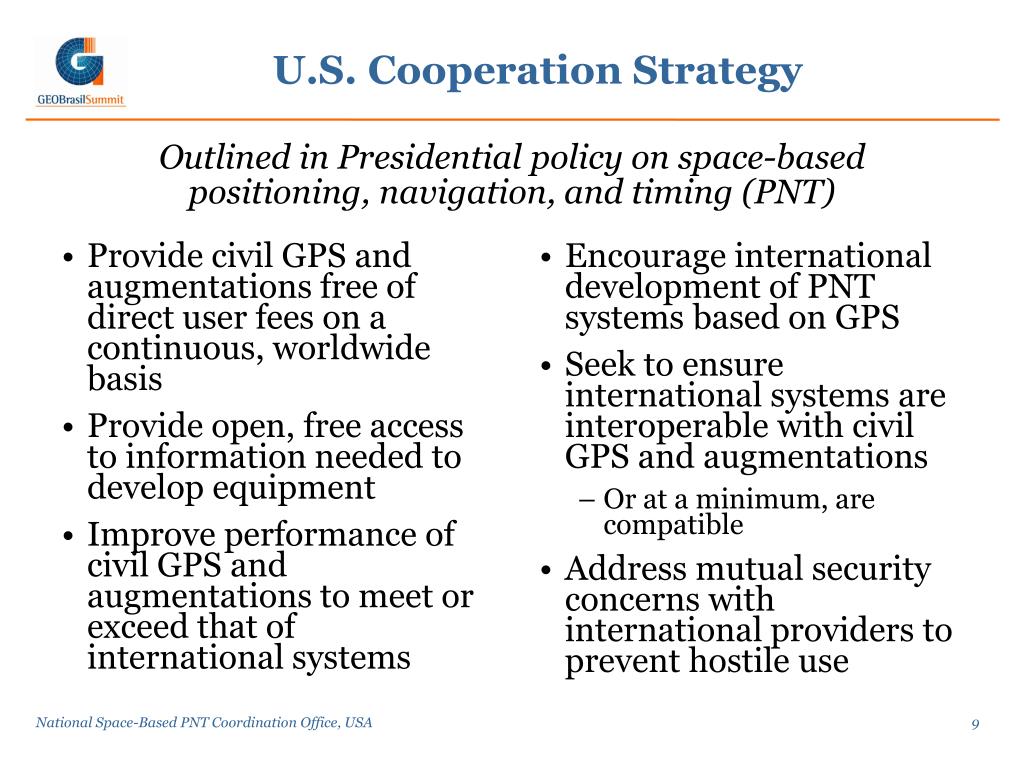

u s cooperation strategy
Provide civil GPS and augmentations free of direct user fees on a continuous, worldwide basis

Provide open, free access to information needed to develop equipment

Improve performance of civil GPS and augmentations to meet or exceed that of international systems

Encourage international development of PNT systems based on GPS

Seek to ensure international systems are interoperable with civil GPS and augmentations

Or at a minimum, are compatible

Address mutual security concerns with international providers to prevent hostile use

U.S. Cooperation Strategy

Outlined in Presidential policy on space-based positioning, navigation, and timing (PNT)

overview1
Overview
  • Introduction
  • GPS Performance
  • Next-Generation GPS
  • Cooperation with Galileo
  • Cooperation with GLONASS
  • Other Systems
constellation status

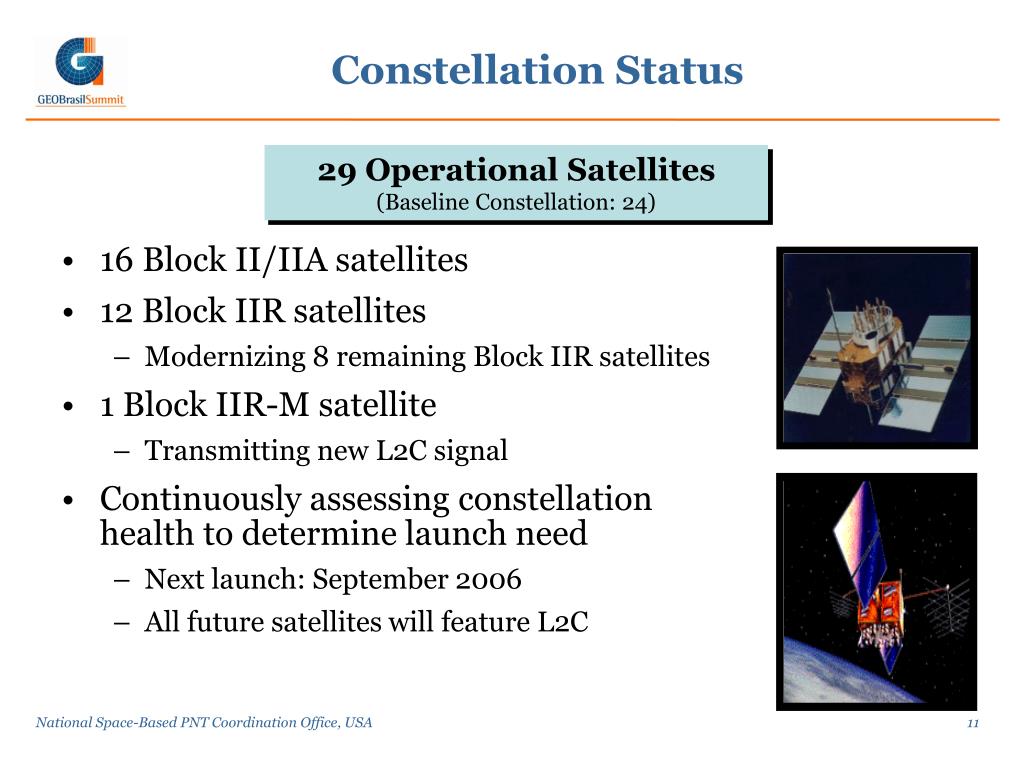

Constellation Status
  • 16 Block II/IIA satellites
  • 12 Block IIR satellites
    • Modernizing 8 remaining Block IIR satellites
  • 1 Block IIR-M satellite
    • Transmitting new L2C signal
  • Continuously assessing constellation health to determine launch need
    • Next launch: September 2006
    • All future satellites will feature L2C

29 Operational Satellites

(Baseline Constellation: 24)

civil gps performance standards
Civil GPS Performance Standards

U.S. commitments to civil GPS performance are documented in the GPS Standard Positioning Service Performance Standard (2001)

“In support of the service availability standard, 24 operational satellites must be available on orbit with 0.95 probability (averaged over any day). At least 21 satellites in the 24 nominal plane/slot positions must be set healthy and transmitting a navigation signal with 0.98 probability (yearly averaged).”

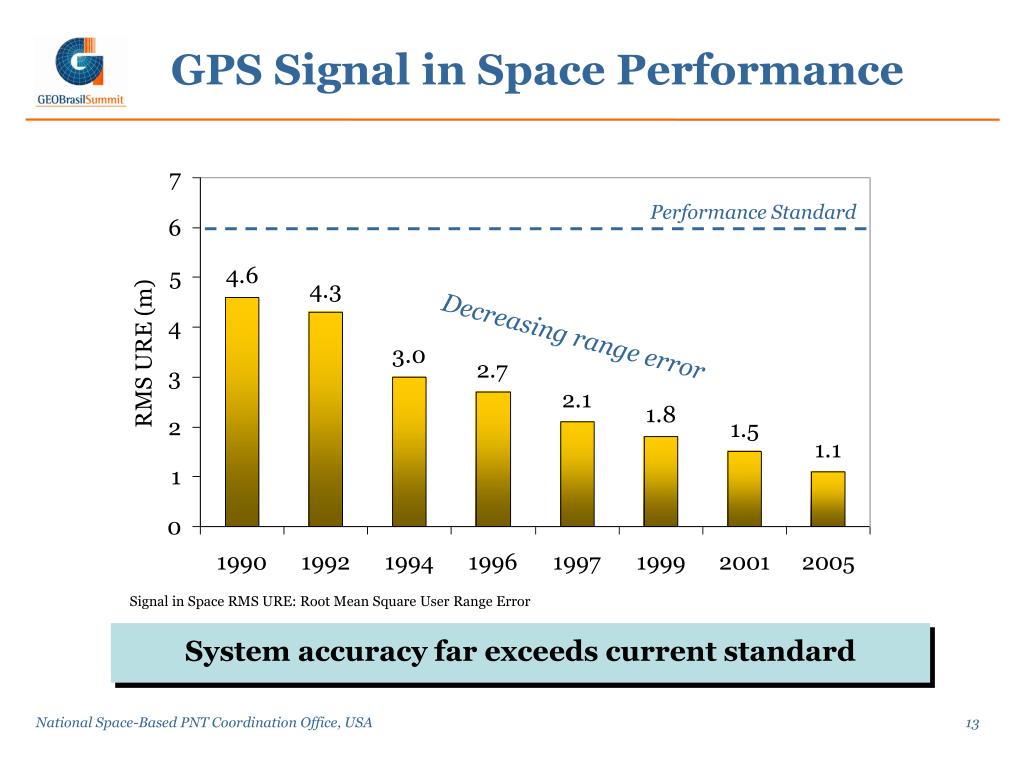

gps signal in space performance
GPS Signal in Space Performance

Performance Standard

Decreasing range error

Signal in Space RMS URE: Root Mean Square User Range Error

System accuracy far exceeds current standard

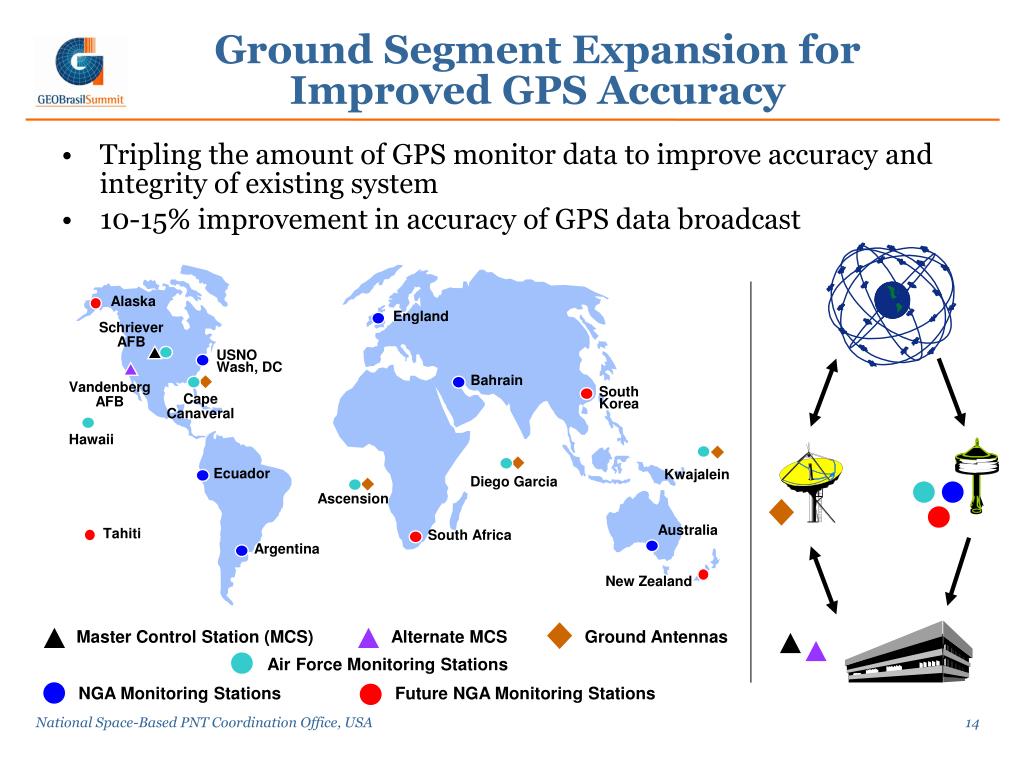

ground segment expansion for improved gps accuracy

Alaska

England

USNO Wash, DC

Cape Canaveral

Bahrain

South

Korea

Hawaii

Kwajalein

Diego Garcia

Ecuador

Ascension

Australia

Tahiti

South Africa

Argentina

New Zealand

Ground Antennas

NGA Monitoring Stations

Future NGA Monitoring Stations

Air Force Monitoring Stations

Ground Segment Expansion for Improved GPS Accuracy
  • Tripling the amount of GPS monitor data to improve accuracy and integrity of existing system
  • 10-15% improvement in accuracy of GPS data broadcast

Schriever AFB

VandenbergAFB

Master Control Station (MCS)

Alternate MCS

improving gps performance with augmentations

.

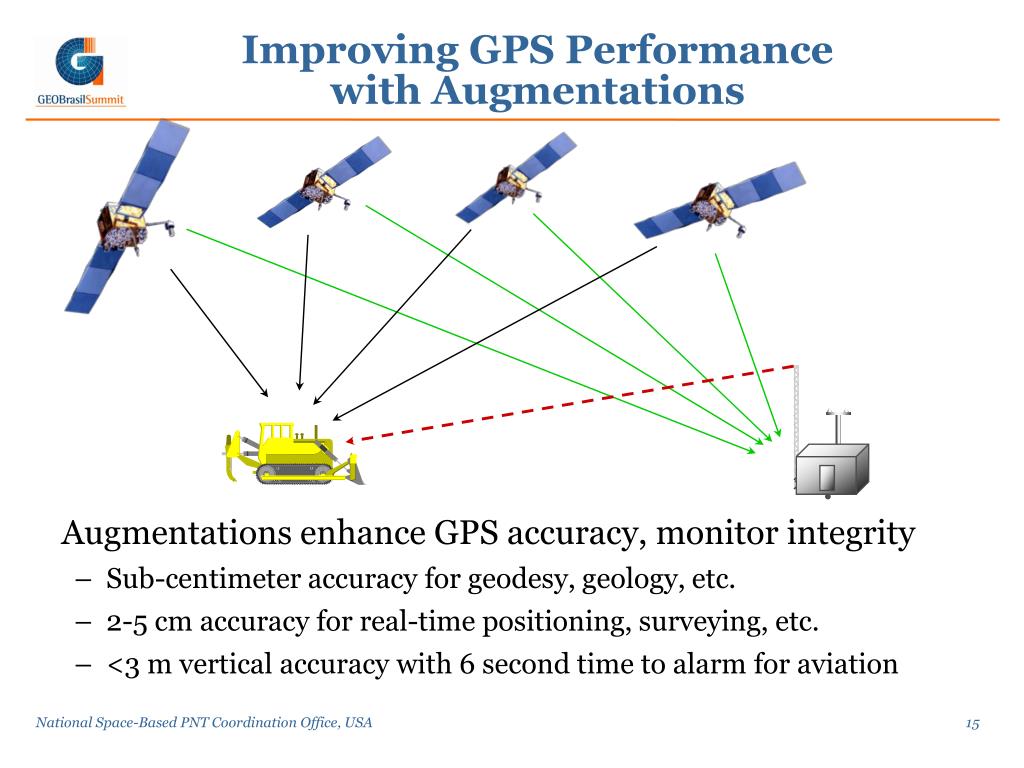

Improving GPS Performance with Augmentations

Augmentations enhance GPS accuracy, monitor integrity

  • Sub-centimeter accuracy for geodesy, geology, etc.
  • 2-5 cm accuracy for real-time positioning, surveying, etc.
  • <3 m vertical accuracy with 6 second time to alarm for aviation
gps performance with waas

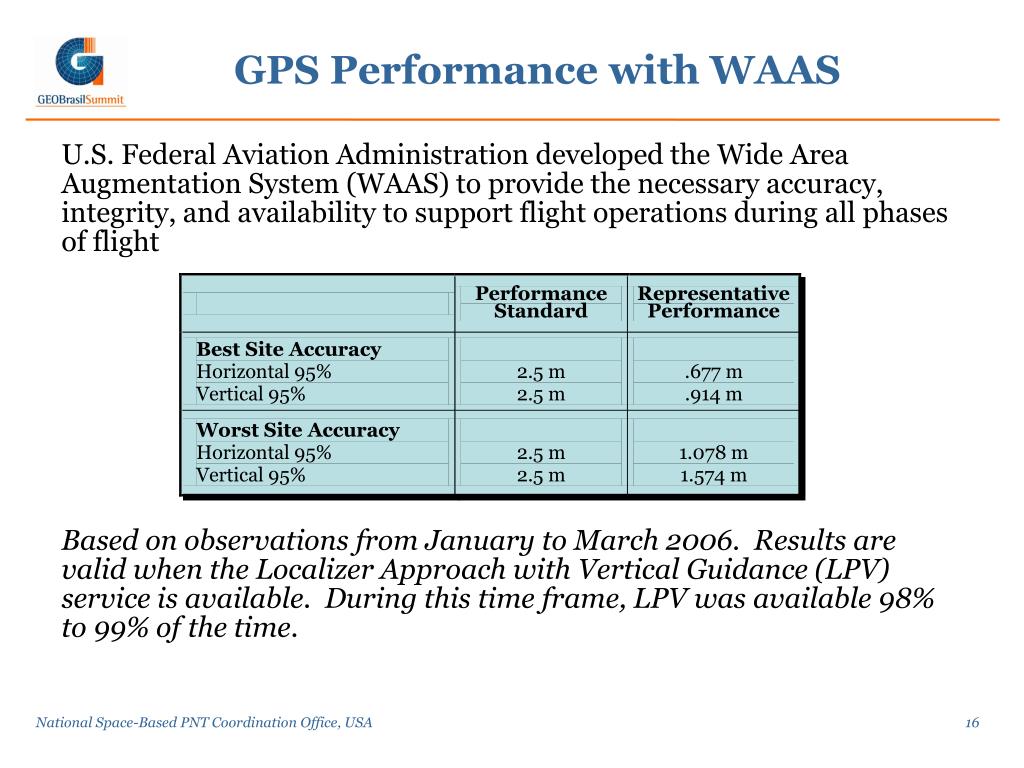

GPS Performance with WAAS

U.S. Federal Aviation Administration developed the Wide Area Augmentation System (WAAS) to provide the necessary accuracy, integrity, and availability to support flight operations during all phases of flight

Based on observations from January to March 2006. Results are valid when the Localizer Approach with Vertical Guidance (LPV) service is available. During this time frame, LPV was available 98% to 99% of the time.

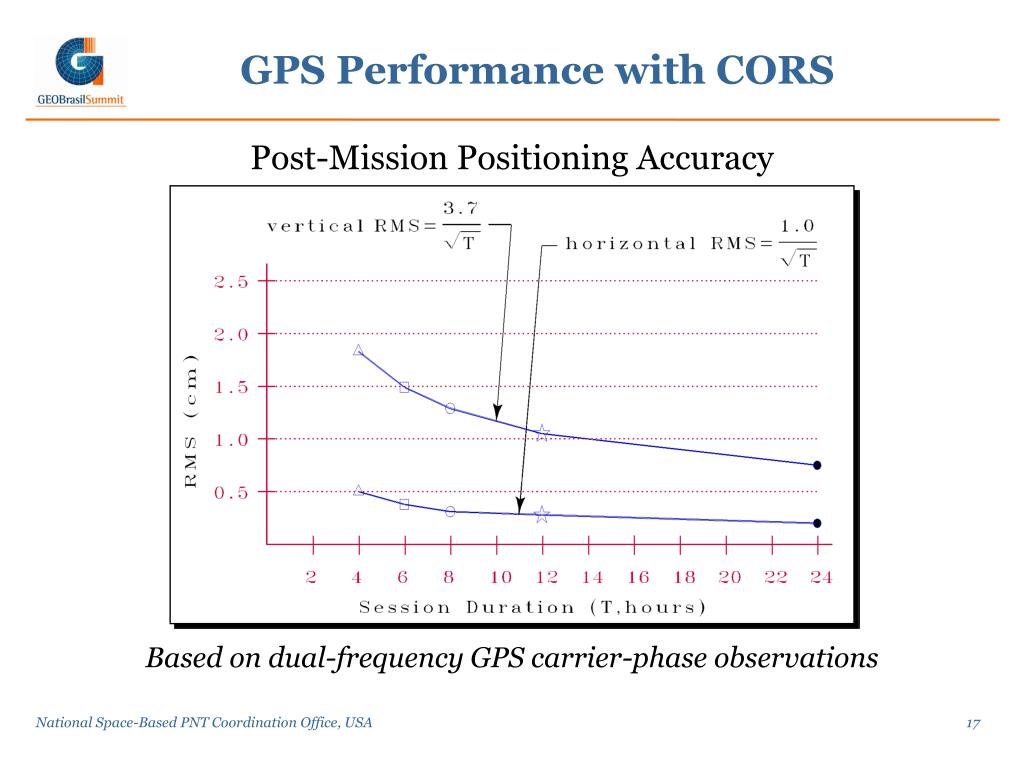

gps performance with cors
GPS Performance with CORS

Post-Mission Positioning Accuracy

Based on dual-frequency GPS carrier-phase observations

overview2

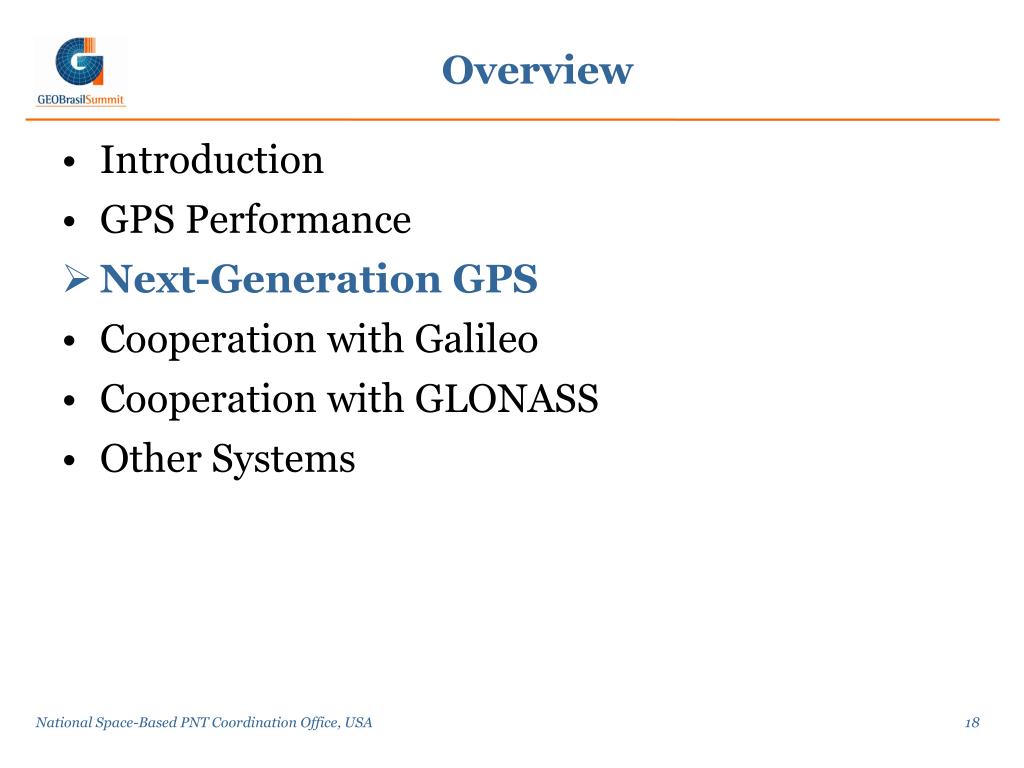

Overview
  • Introduction
  • GPS Performance
  • Next-Generation GPS
  • Cooperation with Galileo
  • Cooperation with GLONASS
  • Other Systems

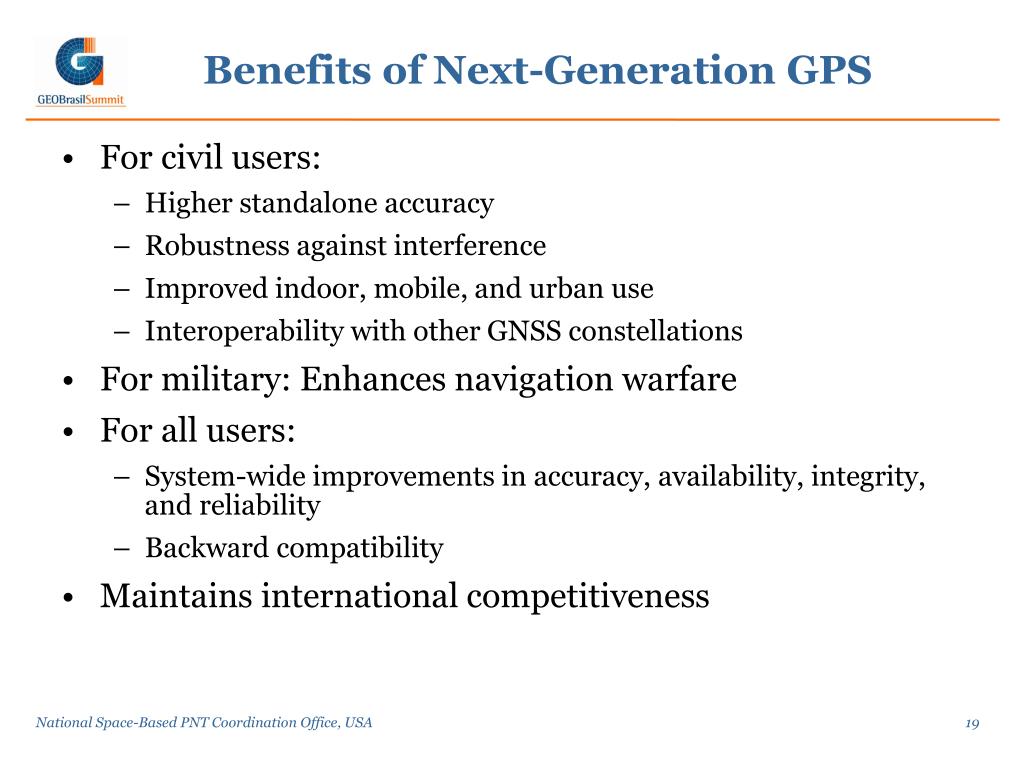

benefits of next generation gps
Benefits of Next-Generation GPS
  • For civil users:
    • Higher standalone accuracy
    • Robustness against interference
    • Improved indoor, mobile, and urban use
    • Interoperability with other GNSS constellations
  • For military: Enhances navigation warfare
  • For all users:
    • System-wide improvements in accuracy, availability, integrity, and reliability
    • Backward compatibility
  • Maintains international competitiveness
gps modernization program
GPS Modernization Program

Increasing System Capabilities w Increasing Defense / Civil Benefit

Block IIA/IIR

Block IIR-M, IIF

Block III

  • Basic GPS
  • Standard Service
    • Single frequency (L1)
    • Coarse acquisition (C/A) code navigation
  • Precise Service
    • Y-Code (L1Y & L2Y)
    • Y-Code navigation
  • IIR-M: IIA/IIR capabilities plus
  • 2nd civil signal (L2C)
  • M-Code (L1M & L2M)
  • IIF: IIR-M capability plus
  • 3rd civil signal (L5)
  • Anti-jam flex power
  • Backward compatibility
  • 4th civil signal (L1C)
  • Increased accuracy
  • Increased anti-jam power
  • Assured availability
  • Navigation surety
  • Controlled integrity
  • Increased security
  • System survivability
second civil signal l2c
Second Civil Signal (“L2C”)
  • Freely available since December 2005
    • Currently on 1 satellite
    • Will be on all future satellites
  • Designed to meet commercial needs
    • Higher accuracy through ionospheric correction
    • Benefits thousands of existing high-end receivers using L2 frequency
    • Higher effective power and improved data structure reduce interference, speed up signal acquisition, enable miniaturization of receivers, may enable indoor use
  • Expected to create over $5 billion in user productivity benefits
  • Full benefits will arrive after more satellites are launched and ground control system is upgraded

1227 MHz (L2)

Begins with GPS Block IIR-M

First launch: 2005

24 satellites: ~2014

Signal defined in IS-GPS-200

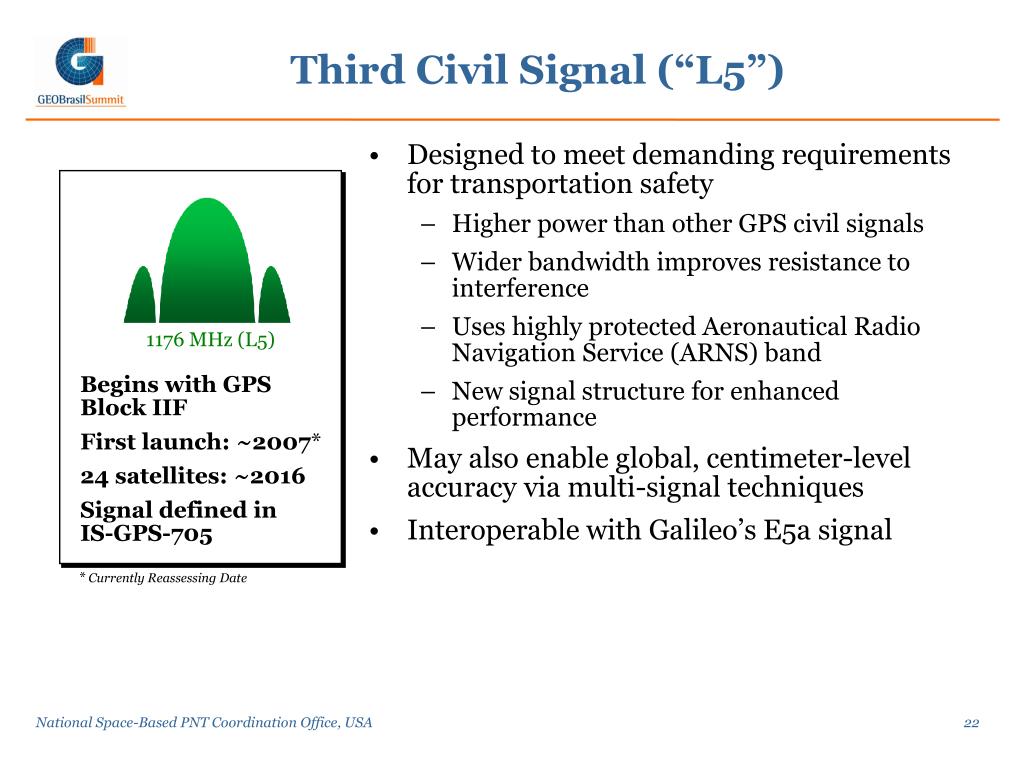

third civil signal l5
Third Civil Signal (“L5”)
  • Designed to meet demanding requirements for transportation safety
    • Higher power than other GPS civil signals
    • Wider bandwidth improves resistance to interference
    • Uses highly protected Aeronautical Radio Navigation Service (ARNS) band
    • New signal structure for enhanced performance
  • May also enable global, centimeter-level accuracy via multi-signal techniques
  • Interoperable with Galileo’s E5a signal

1176 MHz (L5)

Begins with GPS Block IIF

First launch: ~2007*

24 satellites: ~2016

Signal defined in IS-GPS-705

* Currently Reassessing Date

fourth civil signal l1c
Fourth Civil Signal (“L1C”)
  • Designed with international partners to enable GNSS interoperability
    • Galileo Open Service
    • Japan’s Quasi-Zenith Satellite System
    • Possibility for GLONASS?
  • Modernized civil signal at L1 frequency
    • Aeronautical Radio Navigation Service Band
    • Improved code and carrier tracking
    • New message structure
  • L1 C/A will be retained for backwards compatibility

1575 MHz (L1)

Begins with GPS Block III

First launch: ~2013

Signal defined in IS-GPS-800 (draft)

gps iii

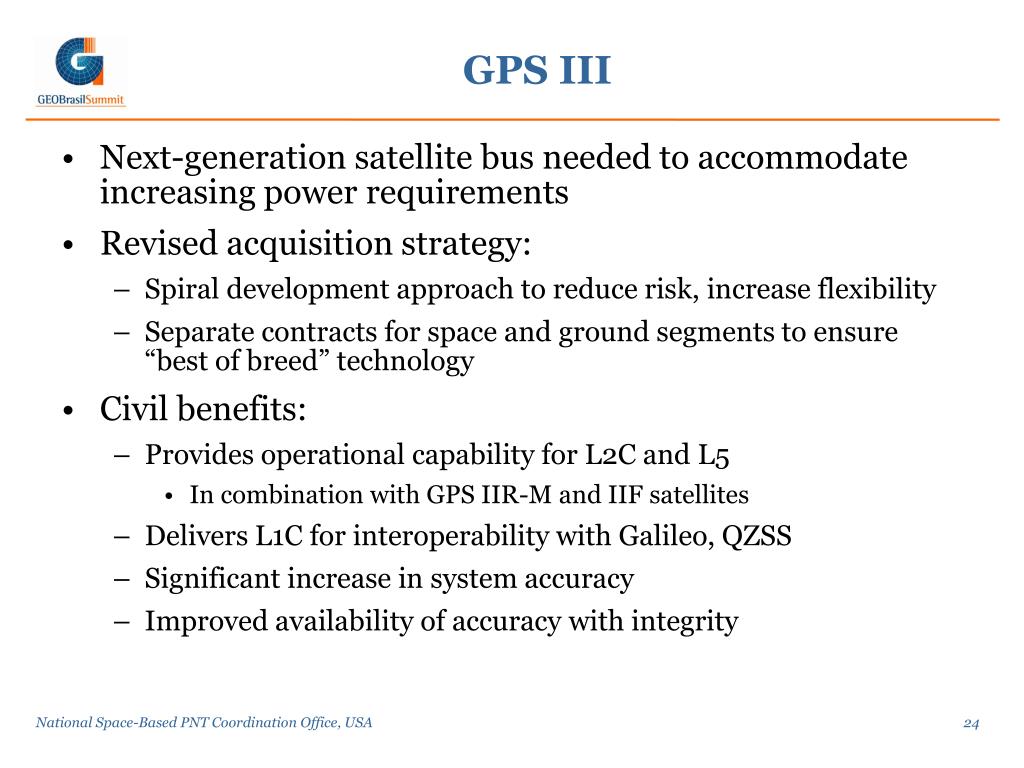

GPS III
  • Next-generation satellite bus needed to accommodate increasing power requirements
  • Revised acquisition strategy:
    • Spiral development approach to reduce risk, increase flexibility
    • Separate contracts for space and ground segments to ensure “best of breed” technology
  • Civil benefits:
    • Provides operational capability for L2C and L5
      • In combination with GPS IIR-M and IIF satellites
    • Delivers L1C for interoperability with Galileo, QZSS
    • Significant increase in system accuracy
    • Improved availability of accuracy with integrity
gps iii proposed accuracy
GPS III Proposed Accuracy
  • Draft System Specifications:
  • Includes the effects of receivers
    • Threshold = low-cost/low-performance receiver
    • Objective = high-cost/high-performance receiver

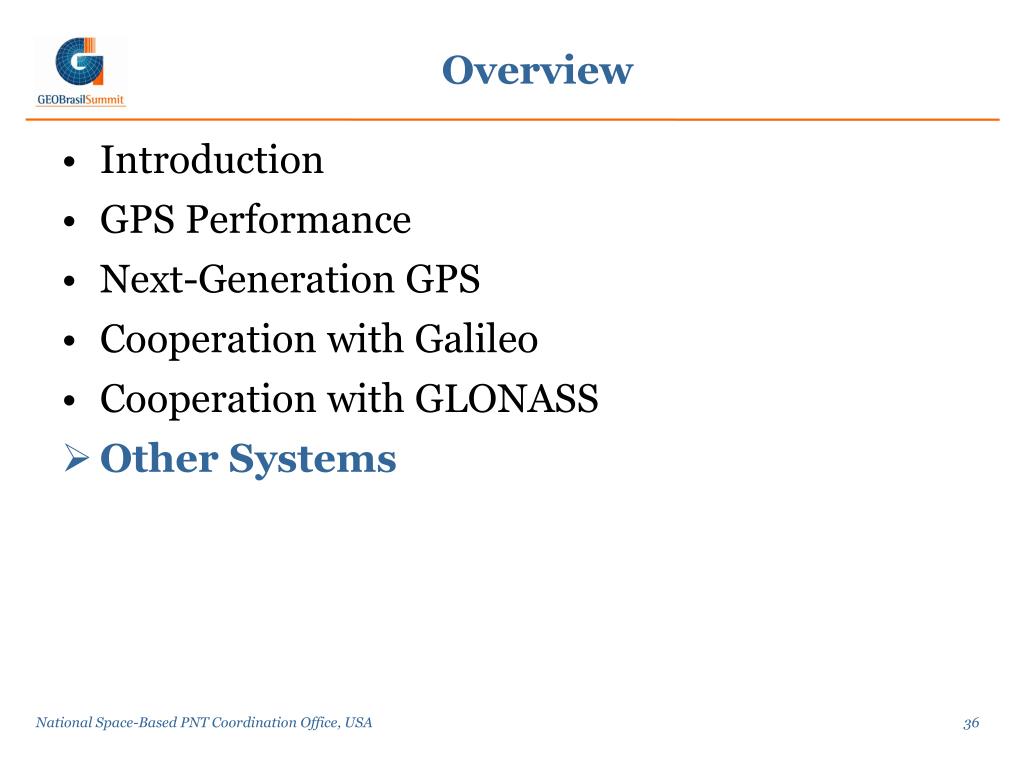

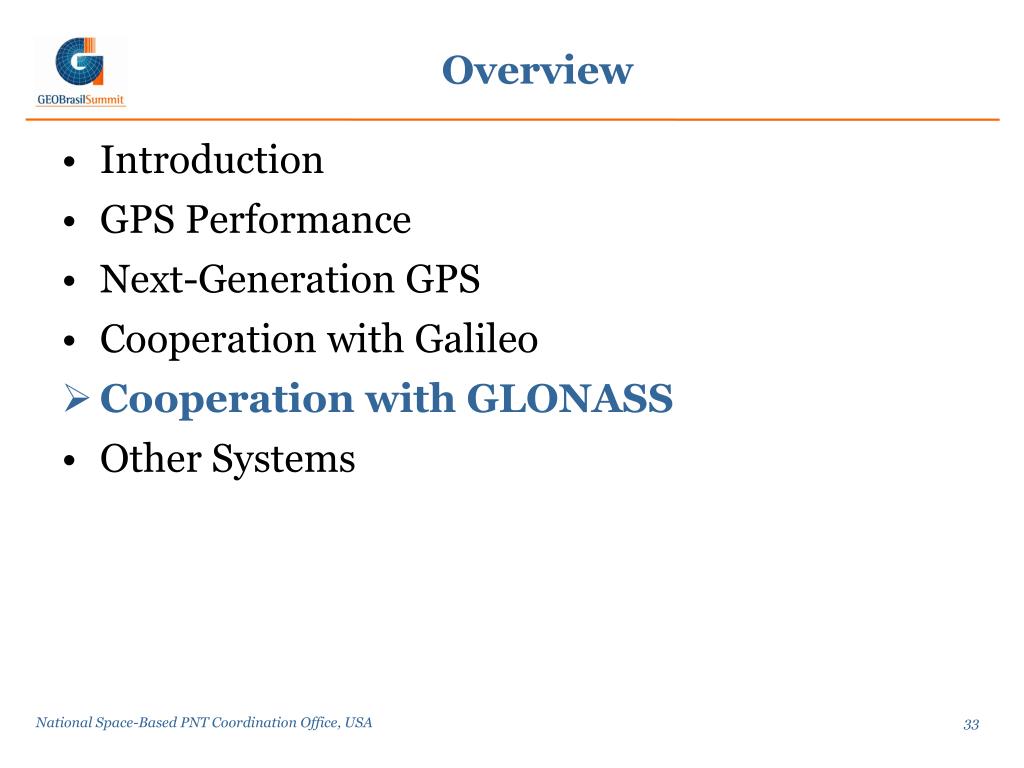

overview3

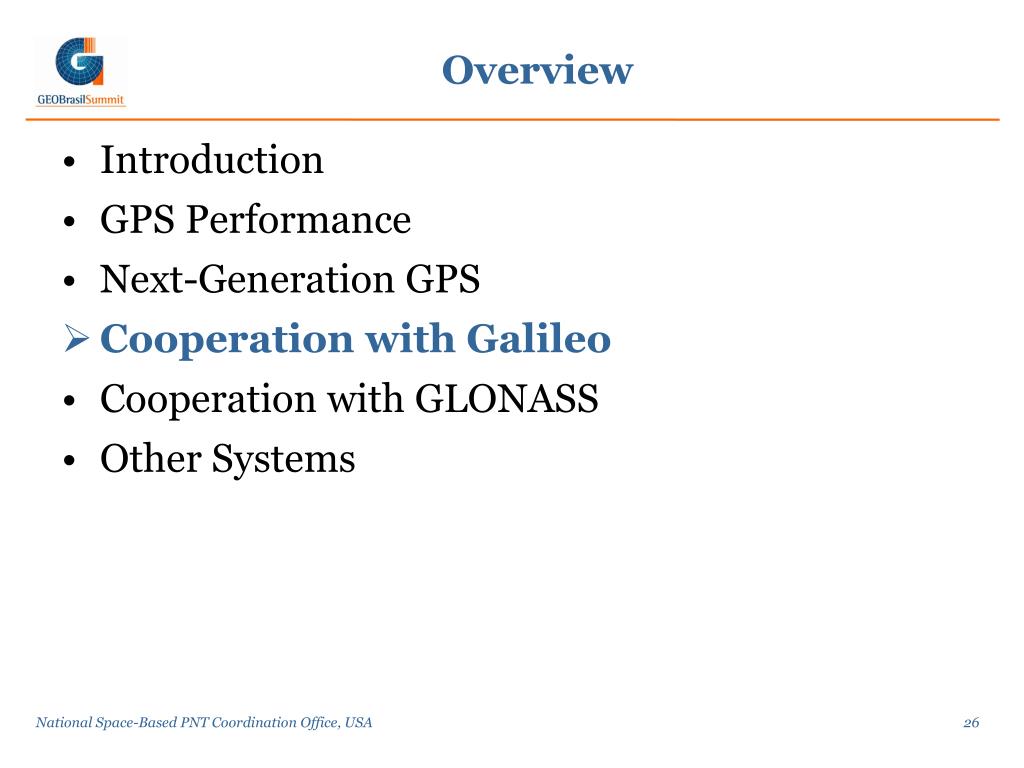

Overview
  • Introduction
  • GPS Performance
  • Next-Generation GPS
  • Cooperation with Galileo
  • Cooperation with GLONASS
  • Other Systems
u s gps cooperation
U.S. GPS Cooperation
  • U.S. Government has pursued formal cooperative arrangements with Europe, Japan, Russia since 1996
    • To ensure compatibility (non-interference) and interoperability with foreign systems
    • To protect national security
    • To maintain level playing field in the global market
  • Additional efforts under way with Australia, India, Brazil
  • Multilateral cooperation established through U.N. International Committee on GNSS
    • As well as ICAO, IMO, NATO
gps galileo agreement
GPS-Galileo Agreement
  • In 2004, United States and European Community signed historic agreement on GPS-Galileo cooperation, recognizing importance of compatibility and interoperability for all parties
  • Agreed to spectrally separate signals for military, civilian, and public regulated services
  • Agreed to implement a common, open, civil signal on both Galileo and GPS III, free of direct user fees
  • Working groups establishedto continue dialogue:
    • Compatibility & Interoperability
    • Trade & Commercial Applications
    • Next-Generation GNSS
    • Security Issues

June 26, 2004, press conference at U.S.-EU Summit in Ireland (U.S. Sec. of State Colin Powell, Irish Foreign Minister Brian Cowen, EU Vice-President Loyola De Palacio)

working group a compatibility interoperability
Working Group A:Compatibility & Interoperability
  • Common civil signal for GPS and Galileo (L1C/L1F)
    • Centered on L1 frequency used by GPS today
    • Agreement includes baseline modulation scheme but allows for “optimization”
    • Working Group A spent 21 months collaborating towards optimized signal design
    • Optimized design (“MBOC”) achieved in March 2006
    • Satisfies all compatibility requirements
    • Still awaiting formal acceptance at political level
  • Time and geodesy
    • GPS and Galileo are based on different time standards and geodetic reference frames
    • Broadcasting GPS-Galileo Time Offset will solve time problem
    • Geodesy offset considered insignificant (<5 cm)

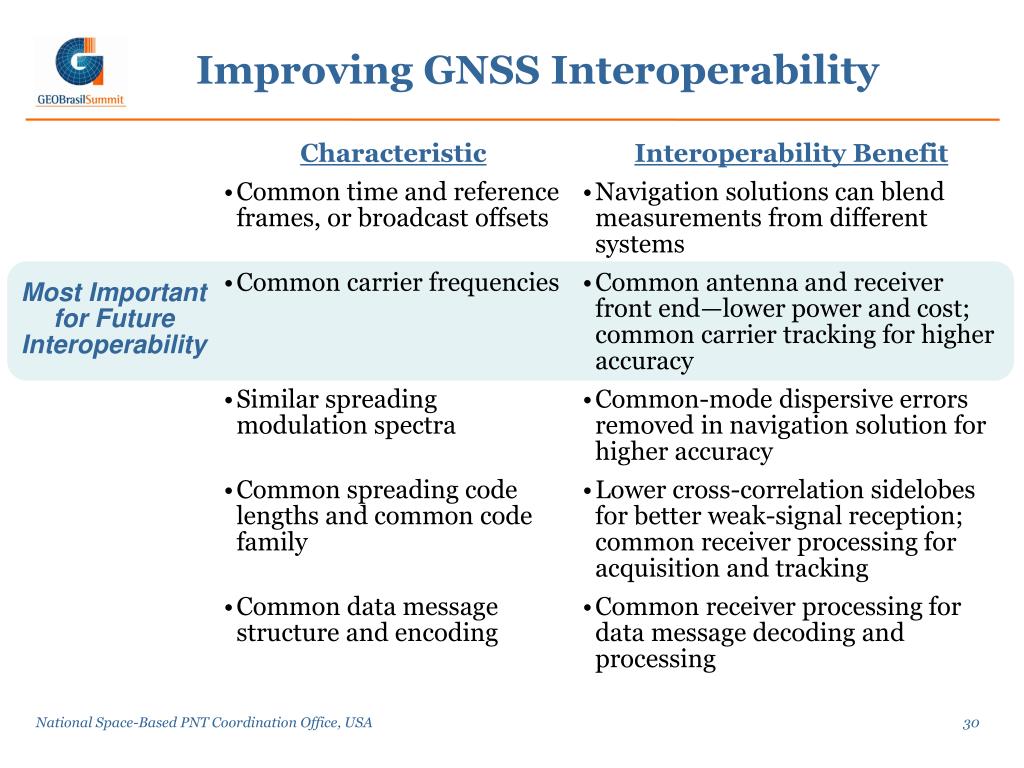

improving gnss interoperability
Characteristic

Common time and reference frames, or broadcast offsets

Common carrier frequencies

Similar spreadingmodulation spectra

Common spreading code lengths and common code family

Common data message structure and encoding

Interoperability Benefit

Navigation solutions can blend measurements from different systems

Common antenna and receiver front end—lower power and cost; common carrier tracking for higher accuracy

Common-mode dispersive errors removed in navigation solution for higher accuracy

Lower cross-correlation sidelobes for better weak-signal reception; common receiver processing for acquisition and tracking

Common receiver processing for data message decoding and processing

Most Important for FutureInteroperability

Improving GNSS Interoperability
working group b trade commercial applications
Working Group B:Trade & Commercial Applications
  • Agreement includes provisions to maintain level playing field in GNSS market
    • Recognizes obligations under World Trade Organization
    • Affirms nondiscriminatory approach to trade in GNSS goods/services
    • Requires equal access to open signals and technical information needed for receiver development
    • Requires consultations on proposed measures affecting GNSS use
  • U.S. remains guarded about Galileo business plan
    • Not fully revealed due to concessionaire process
    • Licensing, royalties on chipsets not well understood
    • Fee structure for subscription services unknown
  • Interface Control Document for Galileo signals released in 2006
    • Positive step towards providing access to technical information
    • However, questions remain
  • U.S. intends to convene Working Group B in fall time frame

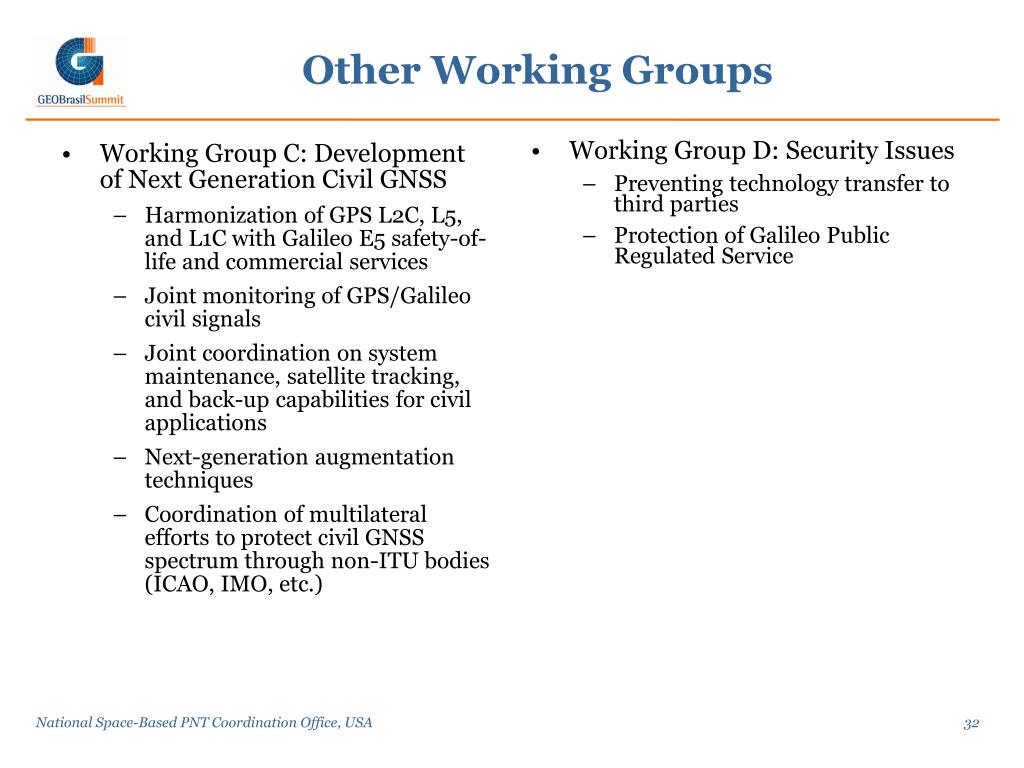

other working groups
Working Group C: Development of Next Generation Civil GNSS

Harmonization of GPS L2C, L5, and L1C with Galileo E5 safety-of-life and commercial services

Joint monitoring of GPS/Galileo civil signals

Joint coordination on system maintenance, satellite tracking, and back-up capabilities for civil applications

Next-generation augmentation techniques

Coordination of multilateral efforts to protect civil GNSS spectrum through non-ITU bodies (ICAO, IMO, etc.)

Working Group D: Security Issues

Preventing technology transfer to third parties

Protection of Galileo Public Regulated Service

Other Working Groups
overview4
Overview
  • Introduction
  • GPS Performance
  • Next-Generation GPS
  • Cooperation with Galileo
  • Cooperation with GLONASS
  • Other Systems

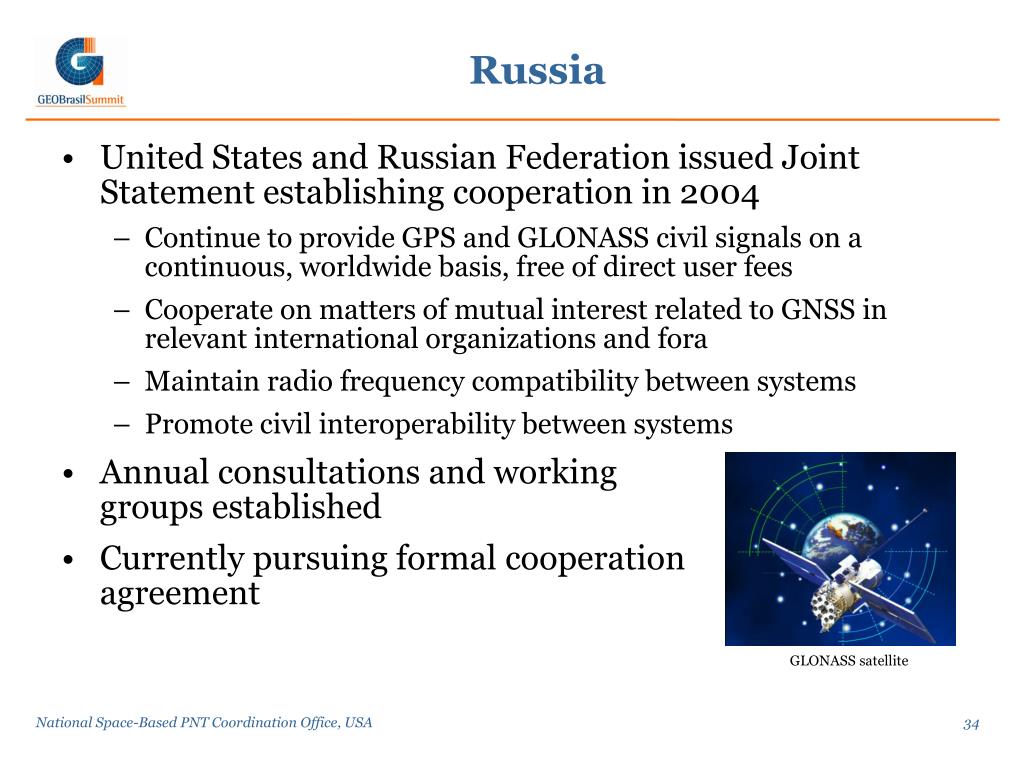

russia
Russia
  • United States and Russian Federation issued Joint Statement establishing cooperation in 2004
    • Continue to provide GPS and GLONASS civil signals on a continuous, worldwide basis, free of direct user fees
    • Cooperate on matters of mutual interest related to GNSS in relevant international organizations and fora
    • Maintain radio frequency compatibility between systems
    • Promote civil interoperability between systems
  • Annual consultations and workinggroups established
  • Currently pursuing formal cooperation agreement

GLONASS satellite

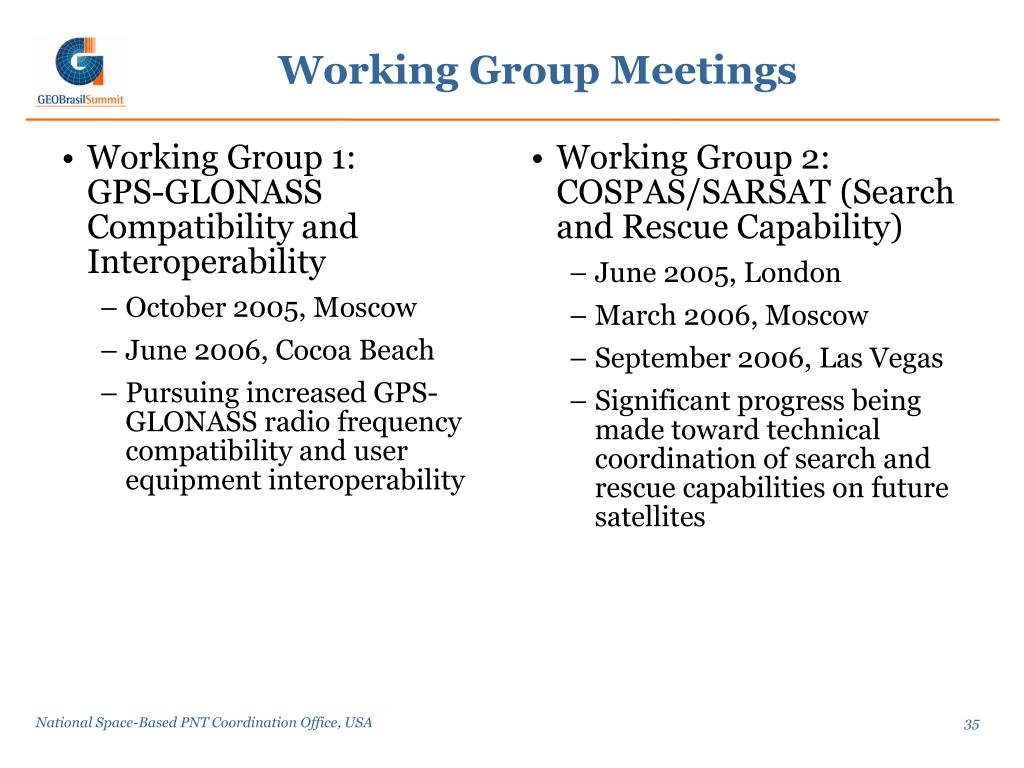

working group meetings
Working Group 1: GPS-GLONASS Compatibility and Interoperability

October 2005, Moscow

June 2006, Cocoa Beach

Pursuing increased GPS-GLONASS radio frequency compatibility and user equipment interoperability

Working Group 2:COSPAS/SARSAT (Search and Rescue Capability)

June 2005, London

March 2006, Moscow

September 2006, Las Vegas

Significant progress being made toward technical coordination of search and rescue capabilities on future satellites

Working Group Meetings
overview5
Overview
  • Introduction
  • GPS Performance
  • Next-Generation GPS
  • Cooperation with Galileo
  • Cooperation with GLONASS
  • Other Systems

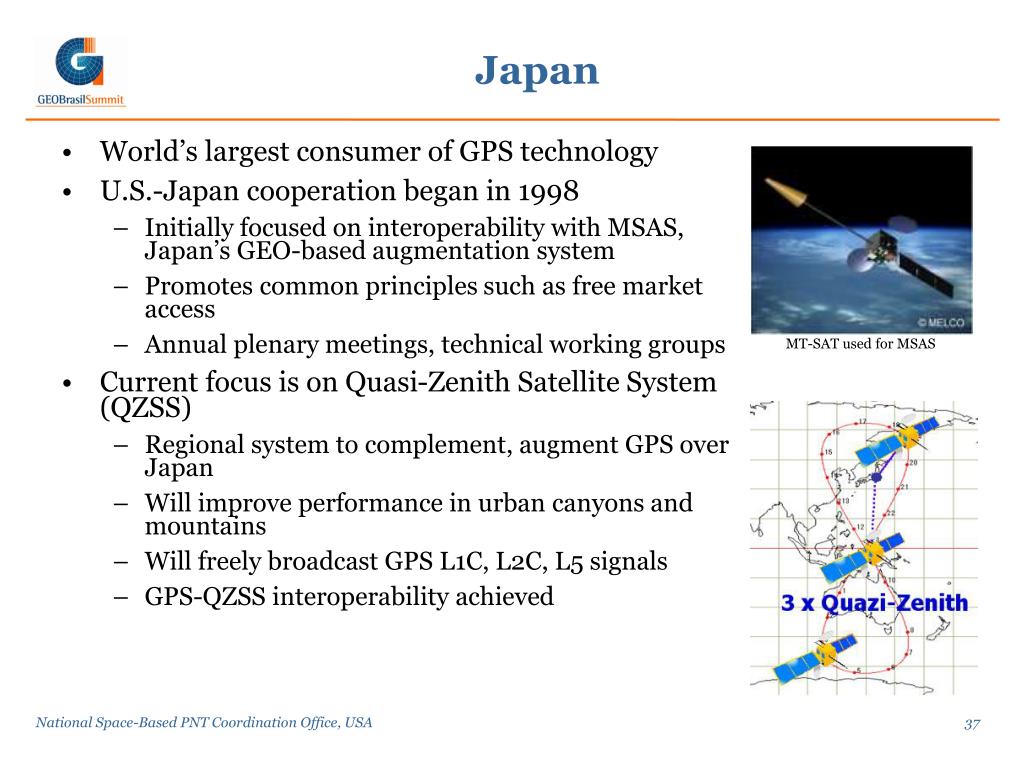

japan
Japan
  • World’s largest consumer of GPS technology
  • U.S.-Japan cooperation began in 1998
    • Initially focused on interoperability with MSAS, Japan’s GEO-based augmentation system
    • Promotes common principles such as free market access
    • Annual plenary meetings, technical working groups
  • Current focus is on Quasi-Zenith Satellite System (QZSS)
    • Regional system to complement, augment GPS over Japan
    • Will improve performance in urban canyons and mountains
    • Will freely broadcast GPS L1C, L2C, L5 signals
    • GPS-QZSS interoperability achieved

MT-SAT used for MSAS

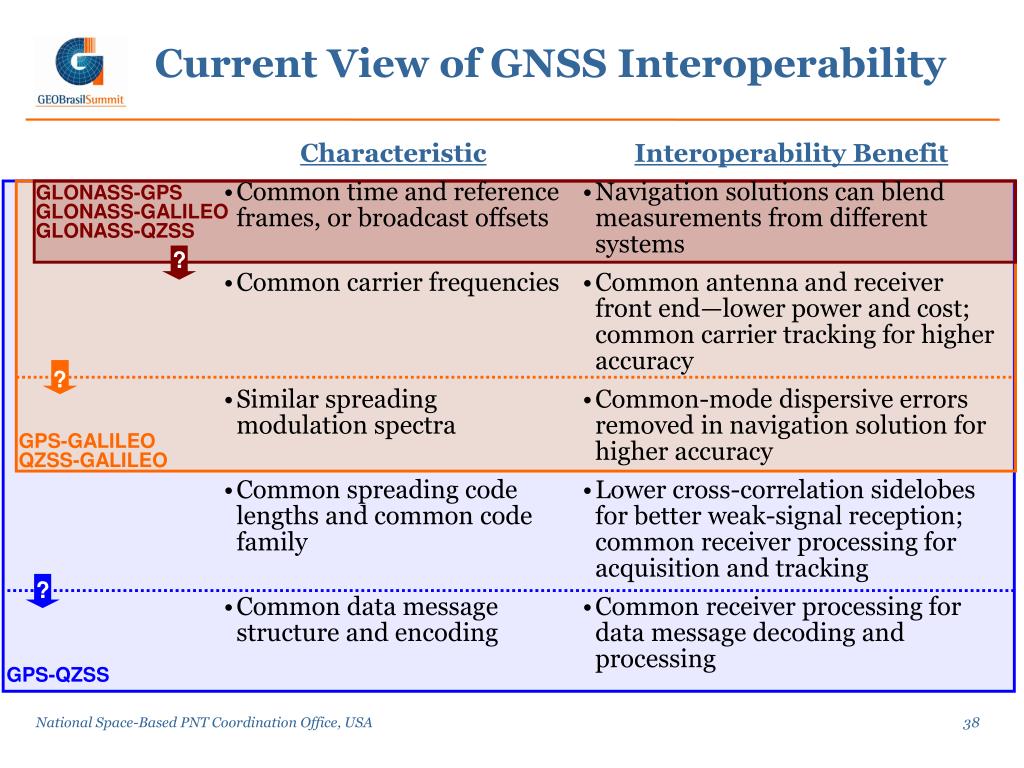

current view of gnss interoperability
Characteristic

Common time and reference frames, or broadcast offsets

Common carrier frequencies

Similar spreadingmodulation spectra

Common spreading code lengths and common code family

Common data message structure and encoding

Interoperability Benefit

Navigation solutions can blend measurements from different systems

Common antenna and receiver front end—lower power and cost; common carrier tracking for higher accuracy

Common-mode dispersive errors removed in navigation solution for higher accuracy

Lower cross-correlation sidelobes for better weak-signal reception; common receiver processing for acquisition and tracking

Common receiver processing for data message decoding and processing

GLONASS-GPSGLONASS-GALILEO

GLONASS-QZSS

?

?

GPS-GALILEOQZSS-GALILEO

?

GPS-QZSS

Current View of GNSS Interoperability
international committee on gnss
Multilateral group chartered through United Nations

First meeting: December 2005

Purpose: Promote use of GNSS to improve efficiency and security of transport, search & rescue, geodesy, etc., particularly in developing countries

Coordination among providers to improve compatibility and interoperability

Assistance to developing countries in integration of PNT services

Focal point for international information exchange

Forum for addressing future user needs

International Committee on GNSS

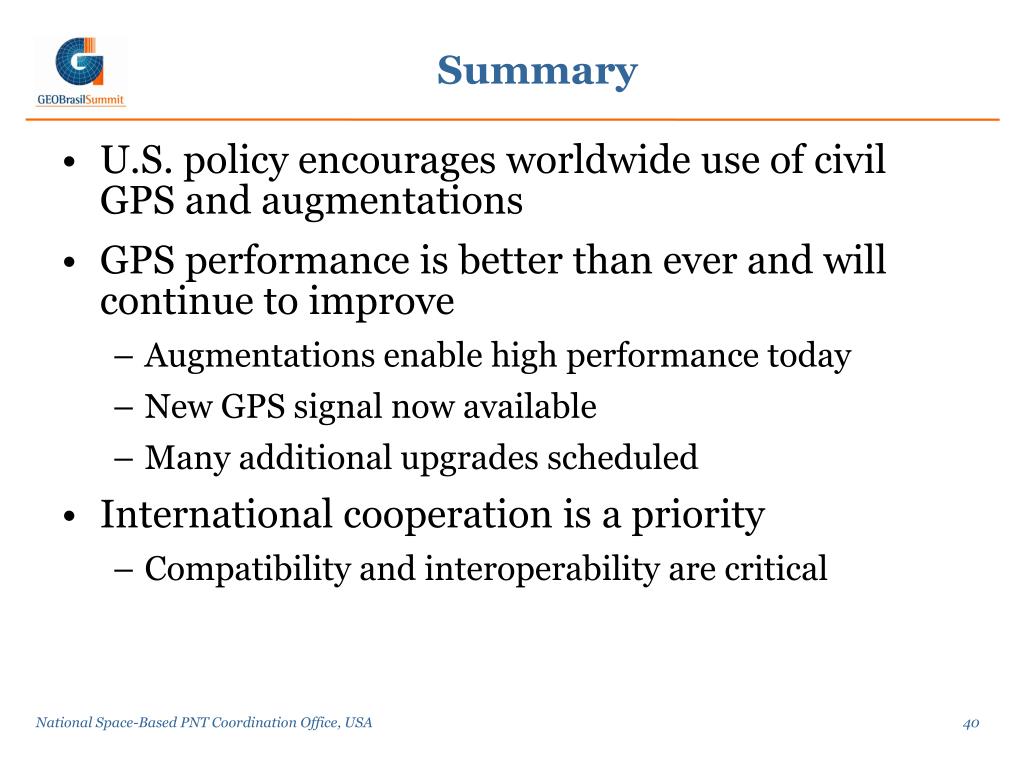

summary
Summary
  • U.S. policy encourages worldwide use of civil GPS and augmentations
  • GPS performance is better than ever and will continue to improve
    • Augmentations enable high performance today
    • New GPS signal now available
    • Many additional upgrades scheduled
  • International cooperation is a priority
    • Compatibility and interoperability are critical
muito obrigado
“Muito Obrigado!”

National Space-Based PNT Coordination Office6822 Herbert C. Hoover Building Washington, D.C. 20230USA

pnt.office@pnt.gov+1 (202) 482-5809

PNT.GOV
