Isometric ellipses. In an isometric drawing, the object is viewed at an angle, which makes circles appear as ellipses. Holes Cylinders. Sketching a Circle. Draw a square whose sides are the diameter of the circle. At the center of each side define the point of tangency for the circle.

Download Presentation
## Isometric ellipses

**An Image/Link below is provided (as is) to download presentation**
Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.
Content is provided to you AS IS for your information and personal use only.
Download presentation by click this link.
While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.
During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

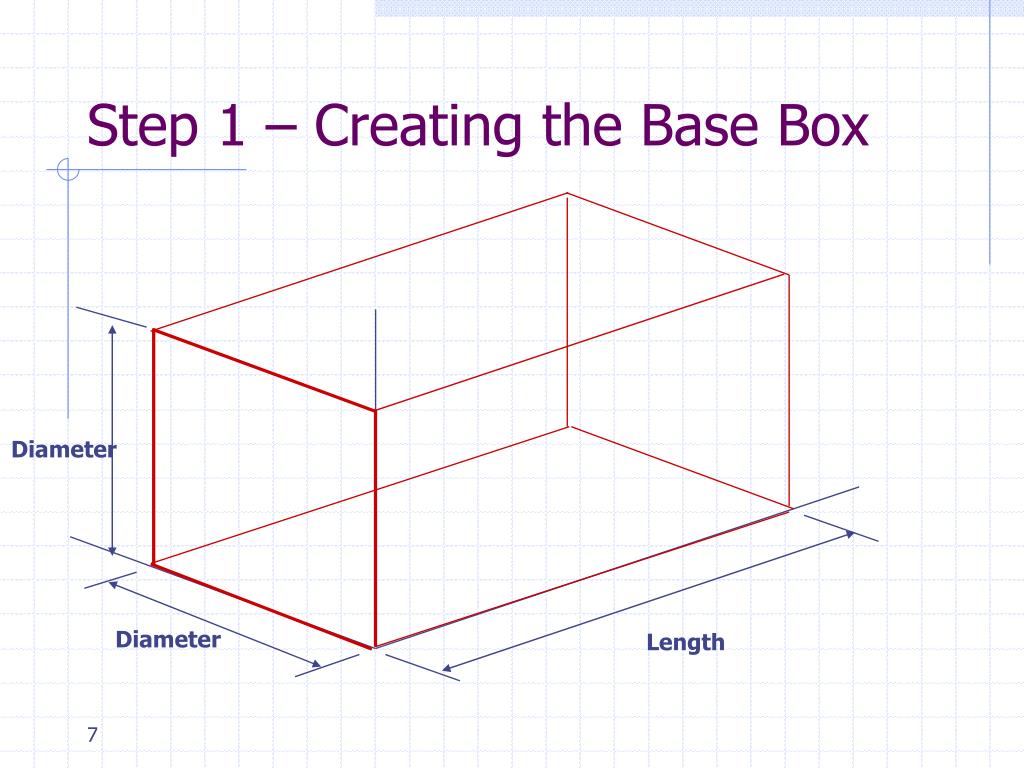

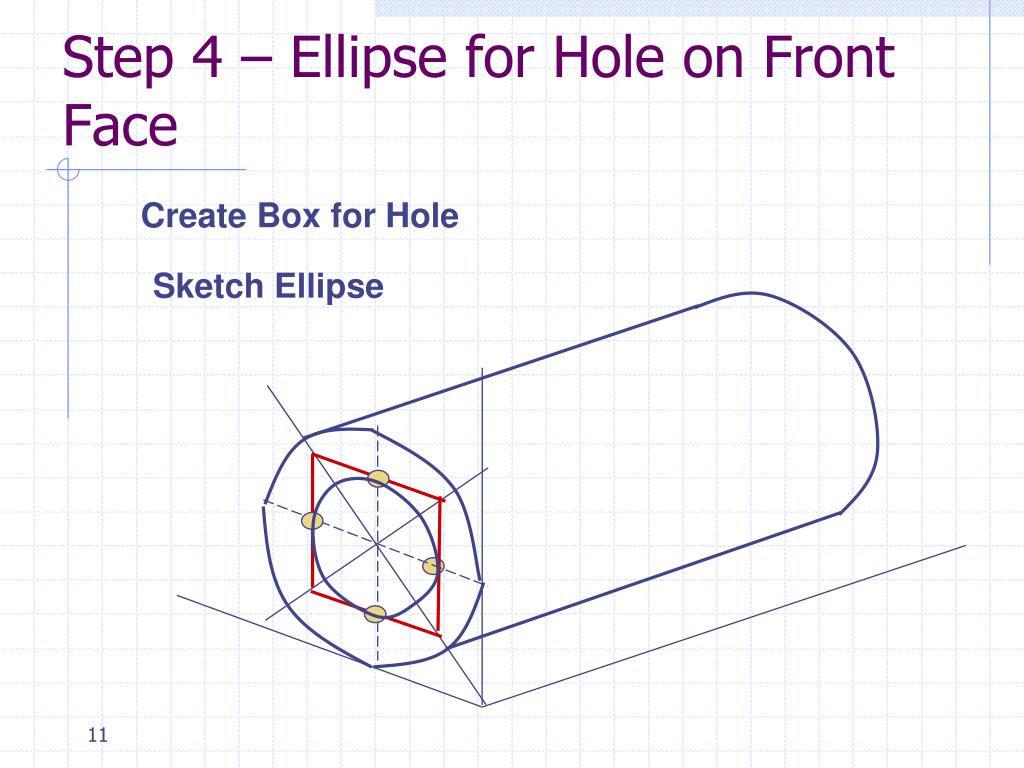

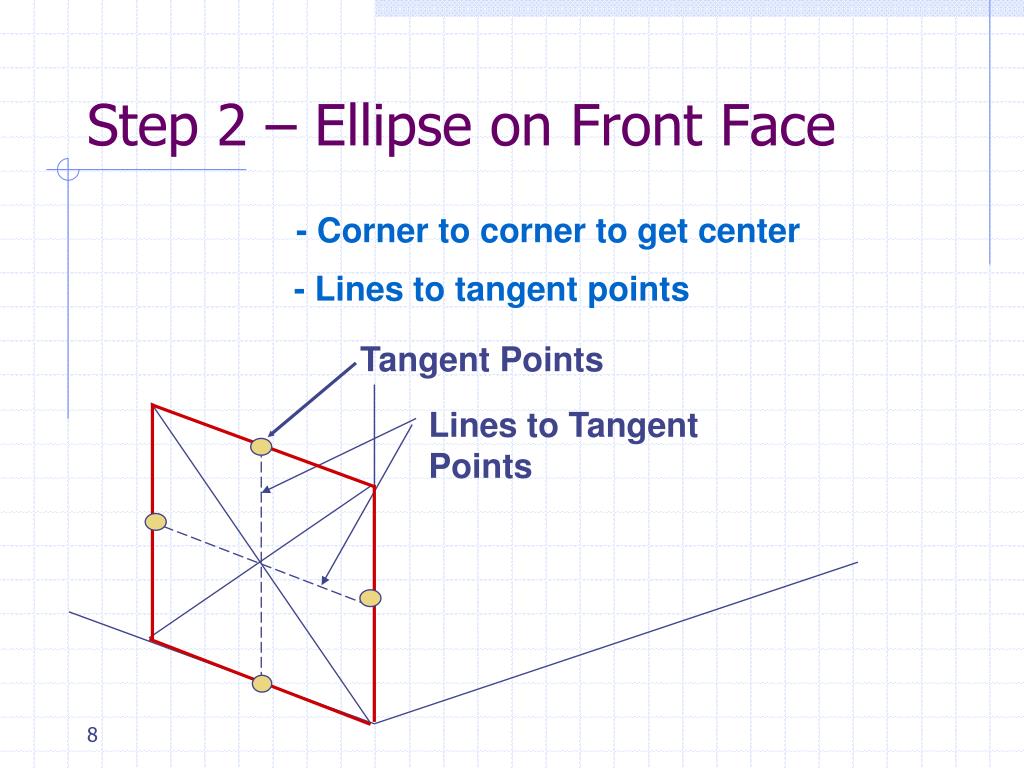

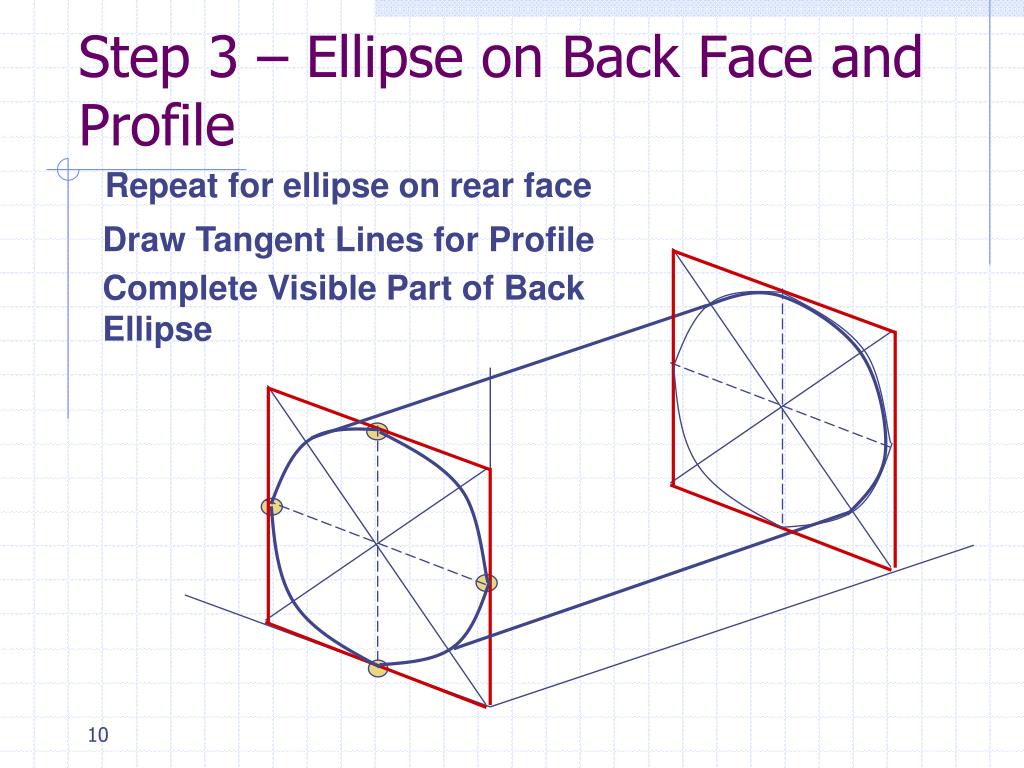

**Isometric ellipses**• In an isometric drawing, the object is viewed at an angle, which makes circles appear as ellipses. • Holes • Cylinders**Sketching a Circle**• Draw a square whose sides are the diameter of the circle. • At the center of each side define the point of tangency for the circle. • Draw the diagonals of the square. • Orient the paper so you can draw equal arcs to construct the circle**Introduction to Isometric Projection**CUBE • Isometric means equal measure • All planes are equally or proportionately shortened and • tilted • All the major axes (X, Y, Z) are 120 degrees apart**60o**60o 30o 30o Isometric Axis • Making an Isometric Sketch • Defining Axis**Diameter**Diameter Length Step 1 – Creating the Base Box**- Corner to corner to get center**- Lines to tangent points Tangent Points Lines to Tangent Points Step 2 – Ellipse on Front Face**Sketch in Arcs**Tangent Points Step 3 – Ellipse on Front Face**Repeat for ellipse on rear face**Draw Tangent Lines for Profile Complete Visible Part of Back Ellipse Step 3 – Ellipse on Back Face and Profile**Create Box for Hole**Sketch Ellipse Step 4 – Ellipse for Hole on Front Face**Summary**• Technical drawings are an effective communication media • Projections of various types can be used • Isometric projections and creating isometric sketches has been introduced • Assignments will emphasize simple isometric sketches**Review Questions**b) c) d) a) 120° 60° 60° 90° 60° 120° 120° 240° • _______ sketches present the object in a single view, with all three dimensions represented • _______ sketches present the object in a series of projections, each one showing only two of the objects’ three dimensions • Which among the following is NOT an isometric axes (Hint: Use the Isometric Grid paper for reference)?**Tips for Drawing Assignments**• Follow Sketching and Text conventions. • Title Information is required. Avoid labels on the sketch. • Leave the construction lines – MUCH lighter and thinner than the finished lines • Include centerlines on isometrics**Tips for Drawing Assignments**• Do not try to shade drawing – this is not a pencil sketching class. • Use grid paper. Try to sketch along grid lines. Practice sketching straight lines and curves on a grid sheet.**Tips for Pictorial Views**• In pictorial views, hidden lines are not shown unless absolutely required for clarity, such as; • Non-visible bottom of a blind hole • Important feature of object not in direct view • In pictorial views, holes or notches without bottom/end visible should be assumed to go completely through the object. • Centerlines are to be shown on all isometric pictorials.**In Class Assignment**• Use Isometric Sketch Paper (ISP)
