Introduction. Location Tracker management system ensures substantial productivity, gains including greater efficiency of fleet operations,higher field workforce productivity, lower fleet operating costs and better customer service. Features. Real Time Tracking.
E N D
Introduction Location Tracker management system ensures substantial productivity, gains including greater efficiency of fleet operations,higher field workforce productivity, lower fleet operating costs and better customer service
Features • Real Time Tracking • Online Alerts on exceeding the limits set for • various parameters like speed, route and time. • Reliable, Accurate and Cost Efficient. • Reports to analyze trip wise and vehicle wise • details like stoppage, over speed etc. • Easy to install and easy to use. • Scalable Solution. • Tamper Proof.

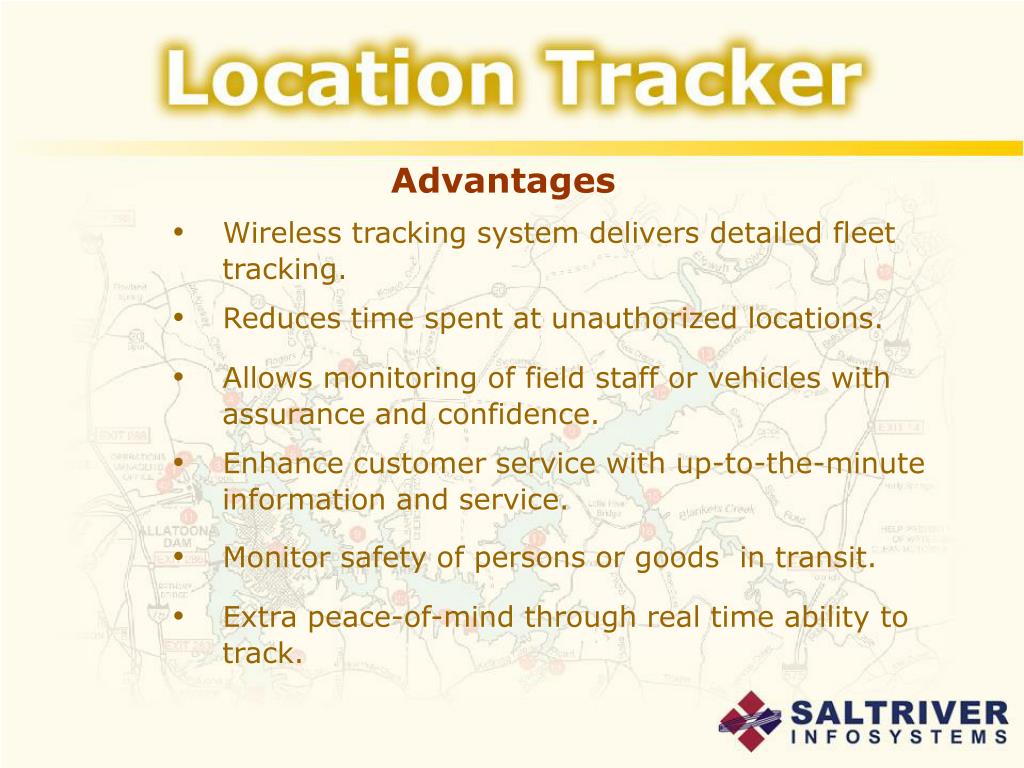

Advantages • Wireless tracking system delivers detailed fleet • tracking. • Reduces time spent at unauthorized locations. • Allows monitoring of field staff or vehicles with • assurance and confidence. • Enhance customer service with up-to-the-minute • information and service. • Monitor safety of persons or goods in transit. • Extra peace-of-mind through real time ability to • track.
Advantages • Value for investment. • Allows complete transparency in operation. • Ensure safety of vehicles and goods by monitoring • vehicle speed, driving patterns and location. • Historic vehicle data availability for fleet • performance analysis. • Monitor goods or field staff on move for maximum • efficiency.

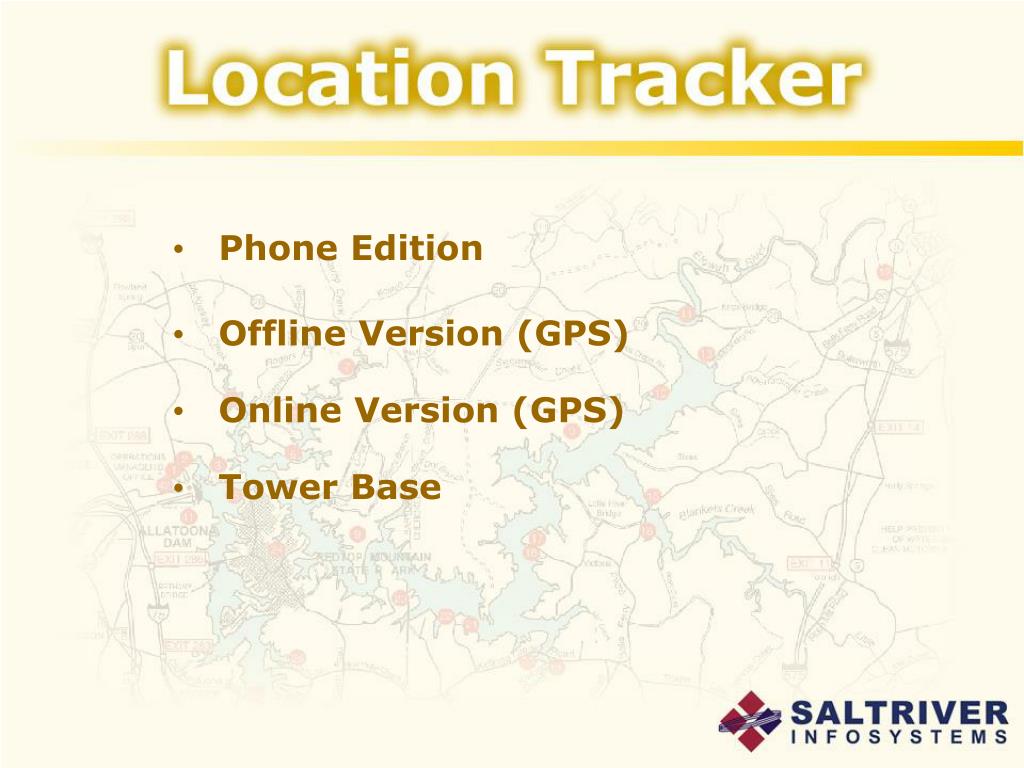

Phone Edition • Offline Version (GPS) • Online Version (GPS) • Tower Base

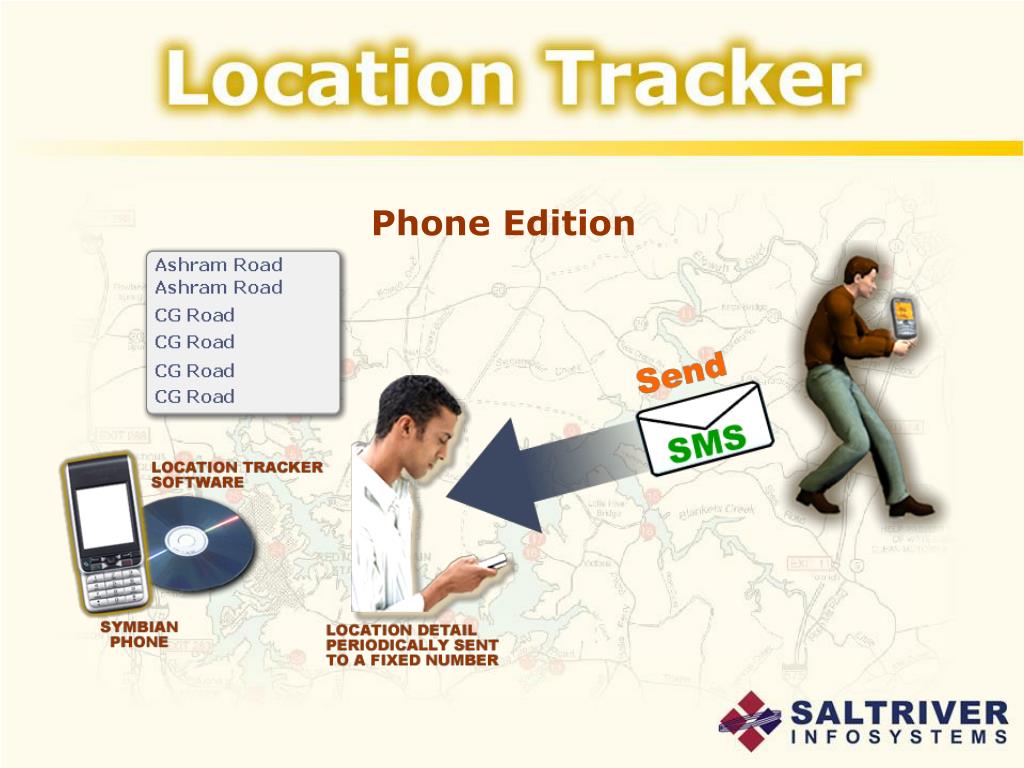

Phone Edition • Phone Edition works with symbian based phone, which is loaded with Location Tracker software. The location details are periodically sent to a fixed number or stored in the mobile phone itself to project the route or location detail through the map.

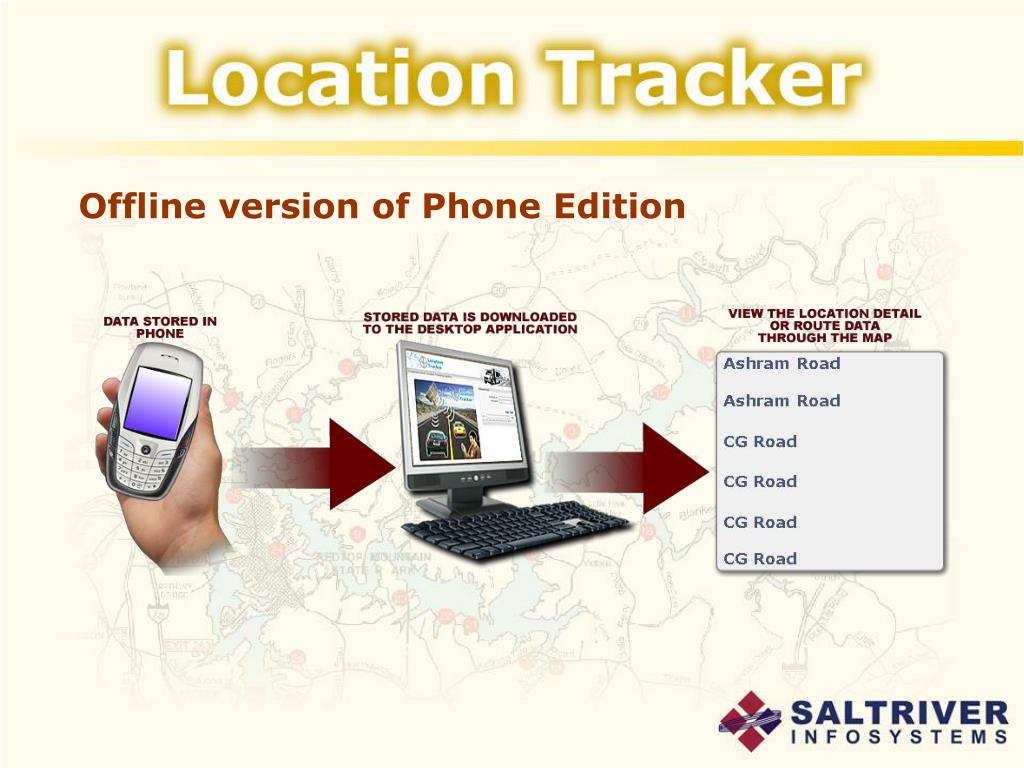

Online and Offline versions of Phone Edition • Online • In this version location details are sent to a • central location at regular intervals through • SMS. The data received can be viewed through • the web interface [Locationtracker.com], which • will facilitate the user to view the location. • Offline • In the offline version the details are stored in the • phone itself. Later on the stored data can be • down loaded to the desk top application to view • the location or route data through the map.

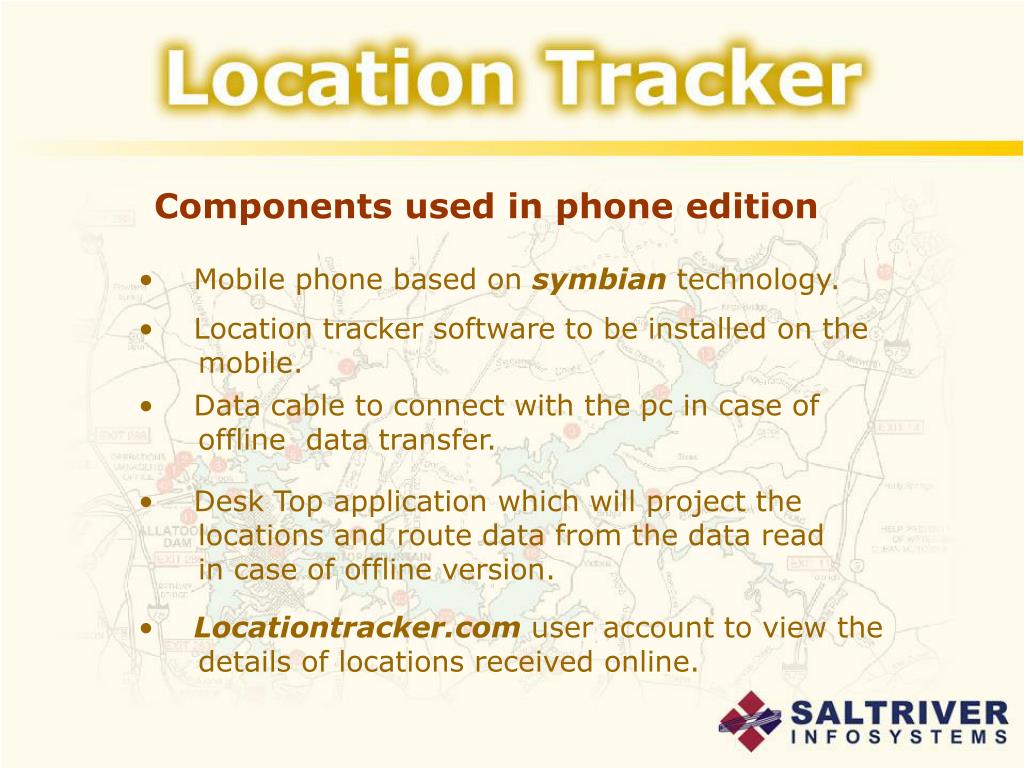

Components used in phone edition • Mobile phone based on symbiantechnology. • Location tracker software to be installed on the • mobile. • Data cable to connect with the pc in case of • offline data transfer. • Desk Top application which will project the • locations and route data from the data read • in case of offline version. • Locationtracker.comuser account to view the • details of locations received online.

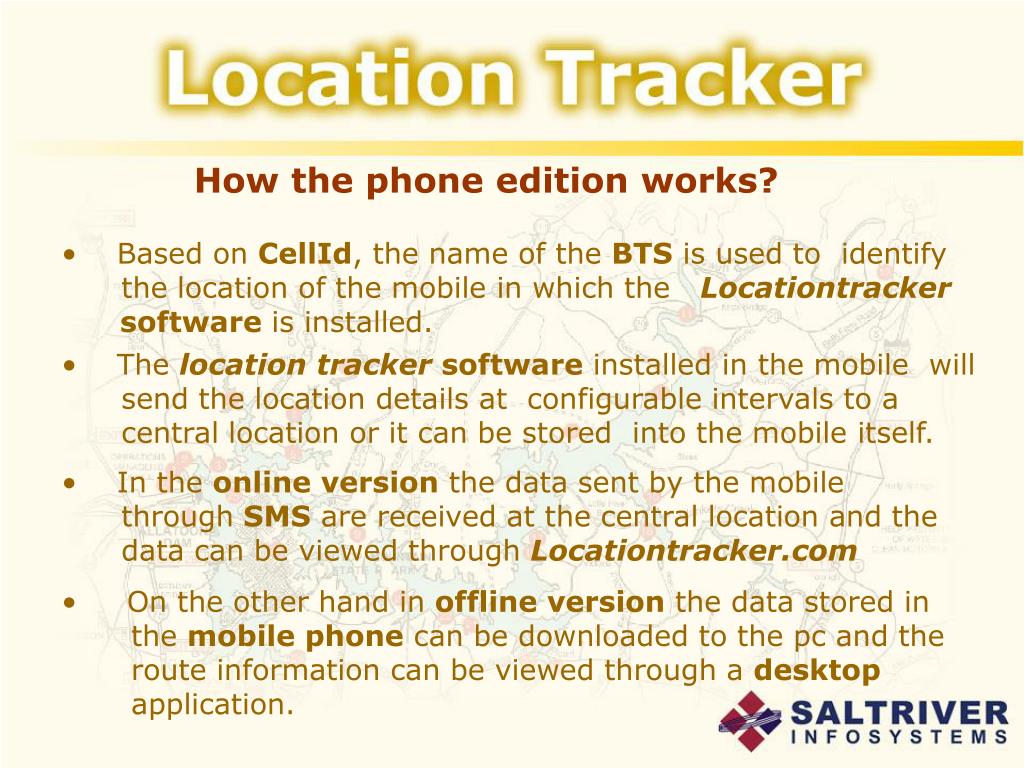

How the phone edition works? • Based on CellId, the name of the BTS is used to identify • the location of the mobile in which the Locationtracker • software is installed. • The location tracker software installed in the mobile will • send the location details at configurable intervals to a • central location or it can be stored into the mobile itself. • In the online version the data sent by the mobile • through SMS are received at the central location and the • data can be viewed through Locationtracker.com • On the other hand in offline version the data stored in the mobile phone can be downloaded to the pc and the route information can be viewed through a desktop application.
Case Study: Field force tracking using Mobile Edition • The location tracker software loaded on the sales person’s mobile • will be capable of sending messages to a central server periodically or to store the details in the phone itself. • The mobile phone can be connected to the pc later to view details in case the details are stored in the phone. The details can be viewed on web-site or mobile phone if it is an online version. • Tracks the force anywhere any time. • Avoid detouring and false reporting. • Increases productivity by utilizing the maximum time of your sales force. • Plan deployment of force according to the accurate data available.

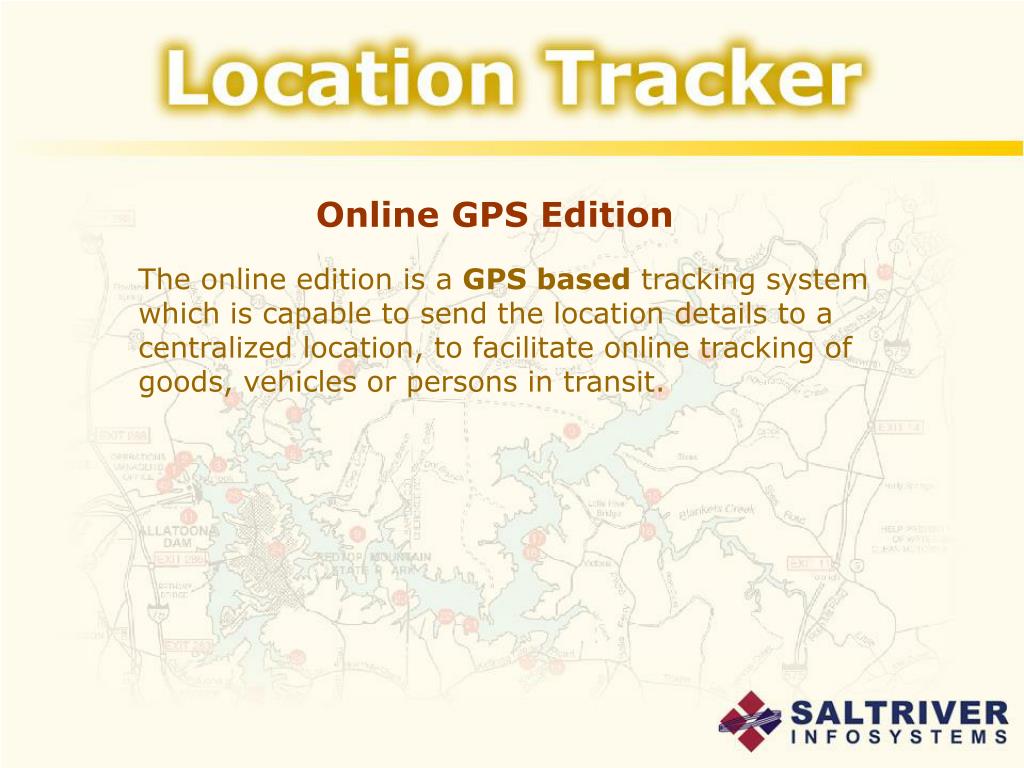

Online GPS Edition • The online edition is a GPS based tracking system which is capable to send the location details to a centralized location, to facilitate online tracking of goods, vehicles or persons in transit.

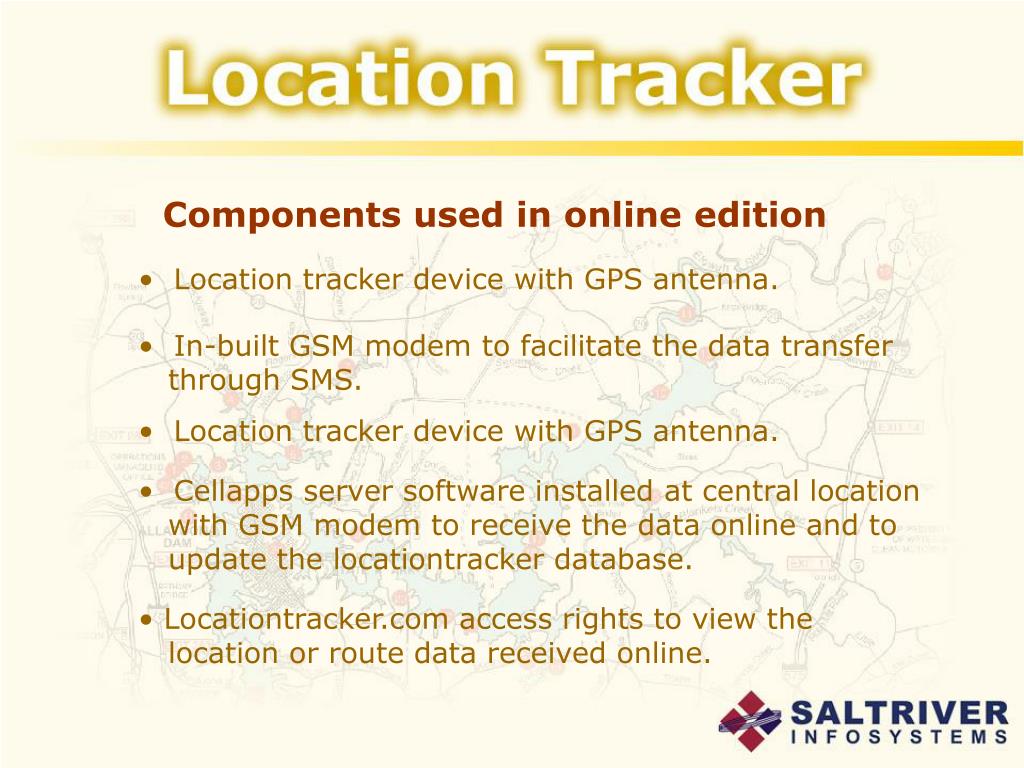

Components used in online edition • Location tracker device with GPS antenna. • In-built GSM modem to facilitate the data transfer • through SMS. • Location tracker device with GPS antenna. • Cellapps server software installed at central location • with GSM modem to receive the data online and to • update the locationtracker database. • Locationtracker.com access rights to view the • location or route data received online.

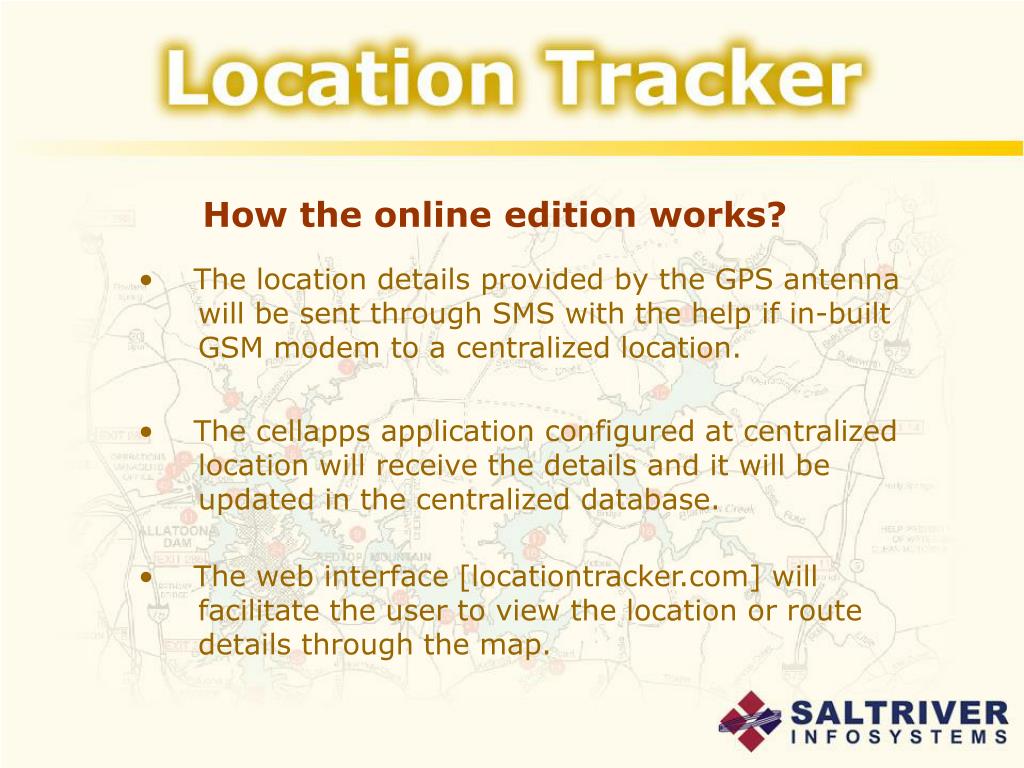

How the online edition works? • The location details provided by the GPS antenna • will be sent through SMS with the help if in-built • GSM modem to a centralized location. • The cellapps application configured at centralized • location will receive the details and it will be • updated in the centralized database. • The web interface [locationtracker.com] will • facilitate the user to view the location or route • details through the map.
Case Study: Track goods in transit using Online Edition • The Location Tracker device fitted in the vehicle sends the location, speed,fuel-tank pressure etc to the central server. The data can be viewed online through a web-application. • Suitable to avail real-time information, about the goods in transit like arms and ammunition in case of military and various other applications where online tracking is required. • Get online information about the goods in transit and thereby provide enhanced customer services. • Assure the safety of goods and the persons. • Get alerts on crossing the desired limits like frontiers, Speed Limit • Temperature of a refrigerated van. • All this helps to take right decision on right time by providing online • information of goods in transit.

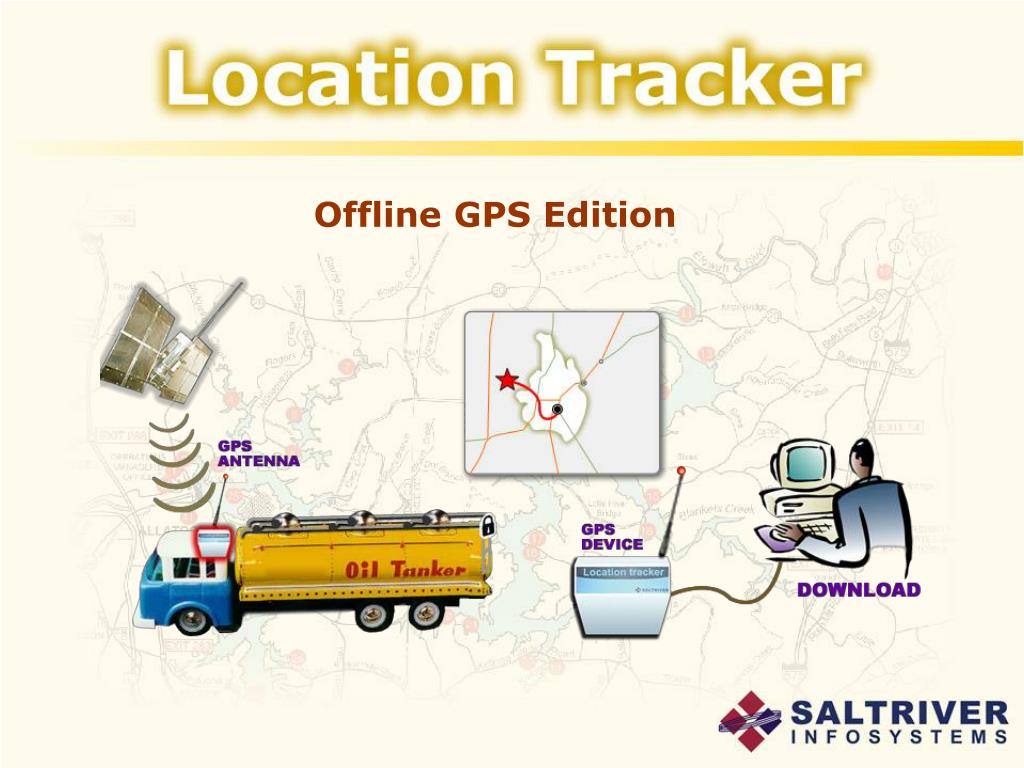

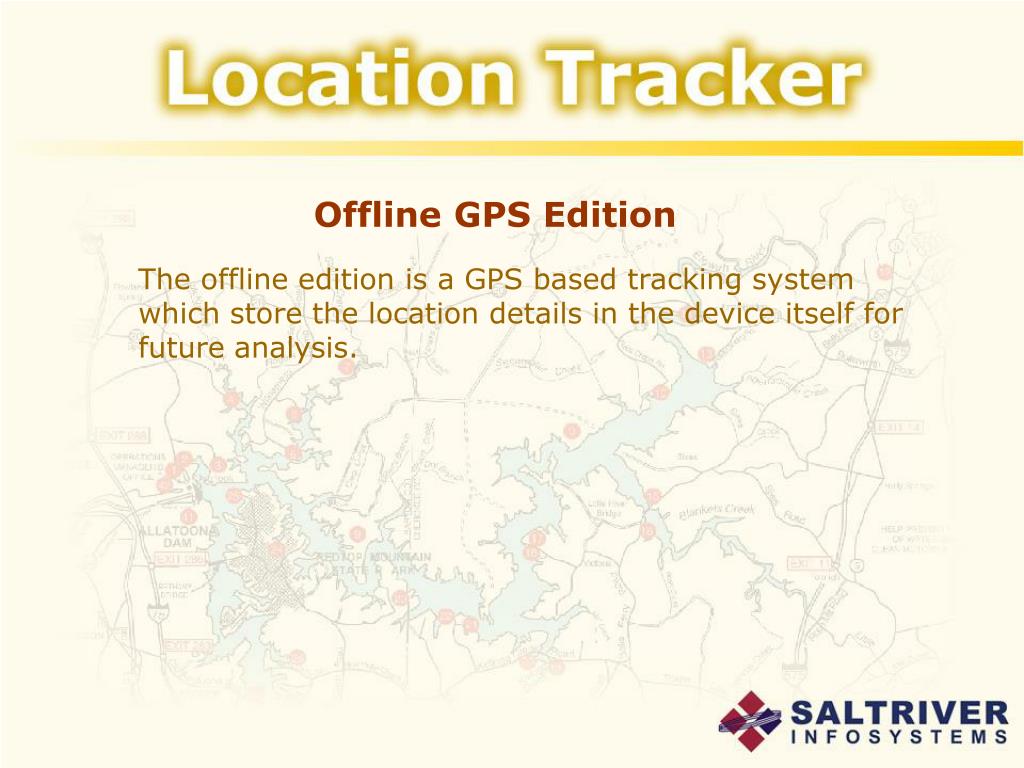

Offline GPS Edition • The offline edition is a GPS based tracking system which store the location details in the device itself for future analysis.
Components used in offline edition • Location tracker device with GPS antenna. • Data cable to connect to the pc to download the • data stored. • Desktop application to display the location or • route data based on the down loaded data.
How the offline edition works? • The GPS antenna will collect the information like • date, time, altitude and longitude. The information • collected will be stored in the device itself. • Later the device can be connected to a desk top to • download the collected data. • The data downloaded can be viewed through the • desk top application which is capable of displaying • the location or route details with the help of a map.

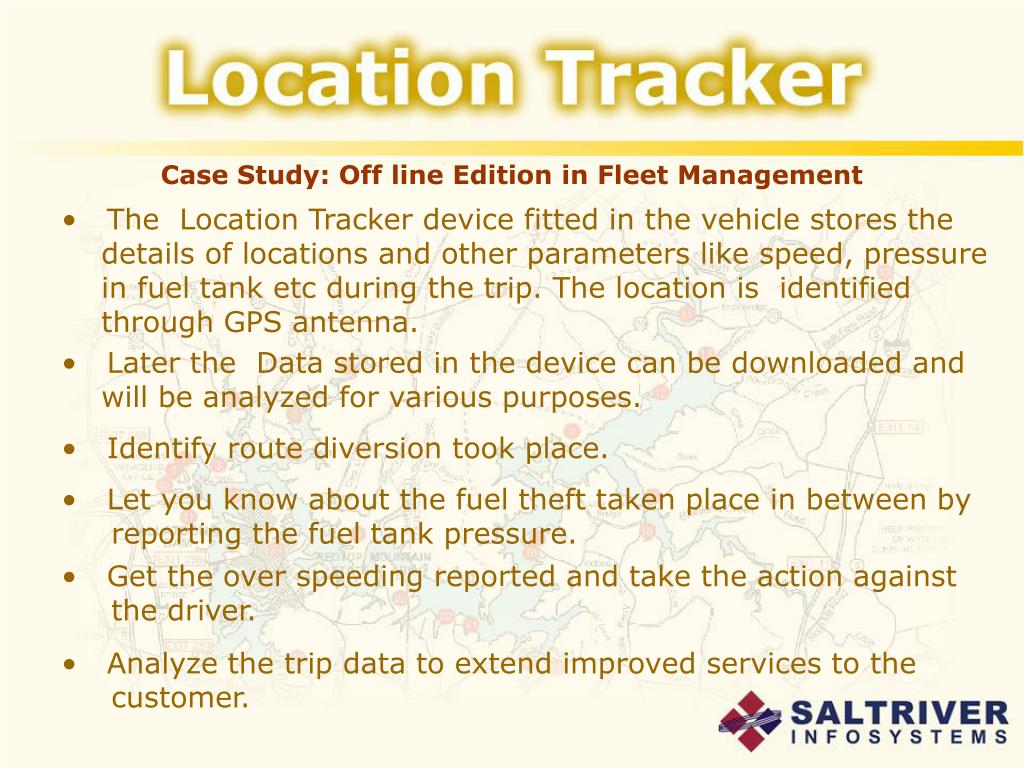

Case Study: Off line Edition in Fleet Management • The Location Tracker device fitted in the vehicle stores the details of locations and other parameters like speed, pressure in fuel tank etc during the trip. The location is identified through GPS antenna. • Later the Data stored in the device can be downloaded and will be analyzed for various purposes. • Identify route diversion took place. • Let you know about the fuel theft taken place in between by reporting the fuel tank pressure. • Get the over speeding reported and take the action against the driver. • Analyze the trip data to extend improved services to the customer.
Technical specifications I • GPS • Antenna : Active Antenna • Gain : 16 dB including cable loss • Noice Figure : < 2dB • Channels : 12 Channels • External Connectors • Serial interfaces : RS232 Female – DB9 • Protocol Support • Serial : RS232 • SMS : For location data and for • sending commands from • server to device • GPRS : For location data • Data Call : Scheduled or on-request • data download, Over- • the-air code upgrade
Technical specifications II • Data Storage Capacity • Storage : Up to 2000 location records • for no coverage zone • Memory : On-board, non-volatile • Tracking : Time based, distance- • based, over-speeding, • Acceleration/deceleration • way point tracking • Tracking interval : Configurable • Poll : Real time poll for position update • Exception Alerts • SMS : Over-speed alert, Route • deviation alert, Way point • alert, power disconnect • alert • Diagnostics : Stores diagnostic • information for trouble • shooting

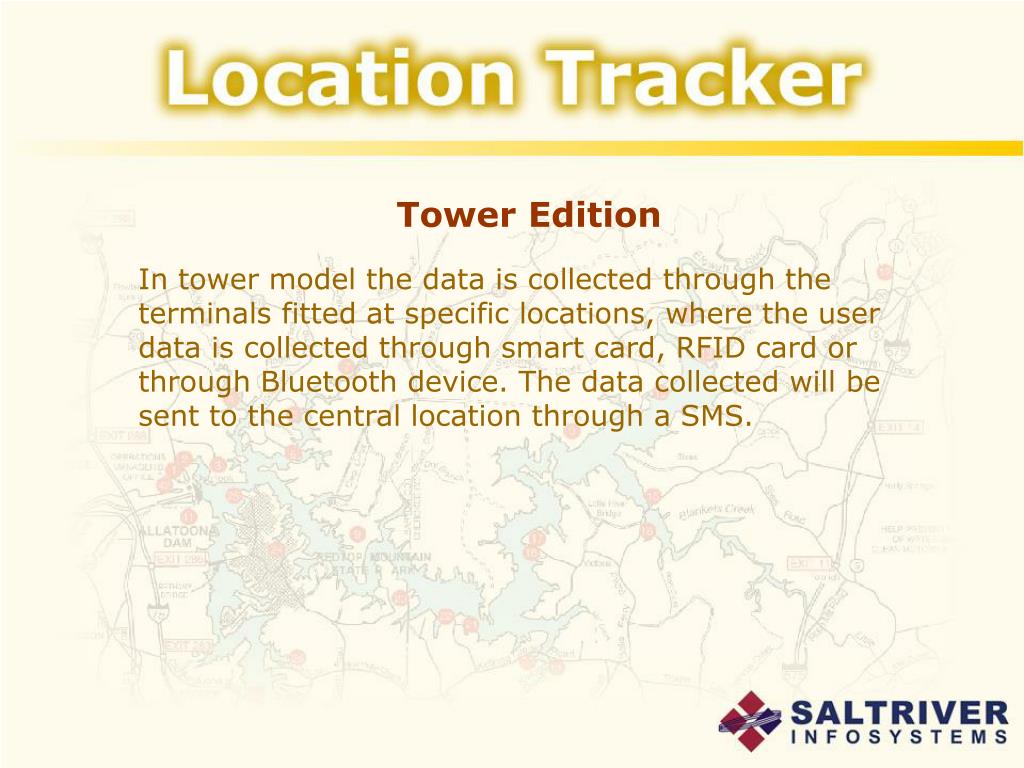

Tower Edition • In tower model the data is collected through the terminals fitted at specific locations, where the user data is collected through smart card, RFID card or through Bluetooth device. The data collected will be sent to the central location through a SMS.

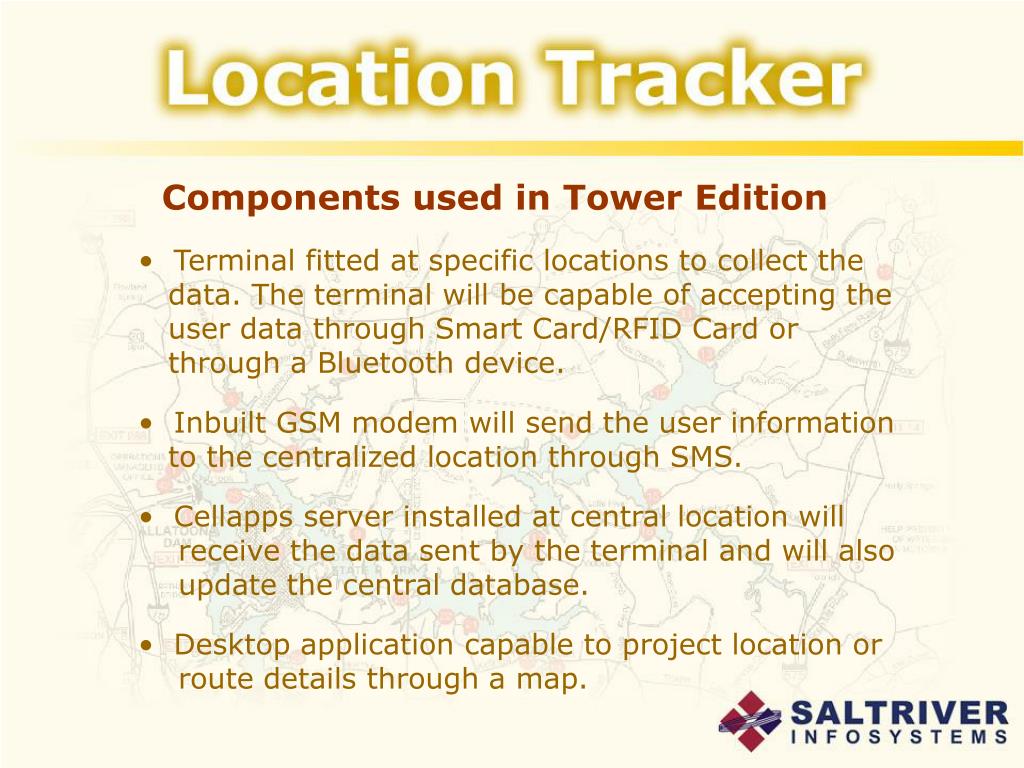

Components used in Tower Edition • Terminal fitted at specific locations to collect the • data. The terminal will be capable of accepting the • user data through Smart Card/RFID Card or • through a Bluetooth device. • Inbuilt GSM modem will send the user information • to the centralized location through SMS. • Cellapps server installed at central location will • receive the data sent by the terminal and will also • update the central database. • Desktop application capable to project location or • route details through a map.

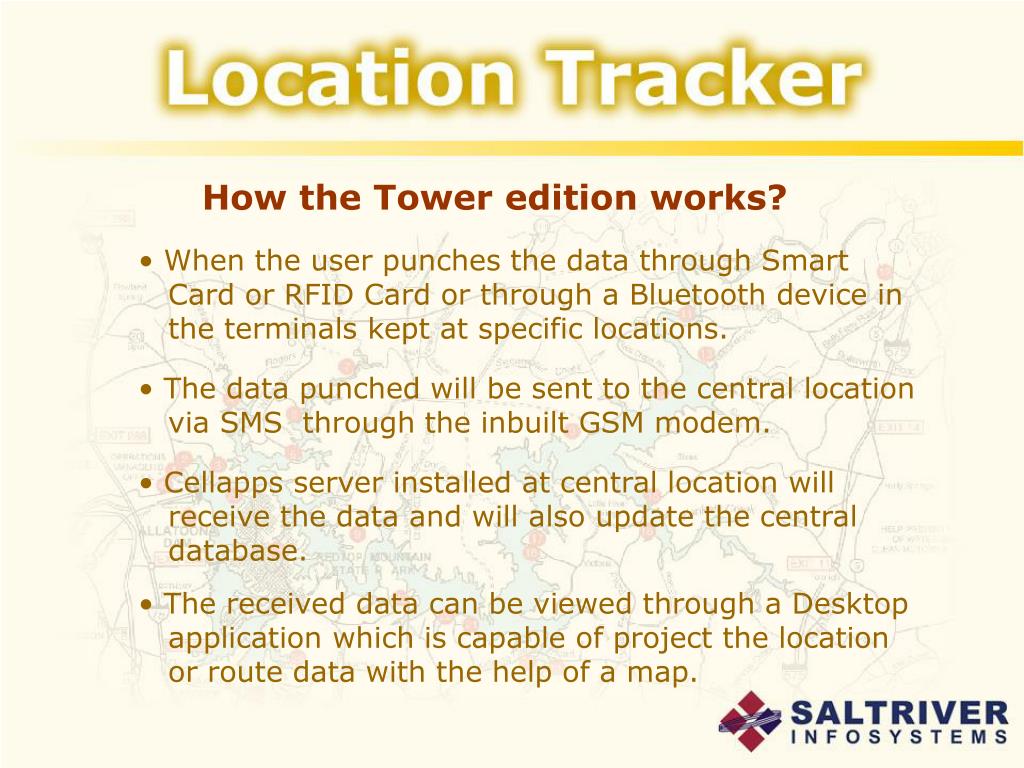

How the Tower edition works? • When the user punches the data through Smart • Card or RFID Card or through a Bluetooth device in • the terminals kept at specific locations. • The data punched will be sent to the central location • via SMS through the inbuilt GSM modem. • Cellapps server installed at central location will • receive the data and will also update the central • database. • The received data can be viewed through a Desktop • application which is capable of project the location or route data with the help of a map.
Case Study: Utilization of Tower Model in Public Transport Management • Terminals capable of identify the user through Smart Card, RFID, Bar Code or • Bluetooth devices kept at certain distances. • Users (Drivers or ticket collectors) will swipe or show their card at the terminals. The • terminal will send an SMS to the central location about the arrival of the vehicle with • time and other details. The data can be analyzed at central location. • Suitable for Public Transport Systems like the State Owned transports or Travel agents • to track the movement of vehicles through a method which is simple and low cost. • Track the vehicle’s arrival time on specific locations and the time to reach the destination. • Identify unnecessary stoppages by analyzing the regular duration took to reach the same place. • Reduce man power who take care the login activity of vehicles enters to the • station and goes out of the station in case of Transport corporations. • Inform the passengers about the arrival of the vehicle accurately on the basis of • the information received time to time.
Usage Scenarios • Fleet Management • Track Sales/Field Force • Track Goods in Transit • Track Fishing Boats
Fleet Management • A total solution to track vehicles on move. • Handles fleets of any size. • To monitor routes. • Audit driver safety. • Enhance the goods/passenger safety through real time monitoring.
Track sales/field force • Track your sales/field force irrespective of time and place. • Avoid faulty visit reports by tracking the locations they have been visited.
Mobile Asset Tracking • Keep track of your valuable mobile assets. • Keep a check that where it is being used. • Improves bottom-line by controlling the incidents • of lost, wasted and stolen assets.

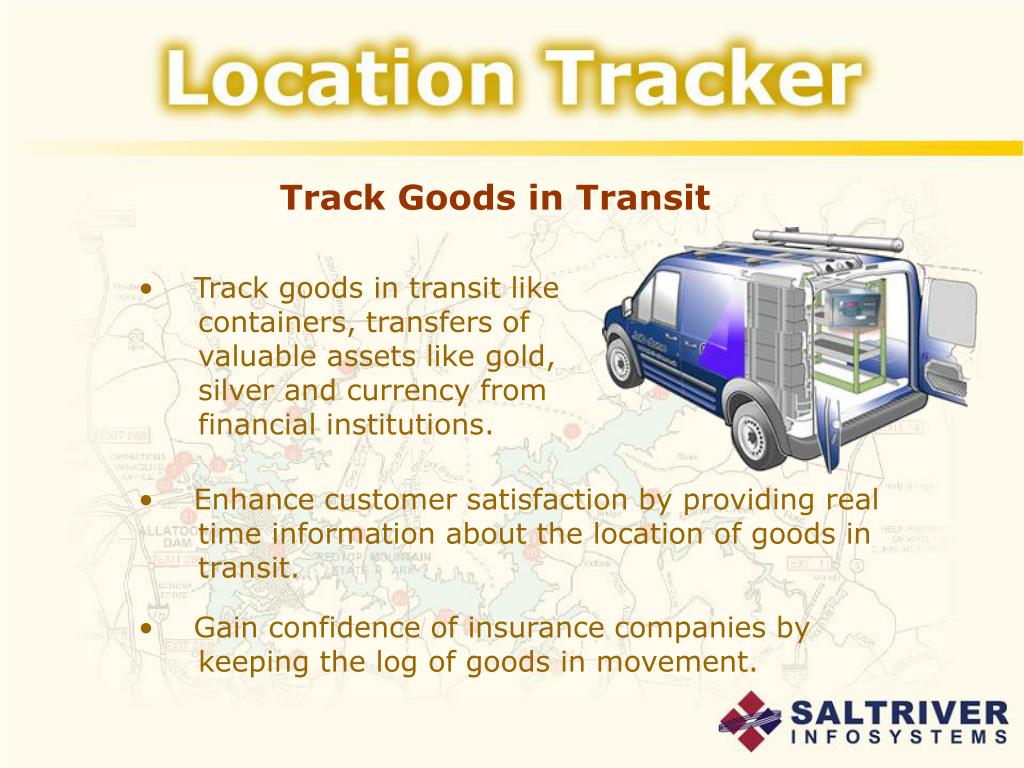

Track Goods in Transit • Track goods in transit like containers, transfers of • valuable assets like gold, silver and currency from • financial institutions. • Enhance customer satisfaction by providing real • time information about the location of goods in • transit. • Gain confidence of insurance companies by • keeping the log of goods in movement.
Track Fishing boats at high seas • Track fishing boats at high seas from the remote location. • Prevent boats from entering foreign waters.

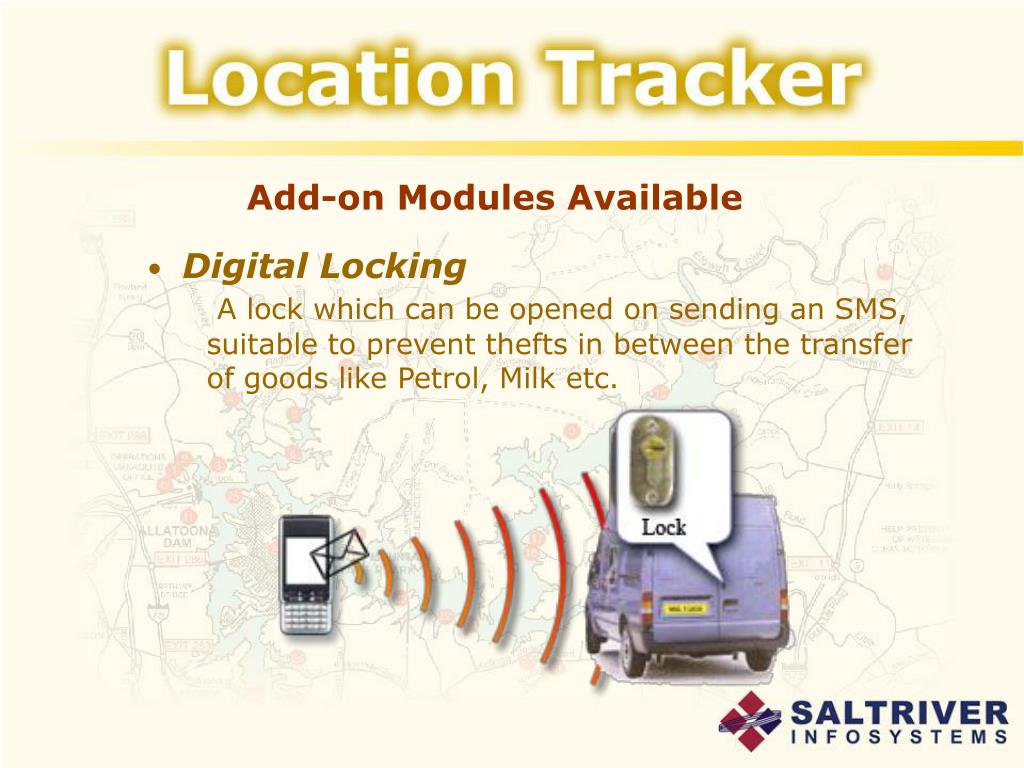

Add-on Modules Available • Digital Locking A lock which can be opened on sending an SMS, • suitable to prevent thefts in between the transfer • of goods like Petrol, Milk etc.

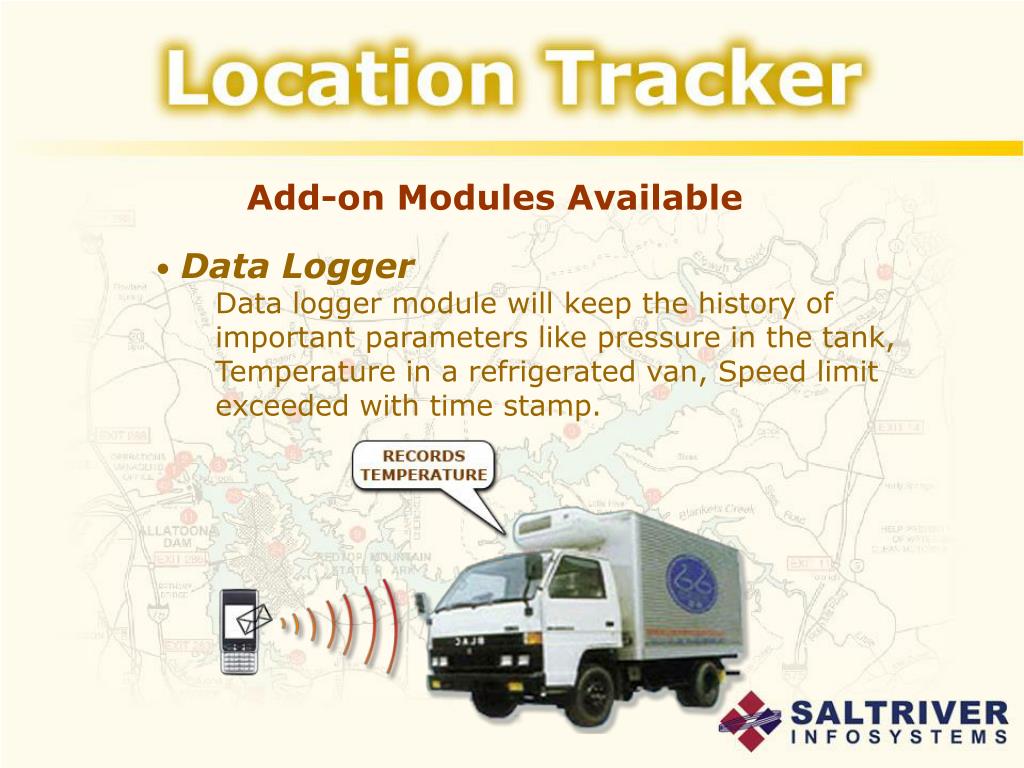

Add-on Modules Available • Data Logger Data logger module will keep the history of • important parameters like pressure in the tank, • Temperature in a refrigerated van, Speed limit • exceeded with time stamp.
Our Esteemed Clients • Vadilal Enterprise Limited • Trans Asia.
