Rotating Quadrilaterals and Triangles: Guide to 120° and 270° Transformations

This guide provides step-by-step instructions for rotating quadrilaterals and triangles using coordinate rules. Specifically, it demonstrates how to rotate the quadrilateral RSTU and triangle JKL about a point or the origin by given angles. The process includes drawing segments, angles, and new vertices based on rotation rules (120° and 270°). Examples and practice problems are included to reinforce learning. By following these steps, students will master the concepts of geometric transformations and understand the application of rotation in coordinate geometry.

octavius-burgess
Download Presentation

Rotating Quadrilaterals and Triangles: Guide to 120° and 270° Transformations

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

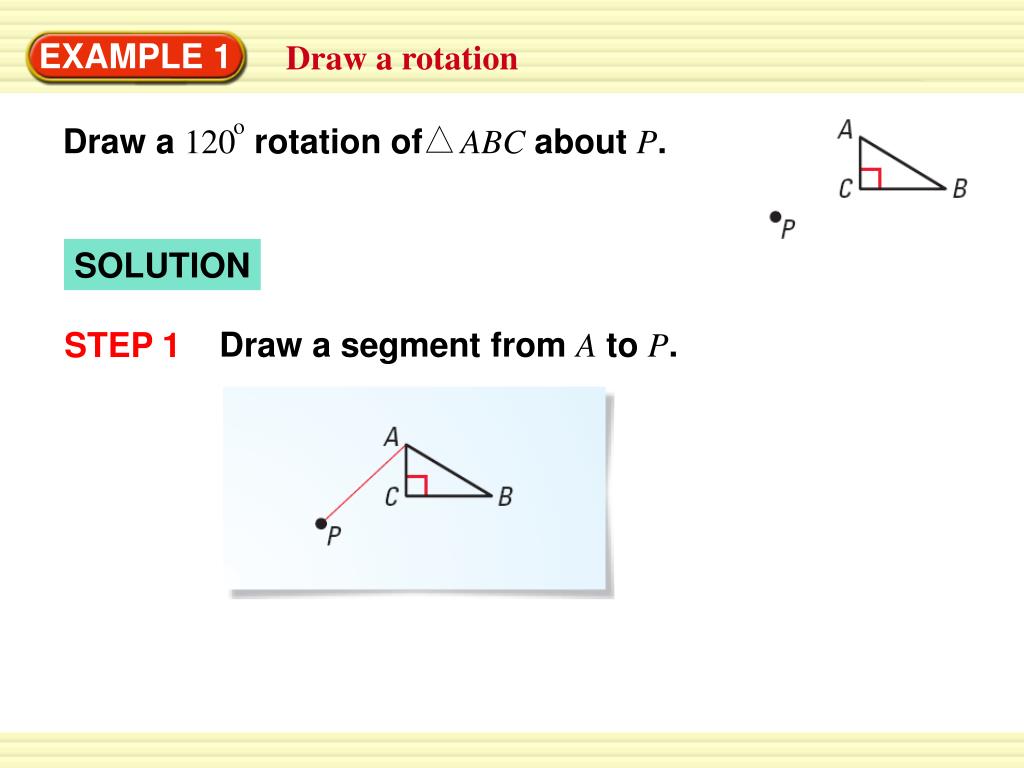

  1. o Draw a 120 rotation of ABCabout P. STEP 1 Draw a segment from Ato P. EXAMPLE 1 Draw a rotation SOLUTION

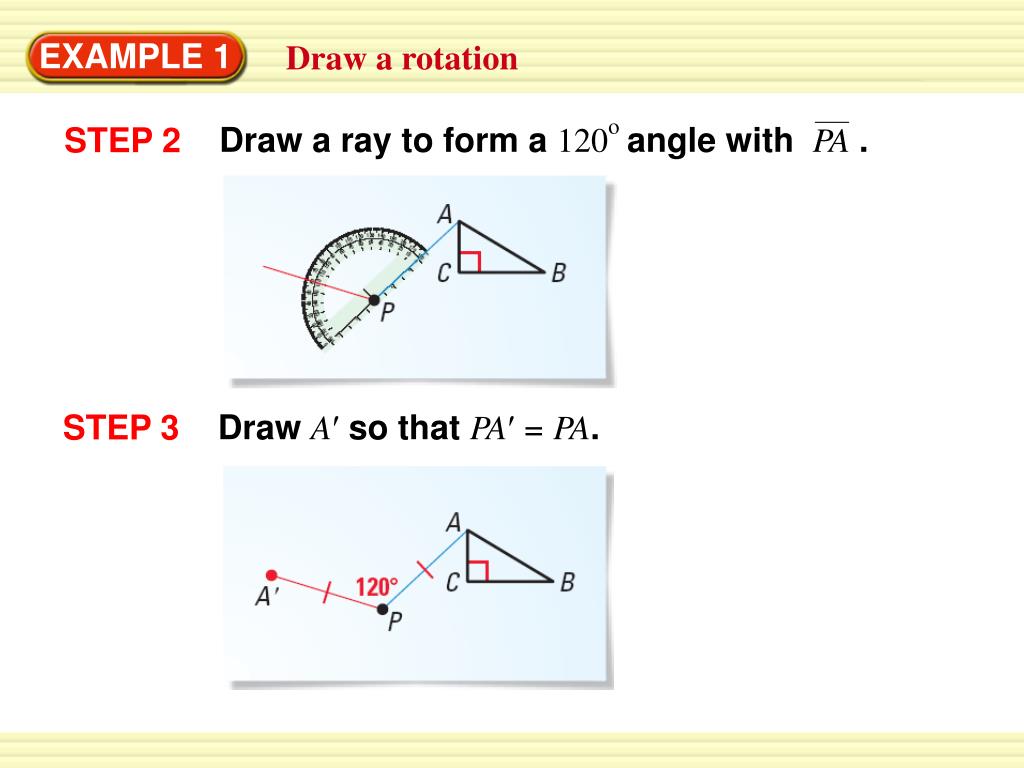

  2. o Draw a ray to form a 120 angle with PA. STEP 3 DrawA′ so thatPA′= PA. EXAMPLE 1 Draw a rotation STEP 2

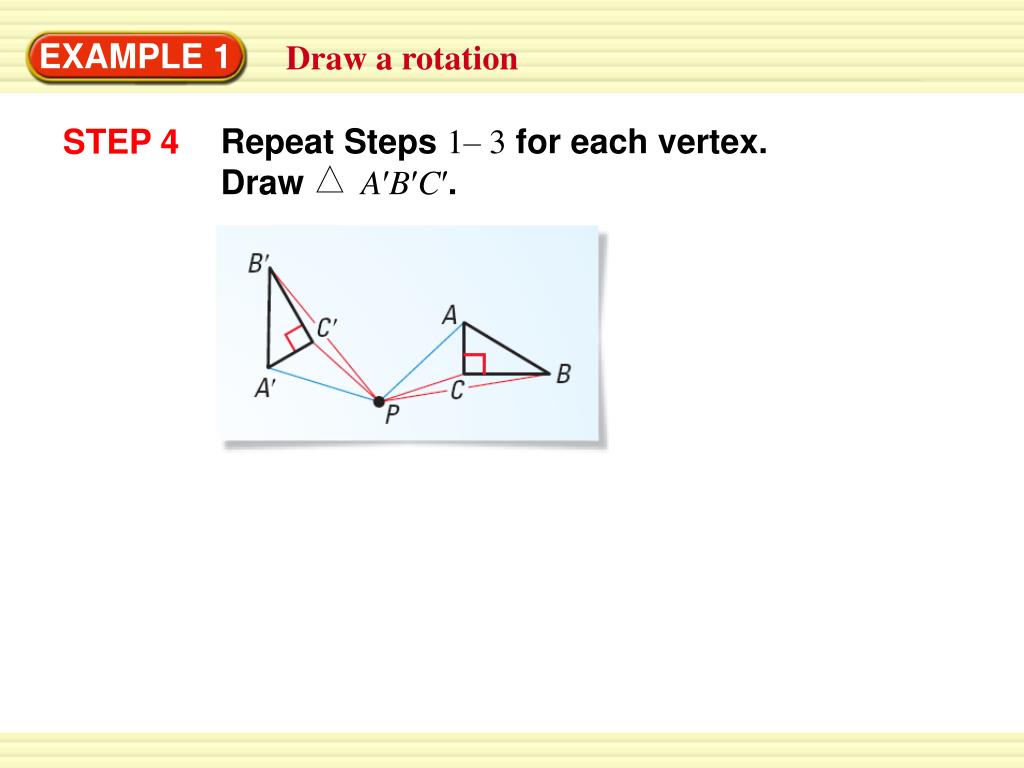

  3. EXAMPLE 1 Draw a rotation STEP 4 Repeat Steps 1– 3 for each vertex. DrawA′B′C′.

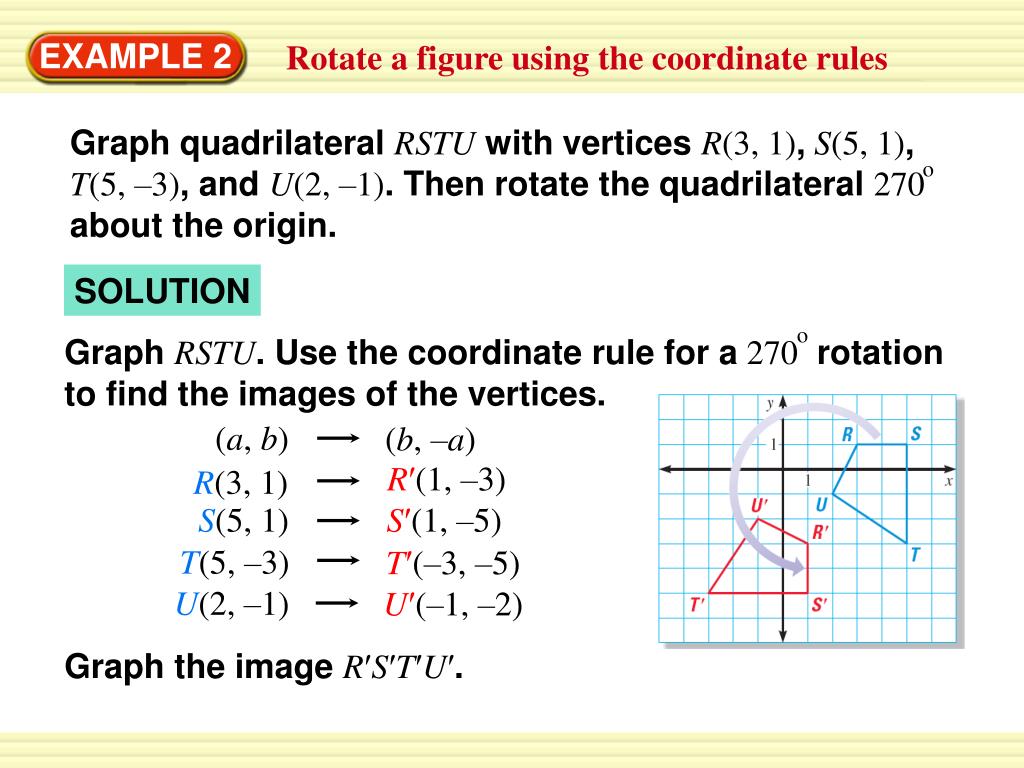

  4. Graph quadrilateral RSTUwith vertices R(3, 1),S(5, 1), T(5, –3), and U(2, –1). Then rotate the quadrilateral 270 about the origin. o o Graph RSTU. Use the coordinate rule for a 270 rotation to find the images of the vertices. (a, b) (b, –a) R′(1, –3) R(3, 1) S(5, 1) S′(1, –5) T(5, –3) T′(–3, –5) U(2, –1) U′(–1, –2) EXAMPLE 2 Rotate a figure using the coordinate rules SOLUTION Graph the image R′S′T′U′.

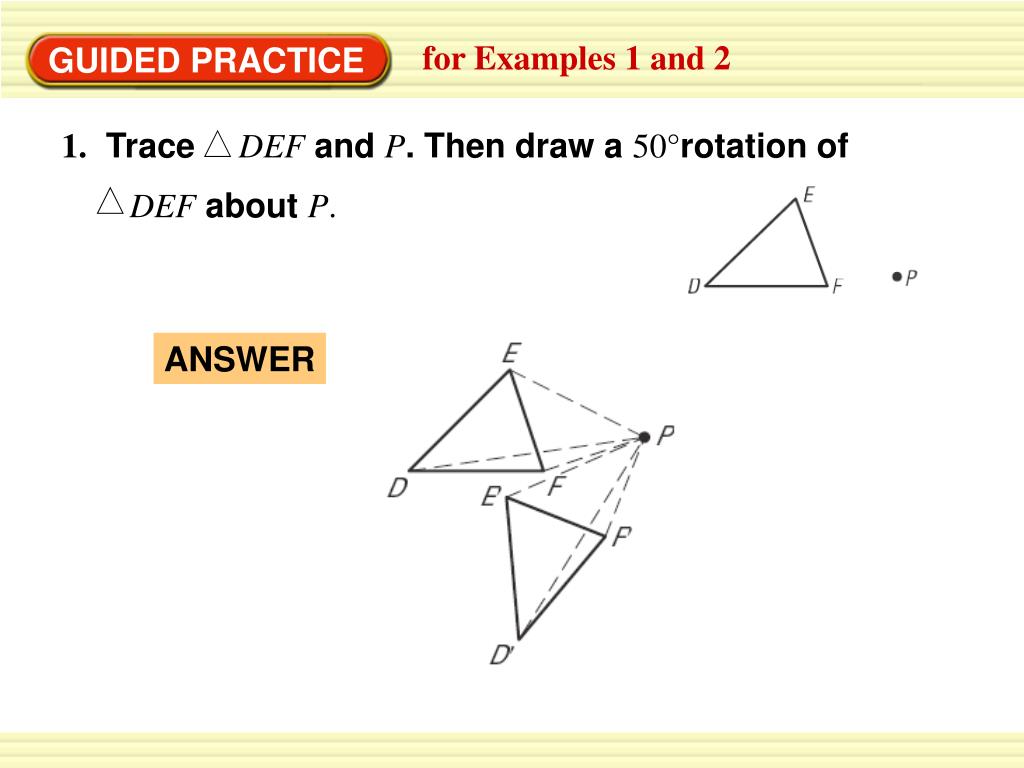

  5. 1. Trace DEFand P. Then draw a 50°rotation of ANSWER DEFabout P. for Examples 1 and 2 GUIDED PRACTICE

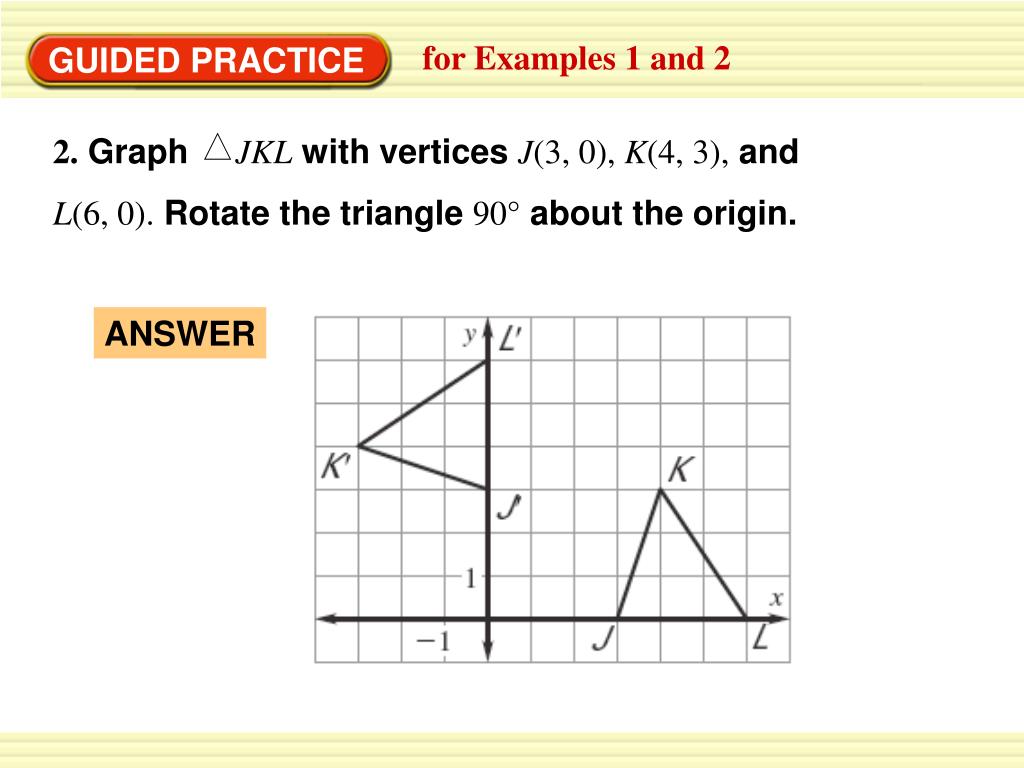

  6. ANSWER for Examples 1 and 2 GUIDED PRACTICE 2. Graph JKLwith vertices J(3, 0), K(4, 3), and L(6, 0). Rotate the triangle 90° about the origin.
