  1. Permission Encoding in 1609 William Whyte, Security Innovation April 6 2010

  2. Review: WSM routing with PSIDs • In 1609.3, a higher layer entity uses the WME-WSMService.request to register an interest in PSIDs • Any WSM received with that PSID in the WSM Header will be routed to every entity that has requested that PSID. • An entity may request multiple PSIDs, and a PSID may be requested by multiple entities. • An entity may request PSIDs that it does not send on or vice versa. • Example: SAE J2735 Emergency Vehicle Alert will be received but not sent by end-user vehicles.

  3. Permission enforcement • A sender states what permissions it’s claiming and gives proof that it’s entitled to those permissions • In 1609.2-2006: • Permissions are encoded by PSID • PSID appears in header of signed message • PSID appears in certificate • A certificate is a statement of the holder’s permissions, made by a trusted third party • If a higher layer entity receives a message on a requested PSID, signed and with an appropriate cert attached, can be trusted. • So PSIDs are used both for routing and for permission encoding

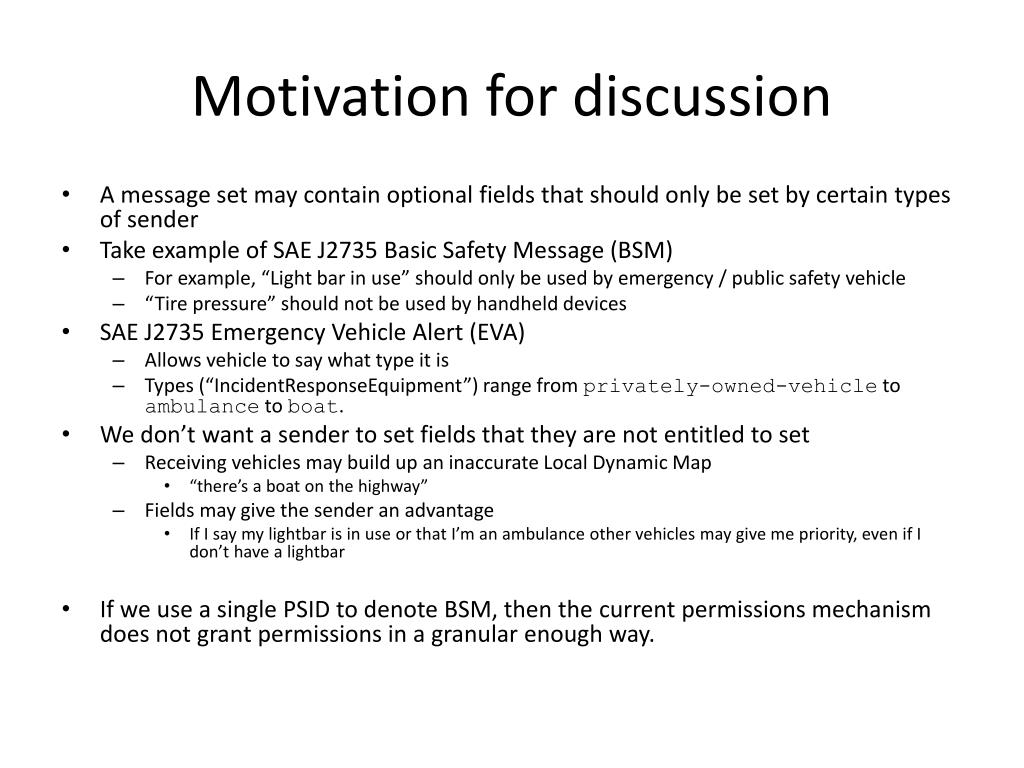

  4. Motivation for discussion • A message set may contain optional fields that should only be set by certain types of sender • Take example of SAE J2735 Basic Safety Message (BSM) • For example, “Light bar in use” should only be used by emergency / public safety vehicle • “Tire pressure” should not be used by handheld devices • SAE J2735 Emergency Vehicle Alert (EVA) • Allows vehicle to say what type it is • Types (“IncidentResponseEquipment”) range from privately-owned-vehicle to ambulance to boat. • We don’t want a sender to set fields that they are not entitled to set • Receiving vehicles may build up an inaccurate Local Dynamic Map • “there’s a boat on the highway” • Fields may give the sender an advantage • If I say my lightbar is in use or that I’m an ambulance other vehicles may give me priority, even if I don’t have a lightbar • If we use a single PSID to denote BSM, then the current permissions mechanism does not grant permissions in a granular enough way.

  5. Options for using permissions • Permissions are only enforced at the message set level • If a device can send any message from a set, it can send all messages from that set • Use multiple PSIDs per message set to encode permissions with more granularity • For BSM, one PSID for “Ordinary vehicle”, one for “Tow Truck”, one for “Ambulance”, one for “Handheld”, … • For EVA, one PSID for each vehicle type? • Use a single PSID per message set but define an additional field, Service Specific Permissions (SSP), to encode the sender type • One SSP for “Ordinary vehicle”, one for “Tow Truck”, one for “Ambulance”, one for “Handheld”, … • Review the options on the next slides

  6. Permissions enforced at message set level • If a device can send any message from a set, all messages from that set will be accepted from it • EVA cert allows any EVA message • BSM cert allows any sender to claim they have their lightbar on • Anyone who can • compromise a unit, or • extract keys from a unit can send incorrect messages • Advantages: routing and permissions can be handled by the same mechanism; consistent with 1609.2-2006 • Disadvantages: • This is a problem if: • Inaccurate information is a problem, even if it does not involve an escalation of privileges (boat on the highway) • Different messages in the set have significantly different permissions • All future message set development must be policed to ensure that messages in a message set have similar privileges • But note that message set developers must be aware of differing privileges under any of the models in this presentation • Policing can be done by IEEE-RA as part of PSID issuance?

  7. Multiple PSIDs per message set • Use multiple PSIDs per message set to encode permissions with more granularity • For BSM, one PSID for “Ordinary vehicle”, one for “Tow Truck”, one for “Ambulance”, one for “Handheld”, … • For EVA, one PSID for each vehicle type? • Advantage: Allows granularity of permissions without changing current messages • Disadvantage: • Uncomfortable to use PSIDs both for routing and for security • Will require an end entity to register to receive on many more PSIDs than was otherwise the case • If we add PSIDs to a message set, existing applications will not receive on new PSIDs unless upgraded1. 1. One undiscussed approach to this is to define a “permission upgrade message”, signed by application deployers, which can be sent by units that use new PSIDs

  8. Service Specific Permissions • Permissions are encoded in a new field, separate from PSID: Service Specific Permissions (SSP) • For BSM, one PSID for “Ordinary vehicle”, one for “Tow Truck”, one for “Ambulance”, one for “Handheld”, … • For EVA, one PSID for each vehicle type? • Advantage: • Separates security from routing • Extensible – if permissions to set specific fields in a message are bitmapped, easy to define more • Disadvantage: Major change to standard, probably makes things a lot more confusing

  9. SSP approach: open questions • How can we optimize bandwidth? • Fixed-length SSP? If so how long? • Single SSP in cert to allow it to be omitted from message? • Multiple PSIDs per cert to allow us to send fewer certs? • How does it integrate with WSA? • Is SSP encoded separately in WSA from PSC? • How is service matching performed?

  10. SSP approach: Changes to 1609.2 primitives • 7.4.2.1, WAVESecurityServices-SignedMessage.request • Add SSP to the parameter list. • 7.4.4.2, WAVESecurityServices-SecuredMessageDataExtraction.request • Add the following to the parameter list, depending on decisions made in the meeting: • SSP from the message • SSP(s) from the certificate. • 7.5.2.1, WAVESecurityServices-SignedWsa.request • Change "PSID and Priorities" to "(PSID, Priority, SSP)" • 7.5.3.2, WaveSecurityServices-SignedWsaValidation.confirm • Add the following to the parameter list, depending on decisions made in the meeting: • For each PSID in the WSA: • the list of SSPs extracted from the cert • potentially the SSP extracted from the WSA, if we decide to encode the SSP separately from the PSC.

  11. SSP approach: Changes to 1609.3 • 6.4.2: SSP and PSID from the WSA need to go into the AvailableServiceInfo • 7.4.2.2 WME-ProviderService.Request • Add a parameter specifying the SSP. • 7.4.2.4 WME-UserService.Request • Add a parameter specifying the SSP. • A User Service may need to specify all the SSPs that it will accept.

  12. User service request with notifi-cation
