  1. Rishi Mohindra, MAXIM Project: IEEE P802.15 Working Group for Wireless Personal Area Networks (WPANs) Submission Title: FPP-SUN Bad Urban GFSK vs OFDM Date Submitted: July 30, 2009 Source:RishiMohindra, MAXIM Integrated Products Contact: RishiMohindra, MAXIM Integrated Products Voice: +1 408 331 4123 , E-Mail: Rishi.Mohindra@maxim-ic.com Re: TG4g Call for proposals Abstract: PHY proposal towards TG4g Purpose: PHY proposal for the TG4g PHY amendment Notice: This document has been prepared to assist the IEEE P802.15. It is offered as a basis for discussion and is not binding on the contributing individual(s) or organization(s). The material in this document is subject to change in form and content after further study. The contributor(s) reserve(s) the right to add, amend or withdraw material contained herein. Release: The contributor acknowledges and accepts that this contribution becomes the property of IEEE and may be made publicly available by P802.15. Slide 1

  2. Future Proof Platform for SUN: Bad Urban GFSK vs OFDM Rishi Mohindra IEEE 802 Plenary Session San Francisco July 2009 Supporters: Emmanuel Monnerie [Landis & Gyr], Partha Murali [Redpine], Steve Shearer [Independent], Shusaku Shimada [Yokogawa Electric Co.], Bob Fishette [Trilliant], SangsungChoi, [ETRI], Roberto Aiello [Independent], Kendall Smith [Aclara], David Howard [On-Ramp]

  3. Contents • Bad Urban Channel Model • GFSK simulation set up • OFDM simulation details • PER simulation results • Channel Statistics • PER with FHSS for GFSK • Conclusions • Appendix • Channel models in Matlab and ADS

  4. Bad Urban Channel Model Obstacle (Building etc) Tx Rx Transmitted signal Received signal Slide 4

  5. GFSK Simulation set up Data Rates 100 kb/s 500 kb/s Modulation etc GFSK, h = BT = 0.5 Receiver filter Noise Bandwidth = 1.5x Data Rate = approximate signal bandwidth Channels: AWGN Bad Urban Payload Packet Length for PER 100 bytes (does not include 24-bit preamble) 1000 bytes (does not include 24-bit preamble) Up to 8000 packets simulated each with a random channel snap shot to keep PER variance small Synchronization Cross correlation with 24-bit preamble pattern for maximum peak, for every channel snap shot Slide 5

  6. OFDM Simulation set up Data Rates used for Bad Urban OFDM simulations = 188 kb/s and 750 kb/s Slide 6

  7. PER Simulation Results GFSK OFDM GFSK GFSK in AWGN OFDM GFSK simulations performed by RishiMohindra, MAXIM OFDM simulations performed by Partha Murali, Redpine Signals Slide 7

  8. PER Simulation Results OFDM GFSK GFSK in AWGN GFSK in AWGN GFSK OFDM GFSK simulations performed by RishiMohindra, MAXIM OFDM simulations performed by Partha Murali, Redpine Signals Slide 8

  9. Bad Urban Channel Statistics for 100 kb/s GFSK Slide 9

  10. Bad Urban Channel Statistics for 500 kb/s GFSK Slide 10

  11. PER with FHSS for GFSK 500 kb/s Looked at channel snap shots (seed values) that produced bit errors in a packet. Then swept the carrier frequency for the above seed values of the channel model, in order to check if frequency diversity (or FHSS) will help for GFSK It was observed that frequency diversity (or FHSS) did not help i.e. PER = 100% over frequency once a bad multipath channel occurs even for very high SNR values of 45 dB This is because in the simple 2-ray model with Rayleigh fading, the channel frequency response is repetitive, producing frequency selective fading for 500 kb/s GFSK signal A more elaborate channel model has to be used for depicting “Frequency Correlation Function” over the operating band, and for determining the improvement with frequency diversity (i.e. FHSS) However, even with FHSS, the expected PER will still be worse than 20% for each channel for the Bad Urban multipath case, and this will require multiple re-transmissions leading to more battery drain compared to OFDM. Slide 11

  12. Conclusions for Bad Urban channels 188 kb/s OFDM has at least 20 to 30 dB SNR advantage over 100 kb/s GFSK in Bad Urban channel conditions for PERs from 10% down to 1 %. The lower the required PER, more the advantage of OFDM over GFSK. 188 kb/s OFDM can operate at 10 dB lower power than 100 kb/s GFSK considering actual receiver power levels Even 750 kb/s OFDM has 12 dB SNR advantage over 100 kb/s GFSK at 1% PER 750 kb/s OFDM can operate at 6 dB lower power than 100 kb/s GFSK considering actual receiver power levels 500 kb/s GFSK will not work efficiently in Bad Urban channels for Gas and Water meters due to PER in excess of 20% that would lead to higher battery drain due to multiple re-transmissions at different hop channels Receiver power level where OFDM operates at 1-10% PER, the GFSK systems will operate at 30-100% PER for similar data rates. GFSK systems will require a very high density of repeaters to cover the range in a mesh network compared to OFDM Slide 12

  13. Appendix Bad Urban Channel models in Matlab (used for OFDM) ADS (used for GFSK) Slide 13

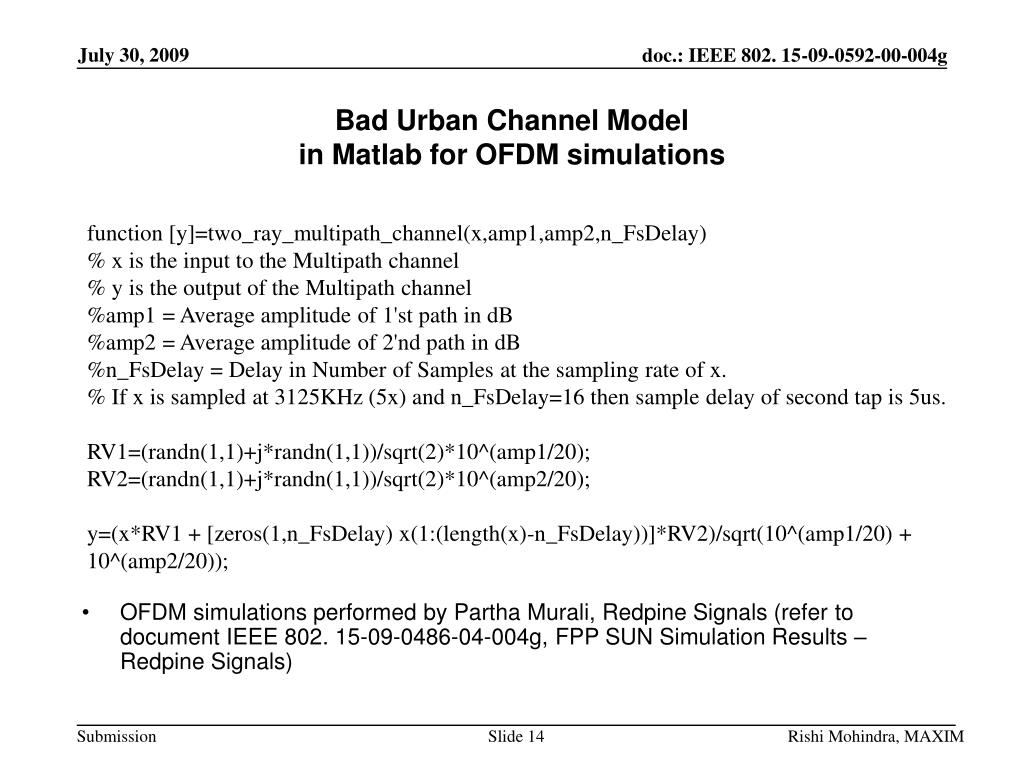

  14. Bad Urban Channel Model in Matlab for OFDM simulations function [y]=two_ray_multipath_channel(x,amp1,amp2,n_FsDelay) % x is the input to the Multipath channel % y is the output of the Multipath channel %amp1 = Average amplitude of 1'st path in dB %amp2 = Average amplitude of 2'nd path in dB %n_FsDelay = Delay in Number of Samples at the sampling rate of x. % If x is sampled at 3125KHz (5x) and n_FsDelay=16 then sample delay of second tap is 5us. RV1=(randn(1,1)+j*randn(1,1))/sqrt(2)*10^(amp1/20); RV2=(randn(1,1)+j*randn(1,1))/sqrt(2)*10^(amp2/20); y=(x*RV1 + [zeros(1,n_FsDelay) x(1:(length(x)-n_FsDelay))]*RV2)/sqrt(10^(amp1/20) + 10^(amp2/20)); • OFDM simulations performed by Partha Murali, Redpine Signals (refer to document IEEE 802. 15-09-0486-04-004g, FPP SUN Simulation Results – Redpine Signals) Slide 14

  15. Bad Urban Channel Model in ADS for GFSK simulations • Above ADS channel model replicates the Matlab code in the previous slide. • Power levels and SNR are set in the top-level simulation after obtaining the ensemble average power Slide 15
