  1. Chapter 21 (part 1) Transcription

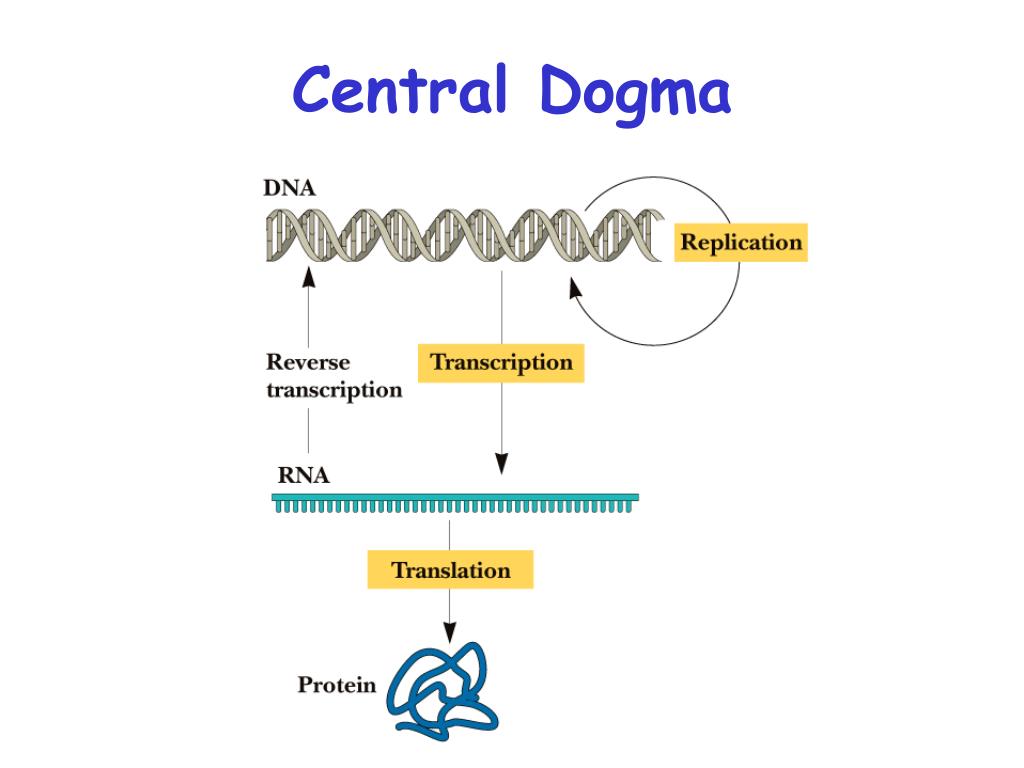

  2. Central Dogma

  3. RNA Content of E. coli Cells

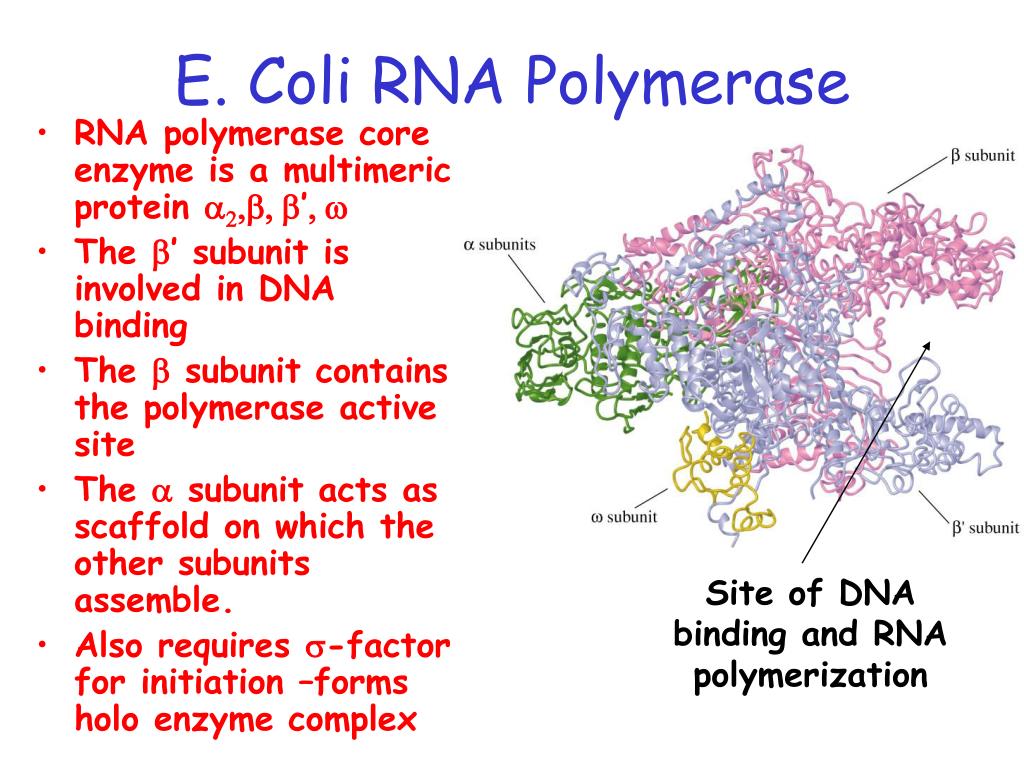

  4. E. Coli RNA Polymerase • RNA polymerase core enzyme is a multimeric protein a2,b, b’, w • The b’ subunit is involved in DNA binding • The b subunit contains the polymerase active site • The a subunit acts as scaffold on which the other subunits assemble. • Also requires s-factor for initiation –forms holo enzyme complex Site of DNA binding and RNA polymerization

  5. Promoter Transcribed region terminator 5’ 3’ General Gene Structure

  6. Gene Promoters

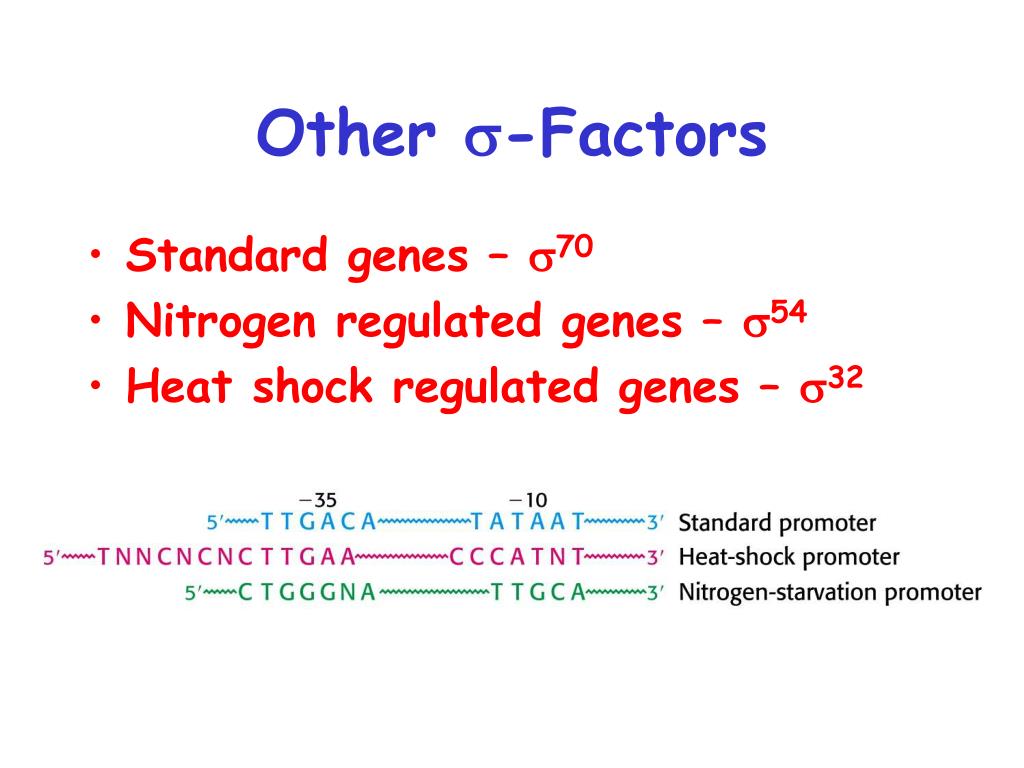

  7. Other s-Factors • Standard genes – s70 • Nitrogen regulated genes – s54 • Heat shock regulated genes – s32

  8. Transcriptional Initiation Closed complex Open complex Primer formation Disassociation of s-factor

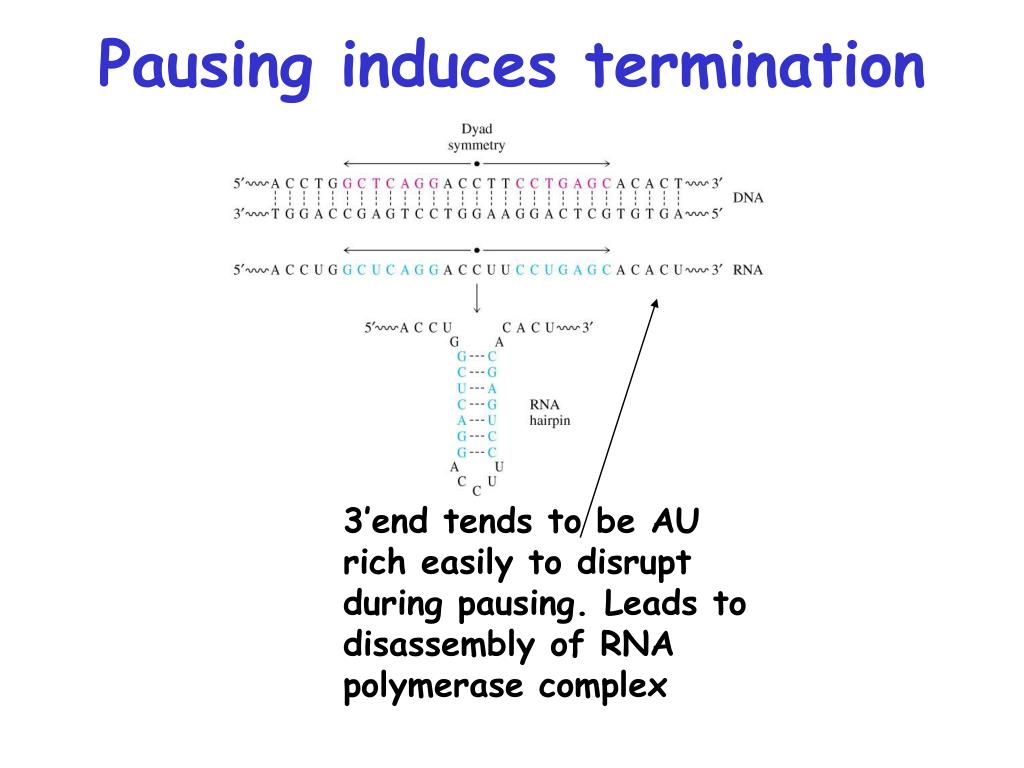

  9. Pausing induces termination 3’end tends to be AU rich easily to disrupt during pausing. Leads to disassembly of RNA polymerase complex

  10. Rho Dependent Termination • rho is an ATP-dependent helicase • it moves along RNA transcript, finds the "bubble", unwinds it and releases RNA chain

  11. Eukaryotic RNA Polymerases

  12. Eukaryotic RNA Polymerases • RNA polymerase I, II, and III • All 3 are big, multimeric proteins (500-700 kD) • All have 2 large subunits with sequences similar to  and ' in E.coli RNA polymerase, so catalytic site may be conserved

  13. Eukaryotic Gene Promoters • Contain AT rich concensus sequence located –19 to –27 bp from transcription start (TATA box) • Site where RNA polymerase II binds

  14. Transcription Factors • TFAIIA, TFAIIB – components of RNA polymerase II holo-enzyme complex • TFIID – Initiation factor, contains TATA binding protein (TBP) subunit. TATA box recognition. • TFIIF – (RAP30/74) decrease affinity to non-promoter DNA
