  1. Case Presentation: A case of multiple interventions. Prasad Gunaruwan

  2. History: Mrs MB • 66, housewife, smoker • Lives with husband at Narrabri (2hrs to Tamworth, 6hrs to Newcastle) • Recurrent UTI April 2011, US renal tract • Kidneys, ureters, bladder normal but 4.3cm fusiform AAA • Advice from Vascular Surgeon (Dubbo)

  3. History Continued • US followup Oct 2011: AAA now 5cm • CT (pre AAA repair): Infra renal AAA with large amount of mural thrombus, max 4.8x5.7cm • CXR: mild enlarged Cardio-thoracic ratio on a rotated film • Bloods: EUC/LFT/FBC normal • Spirometry: FEV1/FVC 1.1/1.9L

  4. Intervention 1 & 2 • Endo-luminal AAA stent 12 Dec 2011 • Progress scan : Flow in right external iliac outside the stent, 14 Dec 2011 • Repositioning stent in R iliac 15 Dec 2011 • Discharged 17 Dec 2011: • aspirin, atenolol, candesartan, atorvastatin, prn salbutamol

  5. First Emergency Admission • 6 weeks post discharge • Presented to Narrabri with shortness of breath, over a few hours • No chest pain, No fever • In AF • Hb 128, WBC 9.5 (N-8.2), EUC Normal

  6. Troponin 0.55 What is the likely diagnosis? 1. Pneumonia 2. AF and left ventricular failure 3. Acute coronary syndrome 4. Exacerbation of CAL 5. Pulmonary embolus • (pause)

  7. Immediate management • Treat pneumonia • Rate control for AF • Diuretics for heart failure • Anti-coagulate for stroke prevention

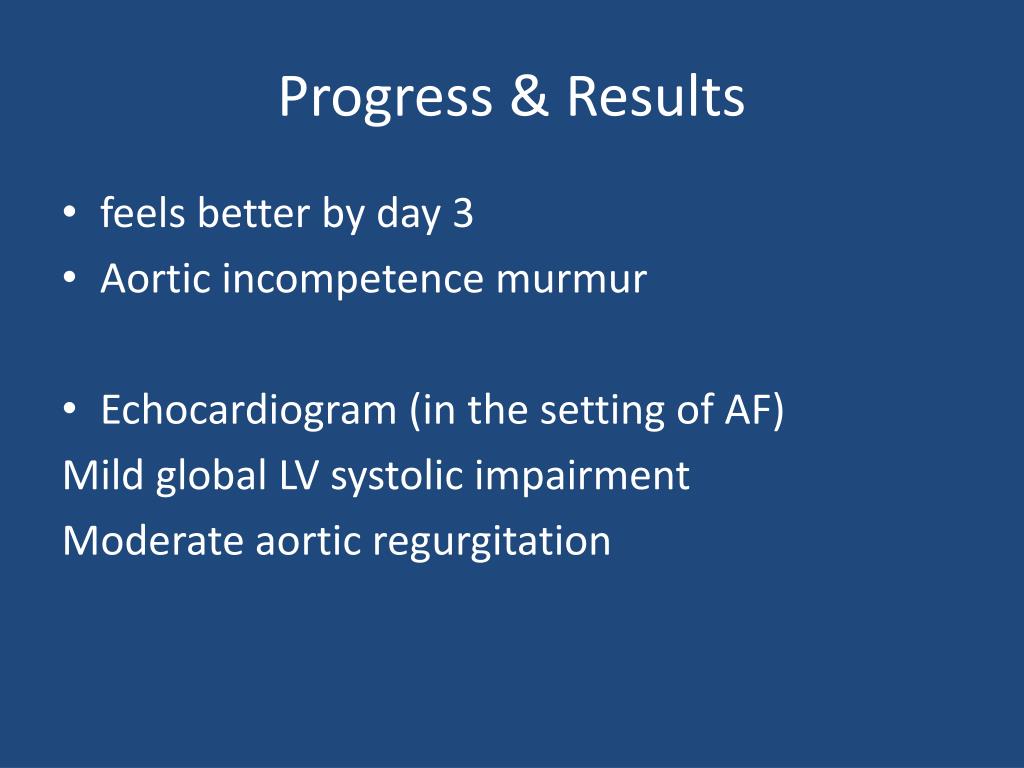

  8. Progress & Results • feels better by day 3 • Aortic incompetence murmur • Echocardiogram (in the setting of AF) Mild global LV systolic impairment Moderate aortic regurgitation

  9. What is the cause for the troponin leak? • AF with rapid ventricular rate • Acute coronary syndrome • Severity of pneumonia • RV strain

  10. Causes of a troponin leak

  11. TIMI Risk score for UA/NSTEMI JAMA. 284(7):835-842, August 16, 2000.

  12. 5

  13. Radial vs femoral access for angiography • About 70% of JHH caths radial route • No mortality benefit, but less local complications, easier for the patient • For consent quote: major complication including MI/stroke/death 1:1000, contrast allergy and nephropathy, bleeding and vascular complications • In Mrs MB case this route avoids the AAA stent

  14. Intervention 3: Coronary angiography at Tamworth

  15. LV contraction

  16. Moderate aortic regurgitation

  17. What to do now? • Discussed in angioplasty meeting • For medical treatment • Atorvastatin, digoxin, metoprolol, aspirin and warfarinised for AF • Referral for cardiothoracic opinion re: aortic regurgitation

  18. Second Emergency Admission • Re-present to Narrabri, day 5 post discharge • Severe central heavy chest pain 30 minutes since onset • Diaphoretic, looking unwell

  19. ECG

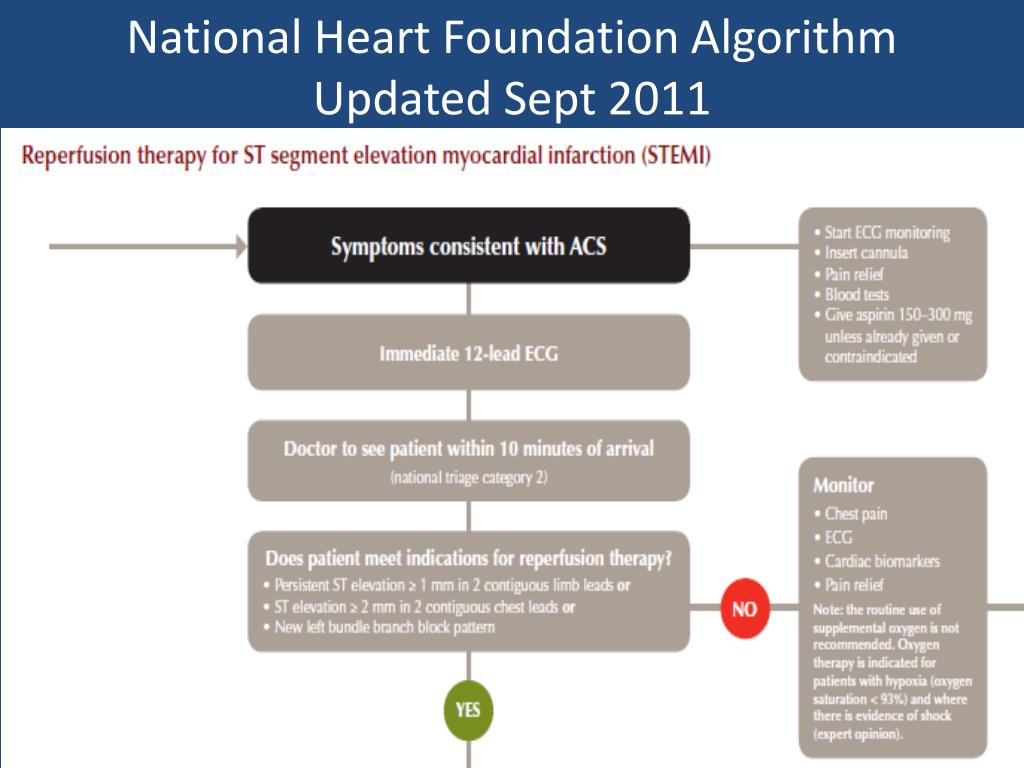

  20. National Heart Foundation Algorithm Updated Sept 2011

  21. Source: National Heart Foundation of Australia

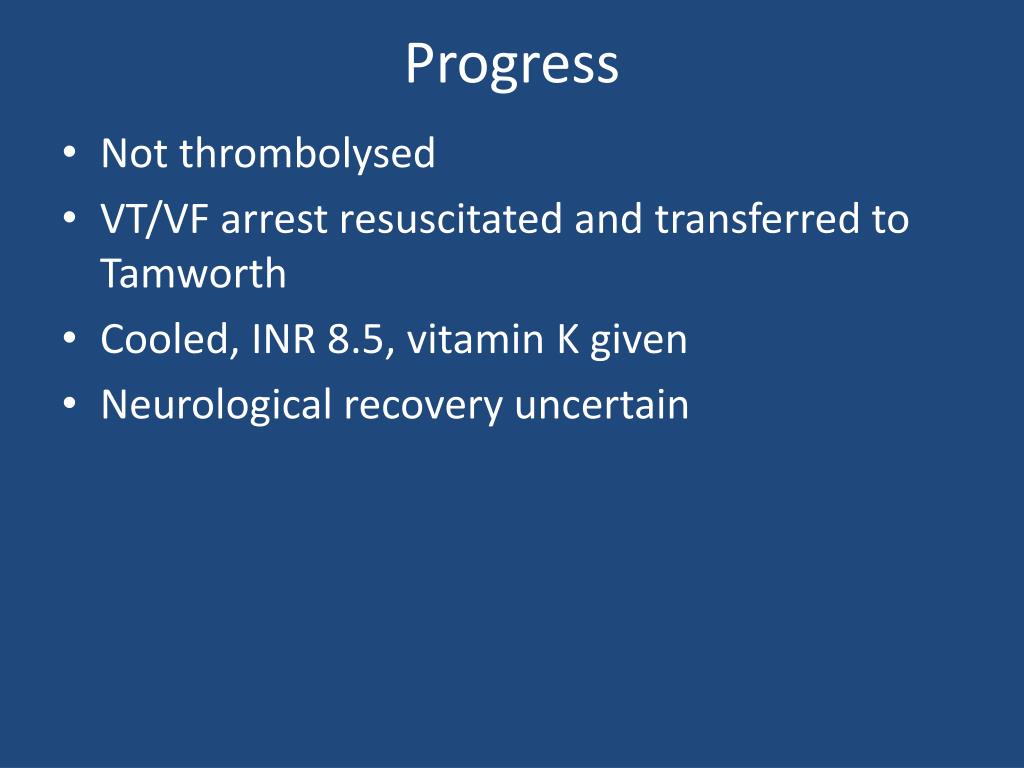

  22. Progress • Not thrombolysed • VT/VF arrest resuscitated and transferred to Tamworth • Cooled, INR 8.5, vitamin K given • Neurological recovery uncertain

  23. Post STEMI day 4 • Conscious, alert, oriented • JVP still raised, controlled AF • Echo confirms RV infarct, LV only mildly impaired • What now? - Conservative? - Transfer to JHH for cath? - Cath at Tamworth? • No radial access available

  24. Intervention 4: Iliac vessels and stent

  25. Coronary anatomy and aortic root 1

  26. Coronary Anatomy and aortic root 2

  27. Stent Displacement

  28. What was displaced?

  29. Post angiography.. • VT, well tolerated • Reverted to AF with RBBB • Stable haemodynamics • What now….?

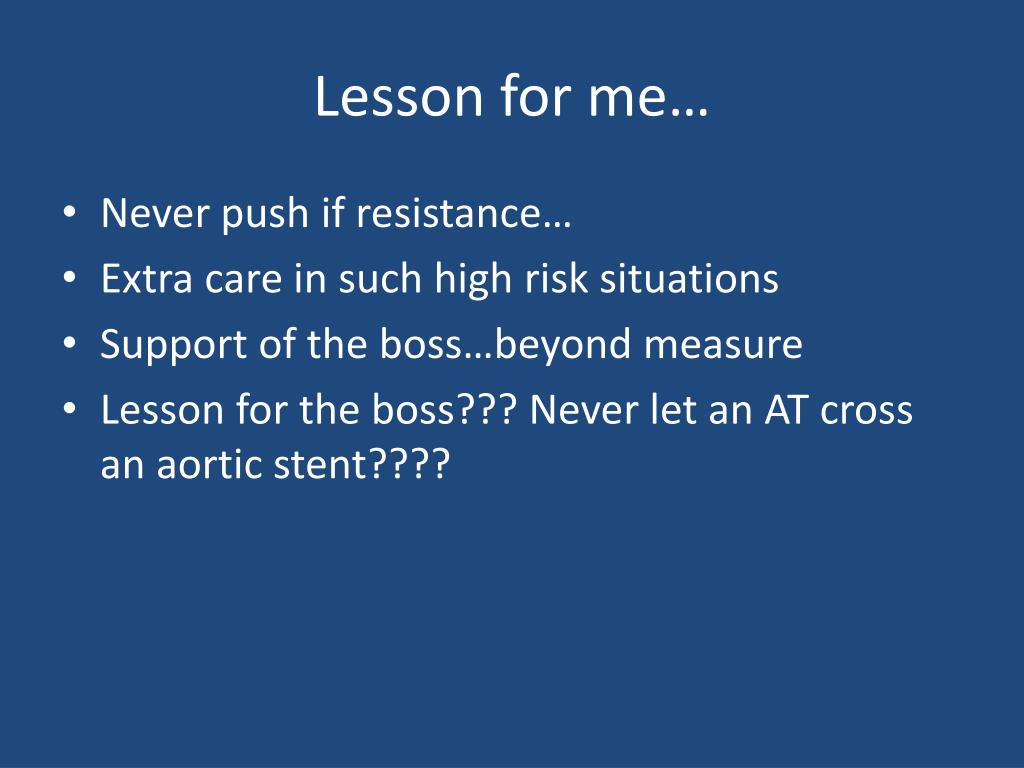

  30. Lesson for me… • Never push if resistance… • Extra care in such high risk situations • Support of the boss…beyond measure • Lesson for the boss??? Never let an AT cross an aortic stent????

  31. Progress since • Heart failure and AF, well controlled • Admission with fever of unknown origin • Right pleural effusion • ? Heart failure • ? Parapneumonic Protein 23g/L; LDH 150; Cholesterol 0.6 Clear fluid, culture negative

  32. Indication for AAA repair • Absolute diameter • > 5.5cm • Validated by 2 RCTs – UKSAT and ADAM trials that compared open surgical repair vs surveillance • Rate of growth • > 5mm in 6 months OR >10mm in 1 year • Complications such as trashing (embolization), fistula formation, etc

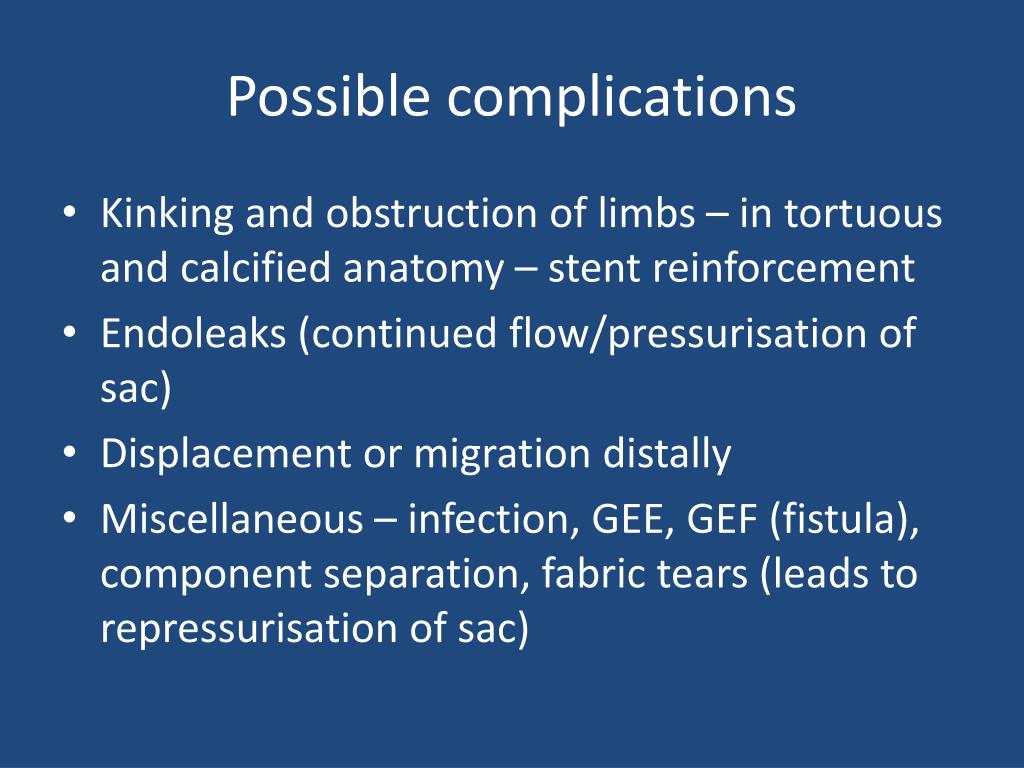

  33. Possible complications Kinking and obstruction of limbs – in tortuous and calcified anatomy – stent reinforcement Endoleaks (continued flow/pressurisation of sac) Displacement or migration distally Miscellaneous – infection, GEE, GEF (fistula), component separation, fabric tears (leads to repressurisation of sac)

  34. Take home… • Troponin leak does not mean NSTEMI. • In NSTEMI troponin leak is one of 7 risk factors. • New STEMI/ACS guidelines with attention to symptom onset
