dpmjet 2 5 dpmjet 3
DPMJET-2.5 & DPMJET-3
  • Treats hadron-nuclear and nuclear-nuclear interactions >5 GeV/nuc, with the upper limited reported to be of order 1000TeV
  • Two versions currently available, both of which treat nuclear-nuclear interactions:
    • DPMJET-2.5 (Johannes Ranft) - source code publicly released
    • DPMJET-3 (Stefan Roesler) - access to source controlled by Roesler
  • Both versions of DPMJET available in FLUKA-2006, but distributed as compiled libraries
  • A version of DPMJET-II.5 has been implemented as the model G4DPMJET2_5Model and is being tested. There have been challenges:
    • Very limited documentation on the code, none covering explanation of design / organisation
    • How to handling Glauber data generated as a part of the DPMJET-II.5 initialisation process
what do stored glauber data refer to

Target

b

Projectile

What do (stored) Glauber data refer to?
  • Cumulative probability distribution function
  • Used to sample impact parameter, once it is confirmed an impact has occurred
  • Unique to each projectile (AZNP) and target (AZNT) and must be generated as a function of momentum
need to generation glauber profile data has added significant complexity
Need to Generation Glauber Profile Data Has Added Significant Complexity
  • DPMJET-II.5 expects the data to be a function of:
    • A & Z of projectile
    • A & Z of target
    • Projectile momentum/nucleon
  • If we created data for 2546 projectiles (~301 stable nuclides + ~2245 well-quantified radioactive nuclides) on 301 stable targets = 676,046 combinations ~100 GBytes is full-size ASCII files
  • This is the reason this wasn’t pre-computed.
dpmjet ii 5 interface old version
DPMJET-II.5 interface (Old Version)
  • theExcitationHandler->SetEvaporation(theEvaporation);
  • theExcitationHandler->SetFermiModel(theFermiBreakUp);
  • theExcitationHandler->SetMaxAandZForFermiBreakUp(12, 6);
  • G4DPMJET2_5Model *theDPM = new G4DPMJET2_5Model(theExcitationHandler);
  • theDPM->SetMinEnergy(9.0*GeV);
  • theDPM->SetVerboseLevel(2);
    • Get or define Glauber Data for projectiles and target
  • G4GlauberDataSetHandler *theGDSHandler = theDPM->GetGlauberDataSetHandler();
  • theGDSHandler->AddGlauberDataDir(“/home/geant4/g4/geant4/data/GlauberDat”);
  • theGDSHandler->AddGlauberDataDir(“.”);
  • theGDSHandler->LoadGlauberData(12,6,false);
  • theGDSHandler->LoadGlauberData(56,26,27,13,false);
  • theGDSHandler->CreateGlauberData(24,12, true);

Carbon on all materials in geometry

Iron on aluminium

magnesium on all materials in geometry

dpmjet ii 5 interface old version1
DPMJET-II.5 interface (Old Version)
  • G4ParticleDefinition *anIon = G4ParticleTable::GetParticleTable()->GetIonTable()-> GetIon(8,16)
  • theGDSHandler->CreateGlauberData(anIon);
  • theGDSHandler->SetSaveGlauberDataType(1);
  • theGDSHandler->SetSaveGlauberDataDir (“/home/geant4/g4/geant4/data/GlauberDat”);
  • theGDSHandler->SaveGlauberData(anIon);
    • Or for saving lots of data:

theGDSHandler->SaveAllGlauberData();

    • Set limits for the amount of Glauber data which can be generated or loaded.

theGDSHandler->SetMaxGlauberDataSets (0,75);

theGDSHandler->SetMaxGlauberDataSets (-1,1000);

oxygen on all materials in geometry

Save as parameterised (not full) data

oxygen in any material

slide8
Review of Existing Sources of Error and Assessment of Approximations to Reduce Demand on No. Data Sets
  • There are three sources of error already within the Glauber profile data as used/generated by DPMJET-II.5
    • Stochastic errors: generated by MC calculation (up to ~3%)
    • MODB interpolation errors i.e. interpolation between different probabilities->impact parameters shown in page 2 (80% of data within error of ~10% for light proj/targets, rising to 90% for others)
    • Errors in interpolation between different projectile momenta (90% with 3%)
  • There is a better way:
    • Only generate and store Glauber profile data as a function of Aprojectile and Atarget (typically <3% error)

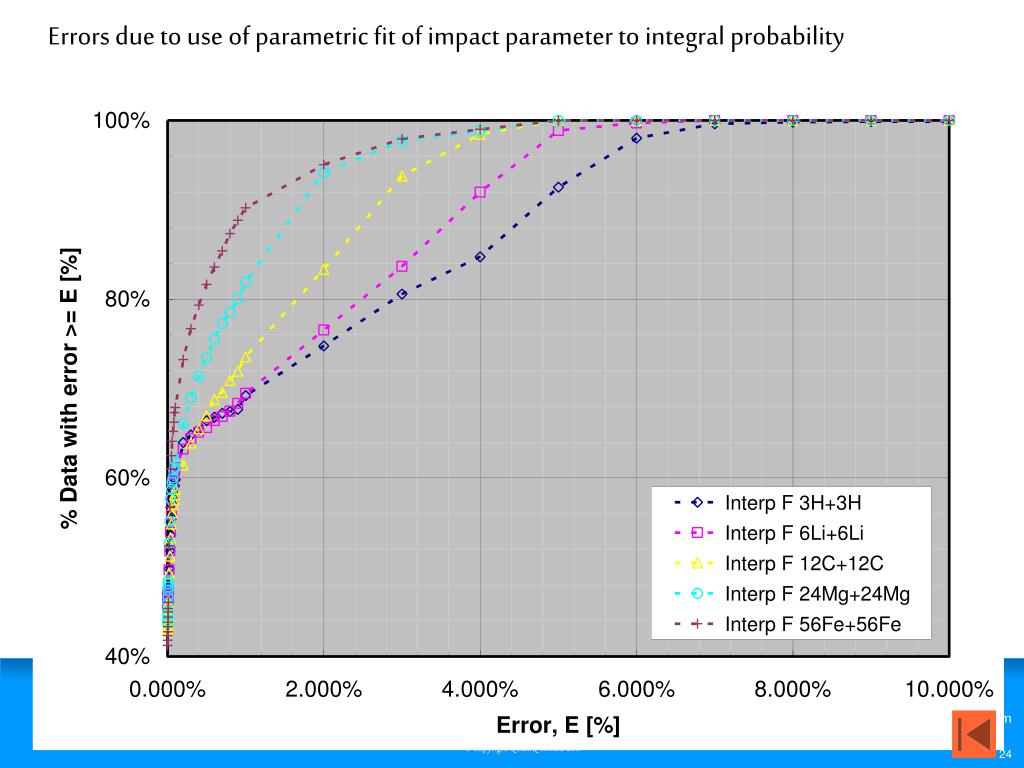

    • Instead of MODB interpolation, fit impact parameter as a function of integral probability: 200 datapoints -> 10 parameters
    • ~300 Mbytes ASCII (uncompressed)
dpmjet ii 5 interface new version
DPMJET-II.5 interface (New Version)
  • theExcitationHandler->SetEvaporation(theEvaporation);
  • theExcitationHandler->SetFermiModel(theFermiBreakUp);
  • theExcitationHandler->SetMaxAandZForFermiBreakUp(12, 6);
  • G4DPMJET2_5Model *theDPM = new G4DPMJET2_5Model(theExcitationHandler);
  • theDPM->SetMinEnergy(9.0*GeV);
  • theDPM->SetVerboseLevel(2);
  • G4GlaubAADataSetHandler *theGDSHandler = theDPM->GetGlauberDataSetHandler();
  • theGDSHandler->SetMaxGlauberDataSets (0,75);
data generation
Data Generation
  • Just completed re-writing of code; need to test/debug
  • Currently generating Glauber profiles for 2AP 58 and 2  AT 58
  • Also, as part of this process, generating cross-sections for all inelastic interactions and intend to produce updated cross-section class for E>2GeV/nuc
    • Necessary since currently using Tripathi, Shen or Kox approximations, and Tripathi only seems to be tested to ~2GeV/nuc
  • Taking ~4 CPU-months
  • Need to extent to 2  AP 240 and 2  AT 240
  • Need for proton-nuclear interactions acknowledged
wp1 dpmjet ii 5 interface design constraints
WP1 DPMJET-II.5 interface design constraints
  • Will NOT be able to instantiate G4DPMJET2_5Model more than once, due to reliance on FORTRAN subroutines
  • In order to run G4DPMJET2_5Model, you require cernlib, kernlib, mathlib,
    • Currently usesg77 + g2c
    • Looking into gfortran
slide19
Each Curve Represents the Variations in Glauber profiles for fixed Aprojectile and Atarget but range of Zprojectile and Ztarget
slide20

Each Curve Represents the Variations in Glauber profiles for fixed Aprojectile and Atarget but range of Zprojectile and Ztarget

slide21

Each Curve Represents the Variations in Glauber profiles for fixed Aprojectile and Atarget but range of Zprojectile and Ztarget

slide22

Each Curve Represents the Variations in Glauber profiles for fixed Aprojectile and Atarget but range of Zprojectile and Ztarget

slide25

With de-excitation

12C on C @10 GeV/n

Without de-excitation

protons

protons

neutrons

neutrons

slide26

With de-excitation

12C on C @200 GeV/n

Without de-excitation

protons

protons

neutrons

neutrons

slide27

With de-excitation

12C on Al @10 GeV/n

Without de-excitation

protons

protons

neutrons

neutrons

slide28

With de-excitation

12C on Al @200 GeV/n

Without de-excitation

protons

protons

neutrons

neutrons
