Phil Godfrey. TETRA Association Chairman. TETRA Experience - Objectives. To obtain good information To meet with your colleagues To share ideas and experiences To see working TETRA equipment To meet with vendors To enjoy the experience. Jacek Piotrowski . Facilitator. Program .
E N D
Phil Godfrey TETRA Association Chairman

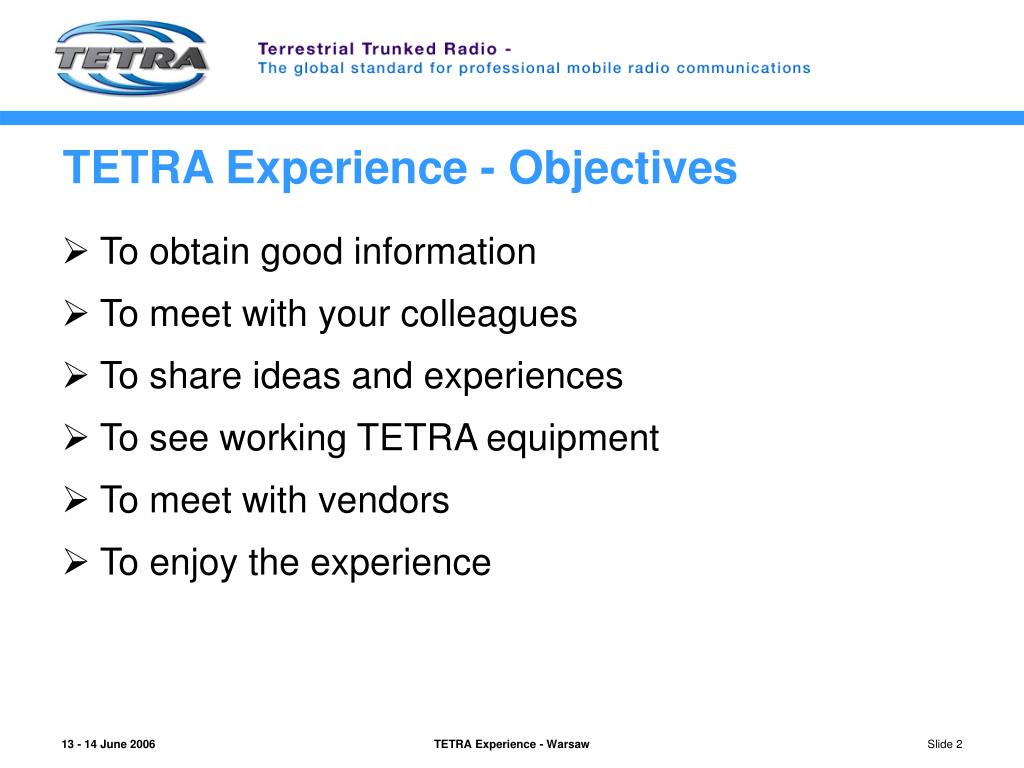

TETRA Experience - Objectives • To obtain good information • To meet with your colleagues • To share ideas and experiences • To see working TETRA equipment • To meet with vendors • To enjoy the experience TETRA Experience - Warsaw
Jacek Piotrowski Facilitator
Program TETRA Experience Warsaw June 2006

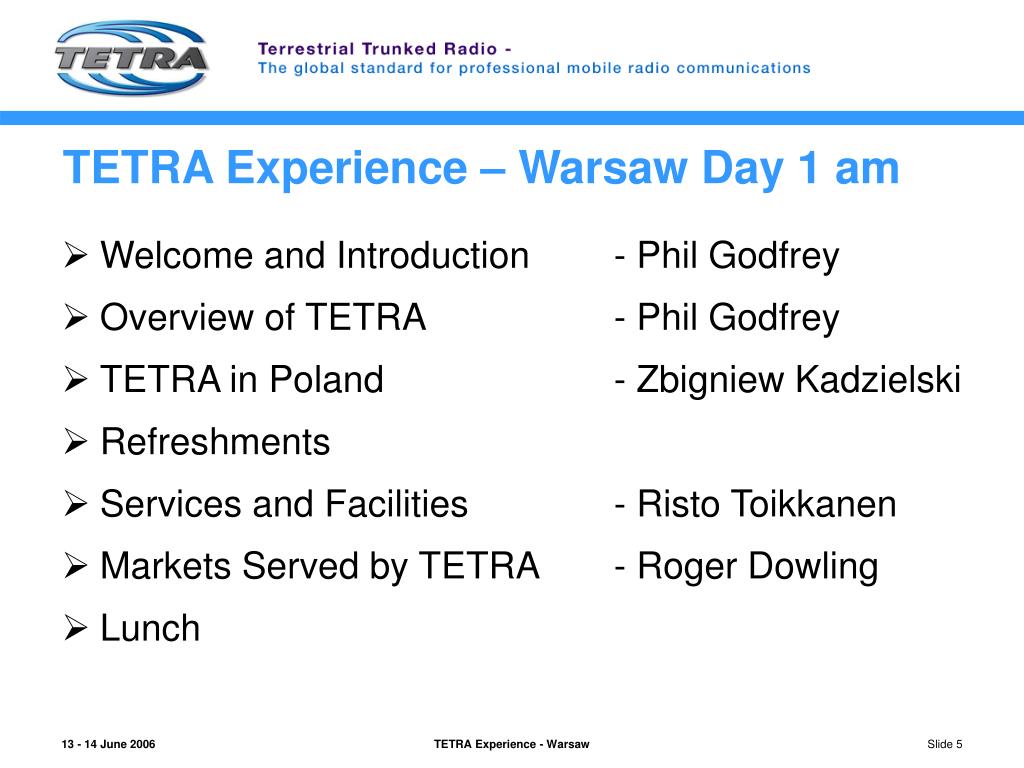

TETRA Experience – Warsaw Day 1 am • Welcome and Introduction - Phil Godfrey • Overview of TETRA - Phil Godfrey • TETRA in Poland - Zbigniew Kadzielski • Refreshments • Services and Facilities - Risto Toikkanen • Markets Served by TETRA - Roger Dowling • Lunch TETRA Experience - Warsaw

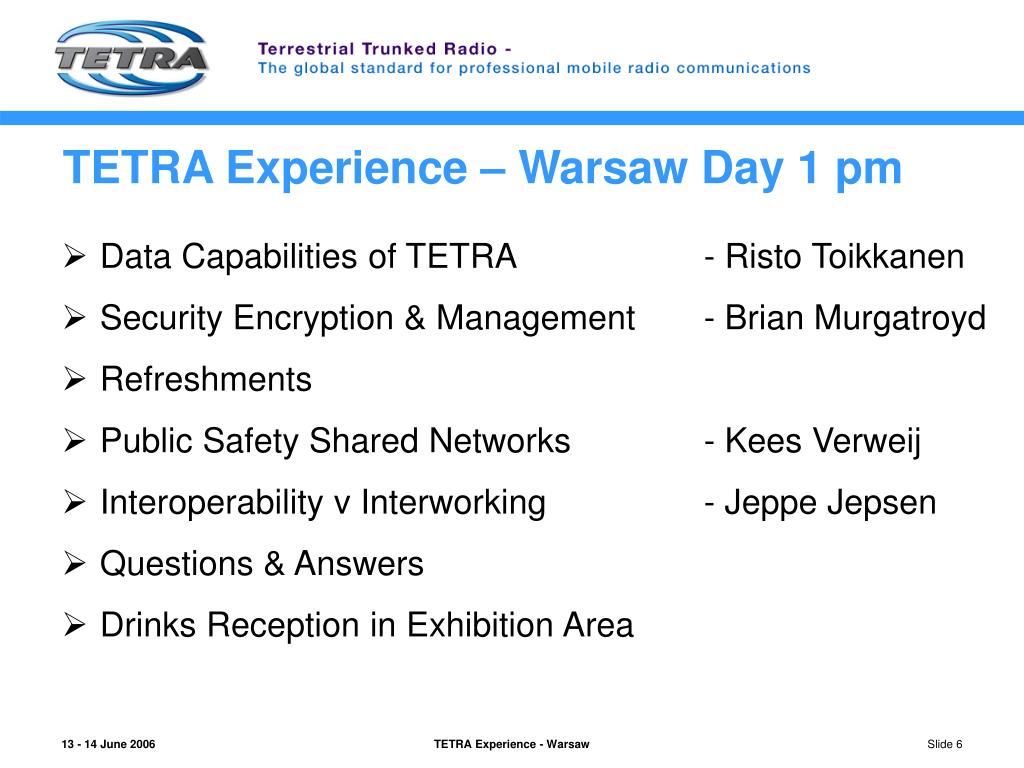

TETRA Experience – Warsaw Day 1 pm • Data Capabilities of TETRA - Risto Toikkanen • Security Encryption & Management - Brian Murgatroyd • Refreshments • Public Safety Shared Networks - Kees Verweij • Interoperability v Interworking - Jeppe Jepsen • Questions & Answers • Drinks Reception in Exhibition Area TETRA Experience - Warsaw
TETRA Experience – Warsaw Day 2 am • Public Safety Case Study - Ricky Gray / Alan Lee • Transportation Case Study - David Lumbreras • Utilities Case Study - Jerzy Andruszkiewicz • Refreshments • Military Case Study - Michael Street • Innovation Workshop • Question & Answer Panel • Lunch TETRA Experience - Warsaw
Agenda • The Origins of TETRA • TETRA Association • Where Worldwide • Who Worldwide TETRA Experience - Warsaw

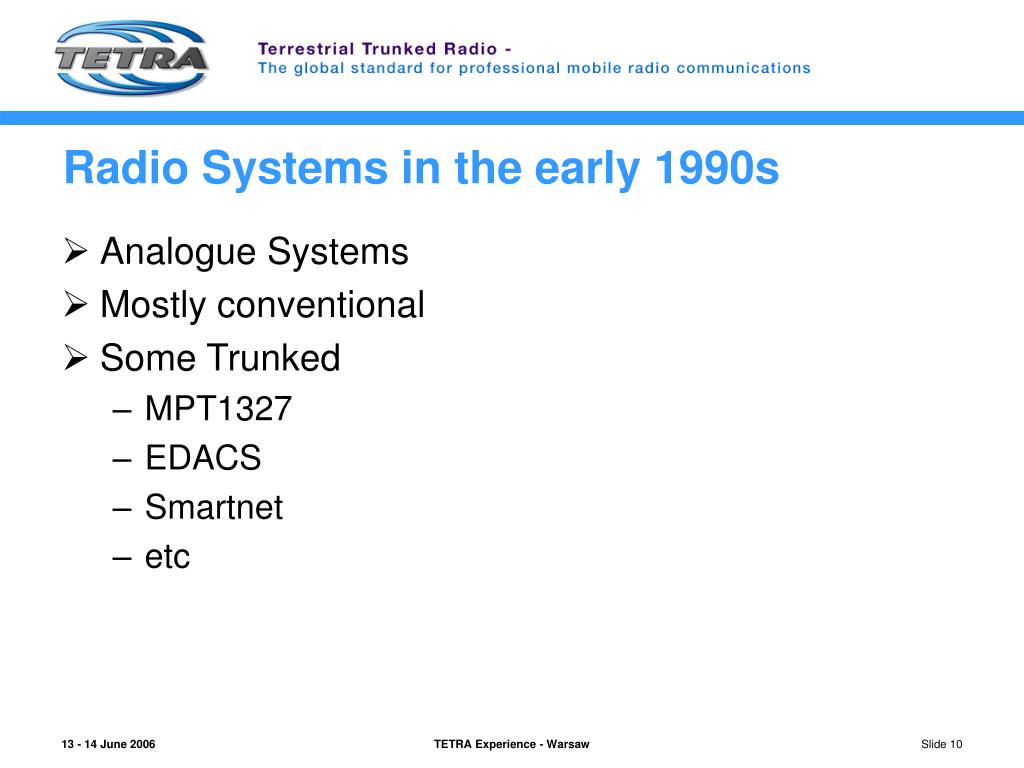

Radio Systems in the early 1990s • Analogue Systems • Mostly conventional • Some Trunked • MPT1327 • EDACS • Smartnet • etc TETRA Experience - Warsaw
ETSI Standards Initiative • Early 1990s GSM already underway • MDTRS • Mobile Digital Trunked Radio System • TETRA • Trans European Trunked RAdio System • TErrestrial Trunked RAdio System TETRA Experience - Warsaw
The Brief • High Functionality • Spectrum Efficient • Suitable for Shared Systems • User Requirements created for: • Public Safety and Security • Transportation • Utilities • PAMR • etc. • Designed to carry voice and data TETRA Experience - Warsaw

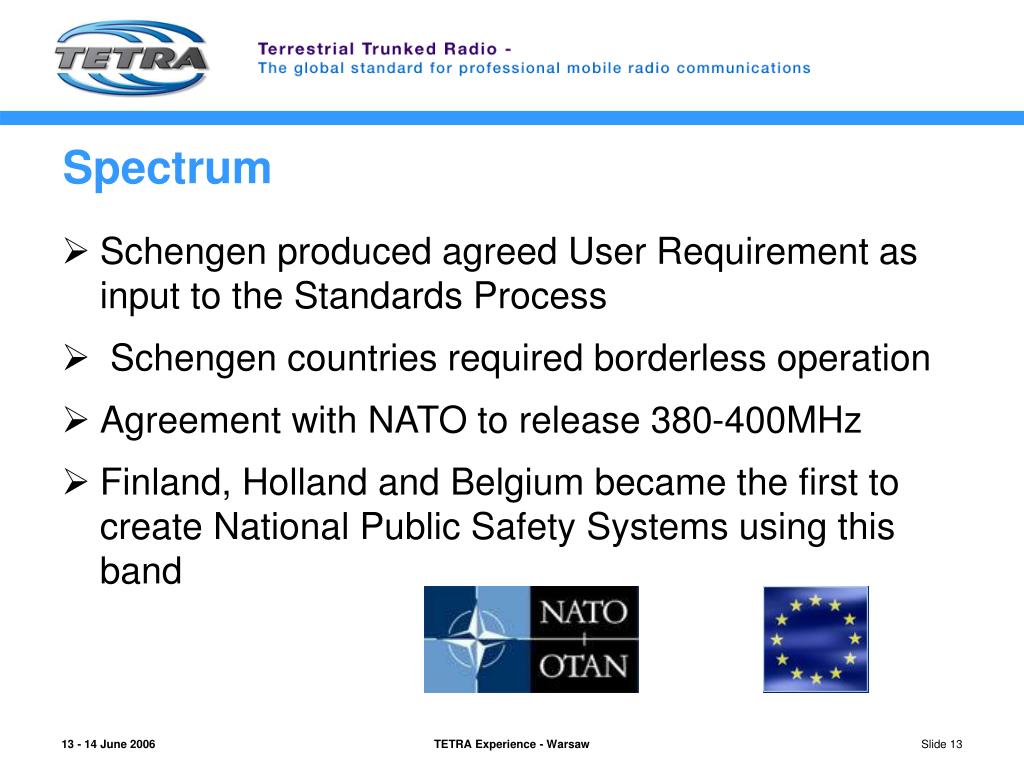

Spectrum • Schengen produced agreed User Requirement as input to the Standards Process • Schengen countries required borderless operation • Agreement with NATO to release 380-400MHz • Finland, Holland and Belgium became the first to create National Public Safety Systems using this band TETRA Experience - Warsaw
Slo Slot 1 Slot 2 Slot 3 Slot 4 Slot 1 Slot 2 Slot 3 Slot 4 Slot 1 4 virtual channels on one radio carrier Channel Structure 25 KHz TETRA Experience - Warsaw
4 virtual channels on one radio carrier Slot 1 Allocated to voice Slo Slot 1 Slot 2 Slot 3 Slot 4 Slot 1 Slot 2 Slot 3 Slot 4 Slot 1 25 KHz TETRA Experience - Warsaw
4 virtual channels on one radio carrier Slot 1 and Slot 2 Allocated to voice Slo Slot 1 Slot 2 Slot 3 Slot 4 Slot 1 Slot 2 Slot 3 Slot 4 Slot 1 25 KHz TETRA Experience - Warsaw

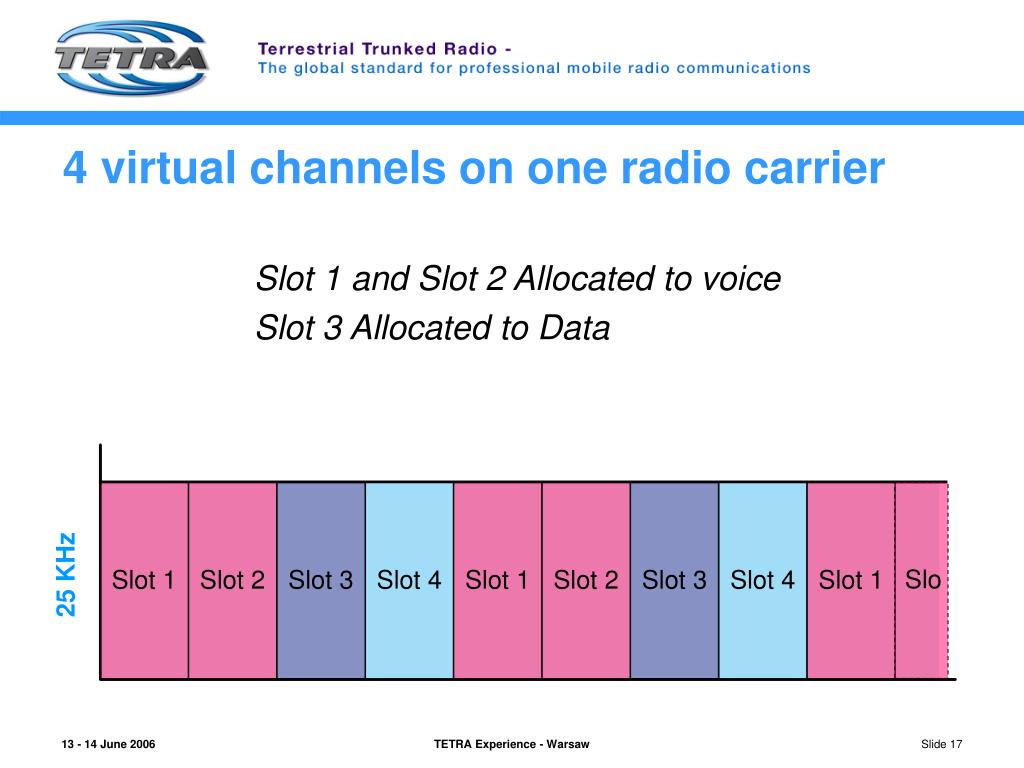

4 virtual channels on one radio carrier Slot 1 and Slot 2 Allocated to voice Slot 3 Allocated to Data Slo Slot 1 Slot 2 Slot 3 Slot 4 Slot 1 Slot 2 Slot 3 Slot 4 Slot 1 25 KHz TETRA Experience - Warsaw
TETRA Association • Formed in 1994 • Promote the ETSI TETRA standard world-wide • Achieve Harmonised Spectrum • 380-400MHz • 410-430MHz • 870-920MHz • Encourage an open and competitive market through IoP TETRA Experience - Warsaw
Open and Competitive Markets • Fully Compatible Equipment • Interoperability Process Created • Independent Test House • Certification Process • Fully supported by industry TETRA Experience - Warsaw
TETRA Association - Membership • 1995 – 10 • 2006 – 130 TETRA Experience - Warsaw

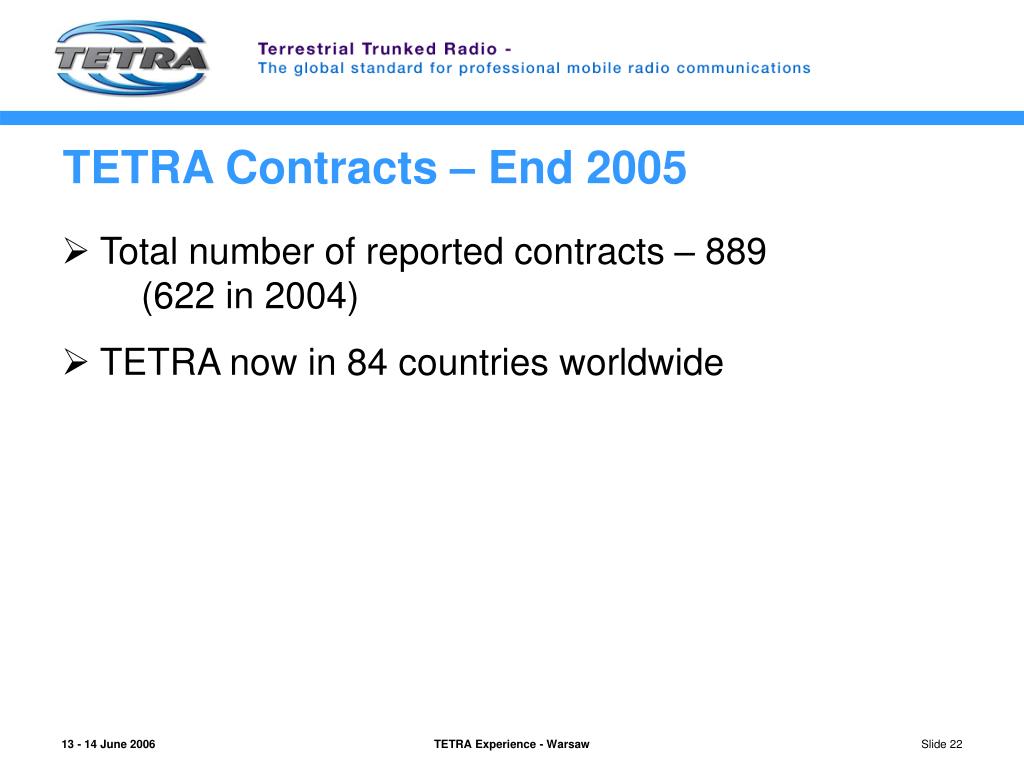

TETRA Contracts – End 2005 • Total number of reported contracts – 889 (622 in 2004) • TETRA now in 84 countries worldwide TETRA Experience - Warsaw
Contract Growth “TETRA is now being deployed in over 40% of the World’s nations” TETRA Experience - Warsaw

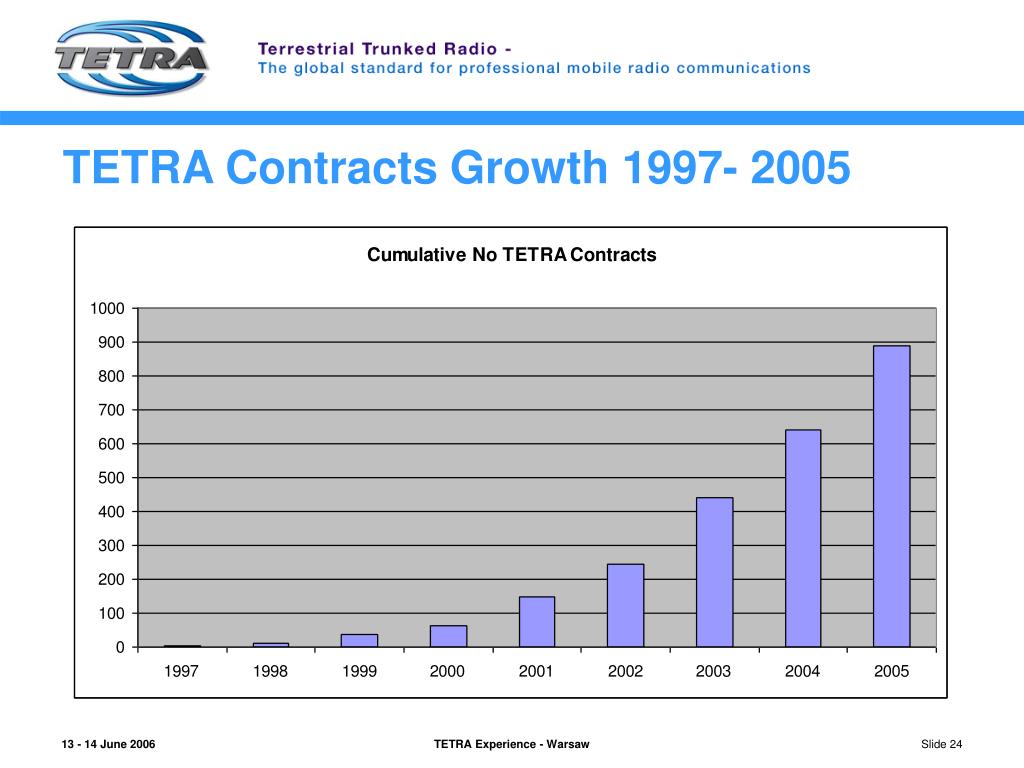

TETRA Contracts Growth 1997- 2005 TETRA Experience - Warsaw

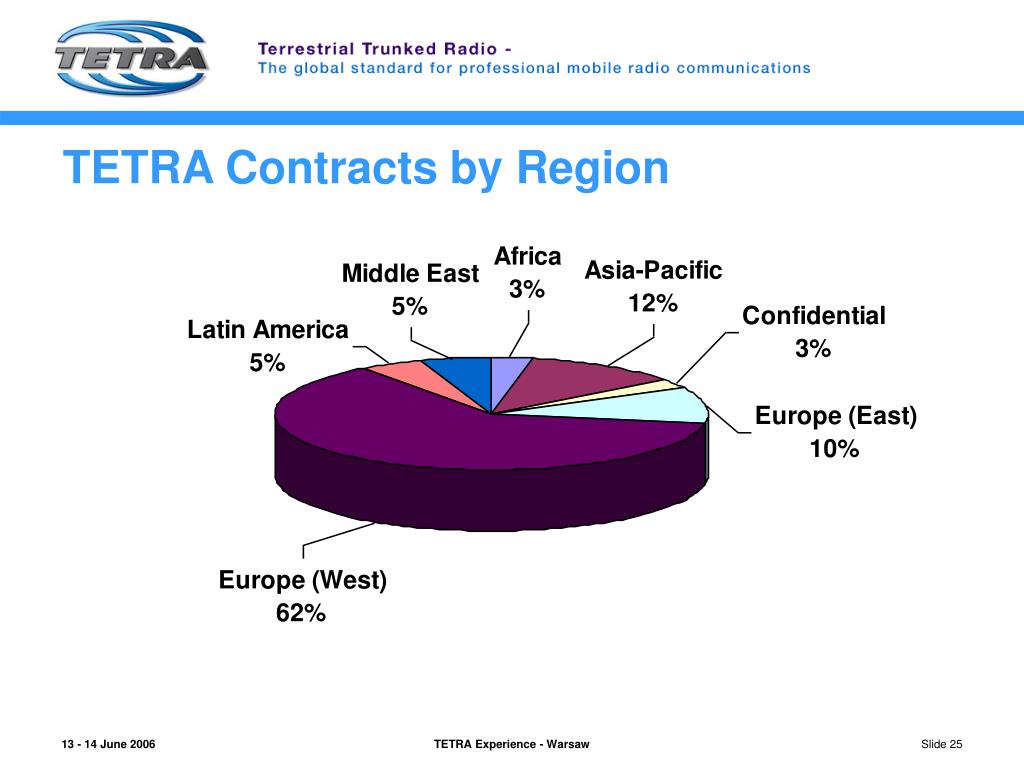

TETRA Contracts by Region TETRA Experience - Warsaw
TETRA Contracts by Region TETRA Experience - Warsaw
TETRA Contracts by Sector TETRA Experience - Warsaw
TETRA Contracts – October 2005 • Total number of reported contracts – 889 (622 in 2004) • TETRA now in 84 countries worldwide • Strongest growing Region is Latin America with 19% growth, followed by Europe (14%) • Utilities is the strongest growing sector with 36% growth, followed by Public Safety (15%) and Transportation (10%) TETRA Experience - Warsaw
The Future of TETRA • Special Working Group formed • To consider future user needs • To ensure TETRA remains relevant in the coming decade • New Codecs • Air Interface enhancements • Range Extension • High Speed Data TETRA Experience - Warsaw

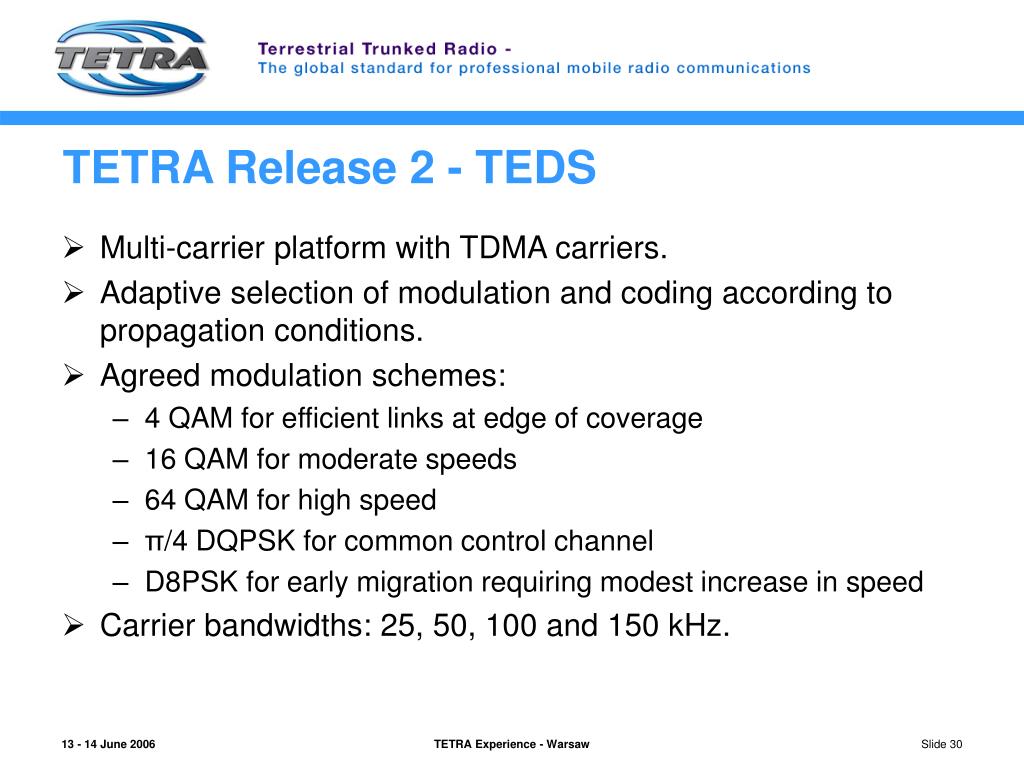

TETRA Release 2 - TEDS • Multi-carrier platform with TDMA carriers. • Adaptive selection of modulation and coding according to propagation conditions. • Agreed modulation schemes: • 4 QAM for efficient links at edge of coverage • 16 QAM for moderate speeds • 64 QAM for high speed • π/4 DQPSK for common control channel • D8PSK for early migration requiring modest increase in speed • Carrier bandwidths: 25, 50, 100 and 150 kHz. TETRA Experience - Warsaw
TEDS Data Rates TETRA Experience - Warsaw
The Need For Data Services • 5 minutes to discuss at your tables potential uses of data • Database access? • Photographs? • Video? • Maps? • Mobile Client/Server applications? • Web based applications? • etc. TETRA Experience - Warsaw
TEDS Spectrum • TEDS requires new spectrum • Discussions in hand with NATO and the Regulators • Progress is slow so far • ETSI and TETRA Association are lobbying for spectrum, especially for PPDR • Eastern European countries will need to find appropriate spectrum TETRA Experience - Warsaw

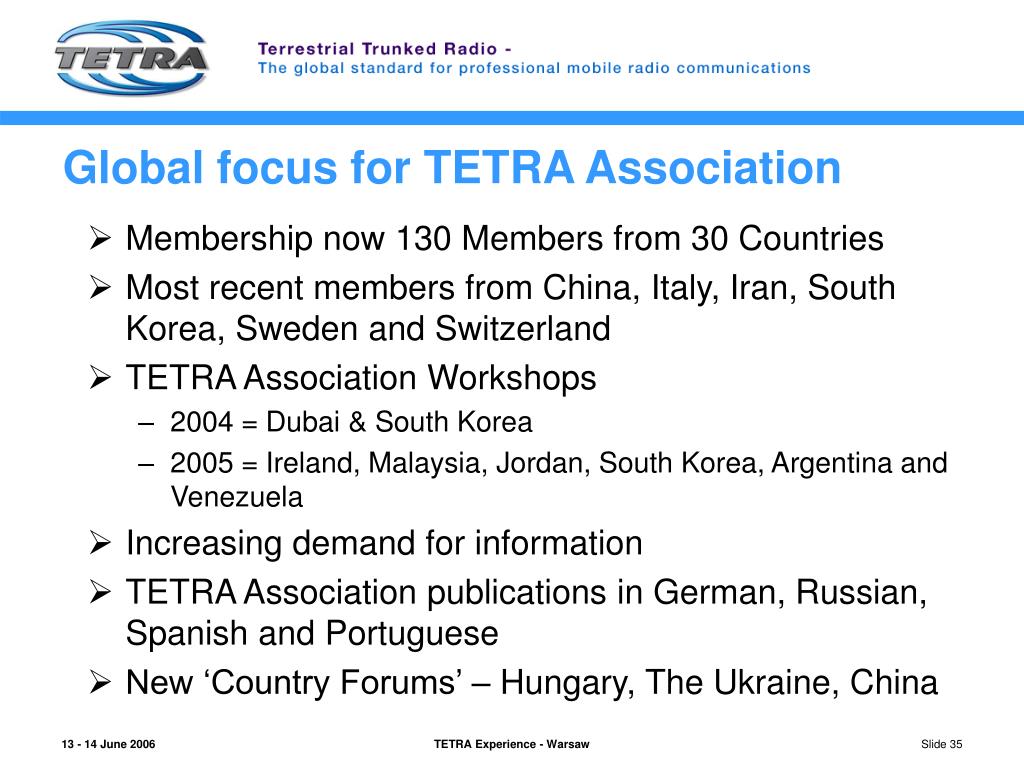

Global focus for TETRA Association • Membership now 130 Members from 30 Countries • Most recent members from China, Italy, Iran, South Korea, Sweden and Switzerland • TETRA Association Workshops • 2004 = Dubai & South Korea • 2005 = Ireland, Malaysia, Jordan, South Korea, Argentina and Venezuela • Increasing demand for information • TETRA Association publications in German, Russian, Spanish and Portuguese • New ‘Country Forums’ – Hungary, The Ukraine, China TETRA Experience - Warsaw
TETRA Association 2006 Events • TETRA Conferences • India • Eastern Europe • South America • China • Middle East • TETRA World Congress - June 2007 TETRA Experience - Warsaw
More competition Benefits of Global markets More applications More investment TETRA Experience - Warsaw More suppliers More choice
