uml based automated code generation ieee computer society phoenix

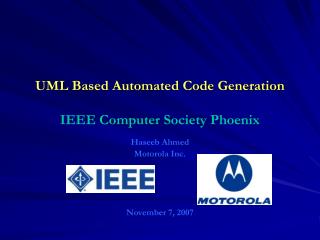

UML Based Automated Code GenerationIEEE Computer Society Phoenix

Haseeb Ahmed

Motorola Inc.

November 7, 2007

agenda
Agenda
  • UML and Modeling
  • Auto-Coding
  • Unifying Modeling & Auto-Code Generation
  • Applicability.
  • Demonstration with Telelogic’s Tau G2.
  • Open Forum
uml and modeling
UML and Modeling
  • Why UML?
    • Late 80s and early 90s saw a quantum leap in software development (and revenues).
    • Industry needed a Standardized view of representation.
    • Answer: The Unified Modeling Language
uml simply put
UML – Simply put…
  • Served as a unifying ‘language’ for software.
    • Standardized
    • Agnostic to platform, OS and programming language
  • The ‘Language’ consisted of pictorial representations for various software artifacts:
    • Classes
    • State Machines
    • Sequence Diagrams
    • An excellent reference:
      • The Unified Modeling Language - http://www-306.ibm.com/software/rational/uml/
uml in pictures use cases
UML in Pictures: Use Cases

Source: http://www.telelogic.com/campaigns/2003/global/taug22_launch/iuseuml1x.cfm

uml in pictures class diagrams
UML in Pictures: Class Diagrams

Source: http://www.telelogic.com/campaigns/2003/global/taug22_launch/iuseuml1x.cfm

uml in pictures state chart diagram
UML in Pictures: State Chart Diagram

Source: http://www.telelogic.com/campaigns/2003/global/taug22_launch/iuseuml1x.cfm

uml in pictures architecture diagram
UML in Pictures: Architecture Diagram

Source: http://www.telelogic.com/campaigns/2003/global/taug22_launch/iuseuml1x.cfm

uml in pictures sequence diagrams
UML in Pictures: Sequence Diagrams

Source: http://www.telelogic.com/campaigns/2003/global/taug22_launch/iuseuml1x.cfm

modeling
Modeling
  • More precisely: ‘Model Driven Architecture’.
  • Definition: A representation that focuses on the functionality and behavior of an application (or system) and is agnostic to the underlying platform, OS or programming language used.
  • This is really a tall order given the spectrum of choices for platforms, OSs and languages today!
  • For this presentation, I’ll limit myself to Modeling with UML.
modeling1
Modeling
  • In practice, modeling relies on UML for abstracting everything from a small application to a complex system.
    • A typical Model may consists of:
      • Classes, Objects Diagrams
      • State Machine Diagrams
      • Sequence/Activity Diagrams
      • Architecture Diagrams
      • Deployment Diagrams
      • … even Use Cases
modeling2
Modeling
  • Typically, a software engineer will use a GUI or CASE tool to represent the application or system.
  • The tool largely facilitates this by enforcing sanity of the application or system design.
    • For example:
      • Verifying valid state transitions
      • Automating message transmission and reception
  • UML is a natural fit.
uml modeling
UML+Modeling = ?
  • Once an application or system is fully modeled in UML, the next self-evident step is to generate the source code.
  • Also known as…
  • Most modern modeling tools provide this capability ‘built-in’.

Auto-Code Generation!

auto coding
Auto-Coding
  • Strictly speaking: ‘Automated Code Generation’
  • Definition: A way to automagically synthesize code for an application or system from a model, following UML and Modeling constructs.
modeling auto code generation a high level view

UML Modeling Tool

OS Platform

Modeling & Auto-Code Generation: A High Level View

UML

Models

1. Create UML Model

2. Model Sanity Checked

Auto

Code

Generator

3. Auto-Code Generation

4. Source Code ‘Ready to Build’

5. Compile & Build into Application Binary

6. Application Binary executing on Target OS/Platform

auto coding the silent sidekick
Auto-Coding: The Silent Sidekick
  • Auto-coding not so new in software development.
  • Often used for things which are tedious and repetitive, e.g.;
    • Generating ASN.1 code.
    • Lex/YACC/Bison suite of tools for generating customized code for Unix based platforms.
  • Usage generally ‘invisible’ because the auto-coding syntax used is quite cryptic and not very exciting to the broader engineering community.
auto coding unleashed
Auto-Coding: Unleashed
  • With higher level abstractions (UML, Modeling etc.) available, auto-coding can now generate full applications.
  • From the 50,000 ft Level:
  • However, tool offerings may be more or less compliant than what you would expect.

C/C++ : Assembly Code :: Modeling : Handwritten Code

auto coding unleashed1
Auto-Coding: Unleashed
  • Many UML Model artifacts are just what we expect:
    • UML Class  C++ Class/C Structure
    • UML Operation  C/C++ Function
  • Some are a bit more abstract:
    • UML Signals  C/C++ Function calls.
      • Think Callbacks for Input Signals and Function calls for Outbound signals.
auto coding unleashed2
Auto-Coding: Unleashed
  • And some may be surprising:
    • Item widget[45]

 May Generate a simple Array of 45 elements.

 May Generate a Linked List of 45 ‘Item’ nodes each with 1 widget.

    • Timers

 Set/Expire implementation based on tool and code generator.

 Timer ticks or TimeOfDay()

auto coding challenges
Auto-Coding: Challenges
  • This brings new challenges and concerns:
    • Performance of the generated code.
    • Perfection of generated code to model.
      • Accurate conversion of model to code?
    • Implementation quirks:
      • Auto-code generation is not standardized.
      • Remember the ‘Agnostic to the platform, OS and language’ requirement – what is the cost of portability?
    • Hard to compete (read: beat) hand written code in the short term.
modeling auto code key benefits

Higher Level Modeling emphasizes Design & Architectural Discipline.

Design

  • Many Tools provide built-in simulators.
      • Execute the Model to see how it flows right from your Desktop.
      • Rapid Prototyping possible for feature rich models.

Test

  • Auto-coding follows a set of rules for generating code.
  • Quality is consistent.
    • Avoids some egregious human errors (e.g., null pointers).

Quality

  • Cycle Time Reduction
    • Cost of Poor Quality Containment
    • (Hopefully) Better Software Design & Architecture.

Overall

Modeling & Auto-Code Key Benefits
applicability
Applicability
  • Well suited for Applications which lend nicely to State Machine Architectures.
  • Protocols – Network, Telephony… Request/Reply, Transactional.
  • Simulation
  • Rapid Prototyping

Picture Source: http://www.omg.org/mda

caveats
Caveats
  • UML and Object Oriented Design: They are not the same.
  • In Modeling, easy to make big mistakes. (mostly easy to correct too, but not always!)
  • Auto-coding best when it’s impacts are invisible.
  • Performance and Portability must be carefully weighed.
slide24
Demo
  • Tool: Telelogic’s Tau G2.
  • Example:
      • Construction of a request/response system within a non-trivial model.
  • Miscellaneous:
      • Highlight the simulation capabilities.
      • Injection of messages, auto generation of sequence diagrams.
tau g2 app architecture
Tau G2 App. Architecture

Middleware ‘glue’ for specialized services.

Application plus Tau G2 ‘kernel’

The Application/System

‘Glue’

MW

API

UML Model

Auto Generated Code

Middleware Services

Operating System

Middleware to Interface generated code with custom libraries.

The ‘environment’

references
References
  • The Unified Modeling Language - http://www-306.ibm.com/software/rational/uml/
  • Tau G2 – Telelogic – http://www.telelogic.com
  • The Object Management Group - http://www.omg.org/mda
  • Automatic Code Generation from Design Patterns - http://www.research.ibm.com/designpatterns/pubs/codegen.pdf
  • UML Forum (Modeling Tool Comparisons) - http://www.uml-forum.com/tools.htm
