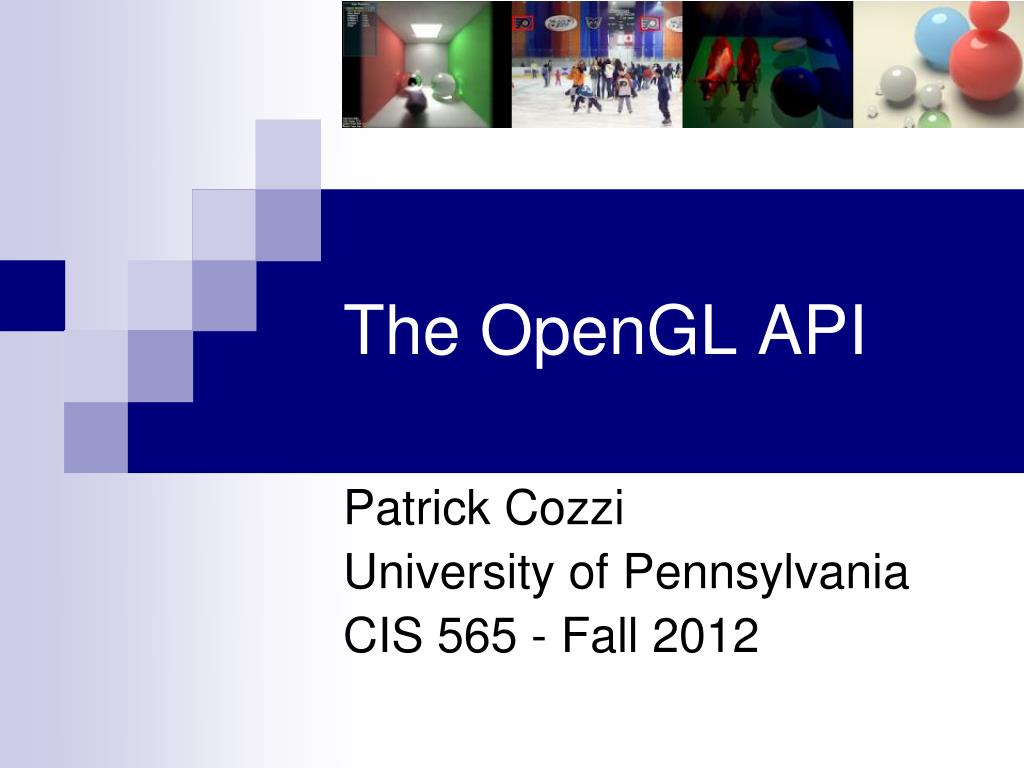

  1. The OpenGL API Patrick Cozzi University of Pennsylvania CIS 565 - Fall 2012

  2. Agenda • Today: OpenGL shaders and uniforms • Later: efficient buffer usage

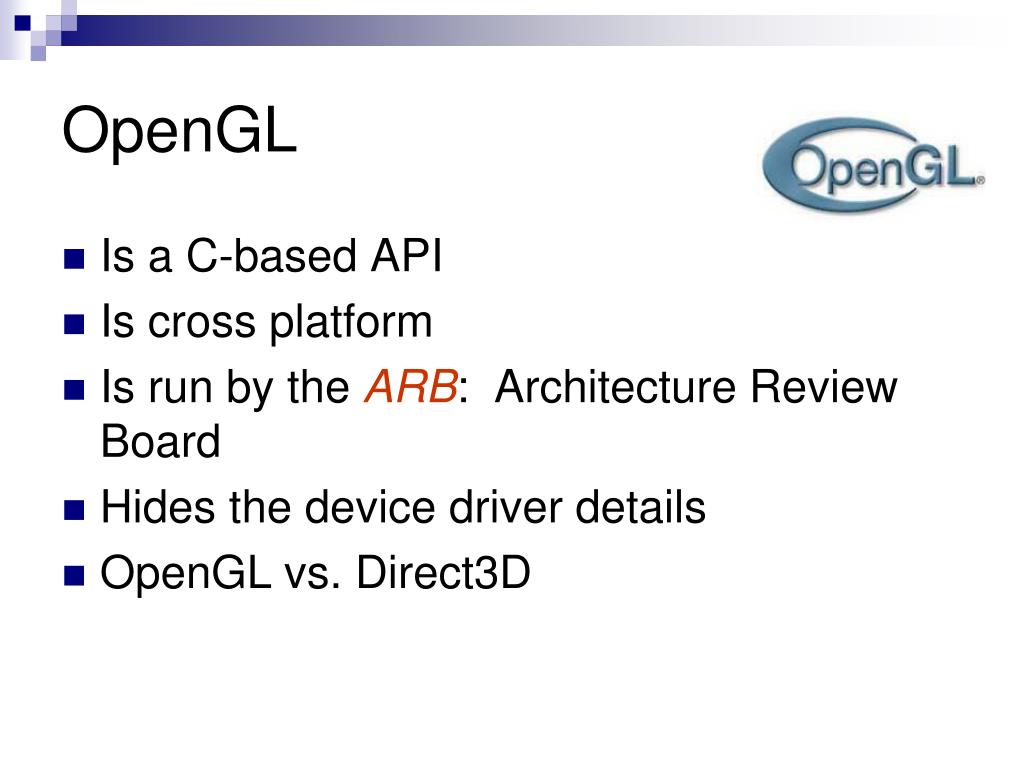

  3. OpenGL • Is a C-based API • Is cross platform • Is run by the ARB: Architecture Review Board • Hides the device driver details • OpenGL vs. Direct3D

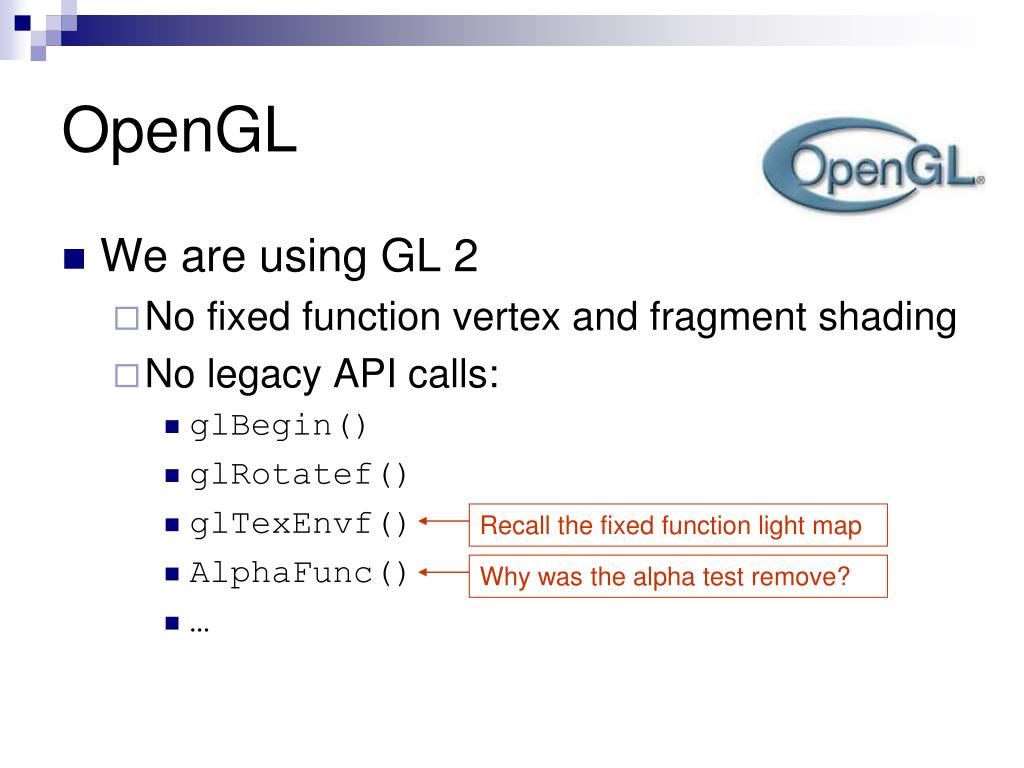

  4. Recall the fixed function light map Why was the alpha test remove? OpenGL • We are using GL 2 • No fixed function vertex and fragment shading • No legacy API calls: • glBegin() • glRotatef() • glTexEnvf() • AlphaFunc() • …

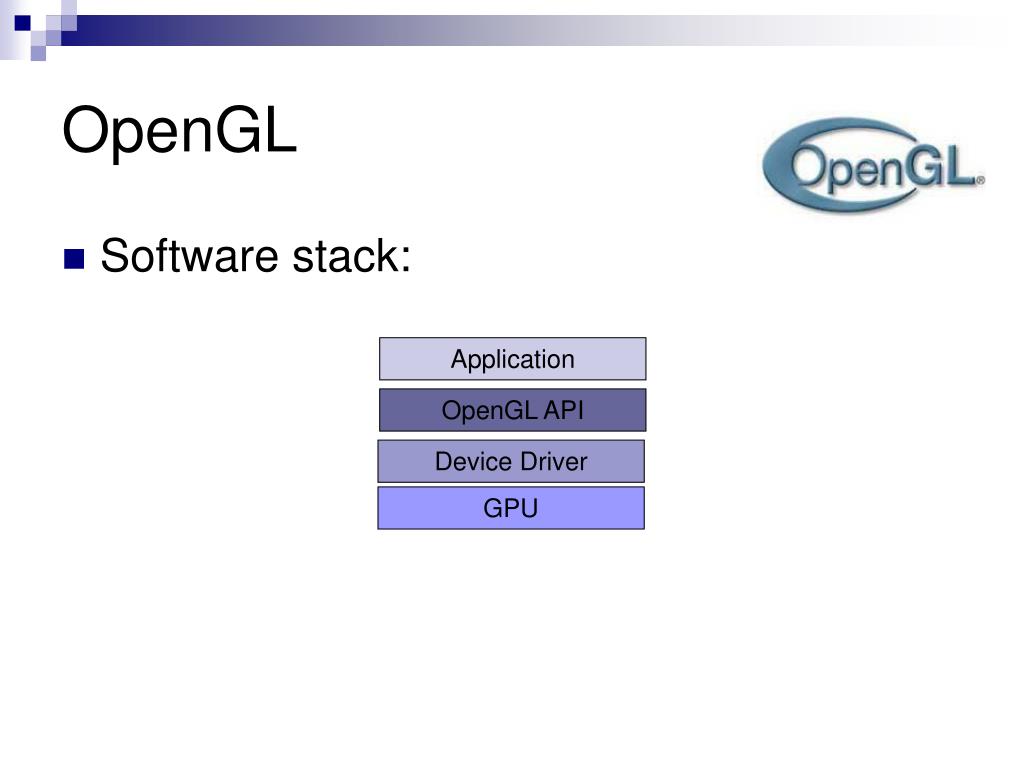

  5. Application OpenGL API Device Driver GPU OpenGL • Software stack:

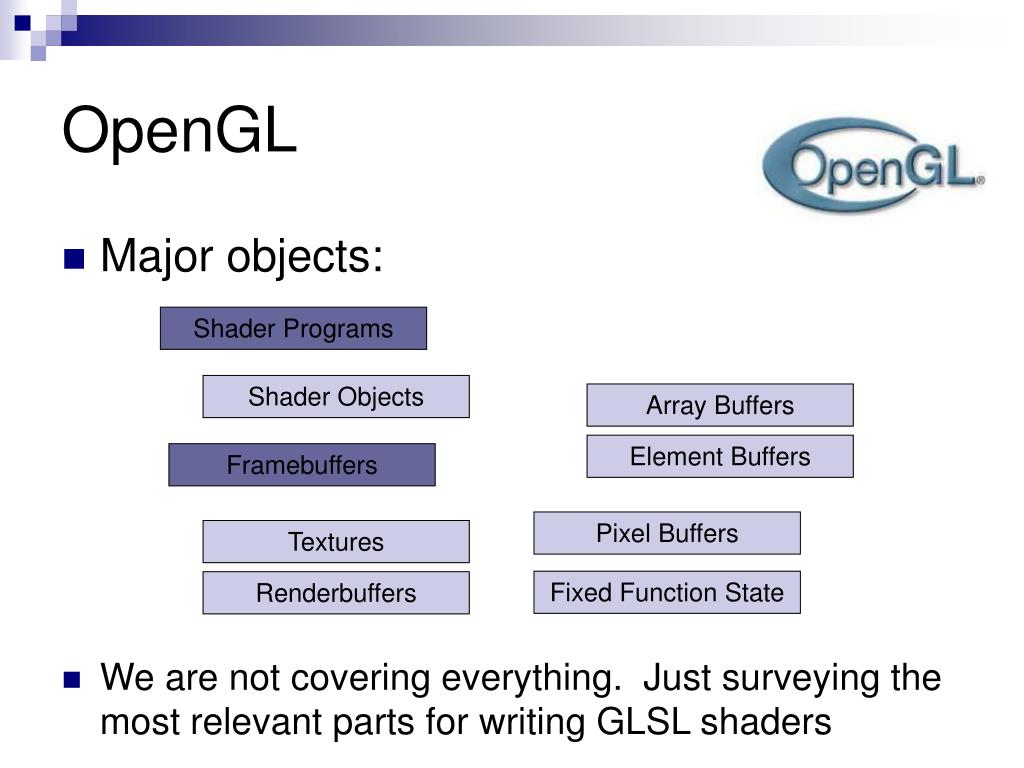

  6. OpenGL • Major objects: Shader Programs Shader Objects Array Buffers Element Buffers Framebuffers Pixel Buffers Textures Fixed Function State Renderbuffers • We are not covering everything. Just surveying the most relevant parts for writing GLSL shaders

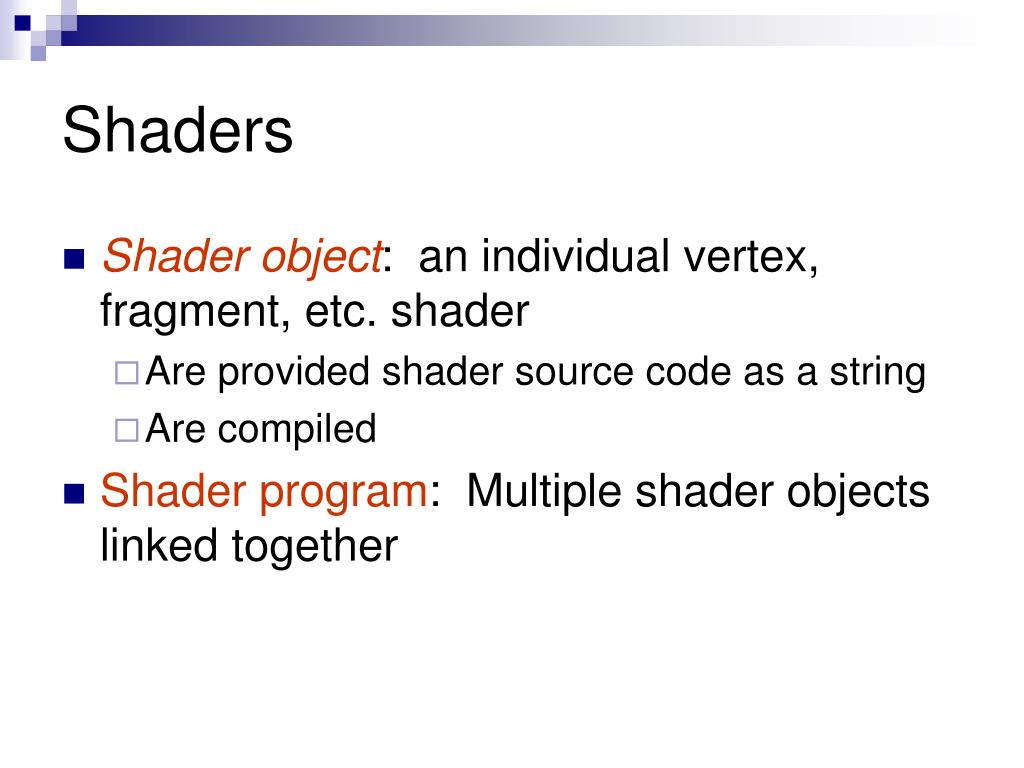

  7. Shaders • Shader object: an individual vertex, fragment, etc. shader • Are provided shader source code as a string • Are compiled • Shader program: Multiple shader objects linked together

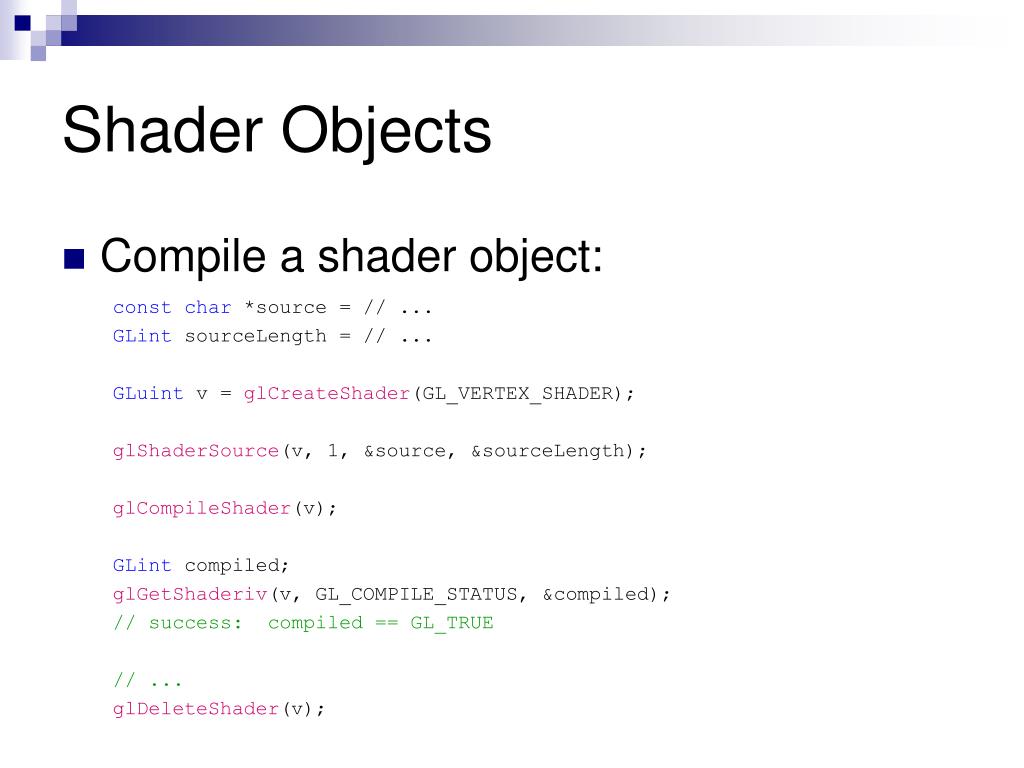

  8. Shader Objects • Compile a shader object: const char *source = // ... GLint sourceLength = // ... GLuint v = glCreateShader(GL_VERTEX_SHADER); glShaderSource(v, 1, &source, &sourceLength); glCompileShader(v); GLint compiled; glGetShaderiv(v, GL_COMPILE_STATUS, &compiled); // success: compiled == GL_TRUE // ... glDeleteShader(v);

  9. OpenGL functions start with gl. Why? How would you design this in C++? • v is an opaque object • What is it under the hood? • How would you design this in C++? Shader Objects • Compile a shader object: const char *source = // ... GLint sourceLength = // ... GLuint v = glCreateShader(GL_VERTEX_SHADER); glShaderSource(v, 1, &source, &sourceLength); glCompileShader(v); GLint compiled; glGetShaderiv(v, GL_COMPILE_STATUS, &compiled); // success: compiled == GL_TRUE // ... glDeleteShader(v);

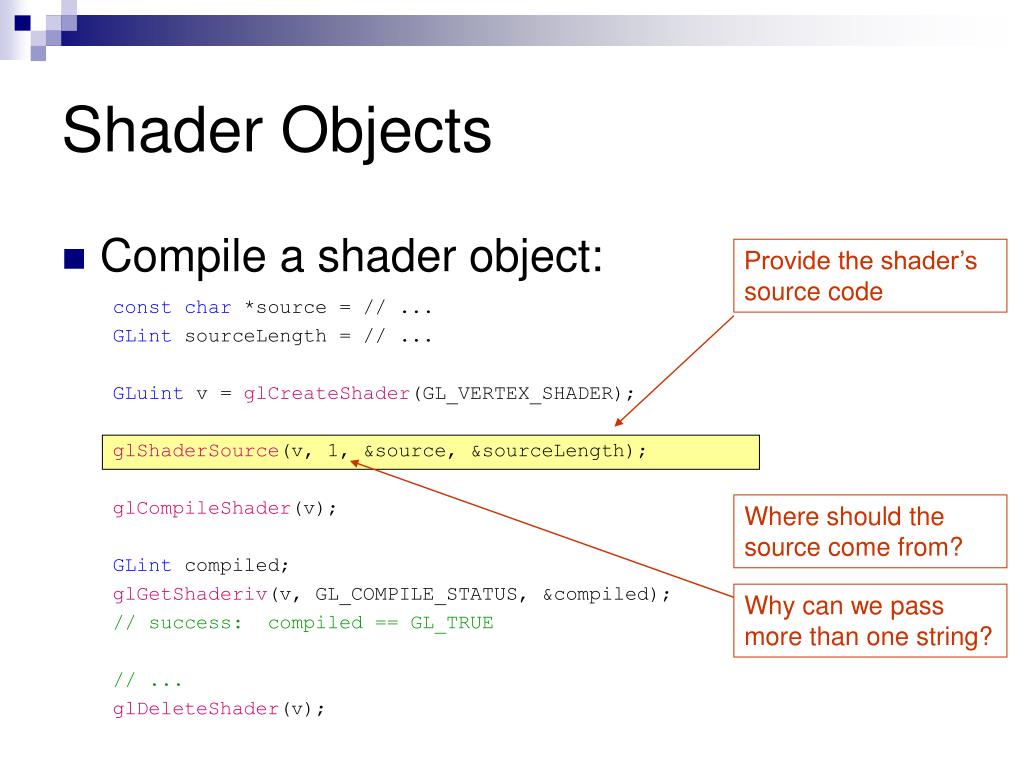

  10. Provide the shader’s source code Why can we pass more than one string? Shader Objects • Compile a shader object: const char *source = // ... GLint sourceLength = // ... GLuint v = glCreateShader(GL_VERTEX_SHADER); glShaderSource(v, 1, &source, &sourceLength); glCompileShader(v); GLint compiled; glGetShaderiv(v, GL_COMPILE_STATUS, &compiled); // success: compiled == GL_TRUE // ... glDeleteShader(v); Where should the source come from?

  11. Shader Objects • Compile a shader object: const char *source = // ... GLint sourceLength = // ... GLuint v = glCreateShader(GL_VERTEX_SHADER); glShaderSource(v, 1, &source, &sourceLength); glCompileShader(v); GLint compiled; glGetShaderiv(v, GL_COMPILE_STATUS, &compiled); // success: compiled == GL_TRUE // ... glDeleteShader(v); Compile, but what does the driver really do?

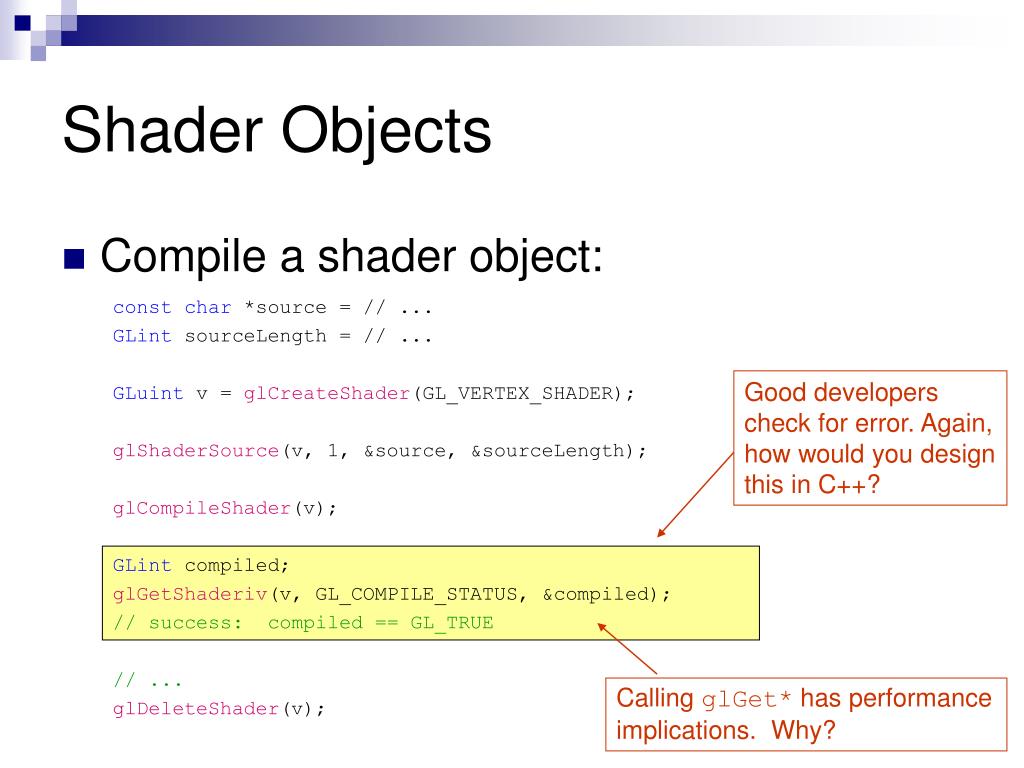

  12. Calling glGet* has performance implications. Why? Shader Objects • Compile a shader object: const char *source = // ... GLint sourceLength = // ... GLuint v = glCreateShader(GL_VERTEX_SHADER); glShaderSource(v, 1, &source, &sourceLength); glCompileShader(v); GLint compiled; glGetShaderiv(v, GL_COMPILE_STATUS, &compiled); // success: compiled == GL_TRUE // ... glDeleteShader(v); Good developers check for error. Again, how would you design this in C++?

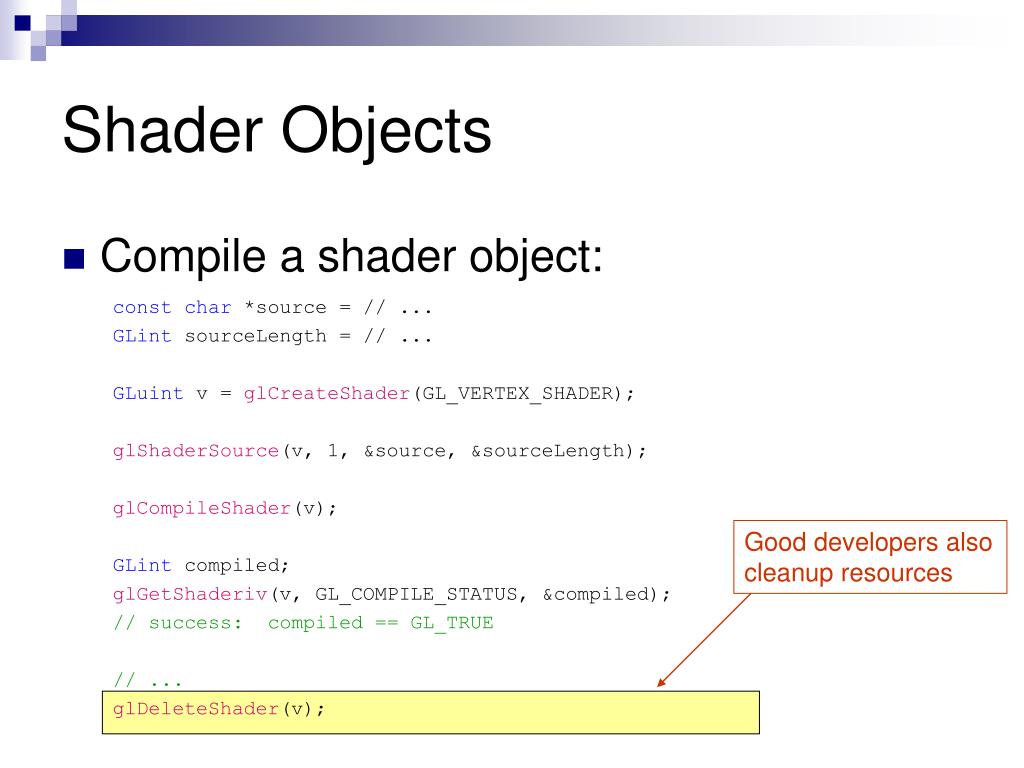

  13. Shader Objects • Compile a shader object: const char *source = // ... GLint sourceLength = // ... GLuint v = glCreateShader(GL_VERTEX_SHADER); glShaderSource(v, 1, &source, &sourceLength); glCompileShader(v); GLint compiled; glGetShaderiv(v, GL_COMPILE_STATUS, &compiled); // success: compiled == GL_TRUE // ... glDeleteShader(v); Good developers also cleanup resources

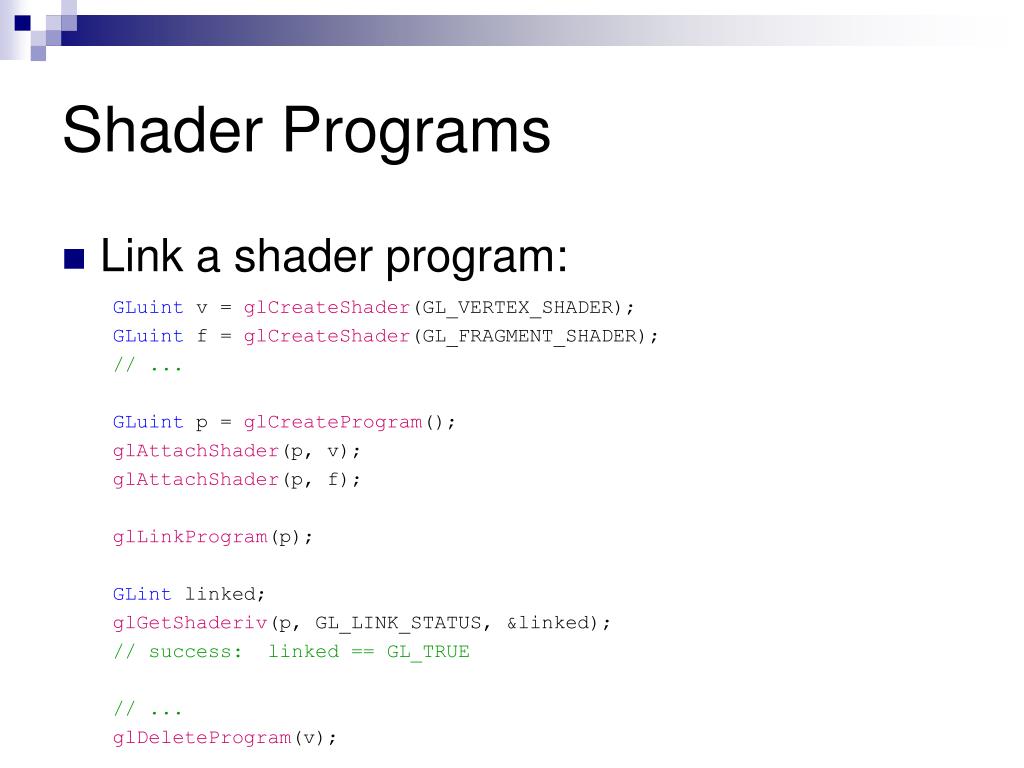

  14. Shader Programs • Link a shader program: GLuint v = glCreateShader(GL_VERTEX_SHADER); GLuint f = glCreateShader(GL_FRAGMENT_SHADER); // ... GLuint p = glCreateProgram(); glAttachShader(p, v); glAttachShader(p, f); glLinkProgram(p); GLint linked; glGetShaderiv(p, GL_LINK_STATUS, &linked); // success: linked == GL_TRUE // ... glDeleteProgram(v);

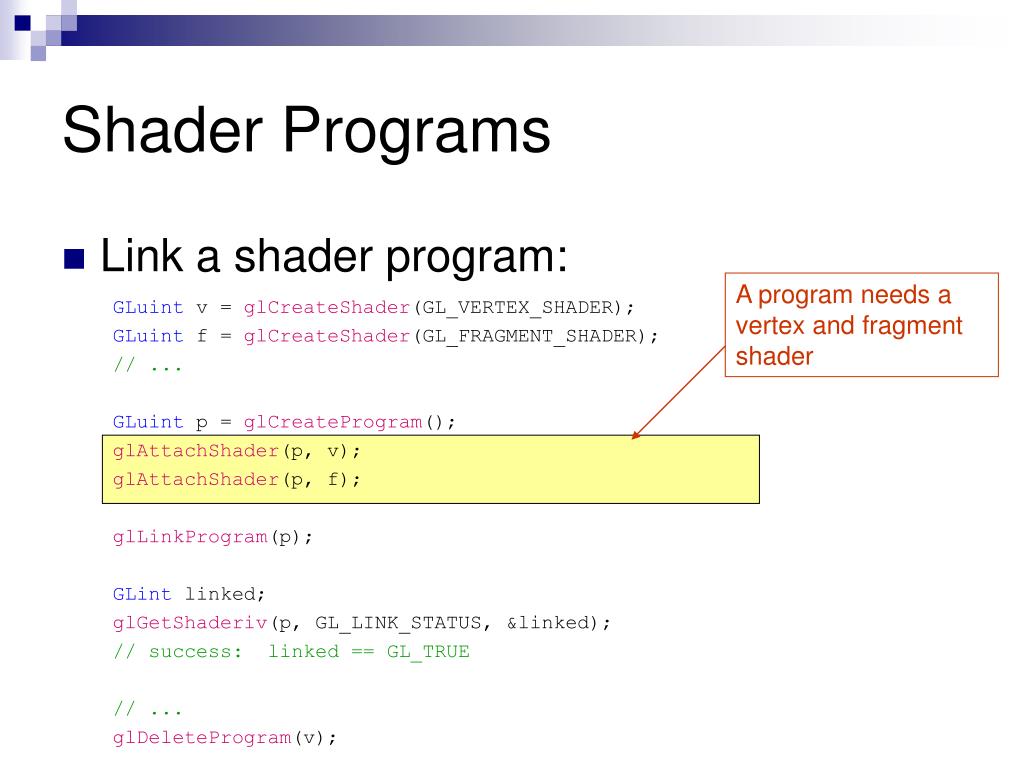

  15. Shader Programs • Link a shader program: A program needs a vertex and fragment shader GLuint v = glCreateShader(GL_VERTEX_SHADER); GLuint f = glCreateShader(GL_FRAGMENT_SHADER); // ... GLuint p = glCreateProgram(); glAttachShader(p, v); glAttachShader(p, f); glLinkProgram(p); GLint linked; glGetShaderiv(p, GL_LINK_STATUS, &linked); // success: linked == GL_TRUE // ... glDeleteProgram(v);

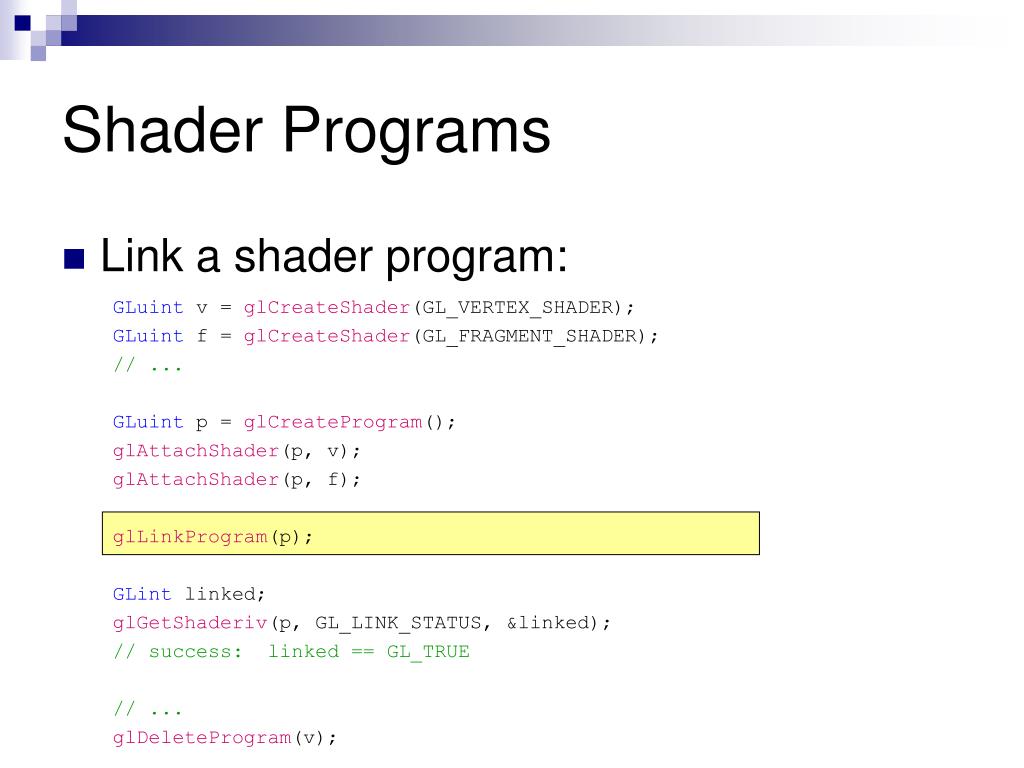

  16. Shader Programs • Link a shader program: GLuint v = glCreateShader(GL_VERTEX_SHADER); GLuint f = glCreateShader(GL_FRAGMENT_SHADER); // ... GLuint p = glCreateProgram(); glAttachShader(p, v); glAttachShader(p, f); glLinkProgram(p); GLint linked; glGetShaderiv(p, GL_LINK_STATUS, &linked); // success: linked == GL_TRUE // ... glDeleteProgram(v);

  17. Shader Programs • Link a shader program: GLuint v = glCreateShader(GL_VERTEX_SHADER); GLuint f = glCreateShader(GL_FRAGMENT_SHADER); // ... GLuint p = glCreateProgram(); glAttachShader(p, v); glAttachShader(p, f); glLinkProgram(p); GLint linked; glGetShaderiv(p, GL_LINK_STATUS, &linked); // success: linked == GL_TRUE // ... glDeleteProgram(v); Be a good developer again

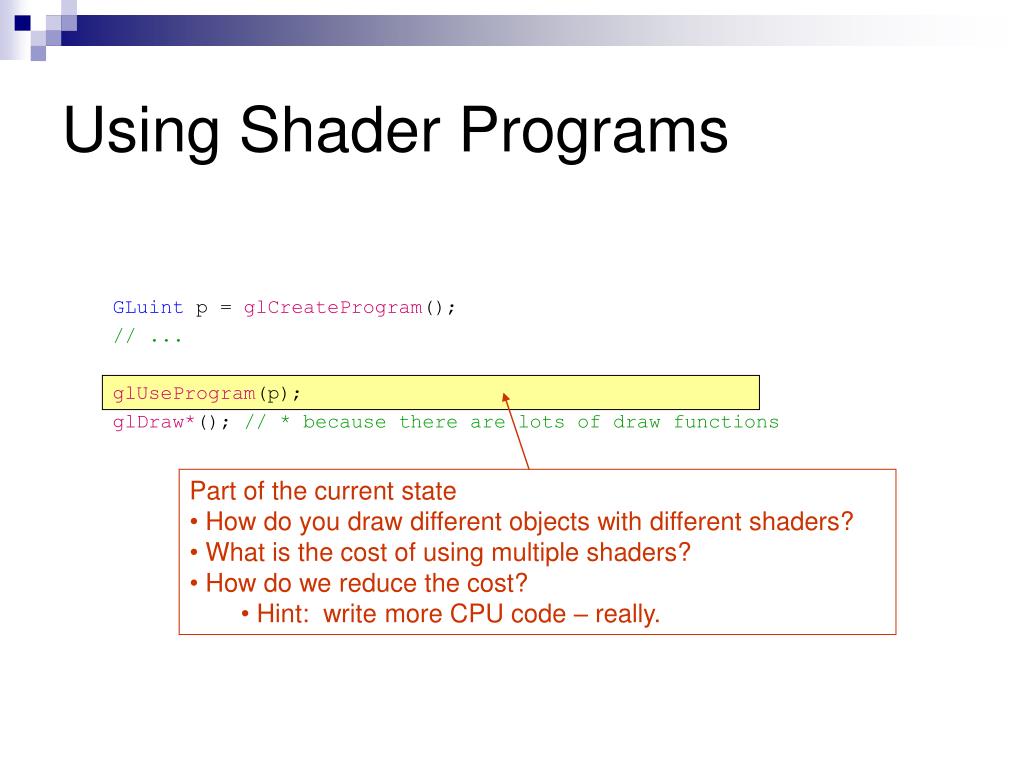

  18. Using Shader Programs GLuint p = glCreateProgram(); // ... glUseProgram(p); glDraw*(); // * because there are lots of draw functions • Part of the current state • How do you draw different objects with different shaders? • What is the cost of using multiple shaders? • How do we reduce the cost? • Hint: write more CPU code – really.

  19. Uniforms GLuint p = glCreateProgram(); // ... glLinkProgram(p); GLuintm = glGetUniformLocation(p, “u_modelViewMatrix”); GLuintl = glGetUniformLocation(p, “u_lightMap”); glUseProgram(p); mat4 matrix = // ... glUniformMatrix4fv(m, 1, GL_FALSE, &matrix[0][0]); glUniform1i(l, 0);

  20. Uniforms Each active uniform has an integer index location. GLuint p = glCreateProgram(); // ... glLinkProgram(p); GLuintm = glGetUniformLocation(p, “u_modelViewMatrix”); GLuintl = glGetUniformLocation(p, “u_lightMap”); glUseProgram(p); mat4 matrix = // ... glUniformMatrix4fv(m, 1, GL_FALSE, &matrix[0][0]); glUniform1i(l, 0);

  21. Uniforms GLuint p = glCreateProgram(); // ... glLinkProgram(p); GLuintm = glGetUniformLocation(p, “u_modelViewMatrix”); GLuintl = glGetUniformLocation(p, “u_lightMap”); glUseProgram(p); mat4 matrix = // ... glUniformMatrix4fv(m, 1, GL_FALSE, &matrix[0][0]); glUniform1i(l, 0); mat4 is part of the C++ GLM library GLM: http://www.g-truc.net/project-0016.html#menu

  22. Not transposing the matrix Uniforms GLuint p = glCreateProgram(); // ... glLinkProgram(p); GLuintm = glGetUniformLocation(p, “u_modelViewMatrix”); GLuintl = glGetUniformLocation(p, “u_lightMap”); glUseProgram(p); mat4 matrix = // ... glUniformMatrix4fv(m, 1, GL_FALSE, &matrix[0][0]); glUniform1i(l, 0); glUniform* for all sorts of datatypes Uniforms can be changed as often as needed, but are constant during a draw call

  23. Uniforms GLuint p = glCreateProgram(); // ... glLinkProgram(p); GLuintm = glGetUniformLocation(p, “u_modelViewMatrix”); GLuintl = glGetUniformLocation(p, “u_lightMap”); glUseProgram(p); mat4 matrix = // ... glUniformMatrix4fv(m, 1, GL_FALSE, &matrix[0][0]); glUniform1i(l, 0); Why not glUniform*(p, …)?
