Nervous system 1 introduction raised intracranial pressure and trauma l.jpg

Nervous system 1Introduction, raised intracranial pressure and trauma

Professor John Simpson

This lecture will cover l.jpg
This lecture will cover

  • NS cell reactions to injury

  • raised intracranial pressure, including herniation of the brain

  • traumatic brain injury

Why is the ns different l.jpg
Why is the NS different? body systems?

  • brain and cord sit in closed spaces

  • autoregulation of blood flow

  • blood-brain barrier

  • high dependency on O2 and glucose

  • absence of lymphatics

  • limited immune surveillance

  • unique cell population with distinctive responses to injury and healing

Microscopic structure of the nervous system l.jpg
Microscopic structure of the nervous system body systems?

  • neurons (essentially end cells)

    • cell bodies - aggregated in grey matter

      • layers, ganglia, columns, nuclei

      • In specific domains

    • cell processes - include

      • axons in bundles in white matter

  • glial cells (capable of dividing)

    • astrocytes, oligodendrocytes and ependyma – neuroectodermal origin

    • microglia – mesodermal origin

Glial cell roles l.jpg
Glial cell roles body systems?

  • astrocytes

    • neuronal support, blood-brain barrier, healing and repair (by gliosis)

  • oligodendrocytes

    • myelin production (~ = Schwann cells in periphery)

  • ependyma

    • related to choroid plexus/CSF production

  • microglia

    • NS macrophages

Cellular reaction to injury neurons l.jpg
Cellular reaction to injury - neurons body systems?

  • cell death

    • in chronic disease, often seen as reduced cellularity

  • cell “degeneration”

    • variety of changes ~ disease, e.g. accumulations, inclusions

  • axonal reaction

    • regeneration possible if only axon damaged

Symptoms and signs of ns disease l.jpg
Symptoms and signs of NS disease body systems?

  • headache

  • neck stiffness

  • coma/impaired consciousness

  • loss or disturbance of movement

  • abnormal reflexes

  • muscle atrophy

  • sensory impairment/paraesthesia

  • visual disturbances

  • tinnitus/deafness

Intracranial pressure icp l.jpg
Intracranial pressure (ICP) body systems?

  • major components of ICP

    • brain, CSF and blood

  • increased volume of any one will raise ICP, unless compensatory reduction in one/both of other components

  • presence of anything else “extra” inside skull will do the same

  • if ICP continues to increase, compensatory mechanisms will fail

Common causes of raised icp l.jpg
Common causes of raised ICP body systems?

  • intracranial expanding lesions (“space-occupying lesions”) – e.g. tumour, haematoma, abscess

  • hydrocephalus (excess CSF)

  • cerebral oedema – increase in brain water content, due to blood-brain barrier problem

    • localised (e.g. around tumours)

    • generalised (e.g. following severe head injury or hypoxic brain damage)

Possible effects of raised icp l.jpg
Possible effects of raised ICP body systems?

  • compression of veins and ventricles

  • reduced CSF

  • flattening of gyri and narrowing of sulci

  • papilloedema

  • midline shift

  • herniation of parts of brain

  • eventual compression of vital brain stem centres

  • (before skull sutures fused, enlarged cranium)

Raised intracranial pressure l.jpg
Raised intracranial pressure body systems?


- causes “shifts” and herniation

Cushing reflex

- haemodynamic changes

(raised BP, slowed pulse)

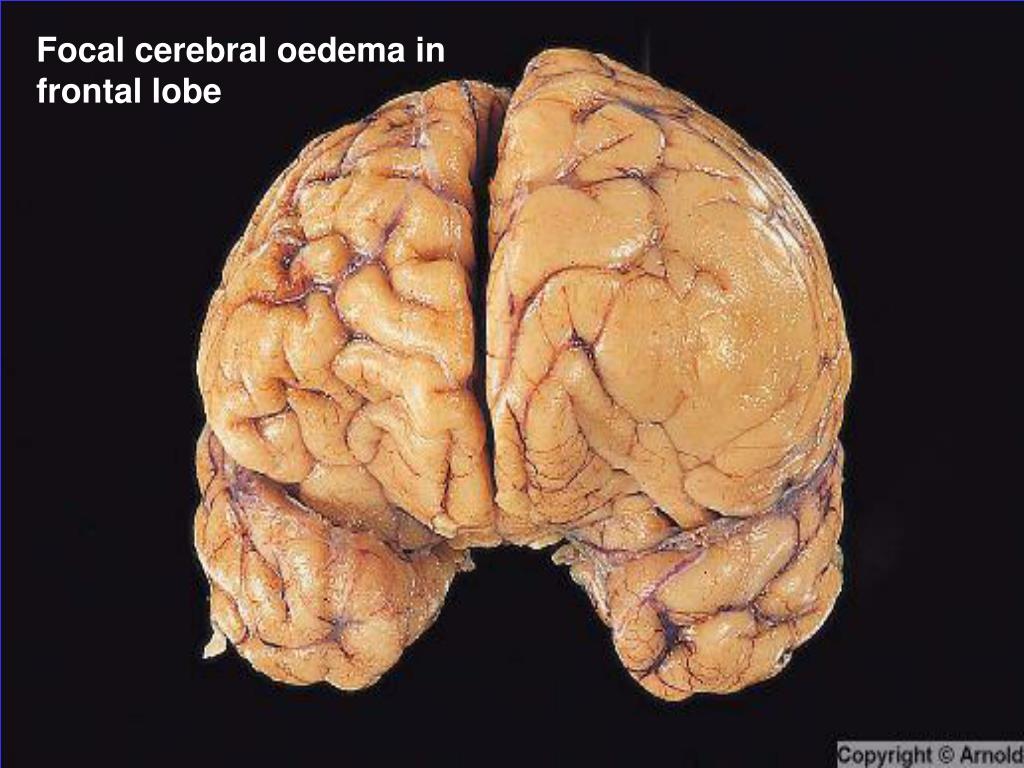

Slide15 l.jpg

Focal cerebral oedema in body systems?

frontal lobe

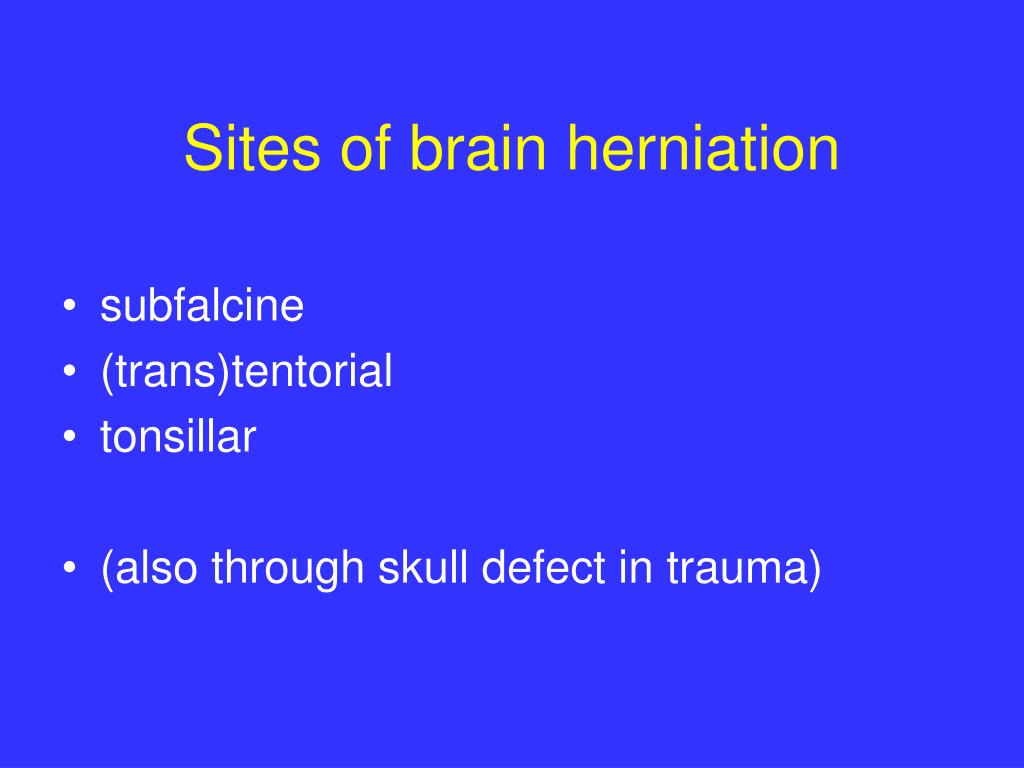

Sites of brain herniation l.jpg
Sites of brain herniation body systems?

  • subfalcine

  • (trans)tentorial

  • tonsillar

  • (also through skull defect in trauma)

Subfalcine herniation l.jpg
Subfalcine herniation body systems?

  • (= supracallosal or cingulate hernia)

  • usually due to primary abnormality in one cerebral hemisphere

  • ipsilateral cingulate gyrus herniates under the free edge of falx

  • pericallosal arteries are compressed, so possible cerebral infarction

  • anterior cerebral artery may also be affected, causing larger infarct

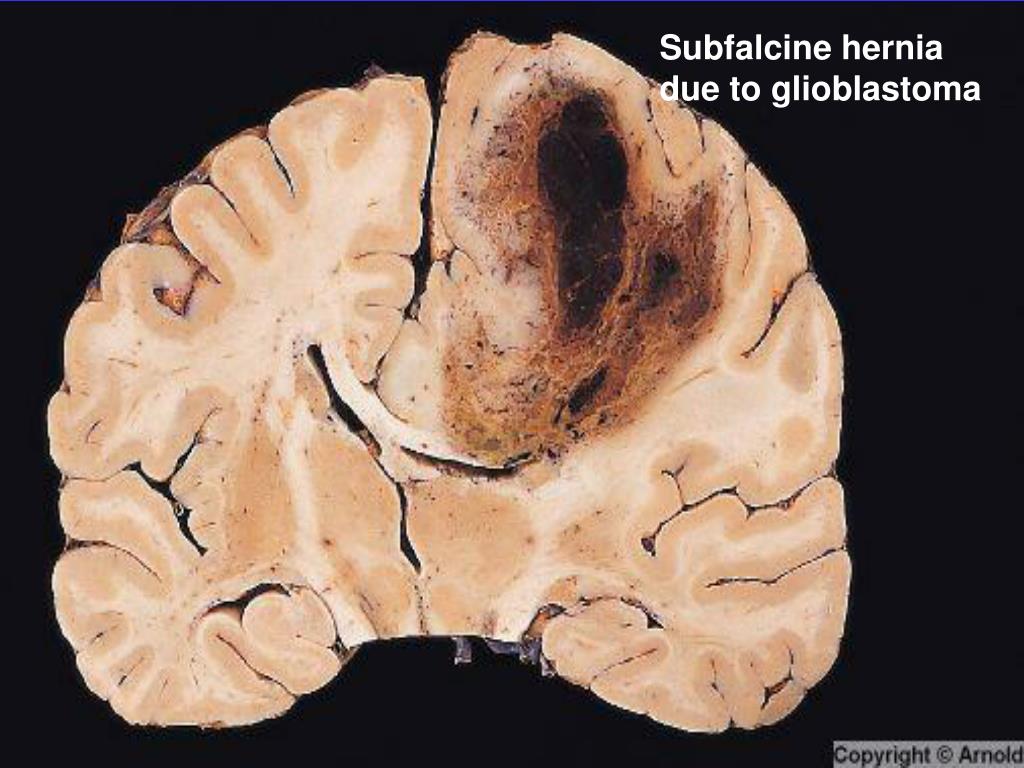

Slide20 l.jpg

Subfalcine hernia body systems?

due to glioblastoma

Tentorial herniation l.jpg
Tentorial herniation body systems?

  • medial aspect of temporal lobe through tentorium

    • affects hippocampus

  • midbrain compressed and distorted

    • compressed aqueduct impairs CSF flow (obstructive hydrocephalus)

    • haemorrhage in pons and midbrain

  • risk to

    • ipsilateral 3rd nerve

    • posterior cerebral artery

    • opposite cerebral peduncle

Tentorial herniation22 l.jpg
Tentorial herniation body systems?

Slide23 l.jpg

Large tentorial hernia body systems?

due to cerebral glioblastoma

Brain herniation l.jpg
Brain herniation body systems?

Pontine haemorrhages after tentorial herniation l.jpg
Pontine haemorrhages after tentorial herniation body systems?

Figure 28-3 Duret hemorrhage involving the brainstem at the junction of the pons and midbrain.

Downloaded from: Robbins & Cotran Pathologic Basis of Disease (on 2 February 2007 01:43 PM)

© 2005 Elsevier

Tonsillar herniation l.jpg
Tonsillar herniation tentorial herniation

  • (= foramen magnum or foraminal herniation = coning)

  • cerebellar tonsils move down – with medulla form “cone” shape

  • exit from 4th ventricle blocked impairing CSF flow (obstructive hydrocephalus)

  • compression of breathing and cardiac centres in medulla

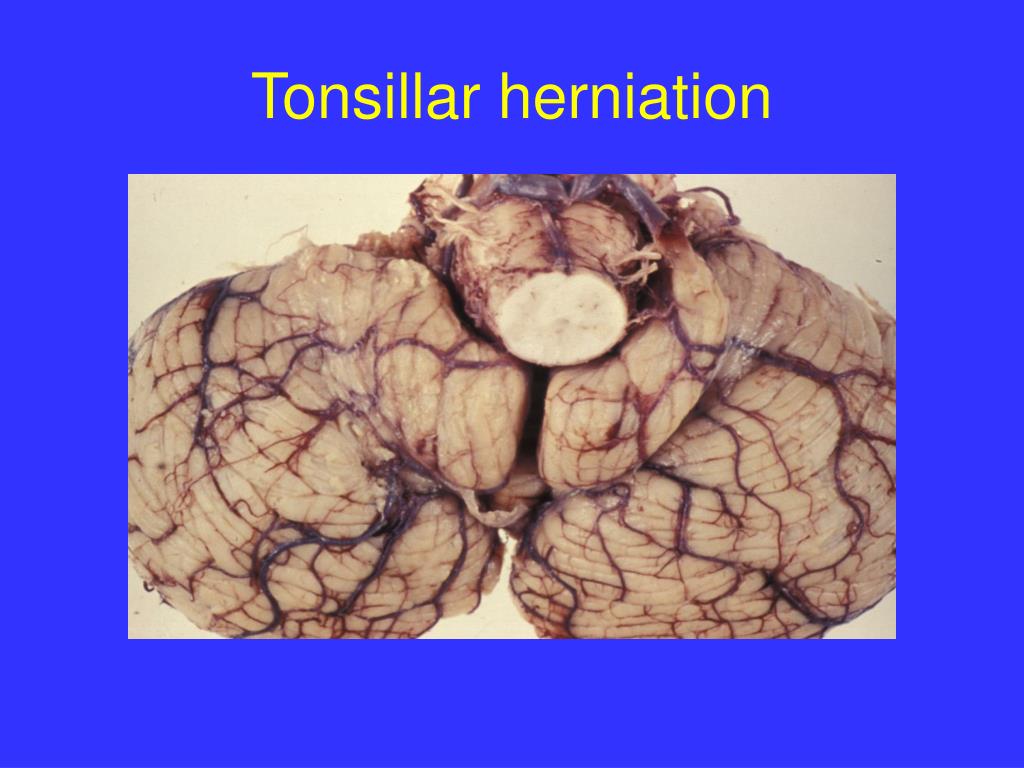

Tonsillar herniation28 l.jpg
Tonsillar herniation tentorial herniation

Slide29 l.jpg

Cerebellar tonsillar necrosis tentorial herniation

following tonsillar


Lumbar puncture l.jpg
Lumbar puncture tentorial herniation

Lumbar puncture is dangerous and should be avoided if ICP raised. Why?

Is there any way you might check for raised ICP before doing an LP?

Traumatic brain injury l.jpg
Traumatic brain injury tentorial herniation

  • missile or non-missile - latter commoner

  • in non-missile, primary or secondary damage

    • primary – focal lesions (contusion/tear) or diffuse axonal injury

    • secondary – e.g. traumatic vascular injury with intracranial haematoma, oedema, herniation, infarction, hydrocephalus, infection

  • clinical effects

    • minor (?) - concussion

    • major – e.g. death, epilepsy, persistent vegetative state (PVS), post traumatic dementia

Brain tearing missile injury l.jpg
Brain – tearing missile injury tentorial herniation

Cerebral contusions l.jpg
Cerebral contusions tentorial herniation

  • coup

    • immediately under site of injury

  • contre coup

    • at opposite side of brain

Temporal lobe contusions l.jpg
Temporal lobe contusions tentorial herniation

Coup and contre coup l.jpg
Coup and contre coup tentorial herniation

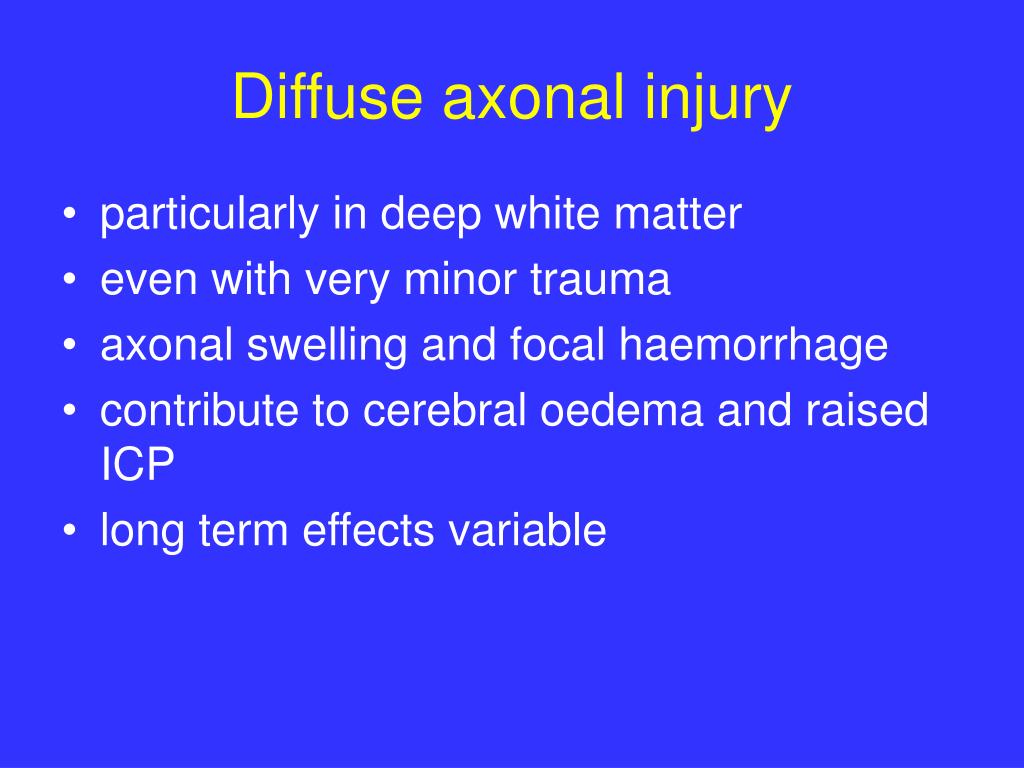

Diffuse axonal injury l.jpg
Diffuse axonal injury tentorial herniation

  • particularly in deep white matter

  • even with very minor trauma

  • axonal swelling and focal haemorrhage

  • contribute to cerebral oedema and raised ICP

  • long term effects variable

Traumatic vascular injury l.jpg
Traumatic vascular injury tentorial herniation

  • extradural

    • especially injury to middle meningeal artery

    • classical clinical presentation

  • subdural

    • dural veins, ? shearing stress

    • acute or chronic (? recurrent bleeding)

    • more common in the elderly and in any bleeding diathesis

    • injury often trivial /missed

  • (subarachnoid and intracerebral

    • usually secondary to contusions)

Skull fracture l.jpg
Skull fracture tentorial herniation

Extradural v subdural haematoma l.jpg
Extradural v subdural haematoma tentorial herniation

Extradural haemorrhage l.jpg
Extradural haemorrhage tentorial herniation

Subdural haematoma l.jpg
Subdural haematoma tentorial herniation

Subdural haematoma44 l.jpg
Subdural haematoma tentorial herniation

Spinal cord trauma l.jpg
Spinal cord trauma tentorial herniation

  • most often due to accidents and displacement of vertebral column +/- vascular problem

  • cord/nerve root compression, transection etc

  • effects depend on site and severity

    • paraplegia, quadriplegia, respiratory compromise
