  1. 路由设置

  2. 网卡1 网卡1 Fec0::2:219:dbff: Fec0::2:219:dbff: fec5:eeef fec5:ee4a Fec0::2::/64 网卡2 网卡2 Router1 Fec0::1:21d:fff: Router2 Fec0::3:21d:fff: fe0c:5dd1 fe0c:a22e Fec0::3::/64 Fec0::1::/64 PC2 PC1 Fec0::3:219:dbff:fec5: Fec0::1:219:dbff:fec5: eee0 edae 网络环境 Fec0::n: 为路由广播的网络地址

  3. 开启路由服务

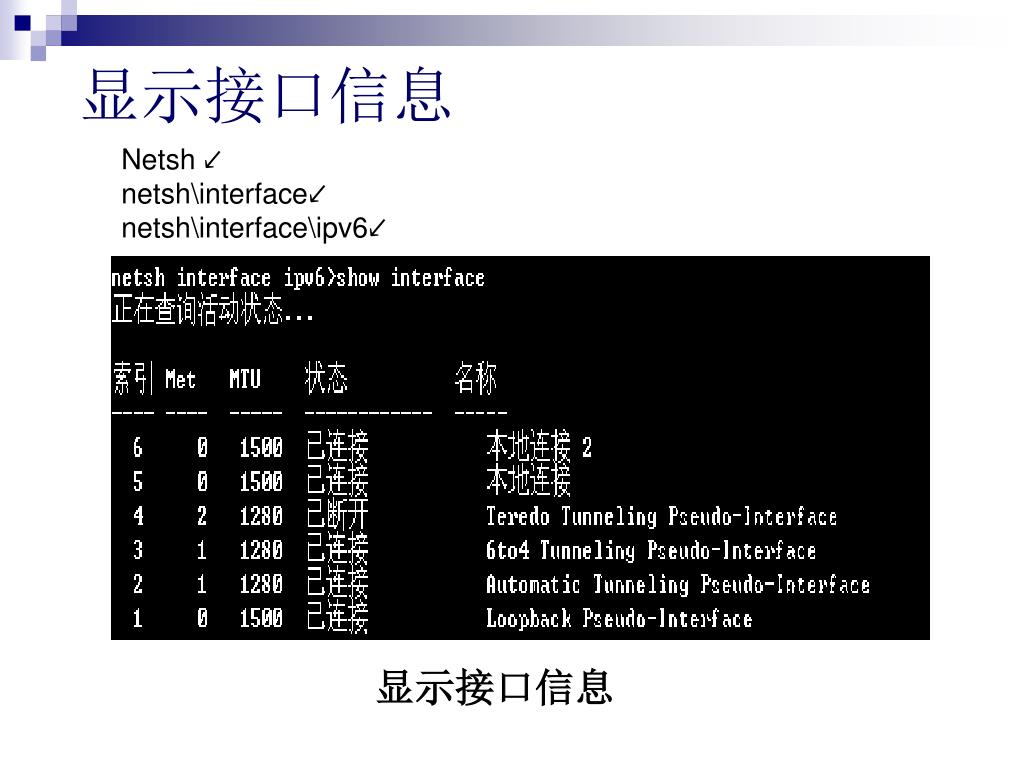

  4. 显示接口信息 Netsh ↙ netsh\interface↙ netsh\interface\ipv6↙ 显示接口信息

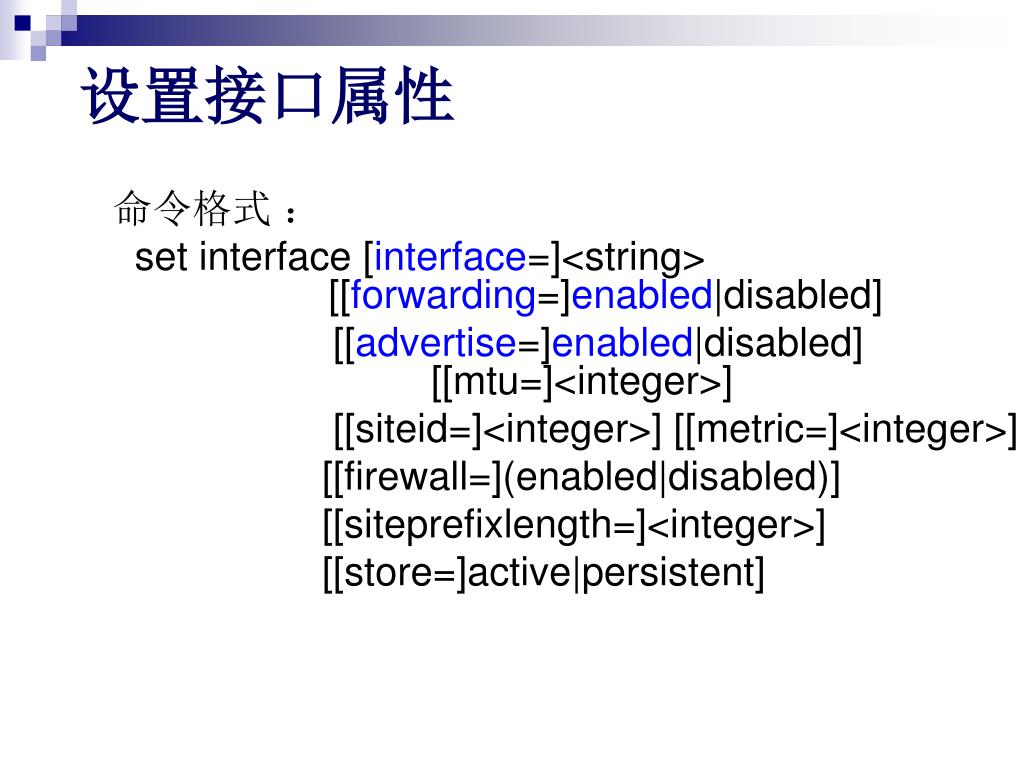

  5. 设置接口属性 命令格式 ： set interface [interface=]<string> [[forwarding=]enabled|disabled] [[advertise=]enabled|disabled] [[mtu=]<integer>] [[siteid=]<integer>] [[metric=]<integer>] [[firewall=](enabled|disabled)] [[siteprefixlength=]<integer>] [[store=]active|persistent]

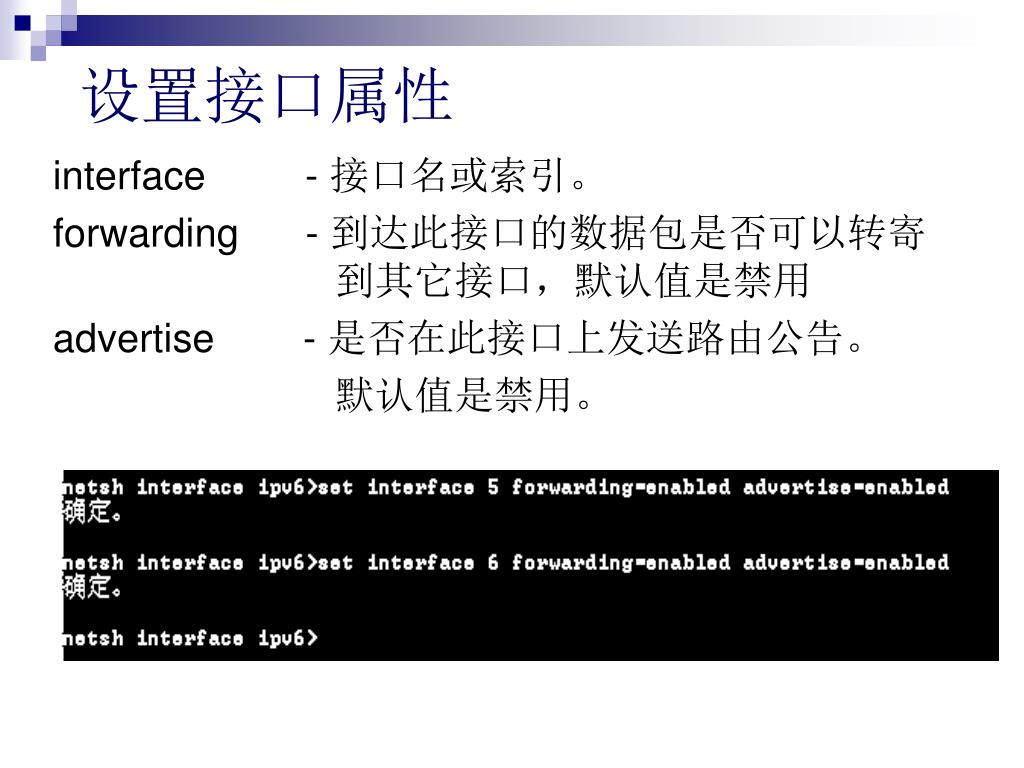

  6. 设置接口属性 interface - 接口名或索引。 forwarding - 到达此接口的数据包是否可以转寄 到其它接口，默认值是禁用 advertise - 是否在此接口上发送路由公告。 默认值是禁用。

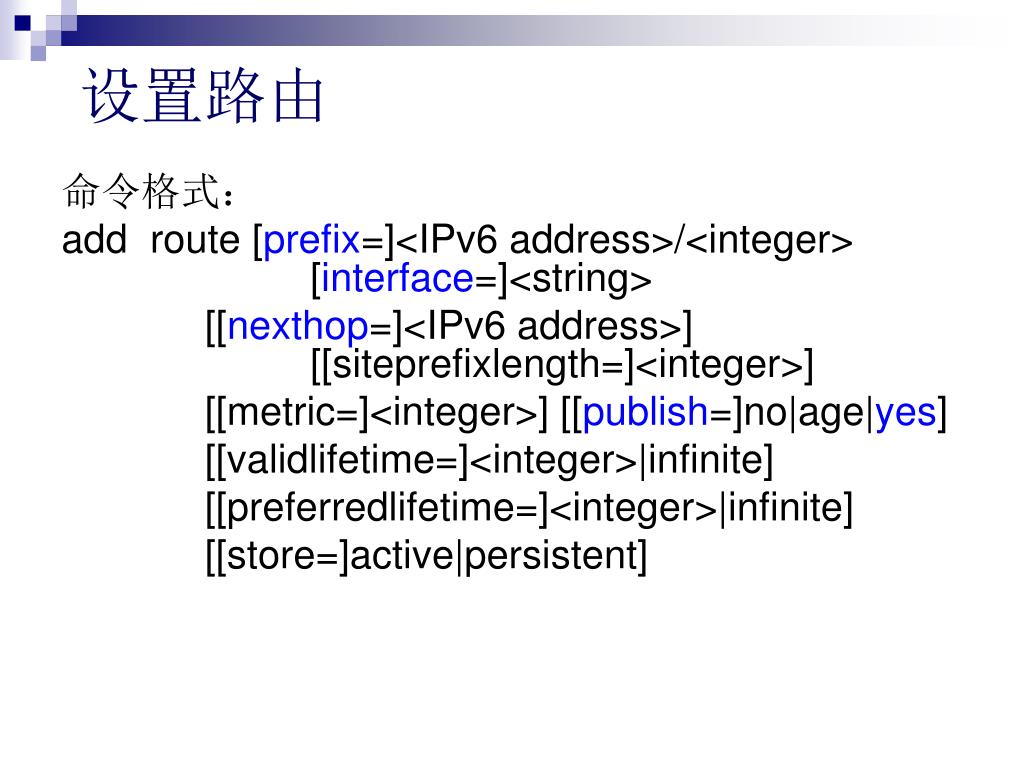

  7. 设置路由 命令格式： add route [prefix=]<IPv6 address>/<integer> [interface=]<string> [[nexthop=]<IPv6 address>] [[siteprefixlength=]<integer>] [[metric=]<integer>] [[publish=]no|age|yes] [[validlifetime=]<integer>|infinite] [[preferredlifetime=]<integer>|infinite] [[store=]active|persistent]

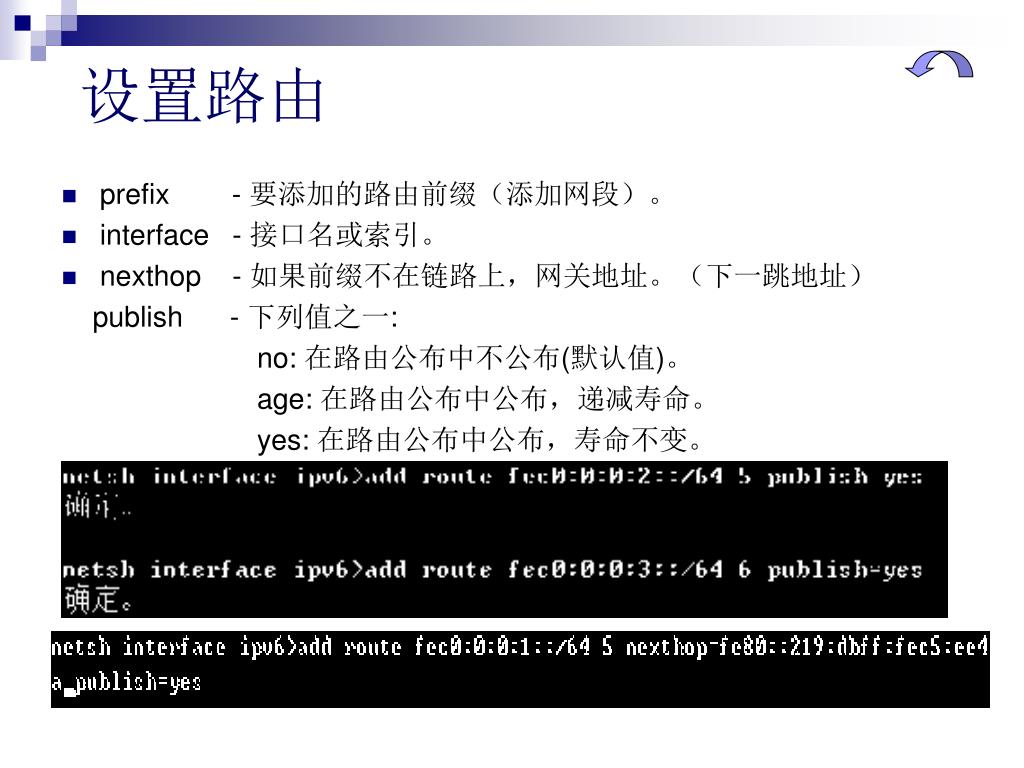

  8. 设置路由 • prefix - 要添加的路由前缀（添加网段）。 • interface - 接口名或索引。 • nexthop - 如果前缀不在链路上，网关地址。（下一跳地址） publish - 下列值之一: no: 在路由公布中不公布(默认值)。 age: 在路由公布中公布，递减寿命。 yes: 在路由公布中公布，寿命不变。

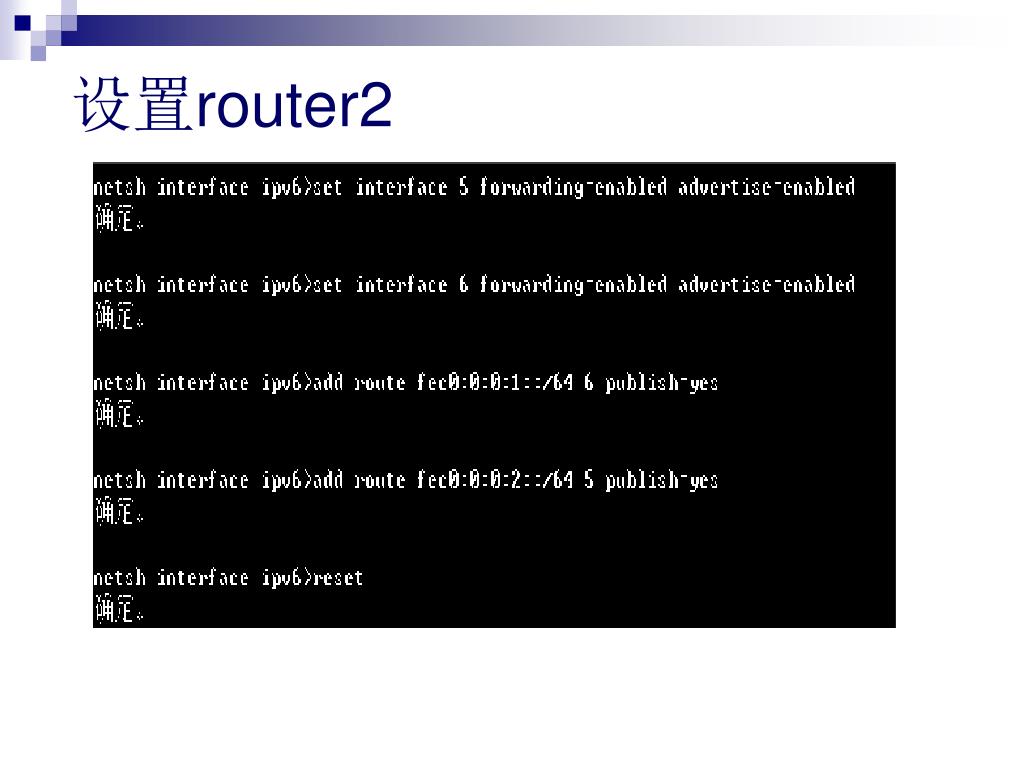

  9. 设置router2

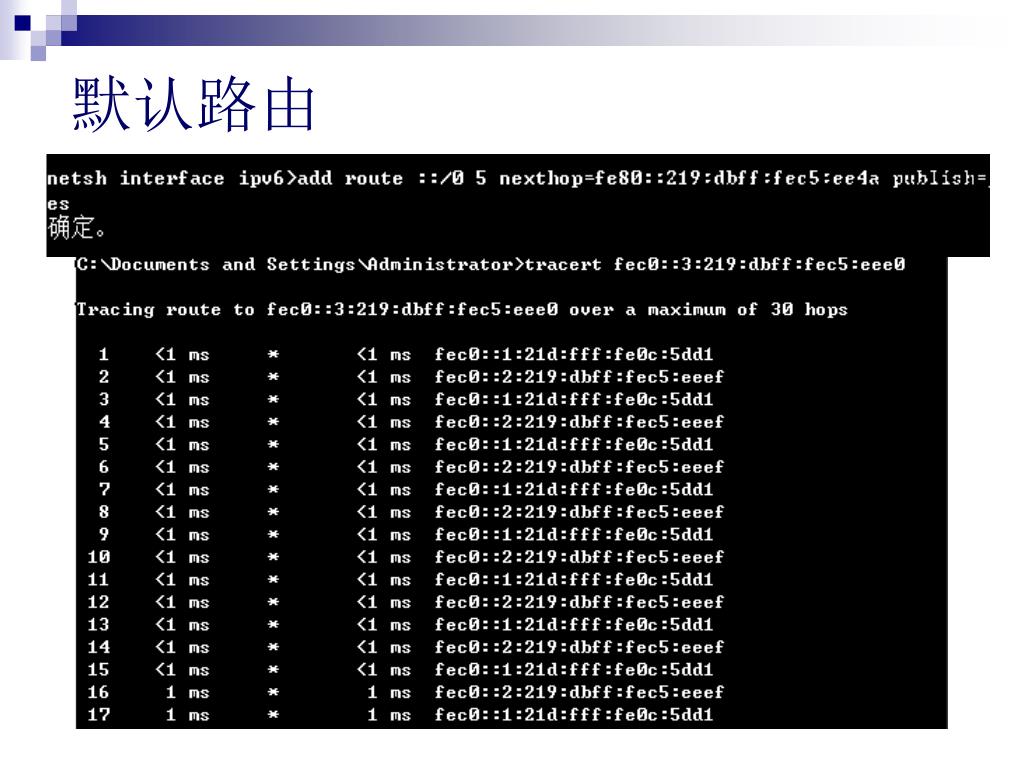

  10. 默认路由

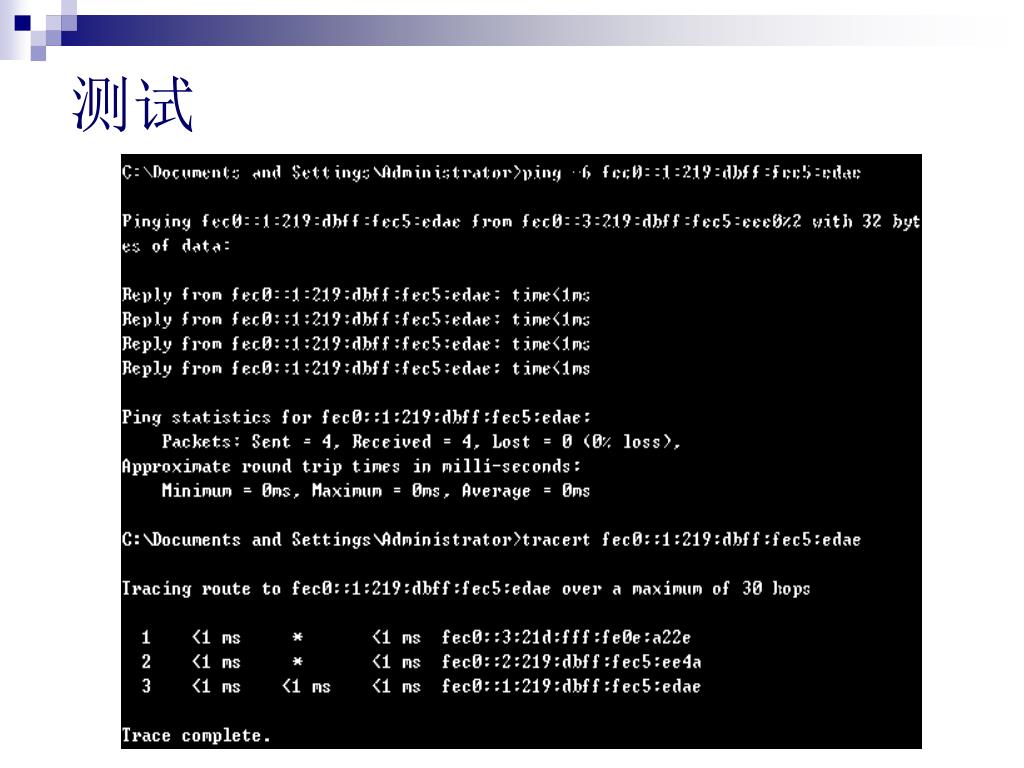

  11. 测试

  12. DNS设置

  13. 网络环境 • 3222::2 3222::1 为手动添加地址 • Fec0::2…为自动获取的站点地址

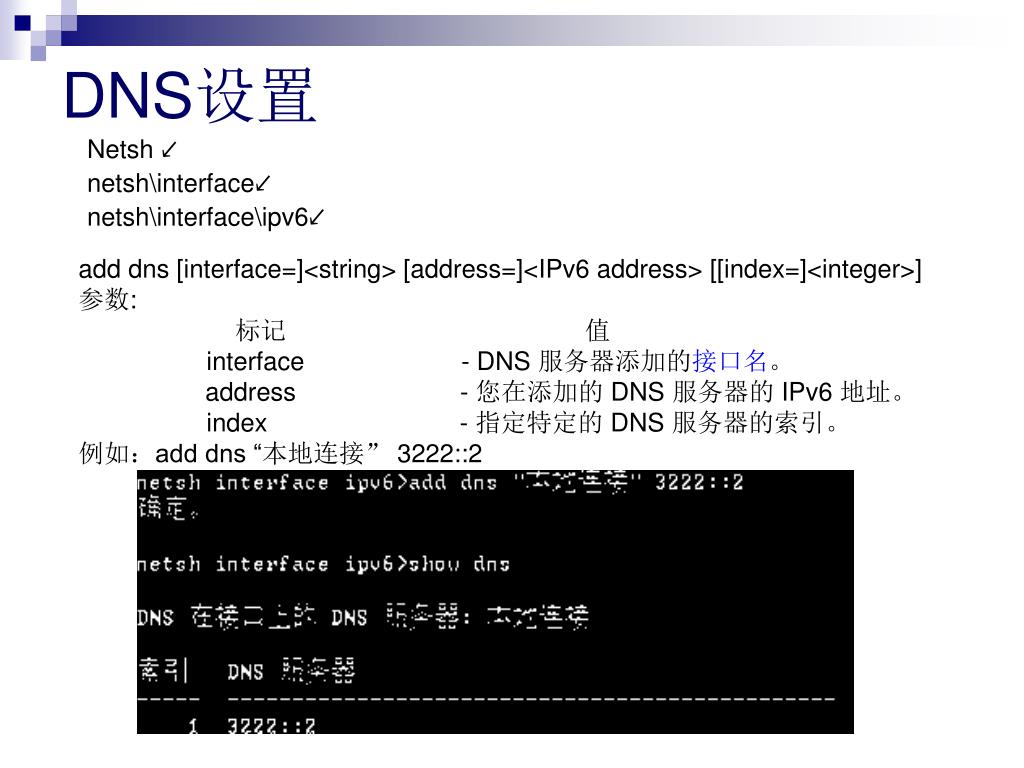

  14. DNS设置 Netsh ↙ netsh\interface↙ netsh\interface\ipv6↙ add dns [interface=]<string> [address=]<IPv6 address> [[index=]<integer>] 参数: 标记 值 interface - DNS 服务器添加的接口名。 address - 您在添加的 DNS 服务器的 IPv6 地址。 index - 指定特定的 DNS 服务器的索引。 例如：add dns “本地连接” 3222::2

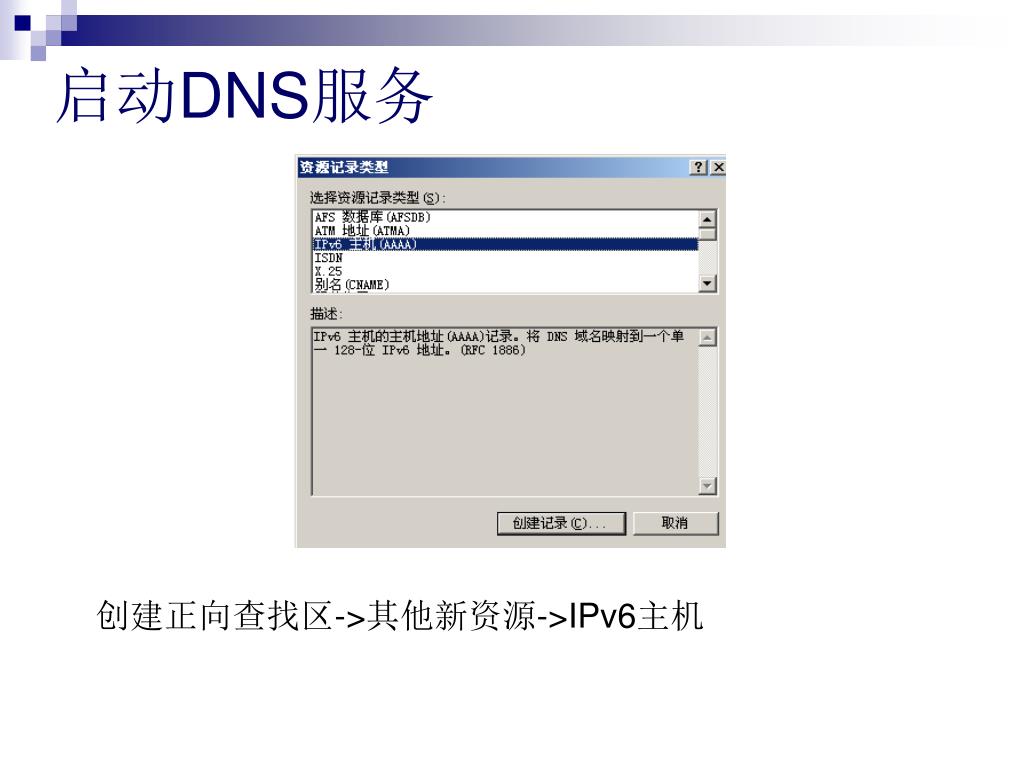

  15. 启动DNS服务 创建正向查找区->其他新资源->IPv6主机

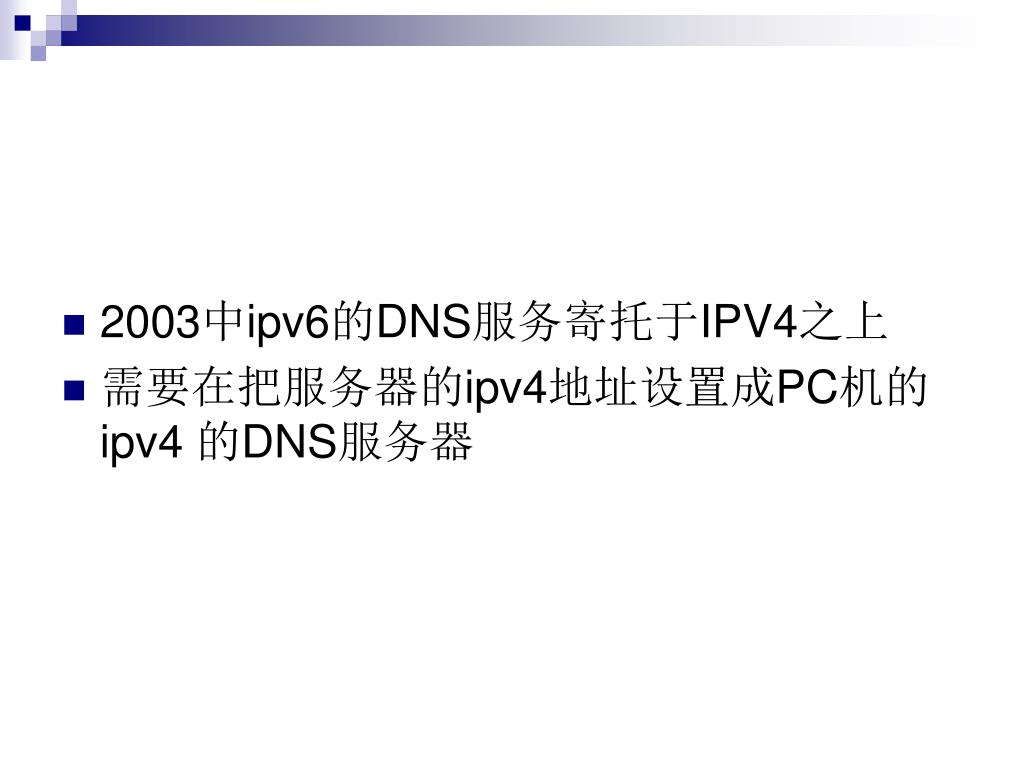

  16. 2003中ipv6的DNS服务寄托于IPV4之上 • 需要在把服务器的ipv4地址设置成PC机的ipv4 的DNS服务器

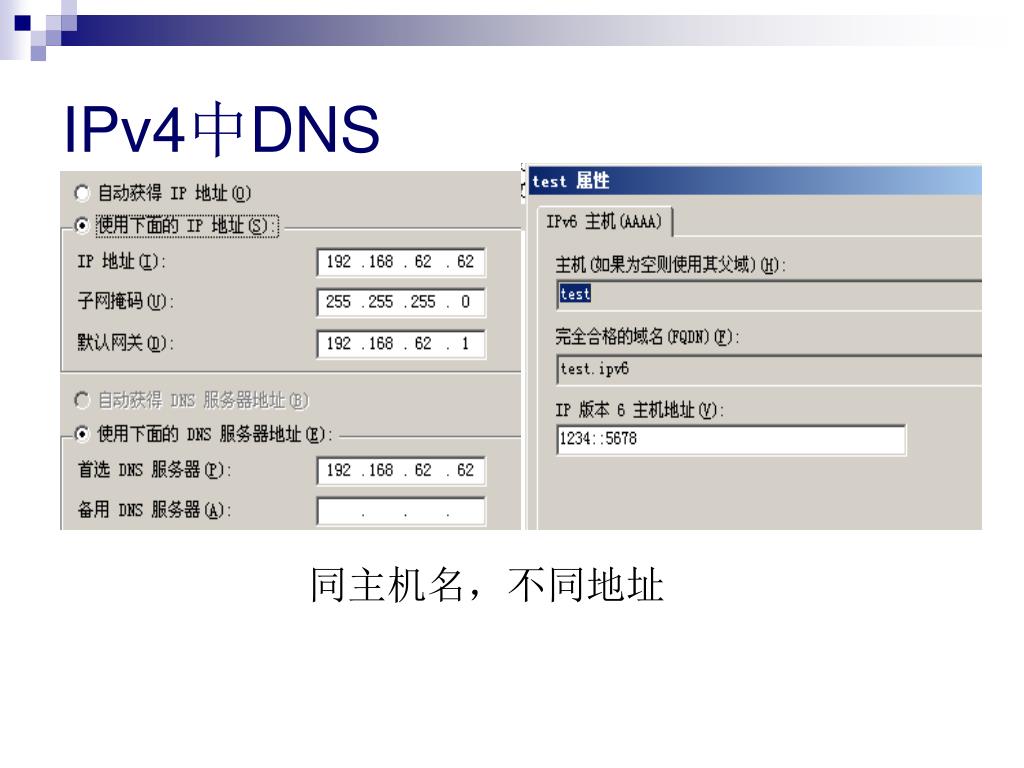

  17. IPv4中DNS 同主机名，不同地址

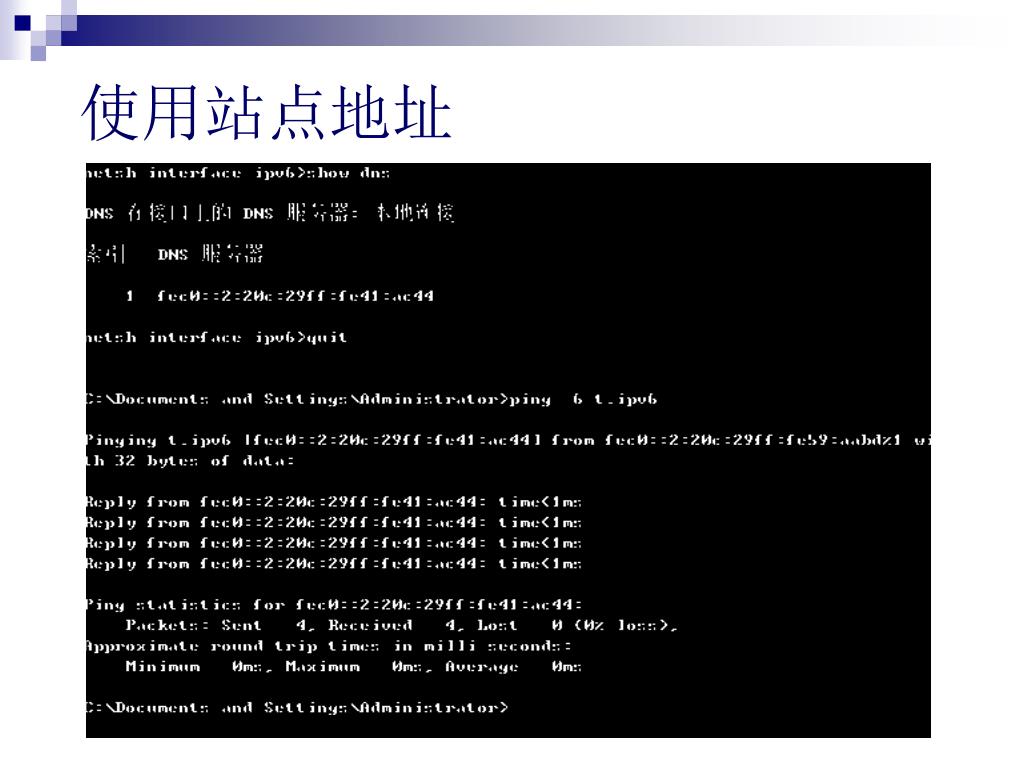

  18. 使用站点地址
