  1. 計算機概論 第6章 數位邏輯設計

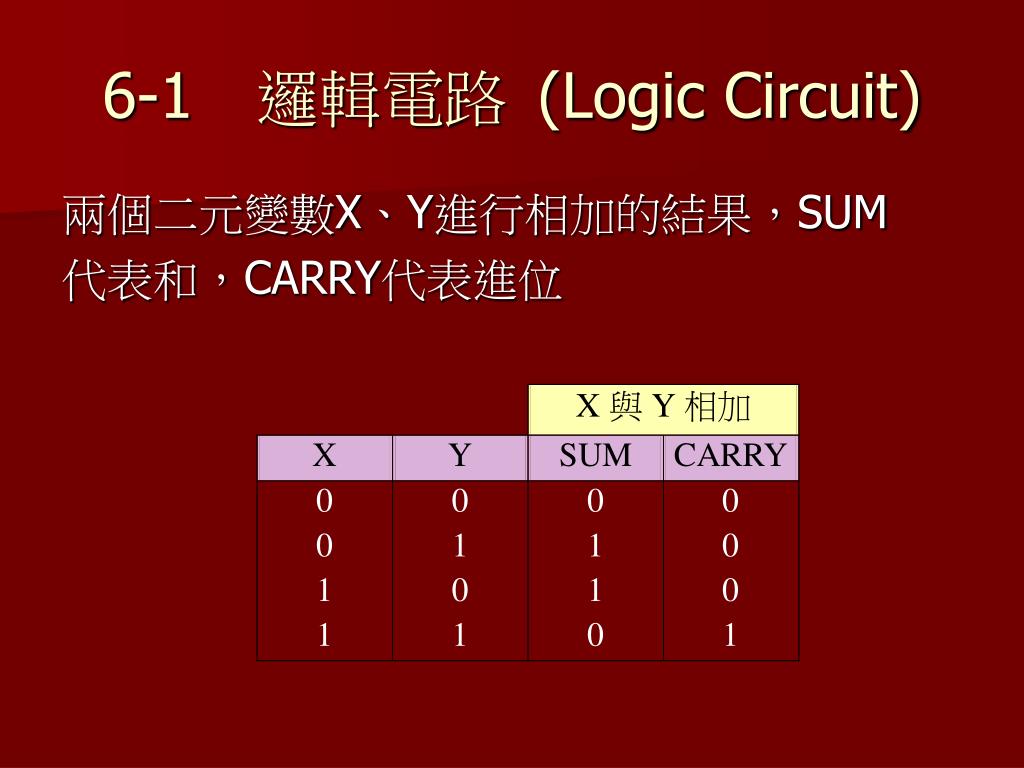

  2. 6-1 邏輯電路(Logic Circuit) 兩個二元變數X、Y進行相加的結果,SUM 代表和,CARRY代表進位

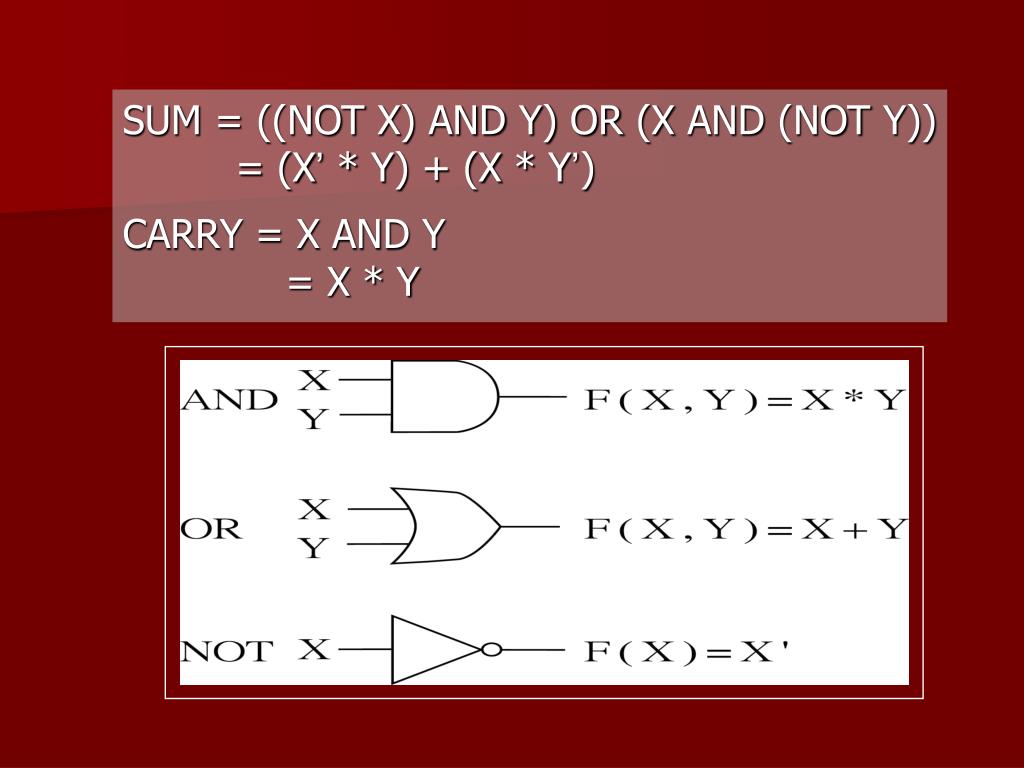

  3. SUM = ((NOT X) AND Y) OR (X AND (NOT Y)) = (X’ * Y) + (X * Y’) CARRY = X AND Y = X * Y

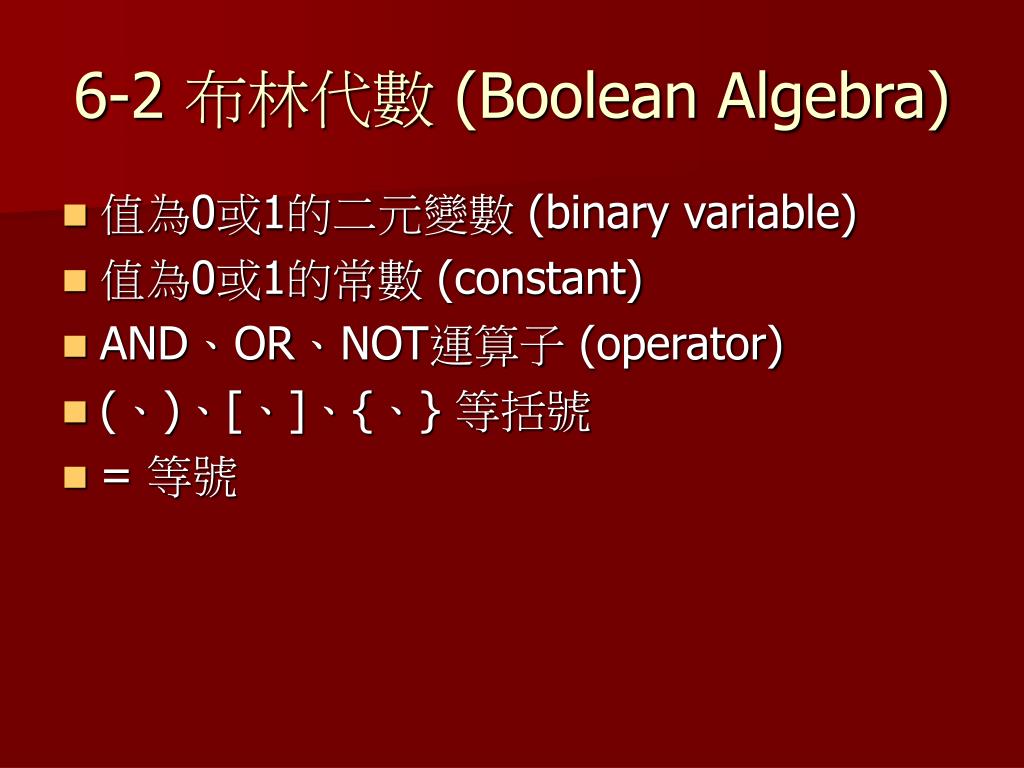

  4. 6-2 布林代數 (Boolean Algebra) • 值為0或1的二元變數 (binary variable) • 值為0或1的常數 (constant) • AND、OR、NOT運算子 (operator) • (、)、[、]、{、} 等括號 • = 等號

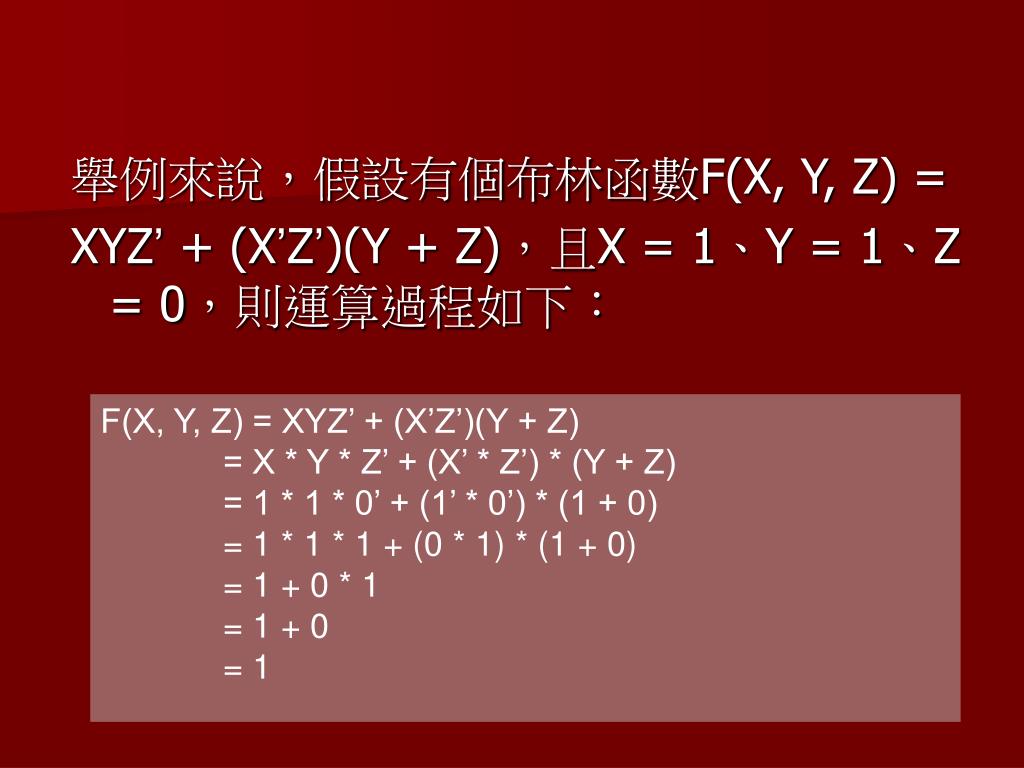

  5. 舉例來說,假設有個布林函數F(X, Y, Z) = XYZ’ + (X’Z’)(Y + Z),且X = 1、Y = 1、Z = 0,則運算過程如下: F(X, Y, Z) = XYZ’ + (X’Z’)(Y + Z) = X * Y * Z’ + (X’ * Z’) * (Y + Z) = 1 * 1 * 0’ + (1’ * 0’) * (1 + 0) = 1 * 1 * 1 + (0 * 1) * (1 + 0) = 1 + 0 * 1 = 1 + 0 = 1

  6. 欄數為二元變數的個數,加上一個存放結果的欄位,故有n+1欄。欄數為二元變數的個數,加上一個存放結果的欄位,故有n+1欄。 每個二元變數有0、1兩種值,所以n 個二元變數會有 2n 種組合,故有 2n 列。 將X、Y、Z的值代入F(X、Y、Z),就可以算出這個欄位的值。 6-2-1 真值表(Truth Table) 布林函數F(X, Y, Z) = XYZ’ + (X’Z’)(Y + Z) 的真值表推算如下:

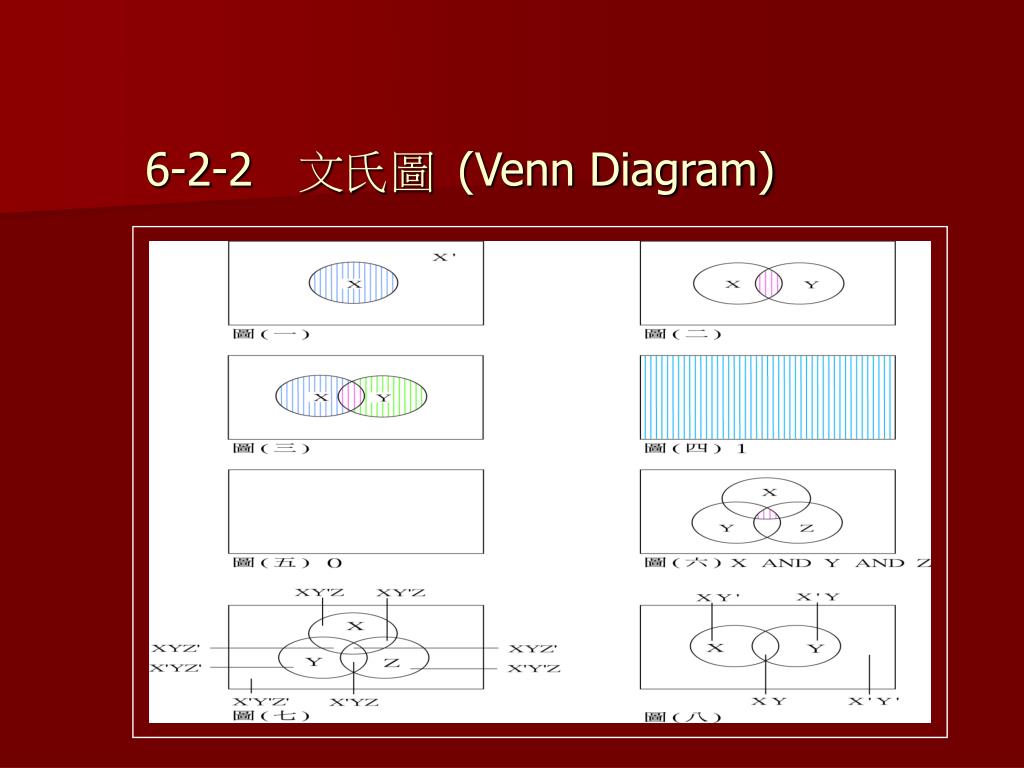

  7. 6-2-2 文氏圖(Venn Diagram)

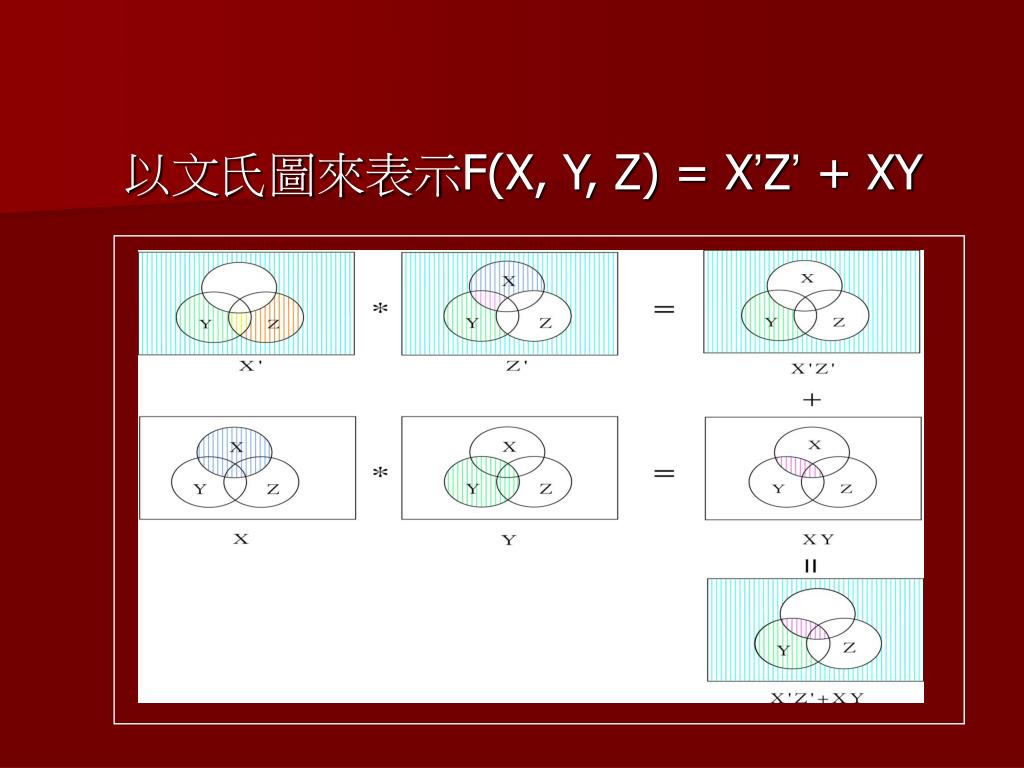

  8. 以文氏圖來表示F(X, Y, Z) = X’Z’ + XY

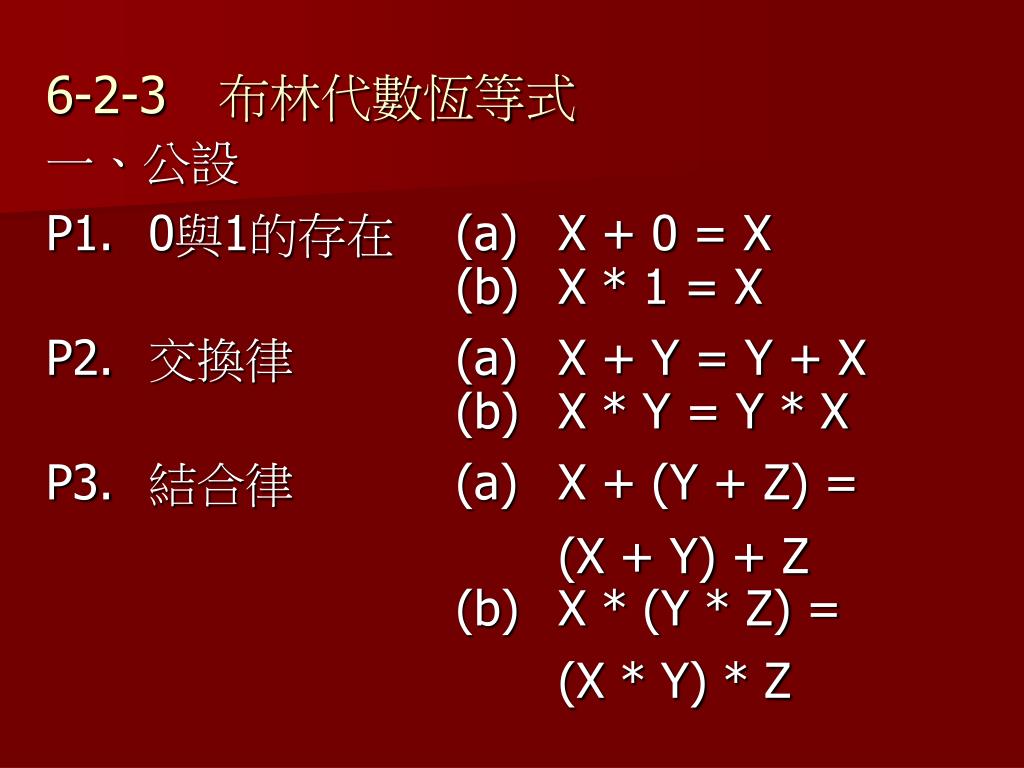

  9. 6-2-3 布林代數恆等式 一、公設 P1. 0與1的存在 (a) X + 0 = X (b) X * 1 = X P2. 交換律 (a) X + Y = Y + X (b) X * Y = Y * X P3. 結合律 (a) X + (Y + Z) = (X + Y) + Z (b) X * (Y * Z) = (X * Y) * Z

  10. P4. 分配律 (a) X + (Y * Z) = (X + Y) * (X + Z) (b) X * (Y + Z) = (X * Y) + (X * Z) P5. 互補 (a) X + X’ = 1 (b) X * X’ = 0 二、定理 T1.冪次 (a) X + X = X (b) X * X = X

  11. T2. 0與1的特性 (a) X + 1 = 1 (b) X * 0 = 0 T3. Absorption (a) X + XY = X (b) X * (X + Y) = X (c) X + X’Y = X + Y (d) X * (X ‘ + Y) = X * Y T4. 狄摩根 (a) (X + Y)’ = X’ * Y’ (b) (X * Y)’ = X’ + Y’

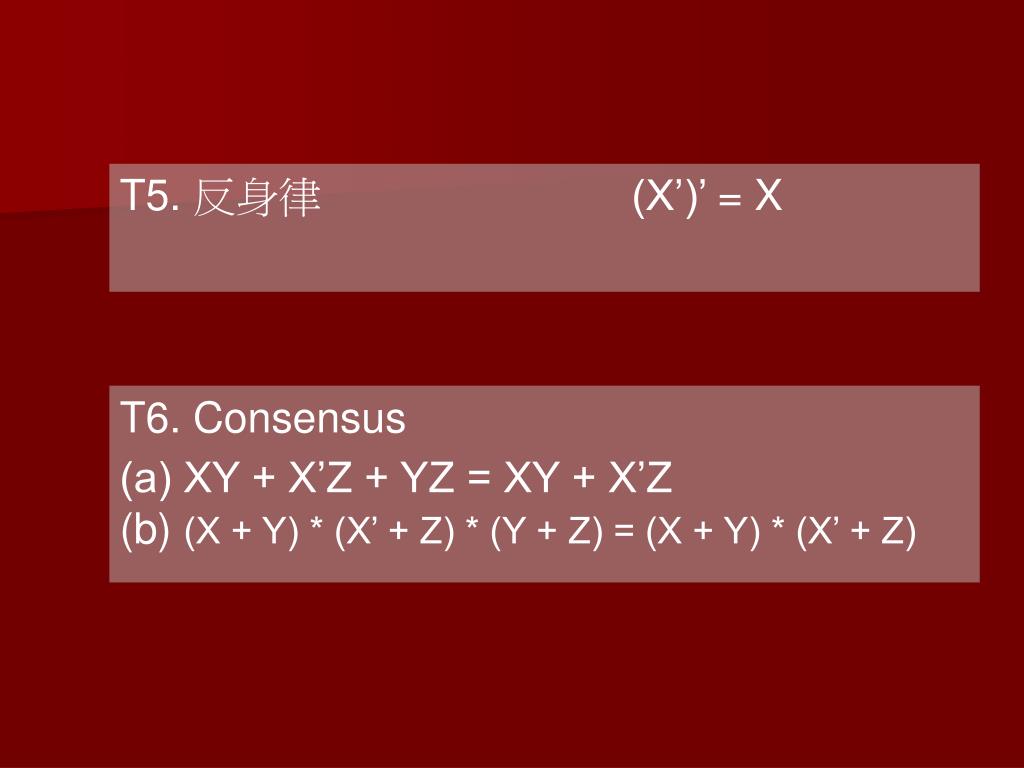

  12. T5. 反身律 (X’)’ = X T6. Consensus (a) XY + X’Z + YZ = XY + X’Z(b) (X + Y) * (X’ + Z) * (Y + Z) = (X + Y) * (X’ + Z)

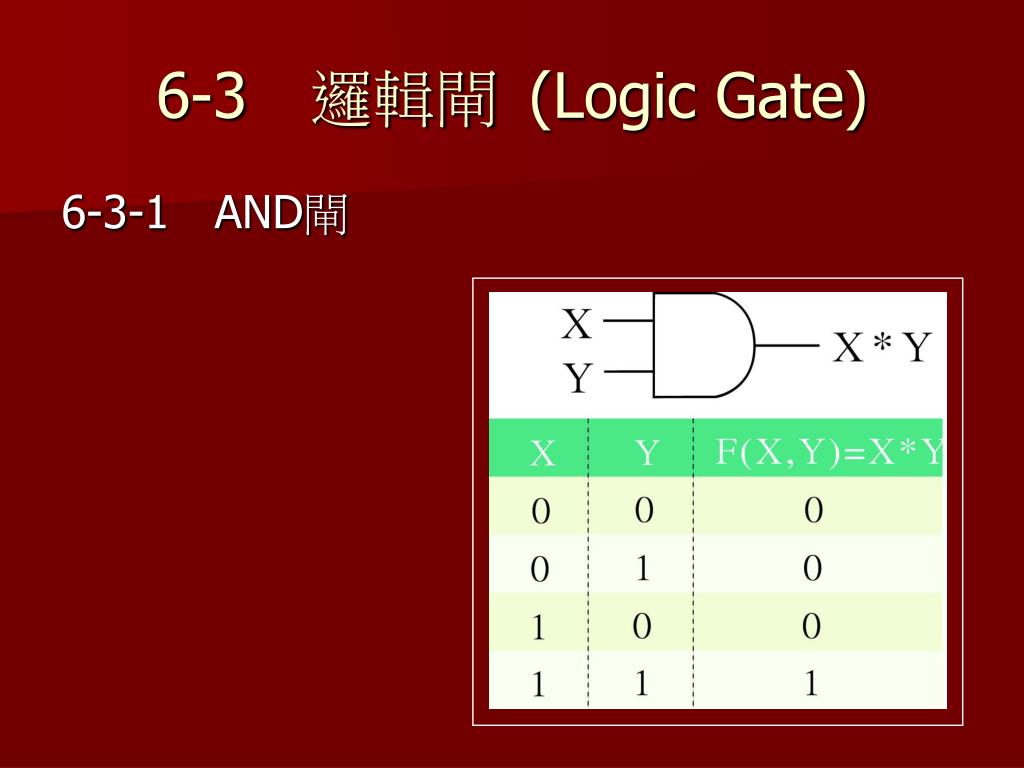

  13. 6-3 邏輯閘(Logic Gate) 6-3-1AND閘

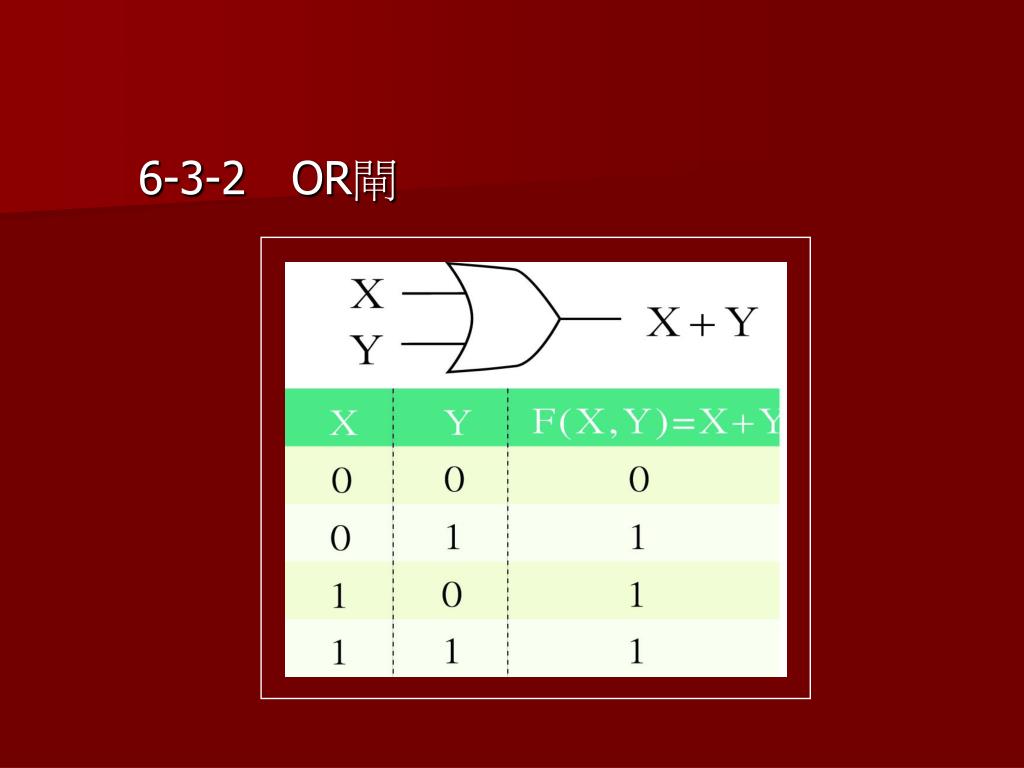

  14. 6-3-2OR閘

  15. 6-3-3NOT閘

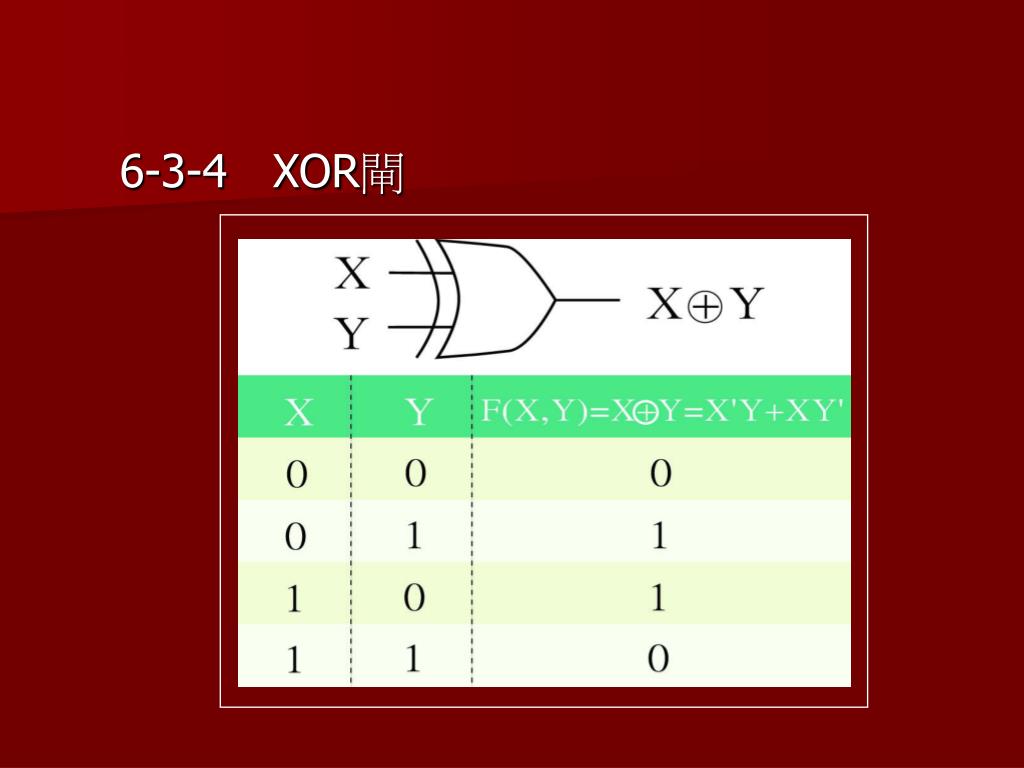

  16. 6-3-4XOR閘

  17. 6-3-5NAND閘

  18. 使用NAND閘來模擬AND閘 使用NAND閘來模擬OR閘

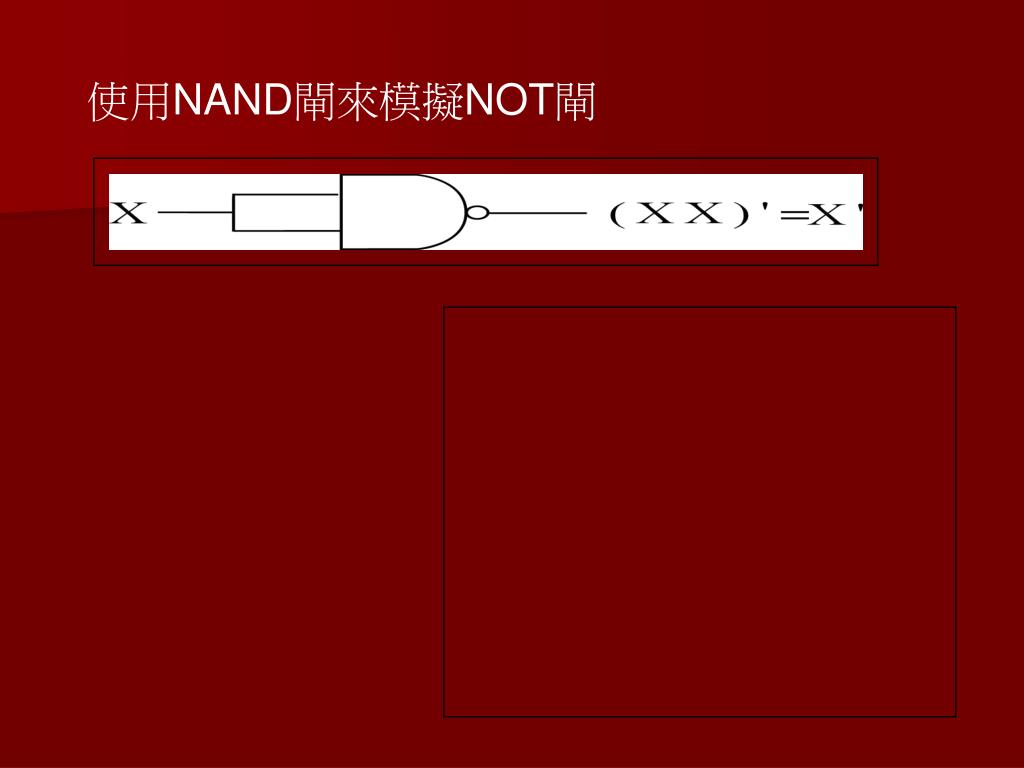

  19. 使用NAND閘來模擬NOT閘

  20. 6-3-6NOR閘 使用NOR閘來模擬AND閘

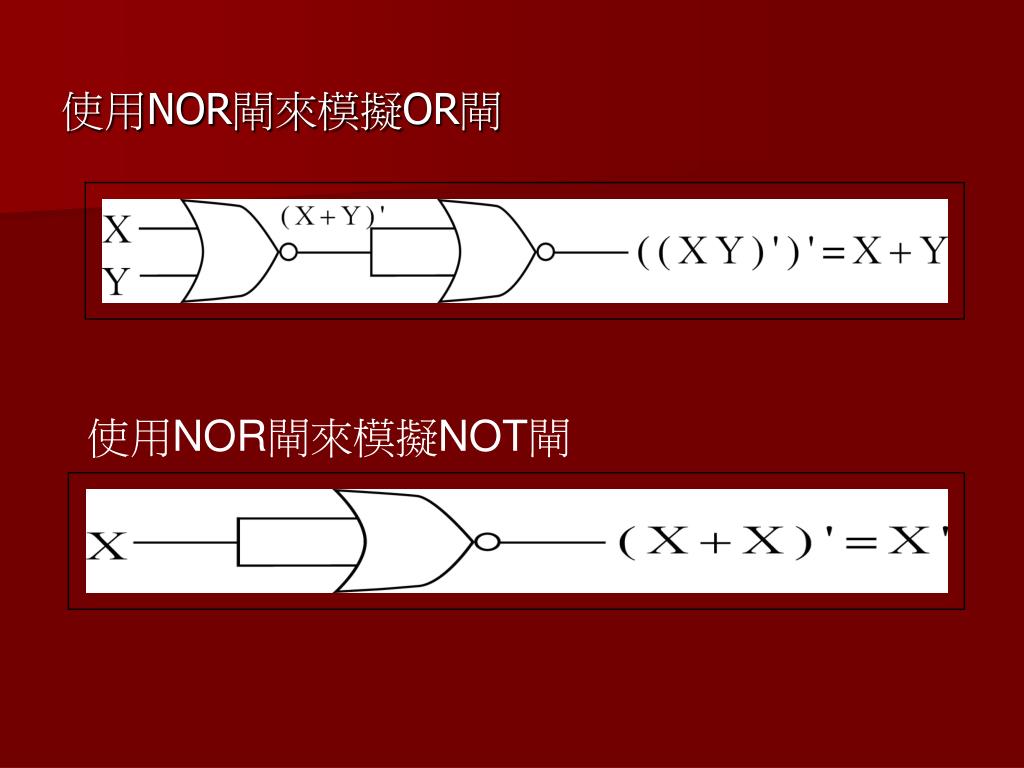

  21. 使用NOR閘來模擬OR閘 使用NOR閘來模擬NOT閘

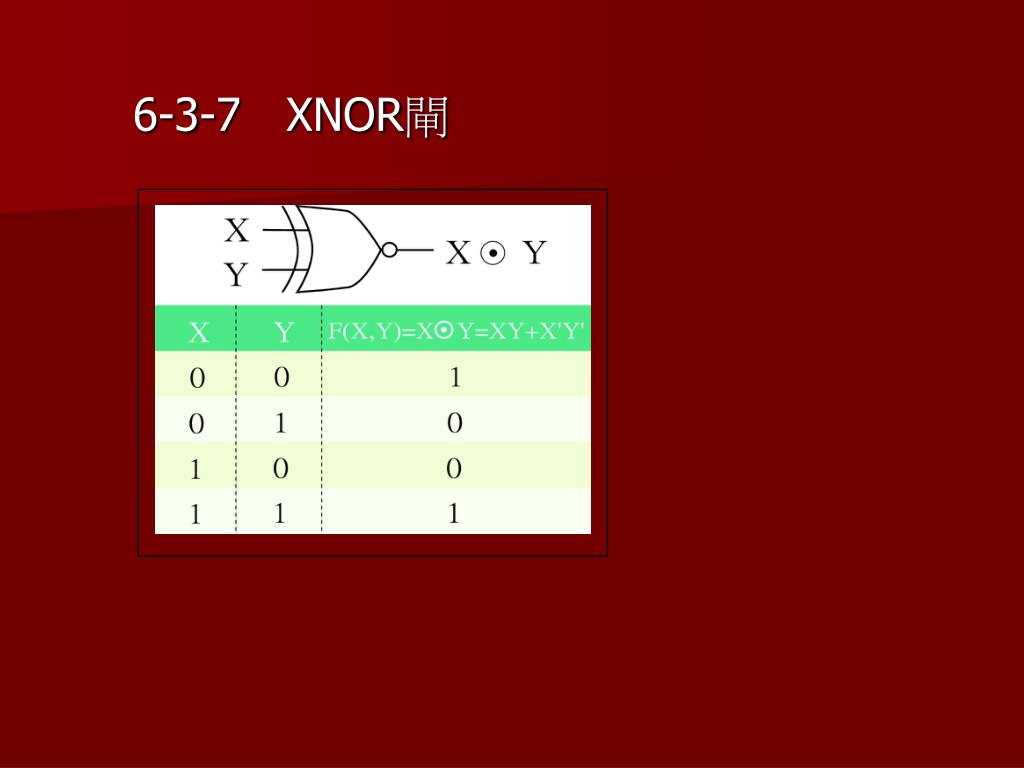

  22. 6-3-7XNOR閘

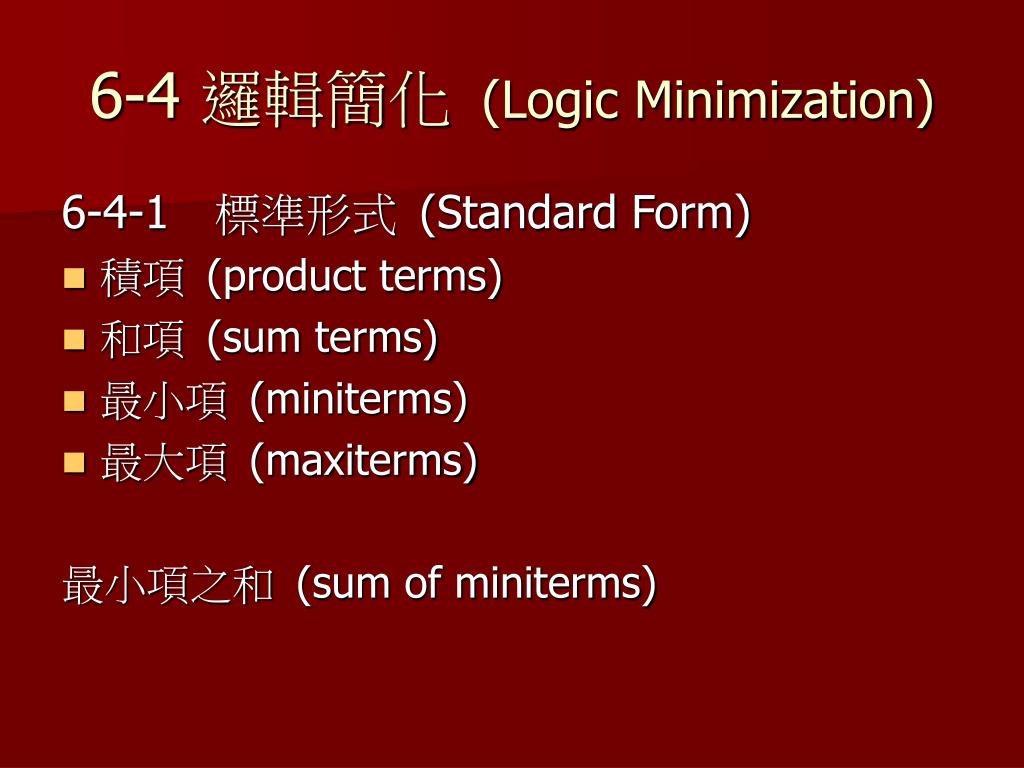

  23. 6-4 邏輯簡化(Logic Minimization) 6-4-1 標準形式(Standard Form) • 積項(product terms) • 和項(sum terms) • 最小項(miniterms) • 最大項(maxiterms) 最小項之和(sum of miniterms)

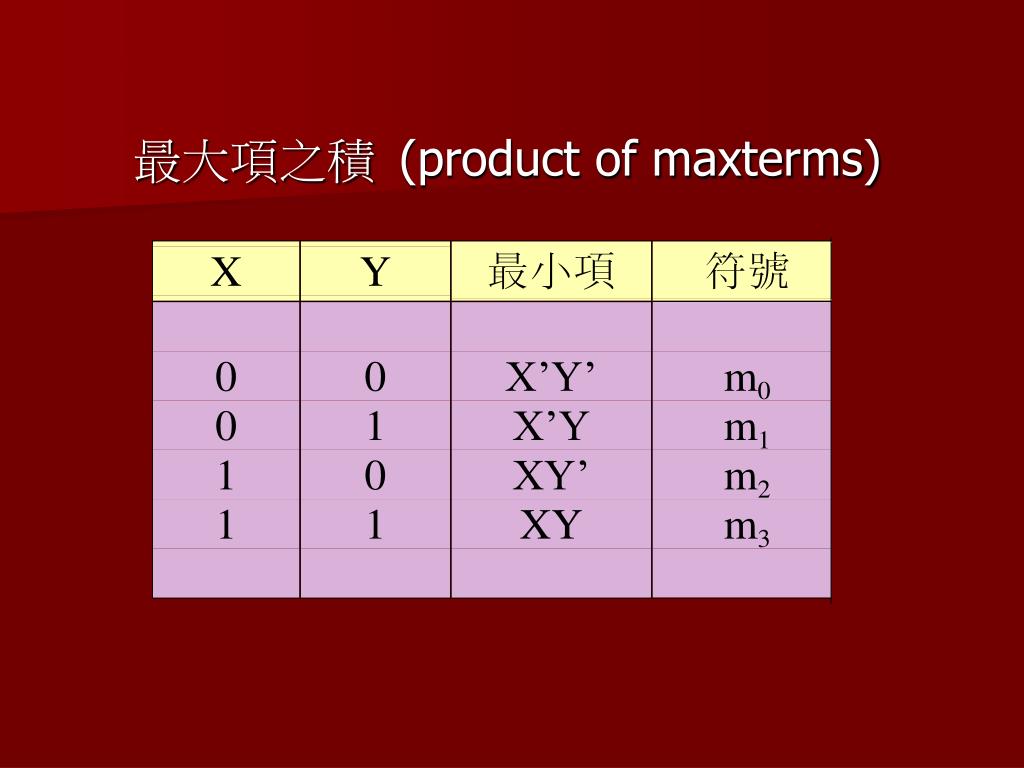

  24. 最大項之積(product of maxterms)

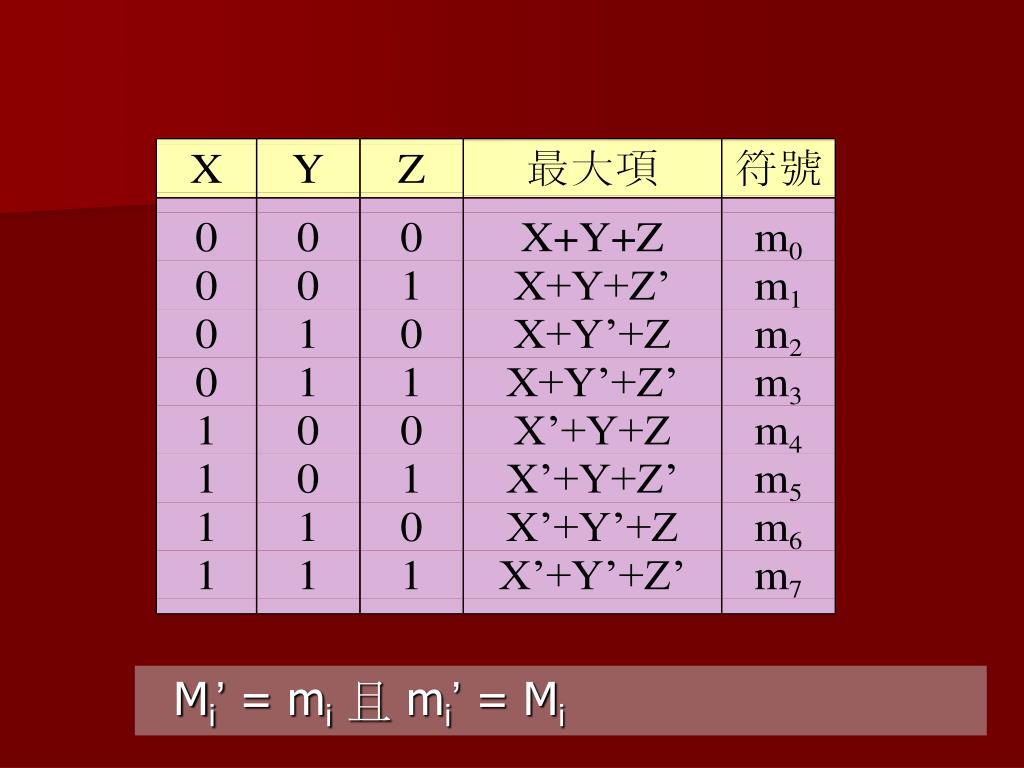

  25. Mi’ = mi且 mi’ = Mi

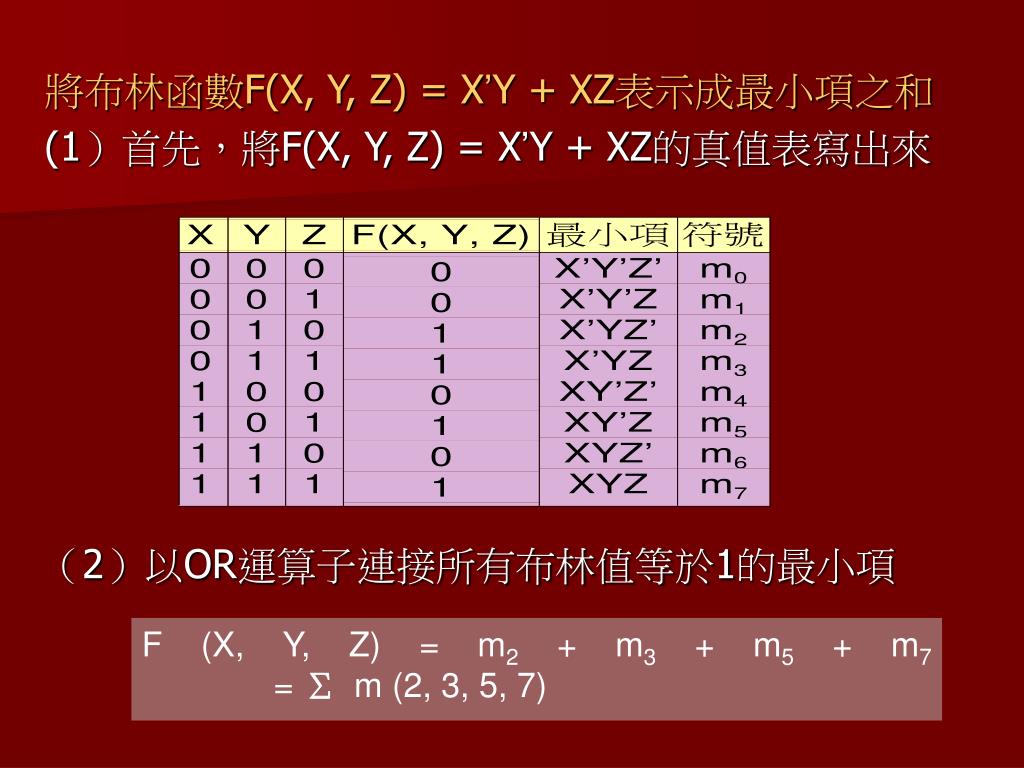

  26. 將布林函數F(X, Y, Z) = X’Y + XZ表示成最小項之和 (1)首先,將F(X, Y, Z) = X’Y + XZ的真值表寫出來 (2)以OR運算子連接所有布林值等於1的最小項 F (X, Y, Z) = m2 + m3 + m5 + m7 = Σm (2, 3, 5, 7)

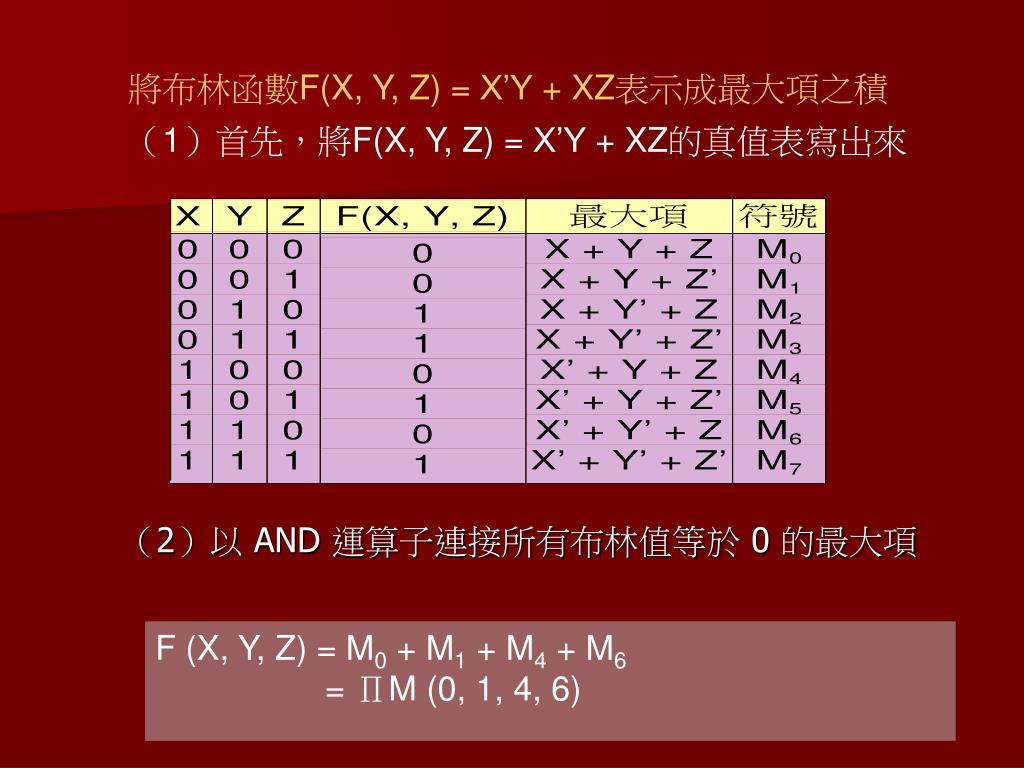

  27. 將布林函數F(X, Y, Z) = X’Y + XZ表示成最大項之積 (1)首先,將F(X, Y, Z) = X’Y + XZ的真值表寫出來 (2)以 AND 運算子連接所有布林值等於 0 的最大項 F (X, Y, Z) = M0 + M1 + M4 + M6 = ΠM (0, 1, 4, 6)

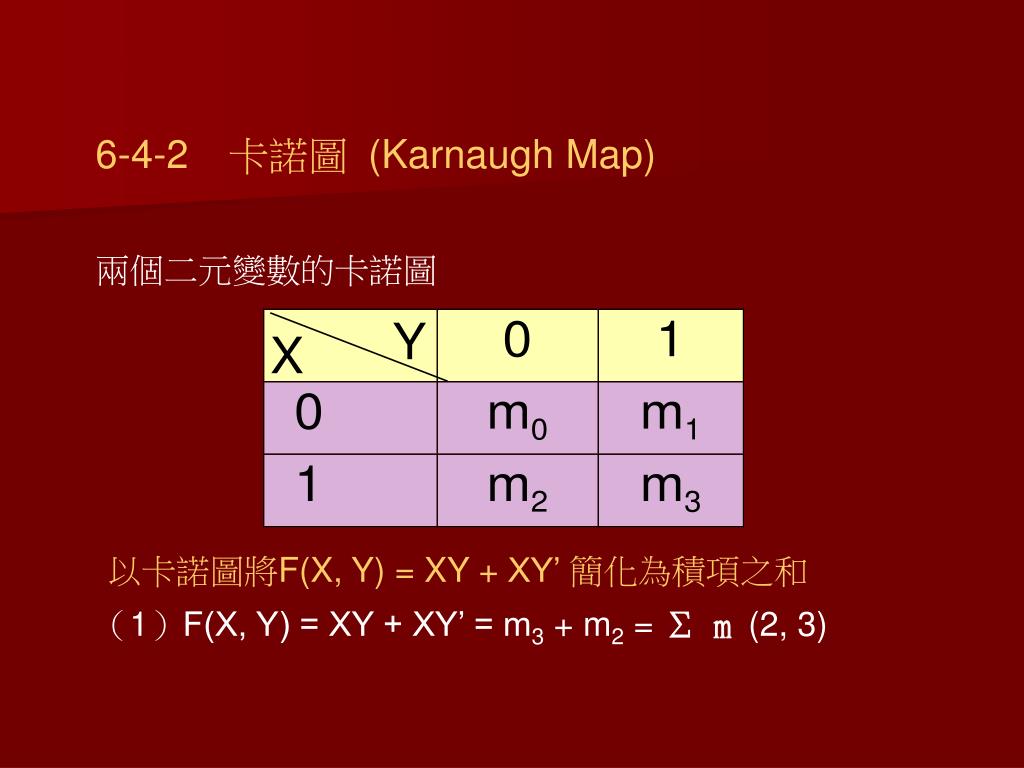

  28. 6-4-2 卡諾圖(Karnaugh Map) 兩個二元變數的卡諾圖 以卡諾圖將F(X, Y) = XY + XY’ 簡化為積項之和 (1)F(X, Y) = XY + XY’ = m3 + m2 = Σ m (2, 3)

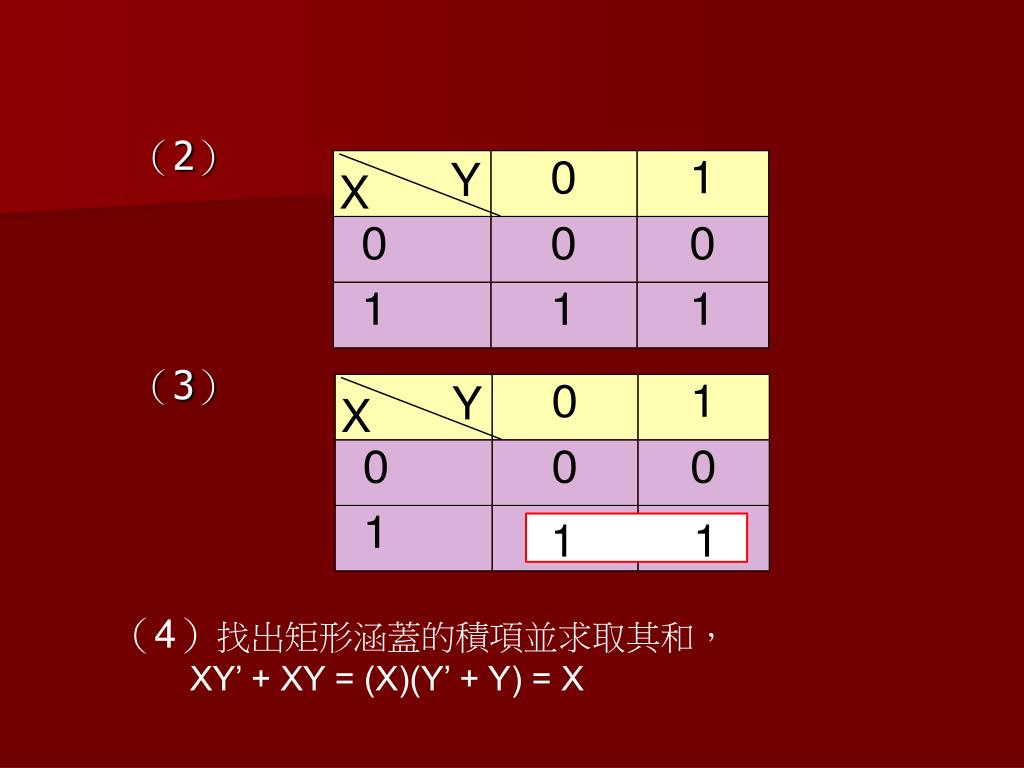

  29. (2) (3) (4)找出矩形涵蓋的積項並求取其和, XY’ + XY = (X)(Y’ + Y) = X

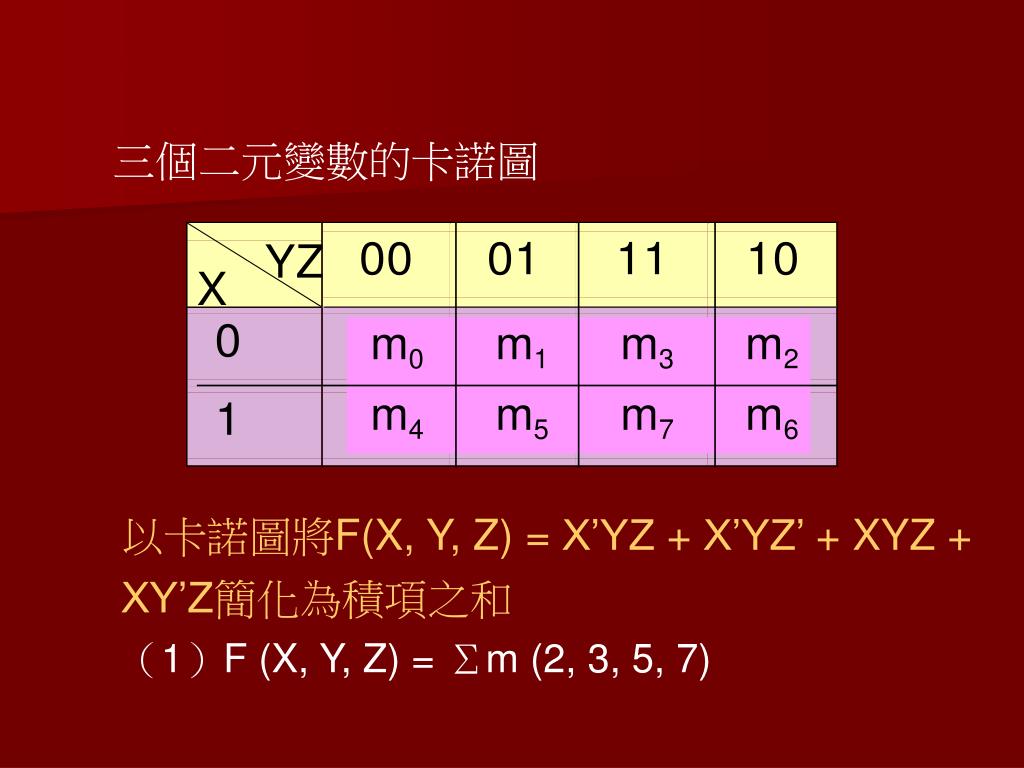

  30. 三個二元變數的卡諾圖 以卡諾圖將F(X, Y, Z) = X’YZ + X’YZ’ + XYZ + XY’Z簡化為積項之和 (1)F (X, Y, Z) = Σm (2, 3, 5, 7)

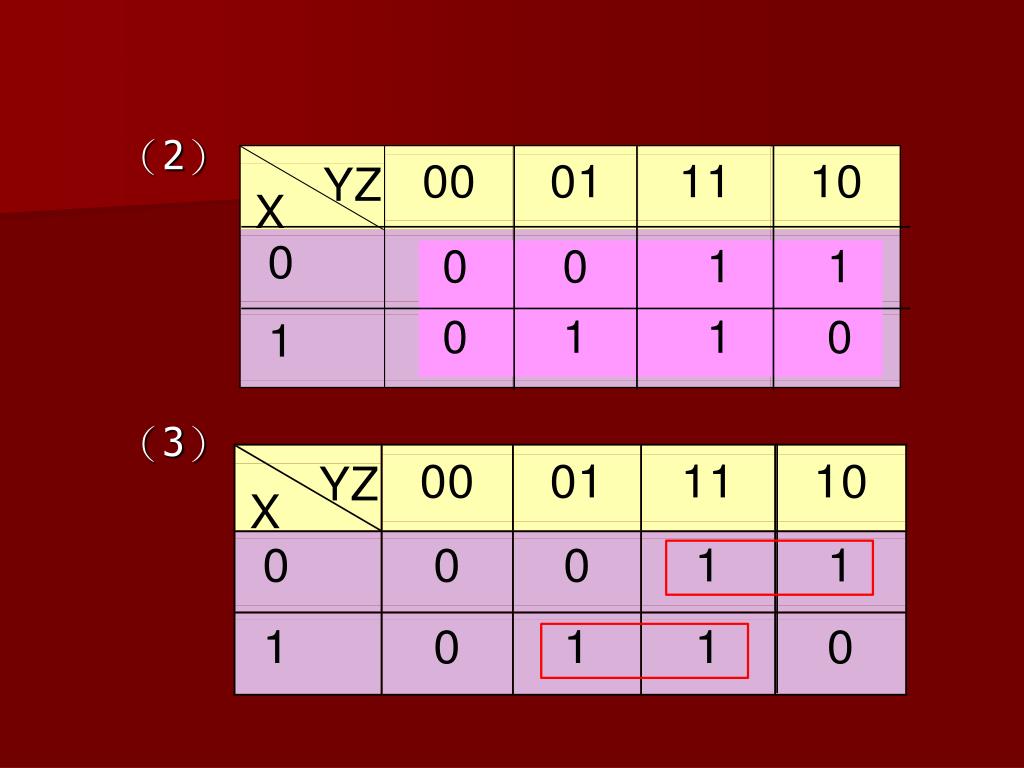

  31. (2) (3)

  32. (4)X’YZ + X’YZ’ = (X’Y)(Z + Z’) = X’Y,XY’Z + XYZ = XZ(Y’ + Y) = XZ,兩者相加於是 得到X’Y + XZ • 四個二元變數的卡諾圖

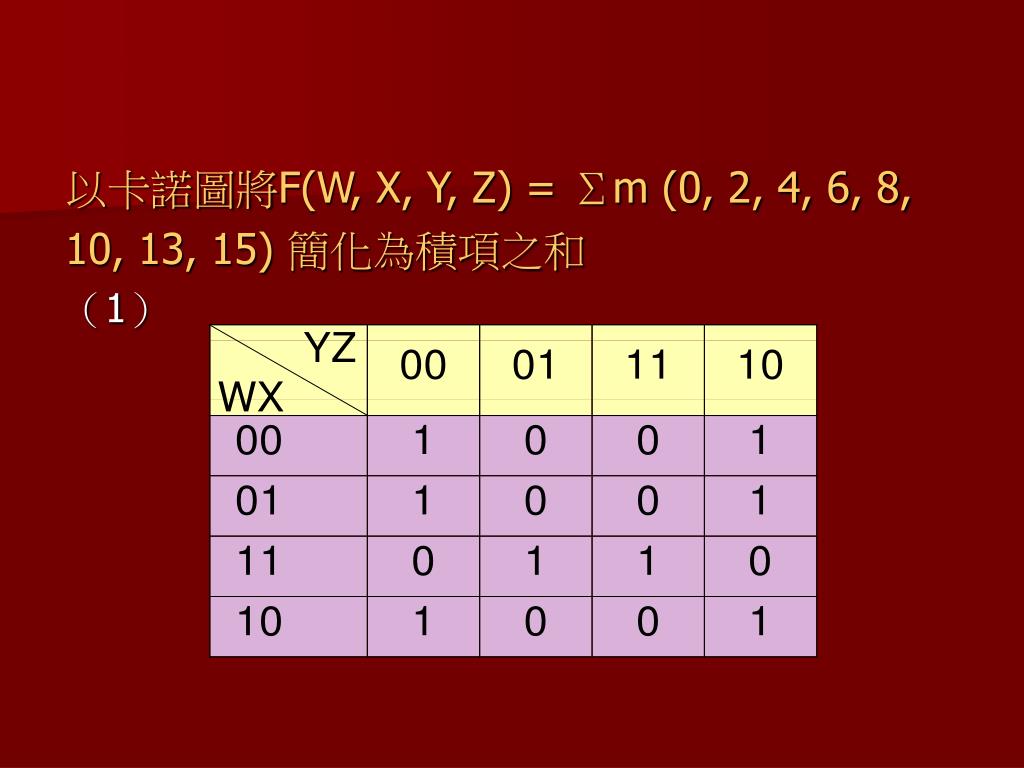

  33. 以卡諾圖將F(W, X, Y, Z) = Σm (0, 2, 4, 6, 8, 10, 13, 15) 簡化為積項之和 (1)

  34. (2) (3)找出矩形涵蓋的積項並求取其和,本 例有三個矩形,W’Z’ + WXZ + X’Z’

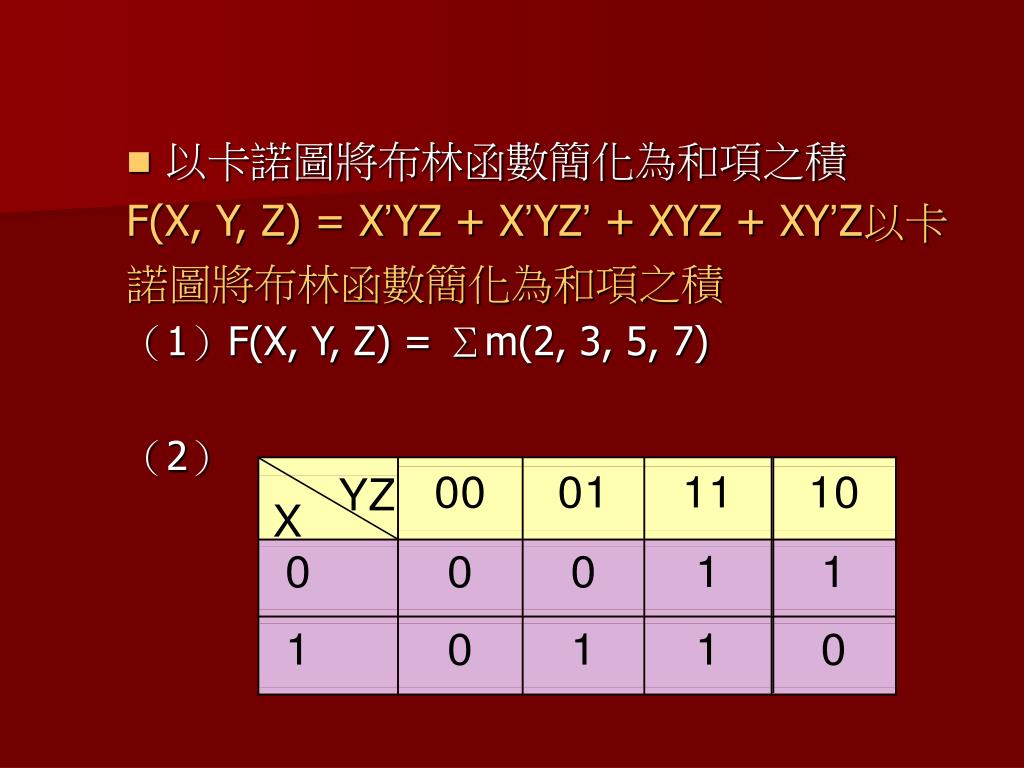

  35. 以卡諾圖將布林函數簡化為和項之積 F(X, Y, Z) = X’YZ + X’YZ’ + XYZ + XY’Z以卡 諾圖將布林函數簡化為和項之積 (1)F(X, Y, Z) = Σm(2, 3, 5, 7) (2)

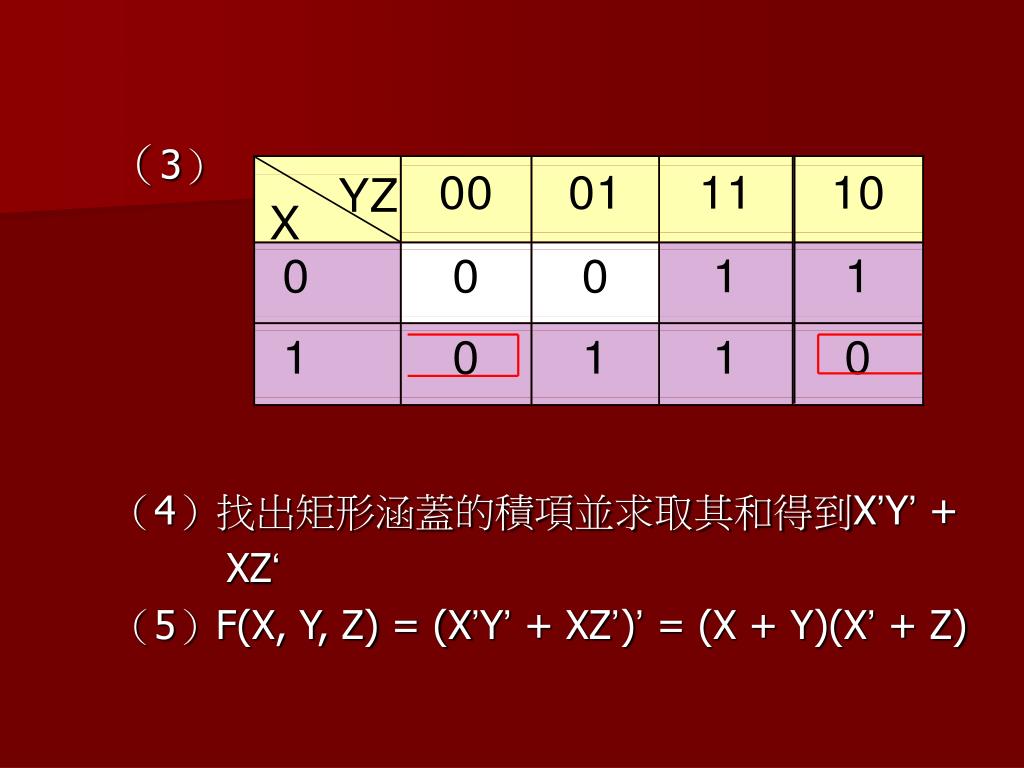

  36. (3) (4)找出矩形涵蓋的積項並求取其和得到X’Y’ + XZ‘ (5)F(X, Y, Z) = (X’Y’ + XZ’)’ = (X + Y)(X’ + Z)

  37. 無所謂情況(Don’t Care Condition)

  38. 找出矩形涵蓋的積項並求取其和,得到W’Y’ + WY

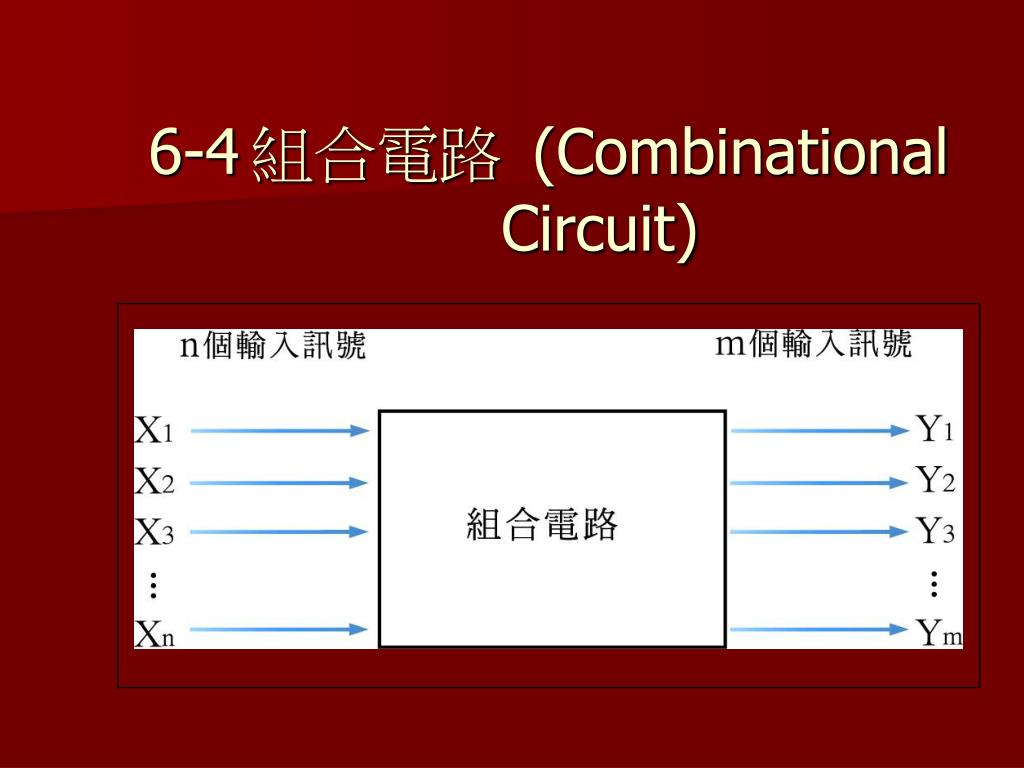

  39. 6-4 組合電路(Combinational Circuit)

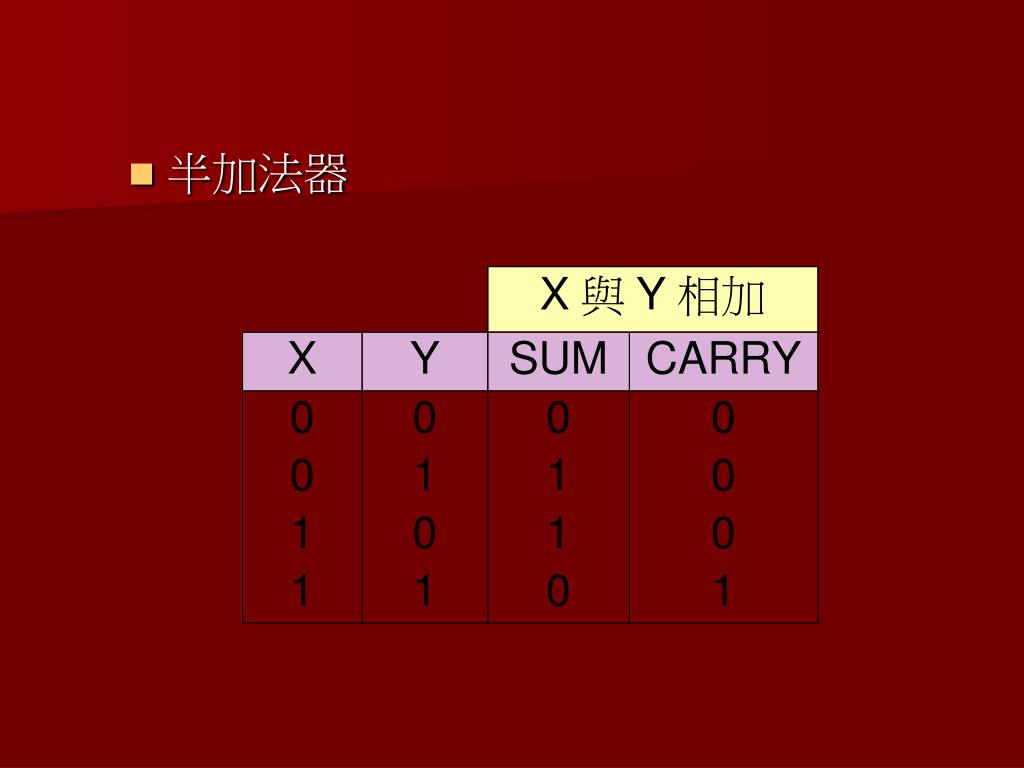

  40. 半加法器
