nwp verification with shape matching algorithms hydrologic applications and extension to ensembles

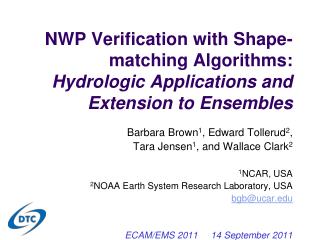

NWP Verification with Shape-matching Algorithms: Hydrologic Applications and Extension to Ensembles

Barbara Brown1, Edward Tollerud2,

Tara Jensen1, and Wallace Clark2

1NCAR, USA

2NOAA Earth System Research Laboratory, USA

bgb@ucar.edu

ECAM/EMS 2011 14 September 2011

dtc and testbed collaborations
DTC and Testbed Collaborations
  • Developmental Testbed Center (DTC)
    • Mission: Provide a bridge between the research and operational communities to improve mesoscale NWP
    • Activities: Community support (e.g., access to operational models); Model testing and evaluation
  • Goals of interactions with other “testbeds”:
    • Examine latest capabilities of high-resolution models
    • Evaluate impacts of physics options
    • New approaches for presenting and evaluating forecasts
testbed collaborations
Testbed collaborations
  • HydrometeorologicalTestbed (HMT)
    • Evaluation of regional ensemble forecasts (including operational models) and global forecasts in western U.S. (California)
    • Winter precipitation
    • Atmospheric Rivers
  • Hazardous Weather Testbed (HWT)
    • Evaluation of storm scale ensemble forecasts
    • Late spring precipitation, reflectivity, cloud top height
    • Comparison of model capabilities for high impact weather forecasts
testbed forecast v erification
Testbed Forecast Verification
  • Observations
    • HMT: Gauges and Stage 4 gauge analysis
    • HWT: NMQ 1-km radar and gauge analysis; radar
  • Traditional metrics
    • RMSE, Bias, ME, POD, FAR, etc.
    • Brier score, Reliability, ROC, etc.
  • Spatial approaches

Spatial approaches are neededfor evaluation of ensemble forecasts for same reasons as for non-probabilistic forecasts (“double penalty”, impact of small errors in timing and location etc.)

      • Neighborhood methods
      • Method for Object-based Diagnostic Evaluation (MODE)
new spatial verification approaches
New Spatial Verification Approaches

Web site: http://www.ral.ucar.edu/projects/icp/

Neighborhood

Successive smoothing of forecasts/obs

Object- and feature-based

Evaluate attributes of identifiable features

Scale separation

Measure scale-dependent error

Field deformation

Measure distortion and displacement (phase error) for whole field

hmt standard scores for ensemble inter model qpf comparisons
HMT: Standard Scores for Ensemble Inter-model QPF Comparisons
  • Example: RMSE results for December 2010
  • Dashed – HMT (WRF) ensemble members
  • Solid: Deterministic members
  • Black: Ens Mean
hmt application mode
HMT Application: MODE

OBS

Ens Mean

Ens Mean

19 December 2010, 72-h forecast, Threshold for Precip > 0.25”

mode application to atmospheric rivers
MODE Application to atmospheric rivers
  • QPF vs. IWV and Vapor Transport
  • Capture coastal strike timing and location
  • Large impacts on precipitation in the California Coast and Coastal mountains

=> Major flooding impacts

atmospheric rivers
Atmospheric rivers

SSMI Integrated

Water Vapor

GFS Precipitable Water

Area=369

Area=312

Area=306

Area=127

72 hr

48 hr

24 hr

hwt e xample attribute diagnostics for nwp neighborhood object based methods refc 30 dbz
HWT Example: Attribute Diagnostics for NWP Neighborhood & Object-based Methods - REFC > 30 dBZ

FSS = 0.30

FSS = 0.64

FSS = 0.14

Neighborhood Methods

provide a sense of how model performs at different scales through Fraction Skill Score.

Object-Based Methods

Provide a sense of how forecast attributes compare with observed.

Includes a measure of overall matching skill, based on user-selected attributes

20-h

22-h

24-h

Matched Interest: 0.96

Area Ratio: 0.53

Centroid Distance: 92km

P90 Intensity Ratio: 1.04

  • Matched Interest: 0
  • Area Ratio: n/a
  • Centroid Distance: n/a
  • P90 Intensity Ratio: n/a

Matched Interest: 0.89

Area Ratio: 0.18

Centroid Distance: 112km

P90 Intensity Ratio: 1.08

mode application to hwt ensembles
MODE application to HWT ensembles

CAPS PM Mean

Observed

Radar Echo Tops (RETOP)

RETOP

applying spatial methods to ensembles
As probabilities: Areas do not have “shape” of precipitation areas; may “spread” the area

As mean:

Area is not equivalent to any of the underlying ensemble members

Applying spatial methods to ensembles
treatment of spatial ensemble forecasts
Alternative:

Consider ensembles of “attributes”

Evaluate distributions of “attribute” errors

Treatment of Spatial Ensemble Forecasts
example mode application to hmt ensemble members
Example: MODE application to HMT ensemble members
  • Systematic microphysics impacts
  • 3 Thompson Scheme members (circled) are:
    • Less intense
    • Larger areas
  • Note
    • Heavy tails
    • Non-symmetric distributions

for both size and intensity (medians vs. averages)

90th percentile intensity

Object area

>6.35 >25,4

Threshold

probabilistic fields pqpf and qpf products
Probabilistic Fields (PQPF) and QPF Products

PROBABILITY

QPF

QPE

Ens- 4km

SREF - 32km

4km Nbrhd

NAM-12km

EnsMean-4km

APCP

Prob

50 prob apcp 06 25 4 mm vs qpe 06 25 4 mm
50% Prob(APCP_06>25.4 mm) vs. QPE_06 >25.4 mm

Good Forecast with

Displacement Error?

Traditional Metrics

Brier Score: 0.07

Area Under ROC: 0.62

Spatial Metrics

Centroid Distance:

Obj1) 200 km

Obj2) 88km

Area Ratio:

Obj1) 0.69

Obj2) 0.65

1

Obj PODY: 0.72

Obj FAR: 0.32

2

Median Of Max

Interest: 0.77

summary
Summary
  • Evaluation of high-impact weather is moving toward use of spatial verification methods
  • Initial efforts in place to bring these methods forward for ensemble verification evaluation
spatial method motivation
Spatial method motivation
  • Traditional approaches ignore spatial structure in many (most?) forecasts
    • Spatial correlations
  • Small errors lead to poor scores (squared errors… smooth forecasts are rewarded)
  • Methods for evaluation are not diagnostic
  • Same issues exist for ensemble forecasts

Observed

Forecast

mode example 9 may 2011
MODE example: 9 May 2011

Ensemble Workshop

mode example combined objects
MODE Example: combined objects
  • Consider and compare various attributes, such as:
  • Area
  • Location
  • Intensity distribution
  • Shape / Orientation
  • Overlap with obs
  • Measure of overall “fit” to obs
  • Summarize distributions of attributes and differences
  • In some cases, conversion to probabilities may be informative
    • Spatial methods can be used for evaluation
spatial attributes
Spatial attributes

Overall field comparison by MODE (“interest” summary) vs. lead time

Object intersection areas vs. lead time
