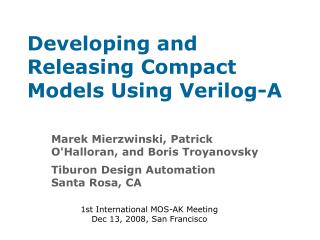

Developing and Releasing Compact Models Using Verilog-A

Marek Mierzwinski, Patrick O'Halloran, and Boris Troyanovsky

Tiburon Design Automation Santa Rosa, CA

1st International MOS-AK MeetingDec 13, 2008, San Francisco

outline
Outline
  • Some motivation and background history
  • Implementation issues
    • Performance
    • Debugging
    • Practical considerations in distributing models
  • Future directions/Conclusions
compact model distribution
Compact Model Distribution

Model extracted

Design verified

Model and simulation flow verified

Independent implementations

motivation
Motivation
  • Compact model development is challenging
  • Adding new models to circuit simulators can prove just as challenging
    • Proprietary (non-portable) interfaces
    • Limited capabilities
    • Burden on model developer to
      • hand-calculate derivatives
      • write analysis-specific code
      • handle software engineering details
motivation cont
Motivation (cont.)
  • Analog Hardware Description Languages (AHDLs) can provide important benefits:
    • Ease of development
    • Model portability
      • Across different simulators
      • Across various analysis types
    • Suitable for full range of model types
      • Behavioral level down to transistor level
why verilog a
Why Verilog-A
  • Natural language for compact model development
  • Succinct
    • derivatives, loads all handled by compiler
    • simple parameter support
  • Standard
  • Implemented in most simulators
history
History
  • Verilog-A is a precisely defined subset of the Hardware Description Language, Verilog-AMS
    • Development overseen by OVI/Accellera
    • late 1990’s
  • Active effort to merge with SystemVerilog
barriers to adoption
Barriers to Adoption
  • Performance
    • Important for transistor-level models
    • Must eventually be comparable w/ built-ins
  • Compact modeling constructs
    • Greatly improved with v2.2 language standard
barriers to adoption cont
Barriers to Adoption (Cont.)
  • “Inertia”
    • Misconceptions regarding language capabilities
    • Existing code base of non-AHDL-based device models
    • Lack of familiarity within model development community
    • Lack of comprehensive debugging/development methodology
overcoming the barriers
Overcoming the Barriers
  • Performance
    • No theoretical reason for Verilog-A to be inferior in performance to built-ins
  • Availability
    • Verilog-A now supported by virtually all major commercial vendors
    • Support for all analysis types, e.g. transient, harmonic balance, shooting, nonlinear noise.
  • Advanced features
    • noise
    • paramsets
overcoming the barriers11
Overcoming the Barriers
  • For the user

End user experience must be as good as or better than using existing model distribution method

existing models
Existing Models
  • Most compact transistor models have been implemented in Verilog-A:
    • BSIM3, BSIM4, BSIM5
    • SPICE Gummel-Poon, diode, MOS1, MOS3, pTFT, aTFT
    • NXP MEXTRAM 504, MOS Model 9/11
    • PSP (Penn State/NXP MOSFET)
    • EKV
    • HiCUM Level 0/Level 2, VBIC, VBIC, FBHBT
    • Parker-Skellern, Angelov, Curtice, TOM MESFET

*implemented by developers

writing compact models
Writing Compact Models

Excellent primer on implementing compact device models in Verilog-A

www.bmas-conf.org/2004/papers/bmas04-coram.pdf

performance
Performance
  • Model can have a big influence
    • execution speed
    • memory use
  • Choice of particular constructs can result in performance degradation
    • Avoidable state variables
nodal analysis
Nodal Analysis

f(x(t)) + ddt(q(x(t))) = u(t)

f => resistive

q => reactive (inductors, capacitors)

u => current sources

For a hypothetical circuit with current sources, resistors, capacitors:

x is vector of voltages, all the equations are standard KCL, and so PURE NODAL ANALYSIS.

voltage sources in verilog a
Voltage Sources in Verilog-A

However, if we have a voltage source

V(a, b) <+ K;

this necessitates adding an extra state variable "I" (the flow through the source) into the x vector, with the corresponding extra equation branch:

xa - xb == K

( or in reality -xa + xb + K == 0 )

inductances
Inductances

Similarly, inductances in Verilog-A also add an additional state variable:

V(a, b) <+ L * ddt(I(a,b));

translates to

- xa + xb + ddt(L * Iab) == 0

where Iab is the flow through the inductor.

performance impact
Performance Impact
  • Extra equations introduced from
    • Voltage contributions on the left-hand-side, or
    • Current access on the right-hand side
  • Result: extra state variables impact efficiency for compact models.
  • Work-around: Use current contributions, avoid unnecessary current probes
branch ddt equations
Branch-ddt Equations
  • Branch-ddt equations are state variables related to implementing ddt() equations
  • How they arise:

From the basic nodal KCL

f(x(t)) + ddt(q(x(t))) == u(t)

Note that it does not support terms of the form

g(x(t))*ddt(h(x(t)))

branch ddt cont
Branch-ddt (cont)

The Verilog-A code

x = V(a, b);

I(a, b) <+ x * ddt(x);

introduces extra state variable phi,

phi - ddt(x) == 0

to effectively contribute

x*phi

which fits into the f(x(t)) + ddt(q(x(t))) form.

  • Should be avoided in compact models.
branches from conditionals
Branches from Conditionals

if (Vds < 0.0)

Mode = -1; // Inverse mode

else

Mode = 1;

Qbd_ddt = ddt(Qbd);

Qbs_ddt = ddt(Qbs);

if (Mode == 1) begin

t0 = TYPE * Ibd + Qbd_ddt;

t1 = TYPE * Ibs + Qbs_ddt;

end

else begin

t1 = TYPE * Ibd + Qbd_ddt;

t0 = TYPE * Ibs + Qbs_ddt;

end

I(b,di) <+ t0;

I(b,si) <+ t1;

  • When variables that depend on ddt() are used in conditionals, the compiler must create extra branch equations

Typical MOSFET code

avoiding branches from conditionals
Avoiding Branches from Conditionals

if (Mode == 1) begin

t0 = TYPE * Ibd;

arg0 = Qbd;

t1 = TYPE * Ibs;

arg1 = Qbs;

end

elsebegin

t1 = TYPE * Ibd;

arg1 = Qbd;

t0 = TYPE * Ibs;

arg0 = Qbs;

end

I(b,di) <+ t0 + ddt(arg0);

I(b,si) <+ t1 + ddt(arg1);

  • Place the arguments to ddt() in the conditionals

Improved MOSFET code

probing mistakes
Probing Mistakes

Common mistake when probing port current:

$strobe(I(port_name));

  • Introduces unnamed branch
    • Effectively shorts port_name to ground
    • Adds additional state variable
  • Instead use

$strobe(I(<port_name>));

  • Easily detected at compile-time
superfluous assignments
Superfluous Assignments

Consider:

(10) x = V(a, b)/R;(11) if(type == 1)(12) x = V(a, b)/R1;(13) else(14) x = V(b, a)/R2;

Diagnostic message from compiler:

Warning: Assignment to ‘x’ may be superfluous. [ filename.va, line 10 ]

memory states
Memory States
  • Variables are initialized to zero on first call to module
  • The simulator retains the value between calls to module
    • If used in assignment before it is assigned, it will have the value of the previous iteration
  • Also known as hidden states
  • Compact models should not use them
    • could cause unexpected behavior
collapsible nodes
Collapsible Nodes
  • Native models can remove or collapse unneeded nodes
  • Common “idiom” for collapsible nodes:if(Rc > 0.0) I(c, ci) <+ V(c, ci)/Rc; else V(c, ci) <+ 0.0; // if not collapsed, adds state variables
  • Implementations may treat as
    • Collapsible node, or
    • Switch branch
  • Informative diagnostics should be issued
performance summary
Performance Summary
  • Be aware of what causes extra equations
  • Collapse nodes when possible
  • Watch out for
    • memory states
    • superfluous equations
debugging
Debugging
  • Basic
    • $strobe – outputs every converged iteration
    • $debug – outputs every call to module
    • Use macros to disable in general use

`ifdef DEBUG

  • Compile time diagnostics
  • Compiler flags for runtime
    • Too expensive for production code
    • Very useful during development phase
  • Iteractive debugging
compile time diagnostics
Compile-Time Diagnostics
  • List of state variables
  • List of branch types
    • Voltage- / Current- / Switch- Branches
  • Collapsible nodes
  • Memory states
  • Superfluous assignments
  • Unused variables
  • Floating nodes
diagnostics cont
Diagnostics (cont.)
  • Check for addition of extra state variables
    • Probing current through a branch
    • Voltage branches
    • Switch branches
  • In many cases, not necessary/desired for compact modeling
  • Invisible to developer unless diagnostics are issued
diagnostics cont31
Diagnostics (cont.)
  • Compiler output

=== Summary information for module 'mos3_va':

Branch information:

<unnamed>(b, di) : Current Branch (implicit)

<unnamed>(b, si) : Current Branch (implicit)

<unnamed>(di, d) : Statically shorted branch

<unnamed>(di, si) : Current Branch (implicit)

<unnamed>(g, di) : Current Branch (implicit)

<unnamed>(g, si) : Current Branch (implicit)

<unnamed>(si, s) : Statically shorted branch

Branch ddt operators:

[ line 685, col 15 ]

[ line 686, col 15 ]

Potential memory states:

'Arga'

'Argb'

'Beta_T'

'CdOnCo'

'CsOnCo'

'Delta_L'

'Fermig'

'Fermis'

'Kappa'

'Vgst'

'Wkfng'

'Wkfngs'

=== End of summary information for module 'mos3_va':

compiler flag example
Compiler Flag Example
  • Compile with flag
  • Simulate
  • Simulator runs until floating point exception occurs
interactive debugging
Interactive Debugging
  • Allows quick iterative investigation of module
portability across analysis types
Portability Across Analysis Types
  • Certain language constructs are not supported by RF analyses (e.g, Harmonic Balance, Shooting, Envelope)
  • Should be avoided for reasons of
    • portability
    • consistency across analyses
    • efficiency
  • Typically not required (or desired) for compact models
additional rf restrictions
Additional RF Restrictions
  • Explicit use of time $abstime
  • Analog Operators
    • Allowed:
      • Differentiation ddt(), ddx()
      • Delay absdelay()
      • Laplace laplace()
      • Integration idt() without initial conditions
    • Others are:
      • Not safe for RF analysis
      • Not (typically) useful for compact modeling
model distribution
Model Distribution
  • Complete model support requires
    • model version control
    • schematic capture information
    • simulator dependent
  • End-user experience
    • easy installation
    • look and feel of native device
      • instance/modelcard
      • multiplicity
parameter case
Parameter Case
  • Verilog-A is case sensitive
  • Some simulators are case sensitive, others are not
  • Provide aliases

aliasparam AREA=Area;

ip protection
IP Protection
  • Compiled libraries effectively hides source code as well as built-in models
  • Model parameters can be ‘hidden’ in source code by assigning them as default values
example ads
Example ADS
  • Design Kits provide a convenient mechanism for distributing complete model package
  • End user opens a zipped file
example
Example

Users have a one-step process to install model

example41
Example

Users see no difference when using Verilog-A implemented models

future directions
Future Directions
  • Tools for improved model development
    • Automatic checking of smoothness, continuity, etc.
    • Automated checks for passivity / stability / etc. where appropriate
conclusion
Conclusion
  • Continued growth and adoption of Verilog-A presents numerous benefits for
    • Compact model developers
    • Circuit designers
    • Tool vendors
  • Benefits include
    • Portable, robust compact models
    • Ease of development
    • Fast model distribution and modification
