  1. NLR Support For SC05 25 October 2005

  2. NLR SC05 Supported Applications • Ultra Light • L1: Cisco Research Wave which runs from LOSA to CHIC is being broken in SEAT for access to SC05. The CHIC end is plugged into an Ultralight 6509 at STAR which provides access to FLR through the CHIC/JACK portion of the Cisco Research Wave and other Ultra Light sites with access to STAR (e.g. CERN) • L3: (2) 10GigE ports on the CHIC CRS and (2) 10GigE ports on the LOSA CRS • Virginia Tech • L3: (1) 10GigE port on the WASH CRS • U of Manchester • L2: STAR F10 -> CHIC 6509 - - -> SEA 6509 -> U of Manchester booth 6509 • NASA AMES • L2/L3: connection to SUNN 6509 with VLAN to SEAT CRS

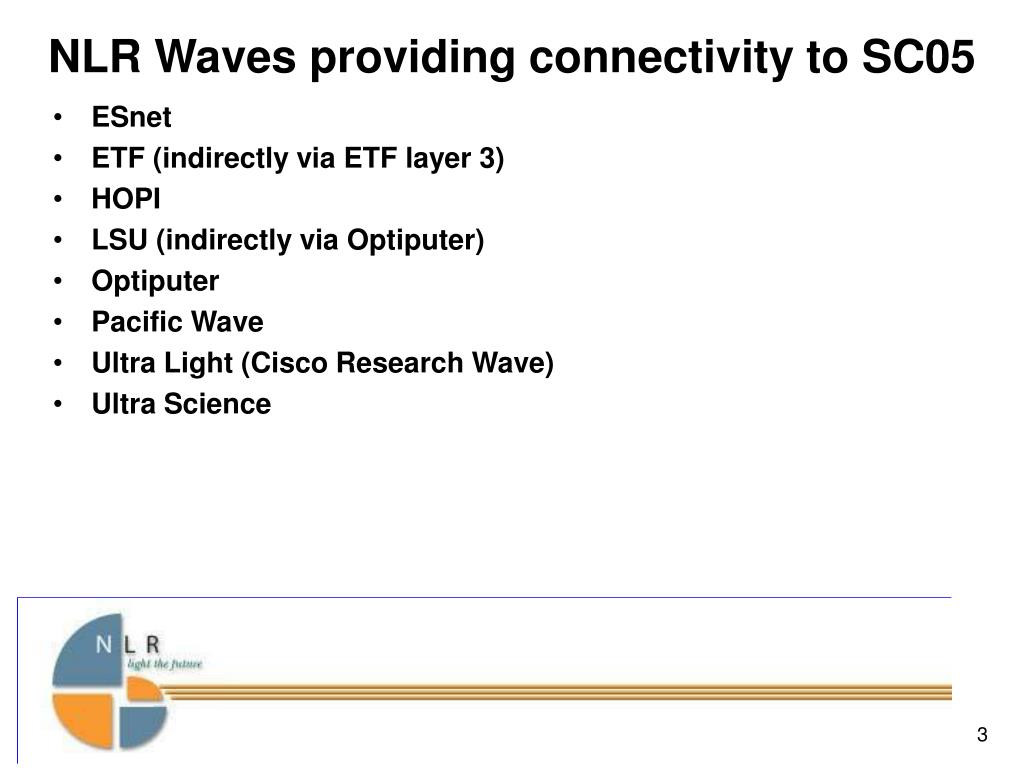

  3. NLR Waves providing connectivity to SC05 • ESnet • ETF (indirectly via ETF layer 3) • HOPI  • LSU (indirectly via Optiputer) • Optiputer  • Pacific Wave • Ultra Light (Cisco Research Wave) • Ultra Science

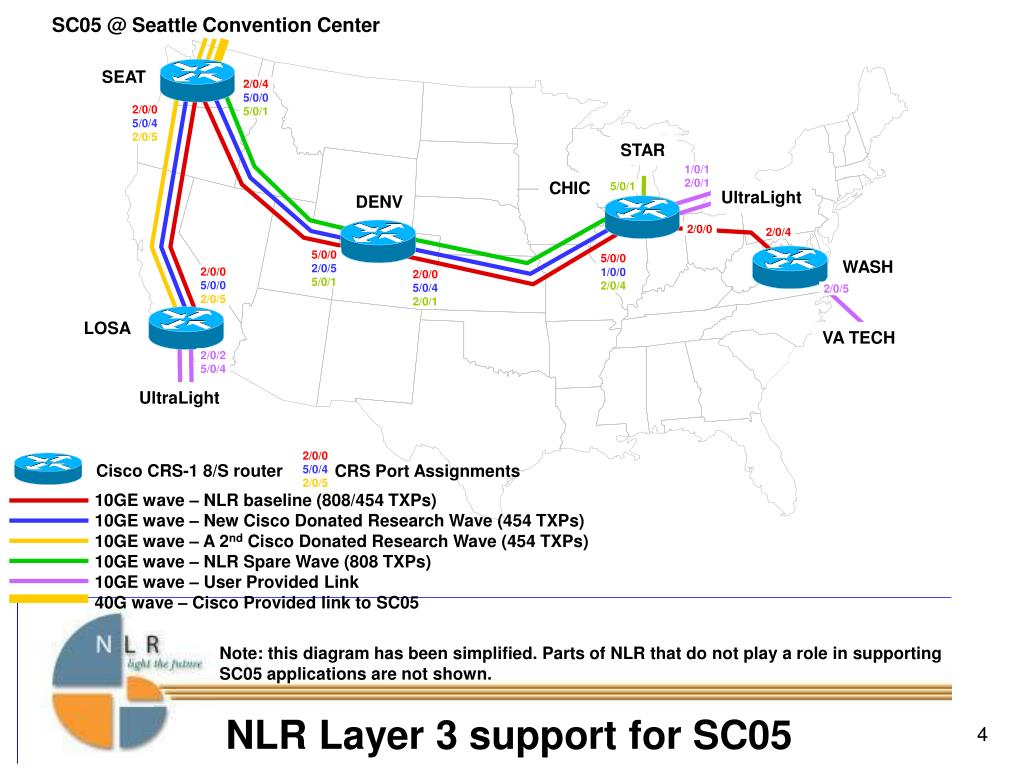

  4. SC05 @ Seattle Convention Center SEAT 2/0/4 5/0/0 5/0/1 2/0/0 5/0/4 2/0/5 STAR 1/0/1 2/0/1 CHIC 5/0/1 UltraLight DENV 2/0/0 2/0/4 5/0/0 2/0/5 5/0/1 5/0/0 1/0/0 2/0/4 WASH 2/0/0 5/0/0 2/0/5 2/0/0 5/0/4 2/0/1 2/0/5 LOSA VA TECH 2/0/2 5/0/4 UltraLight 2/0/0 5/0/4 2/0/5 Cisco CRS-1 8/S router CRS Port Assignments 10GE wave – NLR baseline (808/454 TXPs) 10GE wave – New Cisco Donated Research Wave (454 TXPs) 10GE wave – A 2nd Cisco Donated Research Wave (454 TXPs) 10GE wave – NLR Spare Wave (808 TXPs) 10GE wave – User Provided Link 40G wave – Cisco Provided link to SC05 Note: this diagram has been simplified. Parts of NLR that do not play a role in supporting SC05 applications are not shown. NLR Layer 3 support for SC05

  5. NASA AMES L3 Connection to SCinet is via NLR SEAT CRS U of Manchester U of Manchester’s SC05 Booth SEAT STAR F10 NASA AMES CHIC PITT DENV KANS CLEV SUNN WASH LOSA Cisco 6509 switch 10GE wave User Provided Links Note: this diagram has been simplified. Parts of NLR that do not play a role in supporting SC05 applications are not shown. NLR Layer 2 support for SC05

  6. 8 8 8 4 8 8 4 4 4 8 4 8 8 8 8 8 8 8 4 8 8 4 4 4 8 8 8 4 4 4 8 8 4 4 8 4 4 4 8 8 4 4 4 ESnet ETF  HOPI  LSU Optiputer  Pacific Wave Ultra Light (Cisco Research Wave) Ultra Science No SC05 Wave on this link 4 4 4 4 4 4 8 4 8 4 8 4 4 4 4 4 8 4 4 Cisco 15808 terminal Cisco 15808 OADM Cisco 15454 terminal Cisco 15454 OADM 8 8 4 4 SEAT PORT SYRA BOIS STAR OGDE NEWY DENV PITT KANS CLEV SUNN WASH CHIC SALT RATO RALE LOSA PHOE TULS ALBU ATLA SAND DALL ELPA JACK PENS SANA BATO HOUS NLR Layer 1 support for SC05
