Presentation Transcript
slide1

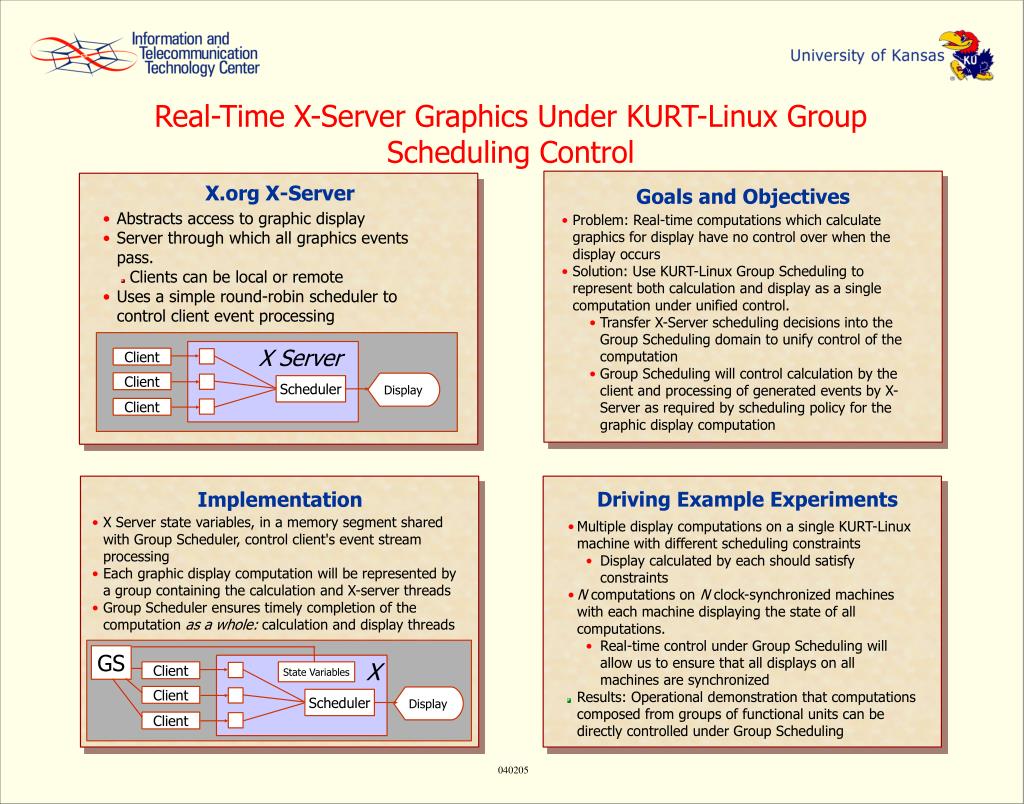

Real-Time X-Server Graphics Under KURT-Linux Group Scheduling Control

Client

Client

Scheduler

Display

Client

Implementation

GS

Client

State Variables

Client

Scheduler

Display

Client

X.org X-Server

Goals and Objectives

  • Abstracts access to graphic display
  • Server through which all graphics events pass.
    • Clients can be local or remote
  • Uses a simple round-robin scheduler to control client event processing
  • Problem: Real-time computations which calculate graphics for display have no control over when the display occurs
  • Solution: Use KURT-Linux Group Scheduling to represent both calculation and display as a single computation under unified control.
    • Transfer X-Server scheduling decisions into the Group Scheduling domain to unify control of the computation
    • Group Scheduling will control calculation by the client and processing of generated events by X-Server as required by scheduling policy for the graphic display computation

X Server

Driving Example Experiments

  • X Server state variables, in a memory segment shared with Group Scheduler, control client's event stream processing
  • Each graphic display computation will be represented by a group containing the calculation and X-server threads
  • Group Scheduler ensures timely completion of the computation as a whole: calculation and display threads
  • Multiple display computations on a single KURT-Linux machine with different scheduling constraints
    • Display calculated by each should satisfy constraints
  • N computations on N clock-synchronized machines with each machine displaying the state of all computations.
    • Real-time control under Group Scheduling will allow us to ensure that all displays on all machines are synchronized
  • Results: Operational demonstration that computations composed from groups of functional units can be directly controlled under Group Scheduling

X

040205
