  1. Non Deterministic Automata Courtesy Costas Busch - RPI

  2. Nondeterministic Finite Accepter (NFA) Alphabet = Courtesy Costas Busch - RPI

  3. Nondeterministic Finite Accepter (NFA) Alphabet = Two choices Courtesy Costas Busch - RPI

  4. Nondeterministic Finite Accepter (NFA) Alphabet = Two choices No transition No transition Courtesy Costas Busch - RPI

  5. First Choice Courtesy Costas Busch - RPI

  6. First Choice Courtesy Costas Busch - RPI

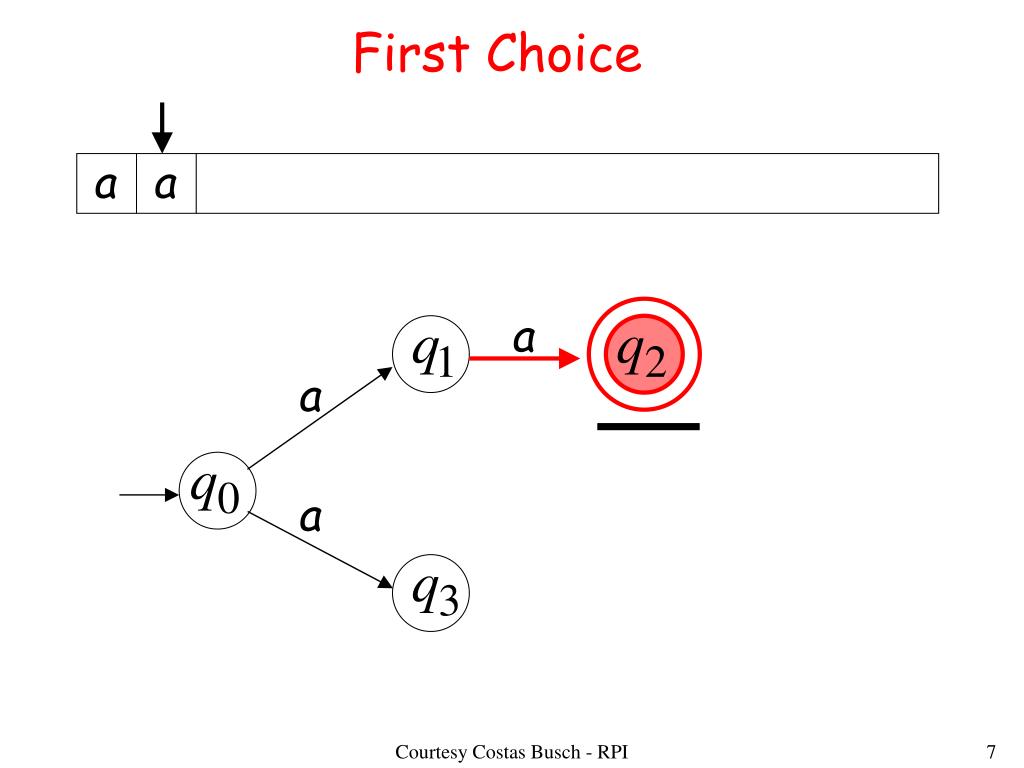

  7. First Choice Courtesy Costas Busch - RPI

  8. First Choice All input is consumed “accept” Courtesy Costas Busch - RPI

  9. Second Choice Courtesy Costas Busch - RPI

  10. Second Choice Courtesy Costas Busch - RPI

  11. Second Choice No transition: the automaton hangs Courtesy Costas Busch - RPI

  12. Second Choice Input cannot be consumed “reject” Courtesy Costas Busch - RPI

  13. An NFA accepts a string: when there is a computation of the NFA that accepts the string AND all the input is consumed and the automaton is in a final state Courtesy Costas Busch - RPI

  14. Example is accepted by the NFA: “accept” “reject” because this computation accepts Courtesy Costas Busch - RPI

  15. Rejection example Courtesy Costas Busch - RPI

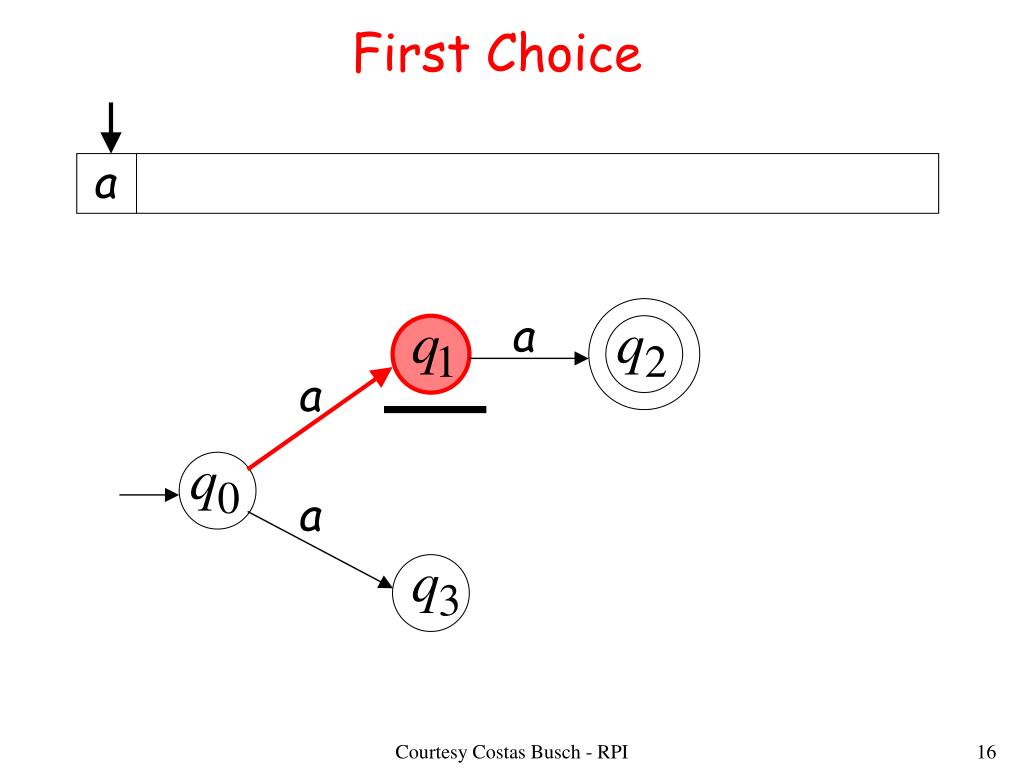

  16. First Choice Courtesy Costas Busch - RPI

  17. First Choice “reject” Courtesy Costas Busch - RPI

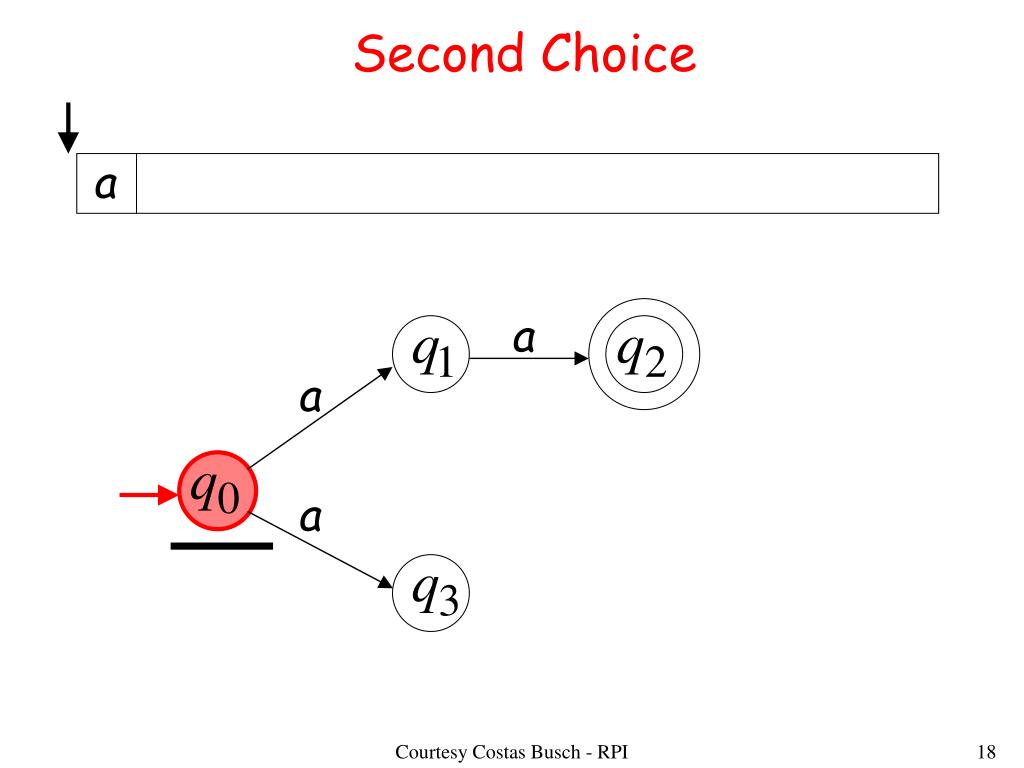

  18. Second Choice Courtesy Costas Busch - RPI

  19. Second Choice Courtesy Costas Busch - RPI

  20. Second Choice “reject” Courtesy Costas Busch - RPI

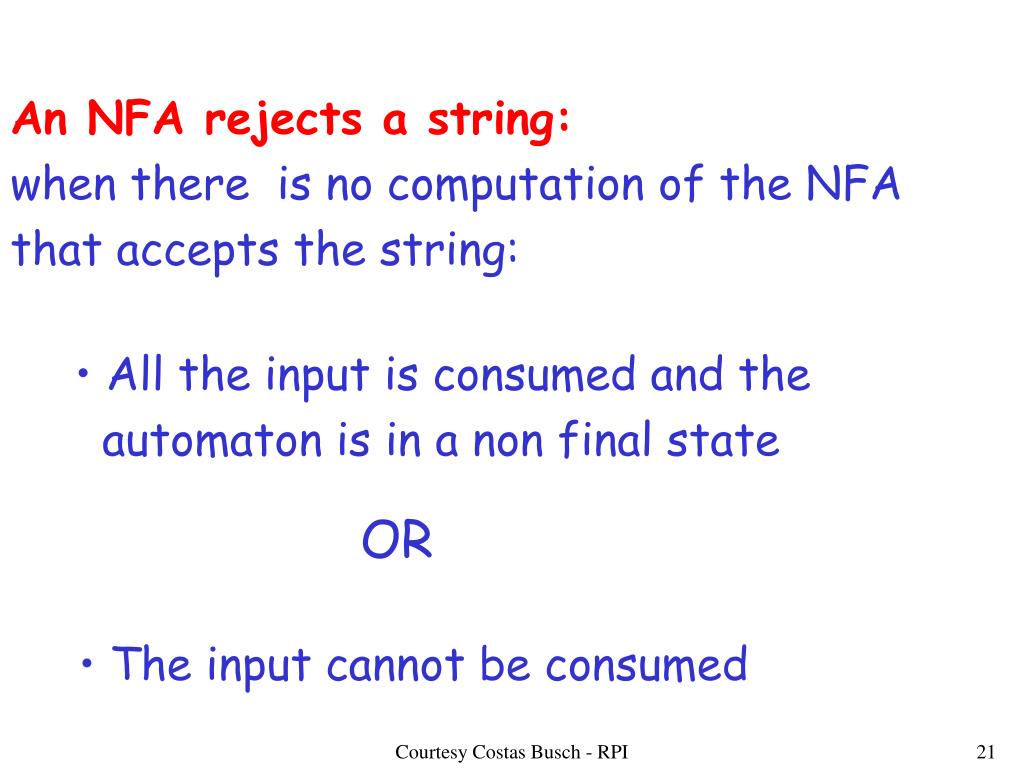

  21. An NFA rejects a string: when there is no computation of the NFA that accepts the string: • All the input is consumed and the • automaton is in a non final state OR • The input cannot be consumed Courtesy Costas Busch - RPI

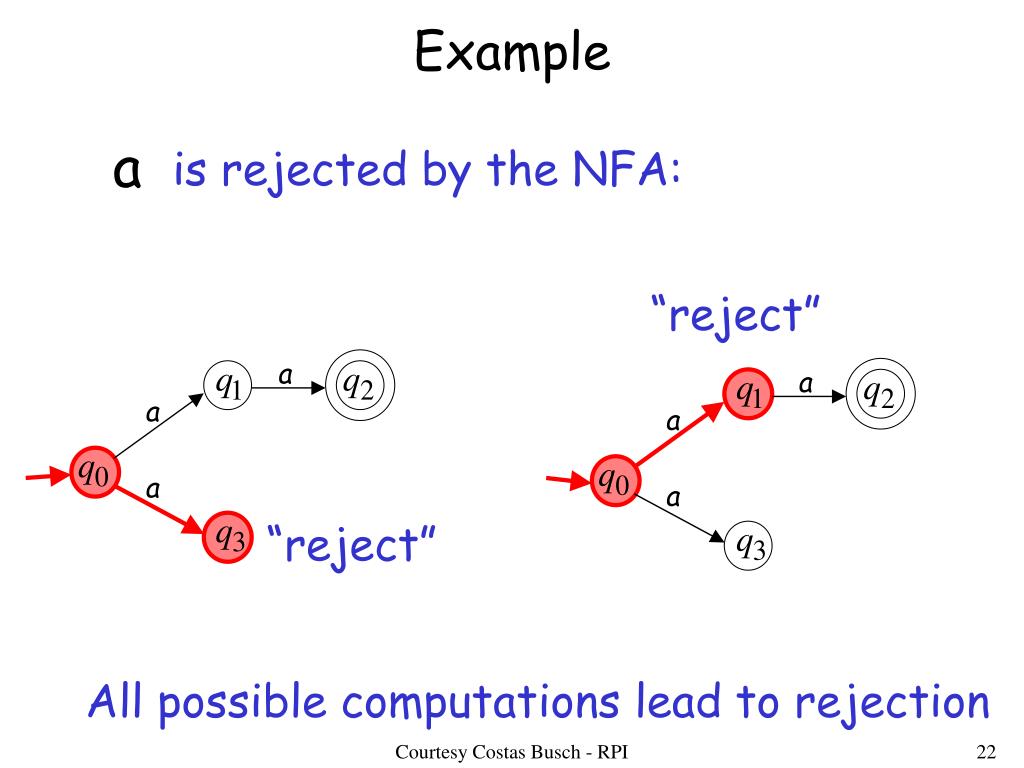

  22. Example is rejected by the NFA: “reject” “reject” All possible computations lead to rejection Courtesy Costas Busch - RPI

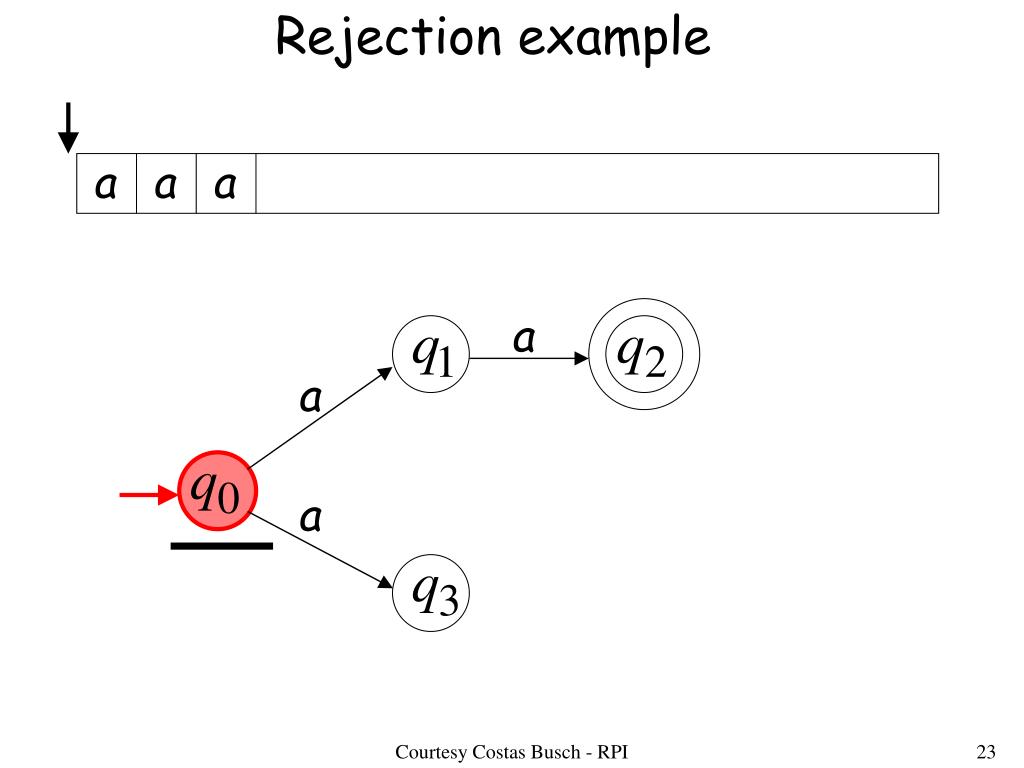

  23. Rejection example Courtesy Costas Busch - RPI

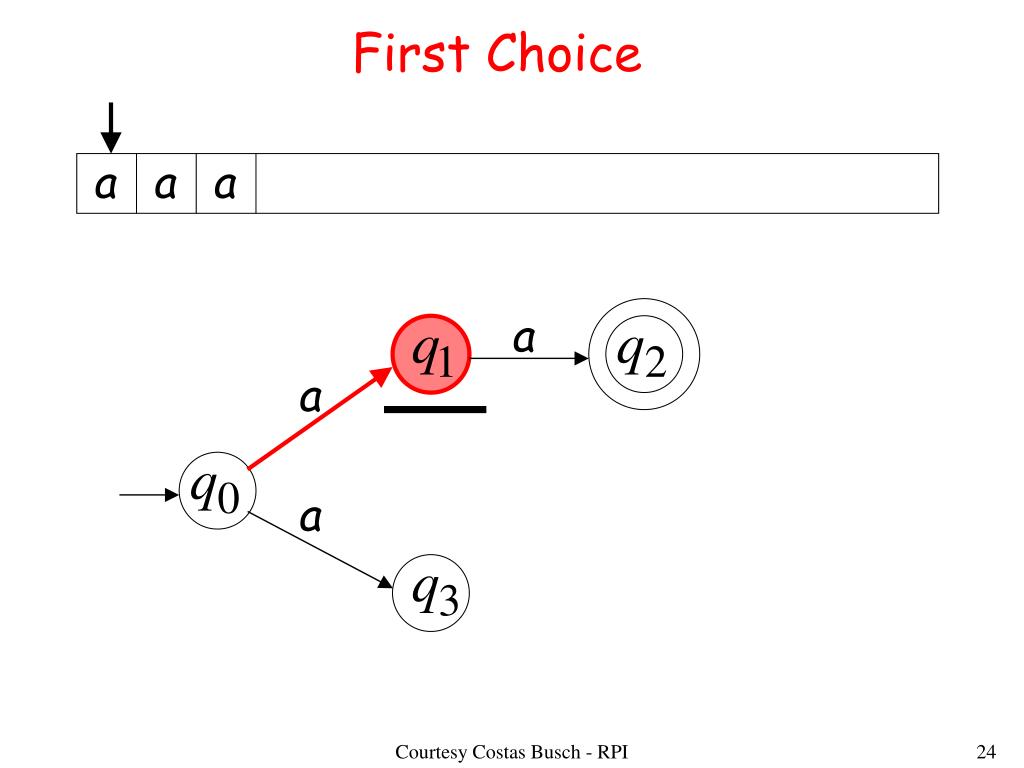

  24. First Choice Courtesy Costas Busch - RPI

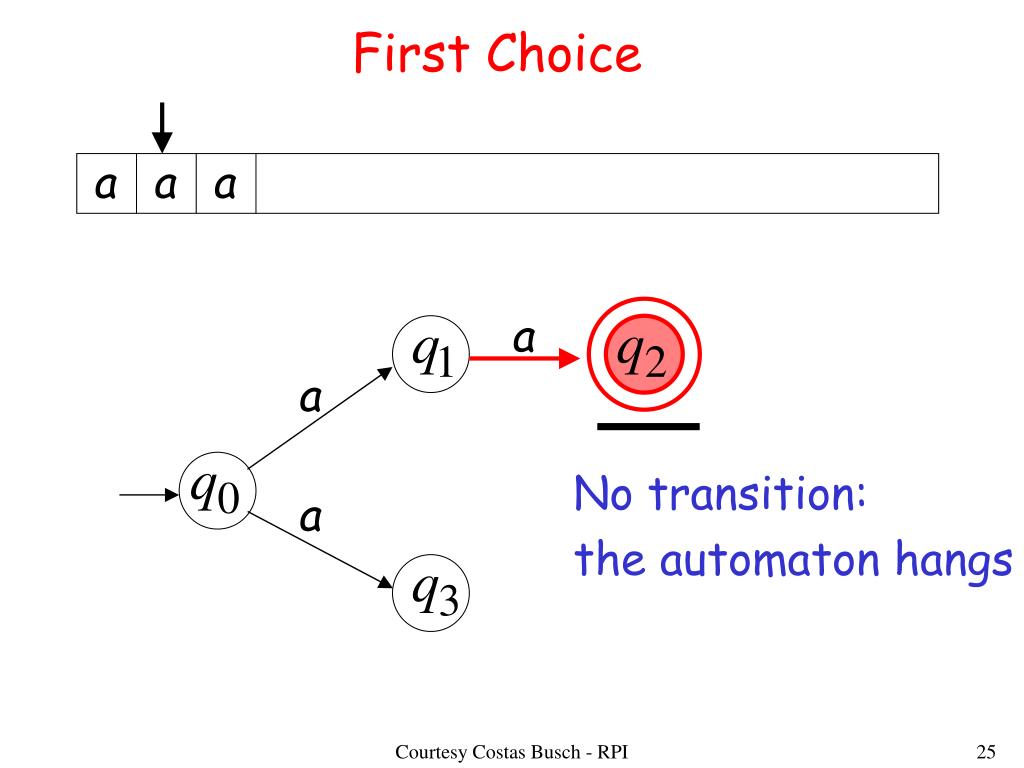

  25. First Choice No transition: the automaton hangs Courtesy Costas Busch - RPI

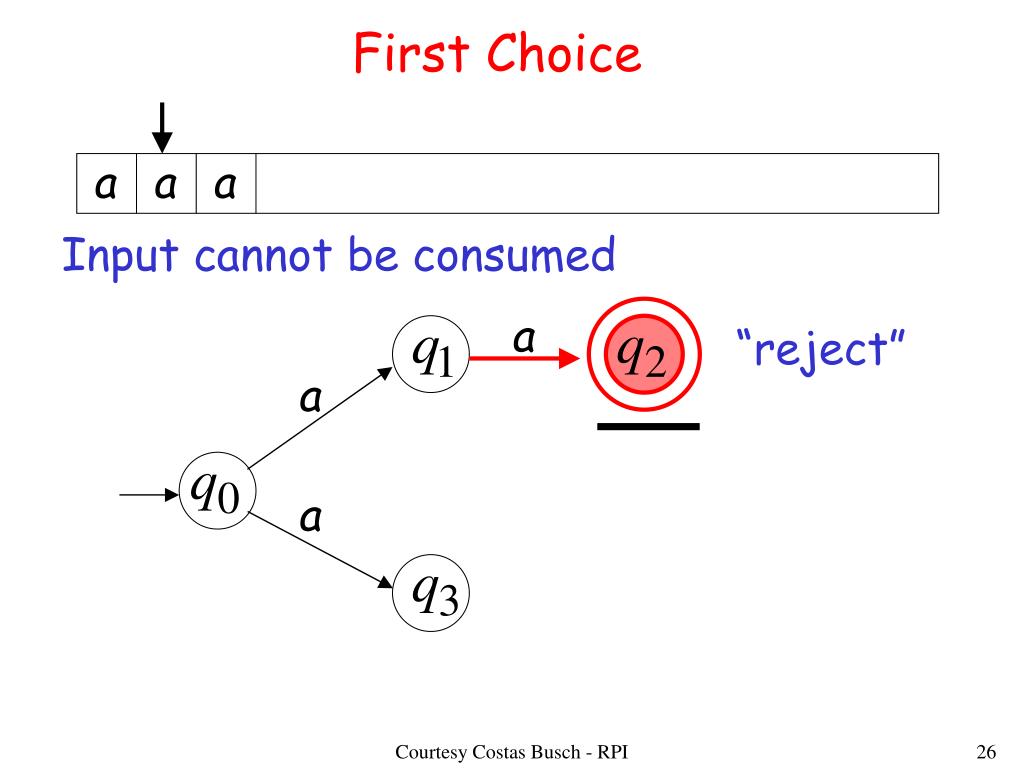

  26. First Choice Input cannot be consumed “reject” Courtesy Costas Busch - RPI

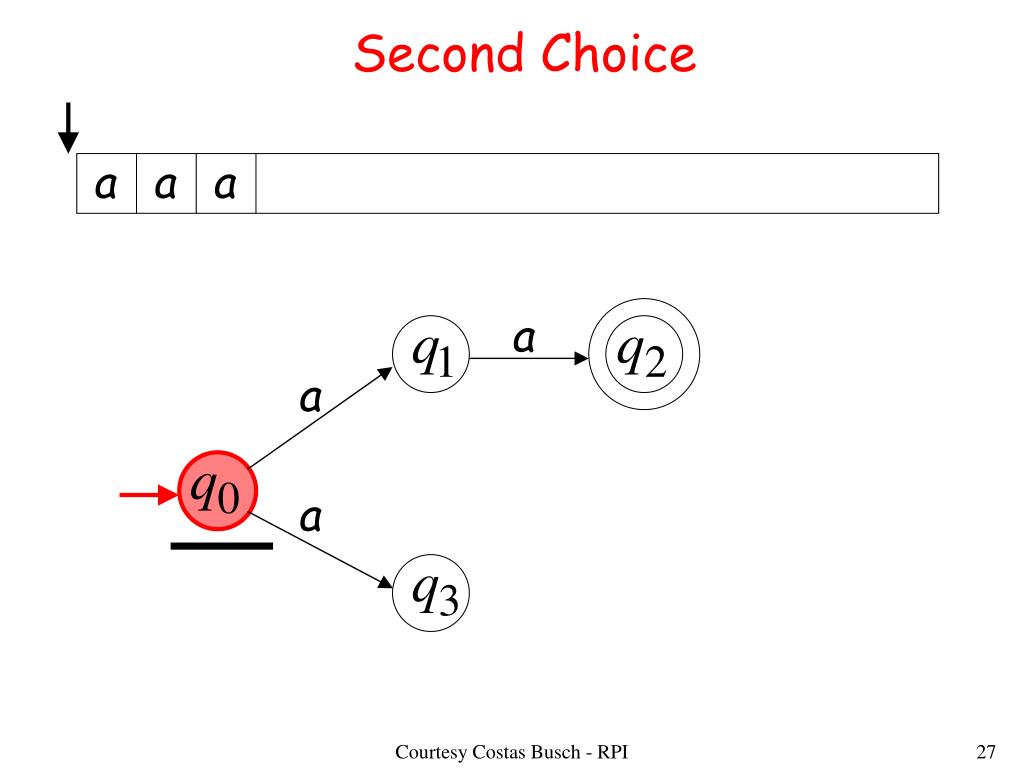

  27. Second Choice Courtesy Costas Busch - RPI

  28. Second Choice Courtesy Costas Busch - RPI

  29. Second Choice No transition: the automaton hangs Courtesy Costas Busch - RPI

  30. Second Choice Input cannot be consumed “reject” Courtesy Costas Busch - RPI

  31. is rejected by the NFA: “reject” “reject” All possible computations lead to rejection Courtesy Costas Busch - RPI

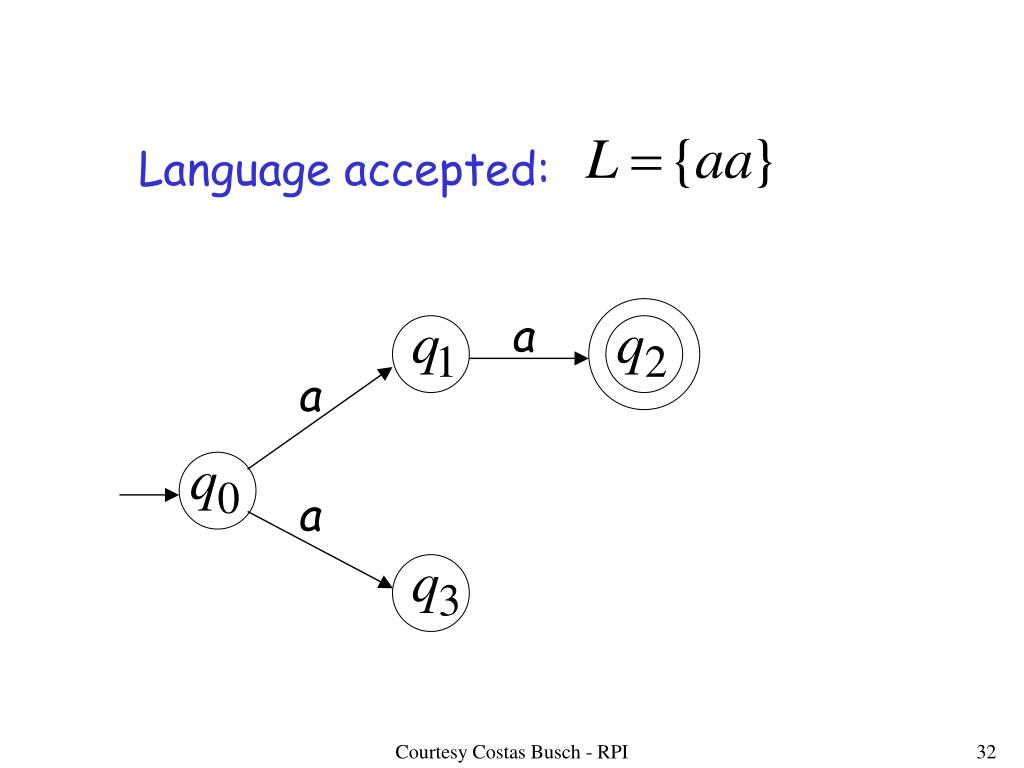

  32. Language accepted: Courtesy Costas Busch - RPI

  33. Lambda Transitions Courtesy Costas Busch - RPI

  34. Courtesy Costas Busch - RPI

  35. Courtesy Costas Busch - RPI

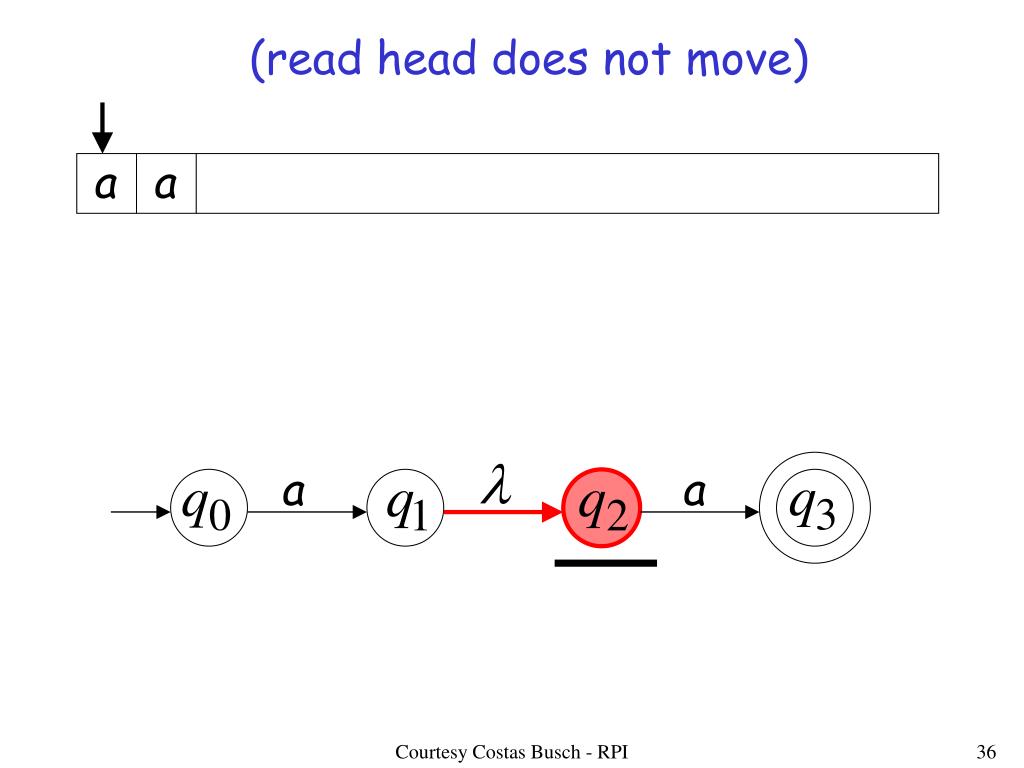

  36. (read head does not move) Courtesy Costas Busch - RPI

  37. Courtesy Costas Busch - RPI

  38. all input is consumed “accept” String is accepted Courtesy Costas Busch - RPI

  39. Rejection Example Courtesy Costas Busch - RPI

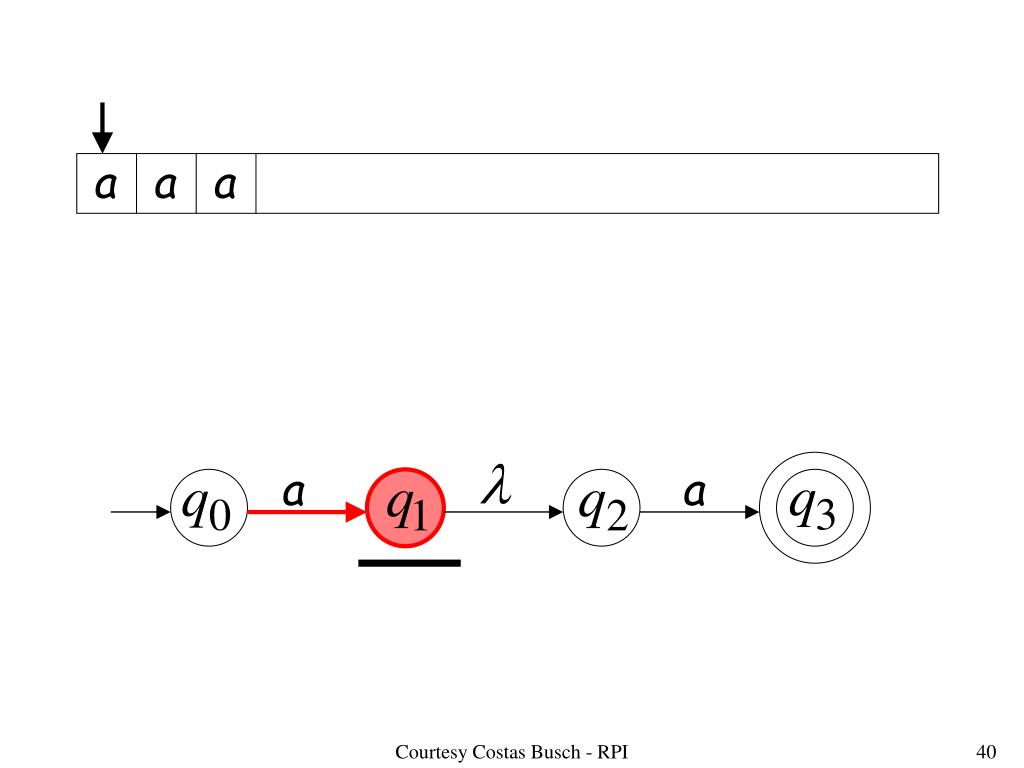

  40. Courtesy Costas Busch - RPI

  41. (read head doesn’t move) Courtesy Costas Busch - RPI

  42. No transition: the automaton hangs Courtesy Costas Busch - RPI

  43. Input cannot be consumed “reject” String is rejected Courtesy Costas Busch - RPI

  44. Language accepted: Courtesy Costas Busch - RPI

  45. Another NFA Example Courtesy Costas Busch - RPI

  46. Courtesy Costas Busch - RPI

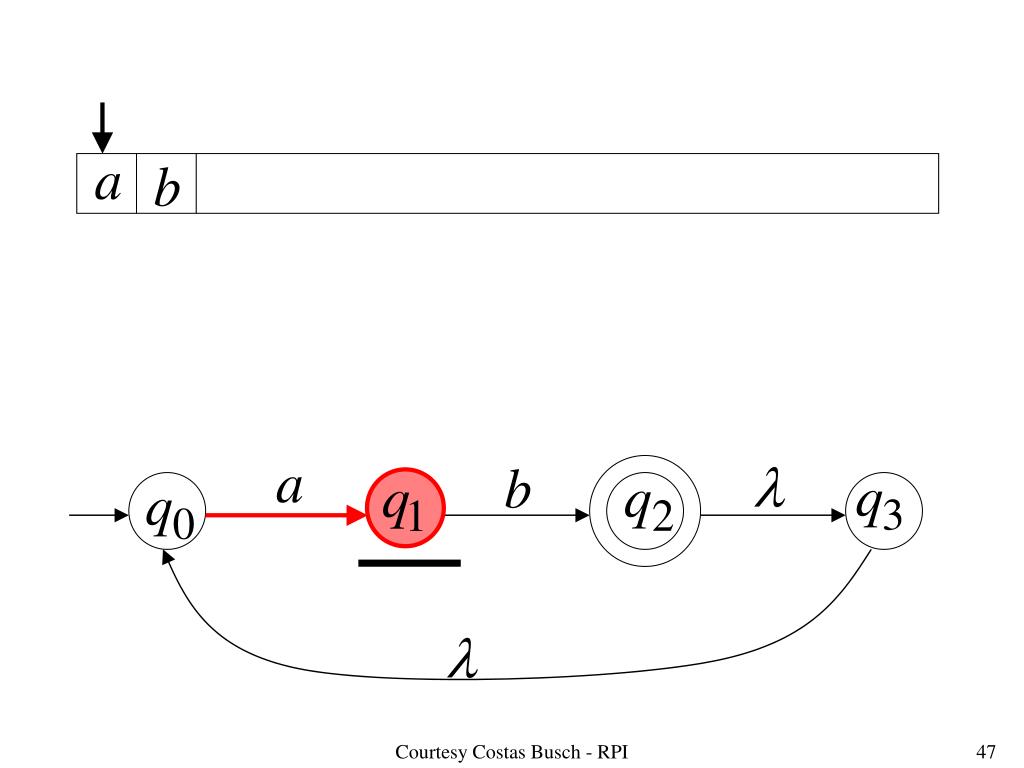

  47. Courtesy Costas Busch - RPI

  48. Courtesy Costas Busch - RPI

  49. “accept” Courtesy Costas Busch - RPI

  50. Another String Courtesy Costas Busch - RPI
