Presentation Transcript

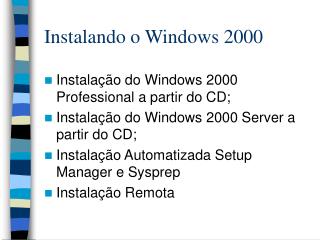

  1. Instalando o Windows 2000 • Instalação do Windows 2000 Professional a partir do CD; • Instalação do Windows 2000 Server a partir do CD; • Instalação Automatizada Setup Manager e Sysprep • Instalação Remota

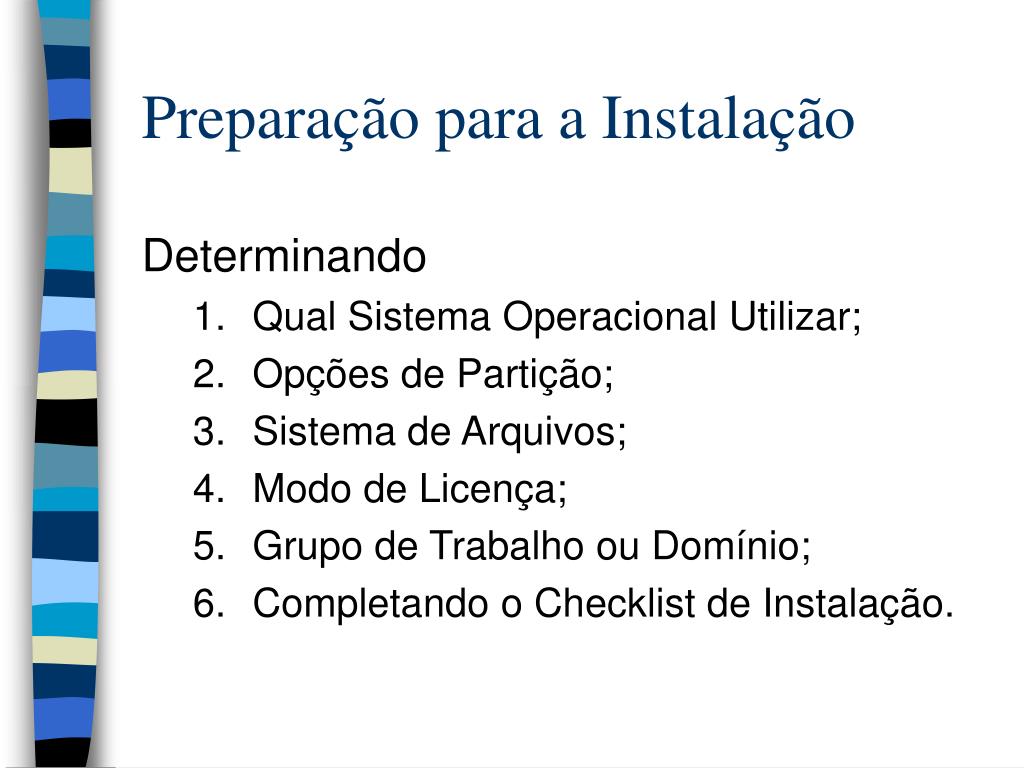

  2. Preparação para a Instalação Determinando • Qual Sistema Operacional Utilizar; • Opções de Partição; • Sistema de Arquivos; • Modo de Licença; • Grupo de Trabalho ou Domínio; • Completando o Checklist de Instalação.

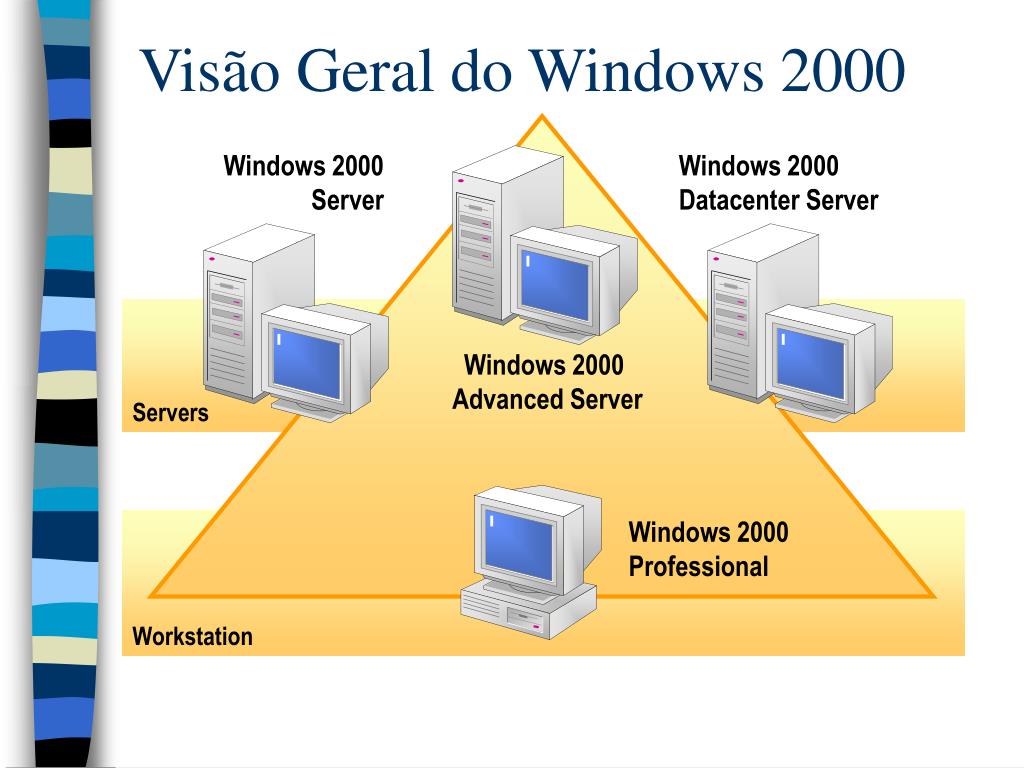

  3. Visão Geral do Windows 2000 Windows 2000 Server Windows 2000 Datacenter Server Servers Windows 2000 Advanced Server Windows 2000 Professional Workstation

  4. Requisitos de Hardware CPU Memoria Espaço em Disco P166 MHz or Faster Windows 2000 Professional--32 MB Windows 2000 Server--64 MB 1.2 GB Rede Monitor HCL Accessórios Other Drives

  5. Opções de Partição Create New Partition on Unpartitioned Hard Disk Create New Partition on Partitioned Hard Disk Install on Existing Partition Delete Existing Partition to Make Disk Space Available

  6. Sistema de Arquivos Windows 2000 Windows 98 NTFS FAT/FAT32 • Segurança a nível de Arquivos e Pastas • Compressão • Quotas • Encriptação • Suporta Configuração Dual Boot • Sistema de Arquivos sem Segurança

  7. Modo de Licença; Per Seat Licensing Per Server Licensing CAL CAL CAL CAL Each Client Requires a CAL Each Connection Requires a CAL

  8. Grupo de Trabalho ou Domínio • Requisitos para fazer parte • de um Domínio: • Nome do Domínio • Conta de Computador • Um Controlador de Domínio e DNS disponivel • Requisitos para uma fazer parte de um grupo de Trabalho: • Um nome de grupo de trabalho Domain Workgroup contoso.com

  9. Completando o Checklist de Instalação Utilize Hardware Compativel Verifique os requisitos minimos de Hardware Espaço disponivel em disco de 1.2 GB ou Mais Selecione o Sistema de Arquivos para a Partição Selecione o modo de Licença Determine o Nome do Dominio ou Grupo de Trabalho Criando a Conta do Computador no Dominio Criando a Senha para o Administrador

  10. Windows 2000 Server Setup Welcome to Setup This portion of the Setup program prepares Microsoft (R) Windows 2000 (TM) to run on your computer. - To set up Windows 2000 now, press ENTER. - To quite Setup without installing Windows 2000, press F3. Windows 2000 Setup X Welcome to the Windows 2000 Setup Wizard This wizard installs Windows 2000 Server on your computer. The wizard needs to gather some information about you and your computer to set up Windows 2000 properly. Next > < Back Cancel ENTER = Continue F3 = Quit Click Next to continue with Setup. • Instalando o Windows 2000 a partir do CD • Executando Programa de Instalação • Completing the Setup Wizard • Installing Networking Components • Completing the Installation

  11. compmgmt - [Computer Management (Local)\System Tools\Device Manager] Action View TUNIS Computer Management (Local) Computer Disk drives Display adapters DVD/CD-ROM drives Floppy disk controllers Floppy disk drives IDE ATA/ATAPI controllers Keyboards Mice and other pointing devices Monitors Network adapters Ports (COM & LPT) Sound, video and game controllers System devices Universal Serial Bus controllers System Tools Performance Logs and Alerts Local Users and Groups System Information Services Shared Folders Event Viewer Device Manager Device Manager Storage Server Applications and Services Confirmando a instalação do Hardware Através do Device Manager

  12. Hardware Profile You can set up hardware profiles for different hardware configurations. At startup, you can choose the profile you want to use. Available hardware profiles: Profile 1 (Current) Properties Copy... Rename... Delete Hardware profiles selection When Windows starts: Wait until I select a hardware profile Select the first profile listed if I don’t select a profile in 30 seconds OK Cancel Gerenciando Prefis de Hardware

  13. Display Properties Background Screen Saver Appearance Web Effects Settings Display: Default Monitor on ATI Technologies 3D RAGE PRO AGP 2X Colors Screen area Less More 800 by 600 pixels Troubleshoot... Advanced... OK Cancel Apply Configurando o Monitor

  14. Configuração do Ambiente • Identificando opções de Performance • Configurando o Pagefile • Configurando variaveis de ambiente • Mudando as opções de Startup • Configurando Opções de Energia

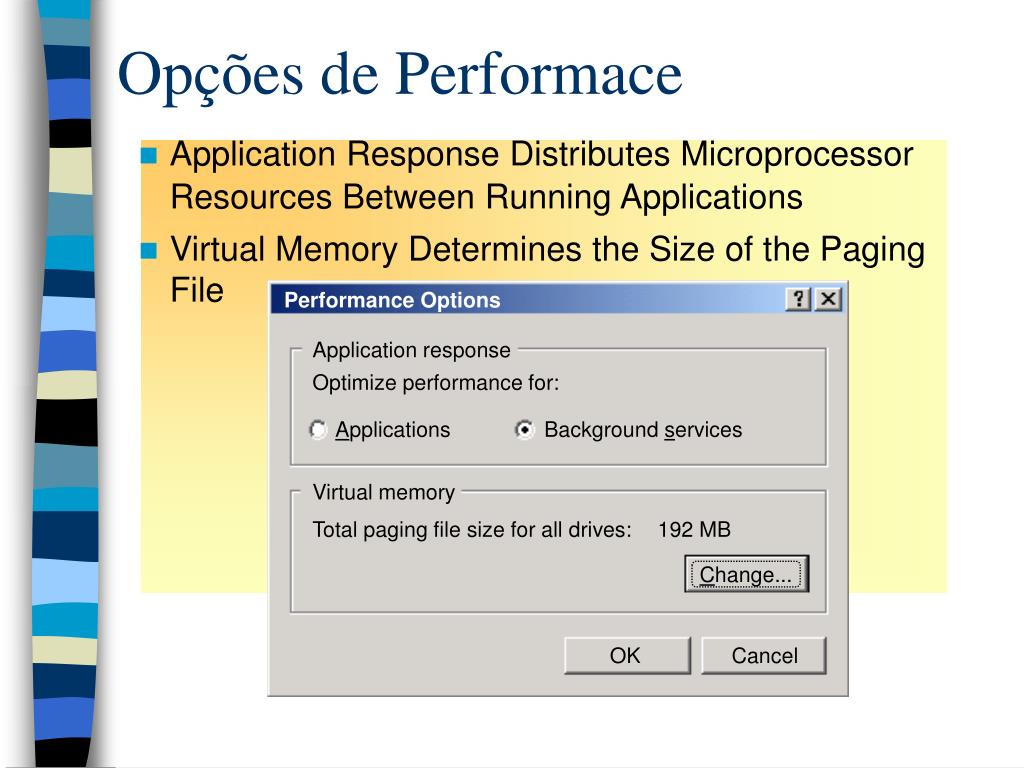

  15. Performance Options Application response Optimize performance for: Applications Background services Virtual memory Total paging file size for all drives: 192 MB Change... OK Cancel Opções de Performace • Application Response Distributes Microprocessor Resources Between Running Applications • Virtual Memory Determines the Size of the Paging File

  16. Virtual Memory Drive [Volume Label] Paging File Size (MB) C: 192 - 384 E: Paging file size for selected drive Drive: Space available: C: 1248 MB Initial size (MB): 192 Set Maximum size (MB): 384 Total paging file size for all drives Minimum allowed: Recommended: Currently allocated: 2 MB 190 MB 192 MB Registry size 9 MB Current registry size (MB): Maximum registry size (MB): 35 OK Cancel Configurando o Paging File

  17. Environment Variables User variables for administrator Variable Value C:\Documents and Settings\admini... TEMP TMP C:\Documents and Settings\admini... New... Edit... Delete System variables Variable Value C:\WINNT\system32\cmd.exe ComSpec NUMBER_OF… OS Os2LibPath 1 Windows_NT C:\WINNT\system32\os2\dll; New... Edit... Delete OK Cancel Configurando as Variaveis de Ambiente

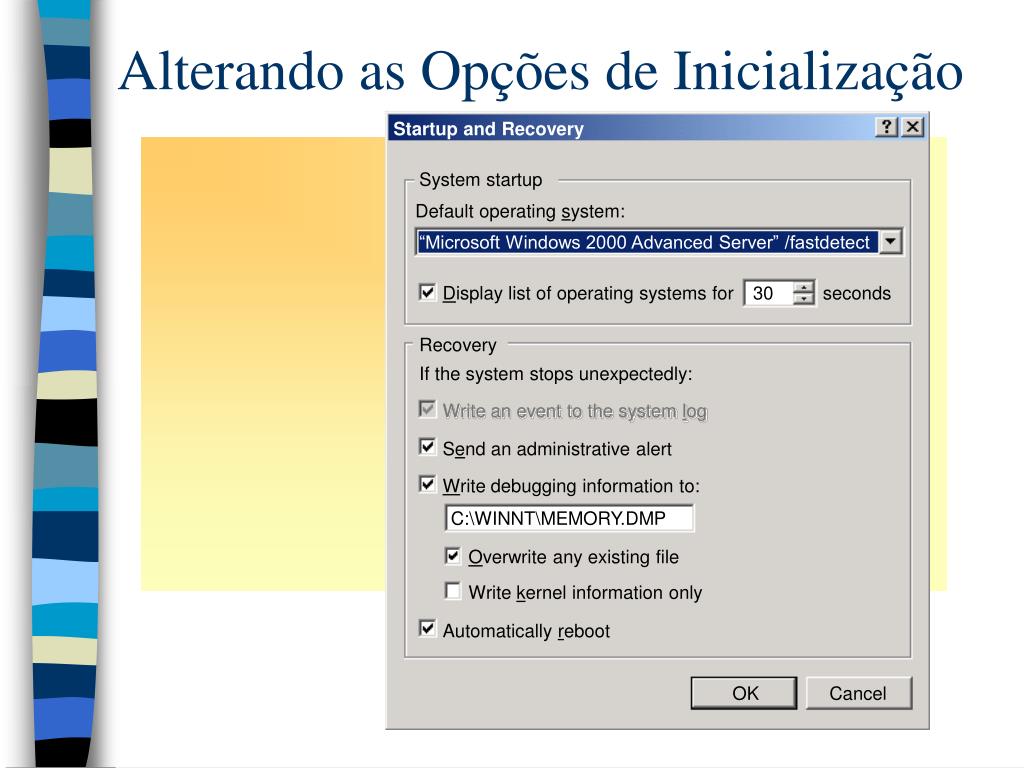

  18. Startup and Recovery System startup Default operating system: “Microsoft Windows 2000 Advanced Server” /fastdetect Display list of operating systems for 30 seconds Recovery If the system stops unexpectedly: Write an event to the system log Send an administrative alert Write debugging information to: C:\WINNT\MEMORY.DMP Overwrite any existing file Write kernel information only Automatically reboot OK Cancel Alterando as Opções de Inicialização

  19. Configurando Serviços • Configurar Serviços para • Iniciar, Parar, Iniciar, Pausar ou concluir um Serviço • Configurar as opções de inicialização • Habilitar ou desabilitar um serviço para um profile em particular • Criar nomes e descrição de serviços

  20. Revisão • Tipos de Armazenamento em Disco • Usando o Gerenciador de Discos • Criando Partições Basicas • Criando Volumes Dinamicos • Executando Tarefas com O Gerenciador de Discos • Trabalhando com Volumes a prova de falhas

  21. C: Simple Volume C: Striped Volume Spanned Volume D: D: Primary Partitions E: -or- E: RAID-5 Volume F: Extended Partition with Logical Drives G: F: H: Windows 2000 Disk Storage Types Basic Storage Dynamic Storage Mirrored Volume

  22. compmgmr - [Computer Management (Local)\Storage\Disk Management] Action View Computer Management (Local) System Tools Storage Removable Storage Disk Defragmenter Logical Drives Disk Management Server Applications and Services Volume (C:) Layout Partition Type Basic Select Disk Select Partition or Volume Disk Management Open Explore Change Drive Letter and Path… Format… Delete Partition… Properties Help Upgrade to Dynamic Disk… Properties Help Refresh Rescan Disks Restore Basic Disk Configuration… New All Tasks View Help Mark Partition Active Disk 0 (C:) 1.37 GB NTFS Healthy (System) Basic 3.02 GB Online Usando o Gerenciador de Discos

  23. Create Partition Wizard Select Partition Type You can specify what type of partition to create. Select the type of partition you want to create. Primary partition Extended partition Logical drive Description A primary partition is a volume you create using free space on a basic disk. Windows 2000 and other operating systems can start from a primary partition. You can create up to four primary partitions on a basic disk, or you can make three primary partitions and an extended partition. < Back Next > Cancel Criando Basic Partitions

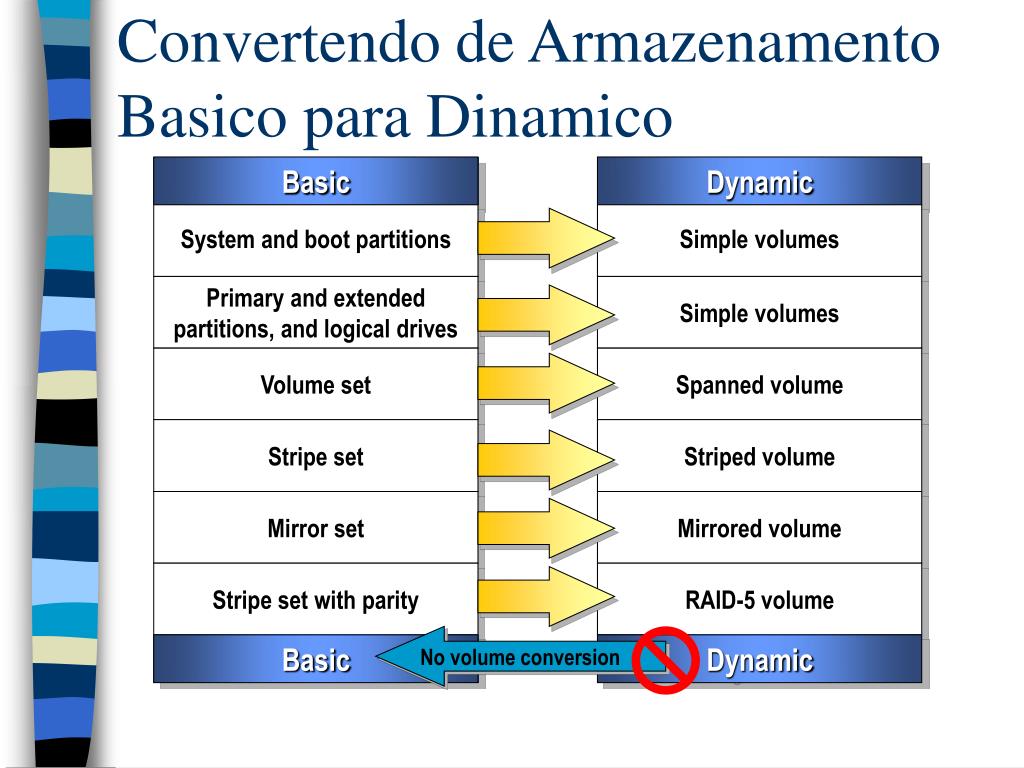

  24. Convertendo de Armazenamento Basico para Dinamico Basic Dynamic System and boot partitions Simple volumes Primary and extended partitions, and logical drives Simple volumes Volume set Spanned volume Stripe set Striped volume Mirror set Mirrored volume Stripe set with parity RAID-5 volume No volume conversion Basic Dynamic

  25. Criando Volumes Simples • Volumes simples ocupam espaço em um unico disco • Podemos usar NTFS, FAT, or FAT32 • Volumes simples podem ser espelhados

  26. Extendendo Simple Volumes • Volumes Simples podem ser extendidos • Extend with Extend Volume Wizard

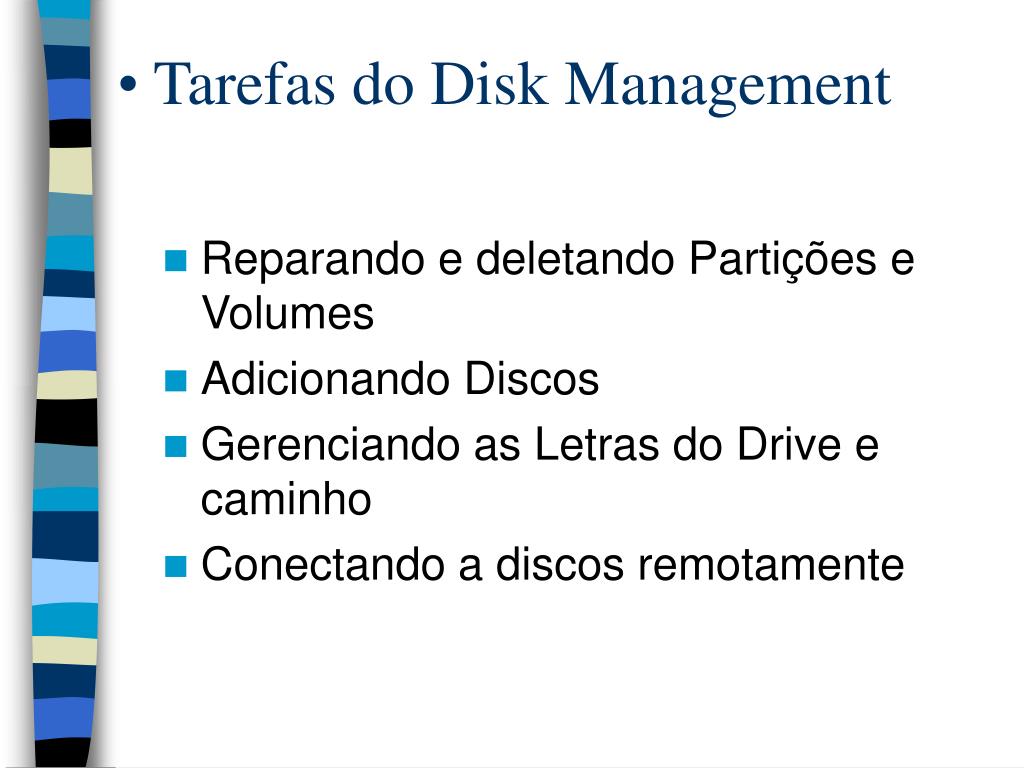

  27. Tarefas do Disk Management • Reparando e deletando Partições e Volumes • Adicionando Discos • Gerenciando as Letras do Drive e caminho • Conectando a discos remotamente

  28. compmgmt - [Computer Management (Local)\Storage\Disk Management Action View Volume Layout Type File System Computer Management (Local) System Tools (C:) Partition Partition Basic Basic NTFS Storage (E:) Removable Storage Open Explore Disk Defragmenter Logical Drives Mark Partition Active Change Drive Letter and Path… Format... Disk Management Server Applications and Ser Delete Partition... Properties Dis Help Basic 3.02 GB Online (C:) 2.00 GB NTFS Healthy (Boot) (E:) 1.02 GB Healthy CDRom 0 CDRom (D:) Online Primary Partition Reparar e Apagar Partições e Volumes

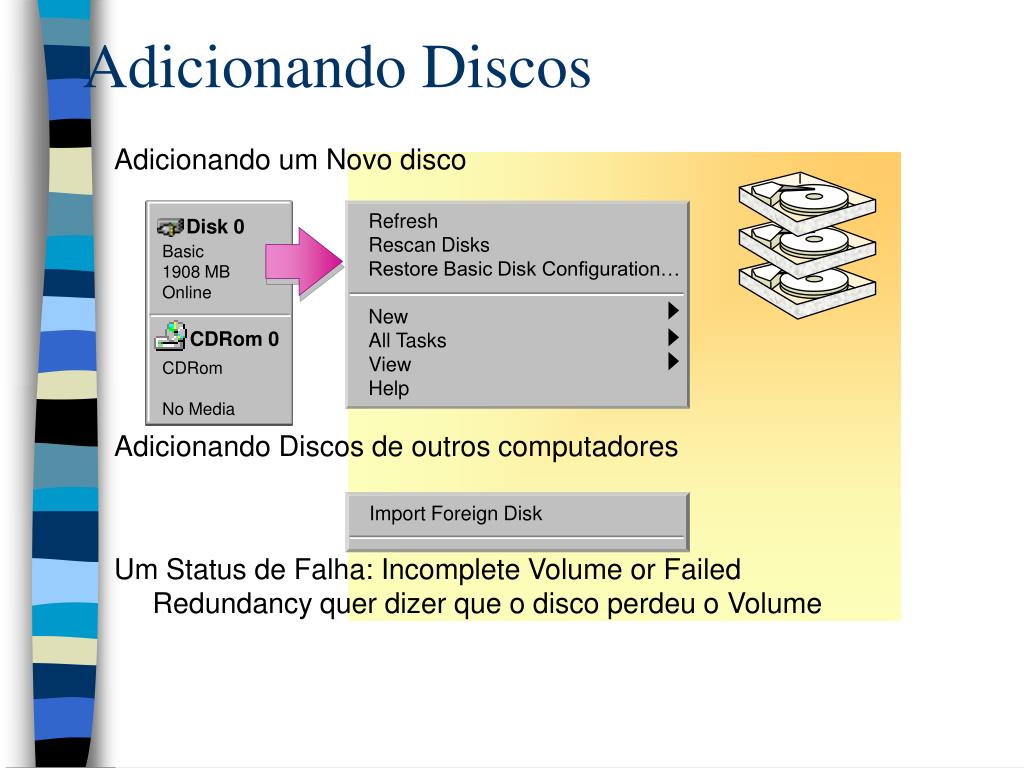

  29. Disk 0 Basic 1908 MB Online CDRom 0 CDRom No Media Refresh Rescan Disks Restore Basic Disk Configuration… New All Tasks View Help Adicionando Discos Adicionando um Novo disco Adicionando Discos de outros computadores Um Status de Falha: Incomplete Volume or Failed Redundancy quer dizer que o disco perdeu o Volume Import Foreign Disk

  30. Desktop My documents My computer 31/2 Floppy (A:) Local Disk (C:) Local Disk (C:) Documents and Settings Inetpub Program Files Project Data Shared Files WINNT Disk 0 (C:) 1.37 GB NTFS Healthy (System) New Volume 51 BM NTFS Healthy Basic 3.02 GB Online Gerenciando Drives e Paths • Managing Drive Letters • Add—to assign new drive letter • Remove—to remove existing drive letter • Modify—to change existing drive letter • Managing Drive Paths

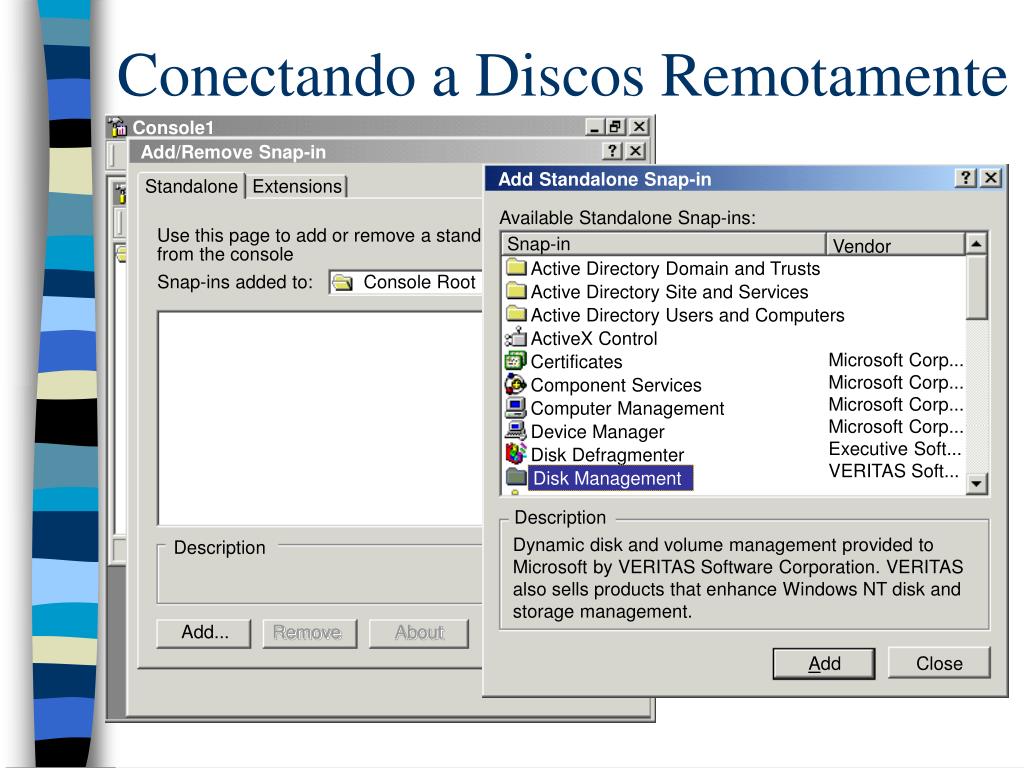

  31. Console1 Add/Remove Snap-in Add Standalone Snap-in Standalone Extensions Available Standalone Snap-ins: Use this page to add or remove a standalone Snap-in from the console Snap-in Vendor Active Directory Domain and Trusts Active Directory Site and Services Active Directory Users and Computers ActiveX Control Certificates Component Services Computer Management Device Manager Disk Defragmenter Snap-ins added to: Console Root Microsoft Corp... Microsoft Corp... Microsoft Corp... Microsoft Corp... Executive Soft... VERITAS Soft... Disk Management Description Dynamic disk and volume management provided to Microsoft by VERITAS Software Corporation. VERITAS also sells products that enhance Windows NT disk and storage management. Description Add... Remove About Add Close Conectando a Discos Remotamente
