Secure and Manageable Virtual Private Networks for End-users

1. Secure and Manageable Virtual Private Networks for End-users K. Kourai (Tokyo Institute of Technology) T. Hirotsu K. Sato O. Akashi K. Fukuda T. Sugawara (NTT) S. Chiba (Tokyo Institute of Technology)

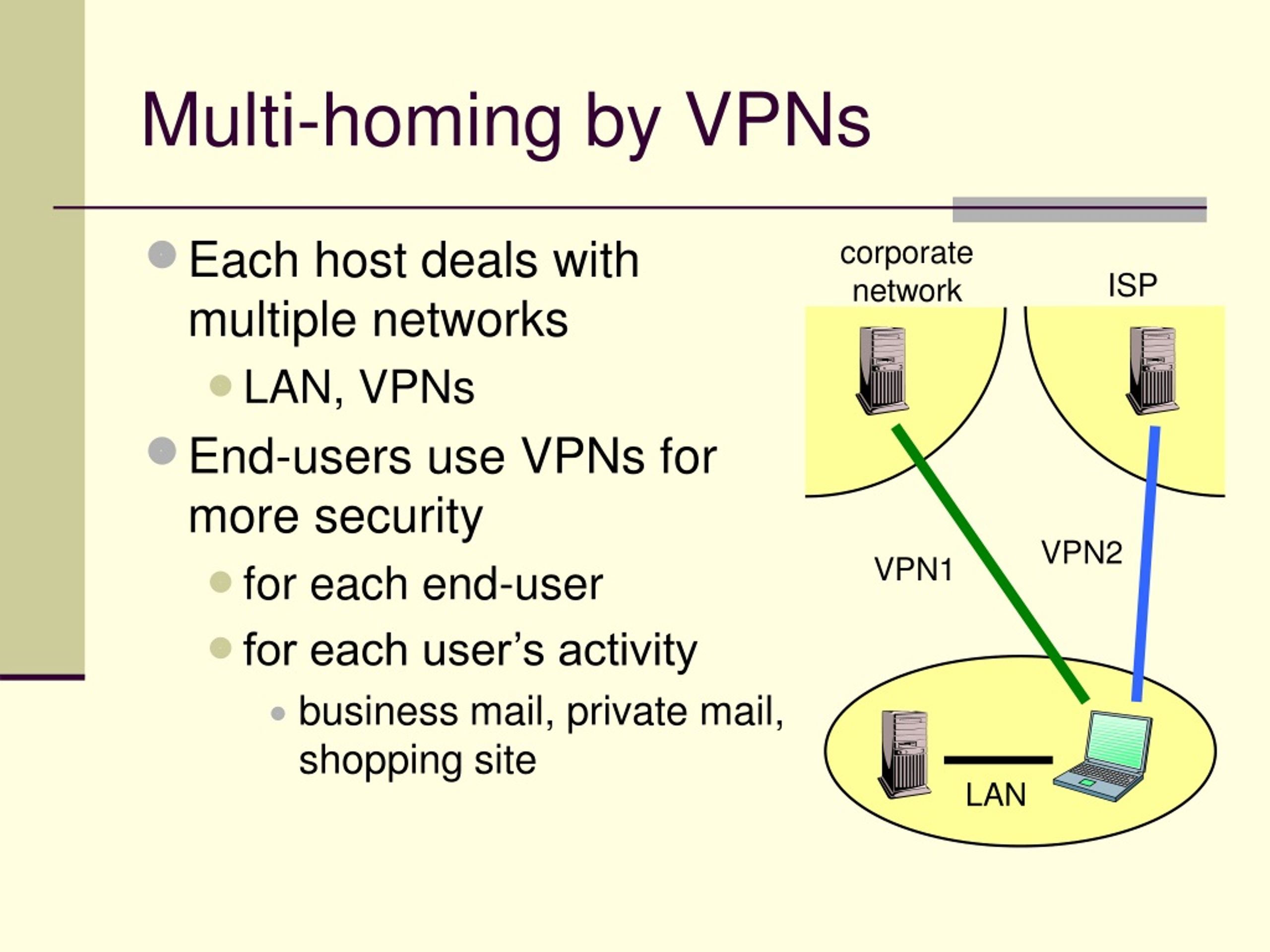

2. Multi-homing by VPNs • Each host deals with multiple networks • LAN, VPNs • End-users use VPNs for more security • for each end-user • for each user’s activity • business mail, private mail, shopping site corporate network ISP VPN2 VPN1 LAN

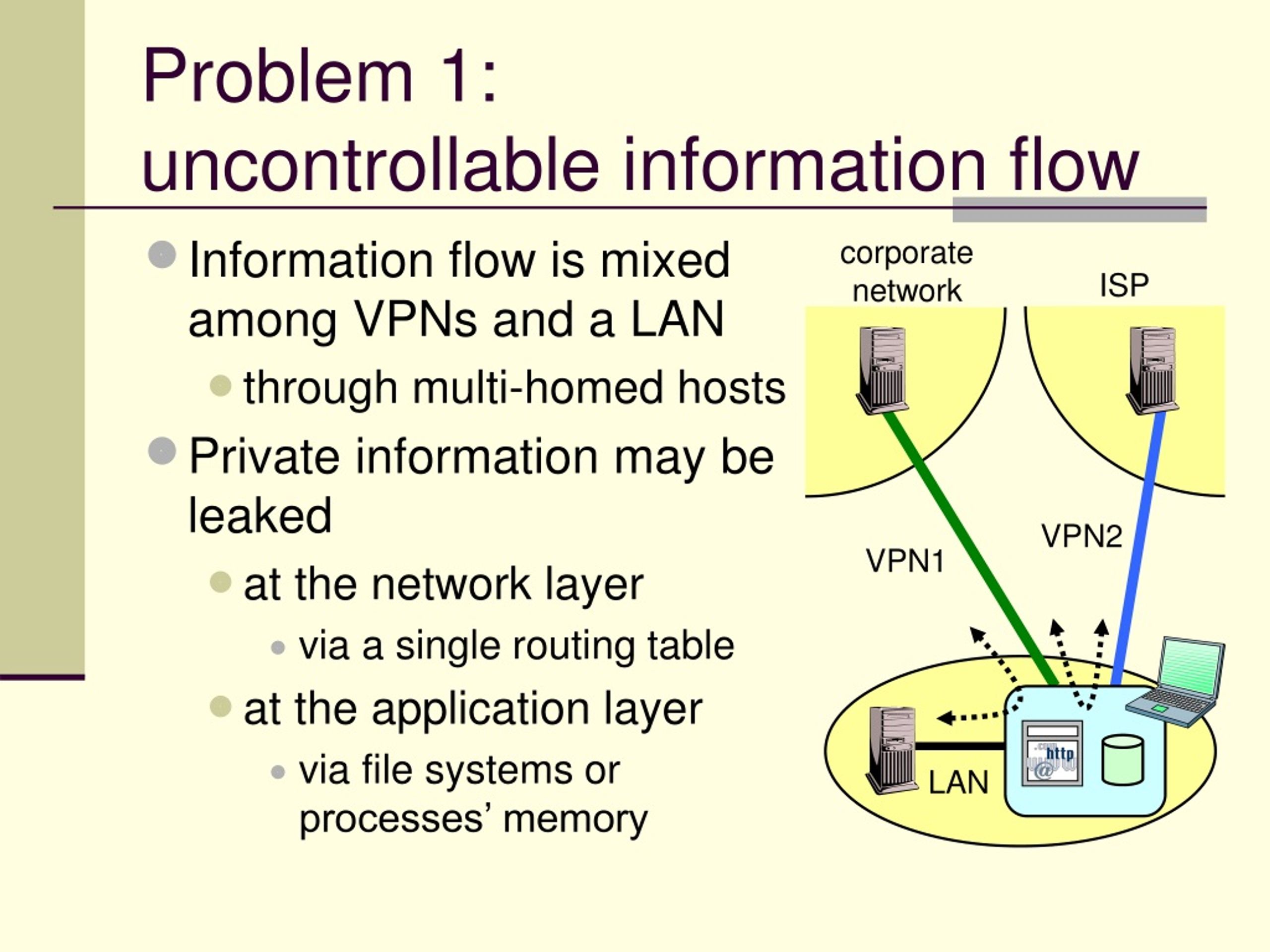

3. Problem 1:uncontrollable information flow • Information flow is mixed among VPNs and a LAN • through multi-homed hosts • Private information may be leaked • at the network layer • via a single routing table • at the application layer • via file systems or processes’ memory corporatenetwork ISP VPN2 VPN1 LAN

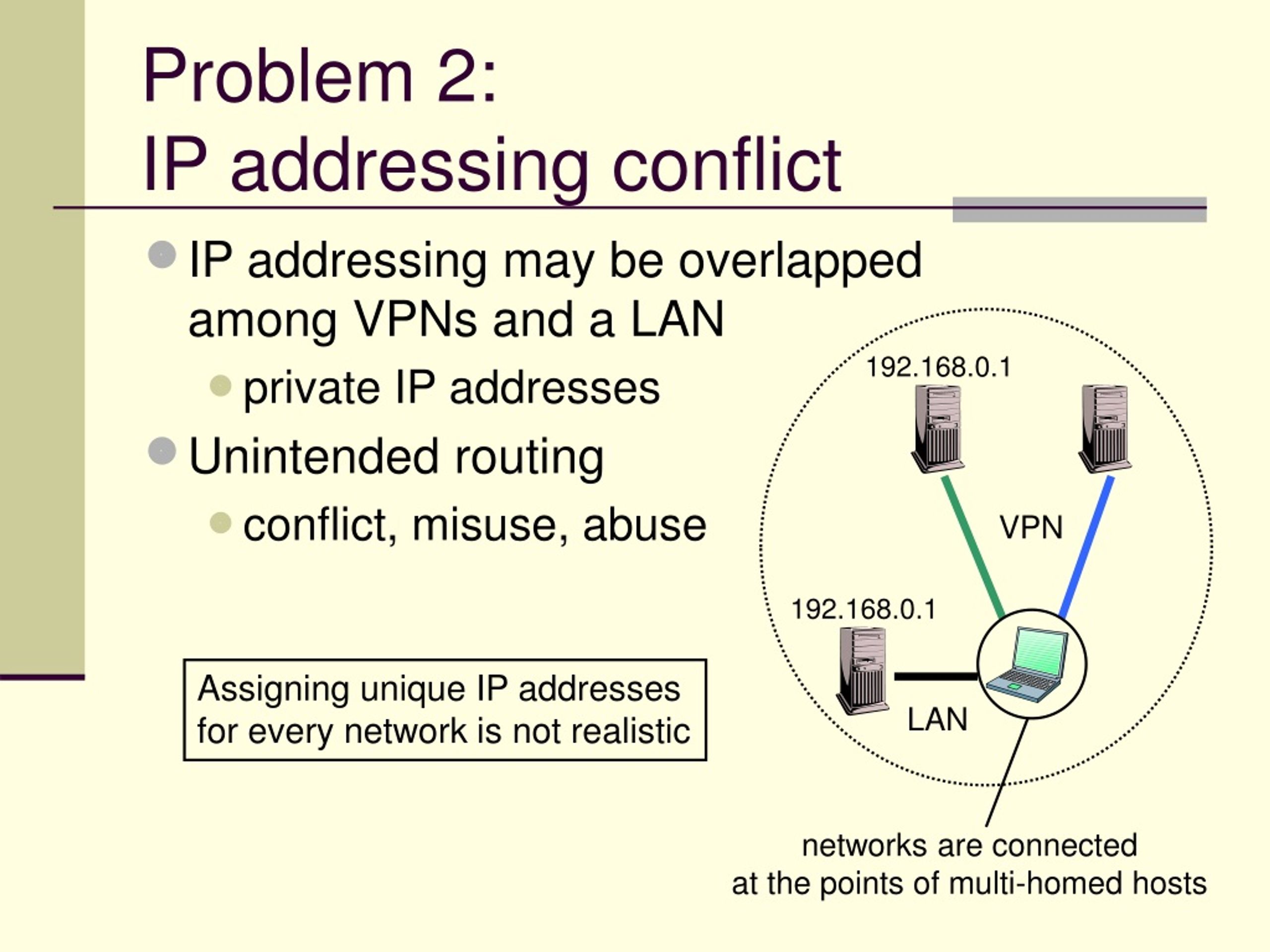

4. Problem 2:IP addressing conflict • IP addressing may be overlapped among VPNs and a LAN • private IP addresses • Unintended routing • conflict, misuse, abuse 192.168.0.1 VPN 192.168.0.1 Assigning unique IP addressesfor every network is not realistic LAN networks are connectedat the points of multi-homed hosts

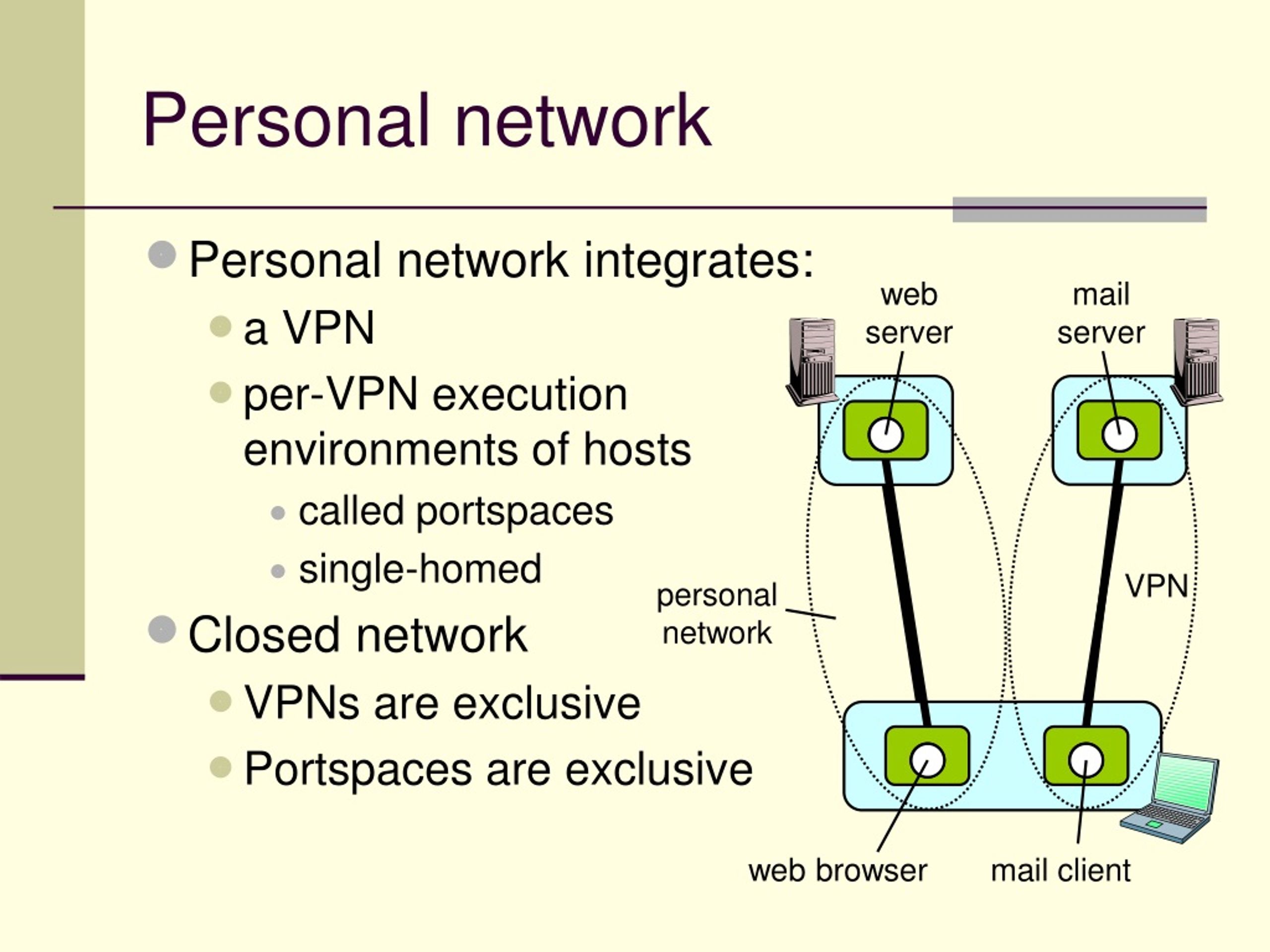

5. personal network Personal network • Personal network integrates: • a VPN • per-VPN execution environments of hosts • called portspaces • single-homed • Closed network • VPNs are exclusive • Portspaces are exclusive web server mail server VPN web browser mail client

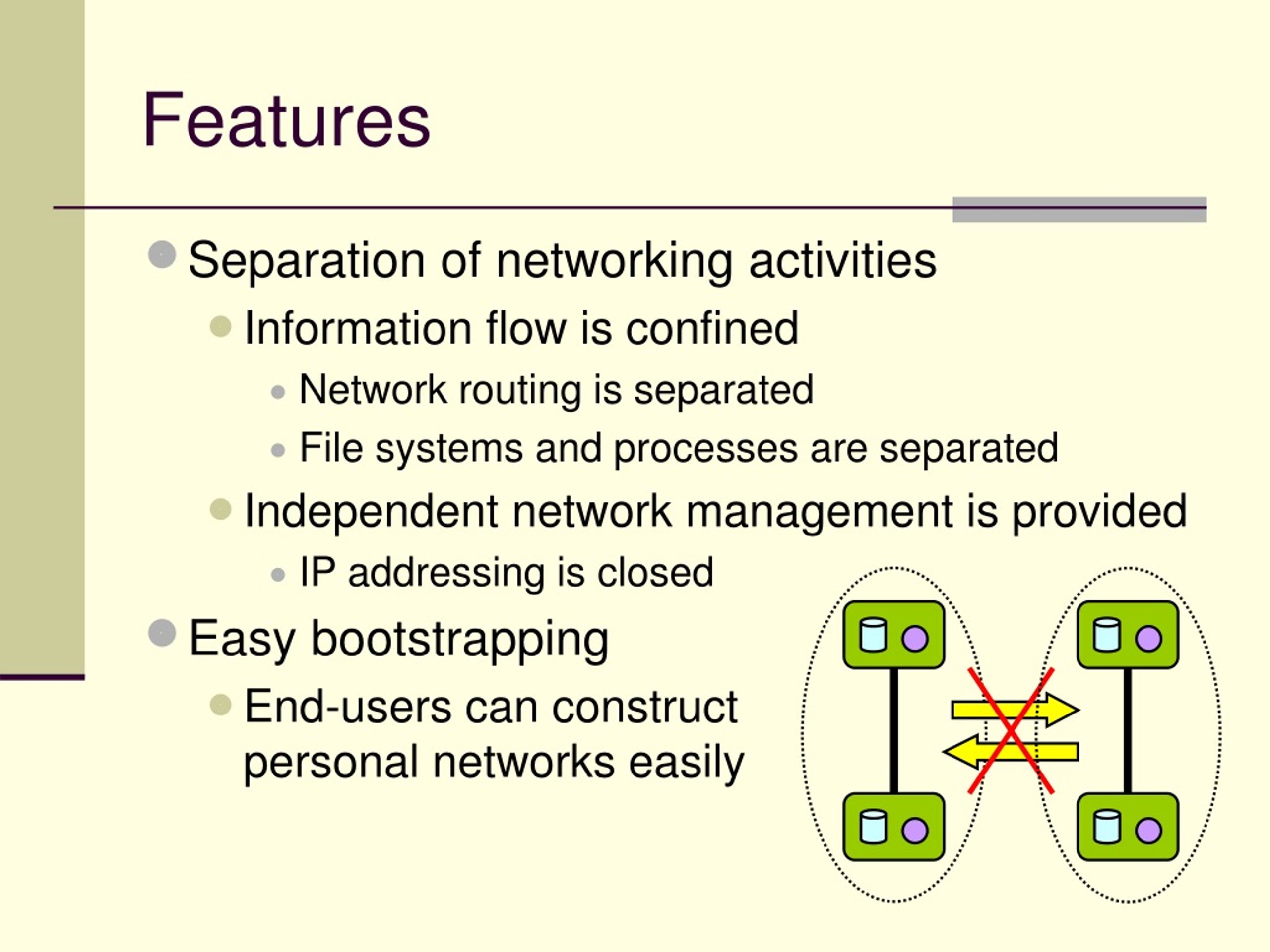

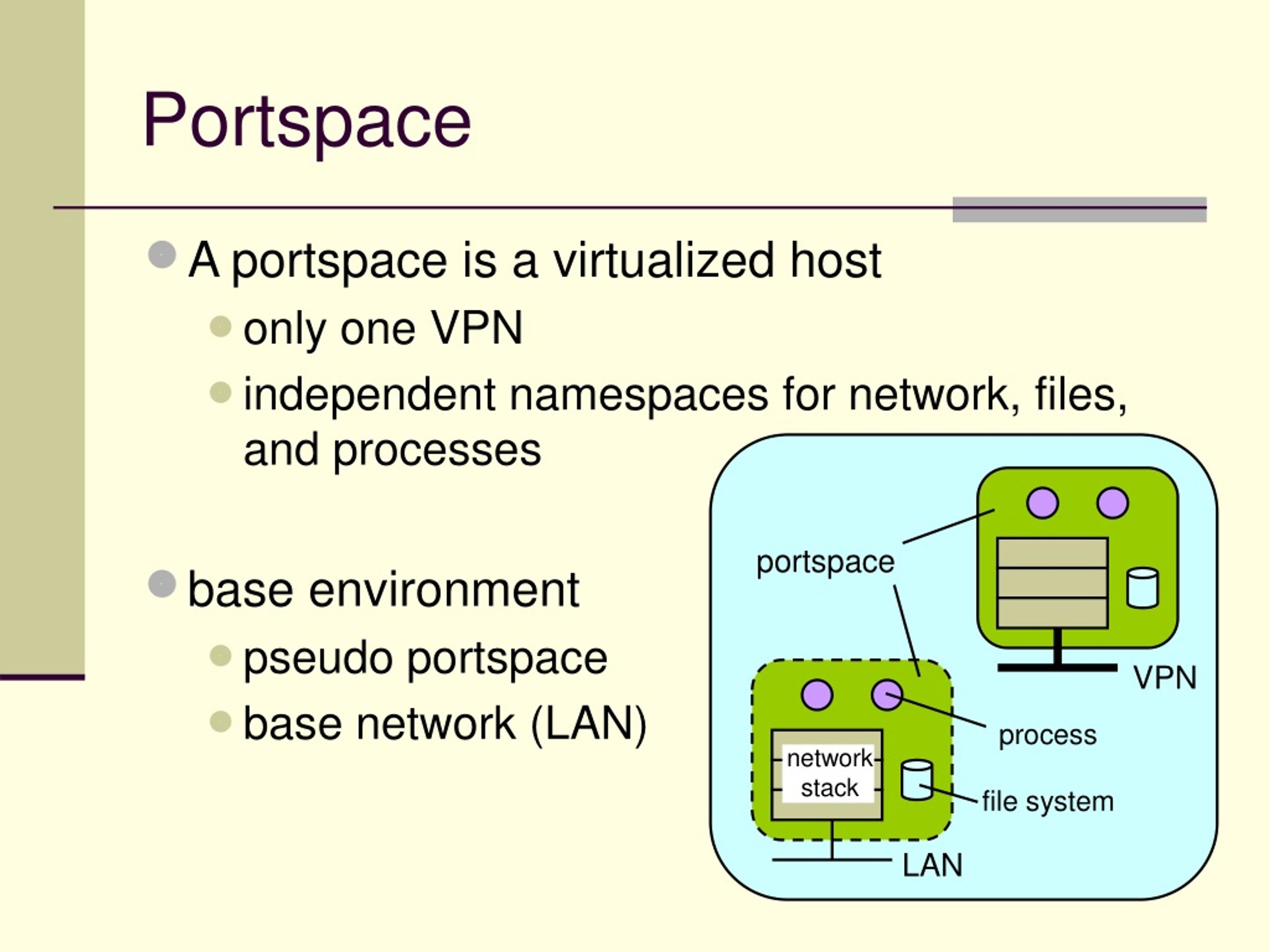

6. Features • Separation of networking activities • Information flow is confined • Network routing is separated • File systems and processes are separated • Independent network management is provided • IP addressing is closed • Easy bootstrapping • End-users can constructpersonal networks easily

7. Portspace • A portspace is a virtualized host • only one VPN • independent namespaces for network, files, and processes • base environment • pseudo portspace • base network (LAN) portspace VPN process network stack file system LAN

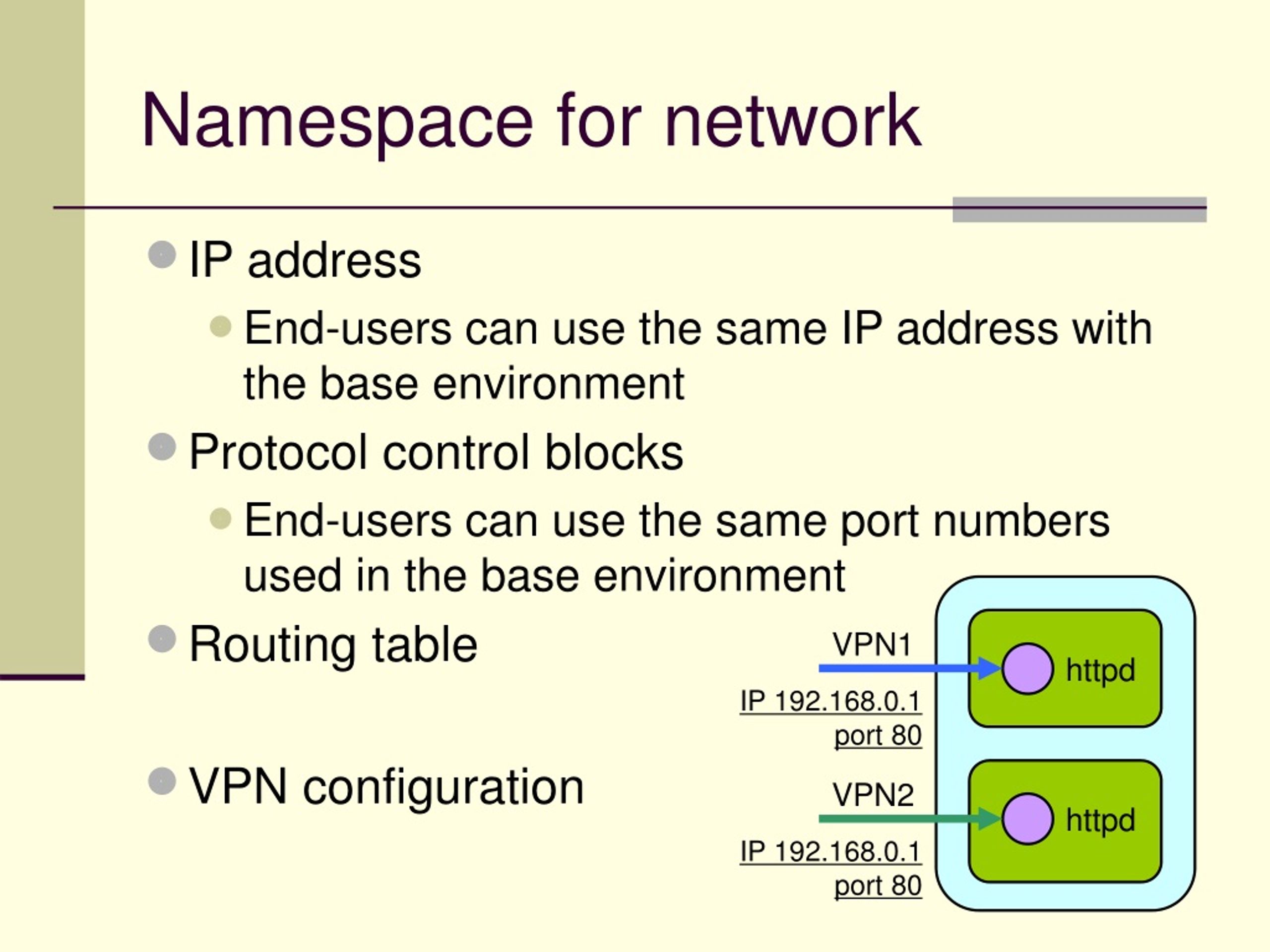

8. Namespace for network • IP address • End-users can use the same IP address with the base environment • Protocol control blocks • End-users can use the same port numbers used in the base environment • Routing table • VPN configuration VPN1 httpd IP 192.168.0.1 port 80 VPN2 httpd IP 192.168.0.1 port 80

9. Namespaces for files/processes • Namespace for files • Processes can access only files in the portspace • End-users can prepare configuration files to perform their own network management • resolv.conf, host.conf • Namespace for processes • This namespace prevents process interaction from the other portspaces • IPC, shared memory, signal

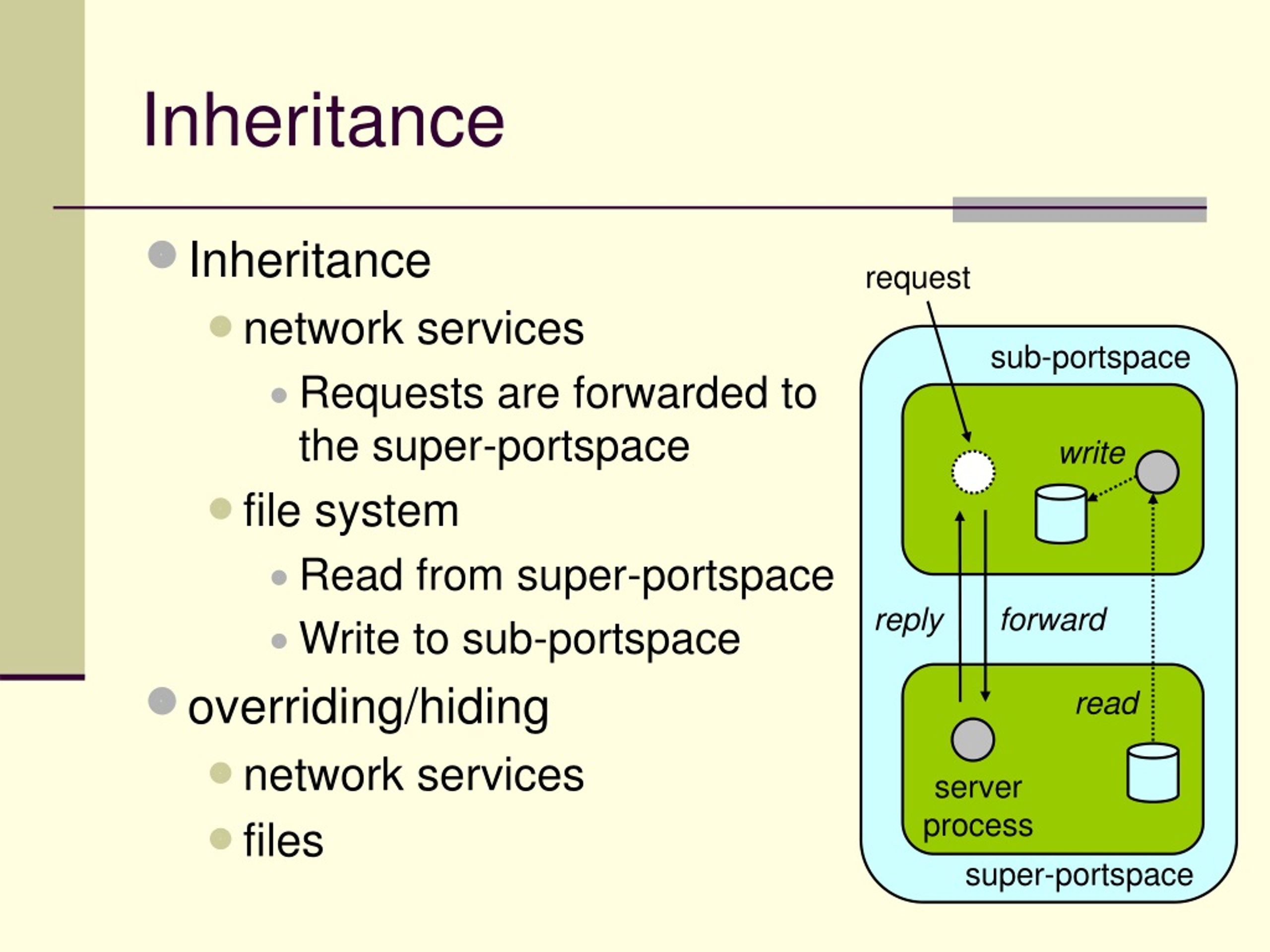

10. Inheritance network services Requests are forwarded to the super-portspace file system Read from super-portspace Write to sub-portspace overriding/hiding network services files write reply forward read server process Inheritance request sub-portspace super-portspace

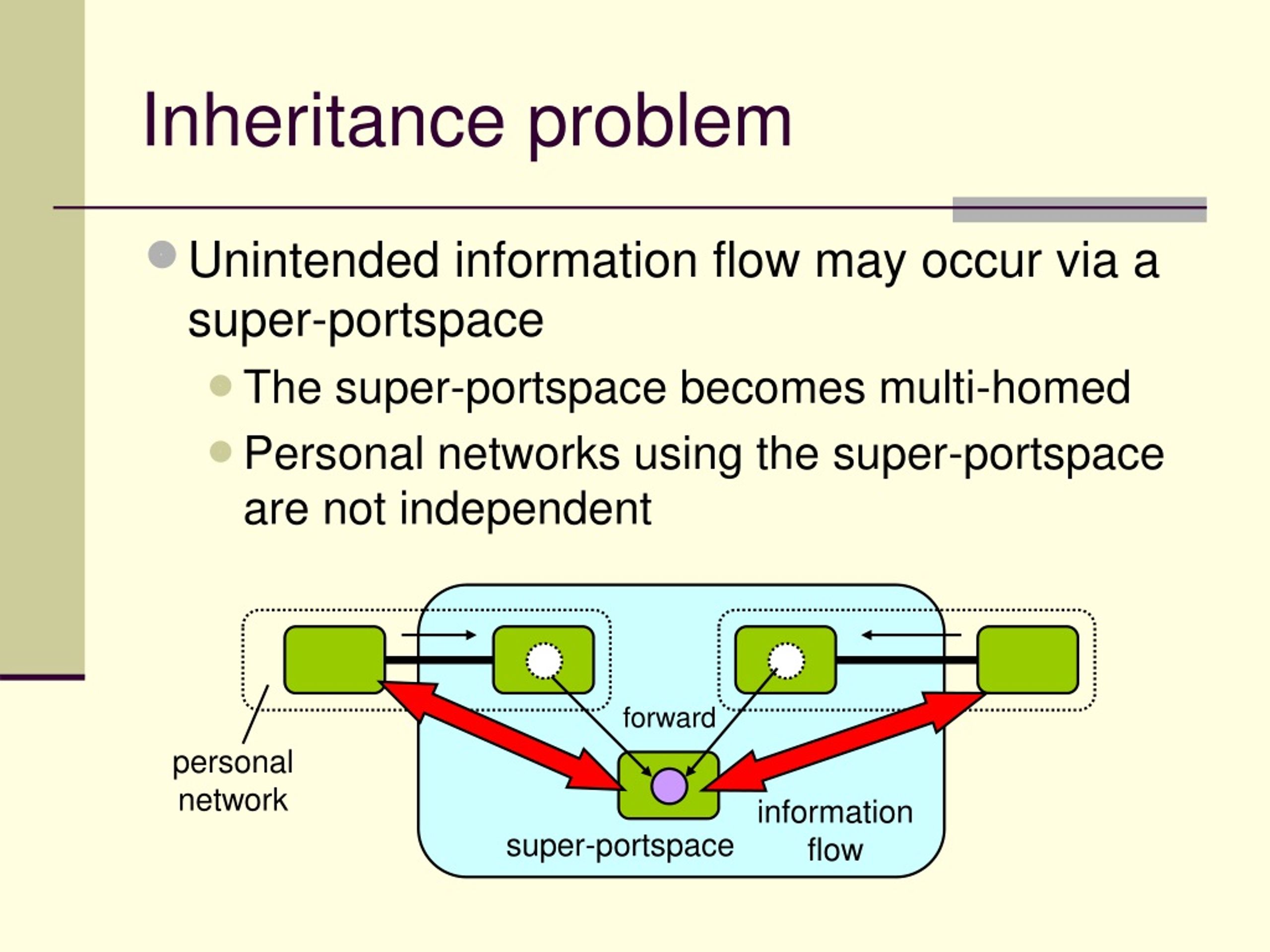

11. information flow Inheritance problem • Unintended information flow may occur via a super-portspace • The super-portspace becomes multi-homed • Personal networks using the super-portspace are not independent forward personal network super-portspace

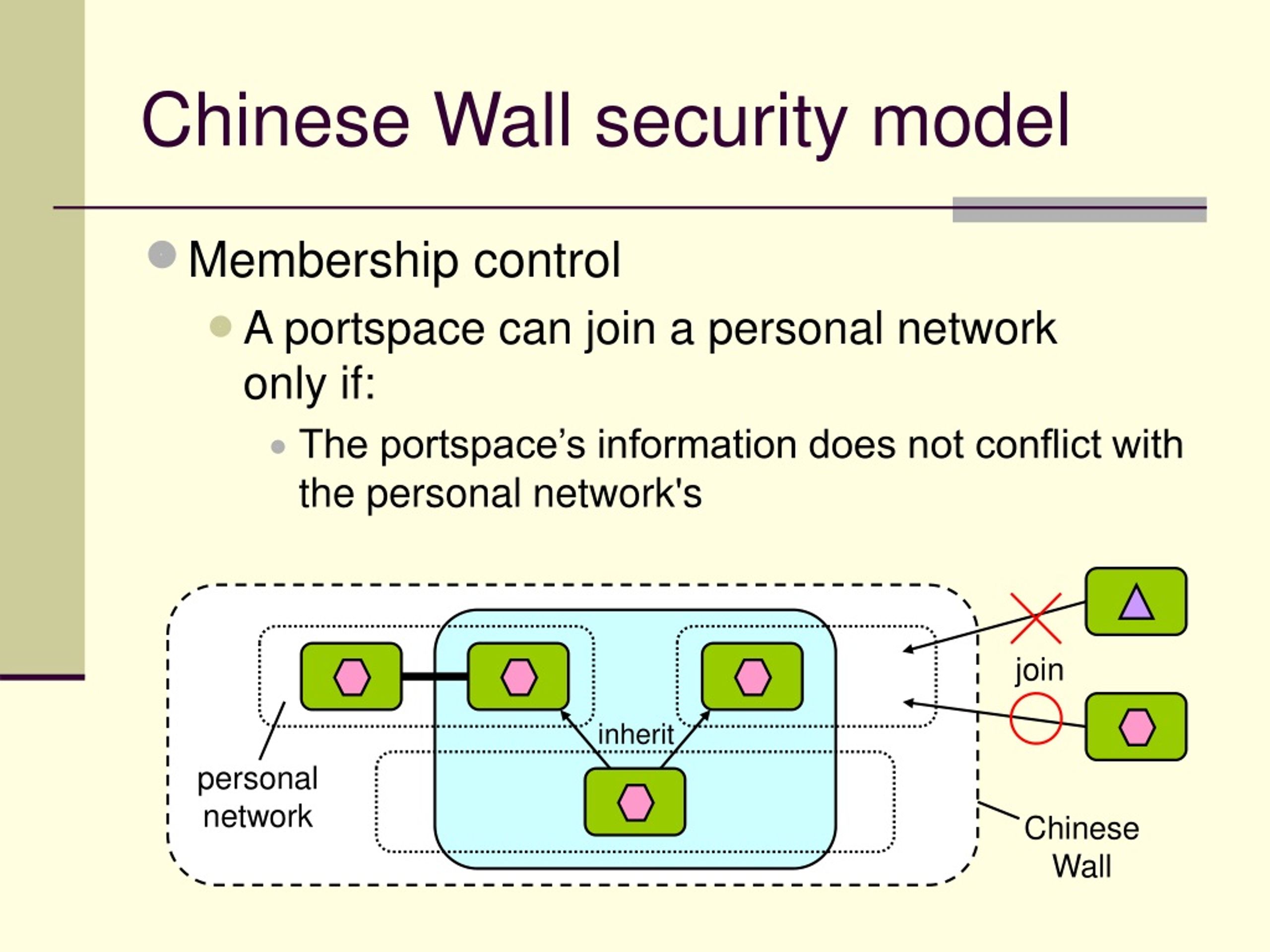

12. join Chinese Wall security model • Membership control • A portspace can join a personal networkonly if: • The portspace’s information does not conflict with the personal network's inherit personal network Chinese Wall

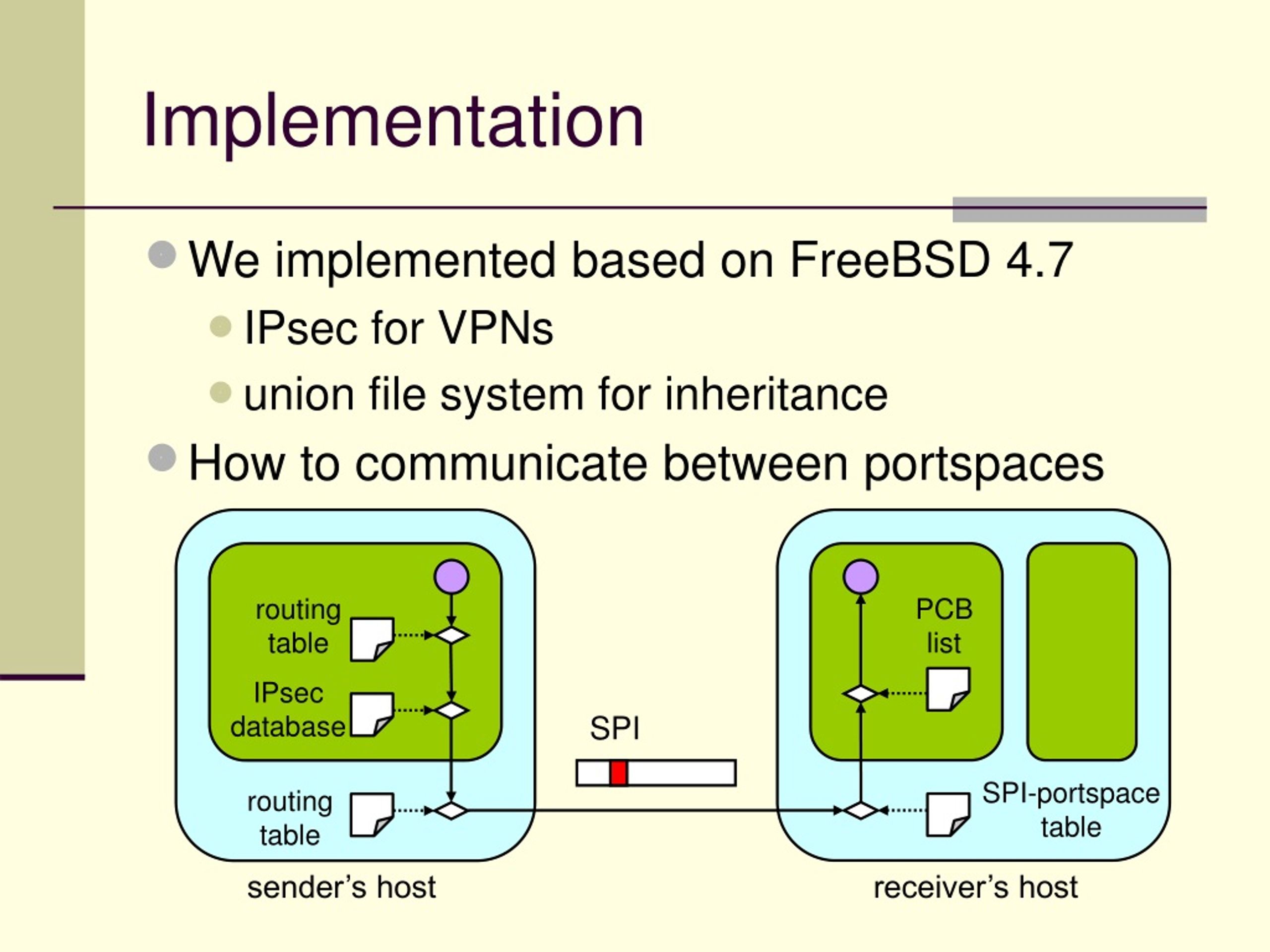

13. routing table PCB list IPsec database SPI SPI-portspace table routing table Implementation • We implemented based on FreeBSD 4.7 • IPsec for VPNs • union file system for inheritance • How to communicate between portspaces sender’s host receiver’s host

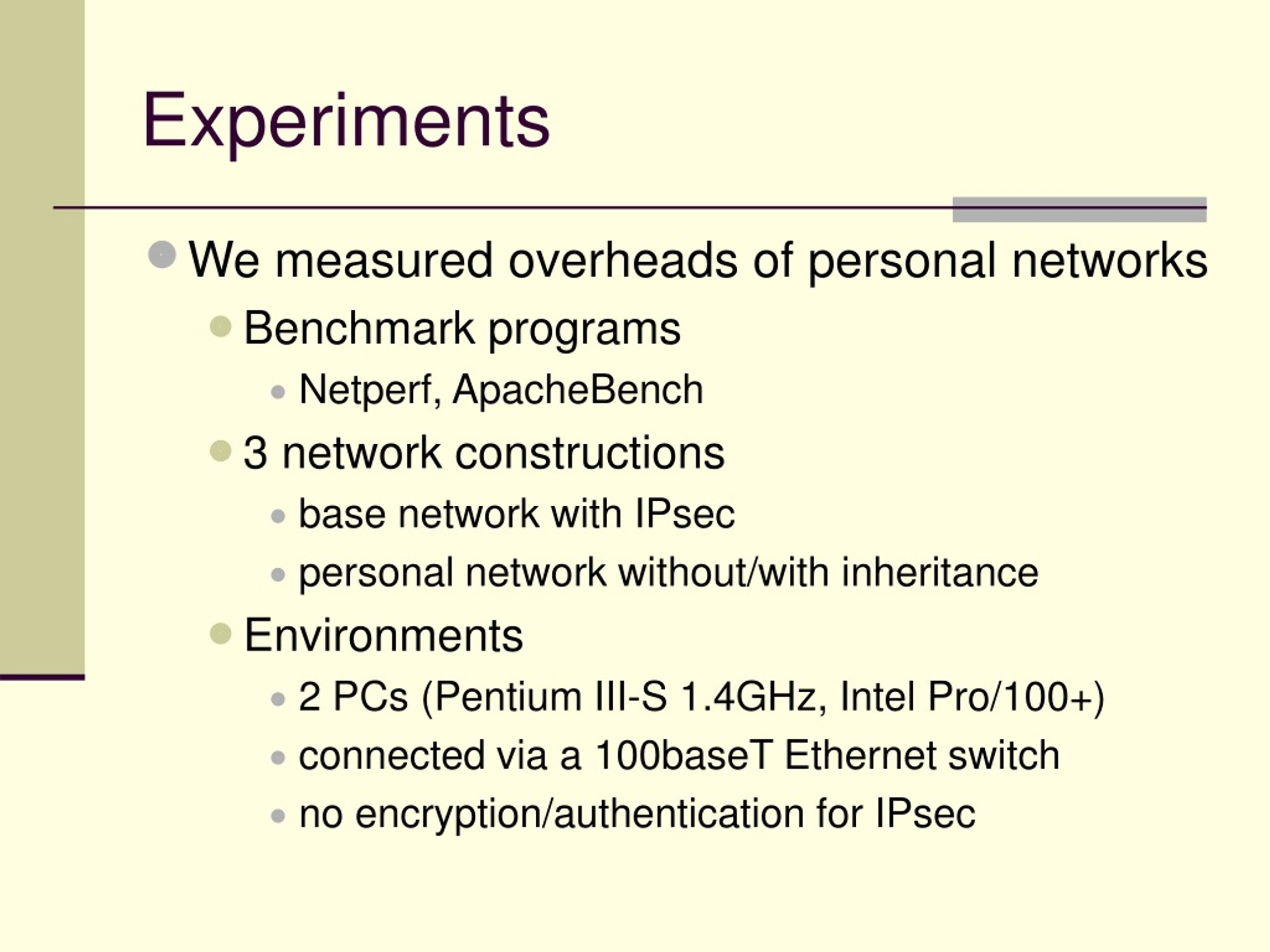

14. Experiments • We measured overheads of personal networks • Benchmark programs • Netperf, ApacheBench • 3 network constructions • base network with IPsec • personal network without/with inheritance • Environments • 2 PCs (Pentium III-S 1.4GHz, Intel Pro/100+) • connected via a 100baseT Ethernet switch • no encryption/authentication for IPsec

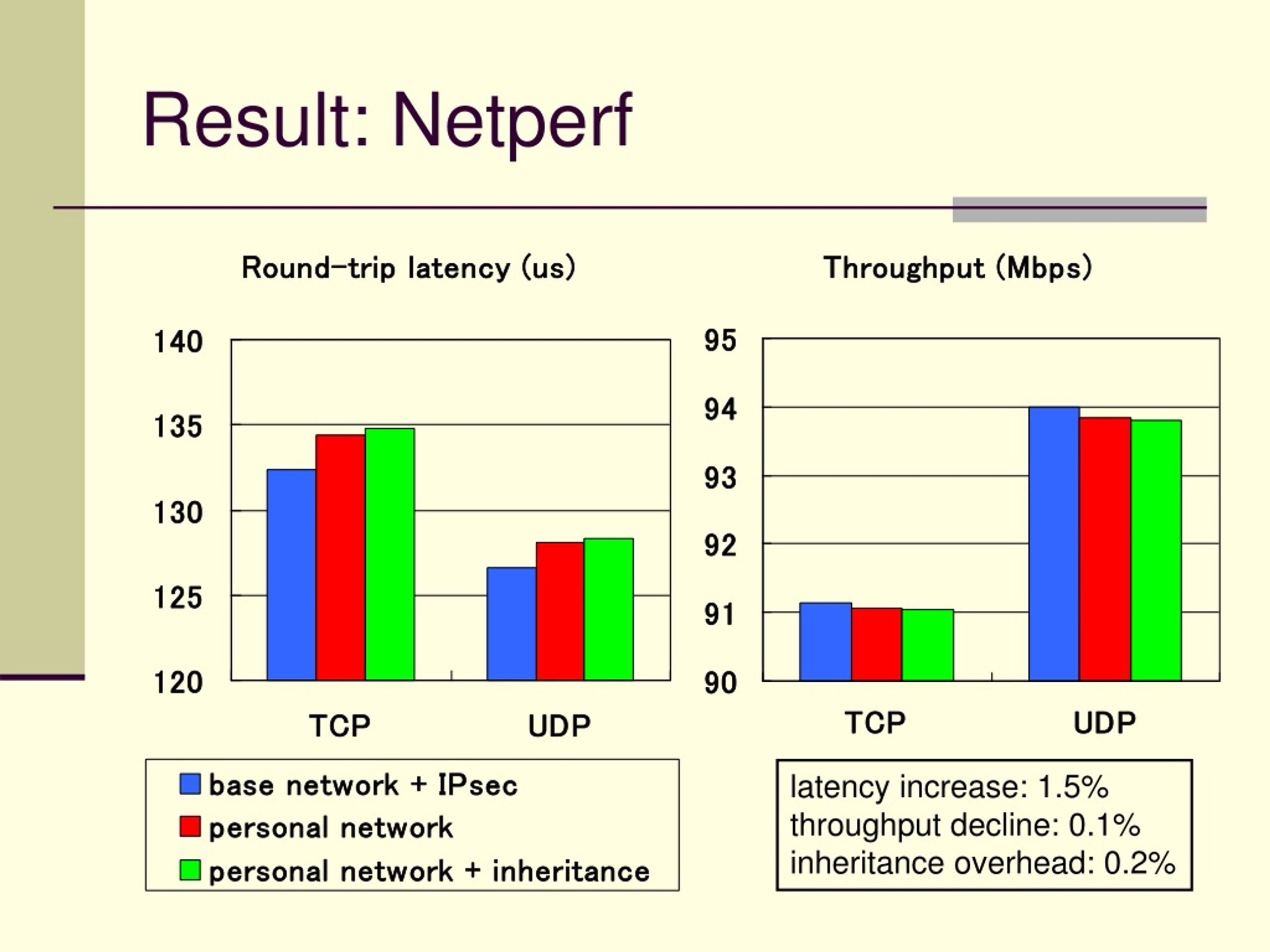

15. Result: Netperf latency increase: 1.5% throughput decline: 0.1% inheritance overhead: 0.2%

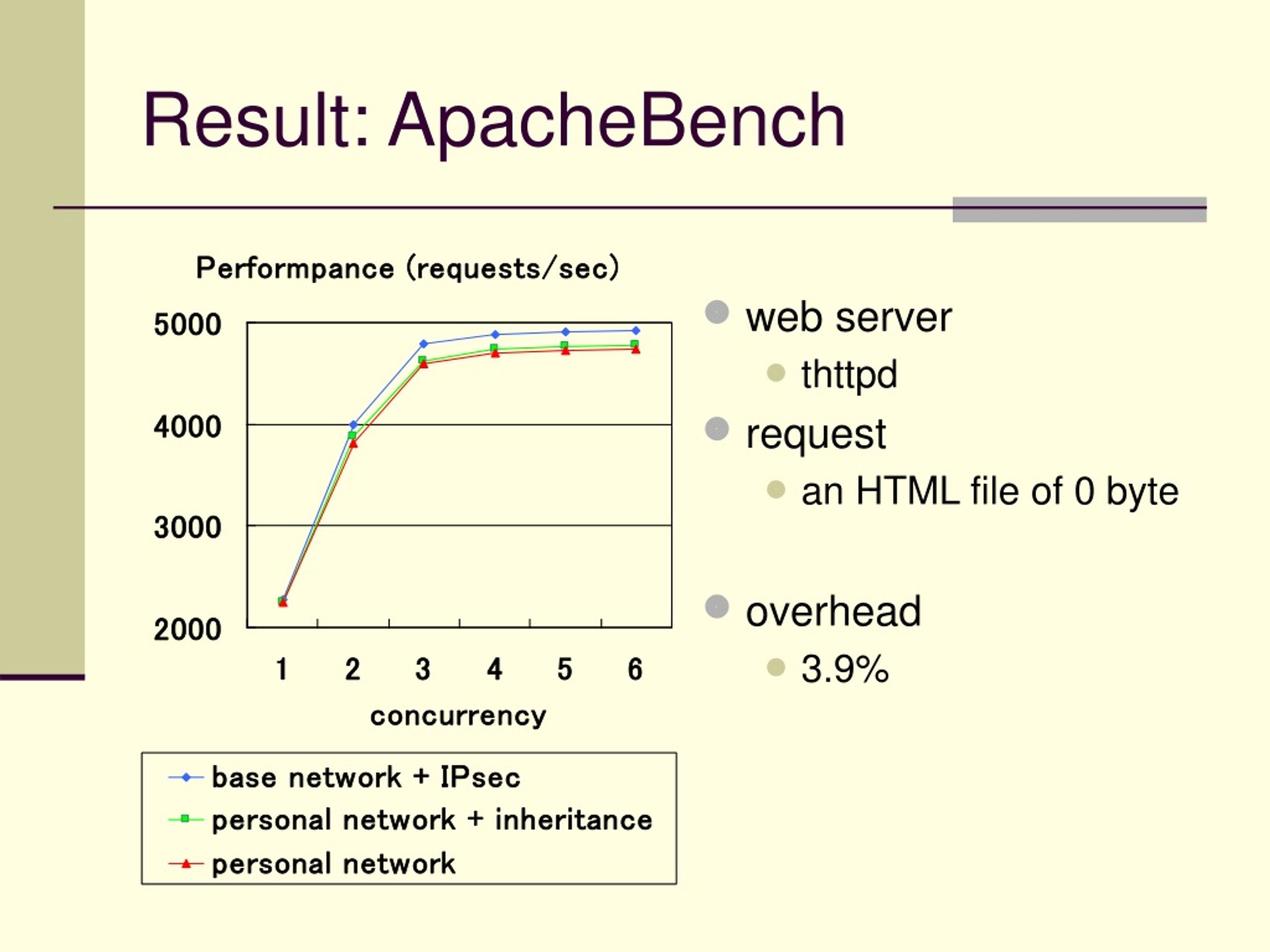

16. Result: ApacheBench • web server • thttpd • request • an HTML file of 0 byte • overhead • 3.9%

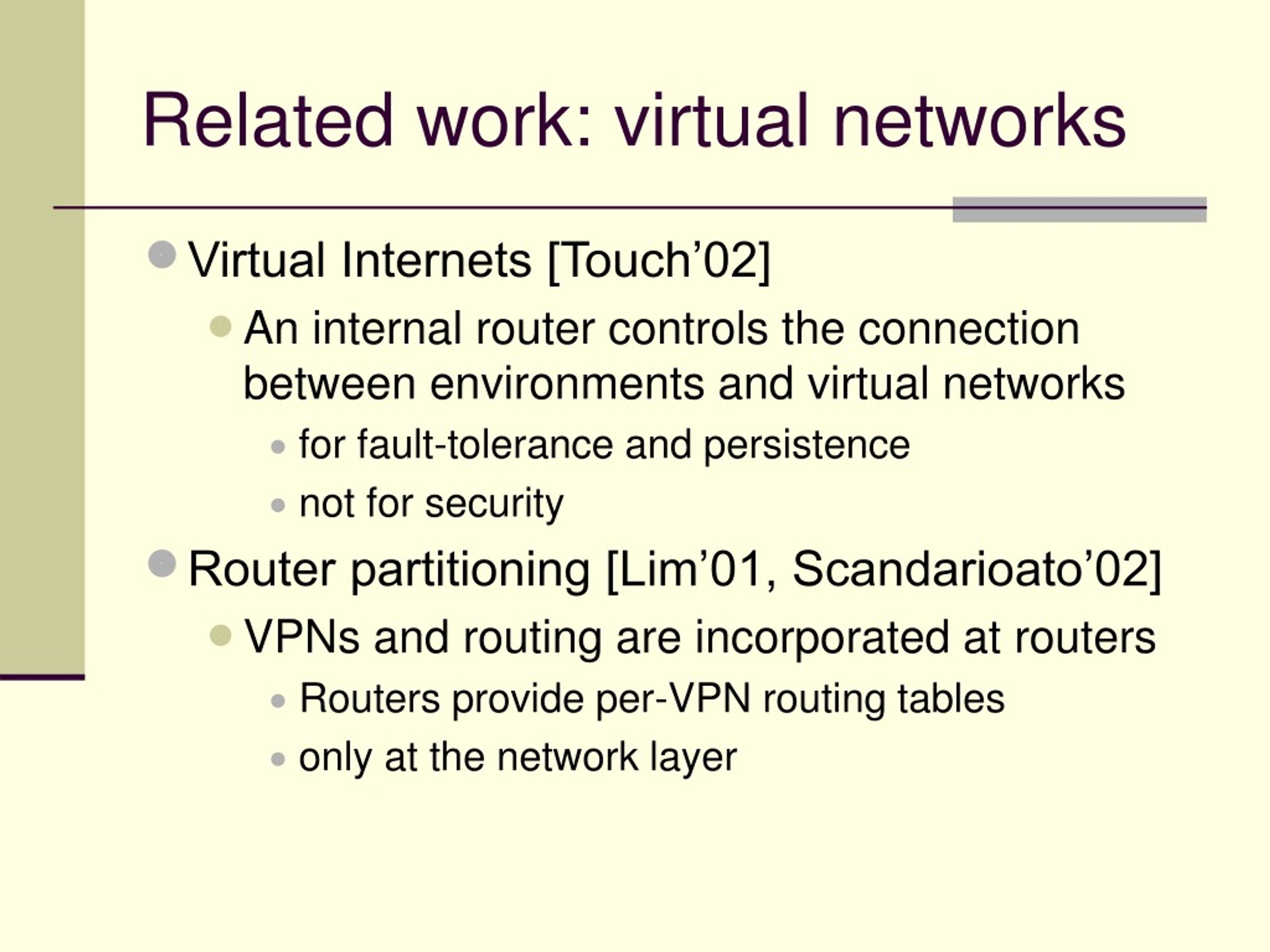

17. Related work: virtual networks • Virtual Internets [Touch’02] • An internal router controls the connection between environments and virtual networks • for fault-tolerance and persistence • not for security • Router partitioning [Lim’01, Scandarioato’02] • VPNs and routing are incorporated at routers • Routers provide per-VPN routing tables • only at the network layer

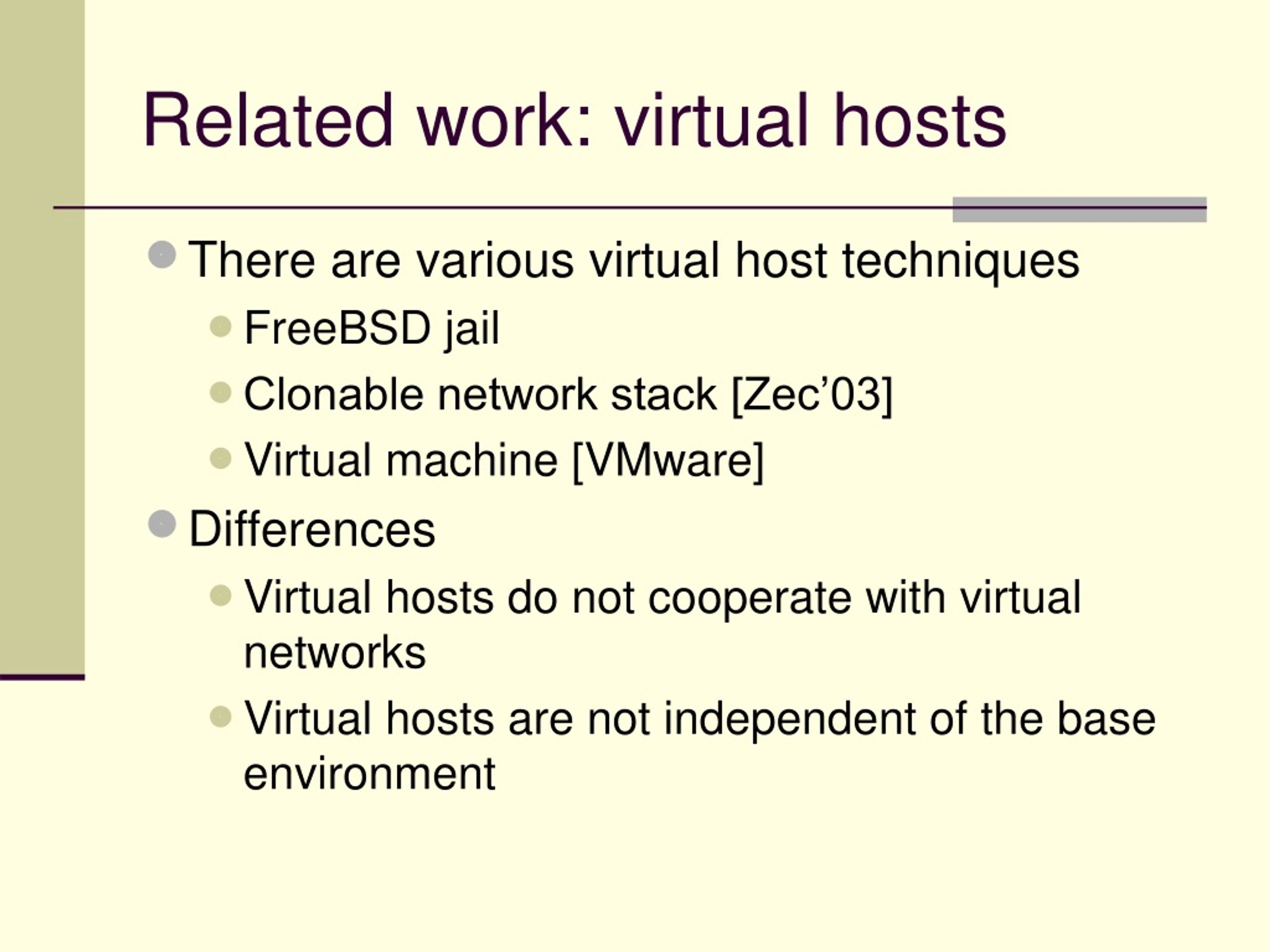

18. Related work: virtual hosts • There are various virtual host techniques • FreeBSD jail • Clonable network stack [Zec’03] • Virtual machine [VMware] • Differences • Virtual hosts do not cooperate with virtual networks • Virtual hosts are not independent of the base environment

19. Conclusion • We proposed personal networks • A personal network integrates a VPN and portspaces • separation of information flow • independent network management • Portspaces inherit services and file systems • Future work • loosening the Chinese Wall security model • QoS support for personal networks
