Multichannel teq design based on the maximum composite ssnr

  • This presentation will probably involve audience discussion, which will create action items. Use PowerPoint to keep track of these action items during your presentation

  • In Slide Show, click on the right mouse button

  • Select “Meeting Minder”

  • Select the “Action Items” tab

  • Type in action items as they come up

  • Click OK to dismiss this box

  • This will automatically create an Action Item slide at the end of your presentation with your points entered.

Multichannel TEQ Design Based on the Maximum Composite SSNR

*M. Milosevic, **L. Pessoa, and

*B. L. Evans

11/17/2014

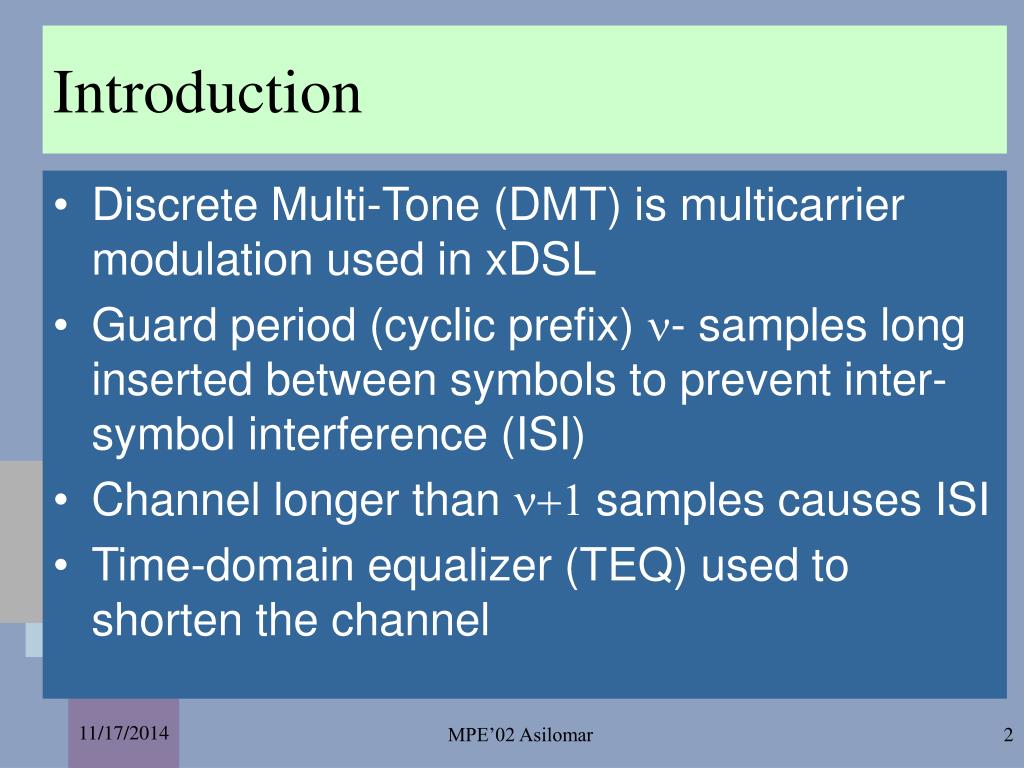

Introduction
Introduction which will create action items. Use PowerPoint to keep track of these action items during your presentation

  • Discrete Multi-Tone (DMT) is multicarrier modulation used in xDSL

  • Guard period (cyclic prefix) n- samples long inserted between symbols to prevent inter-symbol interference (ISI)

  • Channel longer than n+1samples causes ISI

  • Time-domain equalizer (TEQ) used to shorten the channel

MPE’02 Asilomar


Published work
Published Work which will create action items. Use PowerPoint to keep track of these action items during your presentation

  • Many TEQ designs exist for the single-channel case

  • Few attempt multichannel TEQ design

    • Joint Maximum Shortening SNR method[Melsa, Younce & Rohrs, 1996]

    • FIR Channel-Shortening Equalizers for MIMO ISI Channels [Al-Dhahir, 2001]

    • Multichannel TEQ design by loop classification [Farhang-Boroujeny and Ding, 2001]

    • Eigenfilter Design [Tkacenko & Vaidyanthan 2002]

MPE’02 Asilomar

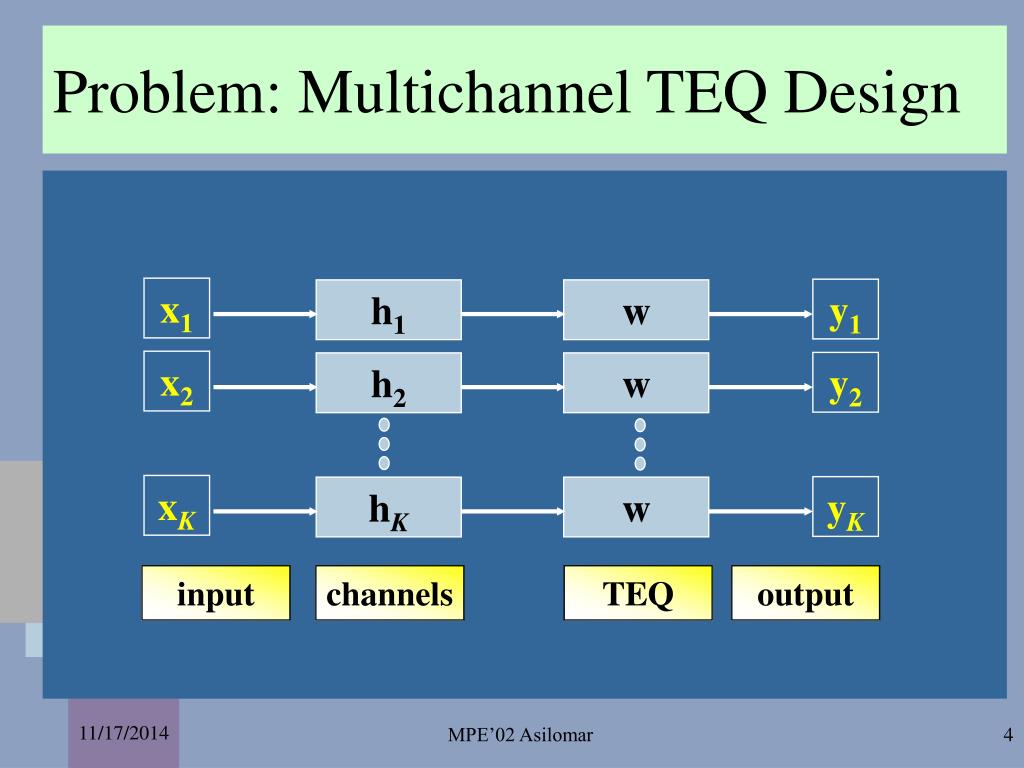

Problem multichannel teq design
Problem: Multichannel TEQ Design which will create action items. Use PowerPoint to keep track of these action items during your presentation

x1

y1

h1

w

x2

y2

h2

w

xK

yK

hK

w

input

channels

TEQ

output

MPE’02 Asilomar


Motivation
Motivation which will create action items. Use PowerPoint to keep track of these action items during your presentation

  • Design multichannel TEQs for classes of loops present in carrier service area

  • Simplify G.992.2 Fast Retrain with multichannel TEQ that is applied every time modem recovers from disturbance and the line is slightly different

MPE’02 Asilomar

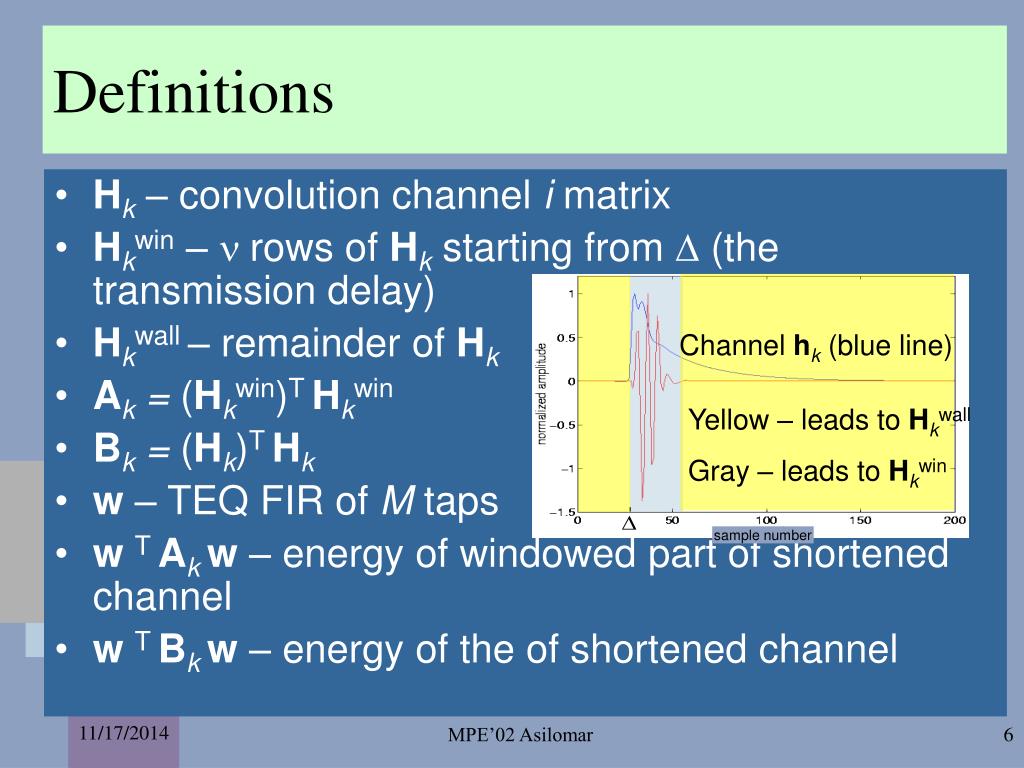

Definitions

Channel which will create action items. Use PowerPoint to keep track of these action items during your presentationhk(blue line)

Yellow – leads to Hkwall

Gray – leads to Hkwin

sample number

Definitions

  • Hk – convolution channel i matrix

  • Hkwin – n rows of Hk starting from D (the transmission delay)

  • Hkwall – remainder of Hk

  • Ak = (Hkwin)T Hkwin

  • Bk = (Hk)T Hk

  • w – TEQ FIR of M taps

  • w T Ak w – energy of windowed part of shortened channel

  • w T Bk w – energy of the of shortened channel

MPE’02 Asilomar


Modified and composite ssnr
Modified and Composite SSNR which will create action items. Use PowerPoint to keep track of these action items during your presentation

  • Define

    • As TEQ shortens channel Modified SSNR goes to 1 instead of Inf like SSNR

  • Define Composite SSNR as

  • Problem:

Desired channel energy

ISI-causing channel energy

MPE’02 Asilomar

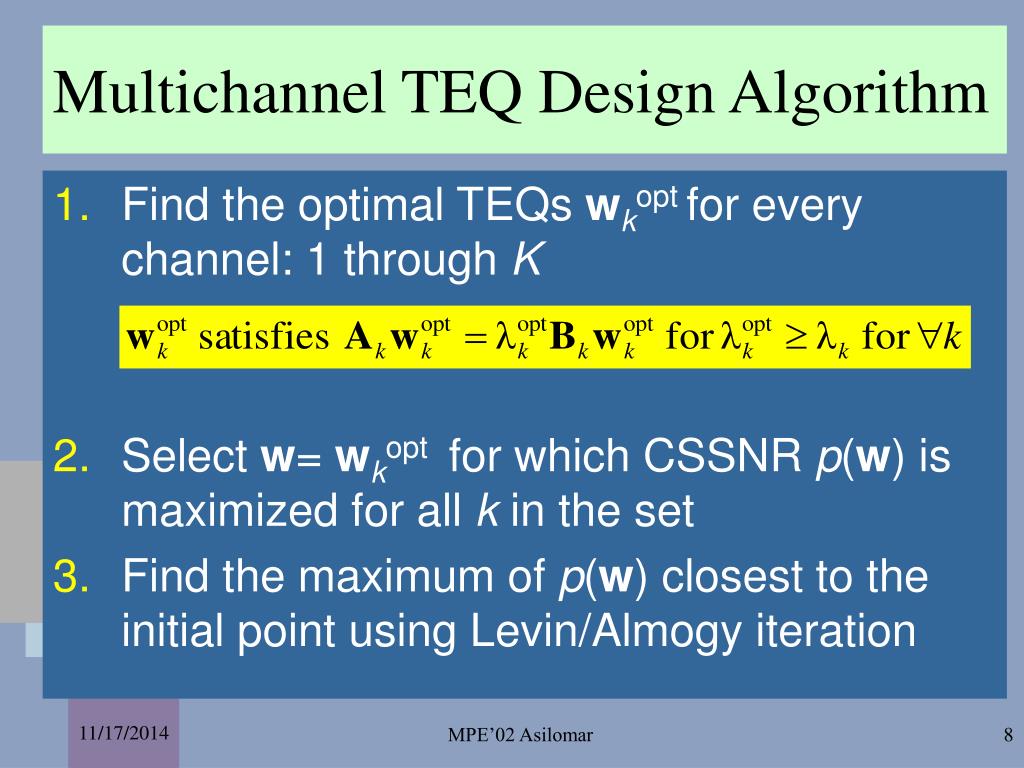

Multichannel teq design algorithm
Multichannel TEQ Design Algorithm which will create action items. Use PowerPoint to keep track of these action items during your presentation

  • Find the optimal TEQs wkopt for every channel: 1 through K

  • Select w= wkopt for which CSSNR p(w) is maximized for all k in the set

  • Find the maximum of p(w) closest to the initial point using Levin/Almogy iteration

MPE’02 Asilomar


Simulation results
Simulation Results which will create action items. Use PowerPoint to keep track of these action items during your presentation

  • Channels jointly shortened: CSA loops 1-8

  • Example: CSA loop 1 and CSA loop 5

MPE’02 Asilomar

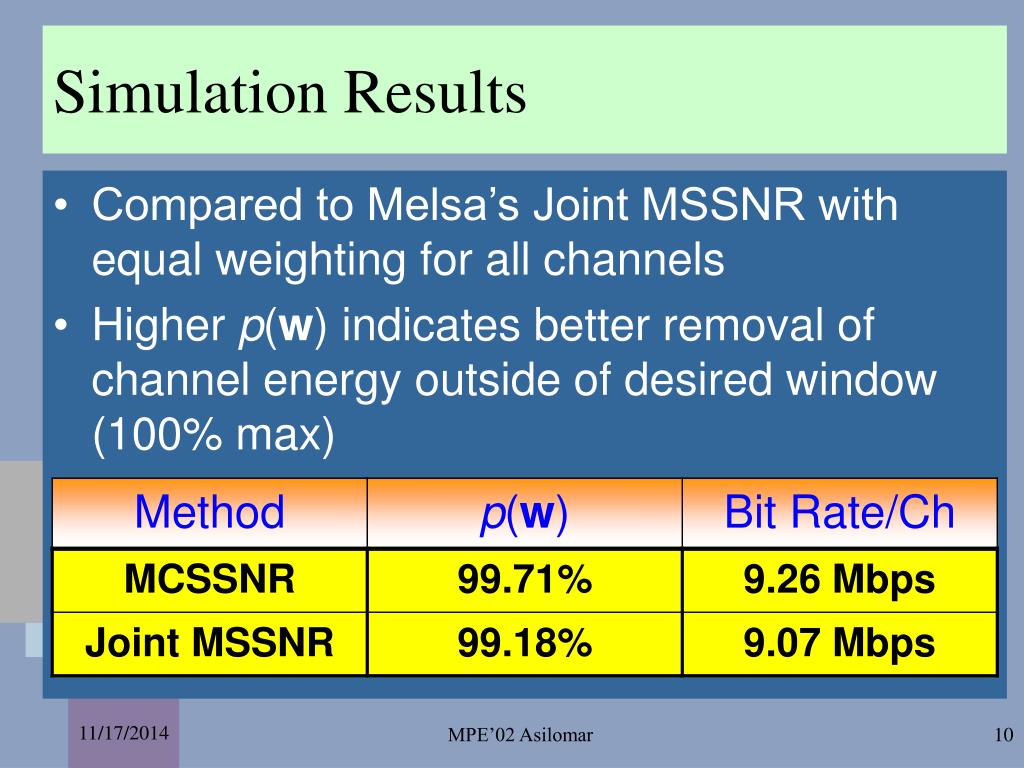

Simulation results1
Simulation Results which will create action items. Use PowerPoint to keep track of these action items during your presentation

  • Compared to Melsa’s Joint MSSNR with equal weighting for all channels

  • Higher p(w) indicates better removal of channel energy outside of desired window (100% max)

MPE’02 Asilomar


Conclusions
Conclusions which will create action items. Use PowerPoint to keep track of these action items during your presentation

  • Multichannel TEQs can be useful and perform well

  • MCSSNR reports higher data rate than Joint MSSNR

  • MCSSNR is expensive (multiple generalized eigenvector problems during algorithm)

MPE’02 Asilomar
