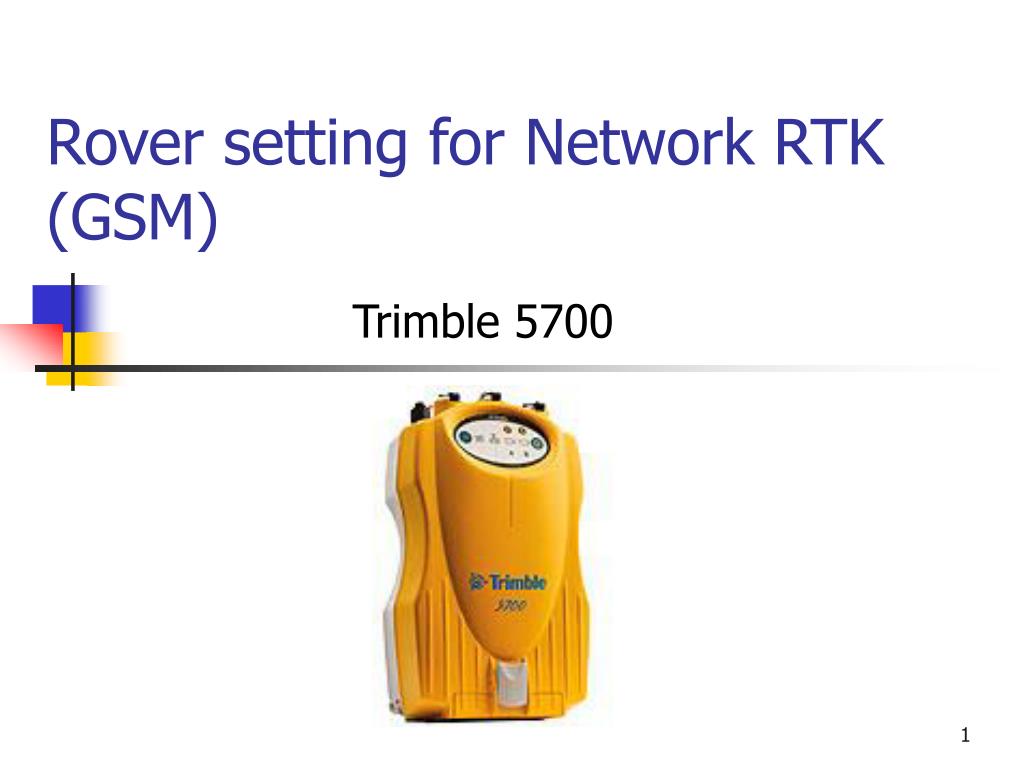

  1. Rover setting for Network RTK (GSM) Trimble 5700

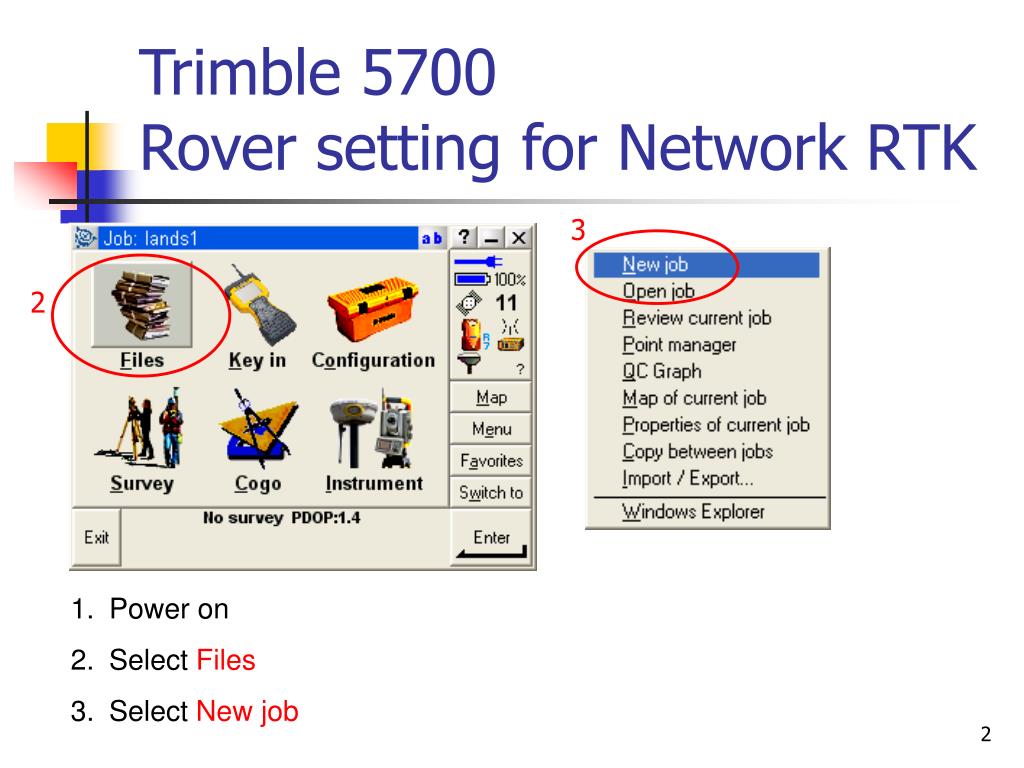

  2. Trimble 5700Rover setting for Network RTK 3 2 • Power on • Select Files • Select New job

  3. Trimble 5700Rover setting for Network RTK 4 5 6 7 4. Enter Job name 5. Select Local site 6. Select Key in parameters 7. Press Next

  4. Trimble 5700Rover setting for Network RTK 9 8 10 8. Select Projection 9. Enter the projection parameters 10 Press the button 1/2 to continue

  5. Trimble 5700Rover setting for Network RTK 11 13 12 11. Enter projection parameters 12. Press Accept to confirm the settings 13. Select Datum transformation

  6. Trimble 5700Rover setting for Network RTK 14 16 15 17 14. Enter the 7 p parameters 15. Press button 1/2 to continue 16. Enter the 7 p parameters 17. Press Accept to confirm the settings

  7. Trimble 5700Rover setting for Network RTK 18 19 20 18. Select Horizontal adjustment 19. Select No adjustment 20. Press Accept to Confirm the setting

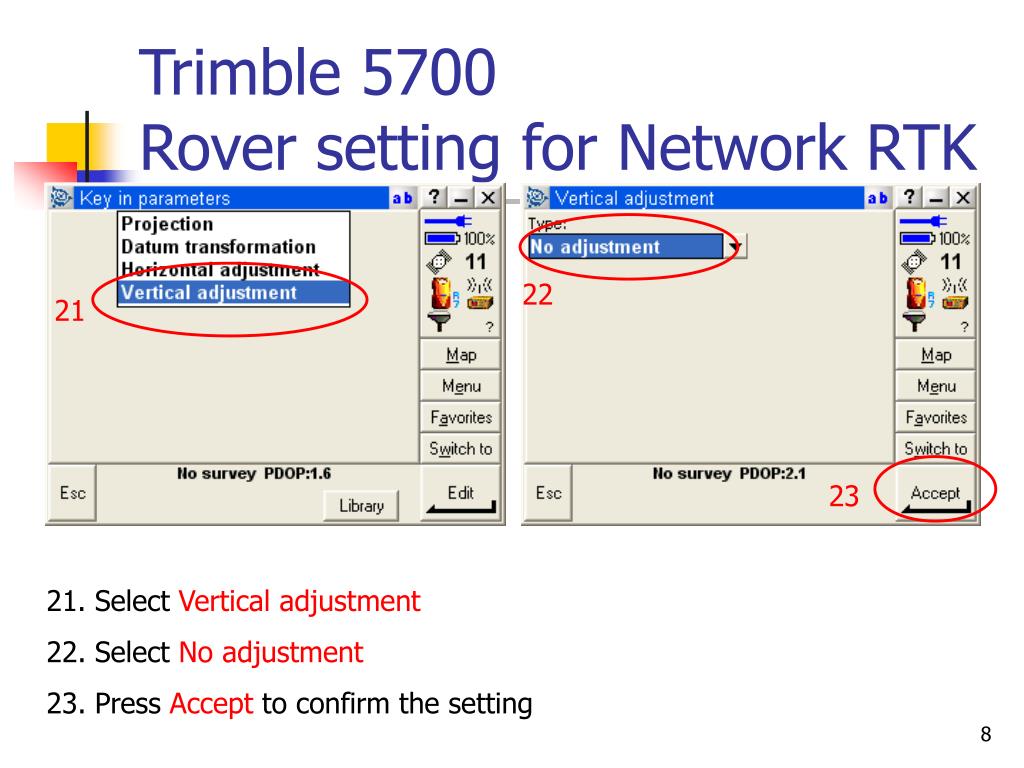

  8. Trimble 5700Rover setting for Network RTK 22 21 23 21. Select Vertical adjustment 22. Select No adjustment 23. Press Accept to confirm the setting

  9. Trimble 5700Rover setting for Network RTK 25 24 24. Press Esc 25. Select Meters

  10. Trimble 5700Rover setting for Network RTK 26 28 29 27 26. Enter the Units settings 27. Press the button 1/3 to continue 28. Enter the Units settings 29. Press the button 2/3 to continue

  11. Trimble 5700Rover setting for Network RTK 30 32 31 30. Enter the Units settings 31. Press Accept to confirm the settings 32. Press Menu

  12. Trimble 5700Rover setting for Network RTK 33 34 33. Select Configuration 34. Select Survey styles

  13. Trimble 5700Rover setting for Network RTK 36 35 35. Select RTK 36. Select Rover options

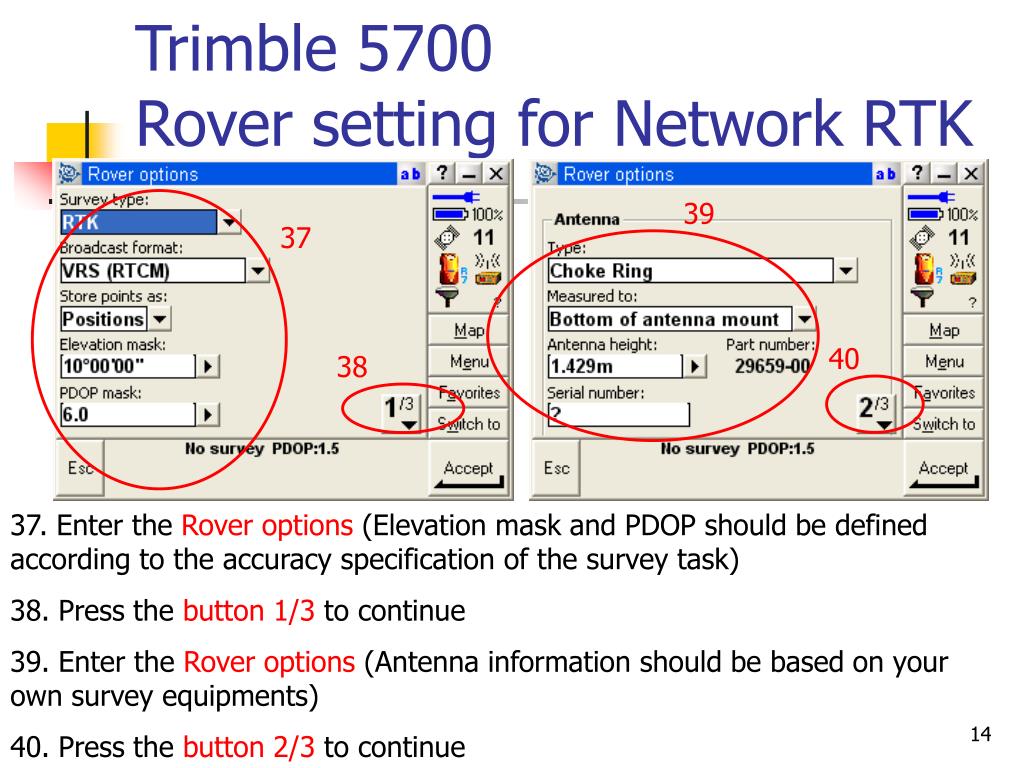

  14. Trimble 5700Rover setting for Network RTK 39 37 40 38 37. Enter the Rover options (Elevation mask and PDOP should be defined according to the accuracy specification of the survey task) 38. Press the button 1/3 to continue 39. Enter the Rover options (Antenna information should be based on your own survey equipments) 40. Press the button 2/3 to continue

  15. Trimble 5700Rover setting for Network RTK 43 41 42 41. Enter the Rover options 42. Press Accept to confirm the settings 43. Select Rover radio

  16. Trimble 5700Rover setting for Network RTK 44 46 45 47 44. Enter the Rover radio settings 45. Press the button 1/2 to continue 46. Enter the Rover radio settings 47. Press Accept to confirm the settings

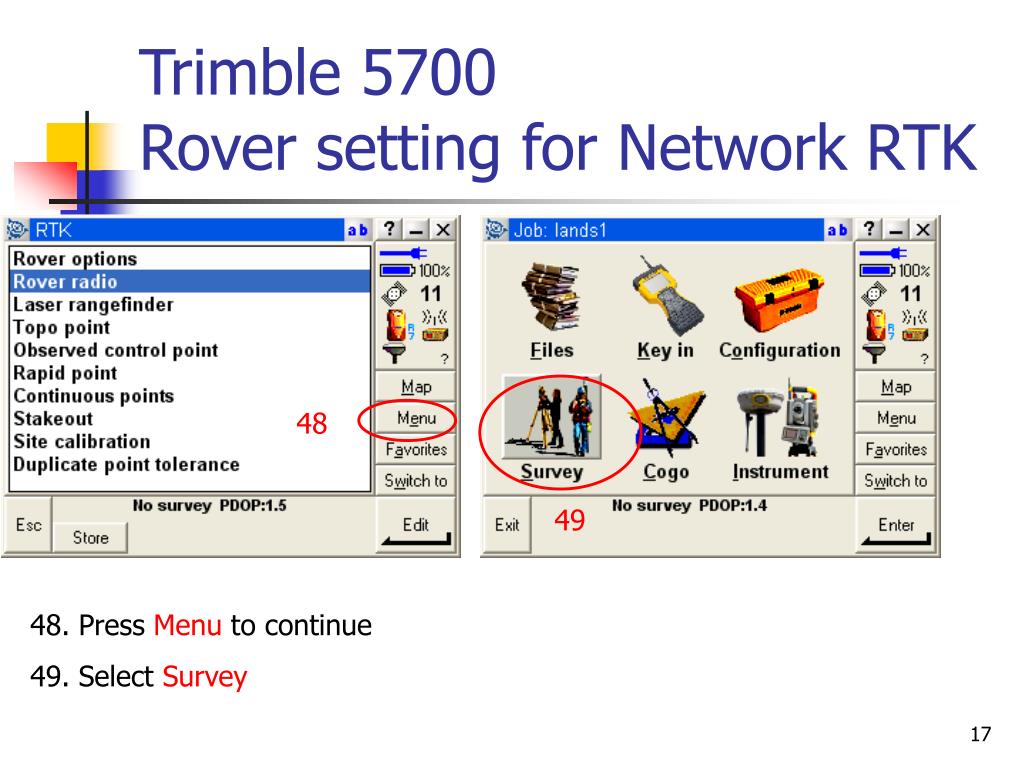

  17. Trimble 5700Rover setting for Network RTK 48 49 48. Press Menu to continue 49. Select Survey

  18. Trimble 5700Rover setting for Network RTK 51 50 50. Select RTK 51. Select Start survey
