isa 3200 network security

ISA 3200Network Security

Chapter 9: Encryption and Firewalls

learning objectives

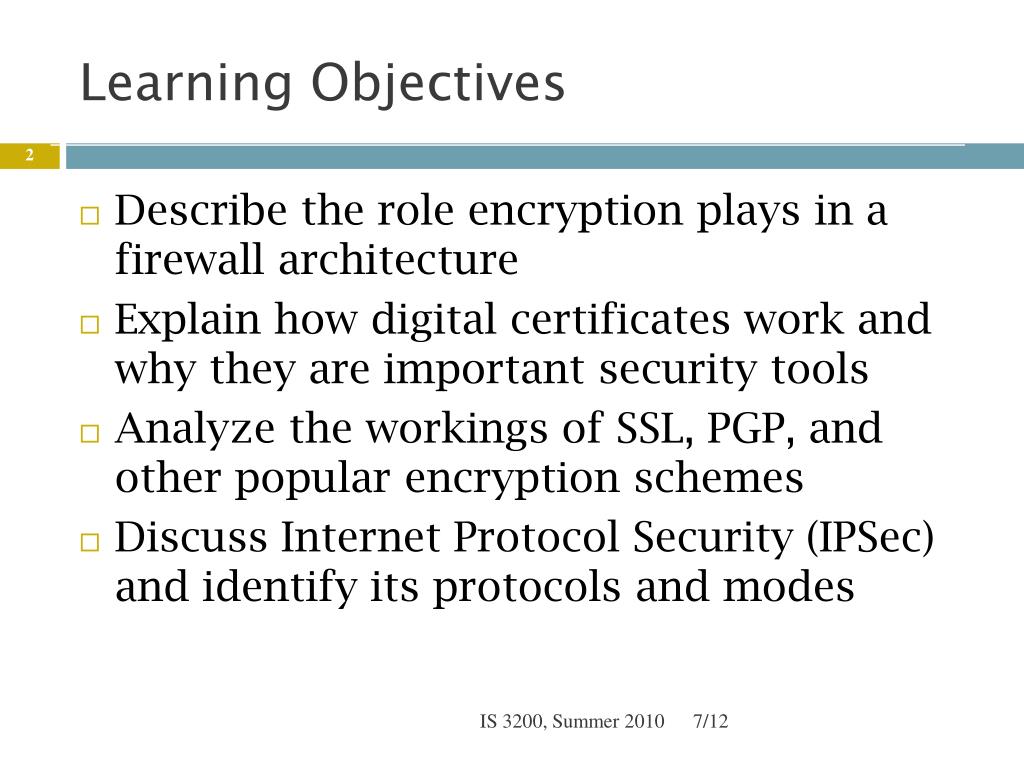

Learning Objectives
  • Describe the role encryption plays in a firewall architecture
  • Explain how digital certificates work and why they are important security tools
  • Analyze the workings of SSL, PGP, and other popular encryption schemes
  • Discuss Internet Protocol Security (IPSec) and identify its protocols and modes

IS 3200, Summer 2010

firewalls and encryption
Firewalls and Encryption
  • Hackers take advantage of a lack of encryption
  • Encryption:
    • Preserves data integrity
    • Increases confidentiality
    • Is relied upon by user authentication
    • Plays a fundamental role in enabling VPNs

IS 3200, Summer 2010

hacker and an encrypted packet

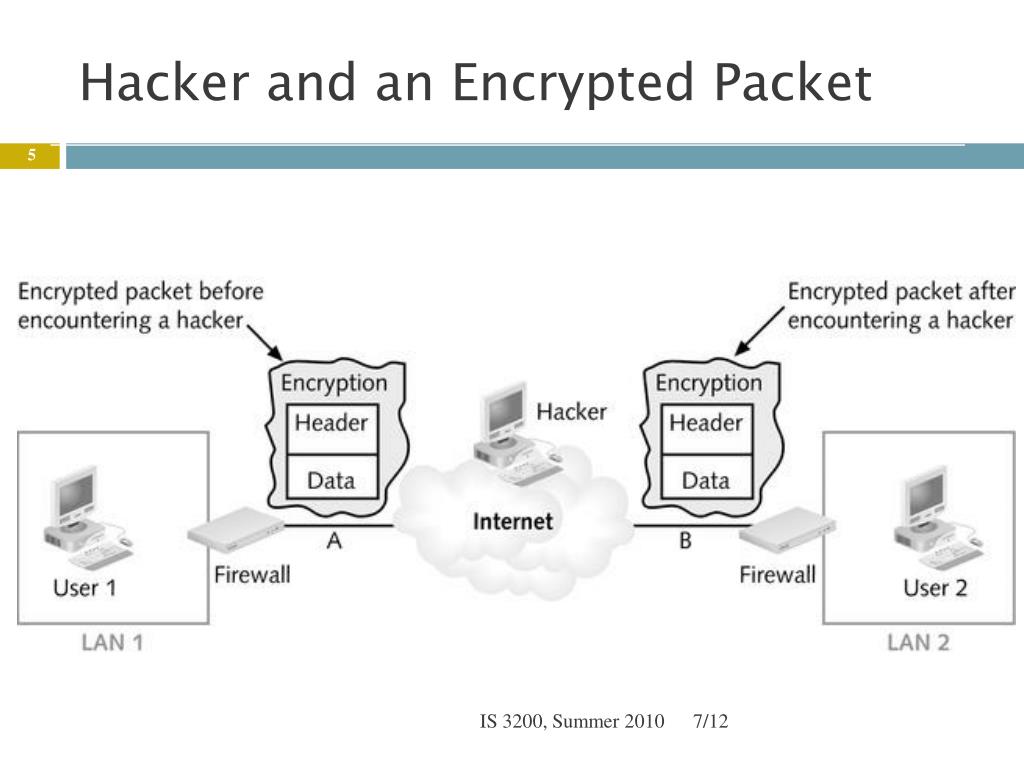

Hacker and an Encrypted Packet

IS 3200, Summer 2010

the cost of encryption

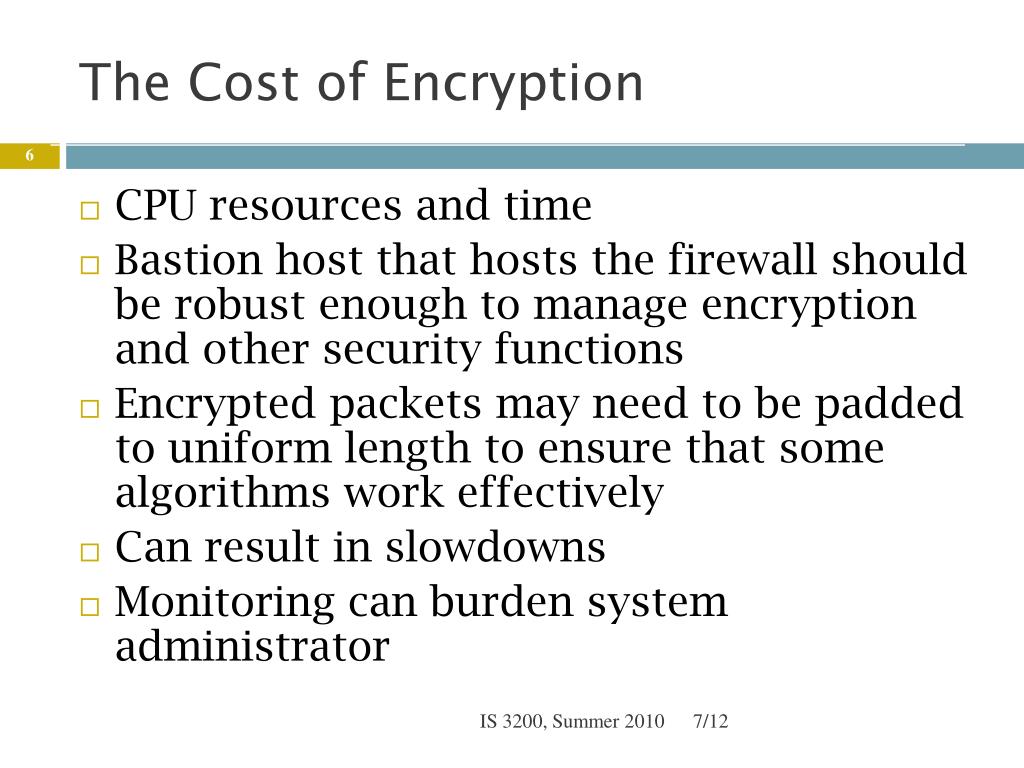

The Cost of Encryption
  • CPU resources and time
  • Bastion host that hosts the firewall should be robust enough to manage encryption and other security functions
  • Encrypted packets may need to be padded to uniform length to ensure that some algorithms work effectively
  • Can result in slowdowns
  • Monitoring can burden system administrator

IS 3200, Summer 2010

preserving data integrity
Preserving Data Integrity
  • Even encrypted sessions can go wrong as a result of man-in-the-middle attacks
  • Encryption can perform nonrepudiation using a digital signature

IS 3200, Summer 2010

maintaining confidentiality
Maintaining Confidentiality
  • Encryption conceals information to render it unreadable to all but intended recipients

IS 3200, Summer 2010

authenticating network clients

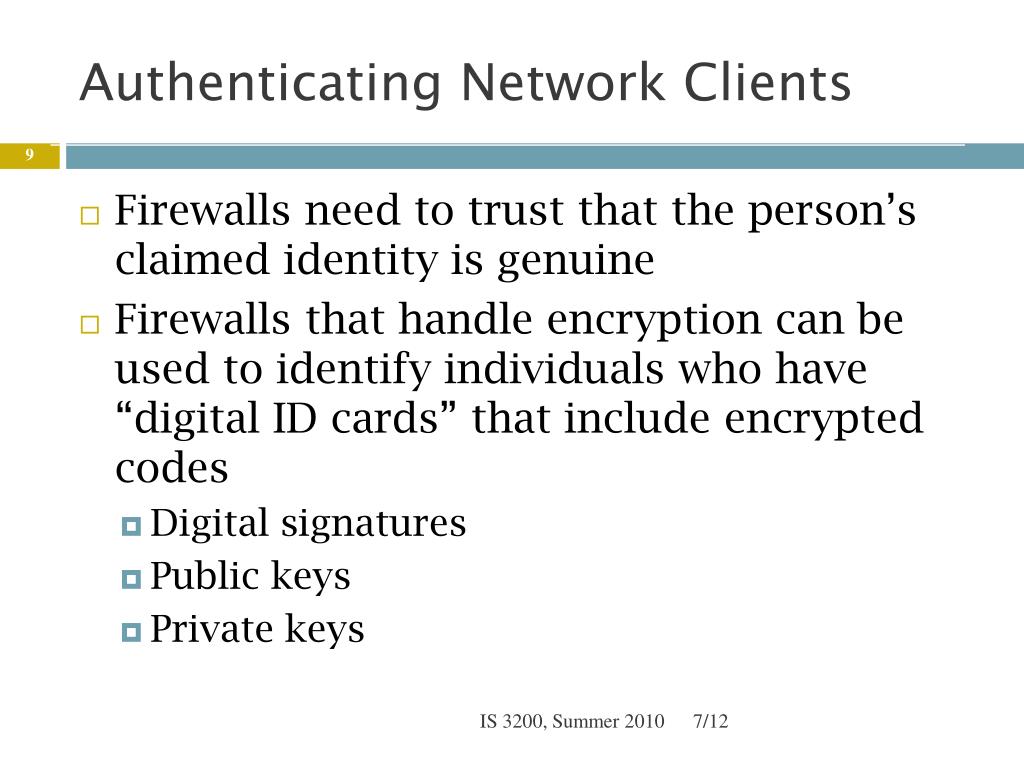

Authenticating Network Clients
  • Firewalls need to trust that the person’s claimed identity is genuine
  • Firewalls that handle encryption can be used to identify individuals who have “digital ID cards” that include encrypted codes
    • Digital signatures
    • Public keys
    • Private keys

IS 3200, Summer 2010

enabling virtual private networks vpns
Enabling Virtual Private Networks (VPNs)
  • As an integral part of VPNs, encryption:
    • Enables the firewall to determine whether the user who wants to connect to the VPN is actually authorized to do so
    • Encodes payload of information to maintain privacy

IS 3200, Summer 2010

principles of cryptography
Principles of Cryptography
  • Encryption: the process of converting an original message into a form that cannot be understood by unauthorized individuals
  • Cryptology, the science of encryption, encompasses two disciplines:
    • Cryptography: describes the processes involved in encoding and decoding messages so that others cannot understand them
    • Cryptanalysis: the process of deciphering the original message (plaintext) from an encrypted message (ciphertext) without knowing the algorithms and keys used to perform the encryption

IS 3200, Summer 2010

encryption definitions
Encryption Definitions
  • Algorithm: the mathematical formula or method used to convert an unencrypted message into an encrypted message
  • Cipher: the transformation of the individual components (characters, bytes, or bits) of an unencrypted message into encrypted components
  • Ciphertext or cryptogram: the unintelligible encoded message resulting from an encryption
  • Cryptosystem: the set of transformations necessary to convert an unencrypted message into an encrypted message

IS 3200, Summer 2010

encryption definitions continued

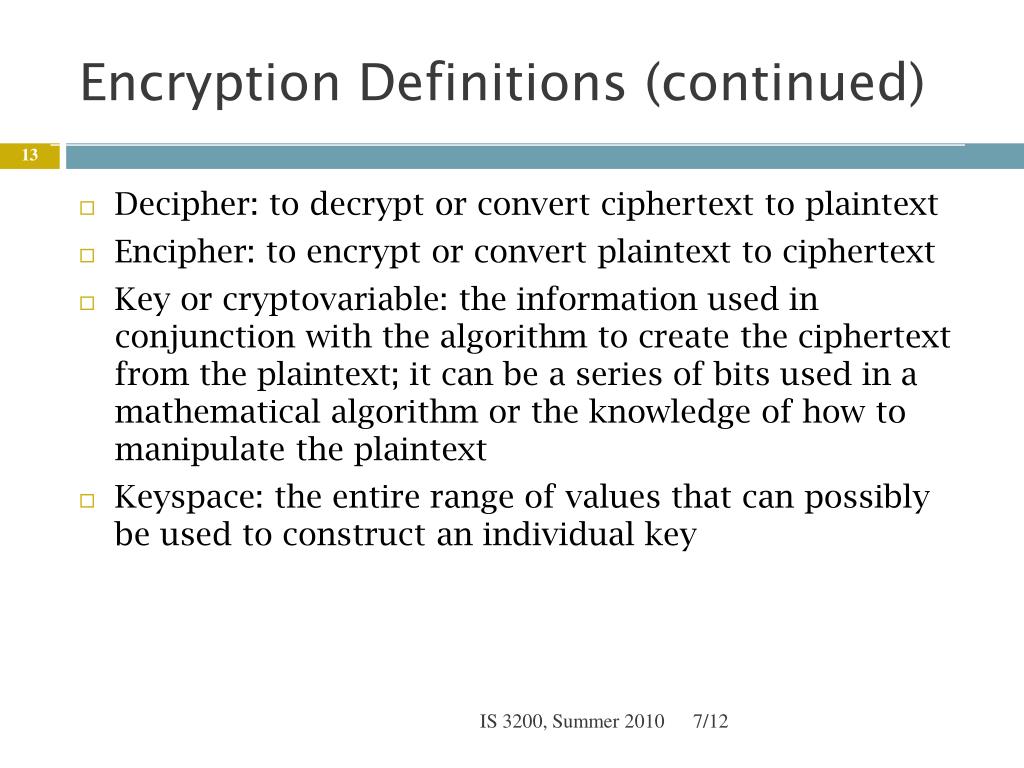

Encryption Definitions (continued)
  • Decipher: to decrypt or convert ciphertext to plaintext
  • Encipher: to encrypt or convert plaintext to ciphertext
  • Key or cryptovariable: the information used in conjunction with the algorithm to create the ciphertext from the plaintext; it can be a series of bits used in a mathematical algorithm or the knowledge of how to manipulate the plaintext
  • Keyspace: the entire range of values that can possibly be used to construct an individual key

IS 3200, Summer 2010

encryption definitions continued1
Encryption Definitions (continued)
  • Plaintext: the original unencrypted message that is encrypted and results from successful decryption
  • Steganography: the process of hiding messages, usually within graphic images
  • Work factor: the amount of effort (usually expressed in units of time) required to perform cryptanalysis on an encoded message

IS 3200, Summer 2010

Firewalls & Network Security, 2nd ed. - Chapter 9

14

cryptographic notation
Cryptographic Notation

M represents original message; C represents ciphertext; E represents encryption process; D represents the decryption process; K represents a key

So…

E(M) = C encrypting a message results in cyphertext

D(C) = M and D[E(M)] = M

E(M,K) = C specifies encrypting the message with a key; keys can be annotated K1, K2, etc. in the case of multiple keys

IS 3200, Summer 2010

common ciphers

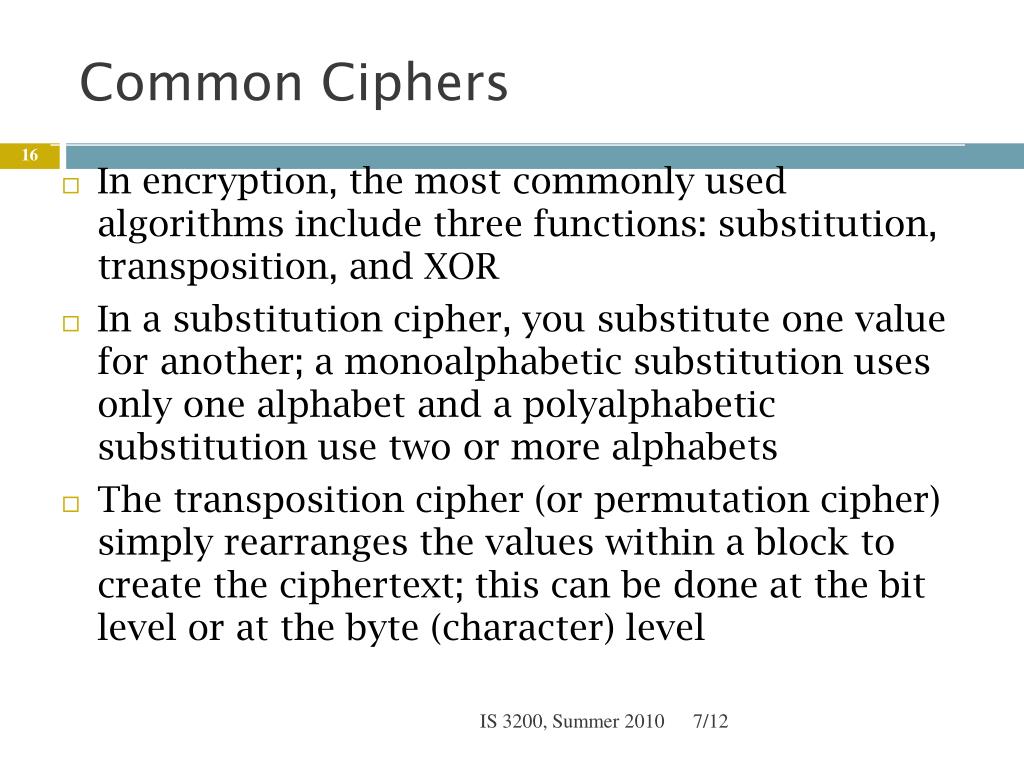

Common Ciphers
  • In encryption, the most commonly used algorithms include three functions: substitution, transposition, and XOR
  • In a substitution cipher, you substitute one value for another; a monoalphabetic substitution uses only one alphabet and a polyalphabetic substitution use two or more alphabets
  • The transposition cipher (or permutation cipher) simply rearranges the values within a block to create the ciphertext; this can be done at the bit level or at the byte (character) level

IS 3200, Summer 2010

common ciphers continued
Common Ciphers (continued)
  • In the XOR cipher conversion, the bit stream is subjected to a Boolean XOR function against some other data stream, typically a key stream
  • XOR works as follows:
    • ‘0’ XOR’ed with ‘0’ results in a ‘0’ (0  0 = 0)
    • ‘0’ XOR’ed with ‘1’ results in a ‘1’ (0  1 = 1)
    • ‘1’ XOR’ed with ‘0’ results in a ‘1’ (1  0 = 1)
    • ‘1’ XOR’ed with ‘1’ results in a ‘0’ (1  1 = 0)
  • Simply put, if the two values are the same, you get “0”; if not, you get “1”
  • This process is reversible; that is, if you XOR the ciphertext with the key stream, you get the plaintext

IS 3200, Summer 2010

vernam cipher

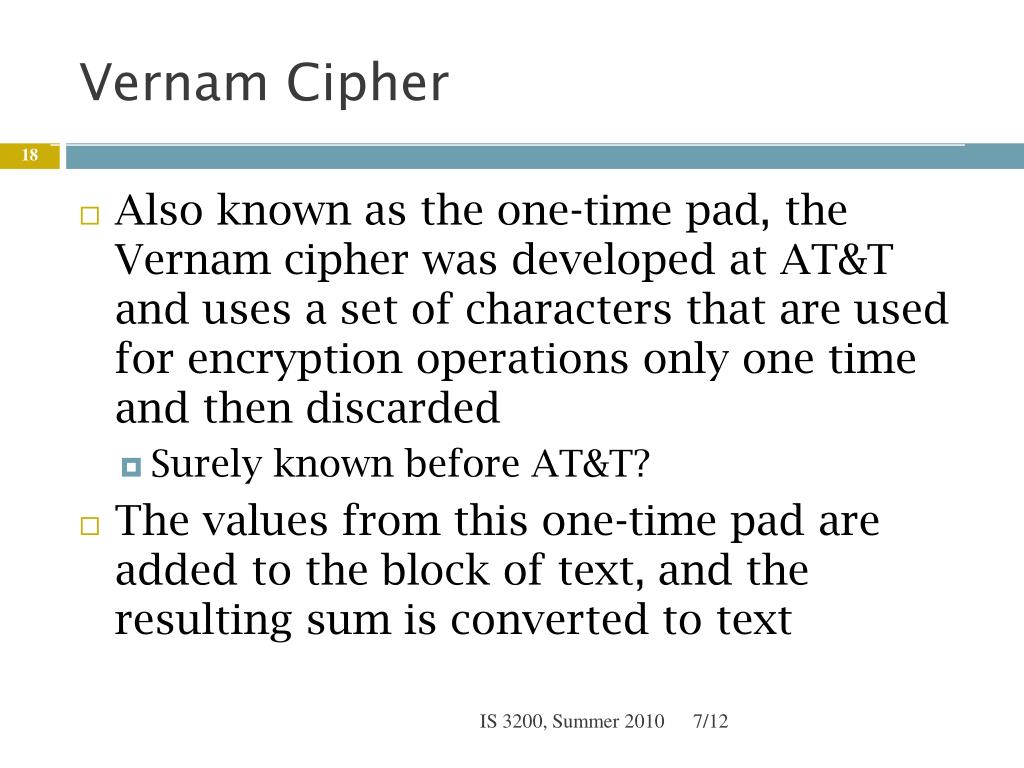

Vernam Cipher
  • Also known as the one-time pad, the Vernam cipher was developed at AT&T and uses a set of characters that are used for encryption operations only one time and then discarded
    • Surely known before AT&T?
  • The values from this one-time pad are added to the block of text, and the resulting sum is converted to text

IS 3200, Summer 2010

book or running key cipher
Book or Running Key Cipher
  • Another method, used in the occasional spy movie, is the use of text in a book as the algorithm to decrypt a message
  • The key relies on two components:
    • Knowing which book to use
    • A list of codes representing the page number, line number, and word number of the plaintext word

IS 3200, Summer 2010

symmetric encryption

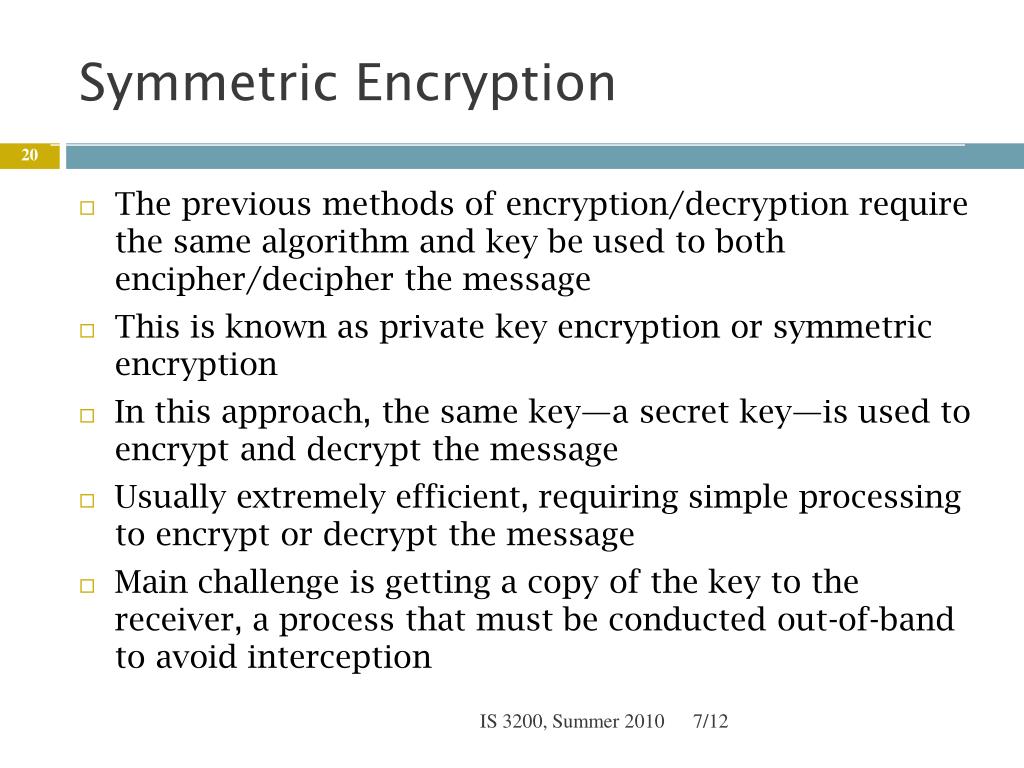

Symmetric Encryption
  • The previous methods of encryption/decryption require the same algorithm and key be used to both encipher/decipher the message
  • This is known as private key encryption or symmetric encryption
  • In this approach, the same key—a secret key—is used to encrypt and decrypt the message
  • Usually extremely efficient, requiring simple processing to encrypt or decrypt the message
  • Main challenge is getting a copy of the key to the receiver, a process that must be conducted out-of-band to avoid interception

IS 3200, Summer 2010

the technology of symmetric encryption
The Technology of Symmetric Encryption

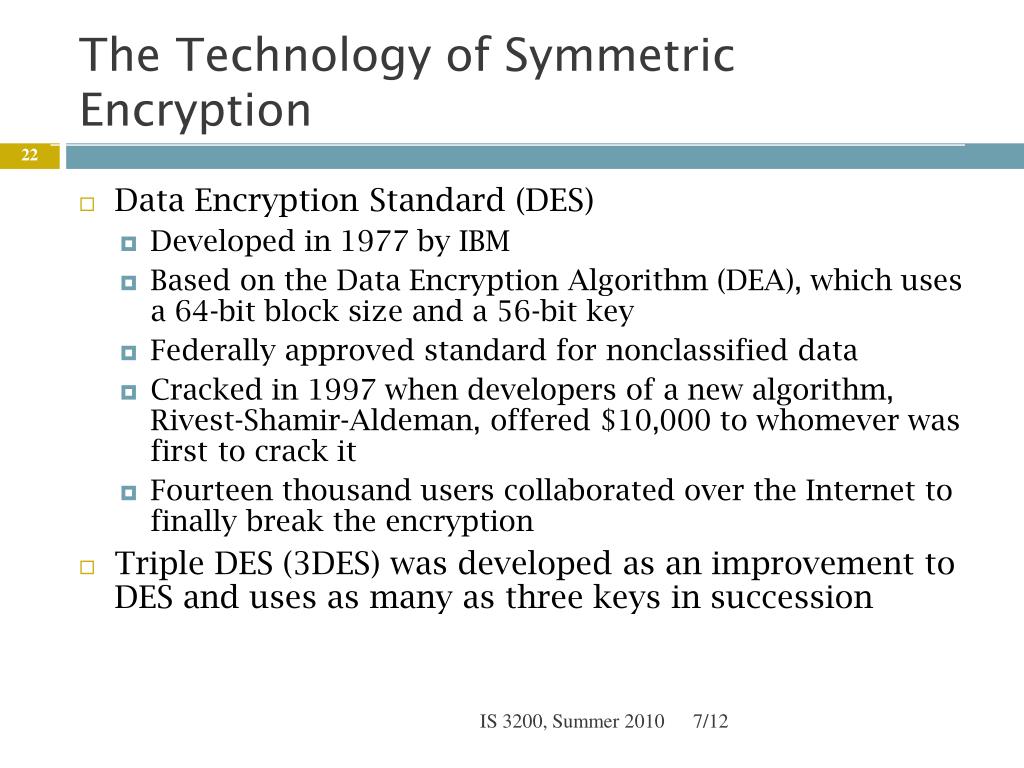

  • Data Encryption Standard (DES)
    • Developed in 1977 by IBM
    • Based on the Data Encryption Algorithm (DEA), which uses a 64-bit block size and a 56-bit key
    • Federally approved standard for nonclassified data
    • Cracked in 1997 when developers of a new algorithm, Rivest-Shamir-Aldeman, offered $10,000 to whomever was first to crack it
    • Fourteen thousand users collaborated over the Internet to finally break the encryption
  • Triple DES (3DES) was developed as an improvement to DES and uses as many as three keys in succession

IS 3200, Summer 2010

the technology of symmetric encryption continued
The Technology of Symmetric Encryption (continued)

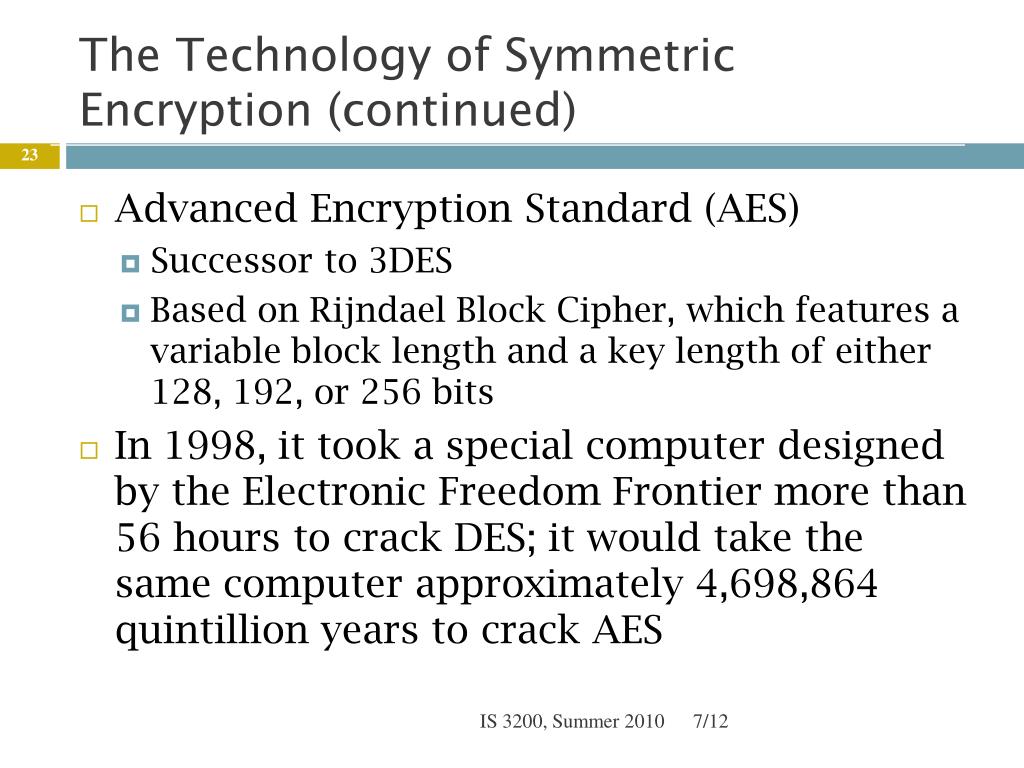

  • Advanced Encryption Standard (AES)
    • Successor to 3DES
    • Based on Rijndael Block Cipher, which features a variable block length and a key length of either 128, 192, or 256 bits
  • In 1998, it took a special computer designed by the Electronic Freedom Frontier more than 56 hours to crack DES; it would take the same computer approximately 4,698,864 quintillion years to crack AES

IS 3200, Summer 2010

asymmetric encryption

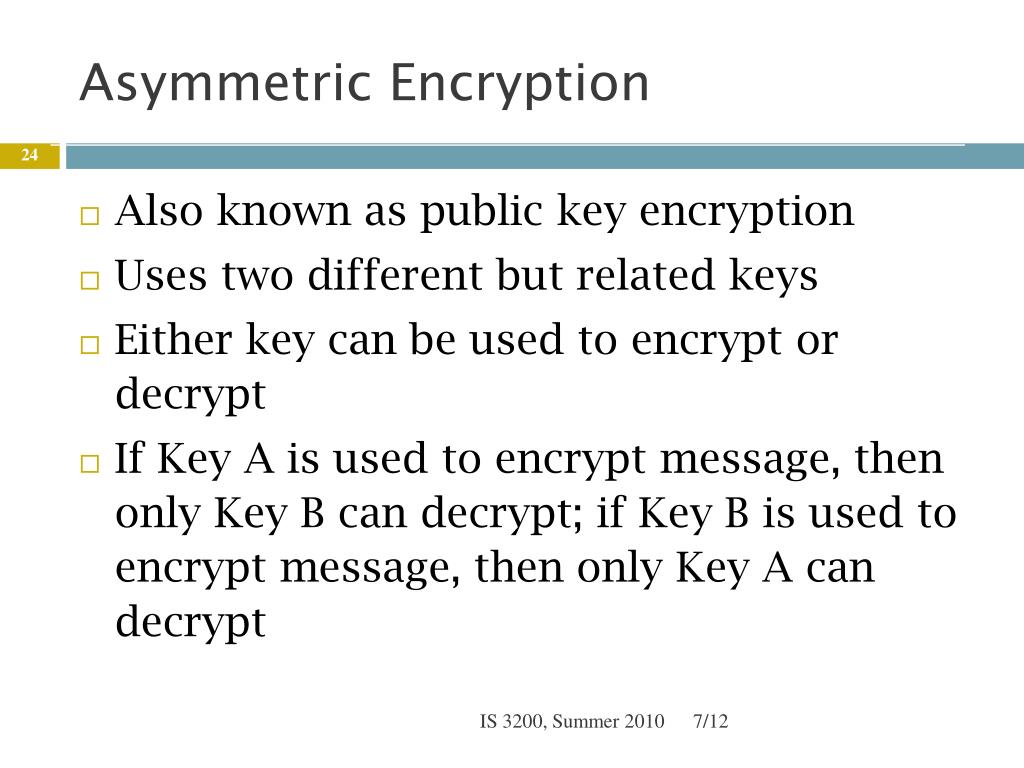

Asymmetric Encryption
  • Also known as public key encryption
  • Uses two different but related keys
  • Either key can be used to encrypt or decrypt
  • If Key A is used to encrypt message, then only Key B can decrypt; if Key B is used to encrypt message, then only Key A can decrypt

IS 3200, Summer 2010

asymmetric encryptionn
Asymmetric Encryptionn
  • This technique is most valuable when one of the keys is private and the other is public
  • Problem: it requires four keys to hold a single conversation between two parties, and the number of keys grows geometrically as parties are added

IS 3200, Summer 2010

public key encryption

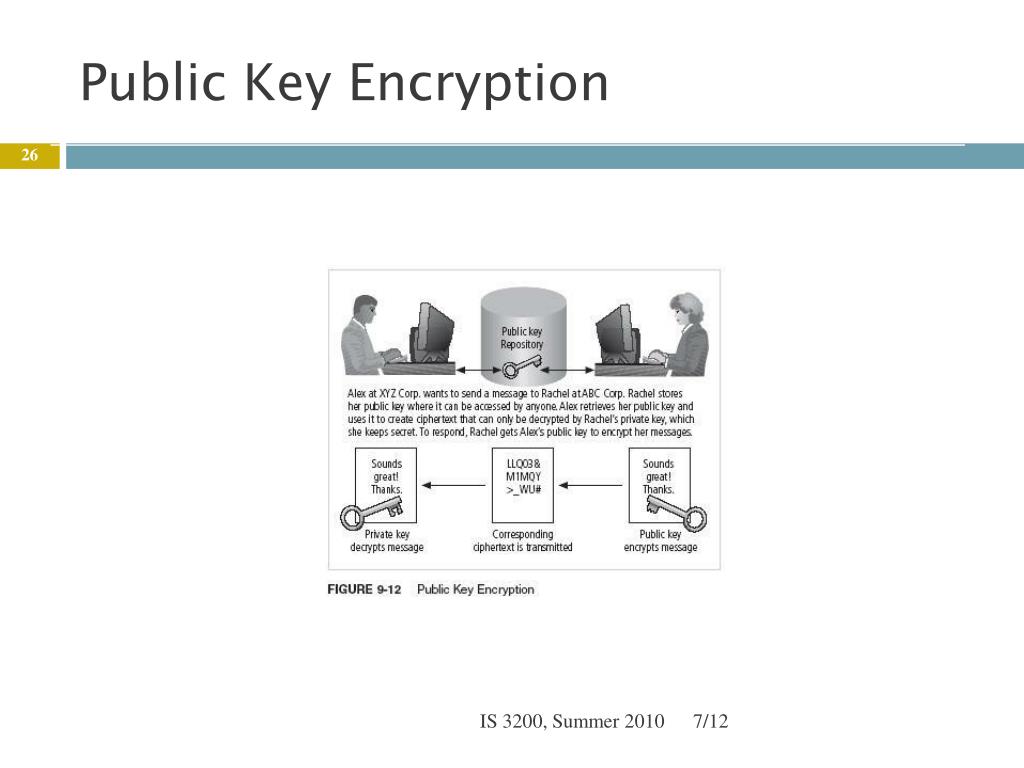

Public Key Encryption

IS 3200, Summer 2010

digital signatures

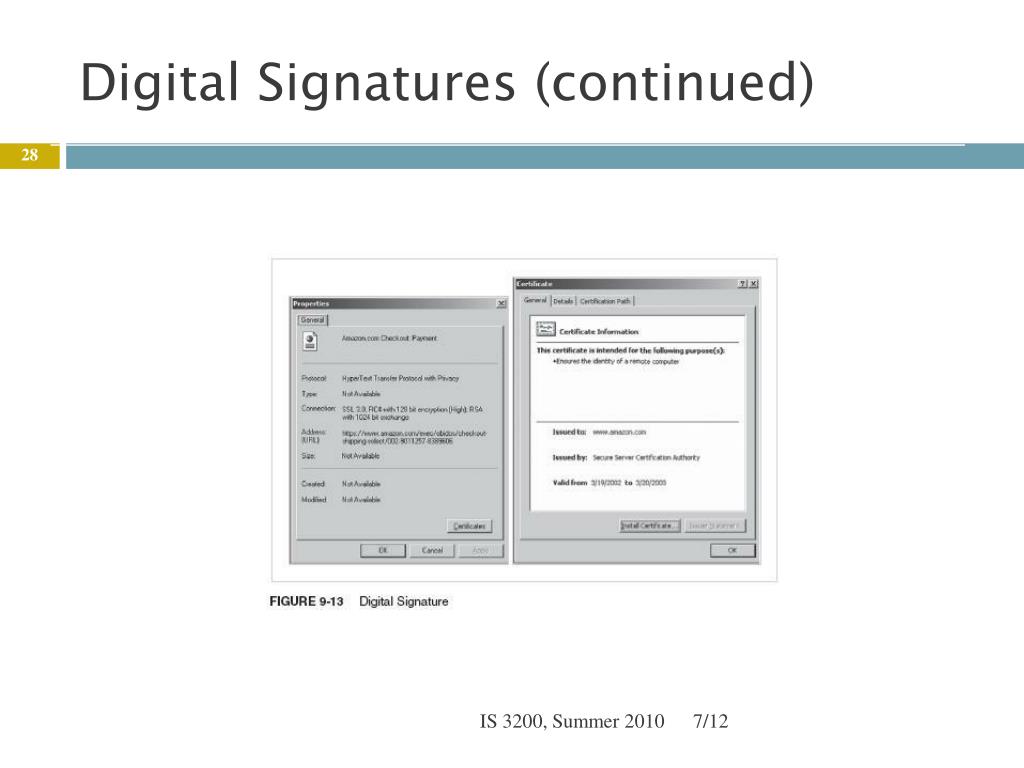

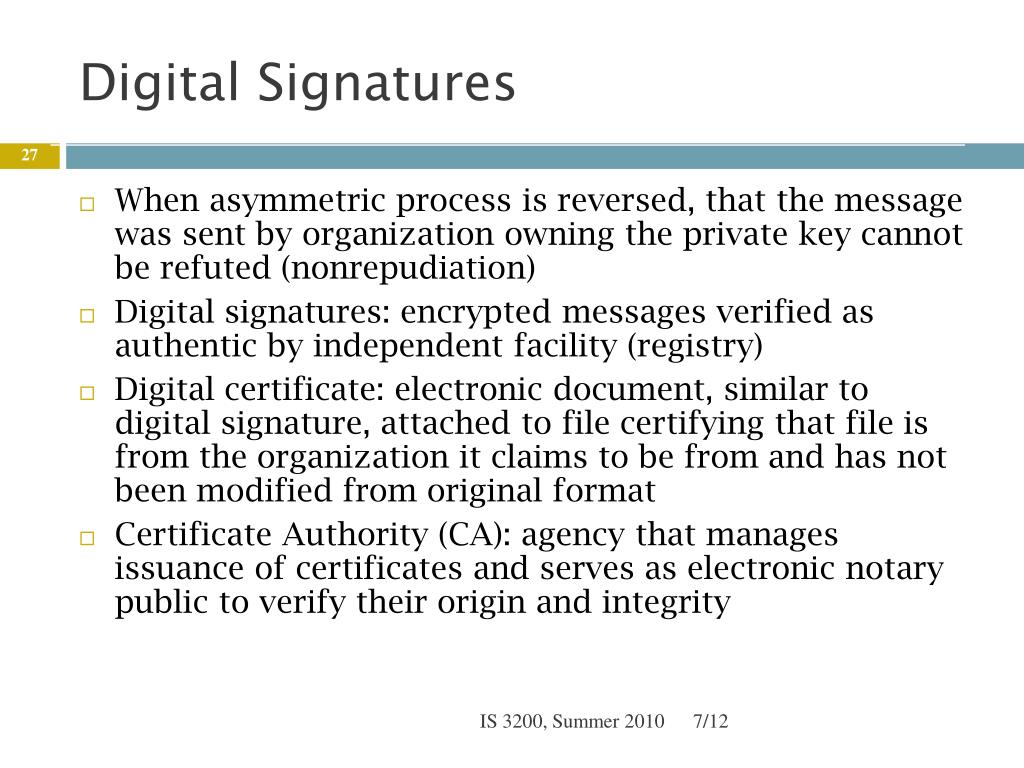

Digital Signatures
  • When asymmetric process is reversed, that the message was sent by organization owning the private key cannot be refuted (nonrepudiation)
  • Digital signatures: encrypted messages verified as authentic by independent facility (registry)
  • Digital certificate: electronic document, similar to digital signature, attached to file certifying that file is from the organization it claims to be from and has not been modified from original format
  • Certificate Authority (CA): agency that manages issuance of certificates and serves as electronic notary public to verify their origin and integrity

IS 3200, Summer 2010

digital signatures continued
Digital Signatures (continued)

IS 3200, Summer 2010

start here 7 14

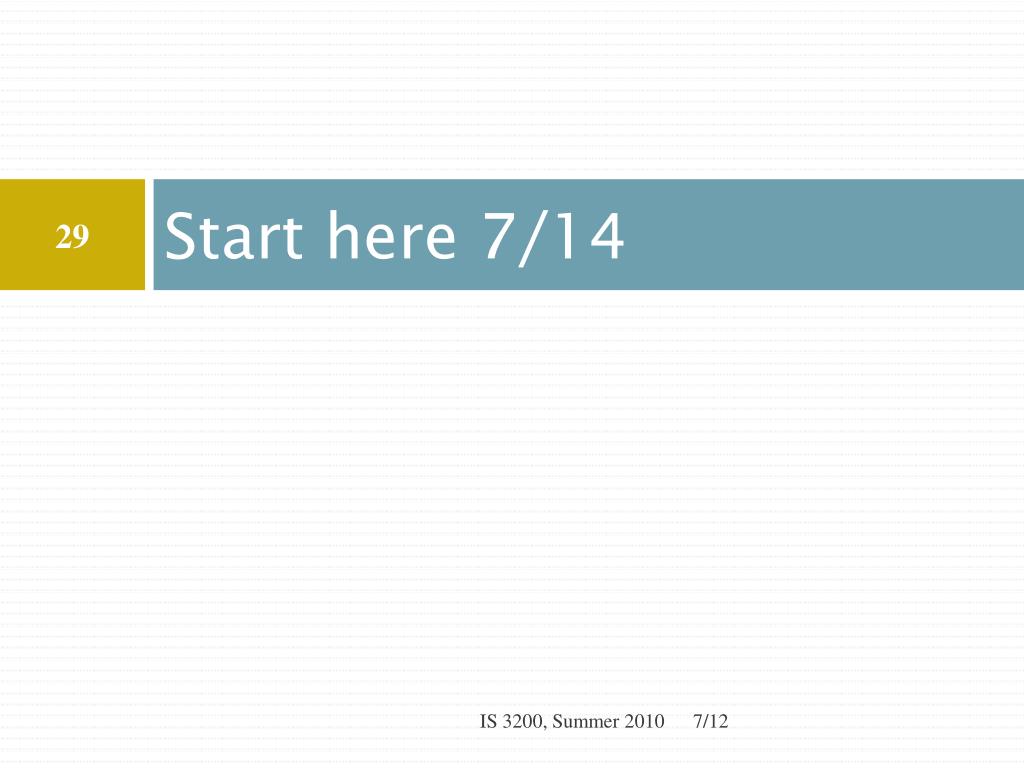

Start here 7/14

IS 3200, Summer 2010

public key infrastructure

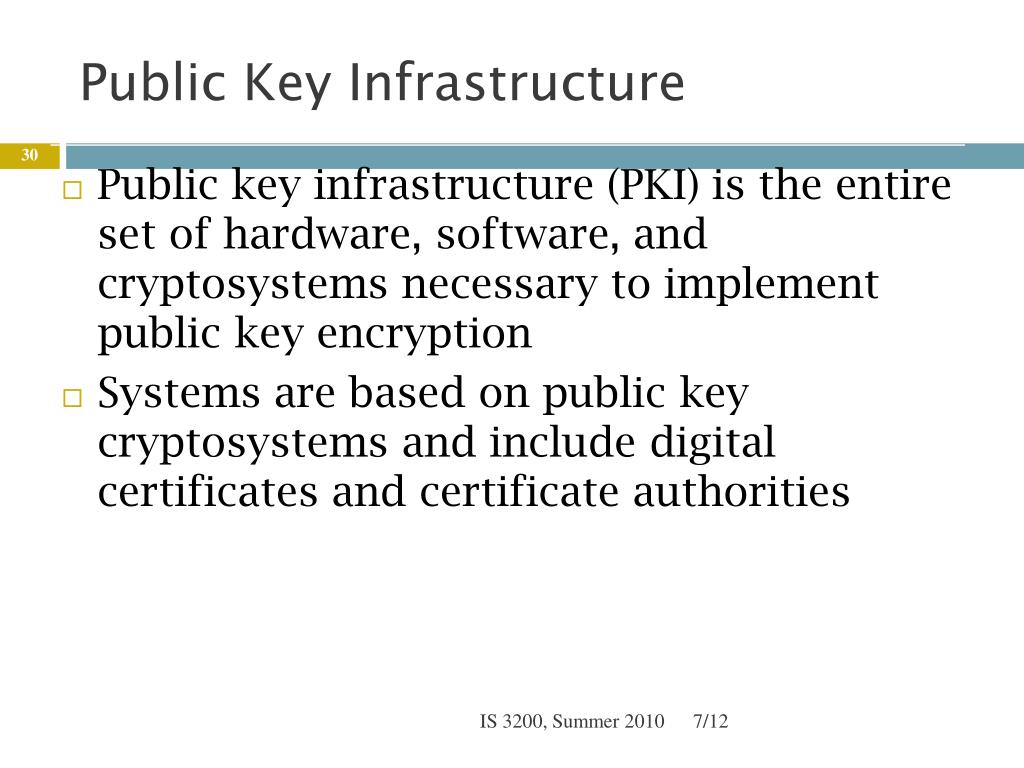

Public Key Infrastructure
  • Public key infrastructure (PKI) is the entire set of hardware, software, and cryptosystems necessary to implement public key encryption
  • Systems are based on public key cryptosystems and include digital certificates and certificate authorities

IS 3200, Summer 2010

public key infrastructure continued
Public Key Infrastructure (continued)
  • Can increase an organization’s ability to protect its information assets by providing:
    • Authentication: digital certificates authenticate identity of each party in an online transaction
    • Integrity: digital certificate asserts content signed by the certificate has not been altered in transit
    • Confidentiality: keeps information confidential by ensuring it is not intercepted during transmission
    • Authorization: digital certificates can replace user IDs and passwords, enhance security, and reduce overhead
    • Nonrepudiation: certificates validate actions

IS 3200, Summer 2010

Firewalls & Network Security, 2nd ed. - Chapter 9

31

hybrid systems
Hybrid Systems
  • Pure asymmetric key encryption not widely used except in area of certificates; instead, typically employed in conjunction with symmetric key encryption, creating a hybrid system
  • Hybrid process currently in use is based on Diffie-Hellman key exchange, which provides method to exchange private keys using public key encryption without exposure to third parties

IS 3200, Summer 2010

hybrid systems continued

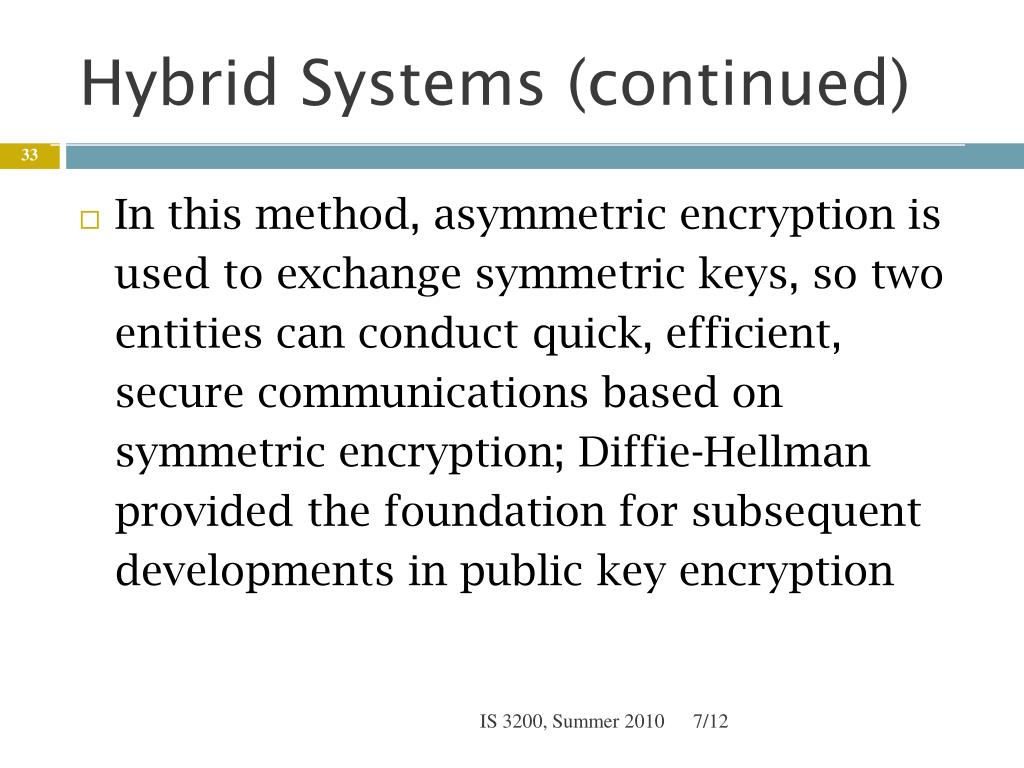

Hybrid Systems (continued)
  • In this method, asymmetric encryption is used to exchange symmetric keys, so two entities can conduct quick, efficient, secure communications based on symmetric encryption; Diffie-Hellman provided the foundation for subsequent developments in public key encryption

IS 3200, Summer 2010

hybrid encryption

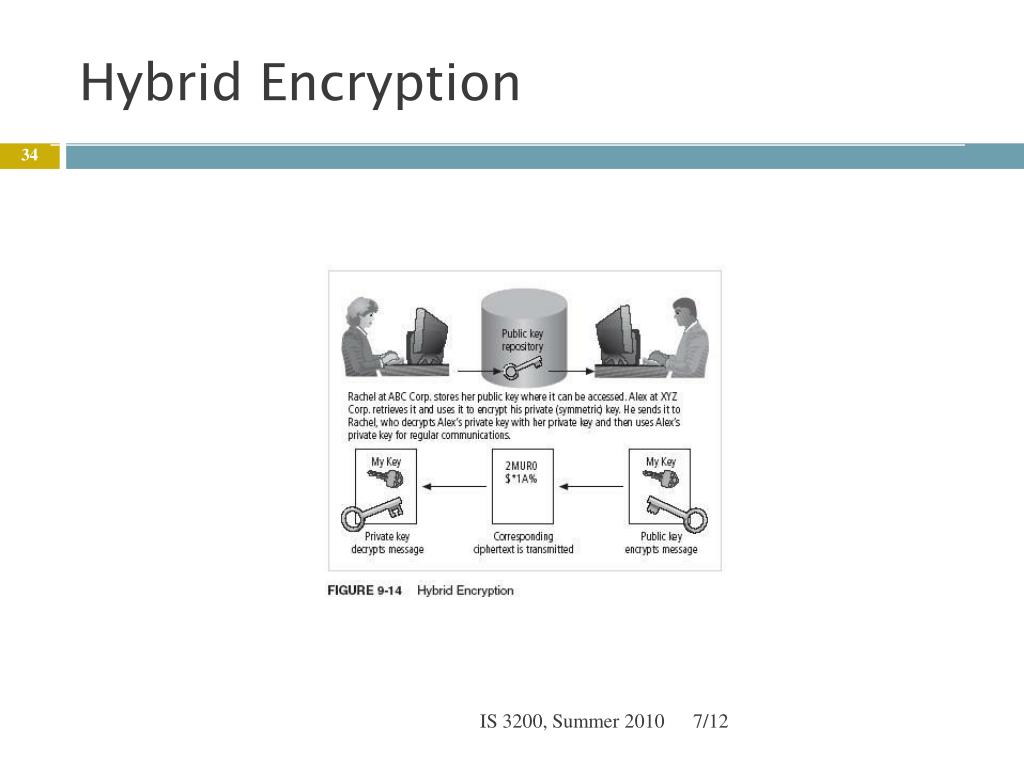

Hybrid Encryption

IS 3200, Summer 2010

using cryptographic controls

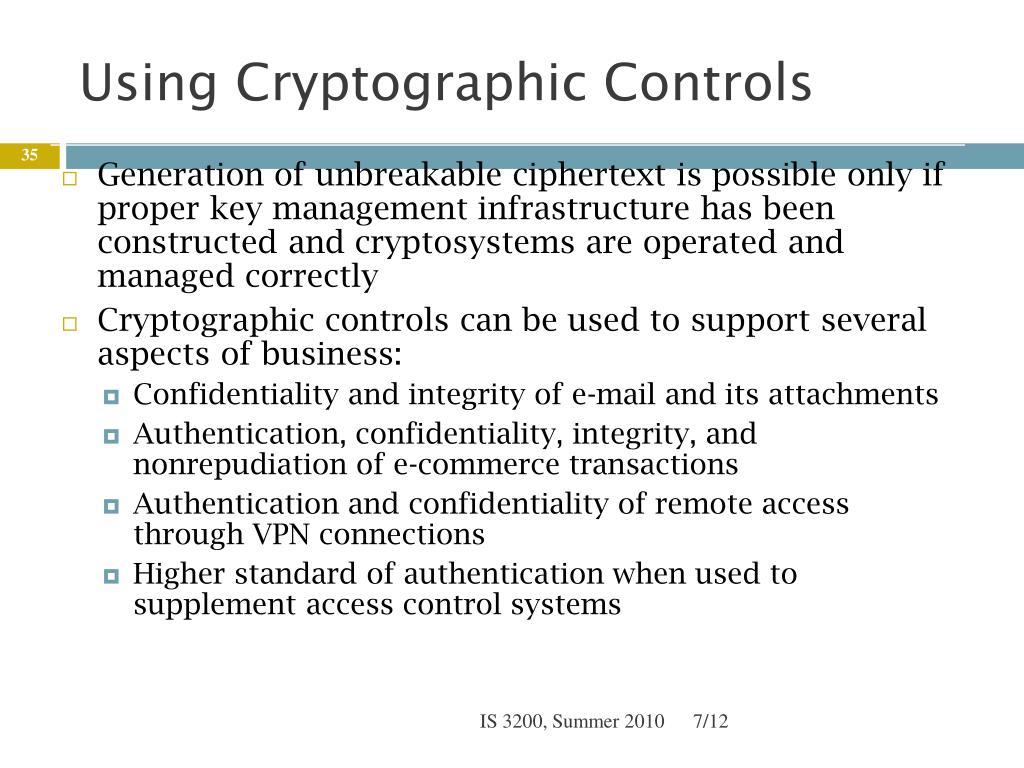

Using Cryptographic Controls
  • Generation of unbreakable ciphertext is possible only if proper key management infrastructure has been constructed and cryptosystems are operated and managed correctly
  • Cryptographic controls can be used to support several aspects of business:
    • Confidentiality and integrity of e-mail and its attachments
    • Authentication, confidentiality, integrity, and nonrepudiation of e-commerce transactions
    • Authentication and confidentiality of remote access through VPN connections
    • Higher standard of authentication when used to supplement access control systems

IS 3200, Summer 2010

e mail security
E-mail Security

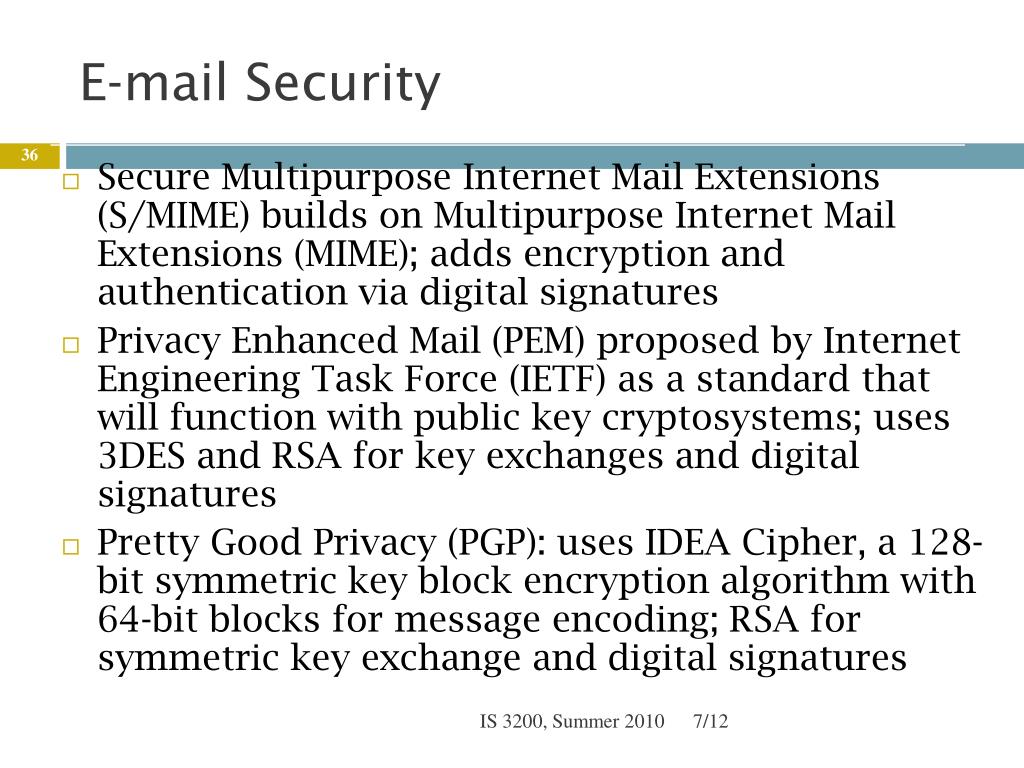

  • Secure Multipurpose Internet Mail Extensions (S/MIME) builds on Multipurpose Internet Mail Extensions (MIME); adds encryption and authentication via digital signatures
  • Privacy Enhanced Mail (PEM) proposed by Internet Engineering Task Force (IETF) as a standard that will function with public key cryptosystems; uses 3DES and RSA for key exchanges and digital signatures
  • Pretty Good Privacy (PGP): uses IDEA Cipher, a 128-bit symmetric key block encryption algorithm with 64-bit blocks for message encoding; RSA for symmetric key exchange and digital signatures

IS 3200, Summer 2010

securing the web

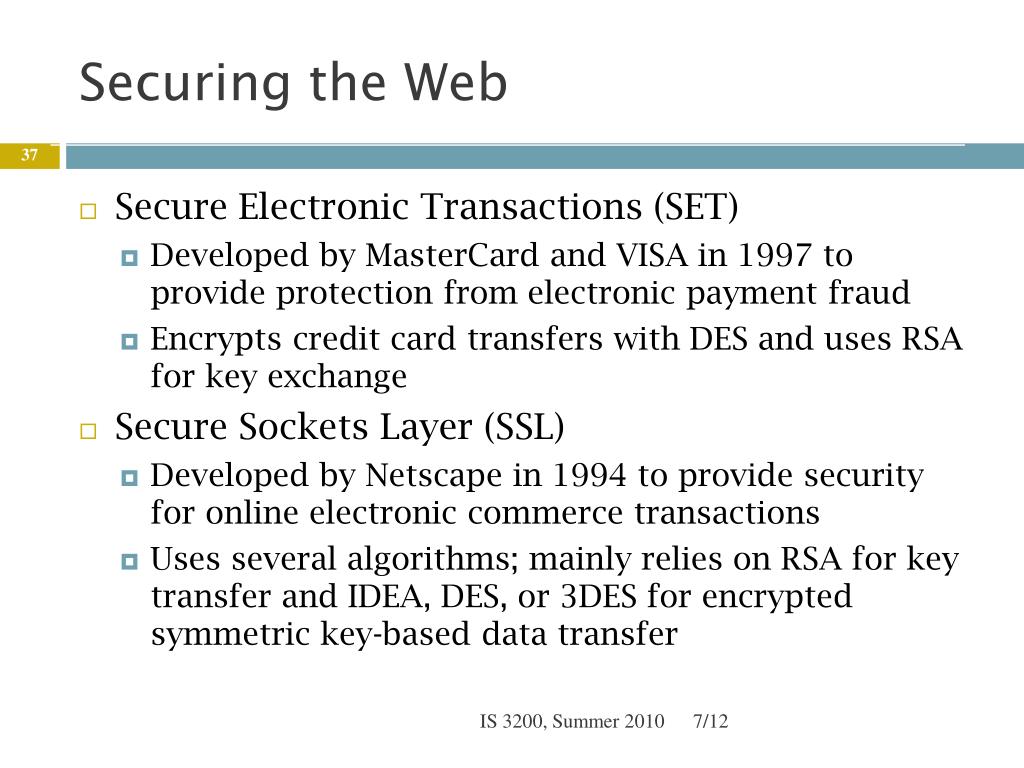

Securing the Web
  • Secure Electronic Transactions (SET)
    • Developed by MasterCard and VISA in 1997 to provide protection from electronic payment fraud
    • Encrypts credit card transfers with DES and uses RSA for key exchange
  • Secure Sockets Layer (SSL)
    • Developed by Netscape in 1994 to provide security for online electronic commerce transactions
    • Uses several algorithms; mainly relies on RSA for key transfer and IDEA, DES, or 3DES for encrypted symmetric key-based data transfer

IS 3200, Summer 2010

securing the web continued
Securing the Web (continued)

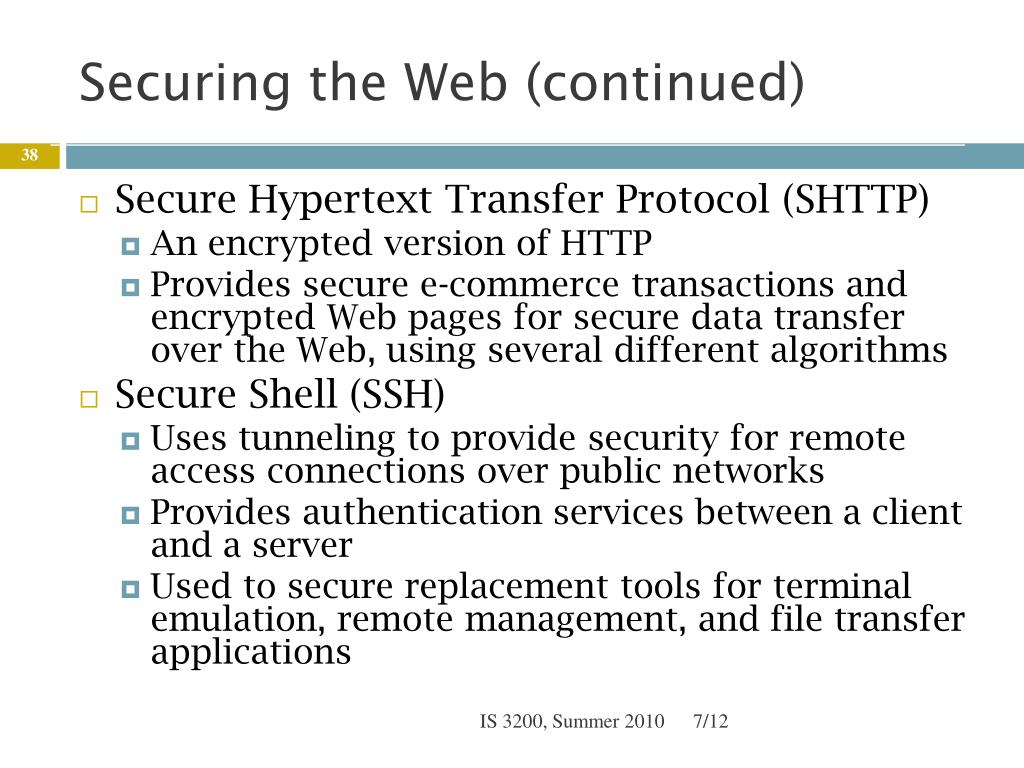

  • Secure Hypertext Transfer Protocol (SHTTP)
    • An encrypted version of HTTP
    • Provides secure e-commerce transactions and encrypted Web pages for secure data transfer over the Web, using several different algorithms
  • Secure Shell (SSH)
    • Uses tunneling to provide security for remote access connections over public networks
    • Provides authentication services between a client and a server
    • Used to secure replacement tools for terminal emulation, remote management, and file transfer applications

IS 3200, Summer 2010

securing the web continued1
Securing the Web (continued)

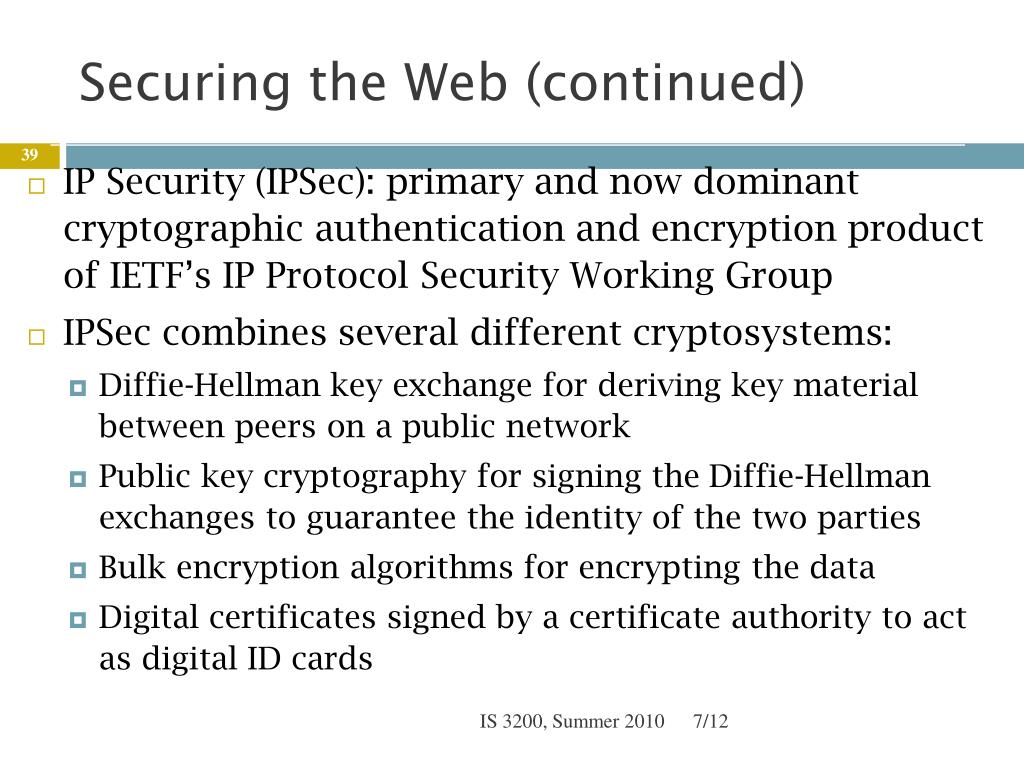

  • IP Security (IPSec): primary and now dominant cryptographic authentication and encryption product of IETF’s IP Protocol Security Working Group
  • IPSec combines several different cryptosystems:
    • Diffie-Hellman key exchange for deriving key material between peers on a public network
    • Public key cryptography for signing the Diffie-Hellman exchanges to guarantee the identity of the two parties
    • Bulk encryption algorithms for encrypting the data
    • Digital certificates signed by a certificate authority to act as digital ID cards

IS 3200, Summer 2010

securing the web continued2
Securing the Web (continued)
  • IPSec has two components:
    • The IP Security protocol itself, which specifies the information to be added to an IP packet and indicates how to encrypt packet data
    • The Internet Key Exchange, which uses asymmetric key exchange and negotiates the security associations

IS 3200, Summer 2010

securing the web continued3
Securing the Web (continued)
  • IPSec works in two modes of operation:
    • Transport mode: only IP data is encrypted—not the IP headers themselves; allows intermediate nodes to read source and destination addresses
    • Tunnel mode: entire IP packet is encrypted and inserted as payload in another IP packet
  • IPSec and other cryptographic extensions to TCP/IP often used to support a virtual private network (VPN), a private, secure network operated over a public, insecure network

IS 3200, Summer 2010

securing authentication
Securing Authentication

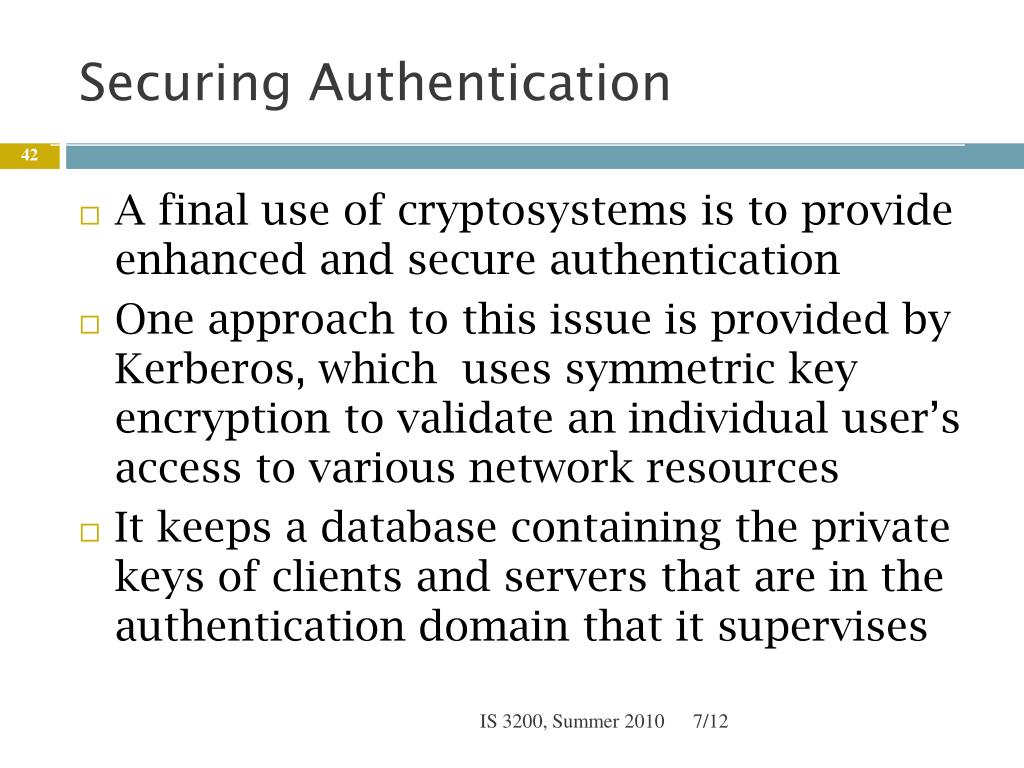

  • A final use of cryptosystems is to provide enhanced and secure authentication
  • One approach to this issue is provided by Kerberos, which uses symmetric key encryption to validate an individual user’s access to various network resources
  • It keeps a database containing the private keys of clients and servers that are in the authentication domain that it supervises

IS 3200, Summer 2010

kerberos
Kerberos
  • Kerberos system knows these private keys and can authenticate one network node (client or server) to another
  • Kerberos also generates temporary session keys—that is, private keys given to the two parties in a conversation

IS 3200, Summer 2010

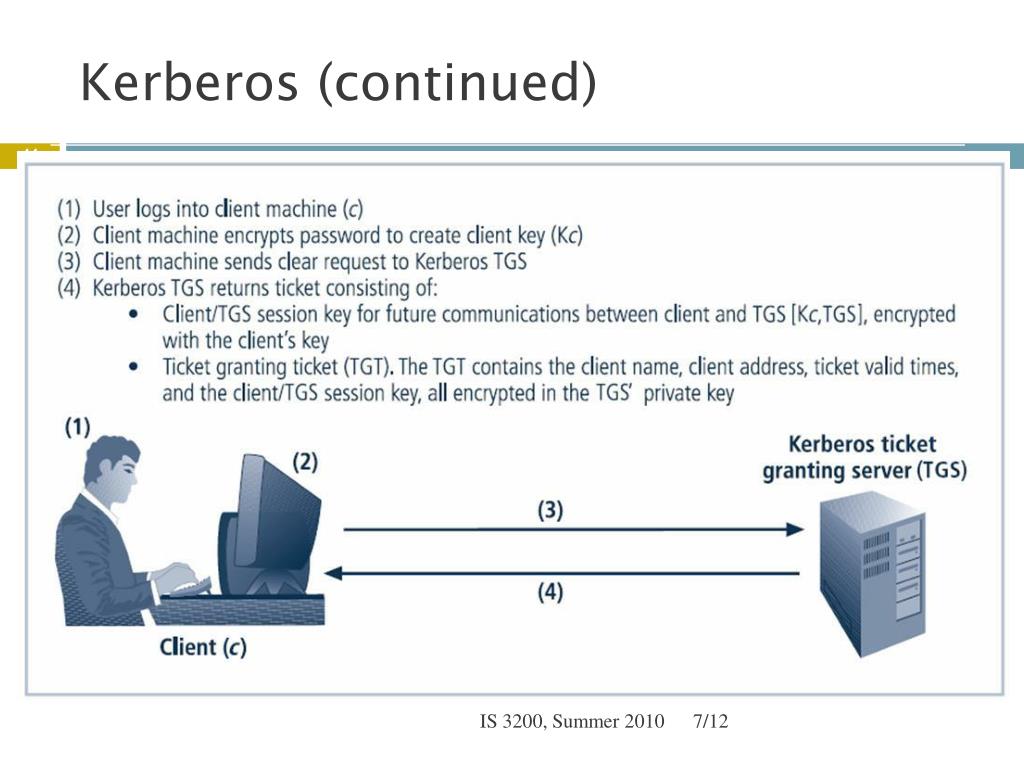

kerberos continued
Kerberos (continued)

IS 3200, Summer 2010

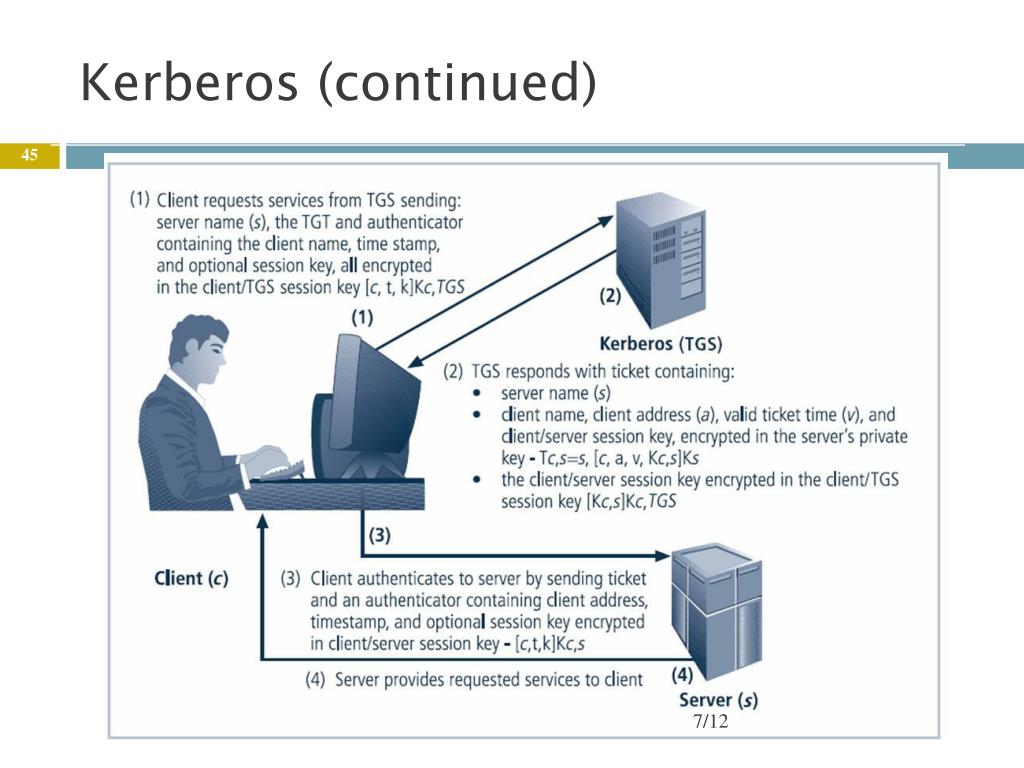

kerberos continued1
Kerberos (continued)

IS 3200, Summer 2010

attacks on cryptosystems
Attacks on Cryptosystems
  • Historically, attempts to gain unauthorized access to secure communications have used brute force attacks in which the ciphertext is repeatedly searched for clues that can lead to the algorithm’s structure (ciphertext attacks)
  • This process, known as frequency analysis, can be used along with published frequency of occurrence patterns of various languages and can allow an experienced attacker to quickly crack almost any code if the individual has a large enough sample of the encoded text

IS 3200, Summer 2010

attacks on cryptosystems continued
Attacks on Cryptosystems (continued)
  • Occasionally, an attacker may obtain duplicate texts, one in ciphertext and one in plaintext, which enable the individual to reverse-engineer the encryption algorithm in a known-plaintext attack scheme
  • Alternatively, an attacker may conduct a selected-plaintext attack by sending a potential victim a specific text that they are sure the victim will forward on to others; the attacker then intercepts the encrypted message and compares it to the original plaintext

IS 3200, Summer 2010

attacks on cryptosystems continued1
Attacks on Cryptosystems (continued)

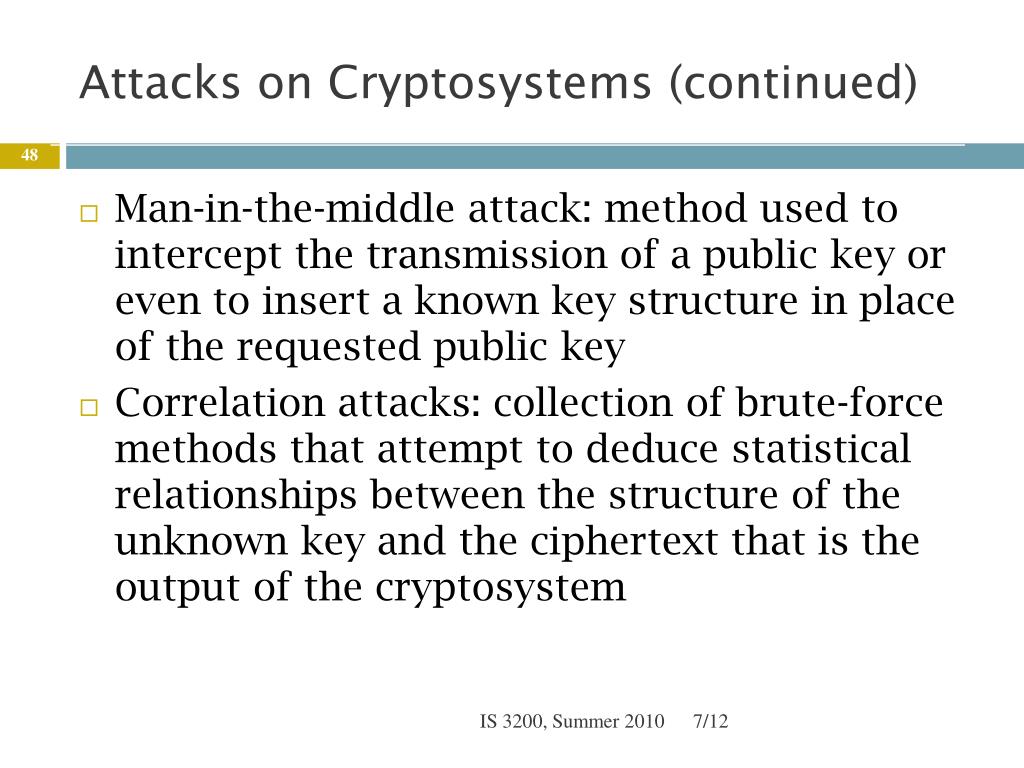

  • Man-in-the-middle attack: method used to intercept the transmission of a public key or even to insert a known key structure in place of the requested public key
  • Correlation attacks: collection of brute-force methods that attempt to deduce statistical relationships between the structure of the unknown key and the ciphertext that is the output of the cryptosystem

IS 3200, Summer 2010

attacks on cryptosystems continued2
Attacks on Cryptosystems (continued)

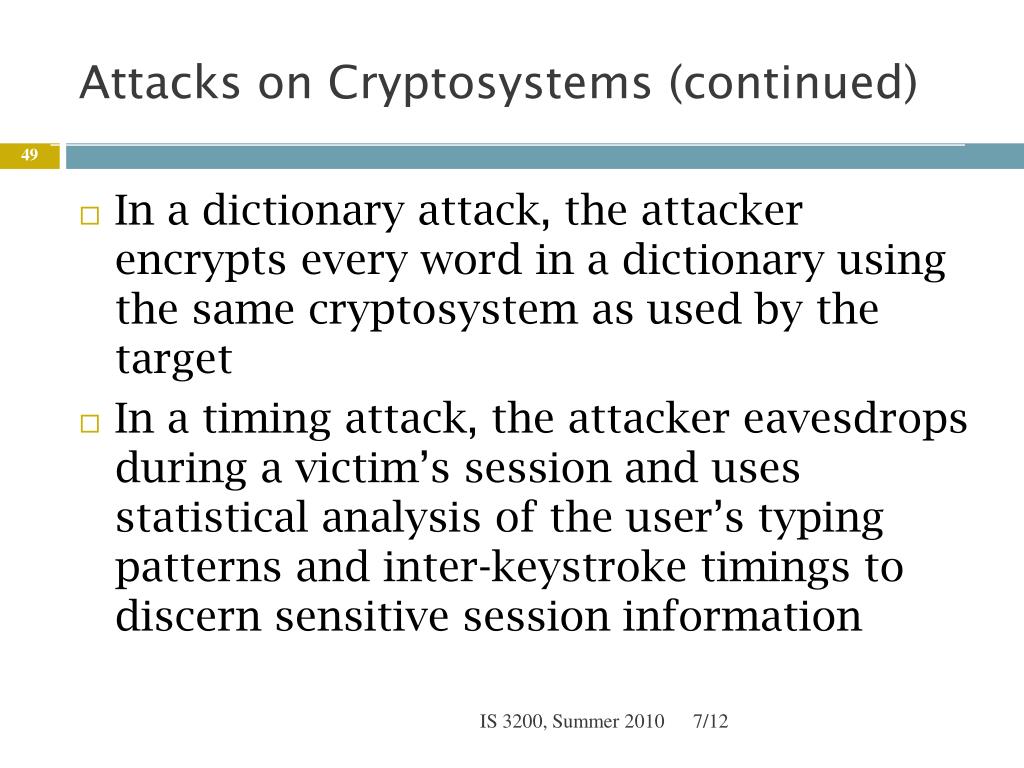

  • In a dictionary attack, the attacker encrypts every word in a dictionary using the same cryptosystem as used by the target
  • In a timing attack, the attacker eavesdrops during a victim’s session and uses statistical analysis of the user’s typing patterns and inter-keystroke timings to discern sensitive session information

IS 3200, Summer 2010

defending from attacks
Defending from Attacks
  • No matter how sophisticated encryption and cryptosystems have become, however, they have retained the same flaw that the first systems contained thousands of years ago: if you discover the key, that is, the method used to perform the encryption, you can determine the message
  • Thus, key management is not so much the management of technology but rather the management of people

IS 3200, Summer 2010

chapter summary
Chapter Summary
  • Encryption: process of rendering information unreadable to all but the intended recipients; purpose is to preserve the integrity and confidentiality of information and/or make the process of authenticating users more effective
  • Firewalls use encryption both to provide protection for data in transit and to help keep firewall secure
  • Encryption of data incurs costs since it requires processing time to encrypt and decrypt the data being protected

IS 3200, Summer 2010

chapter summary continued
Chapter Summary (continued)
  • Cryptology: science of encryption
  • Cryptography: complex process of making and using codes
  • Applying concealing techniques in encryption and decoding ciphertext is called decryption
  • Process used to decrypt data when the process and/or keys are unknown is called cryptanalysis
  • Cryptographic controls: techniques and tools used to implement cryptographic protections; used to secure e-mail, Web access, Web applications, file transfers, remote access procedures like VPNs

IS 3200, Summer 2010

chapter summary continued1
Chapter Summary (continued)
  • Cryptographic control systems often subject to attack
  • Many methods of attack have evolved
    • Brute computational approaches
    • Use of weaknesses often found in implementation of cryptographic controls
  • Some attacks attempt to inject themselves between the parties of a secured communication channel
  • Other attacks combine multiple brute-force approaches into one correlation attack

IS 3200, Summer 2010
